RPMBUS - Flat Screen Mount Chief - Free user manual and instructions

Product Type	Flat Panel Mount / Ceiling Mount
Brand	Chief
Model	RPMBUS
Weight Capacity	50 lbs (22.68 kg)
Material	Steel, aluminum
Mounting Types	Wood stud, concrete, threaded rod, NTP pipe, unistrut
Adjustment	Yaw, pitch, roll (micro-adjustment)
Security	Security screw, lock (keyed)
Interface Bracket Compatibility	Chief SLB (RPM) or SLM (RPMA/B/C) series
Hardware Included	Mount plate, interface bracket, thumb nuts, security screw
Dimensions (Mount Plate)	Approx. 10 x 10 inches (25.4 x 25.4 cm)
Ceiling Plate Thickness	0.125 inches (3 mm)
Pipe Thread Size	1-1/2" NTP (standard)
Lag Bolt Size	1/4" x 3" (for wood/concrete)
Pilot Hole Depth	1-3/4" (45 mm) wood, 2-1/2" (64 mm) concrete
Compliance	UL listed, CE marked
Warranty	5 years (typical for Chief)
Cleaning Instructions	Wipe with dry cloth; do not use solvents

Frequently Asked Questions - RPMBUS Chief

What is the maximum weight capacity of the Chief RPMBUS mount?

The RPMBUS mount supports up to 50 lbs (22.68 kg) total equipment weight.

What types of ceilings or structures can the RPMBUS be mounted to?

It can be mounted to wood studs, concrete, threaded rods, NTP pipes, or unistrut/truss systems. See installation instructions for details.

Does the RPMBUS include the interface bracket?

Yes, the RPMBUS mount includes the appropriate SLB or SLM interface bracket depending on the model.

Can I adjust the projector after installation?

Yes, the mount offers yaw, pitch, and roll micro-adjustments using Phillips screws for fine-tuning.

What tools are required for installation?

You will need a Phillips screwdriver, hex-key wrench, open-ended wrench, drill, and hammer depending on mounting type.

Is the mount secure against theft?

Yes, the RPMBUS includes a security screw and optional keyed lock to deter unauthorized removal.

What is the warranty on Chief RPMBUS?

Chief typically offers a 5-year warranty on their mounts. Check product documentation for exact terms.

Can the mount be used with projectors other than Chief-compatible?

The mount uses interface brackets specific to Chief's SLB/SLM series. Other projectors may require an alternative bracket.

How do I clean the mount?

Wipe with a dry or slightly damp cloth. Avoid using abrasive cleaners or solvents.

What is the difference between RPM and RPMA/B/C models?

The RPM model uses SLB interface brackets and thumb screws, while RPMA/B/C use SLM brackets with a locking lever and key.

USER MANUAL RPMBUS Chief

INSTALLATION INSTRUCTIONS

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

RPM A-C

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

RPM

RPA Elite Series Projector Mount

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND TIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the RPM does not exceed 50 lbs (22.68 kg).

LEGEND

	Tighten Fastener
	Serrez les fixations
	Serrare il fissaggio
	Befestigungsteil festziehen
	Apretar elemento de fijación
	Bevestiging vastdraaien
	Apertar fixador
	Loosen Fastener
	Desserrez les fixations
	Allentare il fissaggio
	Befestigungsteil lösen
	Aflojar elemento de fijación
	Bevestiging losdraaien
	Desapertar fixador
	Phillips Screwdriver
	Tournevis à pointe cruciforme
	Cacciavite a stella
	Kreuzschlitzschraubendreher
	Destornillador Phillips
	Kruiskopschroevendraaier
	Chave de fendas Phillips
	Hex-Head Wrench
	Clé à tête hexagonale
	Chiave esagonale
	Sechskantschlüssel
	Llave de cabeza hexagonal
	Zeskantsleutel
	Chave de cabeça sextavada
	Open-Ended Wrench
	Clé à fourche
	Chiave a punte aperte
	Gabelschlüssel
	Llave de boca
	Steeksleutel
	Chave de bocas
	By Hand
	À la main
	A mano
	Von Hand
	A mano
	Met de hand
	Com a mão

Pencil Mark
Marquage au crayon
Segno a matita
Stiftmarkierung
Marcar con lápiz
Potloodmerkteken
Marcar com lápis
Drill Hole
Percez un trou
Praticare un foro
Bohrloch
Perforar
Gat boren
Fazer furo
Adjust
Ajuster
Regolare
Einstellen
Ajustar
Afstellen
Ajustar
Remove
Retirez
Rimuovere
Entfernen
Quitar
Verwijderen
Remover
Optional
En option
Opzionale
Optional
Opcional
Optie
Opcional
Security Wrench
Clé de sécurité
Chiave di sicurezza
Sicherheitsschlüssel
Llave de seguridad
Veiligheidssleutel
Chave de segurança

Hammer
Martillo
Hammer
Martelo
Martello
Hamer
Marteau

Target of Projector
Punto de enfoque del proyector
Ziel des Projektors
Mira do projector
Punto di proiezione
Doel van de projector
Cible du projecteur

	1/4"	7/32" (6mm) dia.

A (1)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

or

Technical line drawing of a mechanical component with no visible text or symbols

A (1)

Example Only (Interface bracket varies dependent on projector model)

B (1)

Technical line drawing of a mechanical part with mounting holes and a central circular feature (no text or symbols)

1

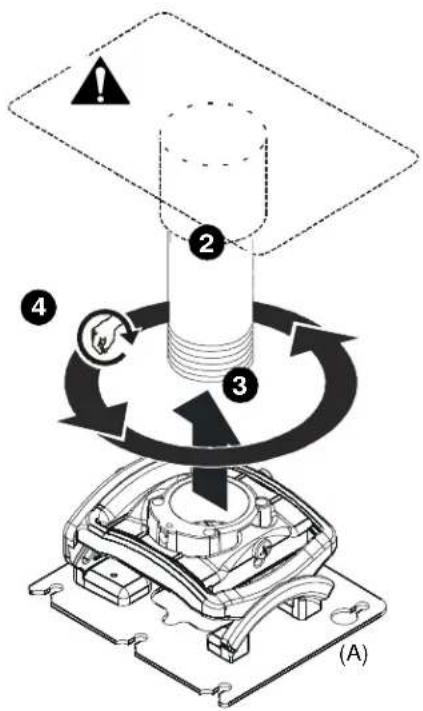

RPM INSTALLATIONThreaded Pipe Installation1. Carefully determine required mounting location.IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance.2. Install ceiling plate and extension accessories following installation instruction provided by manufacturer.WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural membersMUST be capable of supporting five times the combined weight of all equipment being mounted.3. Align RPM with end of NTP pipe.4. Thread RPM up onto pipe by turning counter-clockwise until hand tight.

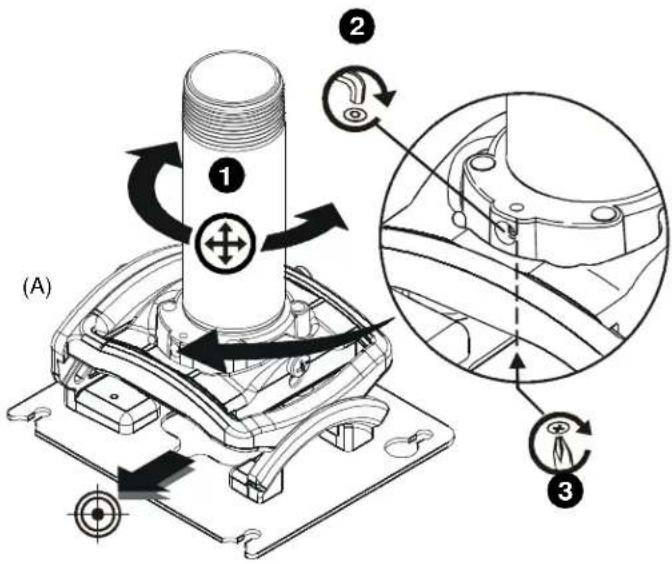

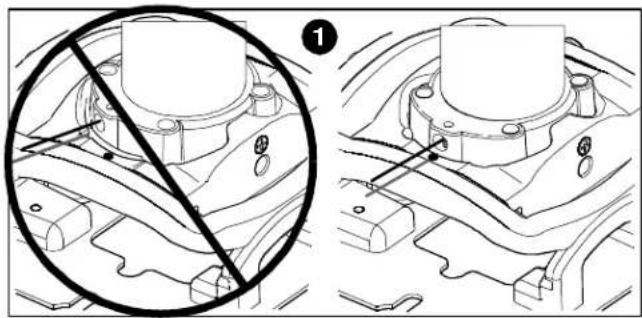

Rough Alignment of RPM1. Turn RPM clockwise or counter-clockwise until front of mount is facing target.IMPORTANT ! : When RPM is properly positioned, the set screw access hole should be pointing directly at target.(see bottom detail in figure at left)2. Secure RPM to pipe by turning set screw until tight.CAUTION: DO NOT OVERTIGHTEN!Overtightening of setscrew can damage threads on pipe.3. Turn security screw using a Phillips screwdriver until set screw cannot be seen through access hole in RPM.

INSTALLATION

Wood Stud Installation

1. Carefully determine required mounting location.

IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for details on determining this distance.

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

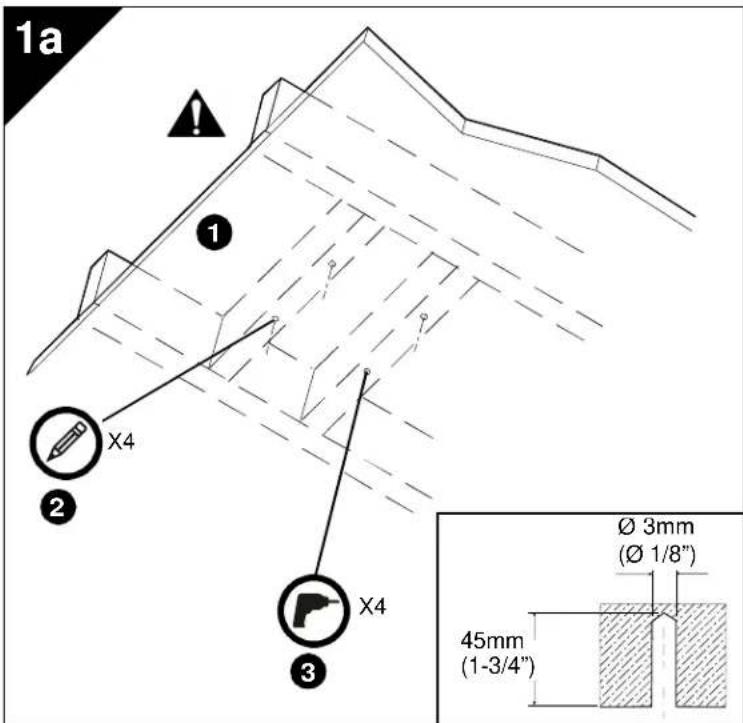

1. Using the RPM as a guide, mark four mounting hole locations with a pencil or similar tool.
2. Drill four 1/8" (3mm) dia. pilot holes to a depth of 1-3/4" (45mm) deep.

Technical line drawing of a mechanical assembly with no visible text or symbols

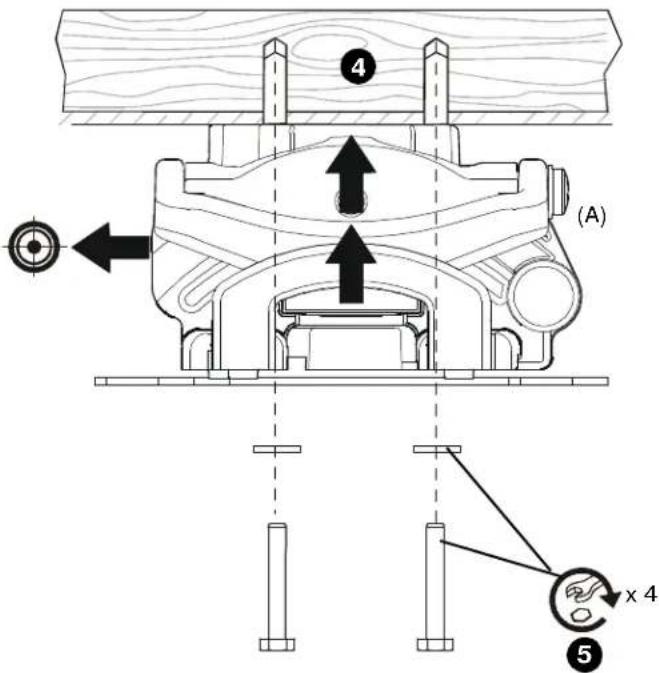

1. Align four mounting holes in RPM with four pilot holes.
   IMPORTANT ! : Make sure mount is properly oriented towards target before securing to structure.
2. Secure RPM to structure using four 1/4" flat washers and four 1/4" x 3" lag bolts (not included).

Concrete Installation

1. Determine mounting location.

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

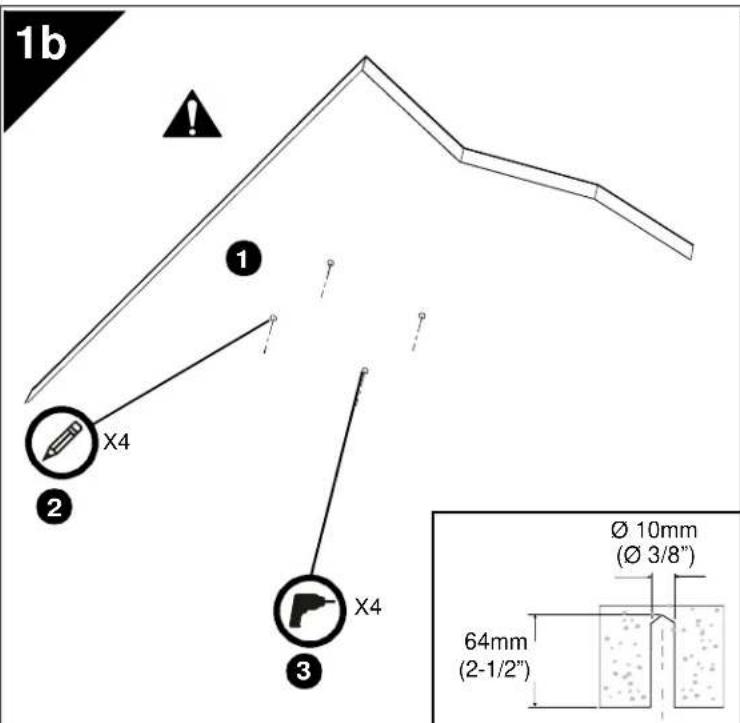

1. Using the RPM as a guide, mark four mounting hole locations on ceiling using a pencil or similar tool.
2. Drill four 3/8" (10mm) dia. pilot holes to a depth of 2-1/2" (64mm) deep.

1. Align four mounting holes in RPM with four pilot holes.
   IMPORTANT ! : Make sure mount is properly oriented towards target before securing to structure.

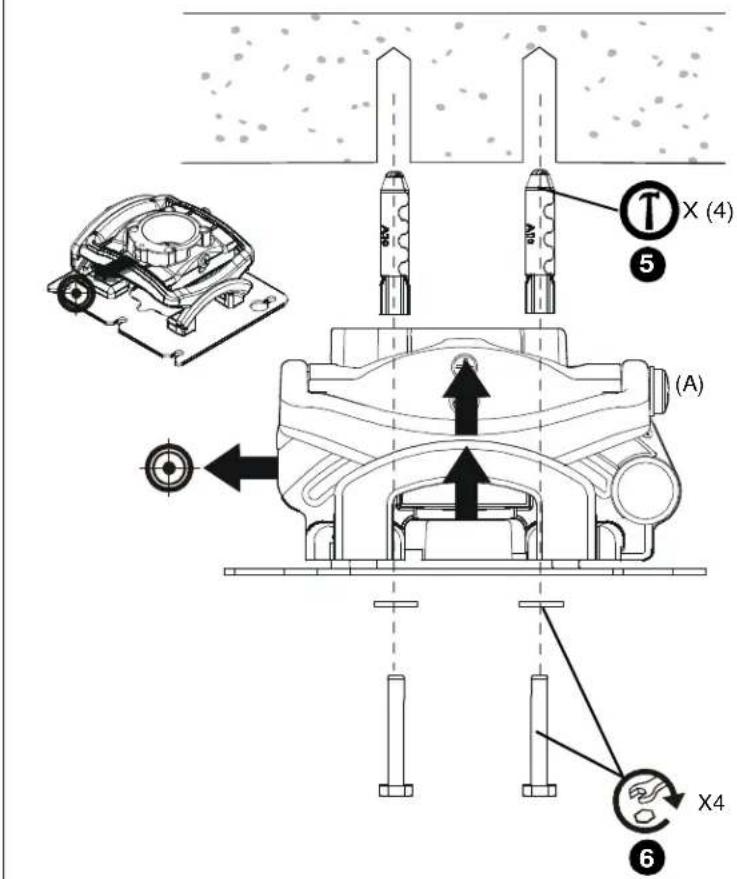

2. Install four Toggler A10 Alligator concrete anchors (not included) by inserting into pilot holes and pounding in until flush with mounting surface.
3. Secure RPM to structure using four 1/4" flat washers and four 1/4" x 3" lag bolts. (not included)

Threaded Rod Installation

The RPM can be secured to unistrut, angle or channel assembly overhead structural members (trusses or I-beams) using four 1/4" diameter threaded rods.

WARNING: IMPROPER INSTALLATION CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Structural members MUST be capable of supporting five times the combined weight of all equipment being mounted.

1. Carefully determine required mount position.

IMPORTANT ! : This will require knowing the lens to screen distance. See projector specifications for determining this distance.

NOTE: Threaded rod and installation hardware not included.

1. Secure one end of the threaded rod to the structural member.
2. Install four 1/4-20 jam nuts on each threaded rod.

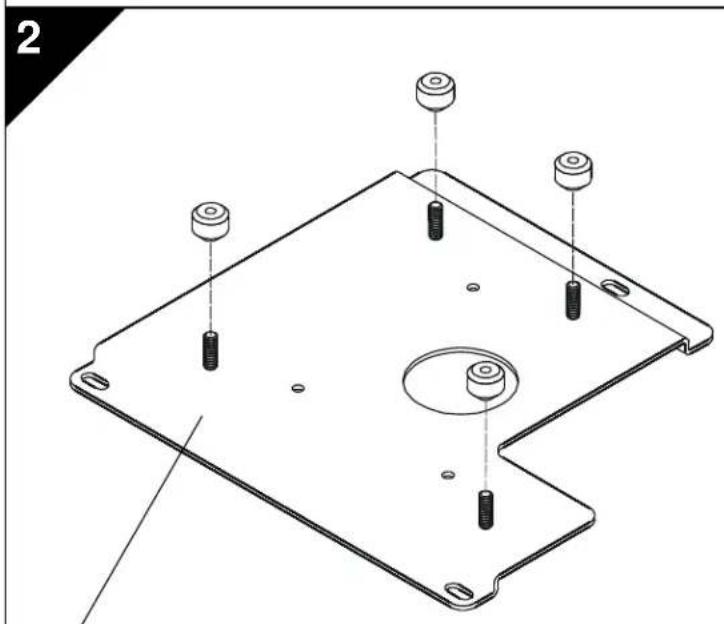

3. Install the RPM on the threaded rod.

NOTE: Hole in the RPM allows socket wrench access without unit disassembly.

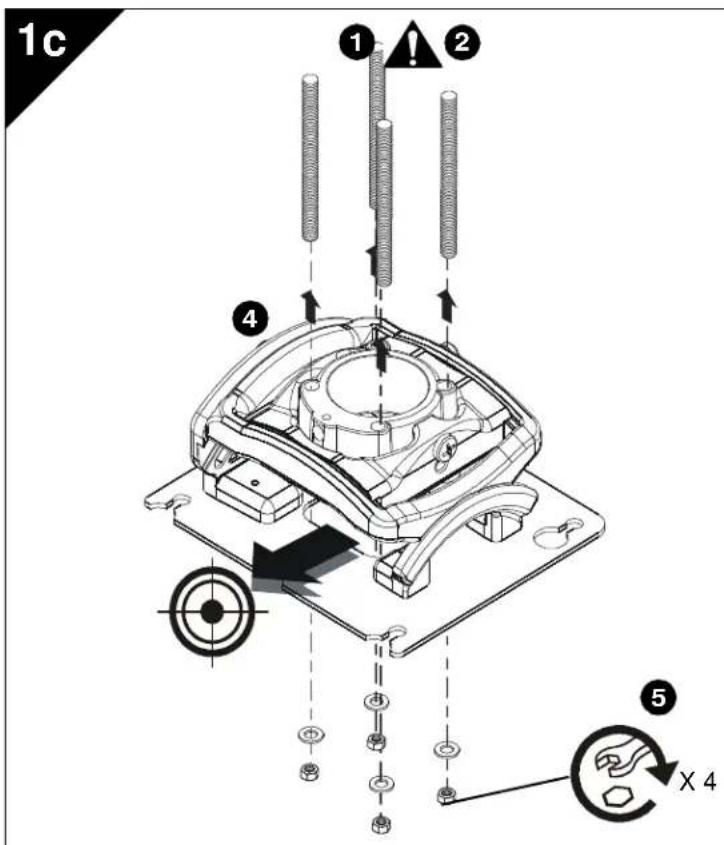

1. Secure the RPM to the threaded rod using four 1/4-20 nuts.

Technical line drawing of a mechanical component with mounting holes and cylindrical pins (no text or symbols)

PROJECTOR INSTALLATION

IMPORTANT ! : Model RPM uses Chief "SLB" Series interface brackets and Models RPMA, RPMB and RPMC use Chief "SLM" Series interface brackets.

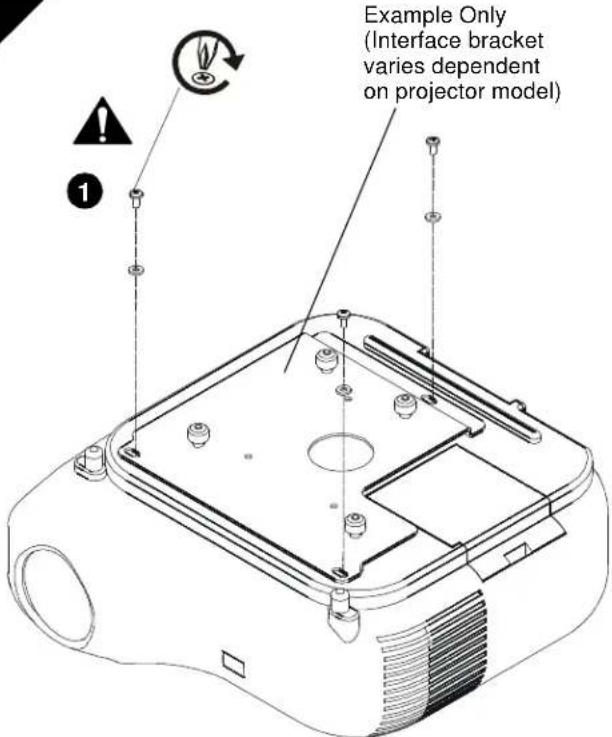

Install Interface Bracket

NOTE: If a model RPMA, RPMB, or RPMC is being installed, the interface bracket will be shipped with thumb nuts attached and locked into place. If this is the case proceed to Step 2a. Both the interface bracket and amount of hardware will vary dependent on projector model.

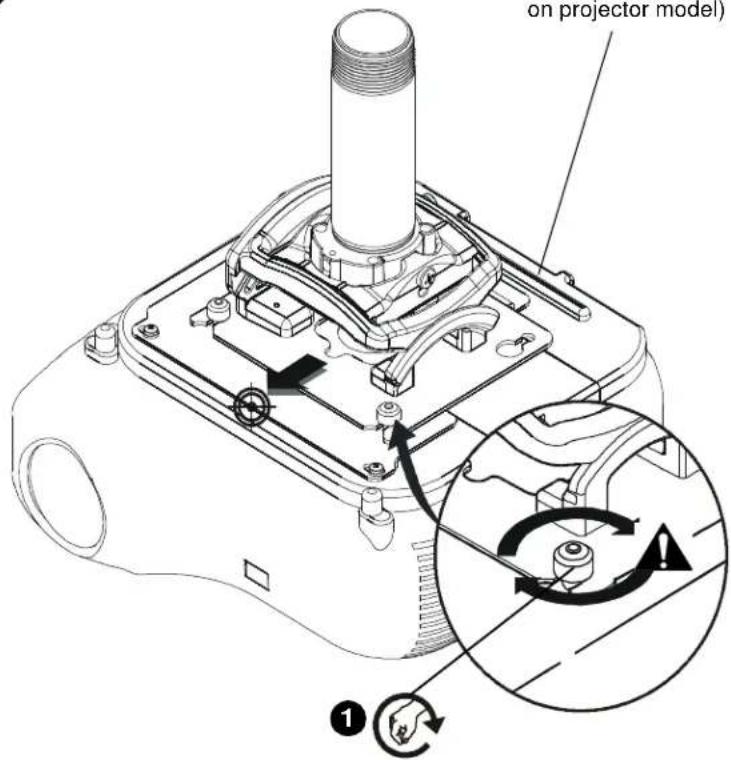

1. Partially thread thumb nuts onto Phillips flat head screws until screw end is visible in top of thumb screw.

IMPORTANT ! : DO NOT fully tighten thumb screws at this time.

Example Only (Interface bracket varies dependent on projector model)

2a

⚠WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer.1. Secure interface bracket to mount using installation instructions and hardware provided with interface bracket.NOTE: Interface brackets can be installed using the optional All-Points Security Kit from Chief. Contact a Chief customer service representative for additional information.

2b

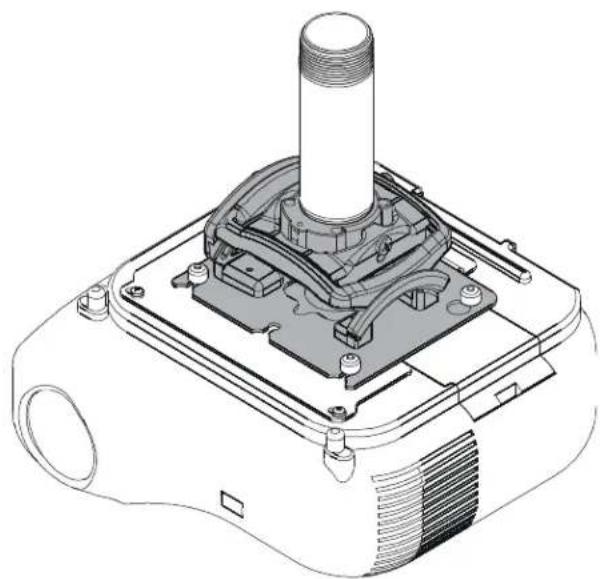

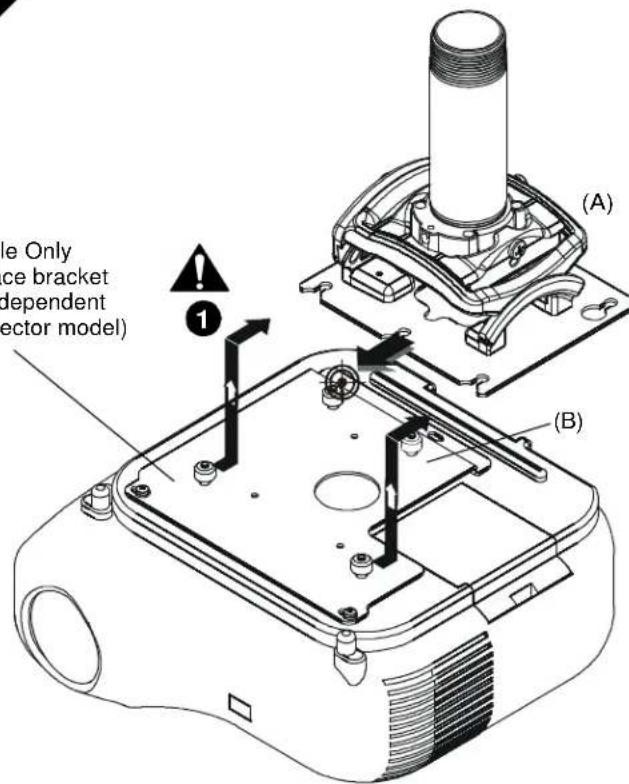

Install Projector With Interface Bracket1. Orient projector with interface bracket as shown in figure 2b at left.2. Lift projector so that screws with thumb nuts are aligned with mounting slots in mount base.3. Slide projector with mounting bracket onto mounting slots in mount base until screws are seated against the back of mounting slots. See figure 2b and 2c.⚠WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under thumb screws and that screws are seated in the back of slots.

2c	Example Only (Interface bracket varies dependent)	Securing Projector with Interface Bracket to Model RPM Mount.⚠ WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under thumb screws and that screws are seated in the back of slots.1. Turn thumb nuts until tight to secure projector to mount.NOTE: This step applies only to Model RPM. See the procedure below and figure 2d for instruction on securing Models RPMA, RPMB and RPMC to interface bracket.

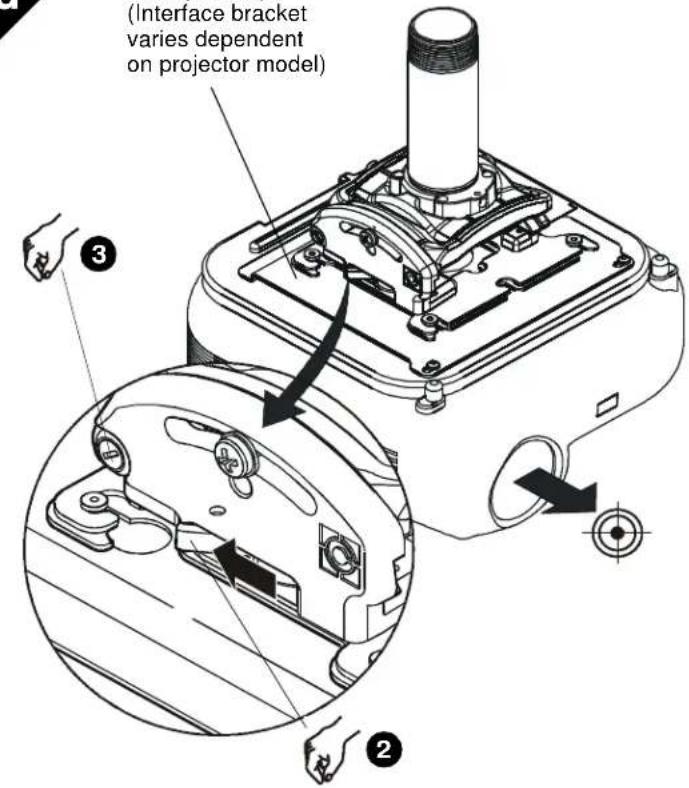

2d	Example Only	Securing Projector with Interface Bracket to Model RPMA, RPMB and RPMC Mounts.⚠ WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Make certain mounting slots in mount base slide under thumb screws and that screws are seated in the back of slots.1. Verify mounting screws are properly seated in mounting slots in mount base.2. Move locking lever to "Locked" position as shown in figure 2d at left.3. Insert key into lock and turn to secure projector to mount.

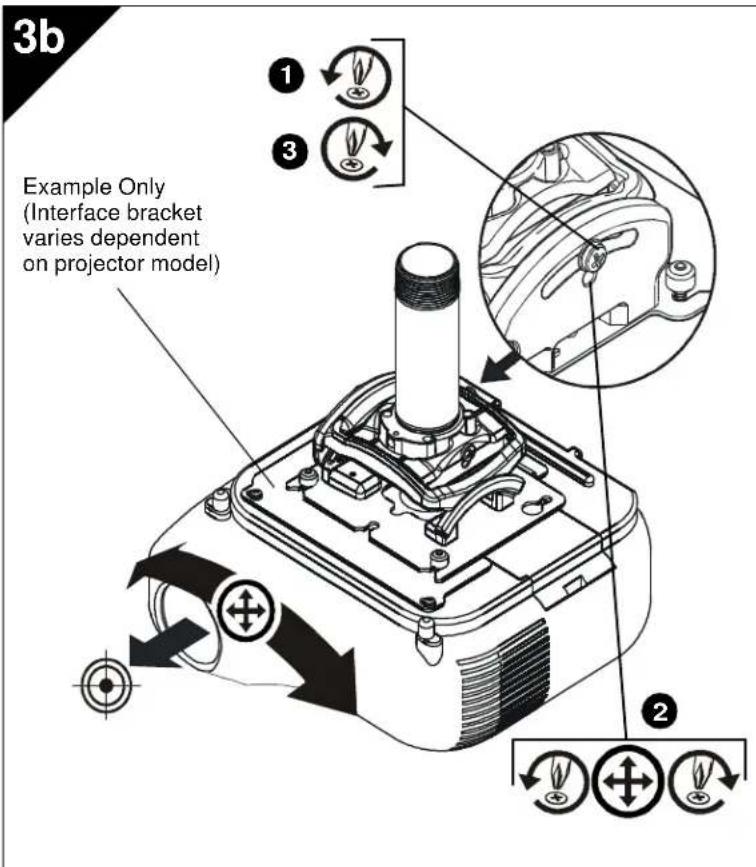

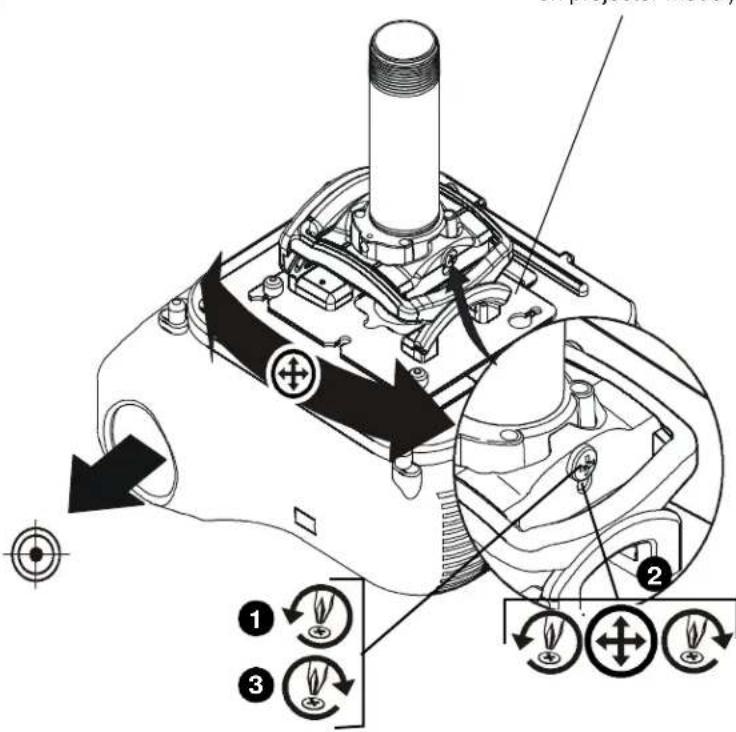

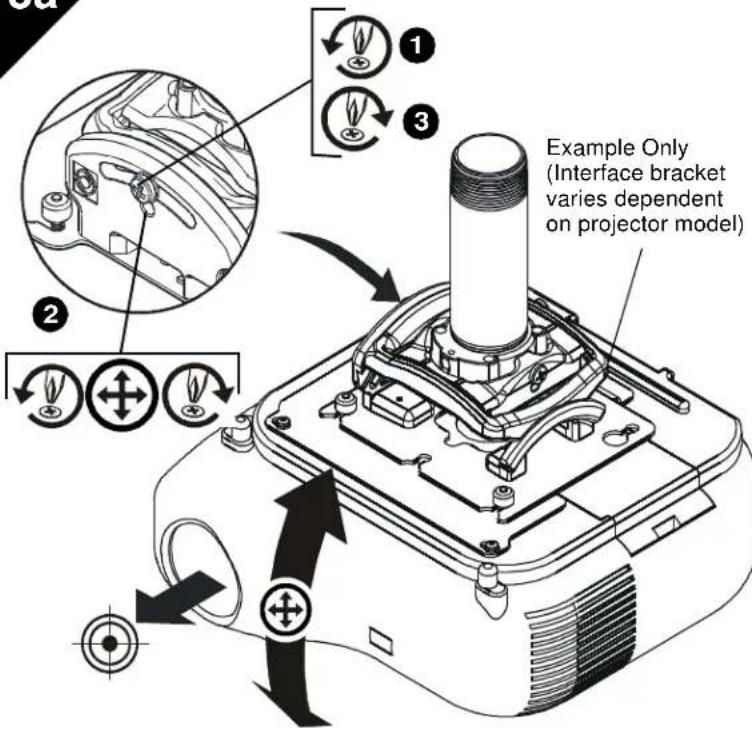

Example Only (Interface bracket varies dependent on projector model)	ADJUSTMENTSYAW AdjustmentLoosen YAW adjustment locking screw using a #2 Phillips screwdriver.Turn YAW micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.Tighten YAW adjustment locking screw using a #2 Phillips screwdriver.
	Pitch AdjustmentLoosen PITCH adjustment locking screw using a #2 Phillips screwdriver.Turn PITCH micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.Tighten PITCH adjustment locking screw using a #2 Phillips screwdriver.

Roll Adjustment

1. Loosen ROLL adjustment locking screw using a #2 Phillips screwdriver.
2. Turn ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until image is properly aligned on target.
3. Tighten ROLL adjustment locking screw using a #2 Phillips screwdriver.

CHIEF | SANUS AUDIO VISUAL

MANUFACTURERS DECLARATION OF CONFORMITY

For

Product identification:

Model/type : RPM

Category (description) : Mounting devices, Stands and other Accessories, to be used with entertainment electronics

Brand : Chief

Manufacturer: CSAV Inc.

CSAV Inc. 8401 Eagle Creek Parkway

Savage, MN 55378

EU Representative:

CSAV Inc.

Fellennoord 130 5611

ZB Einhoven

The Netherlands

31 (0)20 5708923

Concerning
	EMC	Safety
A sample of the product has been tested by:	Not Applicable	CSAV Inc.
Test report reference
Applied standards		EN 60065 :2002

Means of conformity

We declare under our sole responsibility that this product is in conformity with Directive 93/68/EEC (Marking), 98/37/EC (Machinery) 2001/95/EC (Safety) and/or complies to the essential requirements and all other relevant provisions of the based on test results using (non)harmonized standards in accordance with the Directives mentioned

RPA Elite Series Projector Mount

Installation Instructions
