Product Type	Wall mount for LED/LCD TVs and monitors
Brand	Sven
Model	C77-22
VESA Compatibility (mm)	100x100, 200x100, 200x200
Diagonal Compatibility (inch/cm)	26–40 inch / 66–101.6 cm
Maximum Load (kg)	35
Mounting Type	Tilt-swivel
Degrees of Freedom	4
Tilt Angle	-5° to +15°
Swivel Angle	±90°
Distance from Wall (mm)	85–250
Coating	High-strength polymer
Color (estimated)	Black
Included Level	Yes
Security Locks	Yes
Cable Management Guides	Yes
Package Contents	Mount, mounting accessory kit, user manual, warranty card
Wall Material Requirements	Solid brick, concrete, wood or equivalent
Cleaning Instructions	Wipe with a dry or slightly damp cloth; do not use abrasive cleaners

Frequently Asked Questions - С77-22 Sven

What is the maximum TV size and weight this mount supports?

The Sven C77-22 supports TVs with diagonals from 26 to 40 inches (66–101.6 cm) and a maximum weight of 35 kg.

What VESA patterns are compatible with this mount?

It supports VESA 100x100, 200x100, and 200x200 mm.

Can I tilt and swivel the TV after mounting?

Yes, the mount allows a tilt of -5° to +15° and a swivel of ±90°.

What tools are needed for installation?

You will need a drill, screwdriver (not electric for final tightening), spirit level, and appropriate drill bits for your wall type.

Is the mount suitable for drywall?

No, the manufacturer recommends installing on solid brick, concrete, or wood walls. For wooden walls, drill holes as close to the center of the board.

How far from the wall will the TV be?

The distance from the wall can be adjusted between 85 mm and 250 mm.

Does the mount come with a level?

Yes, a level is included to ensure the mount is perfectly horizontal during installation.

How do I secure the TV and prevent theft?

The mount features security locks that snap shut when the TV is hung. To release, press down on the locks.

Can I hide the cables?

Yes, the mount has cable management guides on both sides, and cable ties are included to keep wires organized.

How should I clean the mount?

Clean with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents.

USER MANUAL С77-22 Sven

3D mechanical assembly diagram showing a shaft connected to a bracket with mounting holes (no text or symbols visible)

Congratulations on your purchase of the Sven wall mount!

COPYRIGHT

© 2015. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

1. BUYER RECOMMENDATIONS .... 1
2. APPLICATION 2
3. SAFETY PRECAUTIONS 2
4. SPECIAL FEATURES ...... 2
5. PACKAGE CONTENTS 2
6. MOUNTING AND INSTALLATION.... 3
7. TECHNICAL SPECIFICATIONS .... 5

1. BUYER RECOMMENDATIONS

- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.

- Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the number of the wall mount corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.

- Before installing and using the wall mount, read this Manual carefully.

2. APPLICATION

C77-22 is designed for wall-mounting LED/LCD TV sets and monitors.

3. SAFETY PRECAUTIONS

• Do not exceed the maximum load specified in the Manual to avoid accidents or damage.
• Before installing the wall mount, read this Manual carefully and follow all the instructions when installing. To ensure safe and reliable mounting, it's recommended that installation be done by qualified specialists.
• Position your mount away from internal electric wires, water and gas pipes and other dangerous objects.
  • Install the mount on walls of solid brick, concrete, wood or other material providing equivalent support.
• When installing the mount on a wooden wall, drill the holes as close as possible to the center of the board to provide secure support.
• Fasten the screws until they are fixed. Do not use electric tools for this purpose.
• For safety reasons, do not install the wall mount alone.

4. SPECIAL FEATURES

• VESA: 100 × 100/200 × 100/200 × 200 mm
- Diagonal compatibility: 26" - 40"/66 - 101.6 cm
- Level included
- -5° to +15° adjustable tilt angle
- Swivel angle: ± 90^irc
- Easy installation and mounting
• High-strength polymer coating
- Security locks
• Guides for cable mounting

5. PACKAGE CONTENTS

• Mount — 1 pc
• Mounting accessory kit — 1 pack
• User's manual — 1 pc
• Warranty card — 1 pc

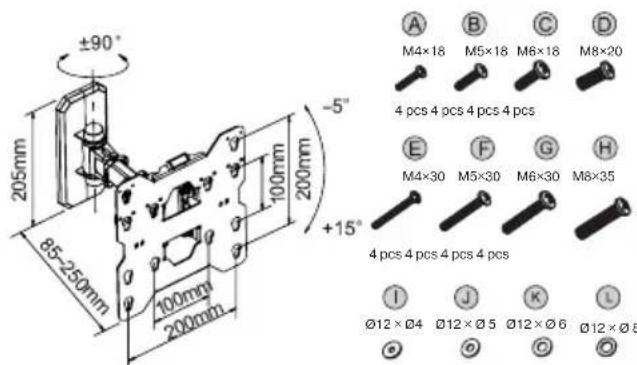

26" - 40" 66 - 101.6 cm

100 × 100 mm 200 × 100 mm 200 × 200 mm

85 \~ 250 mm

Components and Accessory Kit

1 pc4 pcs2 pcs2 pcs2 pcs

6. MOUNTING AND INSTALLATION

• Choose a wall to hang your mount on. It's recommended that the height H and the distance L from the viewer be calculated according to the formulas in the figures on the left.
• Then, place the mount against the wall and mark the spots where the holes should be drilled (see Fig. ①). In a wooden wall, drill two ∅ 5 mm and 30-40 mm deep holes; in a brick or concrete wall, drill ∅ 10 mm and 60 mm deep holes (Fig. ②).

• Fix the mount on the wall using dowels (see Fig. ③).

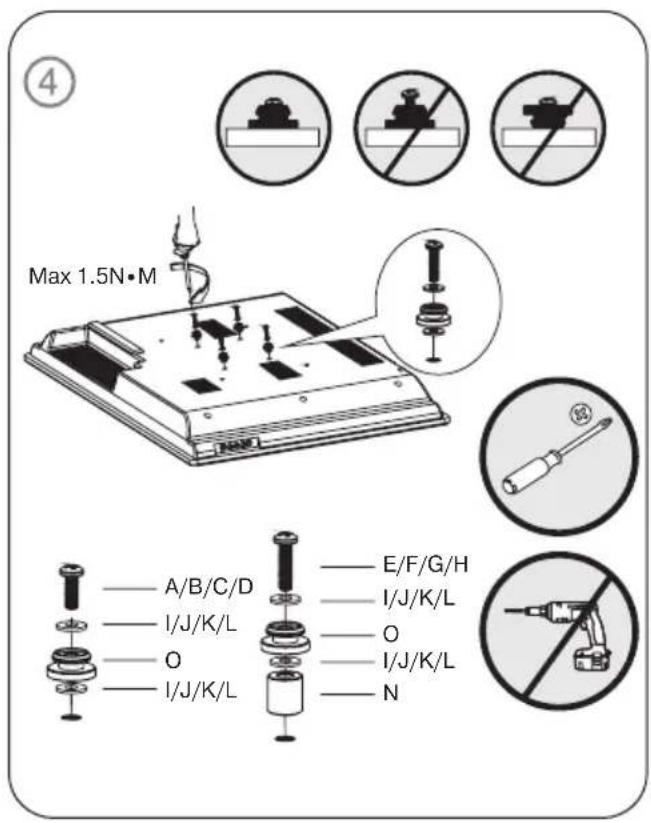

• Fix the suitable screws and washers (included in the package) on the rear panel of your TV, as shown in Fig. ④.

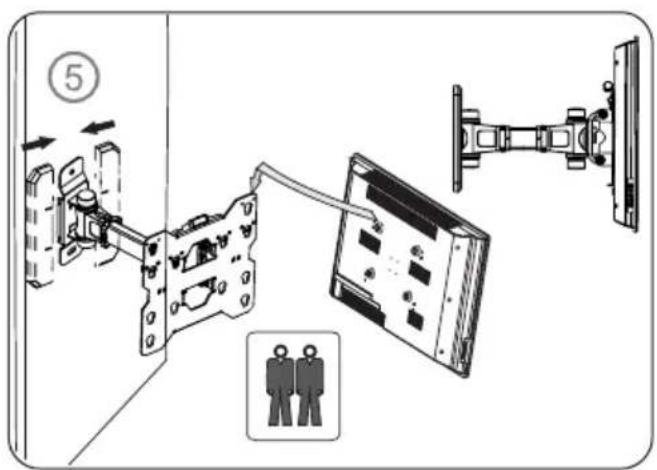

• Mount the decorative plastic panels, as shown in Fig. ⑤, and hang your TV on the wall

mount. The security locks will snap shut. Adjust the tilt and swivel angle as desired.

- Run the wires through the guides on both sides of the mount, as shown in Fig. ⑥. For convenience, fasten them with cable ties.

Technical line drawing of a vehicle suspension system with labeled components and an 'Ok' indicator (no text or symbols on the diagram itself)

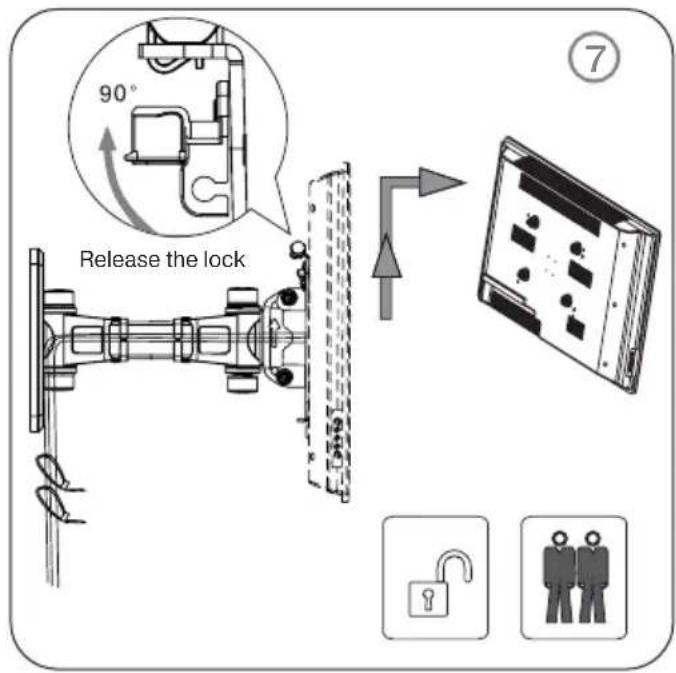

- To unmount your TV, release the security locks by pressing down on them (see Fig. ⑦). Lift your TV slightly and take the screws out of the holes.

1. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Diagonal compatibility, inch/cm	26 – 40/66 – 101.6
VESA range, mm	100 × 100/200 × 100/200 × 200
Maximum load, kg	35
Mounting type	tilt-swivel
Number of degrees of freedom	4
Distance from wall, mm	85 ~ 250
Coating type	high-strength polymer

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Wall Mount for LED/LCD TVs and Monitors

SVEN®

YOU WANT - WE CAN

3D rendering of a black mechanical component with mounting holes and structural brackets (no text or symbols)

Модель: C77-22

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
