445001 - Hand Sanitizer Dispenser CaterChef - Free user manual and instructions

Product Type	Commercial Popcorn Machine
Model	445001
Brand	CaterChef
Dimensions (approx.)	50 x 35 x 70 cm
Weight (approx.)	12 kg
Power Supply	230V / 50Hz / 1200W
Kettle Capacity	8 oz (approx. 200g popcorn per batch)
Material	Stainless steel body with tempered glass
Heating Element	Electric heating with thermostat control
Operating Temperature	Up to 200°C
Features	Built-in stirring system, hinged glass door, top warming light
Cleaning	Wipe exterior with damp cloth; kettle removable for washing
Safety	Thermal overload protection, cool-touch handles
Spare Parts Available	Kettle, heating element, stirrer motor, glass panels
Warranty	1 year (depending on region)

Frequently Asked Questions - 445001 CaterChef

How do I clean the popcorn machine?

Unplug the machine and let it cool. Remove the kettle and wash with warm soapy water. Wipe the interior and exterior with a damp cloth. Do not immerse the base in water.

What type of oil and popcorn should I use?

Use coconut oil or canola oil for best flavor. Use regular popping corn, not microwave popcorn. Add sugar or salt according to taste.

Why is my popcorn not popping?

Ensure the machine is preheated. Check if the kettle is properly installed and the thermostat is set high enough. Stale popcorn may also cause poor popping.

Can I leave the machine on overnight?

No, the machine should be turned off and unplugged when not in use. Continuous operation may overheat the unit.

What is the warranty period?

CaterChef offers a 1-year warranty against manufacturing defects. Contact your retailer or CaterChef support for details.

How do I replace the light bulb?

Remove the top cover screws, replace the bulb with a standard 25W E14 incandescent or LED equivalent. Reassemble carefully.

Is the machine suitable for continuous use?

Yes, it is designed for commercial use. Allow short breaks every few batches to prevent overheating.

What voltage does the machine require?

It requires 230V AC, 50Hz. Check your local outlet compatibility.

Can I make caramel popcorn in this machine?

Yes, but use the machine only for popping. Prepare caramel coating separately and mix after popping.

Where can I get spare parts?

Spare parts are available through CaterChef distributors or online retailers. Common parts include kettles and heating elements.

USER MANUAL 445001 CaterChef

DESINFECTIE DISPENSER DISINFECTION DISPENSER

Modelnr.: *445.001 - *445.010

figuur 3

Gebruik

ONDERDELEN:

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	DIMENSIONS (CM)	VOLTAGE (V)	BATTERY
445.001	15x15x43,5(H) cm 6 4x1,5V	Type AA
445.010	∅32x88~147(H)cm 6 4x1,	5V Type AA

For more information we would like to ask you to go to our website www.emga.com.

Here, you will be able to find more information.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. When in use, do not place anything in front of the appliance to ensure that it can be operated at any time.
3. If you notice anything abnormal, turn off the unit immediately and perhaps visit your service engineer.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

REGULAR USE:

Open Dispenser

figure 1

Install Batteries/DC Adapter

figure 2

Fill Liquid
Refillable Bottle

figure 3

Enjoy hand sanitizing

figure 4

1. Screw the dispenser to the metal holder with the supplied bolts.

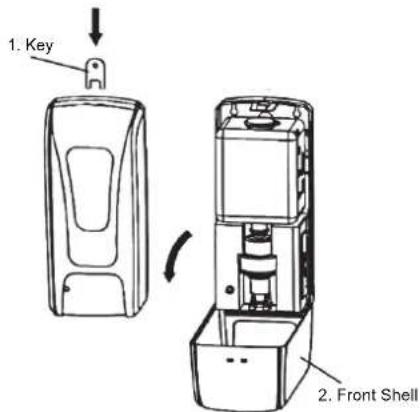

2. Open the housing (figure 1) with the supplied key (1) and open the cover as shown (2)
3. According to (Figure 2) shown, slide open the battery cover in the direction of the arrow, install four batteries (1.5V Type AA), close the battery cover.
   If using DC power (direct current), do not install the batteries, and connect the DC adapter to a 220V outlet and the DC connector.
4. Remove the rubber cap from the container and pour the disinfectant liquid into the container.

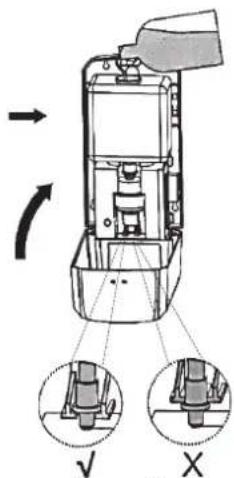

5. Make sure that the syringe is properly mounted (figure 3).
6. Close the hood and turn the appliance on, the LED indicator:
7. flashes every 5 sec. green: the dispenser is operating.
8. flashes every 5 sec. red: low battery and replace it.
9. flashes every 2 sec. red: there is something under the sensor, remove it.
10. When in use, keep your hand 8-12 cm from the sensor, the dispenser will automatically spray liquid.
11. The device can also be mounted on the wall (without stand).

USAGE:

Use the ON / OFF button to activate and turn off the device.

The device has a digital circuit, infrared sensors and works on 4 batteries Type AA (included) or on a 1.5V adapter (not included).

Suitable for a variety of disinfectants.

Low energy consumption and therefore a longer battery life and therefore ideal for placement in public places.

Automatic dosing system: due to the non-contact operation, it prevents the spread of bacteria.

PARTS:

1. Key
2. Backplate
3. Frame
4. Indicator
5. Sensor window
6. ON/OFF switch / DC-connector
7. Battery Box
8. Nozzle
9. Hood

ATTENTION!

When the housing is opened, the ON/OFF switch is disconnected. The dispenser will then not work. When the housing is closed, the green light will illuminate and the dispenser will turn on again.

SPECIFICATIONS:

Rated Voltage: DC4 * 1,5V

Sensing distance: 8 cm +/- -2 cm

Capacity: 1000 ML

Spray fluid volume: 1 ml / times

ATTENTION!

- To prevent the dispenser from working properly, there should be as much free space as possible at the bottom of the dispenser.

• Do not install in the strong sunlight.
• Prevent objects from blocking the nozzle.
• To keep the liquids clean, prevent impurities.
• Avoid getting the dispenser wet.

- If the dispenser needs to be disassembled, make sure that all liquid is removed from the container, to prevent the liquid from damaging the motors, circuit board, etc.

- Never turn the device upside down when it is filled.

CLEANING AND MAINTENANCE:

- Pay attention! Do not rinse the device with water (don't wash it by using the tap).

This could cause damage to the device and could therefore lead to dangerous situations;

• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
