445010 - Hand Sanitizer Dispenser CaterChef - Free user manual and instructions

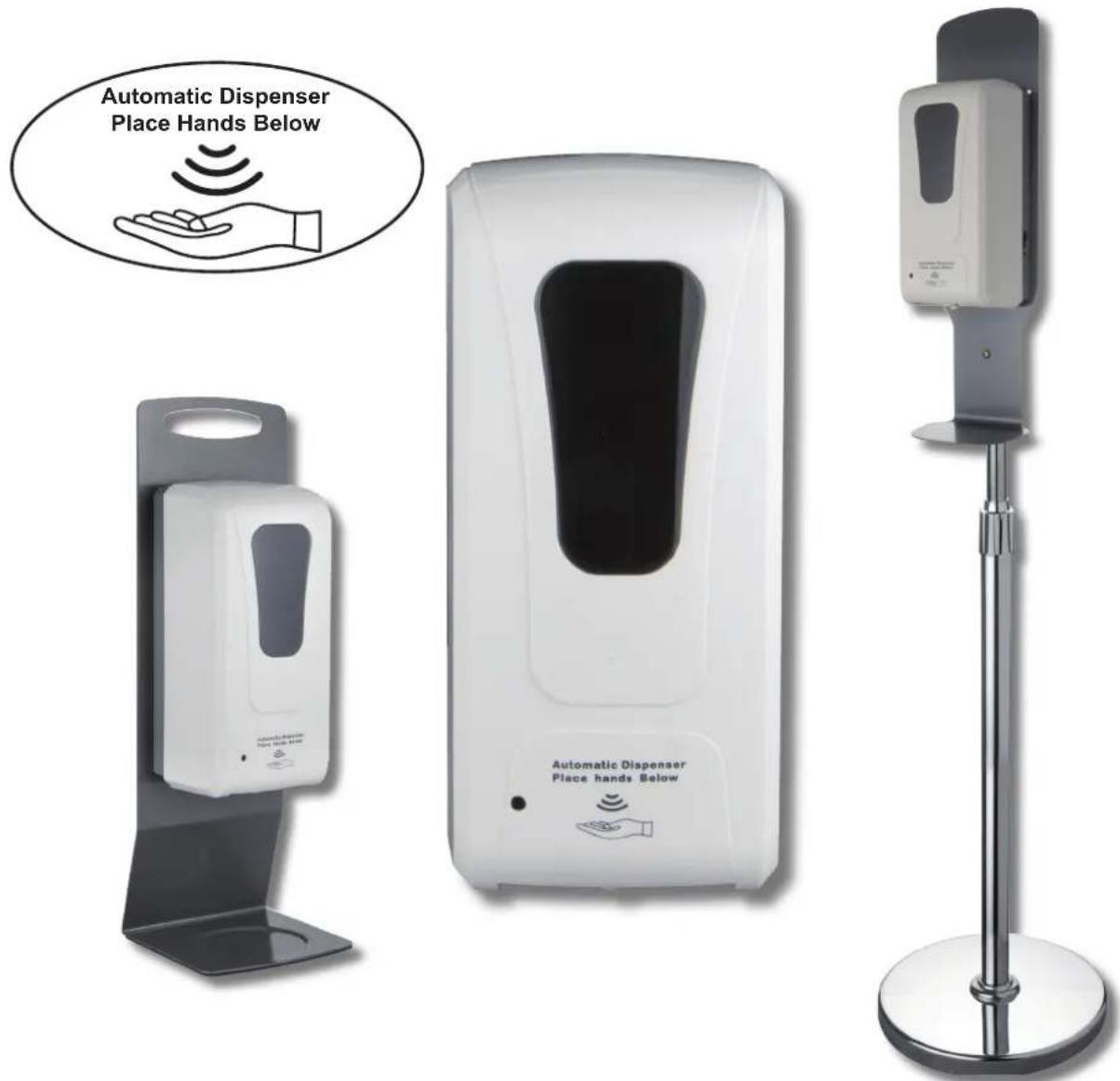

Product Type	Automatic Disinfection Dispenser
Model Number	445010
Dimensions (Diameter x Height)	32 cm x 88–147 cm (adjustable)
Power Source	4 x AA batteries (1.5V) or optional 6V DC adapter
Battery Type	AA (included)
Tank Capacity	1000 ml
Sensing Distance	8 cm ± 2 cm
Spray Volume per Activation	1 ml
Mounting Options	Freestanding with stand or wall-mounted
Sensor Type	Infrared
LED Indicators	Green: operating (flashes every 5 sec); Red: low battery or object detected
ON/OFF Switch	Yes
Included Accessories	Key, backplate, frame, nozzle, batteries
Safety Features	Auto shut-off when housing opened; prevents battery drain
Cleaning	Clean with damp cloth; do not rinse with water
Storage	Store indoors in a dry area
Applicable Liquids	Suitable for a variety of disinfectants
Warranty Note	Damage from misuse or failure to follow instructions invalidates warranty

Frequently Asked Questions - 445010 CaterChef

How do I install the batteries in the CaterChef 445010 dispenser?

Slide open the battery cover on the bottom of the dispenser in the direction of the arrow. Install four AA batteries (1.5V each) into the battery box, matching the polarity marks. Close the battery cover securely.

How do I fill the disinfectant liquid?

Remove the rubber cap from the container and pour the disinfectant liquid into the bottle. Make sure the syringe (nozzle assembly) is properly mounted. Do not overfill. Replace the cap and close the hood.

What does the red flashing LED mean?

A red LED flashing every 5 seconds indicates low battery – replace the batteries with new ones. A red LED flashing every 2 seconds means there is an object under the sensor (e.g., your hand) – remove it to stop the alarm.

Can I mount the dispenser on the wall?

Yes, the dispenser can be wall-mounted without the stand. Use the supplied backplate and bolts to attach it securely to the wall. Ensure the area under the dispenser is clear for proper operation.

What type of liquids can I use?

The dispenser is suitable for a variety of disinfectants. Avoid using thick gels or liquids with large particles to prevent clogging. Always follow the liquid manufacturer's guidelines.

How do I clean the dispenser?

Before cleaning, turn off the dispenser and remove batteries or disconnect the adapter. Use a damp cloth with a mild detergent. Never rinse the device under running water as this can cause damage. Dry thoroughly before reuse.

The dispenser does not spray – what could be wrong?

Check that the batteries are correctly installed and have sufficient charge. Ensure the sensor window is clean and not blocked. Verify the nozzle is not clogged. Also make sure the housing is properly closed, as the ON/OFF switch is only active when the hood is shut.

How do I turn the dispenser on and off?

Use the ON/OFF switch located inside the housing. When the housing is opened, the switch is disconnected and the dispenser will not work. Once the housing is closed, the dispenser becomes operational. The green LED flashes to indicate it is on.

What is the sensing distance?

The infrared sensor detects hands at a distance of 8 cm ± 2 cm. Hold your hand approximately 8–12 cm from the sensor window to activate the spray.

Can I use a DC adapter instead of batteries?

Yes, you can connect a DC adapter (6V, not included) to the DC connector. Do not install batteries when using the adapter. Plug the adapter into a 220V outlet and connect it to the dispenser.

USER MANUAL 445010 CaterChef

DESINFECTIE DISPENSER DISINFECTION DISPENSER

Modelnr.: *445.001 - *445.010

figuur 3

Gebruik

ONDERDELEN:

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	DIMENSIONS (CM)	VOLTAGE (V)	BATTERY
445.001	15x15x43,5(H) cm 6 4x1,5V	Type AA
445.010	∅32x88~147(H)cm 6 4x1,	5V Type AA

For more information we would like to ask you to go to our website www.emga.com.

Here, you will be able to find more information.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. When in use, do not place anything in front of the appliance to ensure that it can be operated at any time.
3. If you notice anything abnormal, turn off the unit immediately and perhaps visit your service engineer.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

REGULAR USE:

Open Dispenser

figure 1

Install Batteries/DC Adapter

figure 2

Fill Liquid
Refillable Bottle

figure 3

Enjoy hand sanitizing

figure 4

1. Screw the dispenser to the metal holder with the supplied bolts.
2. Open the housing (figure 1) with the supplied key (1) and open the cover as shown (2)
3. According to (Figure 2) shown, slide open the battery cover in the direction of the arrow, install four batteries (1.5V Type AA), close the battery cover.
   If using DC power (direct current), do not install the batteries, and connect the DC adapter to a 220V outlet and the DC connector.
4. Remove the rubber cap from the container and pour the disinfectant liquid into the container.
5. Make sure that the syringe is properly mounted (figure 3).
6. Close the hood and turn the appliance on, the LED indicator:
7. flashes every 5 sec. green: the dispenser is operating.
8. flashes every 5 sec. red: low battery and replace it.
9. flashes every 2 sec. red: there is something under the sensor, remove it.
10. When in use, keep your hand 8-12 cm from the sensor, the dispenser will automatically spray liquid.
11. The device can also be mounted on the wall (without stand).

USAGE:

Use the ON / OFF button to activate and turn off the device.

The device has a digital circuit, infrared sensors and works on 4 batteries Type AA (included) or on a 1.5V adapter (not included).

Suitable for a variety of disinfectants.

Low energy consumption and therefore a longer battery life and therefore ideal for placement in public places.

Automatic dosing system: due to the non-contact operation, it prevents the spread of bacteria.

PARTS:

1. Key
2. Backplate
3. Frame
4. Indicator
5. Sensor window
6. ON/OFF switch / DC-connector
7. Battery Box
8. Nozzle
9. Hood

ATTENTION!

When the housing is opened, the ON/OFF switch is disconnected. The dispenser will then not work. When the housing is closed, the green light will illuminate and the dispenser will turn on again.

SPECIFICATIONS:

Rated Voltage: DC4 * 1,5V

Sensing distance: 8 cm +/- -2 cm

Capacity: 1000 ML

Spray fluid volume: 1 ml / times

ATTENTION!

- To prevent the dispenser from working properly, there should be as much free space as possible at the bottom of the dispenser.

• Do not install in the strong sunlight.
• Prevent objects from blocking the nozzle.
• To keep the liquids clean, prevent impurities.
• Avoid getting the dispenser wet.

- If the dispenser needs to be disassembled, make sure that all liquid is removed from the container, to prevent the liquid from damaging the motors, circuit board, etc.

- Never turn the device upside down when it is filled.

CLEANING AND MAINTENANCE:

• Pay attention! Do not rinse the device with water (don't wash it by using the tap). This could cause damage to the device and could therefore lead to dangerous situations;
• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
