Product Type	Food Display Hot Unit (Warmhoudvitrine)
Model	680081
Material	Stainless steel with clear glass lid and metal grilles
Overall Dimensions (W x D x H)	450 x 775 x 610 mm
Storage Volume	60 L
Temperature Range	30°C - 90°C
Rated Voltage	220-240 V ~ 50 Hz
Rated Power Input	1600 W
Rated Current	4.2 A
Lamp Power	15 W
Temperature Control	Adjustable thermostat with digital display
Door Type	Sliding door at rear
Lighting	Inner light with on/off switch
Humidity Feature	Water bowl for moisture
Power Cord	Removable, must be replaced by qualified electrician if damaged
Cleaning	Regular cleaning with soft damp cloth and mild detergent; avoid abrasives and pressure water
Water Bowl Maintenance	Clean regularly; remove calcification with common agents
Safety Features	Grounded socket required; keep away from flammable materials; not for use by children or persons without supervision
Repair	Only by qualified technician; do not attempt self-repair
Intended Use	Indoor use only; keep food warm in containers

Frequently Asked Questions - 680081 CaterChef

How do I set the temperature on my CaterChef 680081?

Use the temperature control panel to adjust between 30°C and 90°C. The current temperature is displayed on the front screen.

Do I need to use the water bowl?

The water bowl helps maintain humidity to keep food moist. Fill it with water before use and clean regularly to avoid calcification.

How do I clean the food display unit?

Disconnect from power and let it cool. Clean inside and outside with a soft damp cloth and mild detergent. Never use abrasive agents or pressure water. Clean the water bowl separately.

Can I place the unit near other appliances?

No, do not share the same socket with other appliances. Keep away from heat sources like ovens or heaters, and flammable surfaces.

What should I do if the power cord is damaged?

Stop using the device immediately. Only a qualified electrician can replace the cord to avoid hazards.

Is it safe to leave the unit unattended?

No, the device should never be left unattended during operation. Keep children away.

Can I put food directly on the grilles?

Always place food in appropriate containers before putting them on the grilles. This prevents mess and ensures even heating.

How do I turn on the interior light?

Use the light switch located on the device to turn the inner light on or off as needed.

What is the voltage and power requirement?

The unit requires 220-240V AC at 50 Hz, with a power input of 1600W. Use a dedicated grounded outlet.

What should I do if the unit does not heat?

Check that it is properly plugged in and the temperature is set above ambient. If it still doesn't heat, contact a qualified technician for repair. Do not attempt to fix it yourself.

USER MANUAL 680081 CaterChef

WARMHOUDVITRINE FOOD DISPLAY HOT UNIT

Modelnr.: *680.081 - *680.082

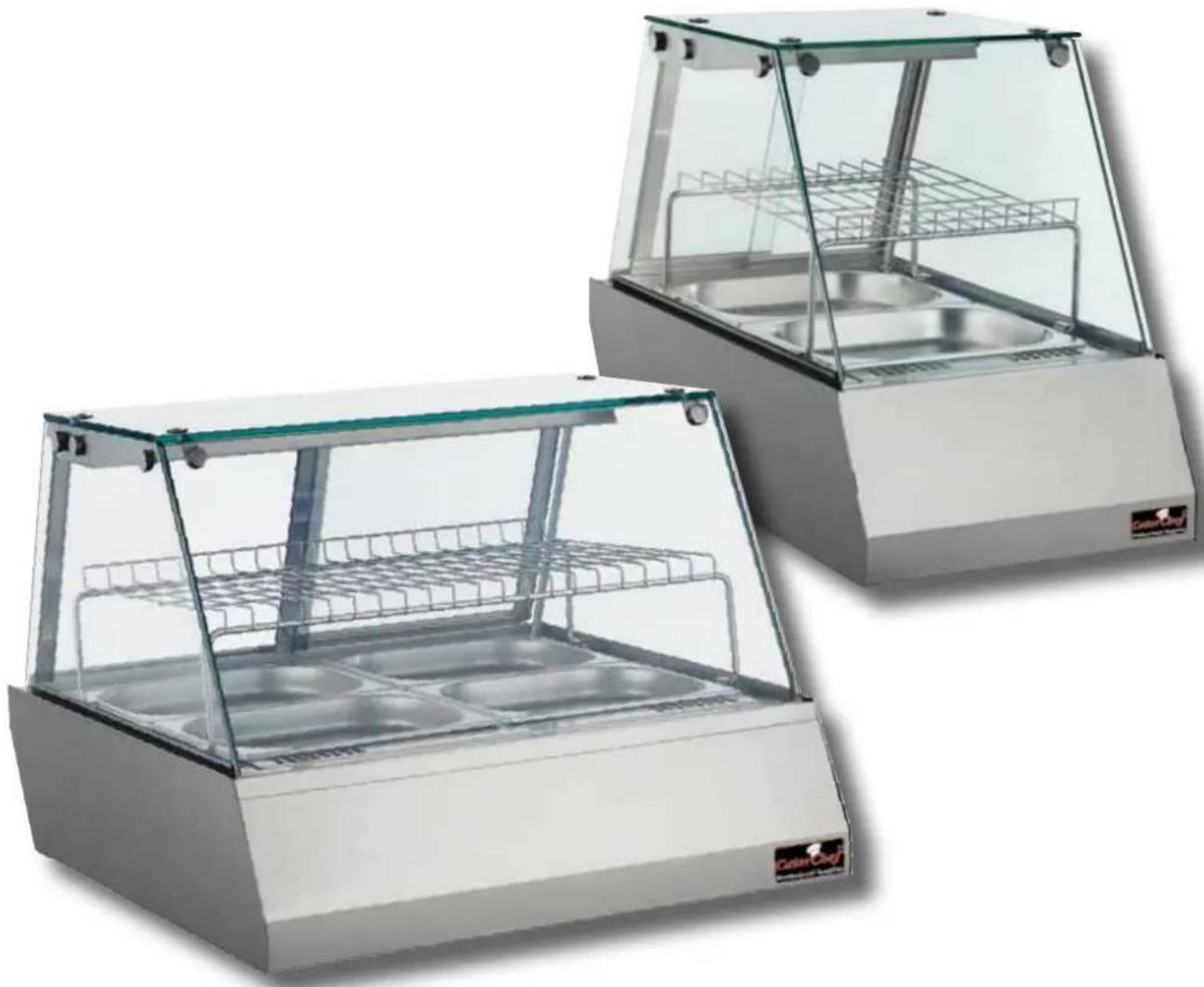

Two stainless steel kitchen cabinets with clear glass lids and metal grilles, one open and one closed (no visible text or labels)

INSTALLATIE EN BEDIENING

Installatie

Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.

CONTENTS

General....8

Structure and Parts 8

Safety 8

Preparation and Power Supply....9

Installation and operation....9

Cleaning and maintenance ....10

Cautions....10

Major Parameters ....10

Circuit Diagram 11

Note 11

GENERAL

1. This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.
2. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

STRUCTURE AND PARTS

• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
• This device may only be operated in technically proper and safe condition.
  • The device should be never left unattended during operation. Keep away children.
• Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
• Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
  • The device is to be used indoors only.
• Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The operation manual is not suitable for the persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

PREPARATION AND POWER SUPPLY

Exclusive power socketThe power receptacle must have a reliable earth connection.		No share on socketNever let the food display share the common socket with other appliance, otherwise the cable becomes hot and fire might be resulted
Protect cablesNever break or damage the cables otherwise current leakage and fire might be resulted.		No water flushingNever giver the food display surface a flush otherwise current leakage might be resulted.
Prevent from flammables and explosive.Never put any flammable or explosive inside the food display such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the food display.

INSTALLATION AND OPERATION

Installation

• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as table cloth, carpet, etc)
• You must no position the device near open fireplaces, electric ovens/arc furnaces/electric heaters or other heat sources.
• Position the device in such a way that the plug is easily accessible.

Operation

• Before first use, clean the inner sides and the playing grids with a soft cloth and a mild cleaning agent.
  • Afterwards, dry the device thoroughly.
• Remove the water bowl from the device. The water bowl is installed inside the device and then fill the water bowl with water.
• Connect the device to a single grounded power socket.
• Set the temperature as required for respective foods. You may adjust the desired temperature in the range between 30^ C- 90^ C.
• The temperature inside of the hot display can be read from the front display.
• Put the foods in appropriate containers before playing them inside the hot display and shut is by using the sliding door.
• Some of the device parts become very hot, always use safety gloves when placing or removing foods.
• The foods are kept warm at the temperature set by you previously.
• In order to place or remove foods. You may open the door at rear side.
• Switch on the inner light when required using the light switch of the device.
• Disconnect the device from the power socket when the device is not in use.

CLEANING AND MAINTENANCE

• Before beginning with repair or cleaning works make sure the device has been disconnected from the power socket and has cooled sown.
• Don't use any acid agents and make sure no water ingresses the device,
• To protected yourself from the electric shock, never immerse the device, its cables and the plug in water or other liquids.
• Don't use any kind of pressure water jet for cleaning the device.

Cleaning

• The device should be cleaned regularly.
• Clean the device from the inside and outside with a soft, damp cloth and a mild cleaning agent.
• Clean the placing grids and the housing with a soft, damp cloth and a mild cleaning agent.
• Clean the water bowl regularly. Calcifications at the water bowl may be removed with common agents or liquids.
• Only use a soft cloth and make sure you never use any kind of abrasive agents or pads which could scratch the surface.
  • After the cleaning procedure, you should use a soft and dry cloth to wipe dry and polish the surface.
• Make sure the device has been cleaned properly before storing it in a dry place.

Maintenance

• Check the mains lead from time to time to ensure it is not damaged in any way. Never use the device if the lead is damaged. If the lead is damaged, it must be replaced by a qualified electrician.
• Only a qualified technician should carry out repairs and maintenance of the device, Do not attempt to repair the device by yourself.

CAUTIONS

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

MAJOR PARAMETERS

Parameter 680.081 680.082
Temperature range (C°) 30-90 30-90
General Rated input power (W) 1600 2300
Rated current (A) 4.2 8.2
Rated voltage (V)	220-240~	220-240~
Rated frequency Hz)	50	50
Storage Volume (L)	60	110
Overall Dimension (mm)	450x775x610	750x775x610
Lamp power (W)	15	30

CIRCUIT DIAGRAM

NOTE

1. The electric circuit diagram and parameters on the product nameplate are final ones if they have been changed.
2. The design might be improved without notice.

Meaning of crossed out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Caution hot surface
