Product Type	Hot Food Display / Warmhoudvitrine
Model Number	688081
Dimensions (mm)	554 x 376 x 376
Net Weight (kg)	14.4
Storage Volume (L)	45
Power Supply	220-240 V~, 50 Hz
Rated Power (W)	800
Rated Current (A)	3.4
Temperature Range (°C)	30 - 90
Waterproof Grade	IPX4
Housing Material	Stainless steel (typical)
Interior Lighting	Yes, with separate switch
Door Type	Sliding door at rear
Water Bowl	Removable for filling, retains moisture
Cleaning	Use soft damp cloth and mild detergent; no abrasive agents
Safety Features	Grounded plug, child supervision required, no water spray
Installation	Place on a level, heat-resistant surface away from flammable materials
Maintenance	Periodic check of power cord; repairs by qualified technician only
Compliance	WEEE directive, crossed-out wheeled bin symbol

Frequently Asked Questions - 688081 CaterChef

What is the temperature range of the 688081 hot display?

The device can be set between 30°C and 90°C to keep food warm.

How do I install the unit?

Place it on an even, heat-resistant surface. Ensure the plug is accessible, and do not place near flammable materials or heat sources. Connect to a single grounded outlet.

Can I put food directly on the grids?

No, always place food in appropriate containers before putting them on the grids. Use safety gloves as parts become very hot.

How do I clean the device?

Unplug and let it cool. Clean inside and outside with a soft damp cloth and mild cleaning agent. Do not use abrasive pads or immerse in water. Clean the water bowl regularly to remove calcification.

What is the water bowl for?

The water bowl adds moisture to keep food from drying out. Fill it with water before use; it is removable for cleaning.

Is the device safe for use around children?

Children should be supervised and not play with the appliance. Some parts become very hot, so keep children away during operation.

What should I do if the power cord is damaged?

Do not use the device. The cord must be replaced by the manufacturer, service agent, or a qualified electrician to avoid hazards.

Can I use an extension cord or share a socket?

No, do not share the socket with other appliances. The device should be connected directly to a single grounded power socket to prevent overheating and fire.

How do I adjust the temperature?

Use the temperature control to set between 30°C and 90°C. The current temperature is shown on the front display.

What does IPX4 mean?

IPX4 means the device is protected against splashing water from any direction. Do not use pressure washers or hose it down.

USER MANUAL 688081 CaterChef

WARMHOUDVITRINE FOOD DISPLAY HOT UNIT

Modelnr.: *688.081 - *680.045

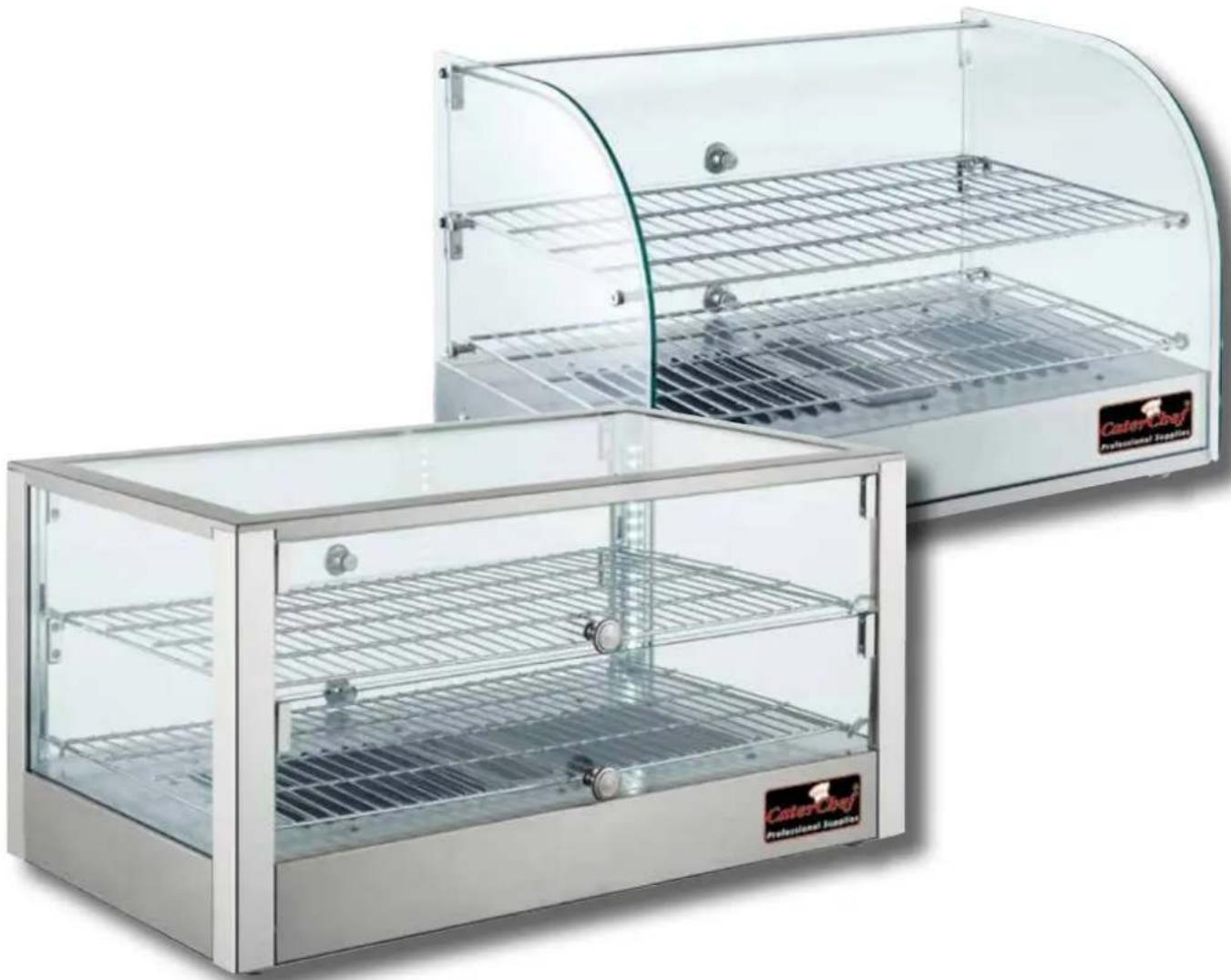

Two commercial kitchen cabinets with visible internal grating and a Caster Chef brand logo (no text or symbols on the main devices)

VEILIGHEID

INSTALLATIE EN BEDIENING

Installatie

Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.

CONTENTS

General....8

Structure and Parts 8

Safety 8

Preparation and Power Supply....9

Installation and operation....9

Cleaning and maintenance ....10

Cautions....10

Major Parameters ....10

Circuit Diagram 11

Note 11

GENERAL

1. This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.
2. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

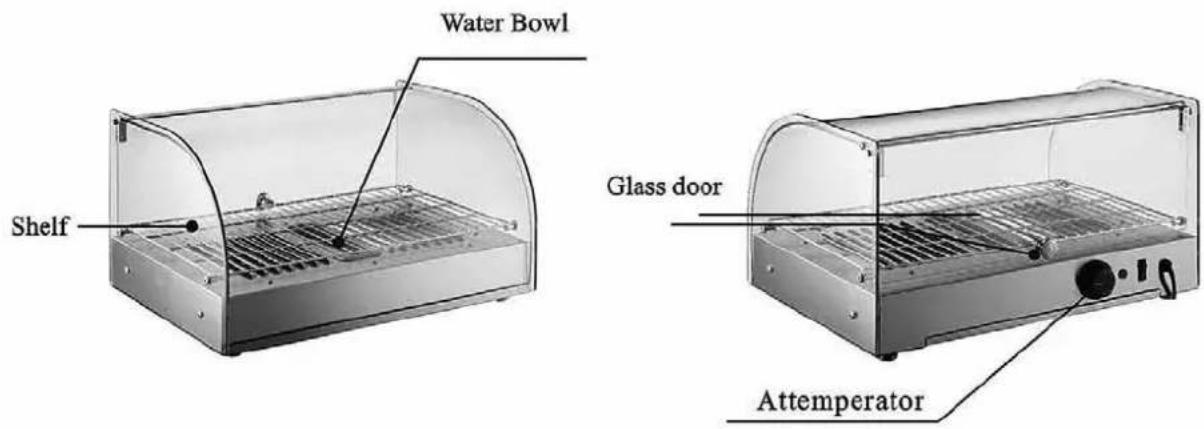

STRUCTURE AND PARTS

SAFETY

• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
• This device may only be operated in technically proper and safe condition.
• The device should be never left unattended during operation. Keep away children.
• Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
• Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
  • The device is to be used indoors only.
• Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The operation manual is not suitable for the persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

PREPARATION AND POWER SUPPLY

Exclusive power socketThe power receptacle must have a reliable earth connection.		No share on socketNever let the food display share the common socket with other appliance, otherwise the cable becomes hot and fire might be resulted
Protect cablesNever break or damage the cables otherwise current leakage and fire might be resulted.		No water flushingNever giver the food display surface a flush otherwise current leakage might be resulted.
Prevent from flammables and explosive.Never put any flammable or explosive inside the food display such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the food display.

INSTALLATION AND OPERATION

Installation

• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as table cloth, carpet, etc)
• You must no position the device near open fireplaces, electric ovens/arc furnaces/electric heaters or other heat sources.
• Position the device in such a way that the plug is easily accessible.

Operation

• Before first use, clean the inner sides and the playing grids with a soft cloth and a mild cleaning agent.
  • Afterwards, dry the device thoroughly.
• Remove the water bowl from the device. The water bowl is installed inside the device and then fill the water bowl with water.
• Connect the device to a single grounded power socket.
• Set the temperature as required for respective foods. You may adjust the desired temperature in the range between 30^ C- 90^ C.
• The temperature inside of the hot display can be read from the front display.
• Put the foods in appropriate containers before playing them inside the hot display and shut is by using the sliding door.
• Some of the device parts become very hot, always use safety gloves when placing or removing foods.
• The foods are kept warm at the temperature set by you previously.
• In order to place or remove foods. You may open the door at rear side.
• Switch on the inner light when required using the light switch of the device.
• Disconnect the device from the power socket when the device is not in use.

CLEANING AND MAINTENANCE

• Before beginning with repair or cleaning works make sure the device has been disconnected from the power socket and has cooled sown.
• Don't use any acid agents and make sure no water ingresses the device,
• To protected yourself from the electric shock, never immerse the device, its cables and the plug in water or other liquids.
• Don't use any kind of pressure water jet for cleaning the device.

Cleaning

• The device should be cleaned regularly.
• Clean the device from the inside and outside with a soft, damp cloth and a mild cleaning agent.
• Clean the placing grids and the housing with a soft, damp cloth and a mild cleaning agent.
• Clean the water bowl regularly. Calcifications at the water bowl may be removed with common agents or liquids.
• Only use a soft cloth and make sure you never use any kind of abrasive agents or pads which could scratch the surface.
  • After the cleaning procedure, you should use a soft and dry cloth to wipe dry and polish the surface.
• Make sure the device has been cleaned properly before storing it in a dry place.

Maintenance

• Check the mains lead from time to time to ensure it is not damaged in any way. Never use the device if the lead is damaged. If the lead is damaged, it must be replaced by a qualified electrician.
• Only a qualified technician should carry out repairs and maintenance of the device. Do not attempt to repair the device by yourself.

CAUTIONS

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

MAJOR PARAMETERS

Parameter 688.081 680.045
Temperature range (C°) 30-90 30-90
General Rated input power (W) 800 1000
Rated current (A)	3.4	4.3
Rated voltage (V)	220-240~	220-240~
Rated frequency Hz)	50	50
Storage Volume (L)	45	80
Net weight (kg)	14.4	16.4
Grade of Waterproof	IPX4	IPX4
Overall Dimension (mm)	554x376x376	700x400x376

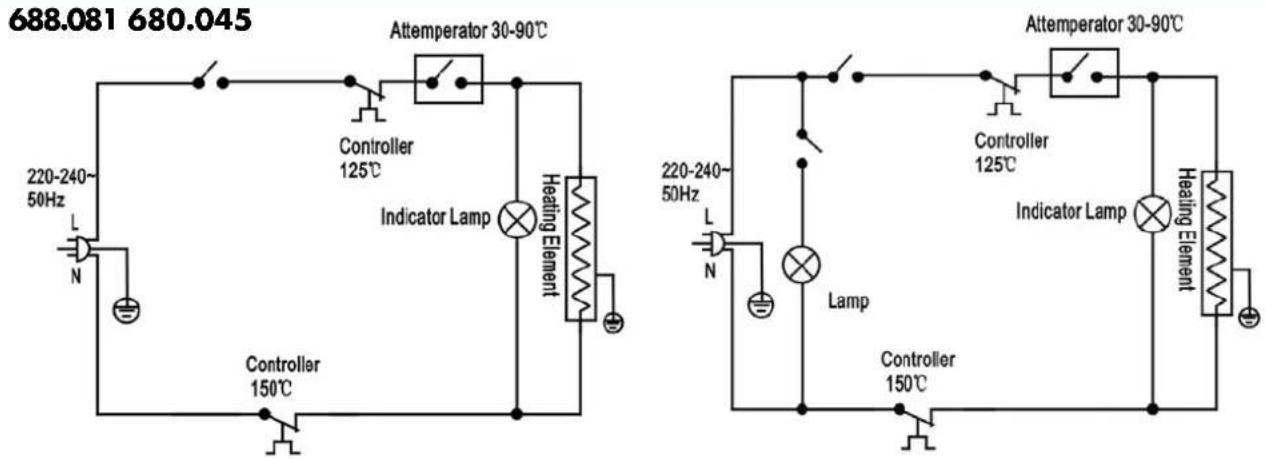

CIRCUIT DIAGRAM

NOTE

1. The electric circuit diagram and parameters on the product nameplate are final ones if they have been changed.
2. The design might be improved without notice.

Meaning of crossed out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Caution hot surface
