USER MANUAL 1NIKKOR VR 10-30MM F/3.5-5.6 NIKON

Printed in China SB2C03(J0) © 2011 Nikon Corporation

CAUTIONS Do not disassemble. Touching the internal parts of the camera or lens could result in injury. In the event of malfunction, the product should be repaired only by a qualified technician. Should the product break open as the result of a fall or other accident, remove the camera battery and/or disconnect the AC adapter and then take the product to a Nikon-authorized service center for inspection. Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fire or injury. After removing the battery, take the equipment to a Nikon-authorized service center for inspection. Do not use in the presence of flammable gas. Operating electronic equipment in the presence of flammable gas could result in explosion or fire. Do not look at the sun through the lens or the camera viewfinder. Viewing the sun or other bright light source through the lens or viewfinder could cause permanent visual impairment. 8

Keep out of reach of children.

Failure to observe this precaution could result in injury. Observe the following precautions when handling the lens and camera: • Keep the lens and camera dry. Failure to observe this precaution could result in fire or electric shock. • Do not handle the lens or camera with wet hands. Failure to observe this precaution could result in electric shock. • Keep the sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame could cause a fire. • If the lens will not be used for an extended period, attach the front and rear lens caps and store the lens out of direct sunlight. If left in direct sunlight, the lens could focus the sun’s rays onto flammable objects, causing fire. Do not carry tripods with a lens or camera attached. You could trip or accidentally strike others, resulting in injury. Do not leave the lens where it will be exposed to extremely high temperatures, such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could adversely affect the lens’ internal parts, causing fire.

■ Parts of the Lens q

2 Lens hood alignment mark 11

3 Lens hood lock mark 11 4 Lens hood mounting mark 5 Zoom ring 10 6 Lens mounting mark 7 CPU contacts 8 Focal length mark 9 Focal length scale 0 Retractable lens barrel button 10 *Optional.

Thank you for your purchase of a 1 NIKKOR VR 10-30mm f/3.5-5.6 lens. Before using this product, please carefully read both these instructions and the camera manual.

Note: 1 NIKKOR lenses are exclusively for Nikon 1 interchangeable lens format digital cameras. The angle of view is equivalent to a 35 mm format lens with a focal length about 2.7 × longer.

■ Attachment and Removal

See the camera manual.

Note: Be careful not to press the retractable lens barrel button while attaching or removing the lens.

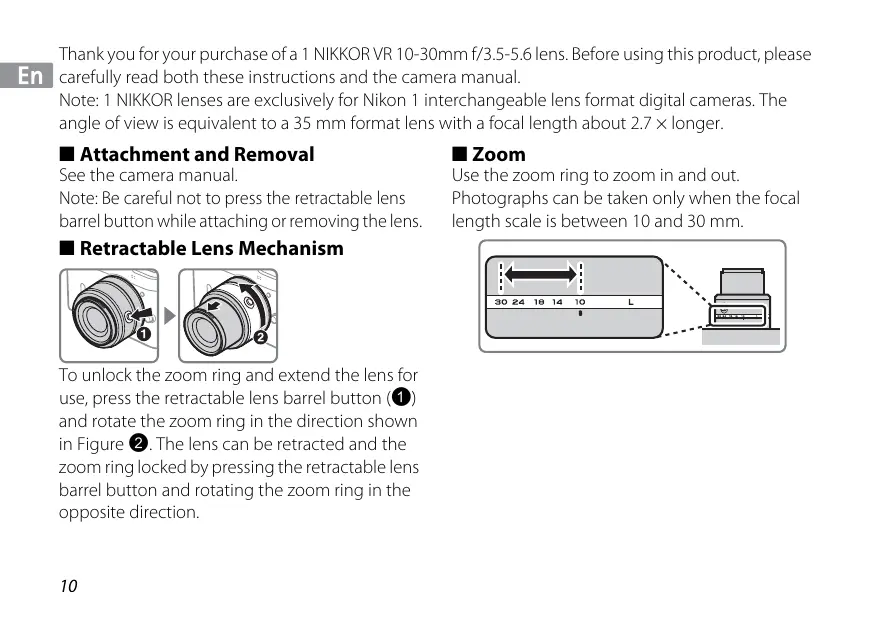

■ Retractable Lens Mechanism

To unlock the zoom ring and extend the lens for use, press the retractable lens barrel button (1) and rotate the zoom ring in the direction shown in Figure 2. The lens can be retracted and the zoom ring locked by pressing the retractable lens barrel button and rotating the zoom ring in the opposite direction.

Use the zoom ring to zoom in and out.

Photographs can be taken only when the focal length scale is between 10 and 30 mm.

■ Using an Optional Lens Hood

Lens hoods protect the lens and block stray light that would otherwise cause flare or ghosting.

Attaching a Lens Hood

• Align the lens hood lock mark (—{) with the focal length mark ( ) on the lens (e).

• Vignetting may occur if the hood is not correctly attached. • The hood can be reversed and mounted on the lens when not in use.

• Adjust aperture • Control focus • Vibration Reduction (NORMAL/ACTIVE/OFF) This lens supports both normal and active vibration reduction.

• When using an optional lens hood, do not pick up or hold the lens or camera using only the hood.

• Keep the CPU contacts clean. • Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lenscleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers. • Never use organic solvents such as paint thinner or benzene to clean the lens. • The lens hood or NC filters can be used to protect the front lens element. • Attach the front and rear caps when the lens is not in use. • If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls. 11

• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.

• Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.

■ Supplied Accessories

• 40.5 mm snap-on Front Lens Cap LC-N40.5

• Rear Lens Cap LF-N1000

■ Compatible Accessories

• Bayonet Hood HB-N101 • 40.5 mm screw-on filters • Lens Soft Case CL-N101

Type Focal length Maximum aperture Lens construction

10–30 mm f/3.5–5.6 12 elements in 9 groups (including 3 aspherical lens elements) 77°–29° 40 ′

Minimum focus distance Diaphragm blades Diaphragm Aperture range

Lens shift using voice coil motors (VCMs)

0.2 m (0.7 ft) from focal plane at all zoom positions 7 (rounded diaphragm opening) Fully automatic • 10 mm focal length: f/3.5 to f/16 • 30 mm focal length: f/5.6 to f/16 40.5 mm (P=0.5 mm)

Filterattachment size

Dimensions Approx. 57.5 mm diameter × 42 mm (distance from camera lens mount flange when lens is retracted) Weight Approx. 115 g (4.1 oz) Nikon reserves the right to change the specifications of the hardware described in this manual at any time and without prior notice.
