San Francisco - Suitcase PRINCESS - Free user manual and instructions

Product Type	Suitcase
Brand	Princess
Model	San Francisco
Lock Type	3-digit combination lock (pull or push)
Built-in Scale	Yes
Scale Maximum Load	10 kg (S), 15 kg (M), 20 kg (L)
Scale Tolerance	±2.5 kg
Scale Display	LCD, units: kg/lbs
Scale Power	1x CR2032 battery
Chargeable Power Box	Removable charger unit
Charger Location	Inside suitcase, secured with zip tie and sliding cover
Charger Lock	Sliding cover lock
Handle	Side handle with integrated scale activation
Battery Replacement	When display shows LO, replace battery under cover inside suitcase
Safety Precautions	Do not expose to rain or humidity
Included Items	User manual, CR2032 battery (installed), zip tie (cut at first use)
Brand Origin	Netherlands (Princess)
Series	San Francisco

Frequently Asked Questions - San Francisco PRINCESS

How do I set the combination lock on my Princess San Francisco suitcase?

The lock is initially set to 0-0-0. Press the A button in the direction of the arrow, hold it, then rotate the wheels (B) to your desired 3-digit code. Release the button to confirm. Ensure you do not let go of the button while setting the code.

How does the built-in scale work?

Place the suitcase on a flat surface with the LCD screen facing up. Press ON/OFF. When the display shows 0, lift the suitcase by the side handle and hold it still for a few seconds. The weight appears. Press ON/OFF again to turn off.

How do I switch between kilograms and pounds?

Press the KG/LBS button on the scale to toggle between kilograms and pounds.

What is the maximum weight the scale can measure?

The scale can measure up to 10 kg for size S, 15 kg for size M, and 20 kg for size L. Tolerance is ±2.5 kg.

Why is my scale not turning on or showing 'LO'?

Replace the CR2032 battery. The battery compartment is on the inner side of the suitcase (rear of the scale). Slide open the cover, replace the battery observing polarity, and close.

Can I remove the built-in charger (Power Box)?

Yes. Open the zipper inside the suitcase, cut the zip tie (first use), lift the lid, and slide out the charger unit. Close and lock the sliding cover to secure the compartment.

How do I lock the charger compartment after removing the Power Box?

Slide the cover closed until it clicks. This prevents unauthorized access to the interior.

Is the scale accurate?

The scale has a tolerance of ±2.5 kg. For best accuracy, place the suitcase on a flat, hard surface and lift it steadily without jerking.

Can I use the suitcase in rainy conditions?

No. Do not expose the suitcase to rain or humidity as it can damage the scale and charger components.

What type of battery does the scale require?

The scale uses one CR2032 lithium coin cell battery. Use only A-brand CR2032 batteries for reliable performance.

USER MANUAL San Francisco PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

- The lock is set to 0-0-0

- Press the A button in the direction of the arrow

- While holding in the button, choose your 3-digit code by turning the wheels (B)

- Release the button to set your code

- Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

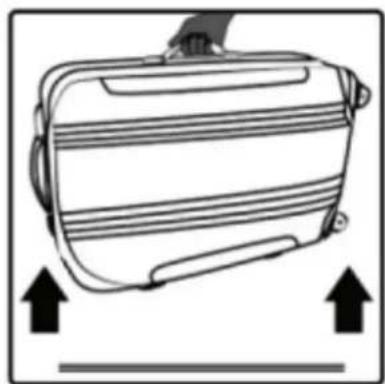

Diagram of a suitcase with upward arrows indicating movement or force (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

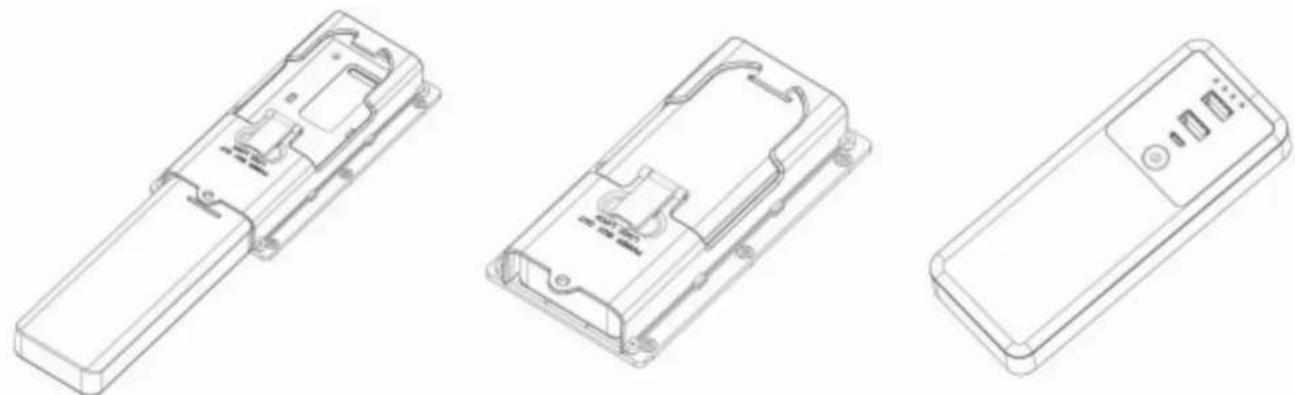

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
