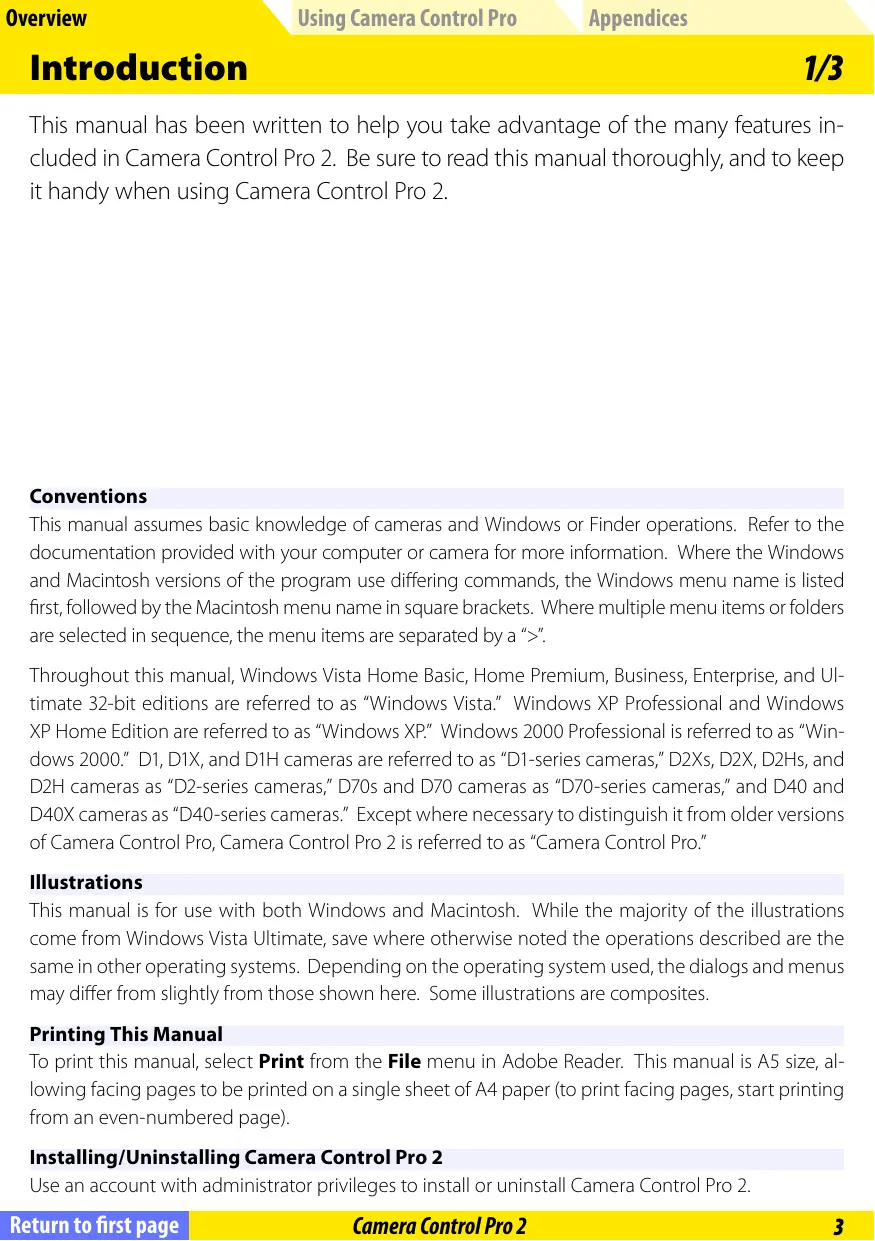

Camera Control Pro 2 Reference Manual Overview This section describes the structure of this manual, outlines the main func- tions of Camera Control Pro 2, and gives the system requirements and instal- lation instructions. Using Camera Control Pro 2 This section describes how to use Camera Control Pro 2. Appendices This section lists preferences and describes how to uninstall the software. Important Information on the Product Key The product key may be found on the CD-ROM case. Do not lose this key. It is required when installing or upgrading this software and can not be replaced if lost. Product key SB8A02(B1) 6MS54181-02

Overview Using Camera Control Pro Appendices Overview Macintosh Windows Macintosh Starting and Exiting Camera Control Pro Getting Help Software Updates Click a page number to view. Return to first page Camera Control Pro 2

Using Camera Control Pro Appendices This manual has been written to help you take advantage of the many features in- cluded in Camera Control Pro 2. Be sure to read this manual thoroughly, and to keep it handy when using Camera Control Pro 2. Conventions This manual assumes basic knowledge of cameras and Windows or Finder operations. Refer to the documentation provided with your computer or camera for more information. Where the Windows and Macintosh versions of the program use differing commands, the Windows menu name is listed first, followed by the Macintosh menu name in square brackets. Where multiple menu items or folders are selected in sequence, the menu items are separated by a ">" Throughout this manual, Windows Vista Home Basic, Home Premium, Business, Enterprise, and Ul- timate 32-bit editions are referred to as “Windows Vista” Windows XP Professional and Windows XP Home Edition are referred to as “Windows XP” Windows 2000 Professional is referred to as “Win- dows 2000 D1, DIX, and DIH cameras are referred to as “DI-series cameras," D2Xs, D2X, D2Hs, and D2H cameras as “D2-series cameras,” D70s and D70 cameras as *D70-series cameras," and D40 and D40X cameras as "D40-series cameras.” Except where necessary to distinguish it from older versions of Camera Control Pro, Camera Control Pro 2 is referred to as “Camera Control Pro." Illustrations This manual is for use with both Windows and Macintosh. While the majority of the illustrations come from Windows Vista Ultimate, save where otherwise noted the operations described are the same in other operating systems. Depending on the operating system used, the dialogs and menus may differ from slightly from those shown here. Some illustrations are composites. Printing This Manual To print this manual, select Print from the File menu in Adobe Reader. This manual is A5 size, al- lowing facing pages to be printed on a single sheet of A4 paper (to print facing pages, start printing from an even-numbered page). Installing/Uninstalling Camera Control Pro 2 Use an account with administrator privileges to install or uninstall Camera Control Pro 2. Return to first page

Using Camera Control Pro Appendices Camera Control Pro Changes made to settings in the Camera Control Pro window only apply to photographs taken after the changes are made, not to photographs that have already been taken. Camera Control Pro can not be used to modify existing photographs. The controls in the Camera Control Pro window vary with the type of camera connected. More information on camera settings may be found in the documentation provided with your camera. Illustrations Save where otherwise noted, the illustrations in this section show the dialogs displayed when the D3 is connected Camera Control Pro 2 for D100 Cameras (Macintosh) Before using Camera Control Pro with à D100 digital camera under Mac OS X, confirm that the camera firmware is version 2.00 or later. Users of earlier versions will need to upgrade the camera firmware before using Camera Control Pro. Contact a Nikon-authorized service representative for information on firmware upgrades. Return to first page

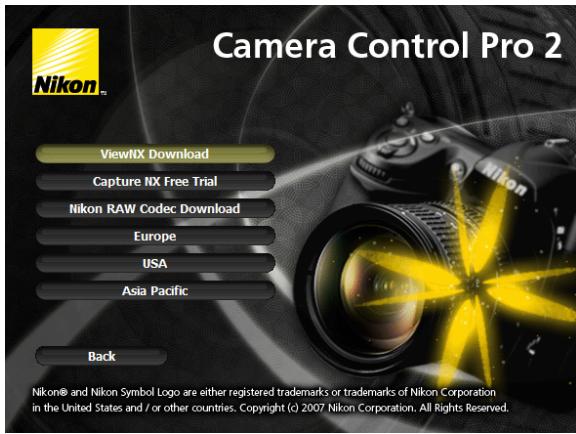

Using Camera Control Pro Appendices Customer Support To link to a Nikon customer support website, click Link to Nikon in the Camera Control Pro 2 installer window and click the link for your region. Click here for more information. Vu Dounicac Canture 1 Free ral Hkon R pou Notices No part of the manuals included with this product may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without Nikon's prior written permission. Nikon reserves the right to change the specifications of the hardware and software described in these manuals at any time and without prior notice. Nikon will not be held liable for any damages resulting from the use of this product. While every effort has been made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representative in your area (address provided separately). Note The copying or reproduction of copyrighted creative works such as books, music, paintings, wood- cut prints, maps, drawings, movies, and photographs is governed by national and international copyright laws. Do not use the camera for the purposes of making illegal copies or to infringe copy- right laws. Do not use in venues where photography or recording is prohibited. Trademark Information Microsoft, Windows, and Windows Vista are registered trademarks of Microsoft Corporation. Ado- be Reader and Acrobat are registered trademarks of Adobe Systems, Inc. Macintosh, Mac OS, and QuickTime are registered trademarks of Apple Computer, Inc. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or regis- tered trademarks of their respective holders. Return to first page

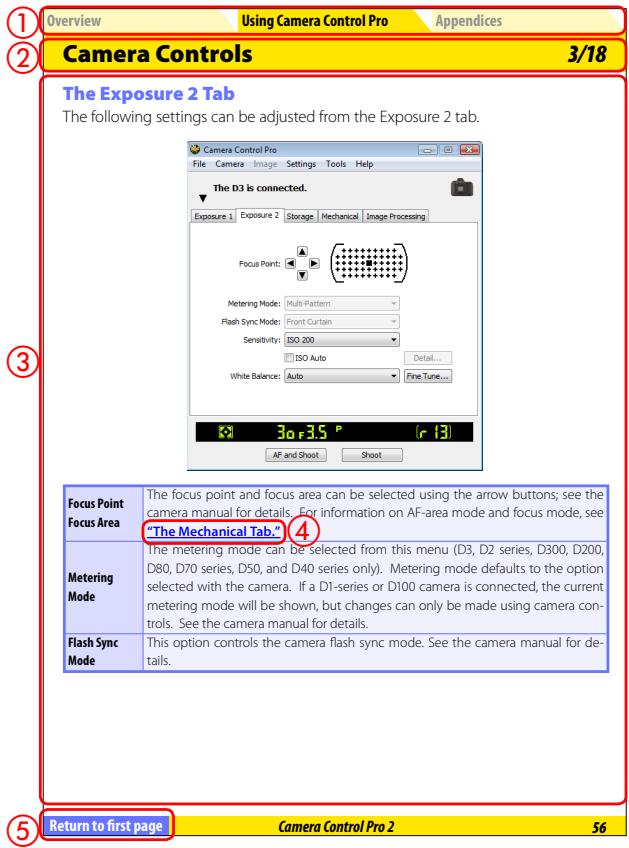

Using Camera Control Pro Appendices How to Use This Manual The pages of this manual are structured as shown here: rer]

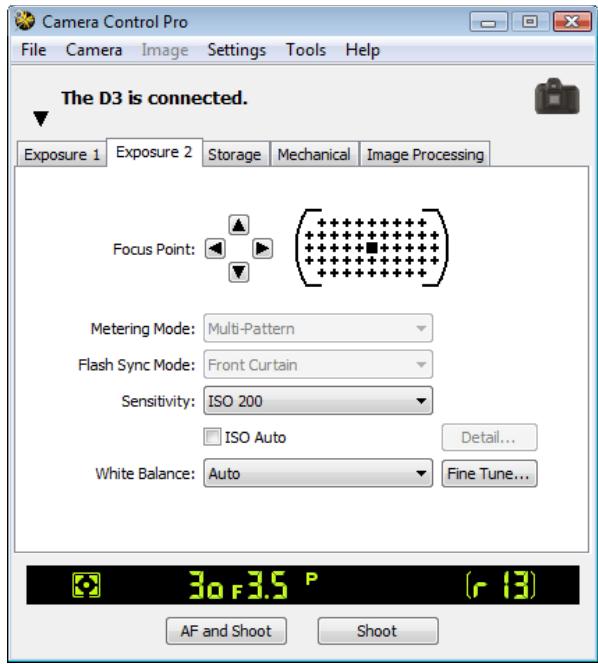

The Exposure 2 Tab The following settings can be adjusted from the Exposure 2 tab. FE pou re Be GET ge a PURES 285 os Pot | er manual for detis,Exg information on AF-area mode and fou mode, sel fous (ne mechanical tab )4. Te reg mode en De élected from 1e menu (D3, 02 ses, 0300, 0200, 80, 070 series D50, and D40 sers ob}. Metering mode defaults ta ur [ou @Click here to go to the beginning of each of the three chapters. The chapter you are currently viewing is displayed in a darker color. @Page title @ Description @ Blue underlined text indicates a link to another part of this manual or the World Wide Web. Click the text to follow the link (note that a web browser and an In- ternet connection are required to link to the World Wide Web). To return to the previous topic, click the © button in Adobe Reader. @Click here to return to the first page. Return to first page

Using Camera Control Pro Appendices Before installing Camera Control Pro, be sure that your system meets the following requirements: Intel Celeron, Pentium 4, or Intel Core series processor with a clock speed of 1 GHz or faster recommended Preinstalled versions of Windows Vista (32-bit Home Basic/Home Premi- um/Business/Enterprise/Ultimate editions), Windows XP (Home Edition/| Professional), Windows 2000 Professional SO MB required for installation, with an additional 1 GB of free disk space available when Camera Control Pro is running + Windows Vista: 512 MB (768 MB or more recommended) - Other versions of Windows: 256 MB (768 MB or more recommended) 1,024 x 768 pixels or more with 24-bit color (True Color) or higher USB: Only built-in USB ports supported IEEE 1394: OHCI-compliant IEEE 1394 interface board or card required* D3, D2-series, DI-series*, D300, D200, D100, D80, D70-series, D50, and D40- series cameras + CD-ROM drive required for installation - Internet connection required for Nikon Message Center Connect the camera directly to the computer. The camera may not function as expected when connected via a hub, extension cable, or keyboard. + See the website below for the latest information on boards that have been tested and approved for use. + Di-series cameras not supported under Windows Vista. Check the support information at the website below for the latest on compatible cameras and operating systems. Europe Africa: www.europe-nikon.com/support Asia, Oceania, Middle East: www.nikon-asia.com U.S.A.: www.nikonusa.com Additional information may be available from the Nikon representative in your area. Visit http://nikonima .com/ for contact information. Return to first page

Using Camera Control Pro Appendices Before installing Camera Control Pro, be sure that your system meets the following requirements: CPU PowerPC G4 or G5 model, Intel Core, or Intel Xeon with a clock speed of 1 GHz or faster recommended os Mac OS X version 10.39 or 104.10 Hard-disk space 100 MB required for installation, with an additional 1 GB of free disk space available when Camera Control Pro is running RAM 256 MB (768 MB or more recommended) Video resolution 1,024 x 768 pixels or more with 24-bit color (millions of colors) or higher Interface’ USB: Only built-in USB ports supported FireWire: Only built-in FireWire ports supported Supported cameras | D3, D2-series, DI-series , D300, D200, D100, D80, D70-series, D50, and D40- series cameras Miscellaneous + CD-ROM drive required for installation - Internet connection required for Nikon Message Center *_ Connect the camera directly to the computer. The camera may not function as expected when connected via a hub, extension cable, or keyboard. + Di-series cameras not supported on computers with Intel CPUs running Mac OS X version

Check the support information at the website below for the latest on compatible cameras and operating systems. Europe Africa: www.europe-nikon.com/support Asia, Oceania, Middle East: www.nikon-asia.com U.S.A.: www.nikonusa.com Additional information may be available from the Nikon representative in your area. Visit http://nikonimaging.com/ for contact information. Return to first page

Using Camera Control Pro Appendices Before installing Camera Control Pro: + Confirm that the computer satisfies the system requirements for Camera Control Pro. + Exit any other applications that may be running, including anti-virus software. Follow the links below to view installation instructions for your operating systern: Windows | | Macintosh Existing Versions of Camera Control Pro If an earlier version of Camera Control Pro is installed, uninstall the existing version before installing Camera Control Pro 2. If an existing copy of Camera Control Pro 2 is detected during installation, a notification will be displayed. Follow the on-screen instructions. Return to first page

{ quit Close this dialog. Link to Nikon: Download ViewNX or trial versions of Nikon software or visit Nikon technical support websites (Internet con- nection required). Instruction Manual: Open the “Manuals” folder, which contains software instruction Double-click INDEX.pdf to view a region selection screen. manuals

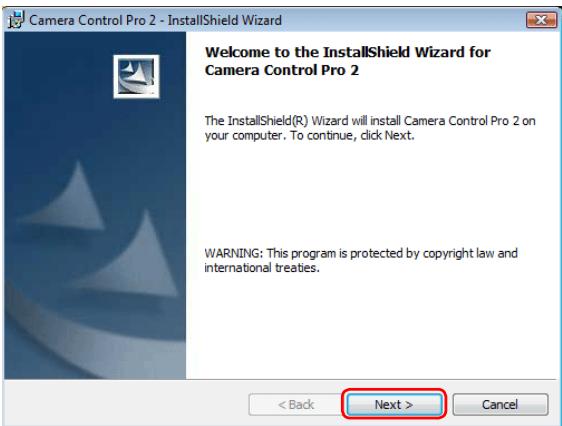

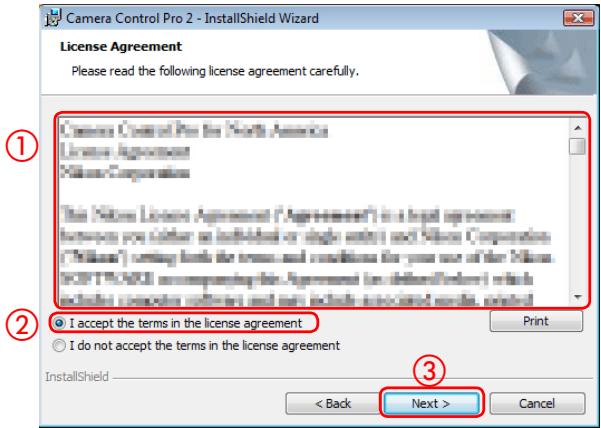

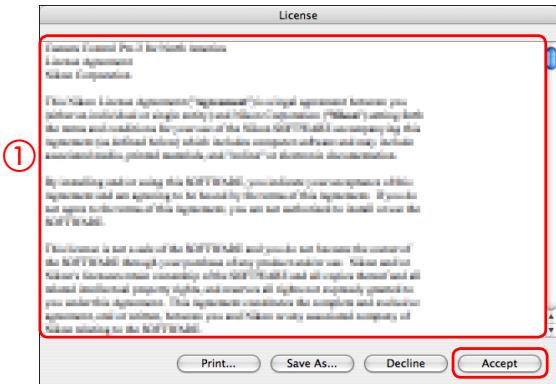

Using Camera Control Pro Appendices [ à 3 After reading the license agreement (D), select I accept the terms of the license agreement ((2)) and click Next (@)) to proceed with installation. License agreement Please read the flou lcece agreorent crc. \ Ed not accept te terrine rene agreement bind @) Lena (Cr cel A "ReadMe” file will be displayed. Take a moment to read this file, which may contain information that could not be included in this manual, and then click Next. L J

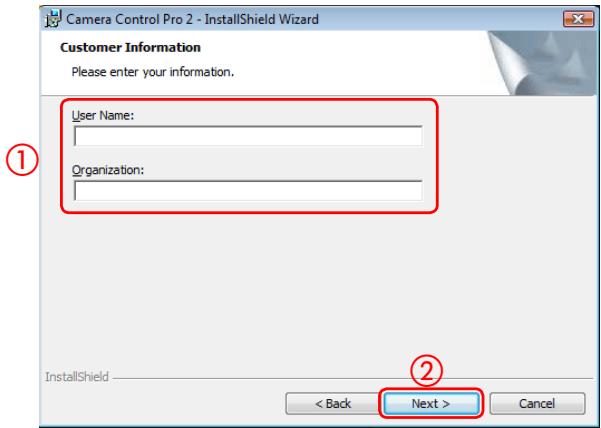

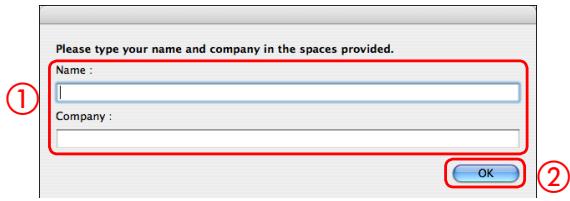

4 Personalize your copy of Camera Control Pro (O) and click Next (@). Gustomer Information Please enter your formaton. \ is @)

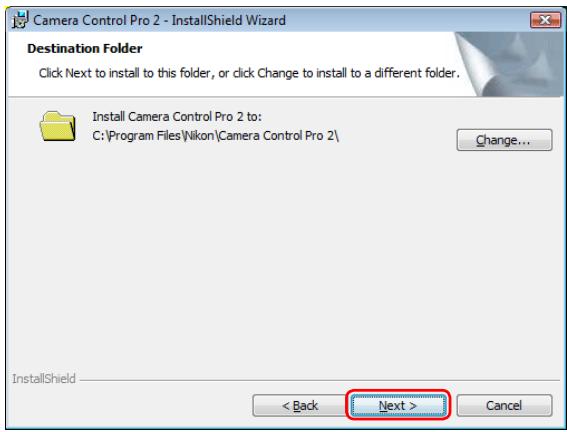

Return to first page

Les CE L J Return to first page

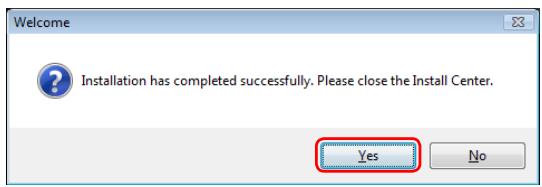

8 Click Yes and remove the installer CD from the CD-ROM drive. Welcome Ti instalation hes completed successuly. Plezse close the Install Center.

If a dialog is displayed directing you to restart the computer, follow the on- screen instructions. This completes installation of Camera Control Pro. Return to first page

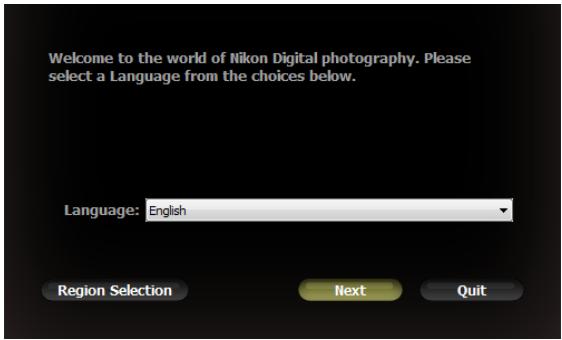

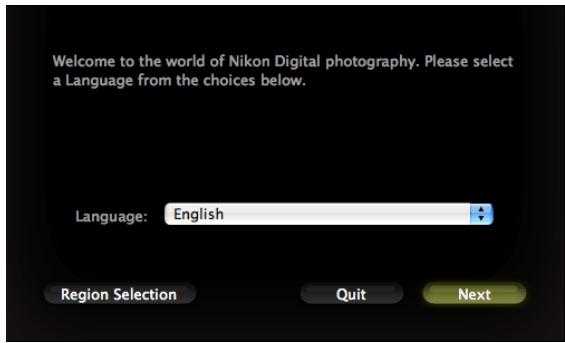

A language-selection dialog will be displayed; select a language and click Next. If the desired language is not available, click Region Selection to choose a different region and then choose the desired language. English E Region Selection Return to first page

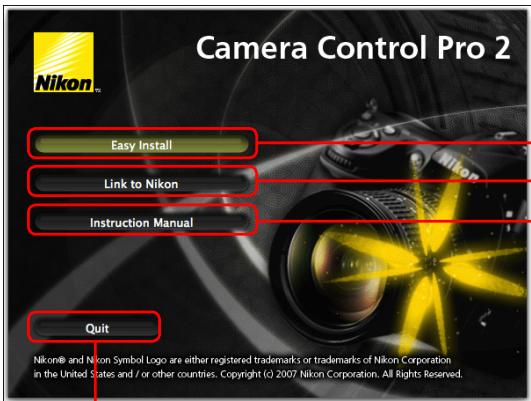

Using Camera Control Pro Appendices Easy Install: Install the minimum software ZÆ Camera Control Pro 2 ie needed to run Camera Control Pro. Es instal Link to Nikon: Download ViewNX or trial versions of Nikon software or visit Nikon technical support websites (Internet con- nection required). Linkto Nikon Instruction Manual: Open the “Manuals” folder, which contains software instruction manuals. Double-click INDEX.pdf to view { quit Close this dialog. a region selection screen. To uninstall Camera Control Pro, see Uninstalling Camera Control Pro. Return to first page

Using Camera Control Pro Appendices Follow the steps below to install Camera Control Pro:

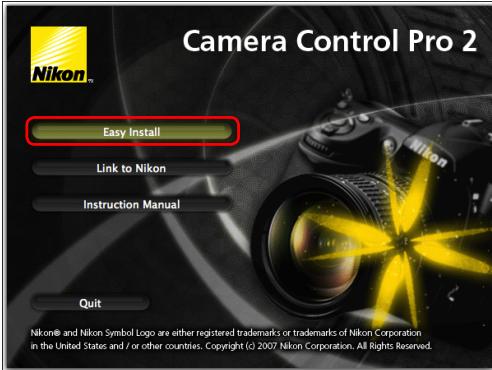

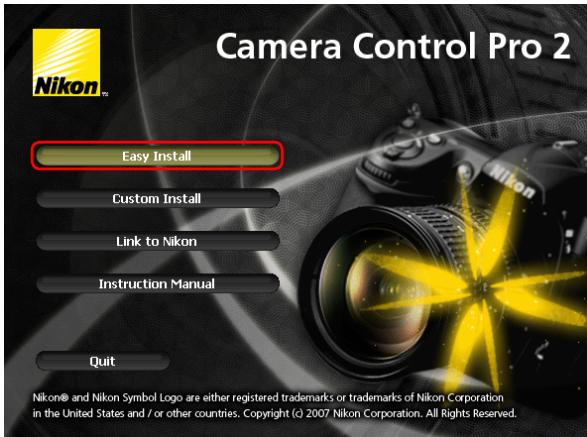

1 Click Easy Install. r à 2 After reading the license agreement (D), click Accept (@)). Return to first page

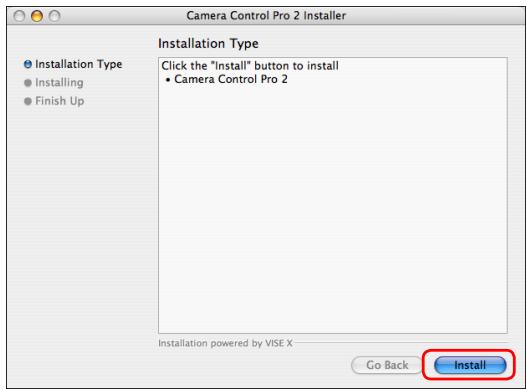

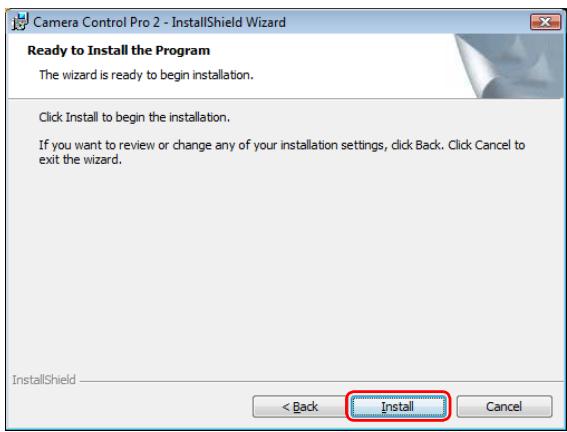

Using Camera Control Pro Appendices [ a 3 Click Install. men CE 2 instalation Type L J [ a 4 Personalize your copy of Camera Control Pro (D) and click OK (@)). © É- U ) J ( à 5 Click Yes. Return to first page

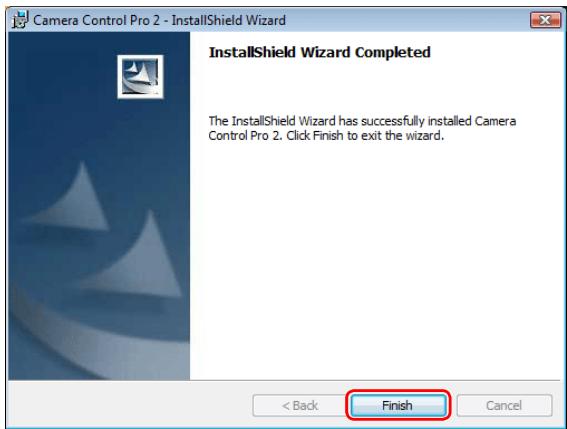

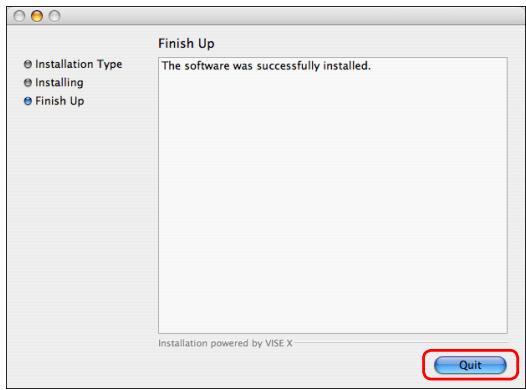

Using Camera Control Pro Appendices [ a 6 Click Quit. Fins Up L J [ a 7 Click OK and remove the installer CD from the CD-ROM drive. D Pete Pre This completes installation of Camera Control Pro.

Return to first page

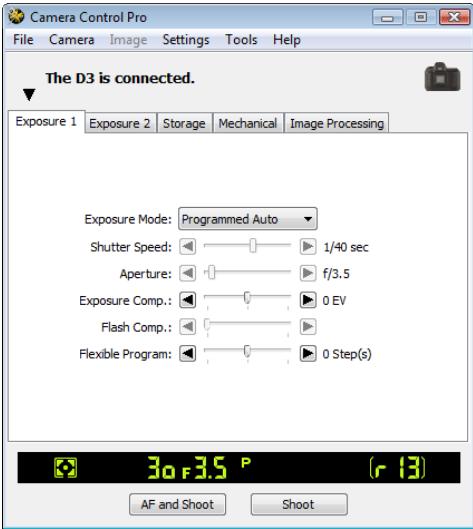

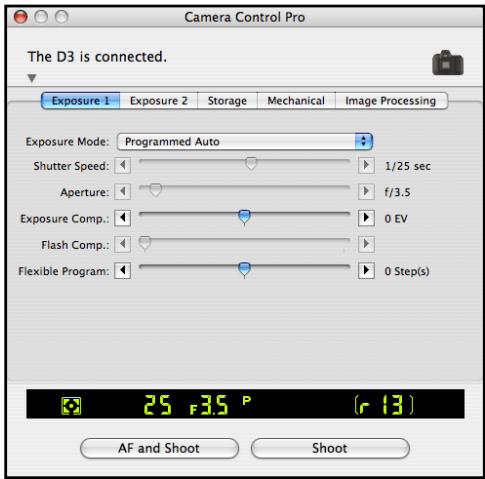

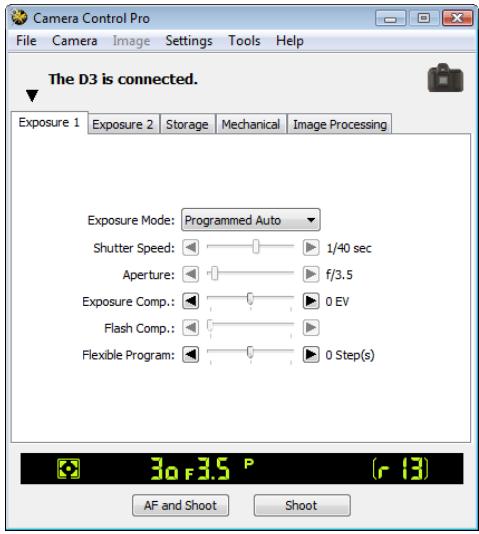

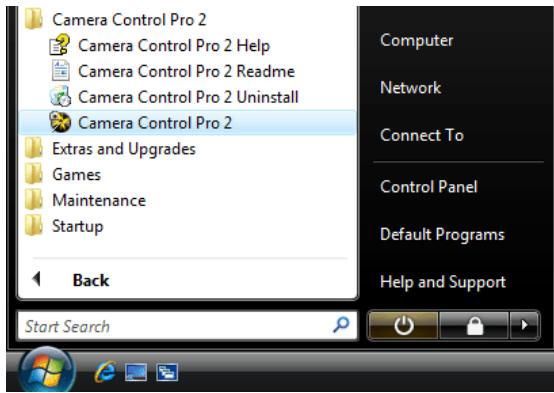

Using Camera Control Pro Appendices Starting Camera Control Pro Turn the camera off and use the interface cable to connect the camera to the computer as described in the camera manual. 1f you are using a D1-series camera, choose "PC" as the operating mode. If you are using a D100, choose PS, A, or M mode. Users of D3, D2-series, D300, and D200 cameras can select any mode other than M-u (mirror up). Other cameras can be connected in any shooting mode. LANs See the wireless transmitter user's manual for information on controlling cameras connected to lo- cal area networks (LANs) using WT-2, WT-3, or WT-4 wireless transmitters. USB When using the D100 under Windows 2000, log in to an administrator account and set the camera USB option to Mass Storage; otherwise, set the camera USB option to PTP. When using other cameras equipped with a USB interface, set the camera USB option to PTP or MTP/PTP. Di-series cameras do not support USB. Return to first page

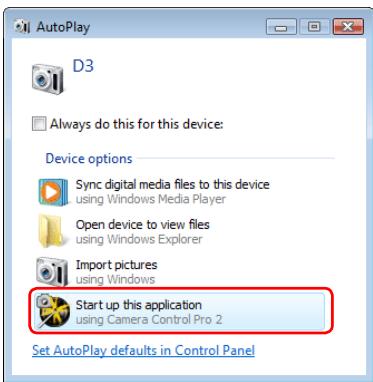

Using Camera Control Pro Appendices Turn the camera on. If Nikon Transfer or PictureProject Transfer starts, click the close button. USB Connection to Windows Vista/XP Computers When a camera with USB interface is connected to a Windows XP computer, an AutoPlay dialog may be displayed. ai AutoPl Lie Es

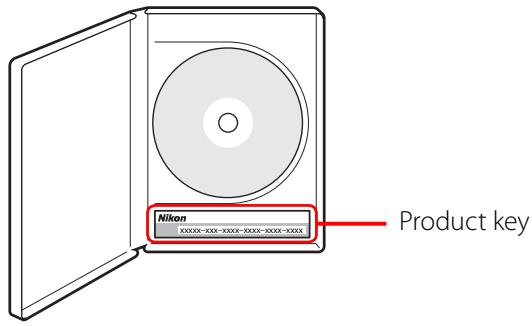

Camera Control Pro 2 Product Key If prompted to supply a product key, enter the key found on the product packaging and click OK. Be sure not to lose the key or the key for any existing versions of Camera Control Pro, as they may be required when re-installing or upgrading the product. Return to first page

Using Camera Control Pro Appendices Product Key If prompted to supply a product key, enter the key found on the product packaging and click OK. Users of the trial version will see a dialog listing the time remaining in the thirty-day trial period; click Trial to use the trial version or Buy (if available) to visit a website where you can purchase a product key (Internet connection required). Be sure not to lose the key, as it may be required when re-install- ing or upgrading the product. No Camera Connected Most features of Camera Control Pro are only available when a camera is connected and turned on. If no camera is detected, the message shown below will be displayed. Connect the camera and turn it on. 1 camers Conte Pre TSTSTES Fle_Cemera image Setings Todis Help No camera wras detected.

Return to first page

Using Camera Control Pro Appendices Exiting Camera Control Pro Windows Select Exit from the File menu. Macintosh Select Quit Camera Control Pro from the application menu. Camera Control Pro ‘About Camera Control Pro... Preference… æ, Services » Hide Camera Control Pro SH Hide Others XSH Show All Quit Camera Control Pro __#Q Return to first page

Using Camera Control Pro Appendices Disconnecting the Camera To disconnect the camera: + USB (PTP or MTP/PTP)/IEEE 1394 (FireWire): Turn the camera off and disconnect the interface cable. + USB (Mass Storage): When using a D100 camera under Windows 2000 with the cam- era USB option set to Mass Storage, click the “Unplug or Eject Hardware” icon in the taskbar and select Stop USB Mass Storage Device from the menu that appears, then turn the camera off and disconnect the interface cable. Return to first page

Using Camera Control Pro Appendices To view help on Camera Control Pro, select Camera Control Pro Help from the Help menu. Camera Control Pro Help 8 Technical Support Check for Sora Upaites Camera Control Pro Help 387 Technical Support About Carnere Control Pro. Check for Software Updates. Windows Macintosh Return to first page

Using Camera Control Pro Appendices Camera Control Pro is equipped with an automatic update function known as Nikon Message Center. Nikon Message Center checks for updates to a variety of Nikon digital products, including Camera Control Pro. Ifthe computer is connected to the Internet, Nikon Message Center will automatically check for updates when Camera Control Pro starts. You can also check for updates by selecting Check for Software Updates. from the Help menu. If an update is available, an update dialog will be displayed. Downloading Updates An Internet connection is required to download updates. The user bears all applicable fees charged by the phone company or Internet service provider. Dial-up Connections When using à dial-up connection, be aware that the connection is not automatically terminated when download is complete. Be sure to terminate the connection manually. Privacy Information provided by the user as part of this service will not be given to third parties without the user's permission. Return to first page

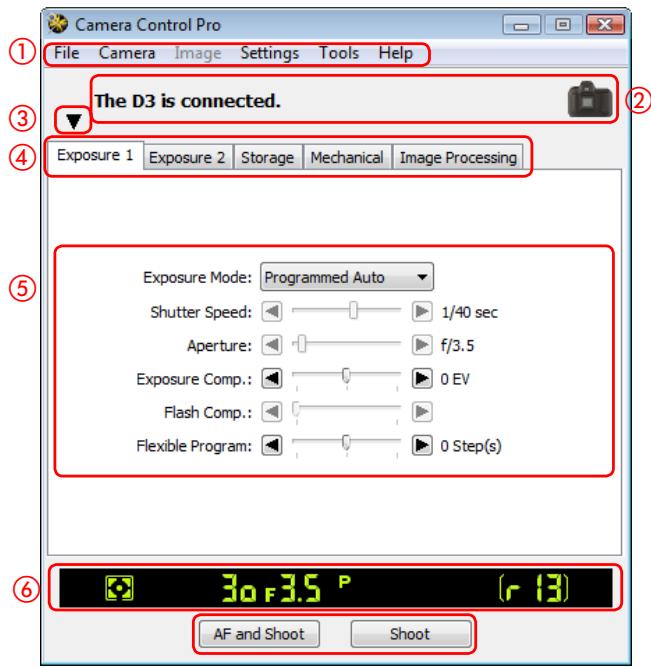

Overview Appendices Camera Control Pro screen layout is described below using the D3 as an example. Windows 12 Camera Control Pro Ts Es OjamTen TE [The D3 is connected. @] a és) OZ Espoaure 2 | Storage | Mechanea | inage Procesare © Exposure Mode: [Programmed Auto» Shutter Speed: D) vase Aperture: [4 De) #35 Exposure Comp.: (M) Ç Bios Flash Comp.: [4 D Fiexble Program: (4) Ç 0 0 Stepte) @ Menu bar @ Connection status: Shows the status and name of any cameras connected. © /»: View or hide camera controls. Camera controls can also be displayed or hidden by selecting Show/Hide Camera Control Panels in the Tools menu. @) Camera control tabs: Click to view the associated camera controls. ® Camera controls © Simulated LCD panel Performs the same function as the information display in the camera viewfinder. © Shoot buttons: Click these buttons to take pictures. Return to first page

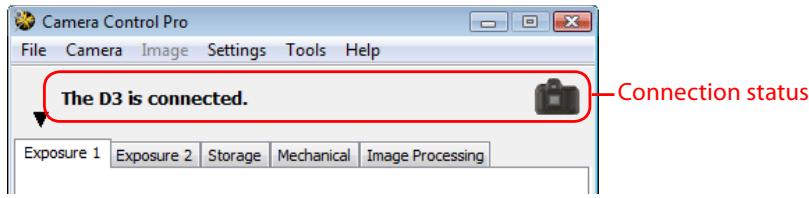

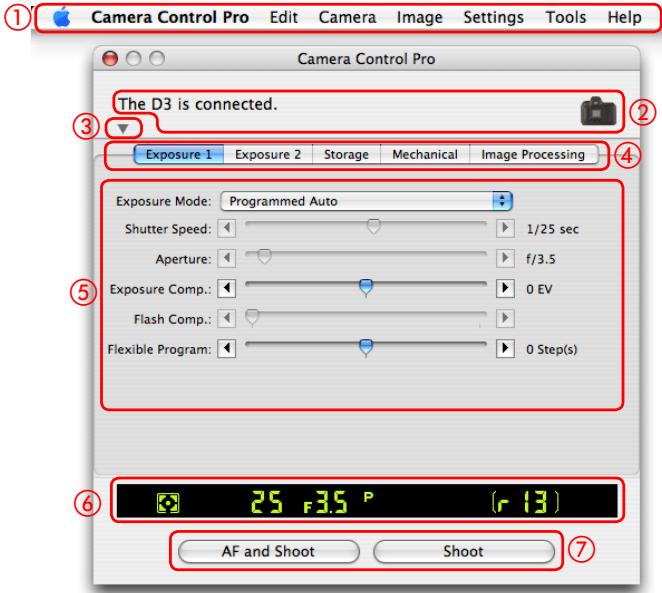

@ Menu bar @ Connection status: Shows the status and name of any cameras connected. © w/k: View or hide camera controls. Camera controls can also be displayed or hidden by selecting Show/Hide Camera Control Panels in the Tools menu. @) Camera control tabs: Click to view the associated camera controls. ® Camera controls © Simulated LCD panel: Performs the same function as the information display in the camera viewfinder. © Shoot buttons: Click these buttons to take pictures. Return to first page

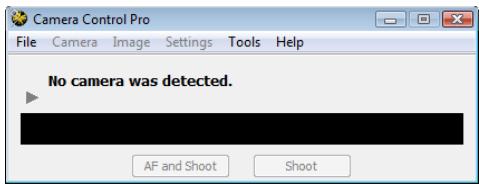

Overview Appendices If Camera Control Pro is running when a supported camera connected, pictures taken with the camera will be stored on your computer hard disk, not the camera memory card. 1 Start Camera Control Pro. 3 Gamers ConolPre DISES Fle Camers mage Setinge Tools Help EDP es pose 1 [por 2] Storage | Vexhania l'imape Process | Epoare Mode: [Fraramredaut +) Shut Soee A Piano ces ms EmesureGenps 0 on Fi Comp > Fexbie Program: M 0 (E) octets) LE 357 65 | Haut) Cm) Select Download Options. in the Tools menu to display download op- tions. Donnipad Options ES} Fer frnages doute on re camera [esse Penres En Pet nome tbe un Emgoooi | Men a non image irecad from te camera Dot = Eatach TC Infomañon IPTC formater, Can Shoot Data 1 IPTC Capton Elembed 10€ prof Return to first page

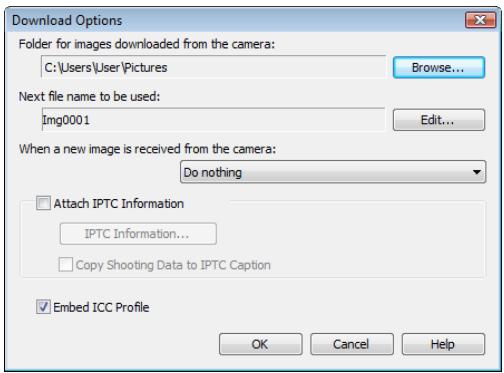

Overview Appendices 3 Adjust capture options: Folder for images downloaded from the camera Select the folder to which photographs will be downloaded as they are tak- en. Next file name to be used Shows how images download to the computer will be named. To change how files are named, click Edit... The dialog shown at below will be dis- played. Using the sample file name as a guide, enter a prefix and suffix and choose the starting number and number of digits for automatic file number- ing. You can also use the shooting date and time in the file name. Fe Naring Pre (Ire sue 05 Betneen Pre and Sur: [Usesequentatrunber +] Sartrenberng at 1 Lang efrumer: À |] D aug Sanpie: mpDDDID3 77? CD Ces) Ce) Step 3 continues on the next page File Naming Conventions Windows: File names may not contain quotes or any ofthe following characters: \"" and "|". Periods (") may not appear at the beginning or the end of file names. Macintosh: The maximum length for Macintosh file names is thirty-one characters. Colons (“:) are not allowed Extensions: Extensions are assigned automatically. The following extensions are used: "JPG" (JPEG images), “TIF" (TIFF images), “NEF" (NEF/RAW images), and “NDF” (Image Dust Off reference data). Return to first page

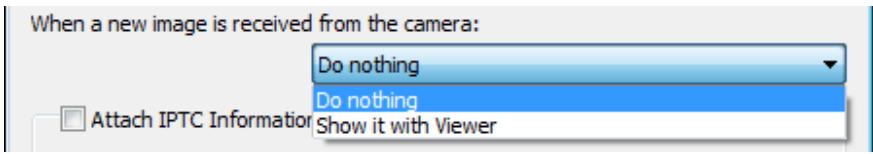

Overview Appendices When a new image is received from camera When a new image is received from the camera: {Cl Attach IPTC Informatior Show it with Viewer | Choose the application that will be used to display captured photographs after they are saved to disk. + Do nothing: Photographs are not displayed after being saved to the com- puter hard disk. + Showit with Viewer: Photographs are displayed in the viewer window. + Showit with ViewNX (available only if ViewNX is installed): ViewNX starts au- tomatically and displays the captured images. See ViewNX help for details. Use the latest version of ViewNX. + Sendit to Capture NX watched folder (available only if Capture NX is installed and the “Watched folder” is selected): If CaptureNX (available separately) is running, photographs will be saved in the folder currently selected as the “Watched folder” (be sure that Capture NX supports the camera; see the Capture NX manual for details). Capture NX will automatically process the pictures according to the batch settings in Capture NX. Step 3 continues on the next page Return to first page

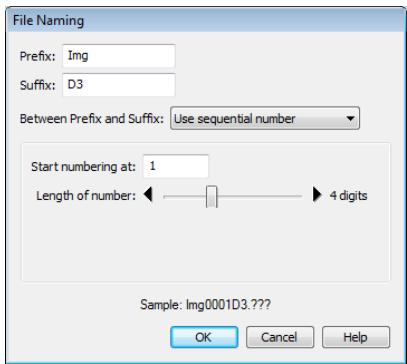

Overview Appendices Attach IPTC Information Check this option to add IPTC information to captured images and enable the Copy Shooting Data to IPTC Caption option. IPTC Information. Clicking this button displays a dialog where you can select the IPTC informa- tion, including keywords and captions, that will be added to images as they are captured. Copy Shooting Data to IPTC Caption Check this option to copy shooting data to the caption field of images as they are captured. Embed ICC Profile Select this option to embed an ICC profile according to the camera Color Space settings. The ICC profile is embedded in JPEG and TIFF images as they are captured. Image Authentication(__D3 )(_D2Xs )( D300 )( D2X° )( D2Hs* )( D200° ) The Attach IPTC Information and Embed ICC Profile options do not apply to photographs taken with Image Authentication on. Image authentication information is not embedded in TIFF photographs when capturing images using the Camera Control Pro. *Image Authentication supported from camera firmware version 2.00 Return to first page

Overview Appendices 4 After adjusting options as described in Step 3, click OK to exit the dialog and apply settings to subsequent photographs. Note that if On or Auto- matic (the default setting) is selected for the auto image rotation option in the camera setup menu, D3, D2-series, D300, D200, D80, D70-series, D50, and D40-series cameras will detect camera orientation and automatically embed this information in photographs (note that in continuous mode, the orienta- tion for the first image in each burst applies to all images in the series, even if camera orientation is changed during shooting). If Off is selected, camera orientation will not be recorded. To add information on picture orientation during download, open the Image menu and selecting Rotate all down- loaded images by 90 degrees CCW to mark pictures as being rotated 90° to the right, or Rotate all downloaded images by 90 degrees CW to mark pictures as being rotated 90° to the left. Image Authentication(__D3 )(_D2Xs )( D300 )( D2X° )( D2Hs* )( D200° ) The “Rotate all downloaded images...” options do not apply to photographs taken with Image Au- thentication on. Image authentication information is notembedded in TIFF photographs when cap- turing images using the Camera Control Pro. *Image Authentication supported from camera firmware version 2.00 Return to first page

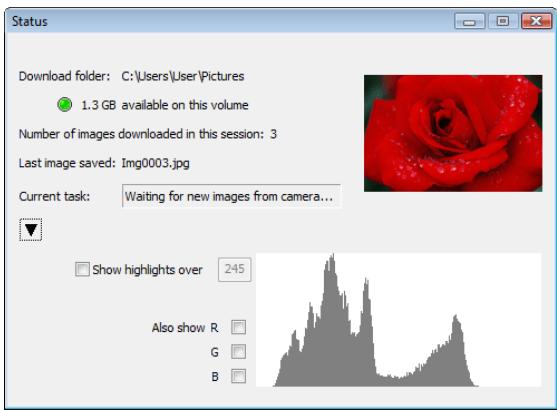

Ifthe Show highlights over option is checked, any areas ofthe preview im- age with a brightness over the value entered in the neighboring text box will be indicated by a flashing border. To display histograms (graphs showing the distribution of pixels of different brightnesses in the image) for the red (R), green (G), and blue (B) channels, put a check in the corresponding box.

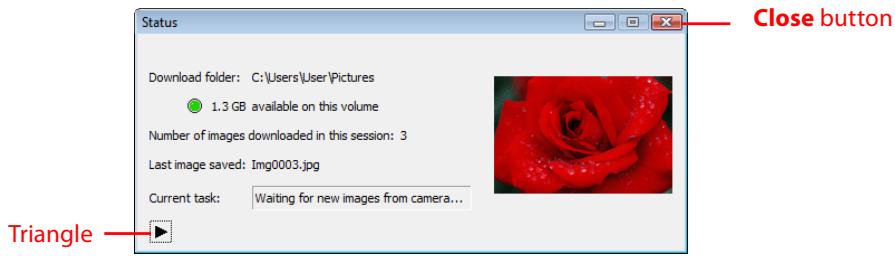

6 Click Close to close the Status dialog. Return to first page

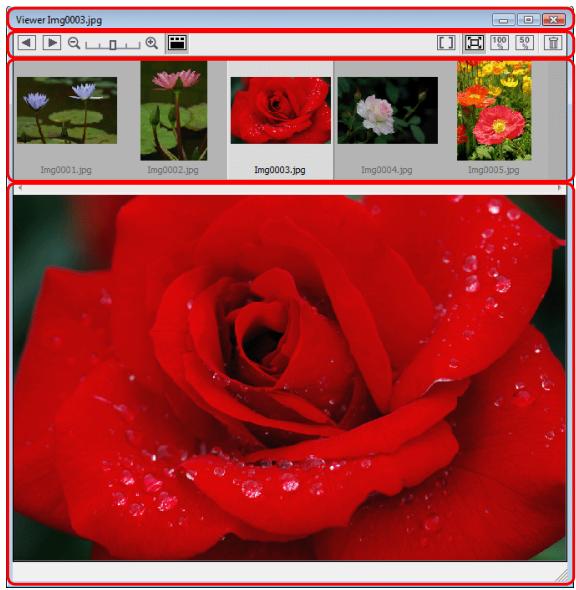

Overview Appendices IfShow it with Viewer is selected for When a new image is received from camera in the “Download Options” dialog, pictures will automatically be displayed in the “Viewer” window after capture. The “Viewer” window can also be started by selecting Show Viewer from the Tools menu. The most recent image in the folder selected for Folder for images downloaded from the camera in the "Download Options” dialog will be displayed. Title bar CCE | }— Tool bar ir | F-— Image area The Title Bar The title bar contains the following items: Description The file name of the image currently displayed in the image area. Ifthe image was recorded at an image quality of NEF (RAW)+JPEG, both extensions will be displayed (e.g, “Img0001.jpg/nef”). Click to minimize the “Viewer window. Click to maximize the “Viewer” window. Click to close the “Viewer” window. Return to first page

Overview Appendices Description Click this button or press the left arrow on the keyboard to select the next image to the left in the thumbnail area. Click this button or press the right arrow on the keyboard to The Toolbar The toolbar contains the following items: Name Back Next select the next image to the right in the thumbnail area. Thumbnail slider CT) Choose the size of the thumbnails displayed in the thumbnail area. View or hide the thumbnail area. Display focus point or focus area used when taking picture. Focus area is displayed in red. Fit image to viewing area (maximum zoom ratio is 100%). View image at 100%. View image at 50%. Thumbnail Show focus point Fitto screen 100% 50% Delete Click this button or press the Delete key on the keyboard (Macintosh users press command+delete) to delete the current image. Show Focus Point Focus point (focus area) display is only available with photographs taken with Nikon digital SLR cameras. It will not be displayed in photographs taken with a non-CPU lens, manual focus, or when focus areas not displayed in the viewfinder. Return to first page

Overview Appendices The Thumbnail Area Lists the images in the folder selected for Folder for images downloaded from the camera in the "Download Options” dialog, sorted by date of modification with the most recent images on the right. The Image Area Shows the image currently selected in the thumbnail list. 1f Show it with Viewer is selected for When a new image is received from camera in the “Download Op- tions” dialog, the most recent picture will automatically be displayed in the image area after capture. The D3 and D300 Buffer If Show it with Viewer is selected for When a new image is received from camera in the “Download Options” dialog, the images in the camera buffer will be displayed on the right of the thumbnail area before being downloaded to the computer. To preview an image in the image area, select it in the thumbnail list (no file name will appear in the title bar). Images deleted from the buf- fer will not be downloaded to the computer. Return to first page

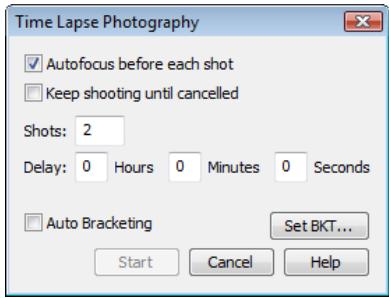

Appendices Overview Using Camera Control Pro, you can take a series of photographs automatically at a time interval you select. 1 Select Time Lapse Photography... from the Camera menu. The Time Lapse Photography dialog will be displayed. F7 autofoeus before each shot Ikeep shooting nid canceled Shots: 2 Delay: 0 Hous O0 Mnutes D Seconds Eau rcietng se = Return to first page

Overview Appendices 2 Before shooting starts, adjust the following settings: Autofocus before each shot Ifthis option is checked, the camera will perform an autofocus operation be- fore each shot. Ifthe selected focus mode is AF-A (D80, D50, and D40-series cameras) or single-servo AF, an autofocus operation will be performed even when the check box is off. Keep shooting until cancelled If this option is checked, the camera will continue to take photographs until you click Stop Shooting in the Time Lapse Photography dialog. Auto bracketing (7 D3 )(P2senes)(CD300 )(CD200 )( D80 )(70seres)( D50 } Select this option to perform exposure, flash, or amsn white balance bracketing during shooting. To change bracketing options, click Set BKT.... The dialog shown at right will be displayed. AE/WB/Flash Choose the type of bracketing per- ET Bracketing formed. a Change Factor when = (e Exposure Mode is set . to Manual Choose how bracketing is per- formed in manual exposure mode.

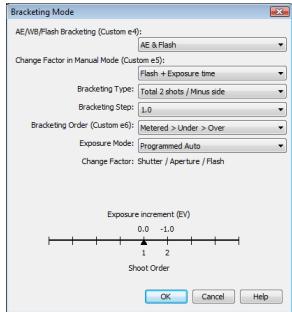

Choose the bracketing program, ex- Bracketing Type/ posure or white balance increment, Bracketing Step/ bracketing order, and exposure Bracketing Order/ mode. Bracketing type and brack- Exposure Mode eting order are not available with] Lie) the D50. D80/D70 series/D50 Return to first page

Overview Appendices 3 Use the Shots box to choose a number of shots from 2 to 9999, This option is not available when Keep shooting until cancelled is selected. 4 The delay between shots can be set to any value between 00:00:01 (one second) and 99:59:59 (ninety-nine hours, fifty-nine minutes, and fifty-nine seconds). 5 Click Start. lf Send it to Capture NX watched folder is selected for When a new image is received from camera in the “Download Op- tions” dialog, photographs will be saved to the “watched” folder selected in Capture NX (available separately; see the Capture NX manual for details). Capture NX will automatically process the pictures according to the batch settings in Capture NX. Time Interval Settings Ifthe delay is shorter than the time required to record each photograph, the actual interval between photographs will be longer than that specified in the “Time Lapse Photography" dialog, Auto Off (D1 series) When the camera is operated on battery power and for 15 minutes has been selected for “While Camera Control Pro is running, keep camera awake" in the General tab of the Preferences dialog, choose a delay of fifteen minutes or less. When taking photographs at longer intervals, use an AC adapter (available separately) to power the camera During Time-Lapse Photography No operations can be performed in the “Camera Control Pro" window until the “Time Lapse Pho- tography" dialog is closed Return to first page

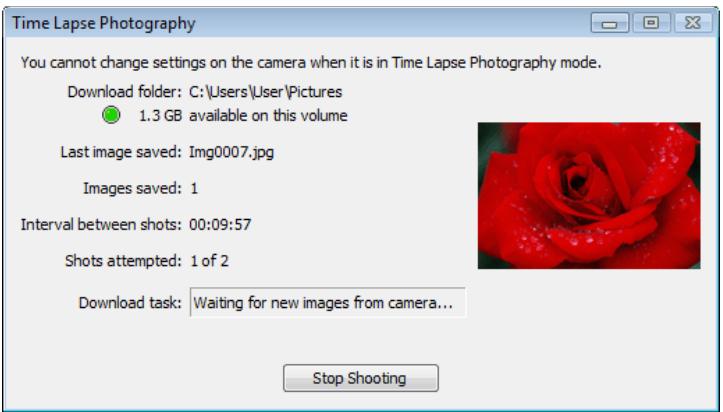

Overview Appendices 6 Follow the progress of time lapse photography in the progress dialog. Click Stop Shooting to end time lapse photography at any time. If a num- ber of shots was specified in the "Time Lapse Photography” dialog, shooting will end when the specified number of shots has been taken. [Time Lapse Photogrephy (RES You cannot change sethngs on the camera nhen it in Time Lapse Photography mode. Dounload folder: C:\Users\User Pictures © 1.368 available on this volume Lastimage saved: Img0007.jpg Images saved: 1 Interval between shots: 00:09:57 Shots attempted: 10f 2 Download task: |\Waïting for new mages from camera. Once the specified number of shots has been taken, the Stop Shooting button will change to Shooting Complete. Click Shooting Complete to exit the "Time Lapse Photography" dialog. Error Logs If an error occurs during shooting, an error log will be displayed; click OK to close the log and return to the Camera Control Pro window. The Time Lapse Photography Dialog Ifyou make a mistake in entering settings in the “Time Lapse Photography" dialog, a warning will be displayed. Return to the ‘Time Lapse Photography" dialog and adjust settings as directed. Hard Disk Full A warning will appear when space is no longer available on the destination disk for photographs taken using time lapse photography. Use the information in the warning to reduce the number of photographs or change the destination drive. Return to first page

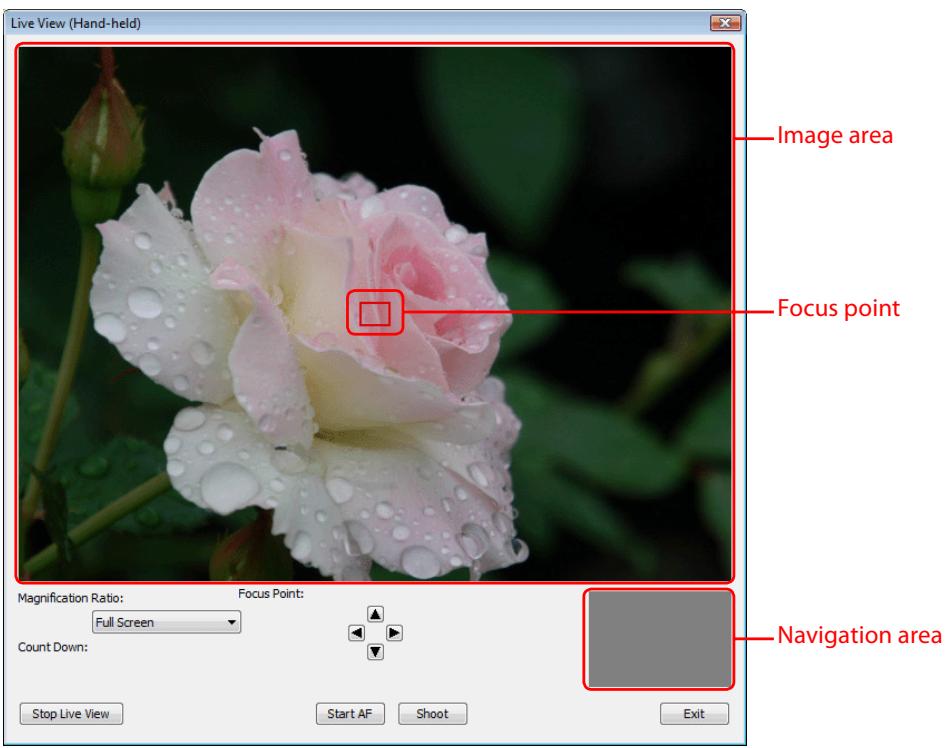

Overview Appendices When à camera that supports live view is connected, Live View (Hand-Held) and Live View (Tripod) options are available in the Camera menu. Selecting either of these options opens the ‘Live View” window. Camera controls can not be used while the "Live View” window is displayed; the “Live View” window will close auto- matically if the camera is disconnected. Live View (Hand-Held) The following window is displayed when Live View (Hand-held) is selected in the Camera menu. Live Vi (Handheld Image area Focus point Manon Rate: 2 reen. = @ h à CE) CR Navigation area = ue Return to first page

Overview Appendices The image area shows the view through the camera lens, updated in real time, with the current focus point superimposed. The other controls in the "Live View (Hand- held)" window are described below: Description Item Click to start or stop live view. Click the arrows to move the focus point. To prevent damage to the its internal circuits, the camera will automatically end live view if the temperature inside the camera becomes too high. The count-down timer shows the time remaining until live view ends. Focus the camera using normal (phase-detection) AF. Take a picture. Close the “Live View (Hand-held)" window. Zoom the view in the image area in or out. The navigation area shows the portion of the image currently displayed in the image area. Return to first page

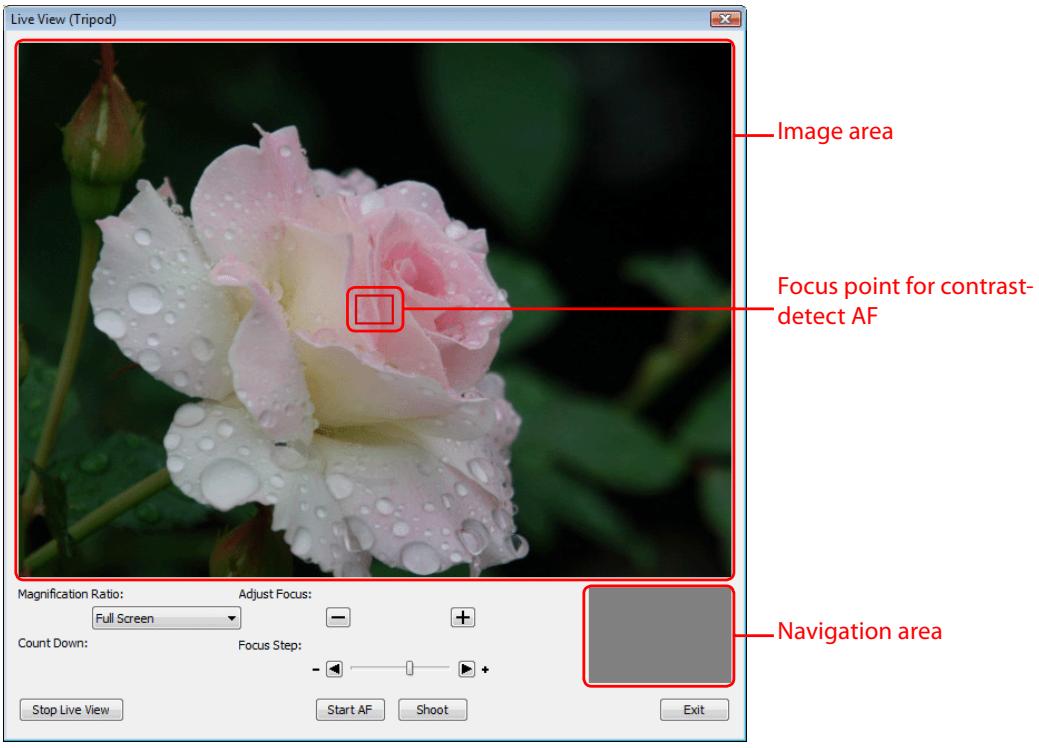

Overview Appendices Live View (Tripod) The following window is displayed when Live View (Tripod) is selected in the Camera menu. Live Visa (Tripoc) Focus point for contrast- detect AF Mana: Réirous: Fgzeen = = Œ ee = o = Navigation area cantoonre Fons -« CE Return to first page

Overview Appendices The image area shows the view through the camera lens, updated in real time, with the focus point for contrast-detect AF superimposed. Click anywhere in the image area to move the focus point to that spot. The other controls in the “Live View (Tri- pod)" window are described below: Item Description Click to start or stop live view. To prevent damage to the its internal circuits, the camera will automatically end live view if the temperature inside the camera becomes too high. The count-down timer shows the time remaining until live view ends. Zoom the view in the image area in or out. The navigation area shows the portion of the image currently displayed in the image area. Click these buttons to adjust focus by the amount selected with the Focus Step slider. Click + to move the focal point away from the camera, - to bring it toward the camera. Click Start AF toinitiate contrast-detect autofocus. The button will change to Stop AF; click again to end autofocus. The Adjust Focus buttons and Focus Step slider are not available while autofocus is in progress. Take a picture. Close the “Live View (Tripod)" window. Return to first page

Overview Appendices The Camera Control Pro window shows current camera settings, which may be viewed by clicking the five page selection tabs. Camera settings can be altered using the controls in each tab as in “Camera Controls” The other settings in this window are described below. Connection Status D Camers Control Pro 1e € File Comers Image Settings Tools Help F The D3 is connected. [-] Connection status Exposure 1 |Exposure 2 | Storage | Mechanical | Image Processing This area shows the following information about the camera currently connected: + Camera name + Camera orientation (| D3 _) (D2series) (_D300 ) ( D200 ) (| D80 ) (D70series) (_ D50 C205ers) |f On or Automatic is selected for the auto image rotation option in the camera setup menu, camera orientation will be indicated by an icon as shown below. No icon will be displayed if Off is selected. Horizontal Rotated 90° clockwise Rotated 90° counterclockwise Return to first page

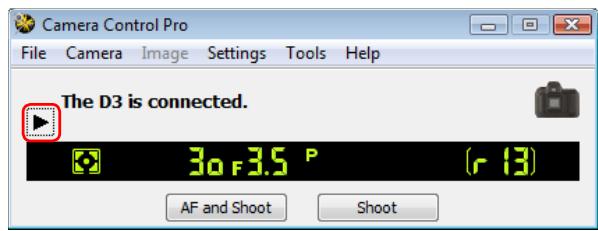

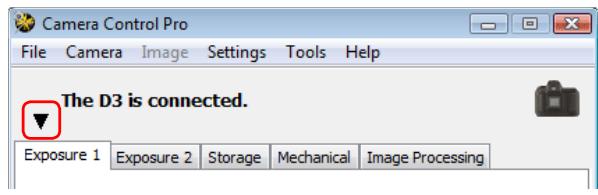

Overview Appendices The Y / > Button Click this button to view or hide camera controls. "@ camera Control Pro RITES) File Comers Image Settings Tools Help The D3 is connected. [-] | Exposure 1 |Espoaure 2 |Strage | Mechaneal | image Procesong 12 Camera Control Pro Te File Camera Image Settings Tools Help mn [-] (CAFandShoot | [Shoot] Simulated LCD Panel This panel shows the information displayed in the cameras viewfinder, with the ex- ception of camera errors. Clicking on an indicator in the panel opens the Camera Control Pro window to the tab that controls the selected option, where adjustments can be made. CE 2 | Carandsot] [sm The amount of memory remaining in the camera memory buffer is displayed at the right edge of the simulated LCD panel (this information is not displayed when a D1- series or D100 camera is connected). This information is updated at regular intervals, but temporary discrepancies may exist between the display and the actual amount of memory remaining in the buffer. Return to first page

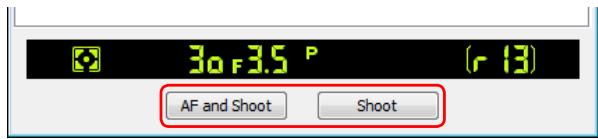

Overview Appendices Shoot Buttons Click either of these buttons to take a photograph at current settings. If a D3, D2-se- ries, D300, D200, D80, D70-series, D50, or D40-series camera is connected, photos can be taken in continuous shooting mode: in this case, the AF and Shoot and Shoot buttons will instead be labeled AF and Start and Start. Continuous shooting with D-series and D100 cameras can only be performed with shutter-release button on the camera body; the shooting buttons in the "Camera Control Pro” dialog can only be used to take pictures one at a time. AF and Shoot AF and Shoot/ | When this button is clicked, the camera will perform an autofocus operation AFandStart |and then release the shutter to take a photograph. Click this button to take a photograph. Ifthe selected focus mode is AF-A (D80, Shoot/Start D50, and D40 series cameras) or single-servo AF, an autofocus operation will be performed before the shutter is released. The Function Dial The D100 can only be used to take photographs when the function dial is set to P.S, À, or M. At other settings, the shoot buttons in the “Camera Control Pro” dialog will be disabled and the simulated LCD panel will not be displayed. Return to first page

Overview Appendices Camera Settings That Can Not Be Adjusted from Camera Control Pro The following operations can only be performed using the controls on the camera body: Operation Camera Burst photography (continuous shooting mode) Continuous servo autofocus All supported models Pressing the shutter-release button halfway to check focus All supported models Autofocus-only operation (use AF and Shoot to perform autofocus) All supported models Manual aperture adjustment using the lens aper- ture ring D300 D200 Reactivating the camera after it has entered slee

mode pafejdsip jou snje3s Depth-of-field preview All supported models Auto bracketing Compression options for NEF (RAW) images Operation assigned to FUNC./Fn button D3 _)(D2series)(_ D300 )( D200 ) D3 _)(D2series)(_ D300 )( D200 })

Remote (D80, D70 series, D50, and D40 series only) |( and self-timer mode selection ( ) (270 series)(__D50 _ )(D40 series) Focus mode selection using camera focus-mode selector All supported models Metering Exposure mode (can be adjusted if Enable controls on camera body is not selected when D80, D70 series, D50, or D40 series is connected) Shooting mode Shutter-speed lock pakerdsip snjexs Aperture lock Autoexposure lock All supported models Flash compensation (é D3 _)(D2series)(Diseries)(_ D300 ) M-up (mirror up) mode selection ( D3 _)(D2series)(_ D300 )( D200 }) Selection of second center focus area group (group dynamic-AF) Return to first page

Overview Appendices Camera controls are described below using the D3 as an example: The Exposure 1 Tab The following settings can be adjusted from the Exposure 1 tab: 1 camera Control Pro TS Es File Camera Image Settings Tools Help The D3 is connected. é Esposure 1 |Expoaure 2 Stage | Mechaneai | image Process) Exposure Mode: [Programmed Auto» Shutter Speed: |4 (D) 1/40 sec Aperture: |4. De) #35 Exposure Comp. ( 1 CE Fish Comp. ( G Frxble Program: ( D 0 tent)

Choose an exposure mode. If a D100 is connected, or if Enable controls on the Exposure camera body is checked when a D80, D70-series, D50, or D40-series camera is con- Mode nected, it will show the current exposure mode but the mode itself must be se- lected using the camera function dial. See the camera manual for details Shutter speed can only be adjusted in Manual and Speed Priority modes, when it Shutter can be set to values between the maximum and minimum values supported by the Speed camera. Use high shutter speeds to freeze motion, low shutter speeds to suggest motion by blurring moving objects. Aperture can only be adjusted in Manual and Aperture Priority modes, when it can be set to values between maximum and minimum aperture (small apertures have high f-numbers, wide apertures low numbers; the actual apertures available depend on the lens used). Aperture can not be controlled from Camera Control Pro when Custom Setting 22 has been set to allow aperture to be adjusted manually using the lens aperture ring (D1-series only). Aperture Return to first page

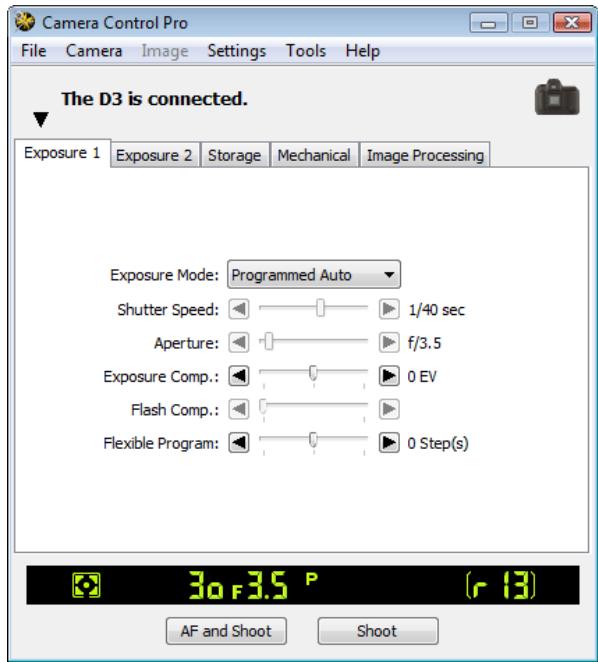

Overview Appendices The Exposure 1 Tab Exposure compensation is useful when shooting subjects contain- Exposure ing sharp lighting contrasts, or on other occasions when you want Comp. to modify the exposure value determined by the camera. Expo- sure compensation is available in all exposure modes. Flash Comp. This option is used to adjust the level of the cameras built-in Speedlight. Flexible program can only be used in Program Mode, when it al- Hexible ! Lx RTE lows you to choose from predetermined combinations of shutter . speed and aperture appropriate to current lighting conditions. The Function Dial The D100 can only be used to take photographs when the function dial is set to P,S, A, or M. At other settings, the controls in the Exposure 1 tab will be disabled. Bulb At a shutter speed of Bulb, the shutter remains open while the shutter release button is held down: Use the camera shutter-release button to take photos at this setting. Clicking either of the shoot buttons will display an error message. Return to first page

Overview Appendices The Exposure 2 Tab The following settings can be adjusted from the Exposure 2 tab. D Camera Control Pro SES Fie Camera Image Setings Tools Help The D3 is connected. é Enon if Spore? (Se [ee fine ue Metering Mode: [Mulb-Pattern Fiash Sync Mode: [Front Curtair Sensitivity: [150 200 > F1S0 auto D White Balance: [auto +] (Eine Tune. ñ The focus point and focus area can be selected using the arrow buttons; see the Focus Point camera manual for details. For information on AF-area mode and focus mode, see Focus Area ñ ‘The Mechanical Tab.” The metering mode can be selected from this menu (D3, D2 series, D300, D200, Meterin D80, D70 series, D50, and D40 series only). Metering mode defaults to the option Mode 9 selected with the camera. If a Di-series or D100 camera is connected, the current metering mode will be shown, but changes can only be made using camera con- trols. See the camera manual for details. Flash Sync This option controls the camera flash sync mode. See the camera manual for de- Mode tails. Return to first page

Overview Appendices The Exposure 2 Tab ISO sensitivity can be raised when taking photographs in low light conditions. See the user's manual provided with your camera for details. D50 __)(D40 series When this option is checked, the camera will adjust ISO sensitivity automatically. If this option is selected when a D3 or D300 cam- era is connected, the maximum sensitivity and minimum shutter speed can be set by clicking the Details. button: White Balance White balance is used to ensure that colors which appear white when viewed directly are white in the final photograph. lt can also be used to produce an intentionally unbalanced rendering of a scene. lfFluorescent is selected when a D3 or D300 is connected, a menu of bulb types will be displayed. If Choose color temp. is selected when a D3, D2-series, D300, or D200 camera is connected, a menu of color temperatures will be displayed. See the camera manual for details. Fine Tune. D80 CES Click Fine Tune... to make fine adjustments to white balance. Fine tuning is not available with Choose color temp. (D2 series and D200 only) or preset white balance. If a D3 or D300 is connected, white balance can be fine-tuned on the Green-Magenta and Blue- Amber axes as described in the camera manual; to restore default settings, click Reset. Fe Tune Wie Enance

D2 series/D1 series/D200/ M D100/D80/D70 series/ Se rene D40 series D3/D300 Return to first page

Overview Appendices The Exposure 2 Tab This field lists the comments for all white balance presets. Clicking T Edit... when Preset is selected for white balance displays the [oc_J (cn (He ] dialog shown at right, where the comments for each of the white balance presets can be edited. Click OK to copy the comments to the camera. Comments can be up to thirty-six characters long and contain letters, numbers, quotes, apostrophes, spaces, and any of the following characters: Da nn ae pr ag Ge QG AGE PL M M M ro nn >""_"and'@”. Comment Return to first page

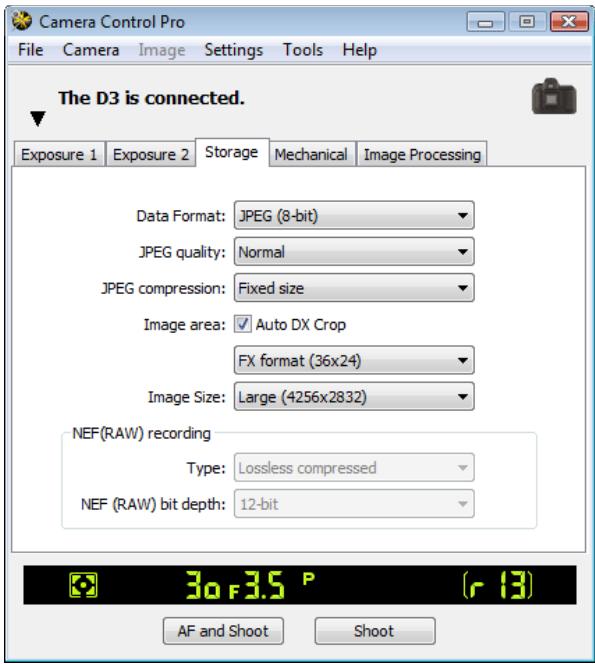

Overview Appendices The Storage Tab The following settings can be adjusted from the Storage tab: D Camera Control Pro Le Es File Camera Image Settings Tools Help The D3 is connected. és Exposure 1 | Exposure 2| Storage [Mechanical | Image Processing Data Format: [JPEG (8-bit) = 2726 quaty: [Normal — 2PEG compression: [nada j Image area: (auto DK Crop FX format (36x24) x» Image Size: [Large (42562832) * NEF(RAW) recording

NEF (RAW) bit depth:

Choose from the file types supported by the camera (see the cam- era manual for details). This setting determines pixel bit depth and file size. fan option that includes JPEG is selected, the compres- sion ratio can be selected from the JPEG quality menu and other compression options (D3, D2 series, D300, and D200 only) from the JPEG compression menu. Note that JPEG quality is fixed at Basic when RAW (12-bit) + JPEG (8-bit) is selected with D70- series, D50, and D40-series cameras. Choose from Color and Black & White. Black & White is not TG available when RAW is selected for Data Format. If Auto DX crop is selected, the camera will select DX format auto- Imagearea(__ D3 ) matically when a DX lens is attached. Ifthis option is not selected, the format can be selected from the menu. Data Format Return to first page

Overview Appendices The Storage Tab Image Size Choose image size. See the camera manual for details. NEF RAW Compression Choose bit depth (D3 and D300 only) and compression set- NEF (RAW) recording tings for NEF (RAW) images. These options are only available when an option that includes NEF (RAW) is selected Data Format High-speed aop( 55) Select this option to enable high-speed crop. See the camera manual for details. Return to first page

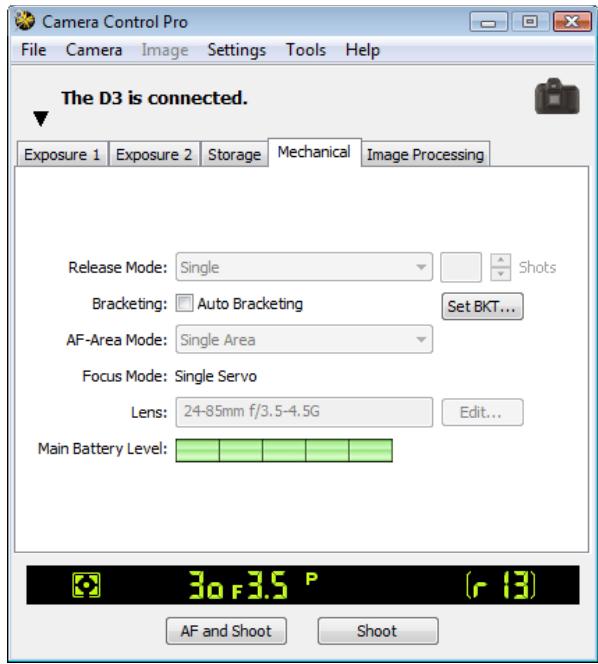

Overview Appendices The Mechanical Tab The following settings can be adjusted from the Mechanical tab: 12 Camera Control Pro LT Es File Camera Image Settings Tools Help The D3 is connected. és Exposure 1 | Exposure 2 | Storage | Mechanical | Image Processing Release Mode: Bracketing: [] uto Bracketing Setekr.… AF-Area Mode: [Single Area Focus Mode: Single Servo vansster tent DEEE) Sets the shooting mode for Di-series cameras connected in PC mode to Single or Continuous. Changes to this setting also apply to Custom Setting 30. The shooting mode for D80, D70-series, D50, or D40 series cameras can be selected from Single and Continuous. Unless Enable controls on the camera body is checked in the connection status area, the shooting mode for D3, D2-series, D300, and D200 cameras can be selected from Single, Continuous low speed, and Release Mode | Continuous high speed. |f Continuous is selected for D80, D70-series, D50, or Shooting Mode | D40 series cameras or if Continuous low speed or Continuous high speed is selected for D3, D2-series, D300, or D200 cameras, the AF and Shoot and Shoot buttons will instead be labeled AF and Start and Start and the maximum num- ber of shots that can be taken in a single burst can be entered in the Shots text box (see below). If Enable controls on the camera body is checked or a D100 camera is connected, the current shooting mode will be shown, but changes can only be made using camera controls. See the camera manual for details Return to first page

Overview Appendices The Mechanical Tab Use the arrows to choose the maximum number of shots that can be taken in a single burst in continuous mode, or enter a value directly in the text box. The maximum permitted value varies with the current image-qual- ity setting; the value chosen should not, however, exceed the capacity of the camera memory buffer as shown at the right edge of the LCD display. Values larger than the capacity of the camera memory buffer will be shown in red. This setting only applies when the camera is connected, and differs from the maximum selected in the Custom Settings menu. Auto Bracketing (Cp30 )CD20 ) Select this option to EreTEn exposure, flash, or white balance bracketing (CHE) Erosre) during shooting. See “Time Lapse Photography" for details. D50 Choose the AF-area mode. If Enable controls on the camera body is checked (D3, D2 series, D300, and D200 only), the current AF-area mode will be shown, but changes can only be made using camera controls. See the camera manual for details. Choose the focus mode for D80, D50, or D40-series cameras (see the camera Focus Mode manual for details). The focus mode for other cameras is displayed but can not be changed from Camera Control Pro. AF-Area Mode Return to first page

Overview Appendices The Mechanical Tab Displays the focal length and maximum aperture of the lens currently at- tached to the camera. Depending on the lens type, some information may Lens not be displayed. If the lens focal length or maximum aperture have been specified manually, an asterisk will appear next to these values. If a D3 or D300 is connected with a non-CPU lens attached, lens data can be select- ed. This button is only available when à non- RER) CPU lens is mounted on the camera. Click- af ne Fète as J que son at right, nan sprtre [m) where the lens focal length and maximum

aperture can be entered. Click OK to copy the values to the camera. Displays the level of the main camera battery. Green indicates that the bat- tery has enough charge for continued operation. Yellow indicates that bat- tery level is low; ready a fully charged spare battery pack. Red indicates that the battery is exhausted, and that no further photographs can be taken until Main Battery Level " pen the battery pack has been replaced. You may not be able to control the camera from Camera Control Pro when the battery is exhausted. Replace with a fully charged spare battery pack or use an AC adapter (available sepa- rately). Clock Battery Level DRE pere o me ss en ouai ee turn EE ow or red, have the clock battery replaced by an authorized Nikon service

representative (a fee is charged for this service). Self-Timer and Remote Modes When a D3, D2-series, D300, D200, D100, D80, D70-series, D50, or D40-series camera is set to self- timer mode, or when a D80, D70-series, D50, or D40-series camera is set to delayed remote or quick- response remote mode, the Mechanical tab will show a shooting mode of Single, and any photo- graphs taken with the Camera Control Pro shoot buttons will be taken in single-frame mode with no shutter-release delay. To take pictures in self-timer or remote mode, use the shutter-release button on the camera or remote control Live View(__D3 _)( D300 } When the camera release mode dial is set to Lv, the Mechanical tab will show a shooting mode of Single, and any photographs taken with the Camera Control Pro shoot buttons will be taken in single-frame mode. To take pictures in live view mode, use the live view options in the Camera menu Return to first page

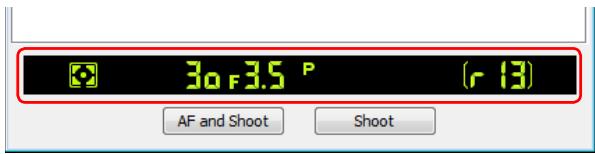

Overview Continuous Mode (All Models Except (D1 series )}(_ D100 _)) The amount of memory remaining in the camera memory buffer is displayed at the right edge of Appendices the simulated LCD panel. This information is updated at regular intervals, but temporary discrepan- cies may exist between the display and the actual amount of memory remaining in the buffer. Non-CPU Lenses The following restrictions apply to Camera Control Pro when a non-CPU lens is mounted on the camera (the operations listed can still be performed using the controls on the camera body; see the camera manual for details) D3 D2 series (CD100 ) (C_D50 _)(D40 series) Withlensdata | Nodata [(Diseries) Can not be adjust-|Can only be ad- ed. Mode select-|justed if Enable Exposure Can be selected from Aperture-prior-|ed with camera|controls on the Mode ity auto and Manual. displayed. Photos | camera body is not can only be taken | checked. Otherwise in mode M same as D100. Shutter Speed | Can only be adjusted in manual exposure mode. Aperture Shown with asterisk. J'Aperture shown as “f/--". Can not be adjusted AFandShoot |Can not be used. Shoot Can be used. [Can be used*

• Warning will be displayed in exposure modes other than M. Return to first page

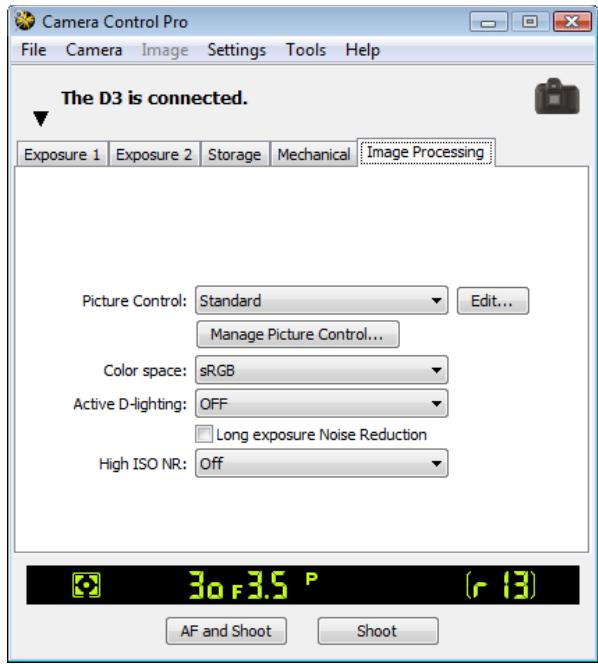

Overview Appendices The Image Processing Tab (D3/D300) The following settings can be adjusted from the Image Processing tab: © camera Control Pro PES File Camera Image Settings Tools Help The D3 is connected. é Exposure 1 | Exposure 2 | Storage | Mechanical Image Processng Peer Œ anis [Long exposure Noise Reduction High ISO NR: Choose à Picture Control (see the camera manual for details), or click Edit. to modify the selected Picture Control. Manage Picture Control | Select, rename, or delete custom Picture Controls. Picture Control Color space Choose à color space. See the camera manual for details Active D-lighting Choose active D-lighting options. See the camera manual for details. Long exposure Noise Select this option to reduce noise at slow shutter speeds. See the camera Reduction manual for details. Choose a noise reduction option for high ISO sensitivities. See the camera High 1S0 NR D manual for details. Nikon Picture Controls Picture Controls provided by Nikon are known as “Nikon Picture Controls” They include the Picture Controls provided with the camera and optional Picture Controls available for download from Nikon websites. See the camera manual for details. Return to first page

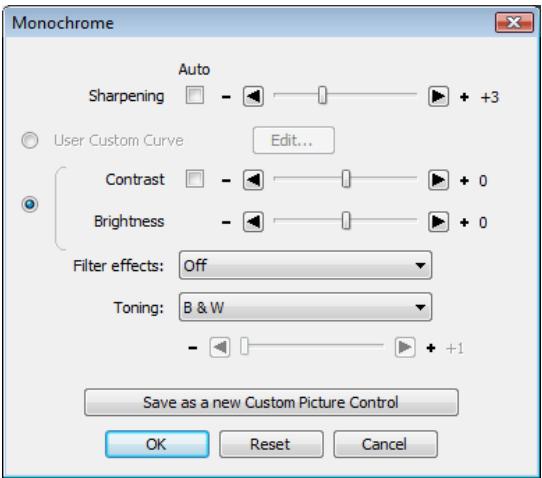

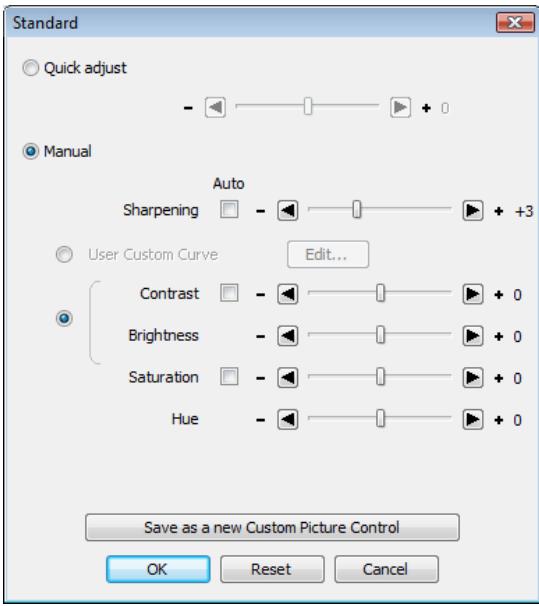

Overview Appendices Editing Picture Controls Clicking Edit. in the Image Processing tab displays options for the selected Picture Control (monochrome controls are shown at right, other controls at left). Standard ŒS) | Monochrome ES Quick adjust Auto La on Sharpenng El - (9 0 + © Manual ES Auto Contrast -© 0 +0 Shapenng [El - (@-{ S+s||°) me -g x B+0 = Fiter effects: [of = : Contest [] - LI B+o Toning:_ [Eau = Bnghness = (Q 0 Œ+0 La Se Saturaton [> 1} +0 Save 25 à new Custom Picture Contral Hue - © ) m+o Co JE net J( cms ] Save 25 à new Custom Picture Contral Co JE net )( cms ] Quick adjust Select this option and drag the slider to the left or right to re- (Non-monochrome only) duce or exaggerate the effect of the selected Picture Control Manual Select this option to make separate adjustments to the settings (Non-monochrome only) listed below. Select the Auto checkbox to adjust sharpening automatically, or choose a value with the slider. Select this option and click Edit. to manually edit the tone User Custom Curve curve for the selected Picture Control. Note that changes can only be saved using Save as a new Custom Picture Control Select the radio button and adjust the sliders (saturation is not available with monochrome controls). Select the Auto check- boxes for automatic contrast or saturation. Contrast and bright- ness can not be adjusted when active D-lighting is on. Hue (Non-monochrome only) | Use the slider to adjust hue. Filter effects (monochrome only) | Choose a filter effect. See the camera manual for details. Toning (monochrome only) Choose à monochrome tint. Tint can be adjusted with the slider. Sharpening Contrast/Brightness/Saturation Return to first page

Overview Appendices Editing Picture Controls Click this button to save settings as a new custom Picture Control. The following dialog will be displayed; name the new control and click Save. Saveasanew Custom Picture Control ok Save changes and exit. _ Undo any changes to the selected Picture Control. Custom Picture Controls are reset to the values in effect when the Picture Control was first created Cancel Exit without saving changes. Return to first page

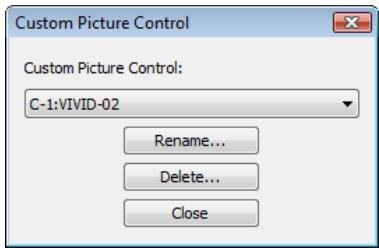

Overview Appendices The “Custom Picture Control” Dialog Clicking Manage Picture Control. in the Image Processing tab displays the dia- log shown below. Custom Picture Control | Select a custom Picture Control. Rename the selected custom Picture Control. The following dialog will be displayed; rename the control and click OK. Rename.…

Delete.… Delete the selected custom Picture Control. Close Close the “Custom Picture Control” dialog. Return to first page

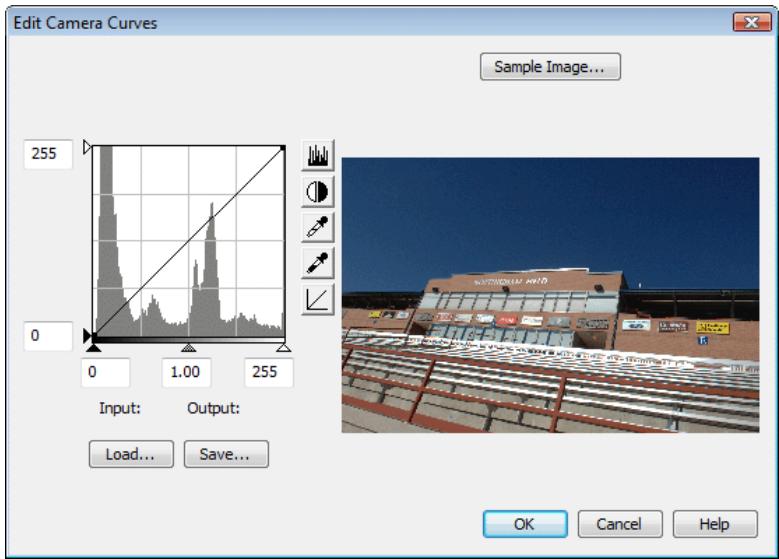

Overview Appendices The “Edit Camera Curves” Dialog Clicking Edit. when User Custom Curve is selected in the Picture Control set- tings dialog displays the dialog shown below. Edit Camera Curves (sample image.

Co Cons) (mb) The controls in the Edit Camera Curves window are similar to those used to edit tone curves in Adobe Photoshop and other imaging software, except in the following respects: (1) only the master channel, not individual RGB channels, may be edited; (2) there is a limit of 20 spline points; (3) the midpoint may not be edited; and (4) a user- defined sample image can be selected by clicking Sample Image. (the sample image must be an NEF (RAW) image created with a supported Nikon digital camera). Any changes to curves are reflected in the sample image. To copy the edited curve to the Picture Control, click OK. The upper left section of the Edit Camera Curves window contains Load. and Save. buttons. Click Load. to load previously stored curves created with Camera Control Pro, Nikon Capture (available separately), or Capture NX (available separately; settings must include "Levels and Tone Curves” data). Look for files with the “ntc', “ncv”, or “set” extension. The Save... button opens the “Save As” dialog, where you can save the current curve. Return to first page

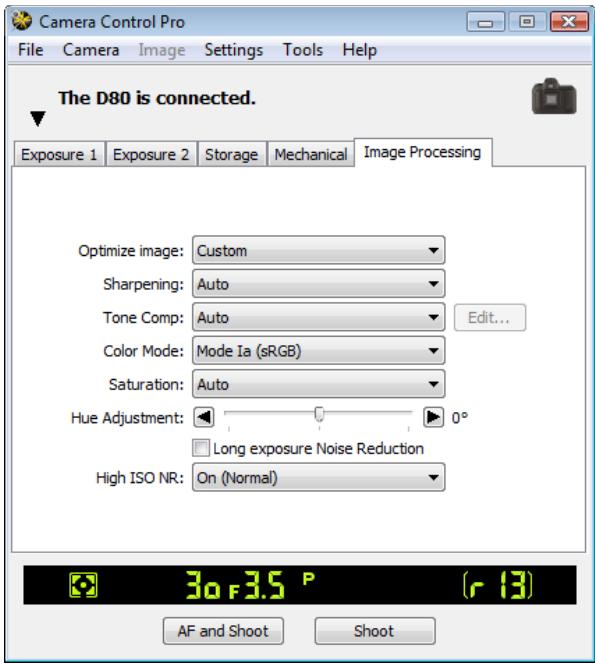

Overview Appendices The Image Processing Tab (Other Cameras) The following settings can be adjusted from the Image Processing tab: D Camers Control Pro SES File Camera Image Settings Tools Help The D80 is connected. é Exposure 1 | Exposure 2 | Storage | Mechanical | Image Processing Optimize mage: |Custom * Sharpenng: [auto = ane Core: (au IE Cr Mode: [Mode 1 (365) Sohraton: [Au = Hue Adjustment: [ © m0 [Long exposure Noise Reduction: Hoh150n: (On Qloma) j Image Optimize Choose the type of image optimization performed. See the cam- D700 de SRE P era manual for details. Sharpening Choose how much the camera sharpens outlines. See the camera manual for details. Adjust contrast. See the camera manual for details. Selecting Tone Comp “Custom” or “Custom 1-3 * (D2Xs only) and clicking Edit will dis- play “Edit Camera Curves" dialog. Choose a filter effect for black-and-white photographs. This op- Filter Effects(__D80 _) tion is only available when Black-and-white (Custom) is select- ed for Image Optimize. Color space Choose a color space. See the camera manual for details. Return to first page

Overview Appendices The Image Processing Tab Color Mode Choose a color mode. See the camera manual for details. With (P2series)(_ DIX )( DH ) the D1, colors are optimized for the NTSC color space, regardless ofthe option chosen. Saturation Adjust color saturation. See the camera manual for details. Hue Adjustment Modify hue while leaving brightness and chroma unaffectedi Adjustments can be made in the range -9° to 9° with 0° repre- senting the original hues as recorded by the camera (in Di-series cameras, -9° is equivalent to a camera hue setting of 0, 0° to a setting of 3, and 9° to a setting of 6). Long Exposure Noise Reduction D50 Select this option to reduce noise at slow shutter speeds. See the camera manual for details High IS0 Noise Reduction Choose a noise reduction option for high ISO sensitivities. See the camera manual for details Noise reduction (D40 series) Select this option to reduce noise at slow shutter speeds and high ISO sensitivities. See the camera manual for details. Return to first page

Overview Appendices The Camera Control Pro option in the Settings menu is used to save Camera Con- trol Pro settings and to load and apply previously saved settings. Eng Load Control Settings. Save Control Settings. Load Control Settings. Select this item to load camera settings previously saved using Save Control Set- tings. (see below). A dialog will be displayed where you can navigate to the drive (volume) and directory containing the desired settings file (only files with the exten- sion “ncc” will be displayed; choose settings created with the camera currently con- nected). The settings in the Camera Control Pro window will instantly revert to the saved settings. Bracketing settings are not affected. Save Control Settings. Select this item to save the settings in the Camera Control Pro window to a named file. These settings can later be recalled using Load Control Settings... Choosing Save Control Settings. displays a dialog where you can choose a destination and file name for current camera settings. Camera Control Pro settings are saved with the extension “ncc”. Note that bracketing settings, non-CPU lens settings, and changes to settings for the current Picture Control are not saved. Return to first page

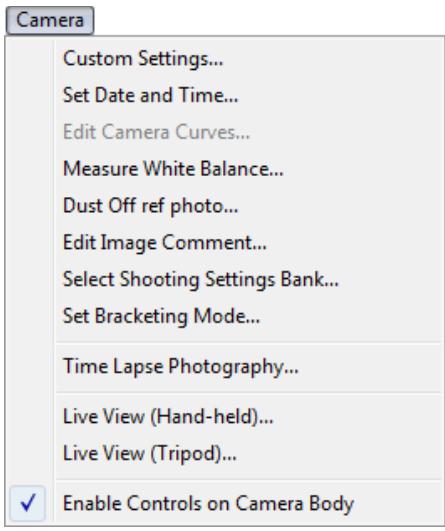

Overview Appendices The Camera menu contains the following options: Edit Camera Curves. Measure White Balance... Dust Off ref photo... Edit Image Comment... Select Shooting Settings Bank... Set Bracketing Mode. Time Lapse Photography. Live View (Hand-held)... Live View (Tripod)... V Enable Controls on Camera Body Custom Settings. Selecting this option opens the Custom Settings dialog, where camera Custom Settings can be adjusted. Set Date and Time. Selecting this option opens the dialog shown at right, where you mers can set the camera's lock calendar to te Current date and time pe: [750727 To view the current time and date settings, click Use Current me [F5 — Date/Time. Click Set to set the clock calendar to the time and date shown [heoueneree) Css Return to first page

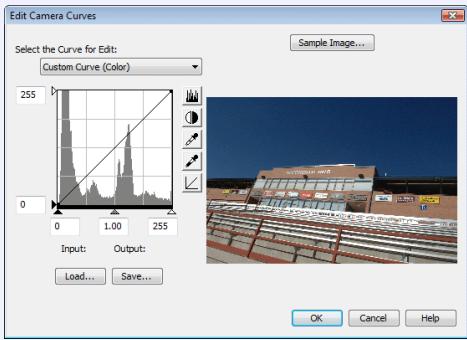

Overview Appendices Edit Camera Curves… (all cameras except(__ D3 D300 This option is used to create a custom tone compensation curve and download it to the camera, where it applies when “Custom is selected for the camera tone compensation option. mener = = a

Cu) on un) The controls in the Edit Camera Curves window are similar to those used to edit tone curves in Adobe Photoshop and other imaging software, except in the following respects: (1) only the master channel, not individual RGB channels, may be edited; (2) there is a limit of 20 spline points; (3) the midpoint may not be edited; (4) a user-defined sample image can be selected by clicking Sample Image. (the sample image must be a RAW image created with a supported camera). Any changes to curves are reflected in the sample image. In the case of the D2Xs, up to three curves can be edited using the Select the Curve for Edit menu. To copy the edited curve to the camera, click OK. The upper left section ofthe Edit Camera Curves window contains Load... and Save... buttons. Click Load. to load previously stored curves created with Camera Control Pro, Nikon Capture (available separately), or Capture NX (available separately; settings must include “Levels and Tone Curves” data). Look for files with the “ntc', “ncv", or “set” extension. The Save. button opens the “Save As” dialog, where you can save the current curve. Return to first page

Overview Appendices Measure White Balance. Use this option to measure preset white balance. Ifthe camera currently connected supports multiple values for preset white balance, the setting that will be used to store the measured value can be chosen from the pop-up menu at the top of the D2XS (dialogs for other cameras may | dialog. Adjust camera settings as described in the section on differ) preset white balance in the camera user's manual and click OK to measure a value for white balance. Dust Off Ref Photo (—2>—)(02:2res)( D300_)(_D200 ) (CD80 )(D70series)(_ D50 )(D40 series) Choose this option to take a reference photo for the Image Dust L Off option in Capture NX (available separately) and other Nikon | amener tte software. The dialog shown at right will be displayed. Withthe | "Terre ent camera lens ten centimeters (four inches) from a featureless white object, frame the object so that it fills the viewfinder and click OK to record an Image Dust Off reference photo. See the camera manual for details. Edit Image Comment. Ca benne) (eus) Selecting this option displays the dialog shown at right, where Der] you can enter a comment or title for subsequent photographs. ee Ifthe camera currently connected is in the Di-series, enter a title CD Ces Ce of thirty-eight characters or less and click OK. The title will be p2Xs (dialogs for other cameras may used for all subsequent photographs taken while the camera is differ) connected. When any other camera is connected, the title is stored in the camera as an image comment of thirty-six char- acters or less which is appended to photographs only when the Attach comment to images box is checked. Choosing a Mode(_D100 )(_ D80 )(D70series)(_ D50 )(D40 series) The Measure White Balance. option is only available in PS, A, and M modes. Return to first page

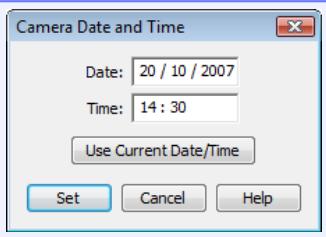

Overview Appendices Select Shooting Settings Bank... (__ D3 D2 series }(__D300 D200 D100 Selecting this option displays the dialog shown at right, where Ses you can choose the shooting menu bank in which changes to RE settings will be stored while the camera is controlled from Cam- era Control Pro. See the camera manual for details. The D3, D2 series, D300, and D200 allow a descriptive comment Fes to be added to the name of each shooting menu bank. Clicking ———— a = Edit. displays the dialog shown at right, where the comments cm | EE for each bank can be edited. Click OK to copy the comments Ce Ji seu || ent || 1e to the camera. Comments can be up to twenty characters long b3/D2series/D300/D200 and contain letters, numbers, quotes, apostrophes, spaces, and any of the following characters: *," "" "1" "7" "4" "$" #99" "gr" "("")""[" Es Shooting Sing Bank Comment ee ete" 5" "and ‘@”. C Ca JC eme | Creb Edit Comment dialog Set Bracketing Mode(_ D3 )(D2series)(_D300 }( D200 }( D80 )(D70series)( D50 Selecting this option displays the BKT Mode dialog. See "Time Lapse Photography" for details Time Lapse Photography. Selecting this option opens the “Time Lapse Photography" dialog. Live View (Hand-held).…. (__ D3 )(_D300 ) Selecting this option opens the “Live View (Hand-held)” dialog. Live View (Tripod)...( D3 )( D300 } Selecting this option opens the “Live View (Tripod)" dialog. Enable controls on the camera body (all cameras except (D1 series }(_ D100 } Check this option to enable camera controls, allowing settings to be adjusted and photographs taken directly from the camera. If this option is not checked, only the power switch and AF-area mode selector can be used. Return to first page

Overview Appendices Most of the custom settings stored in camera memory can be viewed and adjusted from the Custom Settings window in Camera Control Pro. For more information on Custom Settings, see the documentation provided with your camera.

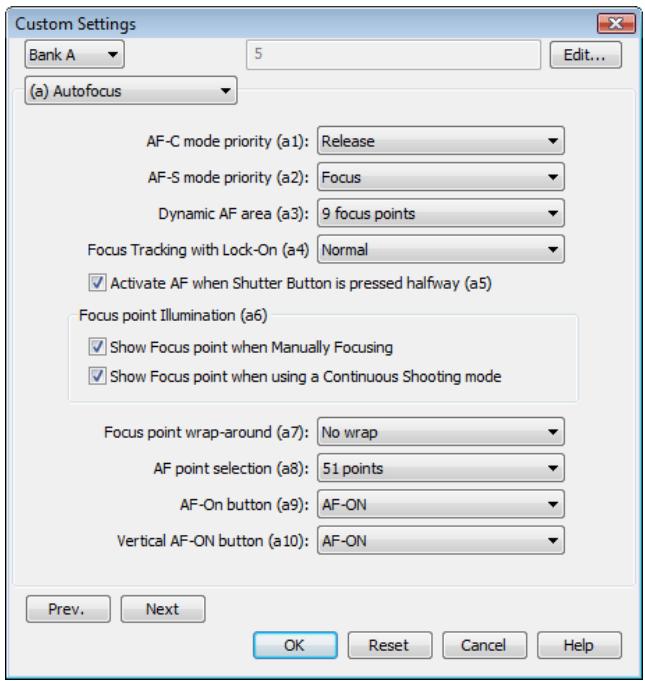

Select Custom Settings. from the Camera menu. The Custom Settings dialog for the current camera will be displayed. a mana (0: ae node mor 2: Dane es 634

[Vlactivate AF when Shutter Button is pressed halfivay (25) Focus point Ilumination (26) [VI Show Focus point when Manually Focusing [MIShow Focus point when using a Continuous Shooting mode Focus pour around (27: 2 patin 2e ane ( Vera AF-ON baton (10): Cas) Ce) CR Che) Con) CH) Changes to Custom Settings Changes made to settings in the Custom Settings dialog are stored in the camera, not on the com- puter hard disk. This means that changing settings in the Custom Settings dialog has the same effect as changing Custom Settings using camera controls. Return to first page

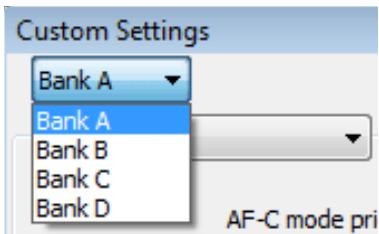

Choose a Custom Settings bank (Custom Settings set) from the pop-up menu at the top right corner or the Custom Settings dialog (see the camera manual for details). AF-C mode pri After making any changes to Custom Settings, click OK to save changes in the camera Custom Settings bank and exit the Custom Settings dialog. Custom Settings Custom Settings can not be saved to a separate file. Clicking the Reset button resets all Custom Settings to their default values Settings That Can Not Be Adjusted from the Custom Settings Window The Custom Settings listed below can not be adjusted in the Custom Settings window. - Mirror lock-up for CCD cleaning (D1-series Custom Setting 8)/Cleaning mirror up (D100 setup menu): can only be adjusted from the camera -+ RAW (NEF) image save (Di-series Custom Setting 28): if this option is set to “0” (off) when Camera Control Pro is started, a message will be displayed. Clicking OK in this dialog sets Custom Setting 28 to “1” (uncompressed RAW image save enabled). Custom Setting 28 can only be returned to "0" from the camera. - ISO Auto (D100 Custom Setting 3)/IS0 Boost (D1-series Custom Setting 31): can be adjusted from the Exposure 2 tab of the Camera Control Pro window. + PC Shooting Mode (D1-series Custom Setting 30): this option is adjusted from the Mechanical tab ofthe Camera Control Pro window. - Tone Compensation (Di-series Custom Setting 24)/Color Mode (D1X/D1H Custom Setting 32)/ Hue Adjustment (DIX/D1H Custom Setting 33)/Noise Reduction (D100 Custom Setting 4): can be adjusted from the Processing tab of the Camera Control Pro window. Return to first page

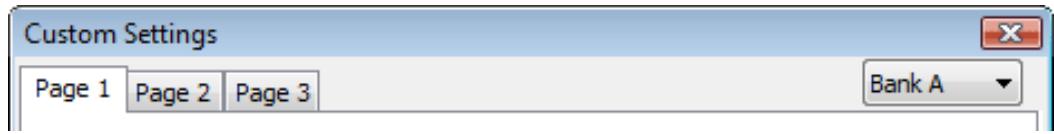

Overview Appendices Custom Settings for D1-Series and D100 Cameras Custom Settings for Di-series and D100 cameras are divided among three tabs: Page 1, Page 2, and Page 3. See the camera manual for details. Page 1 |Page 2 [Page

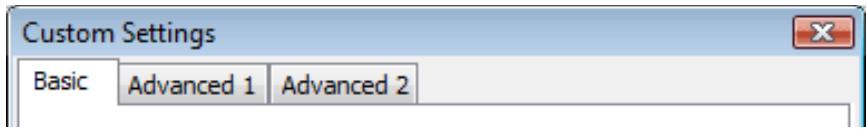

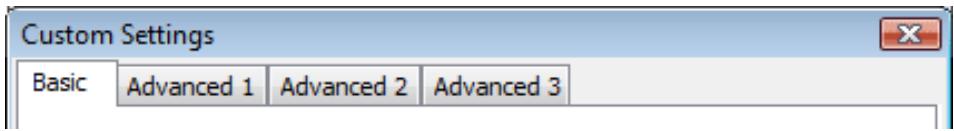

Custom Settings for D70-Series and D50 Cameras Custom Settings for the D70 series and D50 are divided among three tabs: Basic, Advanced 1, and Advanced 2. See the camera manual for details. Basic | Advanced 1 | Advanced 2] Custom Settings for D80 Cameras Custom Settings for the D80 are divided among four tabs: Basic, Advanced 1, Advanced 2, and Advanced 3. See the camera manual for details. [see [Advanced 1 | Advanced 2 | Advanced 3] Return to first page

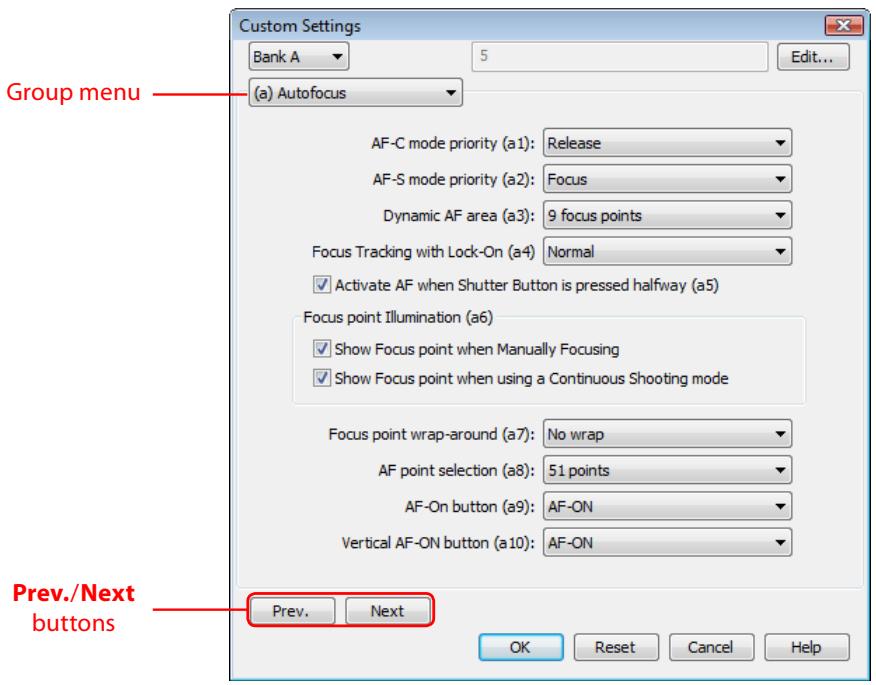

Overview Custom Settings for D3, D2-Series, D300, and D200 Cameras Custom Settings in each bank are divided into six groups. The group can be chosen from the group menu or by clicking the Next and Prev. buttons. Group menu Prev./Next buttons A descriptive comment can be added to the name of each Custom Settings bank. Clicking Edit. displays an "Edit Custom Settings Comment” dialog, where the com- ments for each bank can be edited. Click OK to copy the comments to the cam- era. Comments can be up to twenty characters long and contain letters, numbers, quotes, apostrophes, spaces, and any of the following characters: " “" "1" "7" "4" 6" AF-C mode priority (a1): AF-S mode priority (82): Oran an Fous Trading with Lock-On (24) [Normal +) [Fi Activate AF ihen Shutter Button is pressed hay (25) Focus point Humination (26) [M Show Focus point when Manually Focusing [Fi Show Focus point ihen using à Continuous Shooting mode Fa para AF point selection (28): [S1points +] 2 Gr Vera F ON butin (819): Appendices BarkA Edit. [20e] (reset) (Lcanes) (hab) 1%" "&'"(") TT CT ee et" and "@”. Return to first page

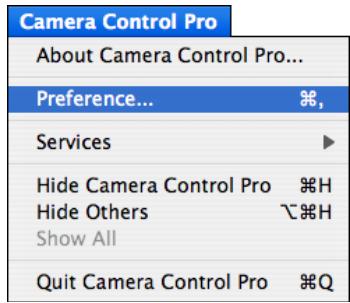

Overview Using Camera Control Pro To view the Preferences (Options) dialog for Camera Control Pro, select Options. from the Tools menu (Windows) or select Preferences. from the application menu (Macintosh). Camera Control Pro About Camera Control Pro... Cros) #, Show Viewer Ë Hide Camera Control Panels Hide Camera Control Pro SH how Camera Control Panel Hide Others X#H Download Options. Shoesl Options. Ci+K Quit Camera Control Pro #Q Windows Macintosh The Preferences dialog contains General and Color Management tabs. Return to first page

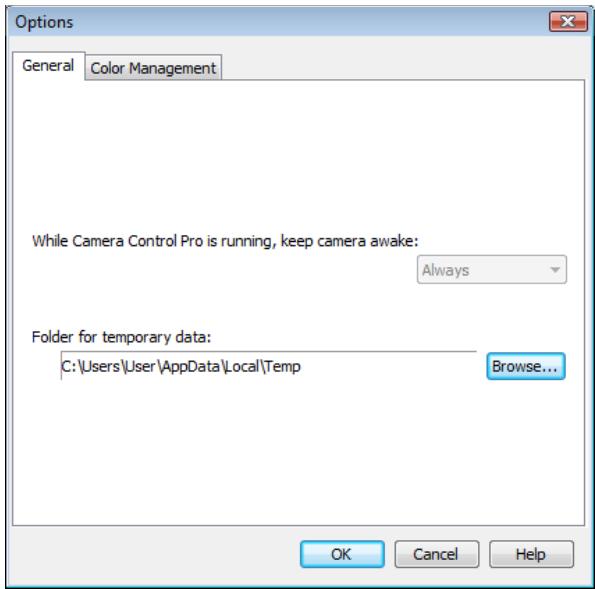

Overview Using Camera Control Pro The General Tab The General tab contains the following items:

General | Color Management While Camera Control Pro is running, keep camera awake: Folder for temporary data: {owsers|ser hppDatalLocaltTeme Co J( cent ]( He ] Choose how long the exposure meters remain on when the camera is operated on battery power. This setting only takes effect when a Di-series camera is connected While and powered on with Camera Control Pro running, and takes precedence over the Camera auto meter off option chosen using camera Custom Settings. Di-series cameras Control Pro | powered by an AC adapter and all other supported camera models will stay awake isrunning, |indefinitely, regardless of the setting chosen here. keep camera for 15 minutes (D1-series only): The exposure meters turn off automatically if no awake operations are performed for 15 minutes. Always: The exposure meters remain on indefinitely. Note that this will increase the drain on the battery. Folder for Specify the folder or volume in which temporary data, such as image cache data, temporary |will be stored. The default folder for Windows is the "TEMP" folder in the Windows data/ directory, while the default volume for the Macintosh is the start-up disk. To choose Volumefor | a different folder in the Windows version ofthe program, click the Browse. button temporary |and navigate to the desired location. In the Macintosh version, a new volume can be data chosen from the pop-up menu. Return to first page

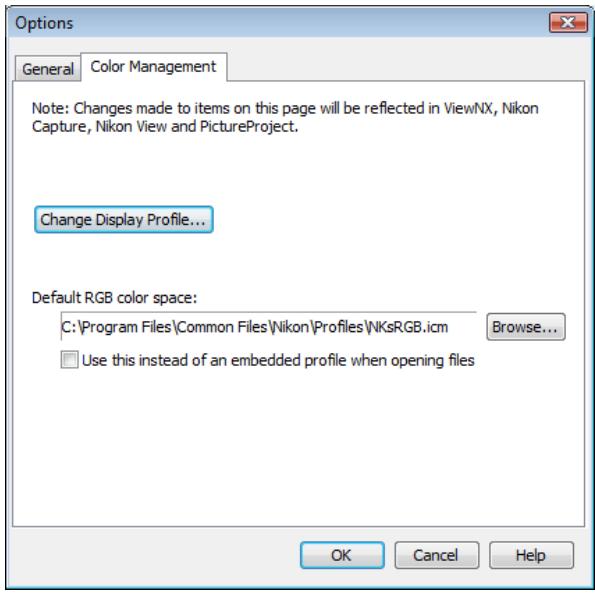

Overview Using Camera Control Pro Multiple Displays In a multiple display environment, choose a single profile suited to all displays. Default Display Profile The default Windows display profile is “NKMonitor_win.icm." This profile is equivalent to sRGB. Supported Color Profiles See “RGB Color-Space Profiles” for a list of the RGB color-space profiles supplied with Camera Control Pro. The Color Management Tab Changes to settings in the Color Management tab also apply to ViewNX, Nikon Capture (available separately), Nikon View, and PictureProject. They are not reflected in Capture NX (available sepa- rately). Return to first page

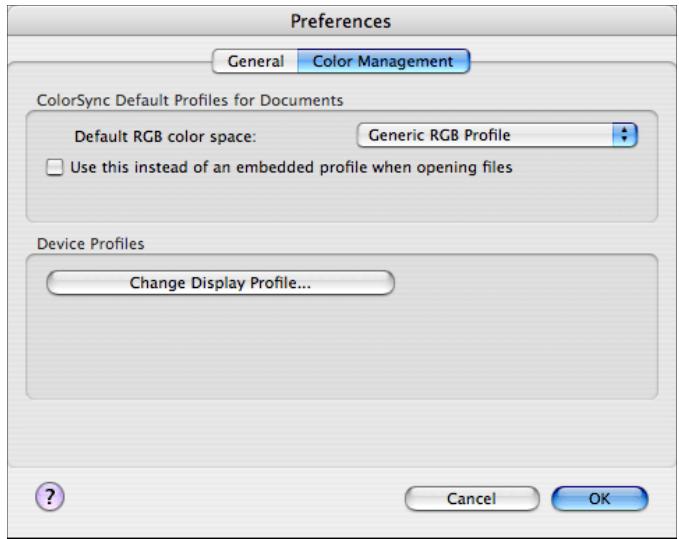

Overview Using Camera Control Pro The Color Management Tab (Macintosh) The Macintosh version displays the following options. Preferences ColorSync Defauit Profiles for Documents Default RGB color space: Generic RGB Profile D) [2 use this instead of an embedded profile when opening files Device Profiles ( Change Display Profile... ) ©) Cas D Lists the ICC color-space profile used to display images. ColorSync Default RGB color space: Choose the output color-space profile used when working Default ; ji with RGB images. lf Use this instead of an embedded profile when opening Profiles for . : f DNS files is checked, this RGB color space profile will be used for all images. If it is not checked, the profile embedded in each image will be used Lists the default color-space profiles for monitors. Device Change Display Profile.…: If this button is displayed, you can click it to open the Dis- Profiles plays section of the System Preferences dialog. Open the Color panel (Mac OS X) to choose a display profile. Return to first page

Overview Using Camera Control Pro Input Profiles If an input profile is selected for the default RGB color space, images will be displayed in the sRGB color space. Supported Color Profiles See “RGB Color-Space Profiles” for a list of the RGB color-space profiles supplied with Camera Control Pro. The Color Management Tab Changes to the display profile apply system wide. Changes to other settings in the Color Manage- ment tab apply to ViewNX but are not reflected in Capture NX, Nikon Capture (available separately), Nikon View, and PictureProject. Multiple Displays Camera Control Pro will identify and list the profiles for all monitors in an extended desktop display, allowing you to choose a separate profile for each monitor. Return to first page

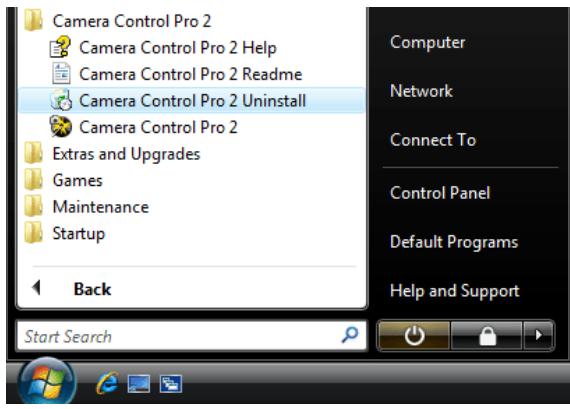

Overview Using Camera Control Pro Use an account with administrator privileges to perform the uninstall.

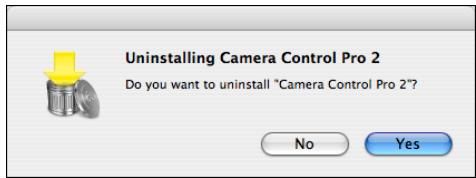

2 Click Yes to begin removing Camera Control Pro and all of its components. Windows Installer El {Are you sure you want to urinstal this product?

3 Ifthe uninstaller encounters read-only files or components shared by anoth- er application, a confirmation dialog will be displayed. Read the information displayed carefully before deciding what to do with the affected compo- nents.

4 Click Finish. Restart the computer if so directed. L D, Return to first page

Overview Using Camera Control Pro Use an account with administrator privileges to perform the uninstall.

Open the ‘Applications: Nikon Software: Camera Control Pro 2” folder and double-click the Camera Control Pro 2 Uninstaller icon. {Camera Control Pro 2 Uninstaller L J

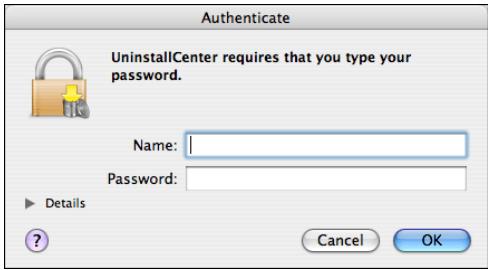

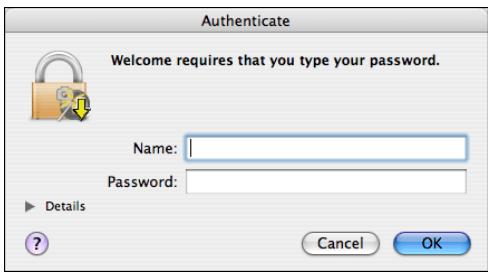

2 Enter the administrator name and password and click OK. Authenticate. UninstallCenter requires that you type your password.

CRD es Click Quit to exit the uninstaller once Camera Control Pro has been re- moved. Uninstall Center Uninstallation has completed successfully. Return to first page

Overview Using Camera Control Pro Profiles with a Gamma Value of 1.8 Profile | Windows | Macintosh Description This profile is used in desk-top publishing applications and in Apple Nikon Adobe Photoshop versions 4.0 or earlier, and is the typical RGB RGB NKapple.icm| AppleRGB | profile for Macintosh monitors. The corresponding RGB setting

4.0.0.3000 | in Adobe Photoshop is "Apple RGB." This profile is suitable for

working with images displayed on the Macintosh. h The ColorMatch profile is native to Radius PressView monitors. It Color- Nikon Color- . A Match NKCMatch. Match RGB has a wider gamut than Apple RGB, with a particularly wide area RGB icm 40.0.3000 devoted to the reproduction of blues. The corresponding RGB setting in Adobe Photoshop is “Color Match RGB" Profiles with a Gamma Value of 2.2 Profile | Windows | Macintosh Description This RGB profile is used in the majority of Windows monitors. It closely resembles the RGB commonly used in color television, andis also used in the digital television broadcasting system that is on its way to becoming the industry standard in the United States of America. Software and hardware manufacturers use it Nikon sg | 25 à default color profile and guarantee operation when it used sRGB | NKsRGB.icm Itis also on its way to becoming the standard for images on the

4.0.0.3007 | cb, This profile is suited to users who plan to use their digital

images ‘as is,” without editing or printing them. It however suf- fers from the drawback of a narrow gamut with a limited area available for reproducing blues. The corresponding RGB setting in Adobe Photoshop 5.0 and 5,5 is "RGB," the corresponding setting in Adobe Photoshop 6.0 "sRGB IWC61966-2.1." This color profile attempts to expand on the ColorMatch RGB Nikon gamut by defining the chromaticity for G as lying between the Bruce . values for G in the Adobe RGB and ColorMatch color-space pro- NKBruce.icm | Bruce RGB : BA RGB 4.0.0.3000 files. It was proposed by Bruce Fraser, who claims that it includes most of the colors in the SWOP CMYK gamut. The R and B used in the Bruce RGB and Adobe RGB color-space profiles match. This is the color space for video defined by the National Tele- NTSC . NTSC (1953) vision Standards Committee (NTSO) in 1953 en) used in early (1953) NKNTSC.icm 40.0.3000 color televisions. ti color spacels also used in some Far-East newspaper and printing organizations. The corresponding RGB setting in Adobe Photoshop is "NTSC (1953)." Return to first page

Overview Using Camera Control Pro Profile | Windows | Macintosh Description A color-space profile defined in Adobe Photoshop 5.0. It has a Adobe Nikon Adobe wider gamut than RE eme includes the GE found in most RGB NKAdobe. RGB (1998) CMYK gamuts, making it suitable for users involved in desktop (1998) icm 40.0.3000 publishing. The corresponding RGB setting in Adobe Photo- shop 5.0 is "SMPTE-240M/" the corresponding setting in Adobe Photoshop 5.5 or later ‘Adobe RGB (1998). A video color-space profile established by the Commission Inter- dE Nikon nationale de l'Éclairage (CIE). While it boasts a fairly wide gamut, RGB NKCIE.icm GERGB |it suffers from the drawback that the area devoted to the re-

4.0.0.3000 | production of cyan is relatively small. The corresponding RGB

setting in Adobe Photoshop is "CIE RGB." h This color-space profile, designed by Adobe, incorporates most Nikon oE Adobe Adobe- of the visible colors. This however has the consequence that Wide | NKWide.icm Wide RGB most of the colors it can express can not be reproduced on RGB 40.0.3000 standard monitors and printers. The corresponding RGB setting in Adobe Photoshop 5.0 or later is “Adobe Wide RGB." Return to first page

Overview Using Camera Control Pro If DI-series cameras are not recognized by the computer to which Camera Control Pro is installed, the camera or IEEE 1394 (FireWire) board may not be correctly regis- tered with the Windows Device Manager. To check whether a device is registered with the Device Manager, click on the links below. Windows XP Professional/Home Edition Windows 2000 Professional Opening the Device Manager Devices are registered with the Windows Device Manager. To open the Device Manager: + Windows XP: Select Control Panel from the Start menu to open the “Control Panel” window, then click Performance and Maintenance icon to open the Performance and Maintenance con- trol panel. Click the System icon to open the System Properties window. Open the "Hardware tab” and click Device Manager. + Windows 2000: Right-click the My Computer icon on the desktop and select Properties from the menu that appears. In the “System Properties” dialog, open the “Hardware” tab and click the Device Manager button. Return to first page

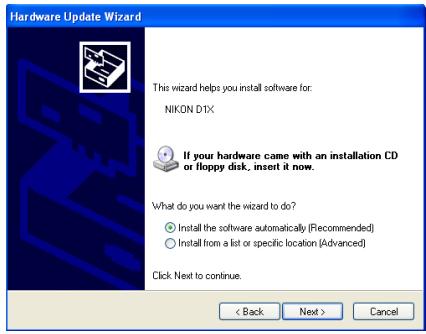

Overview Using Camera Control Pro Registering the IEEE 1394 Interface Board Confirm that the OHCI-compliant IEEE 1394 interface board or card has been cor- rectly registered with the system.

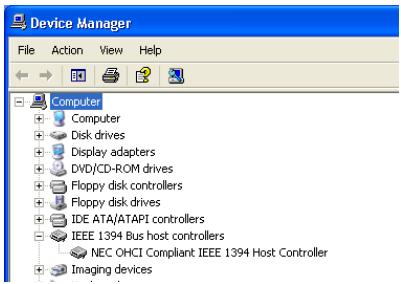

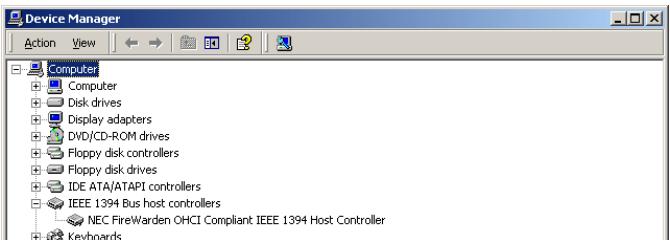

1 Open the Device Manager. If the camera has been correctly registered with the system, the controller for your camera should appear under "1394 Bus Controller" Fe An Ven Hp Eééa à Gin one 5 À Dé tes SD meerromae à D renverse #3 Pin aies à D re aan mmene 2 Dre tom re A NES CHCI Carellant IEEE 1384 Hest Corkraler À 28 none orss If"IEEE 1394 Bus host controllers” is not listed in the Device Manager, or ifthe IEEE 1394 interface board or card is listed as an unknown or miscellaneous device or is preceded by a red or yellow warning icon, follow the instructions in the manual provided with the board to ensure that the drivers are properly installed. 2 Install the driver for D1-series cameras from the Camera Control Pro CD, then connect the camera to the computer using an IEEE 1394 cable and turn the camera on. The camera will be registered automatically. Logging On Log on as the “Computer Administrator” when registering the camera. Before Connecting the Camera Be sure to install Camera Control Pro before connecting the camera to the computer. Return to first page

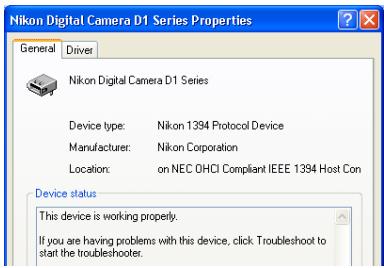

Overview Using Camera Control Pro Registering the Device Driver Follow the instructions below to check that the camera has been correctly regis- tered with the system.

1 Open the Device Manager and confirm that "Nikon 1394 Protocol Device” and the camera is listed. 2 ik Dita Cane D Ses 23 pan Gama) 9 mana not aptes 2 @ Nien 1334 Prolerd Device If the camera is listed under "Other devices,” reinstall the device drivers. If "Nikon 1394 Protocol Device” is not listed in the Device Manager and the camera does not appear under “Other devices," disconnect the camera and restart the computer. Reconnect the camera after the computer has restart- ed. 2 Double-click the listing for the camera that appears under "Other devices." Click the “General” tab and confirm that "This device is working properly" ap- pears under "Device status." Troubleshooting 1f"1394 Bus host Controller’ is listed in the Device Manager but the entry for the Nikon DT (DIX/D1H) does not appear, check the following: + Is the camera on? + ls the battery fully charged? If you are using an AC adapter (available separately), is it properly connected? + Is the mode dial set to "PC"? -_Isthe IEEE 1394 cable properly connected? Return to first page

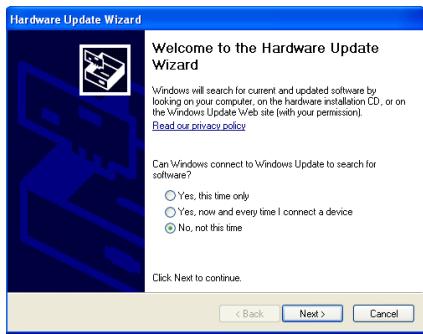

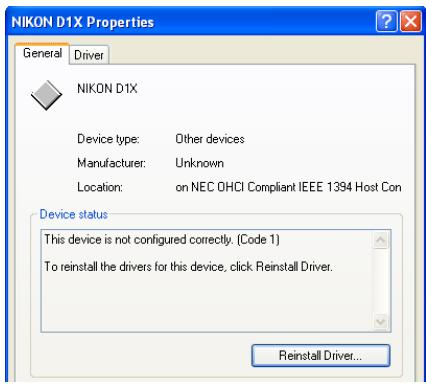

Overview Using Camera Control Pro Reinstalling the Device Driver If the camera is listed under “Other devices,’ reinstall the device drivers as instructed below. a a 1 Double-click the listing for the camera that appears under “Other devices." & € ments Fm iéretatstes Lords psc U L 2 Open the "General" tab and click Reinstall Driver... NIKON DIX Properties Q ms Dascete Obnr dec Manu Urean Lacan onRE OH Cdi EEE 1254 Hon Con Dee ao hs dec roc Cole 1 orale vf do, Rama Der

Welcome to the Hardkare Update Ward edit rennes eve Ever Gp rnb tee Out Fret

Return to first page

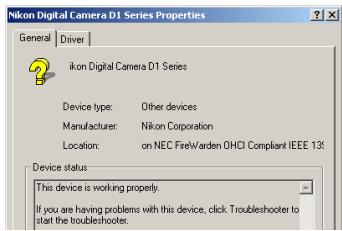

ini se f à Confirm that "This device is working properly” appears under “Device status” in the “General” tab of the camera “Nikon Digital Camera D1 Series Proper- ties” dialog. NEO CrolE HDC

Return to first page

Overview Using Camera Control Pro Registering the IEEE 1394 Interface Board Confirm that your OHCI-compliant IEEE 1394 interface board or card has been cor- rectly registered with the system. Open the Device Manager. If the camera has been correctly registered with the system, the controller for your camera should appear under "1394 Bus host Controller." lox| CCE) conter Gi Dai anes 18 Dep aptes SD vrooaon are ES Piper déhcoas 5 rap di dues DE AT ATAPI eentolers F9 TEE 14 br conrolers 4 ec Frenarden CHI Carelan IR 1304 hot Corel Ed Eee "1394 Bus host Controller” is not listed in the Device Manager, or if the IEEE 1394 interface board or card is listed as an unknown or miscellaneous device or is preceded by a red or yellow warning icon, follow the instructions in the manual provided with the board to ensure that the drivers are properly installed. 2 Install the driver for D1-series cameras from the Camera Control Pro CD, then connect the camera to the computer using an IEEE 1394 cable and turn the camera on. The camera will be registered automatically. Logging On Log on as the “Administrator” when registering the camera. Updating Drivers for the D1 If you are already using the D1 with Nikon View DX or Nikon Capture, you will need to update the camera drivers Before Connecting the Camera Be sure to install Camera Control Pro before connecting the camera to the computer. Return to first page

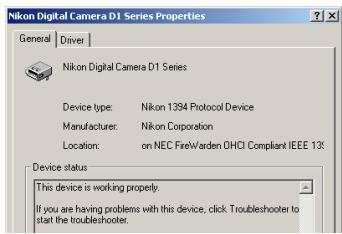

Overview Using Camera Control Pro Registering the Device Driver Follow the instructions below to check that the camera has been correctly regis- tered with the system. Open the Device Manager and confirm that "Nikon 1394 Protocol Device” and the camera are listed. If the camera is listed under "Other devices,” reinstall the device drivers. If "Nikon 1394 Protocol Device” is not listed in the Device Manager and the camera does not appear under “Other devices," disconnect the camera and restart the computer. Reconnect the camera after the computer has restart- ed.

2 Double-click the listing for the camera that appears under "Other devices." Click the “General” tab and confirm that "This device is working properly" ap- pears under "Device status." Ag Do Ermnto

cie Enr CEE Troubleshooting 1f"1394 Bus host Controller’ is listed in the Device Manager but the entry for the Nikon DT (DIX/D1H) does not appear, check the following: + Is the camera on? + ls the battery fully charged? If you are using an AC adapter (available separately), is it properly connected? + Is the mode dial set to "PC"? -_Isthe IEEE 1394 cable properly connected? Return to first page

Overview Using Camera Control Pro Reinstalling the Device Driver Ifthe camera is listed under “Other devices; reinstall the device drivers as instructed below.

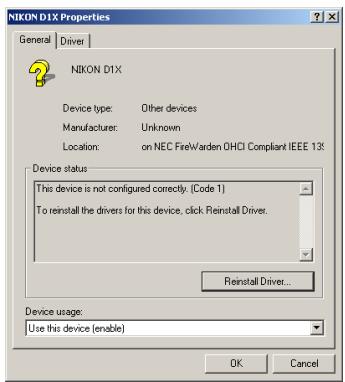

1 Double-click the listing for the camera that appears under “Other devices." CODEN 1x

3 Click Next. Welcome to the Upgrade Device Driver Wizard Termes Return to first page

Overview Using Camera Control Pro

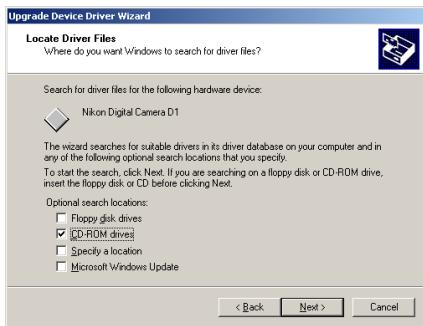

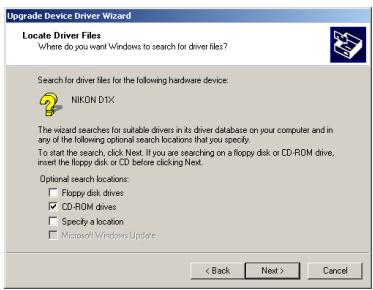

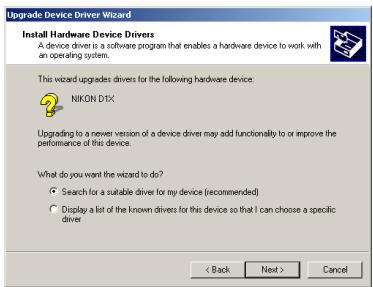

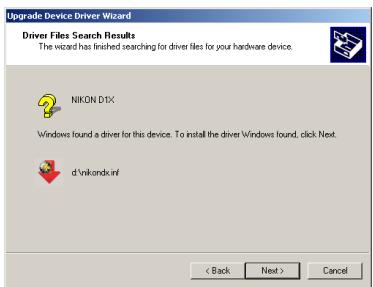

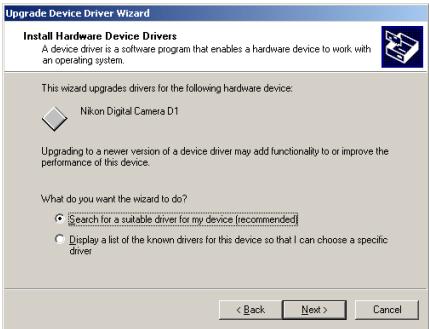

4 Select the search option and click Next. Gp ven ÉSS 1 Soir am érineml Dit san men jen aime monte us D os us D os Ifthe message “Windows was unable to find a suitable driver for this device” is displayed, the CD was not correctly inserted or the correct search location was not selected. Click Back to return to the dialog shown in Step 5 and confirm that ( the search location is correct. L J [ à Pressing the shift key to prevent the language-selection dialog from open- ing, insert the Camera Control Pro CD (if the language-selection dialog ap- pears, click Quit). Select CD-ROM drives and click Next. us D | ) [ 7 6 Click Next. vou

Return to first page

Overview Using Camera Control Pro r ù 7 Click Finish. Completing the Upgrade Device Driver Wizard RQ rPsemnisre do ira serrée Msn neo uote pass The to ct fieh L J F ù Confirm that "This device is working properly" appears under "Device status” in the “General” tab of the “Nikon Digital Camera D1 Series Properties” dia- log.

Return to first page

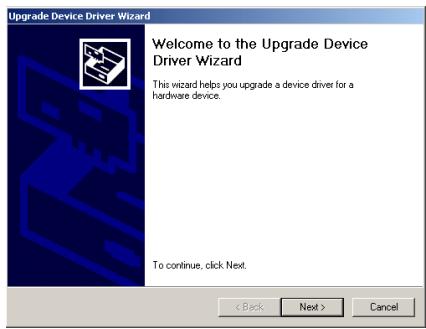

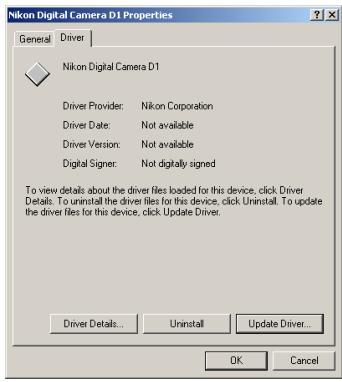

Overview Using Camera Control Pro Updating the Device Driver If you are already using the D1 with Nikon View DX or Nikon Capture, you will need to update the camera drivers.

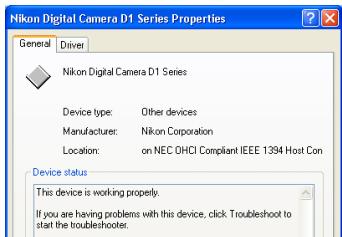

1 Open the Device Manager. Expand the “Nikon 1394 Device” entry and double-click Nikon Digital Camera D1. 2 Open the “Driver” tab and click Update Driver... RTC EENCECON #x ET] Pc Duran One use her eaer Dis Nacpibeyes gs di Dm Tous are DD | _ van (nn 3 Click Next. Welcome to the Upgrade Device Driver Wizard Termes Don D 2 Return to first page

Pressing the shift key to prevent the language-selection dialog from open- ing, insert the Camera Control Pro CD (if the language-selection dialog ap- pears, click Quit). Select CD-ROM drives and click Next. Lt Di Fes Sel ibn

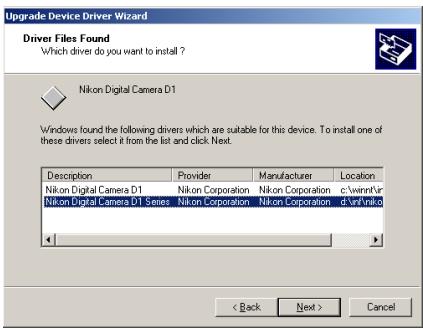

7 Select Nikon Digital Camera D1 Series and click Next.

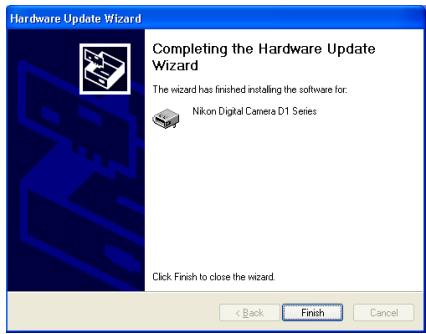

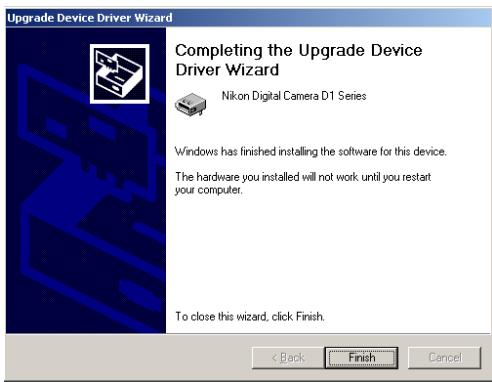

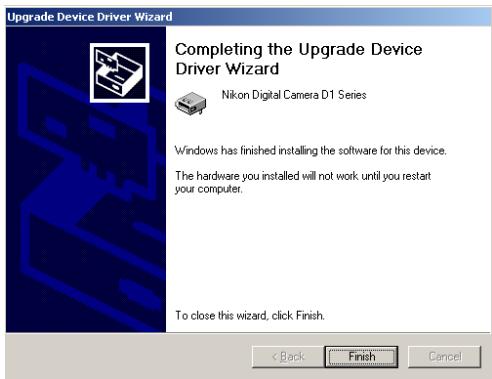

8 Click Finish. Completing ie Upgrade Device Driver Wizard

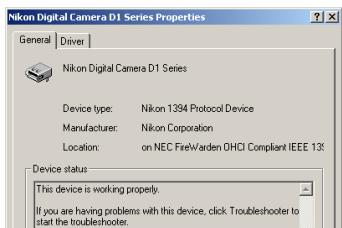

Confirm that "This device is working properly” appears under “Device status” in the “General” tab of the “Nikon Digital Camera D1 Series Properties” dia- log.
