USER MANUAL AOB60530W ARTHUR MARTIN

FR FOURS A AIR FORCE

B C T300°C A A Fig. 24 17

GB USER INSTRUCTIONS GENERAL WARNINGS Read carefully all the instructions contained in this booklet. It provides you with important information regarding the safe installation, use and maintenance of the appliance as well as useful advice for getting the best out of your oven. Keep this booklet in a safe place for future reference. After removing the packing, check that the appliance is not damaged in any way. Be careful not to leave the packing materials (plastic sheeting, expanded polystyrene etc.) where children can get at them, as they can be dangerous. IMPORTANT: do not use the oven door handle to move the appliance, such as to remove it from the packaging.

ENVIRONMENTAL WARNING Waste packsging Do not throw the packaging of your appliance into the dustbin, but pick out the different materials (e.g. foil, paperboard, polystyrene) according to the local rules for rubbish elimination.

CAUTION: The appliance may become very hot during use. Please avoid touching the heating elements inside the oven. The oven surfaces may get very hot when the grill is in use. Keep children well away

The first time you switch the oven on, acrid smelling smoke may appear. This is caused by the heating of the adhesive used on the insulation panels surrounding the oven. There is nothing unusual about this. If it happens, simply wait untill the smoke disappears before putting any food in the oven. Never roast or bake on the oven base. IMPORTANT This appliance must be used exclusively for cooking food and not for any other purpose. Any other use of the appliance (such as heating a room) is improper and therefore dangerous. The manufacturer will not accept responsibility for any damage caused by the improper and unreasonable use of the appliance. There are certain basic rules which must be observed when using any electrical appliance, i.e.: - disconnect the appliance from the electric mains supply before carrying out any cleaning or maintenance operation. - never try to remove a plug from the mains supply socket by pulling on the cable - never touch an appliance if your hands or feet are wet or damp - never operate an appliance if you are barefoot - never allow children or incompetent people to use the appliance unsupervised. - in case of negligent use near the oven door hinges, you could hurt your hands - if the appliance breaks down and/or does not work properly, switch off and do not tamper with it. All repairs should be carried out only by an approved service agent. You should insist that only original spare parts are used. Failure to follow the above advice can affect the safety of your appliance. SPECIFICATION The ovens are designed to operate with a monophase alternating current of 230V 50Hz. Anyway, before the installation of the appliance, we suggest you to check always these specifications on the rating label applied on the outside rear part.

Oven lower heating el. Oven upper heating el. Circular heating elem. Oven light

Powers absorbed in accordance with models 1200 Watt Medium grill heating el. 850 Watt Total grill heating elem. 2100 Watt Grill heating element 15 Watt Fan motor

1050 850+1050 2000 32 or 47

Accessories according to models Turnpit 4 Watt Tangential motor 22 or 25 Watt

TANGENTIAL CONVECTION ( According to the models ). The tangential convection is provided by a fan, which automatically starts when the oven is switched on. The fan produces a flow of air that comes out of the front grilles, forming a barrier against the heat of the oven, while at the same time cooling the door handle and the cooker front panel. The air circulation also provides greater heat insulation of the electronic and mechanical components of the appliance, improving its reliability and life, as well as preventing condensation, so that the door glass is always clear for a perfect view of the interior. The fact that the fan continues running even after the oven has been switched off is an additional safety feature, in that it warns the user of the need to be careful because there is still residual heat inside the oven. The tangential fan system is installed on both electric and gas cookers.

INDICATOR LIGHTS The indicator lights situated above the control panel go on and off when the heating elements are inserted or removed. During the thermostatic functioning of the oven, the neon light remains on untill the pre-chosen temperature is reached and when it goes out, this is a sign that the temperature has been reached. When the oven cools, the thermostat determines the re-insertion of the heating elements with consequent re-lighting of the indicator lights. In some models the internal oven light, which is always on when any function is in operation, is considered as an operating warning light.

The parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. Moreover this appliance complies with european directives 89/336/CEE, 73/23/CEE and following changes. INSTALLING THE APPLIANCE Installation should be carried out according to the instructions by a professionally qualified person. The manufacturer declines all responsibility for any damage to persons, animals or things due to a wrong installation.

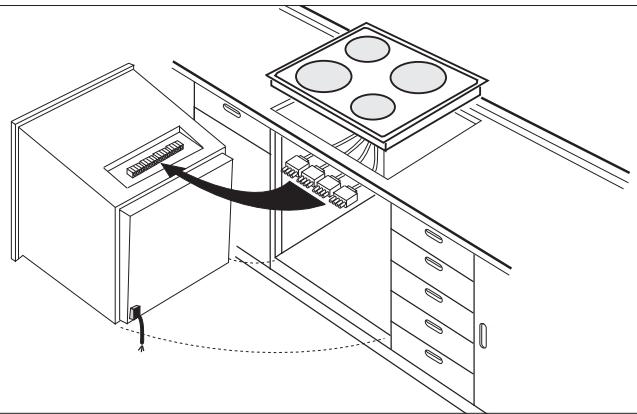

A FITTING THE APPLIANCE Fit the appliance into its surround (beneath a work-top or above another appliance) by inserting screws into the 4 holes that can be seen in the frame of the oven when the door is open.

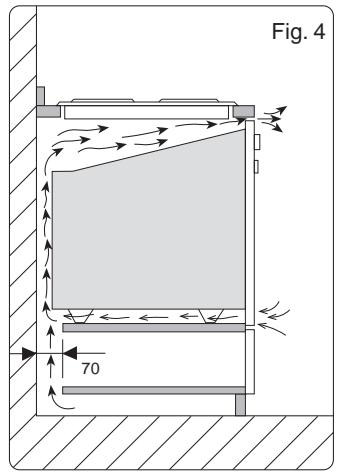

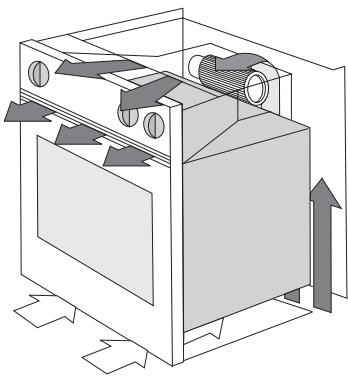

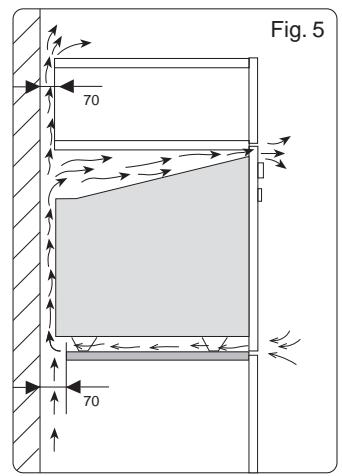

GB For the most efficient air circulation, the oven should be fitted according to the dimensions shown in fig.1-2 of page 2. The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which the oven is fitted should have a gap of at least 70 mm at the rear. NB: where ovens are to be matched with hobs, it is essential to follow the instructions contained in the booklet supplied with the other appliance. IMPORTANT For a built-in oven to work well the cabinet must be of the right type. The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture is made of veneered wood, the adhesives should be able to withstand a temperature of 120°C. Plastic materials or adhesive which cannot withstand this temperature will become deformed or unstuck. To comply with safety regulations, once the appliance has been fitted it should not be possible to make contact with the electrical parts. All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool. Fig.6

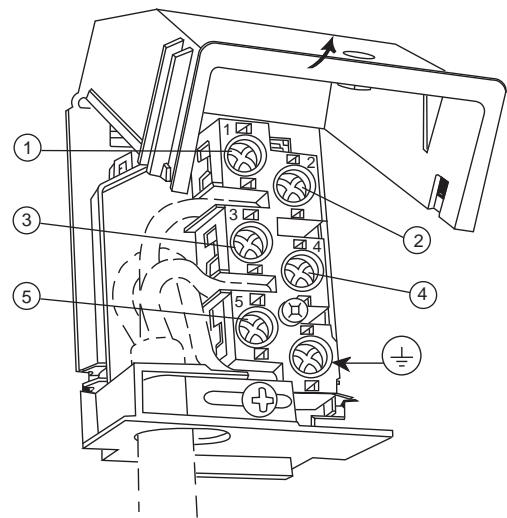

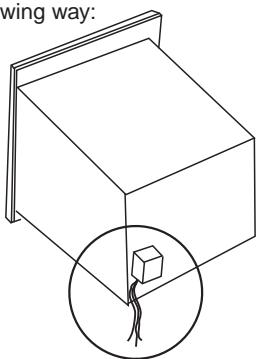

TYPE AND SECTION OF SUPPLY CABLE CONNECTION TO THE MAINS SUPPLY THE APPLIANCE MUST BE CONNECTED IN CONFORMANCE TO THE REGULATIONS IN FORCE, AND ONLY BY AN AUTHORIZED ELECTRICAL INSTALLER. WARNING: THIS APPLIANCE MUST BE EARTHED Check that the power rating of the mains supply and sockets are suitable for the maximum appliance power as indicated on the specification plate. Fit the plug into a three pin, earthed socket. This should be properly connected. If the appliance does not come already fitted with a plug, fit a regulation plug suitable for the power indicated on the specification plate. The earth wire is yellow/green. If the plug fitted to the appliance is incompatible with the socket, get a professionally qualified person to fit the correct type of plug and ensure that the cable thickness is suitable for the appliance input power. If an appliance is not equipped with supply cable and plug, the power supply must be fitted with a disconnect switch in which the distance between contacts permits total disconnection in accordance with overvoltage category III, as required by installation regulations.

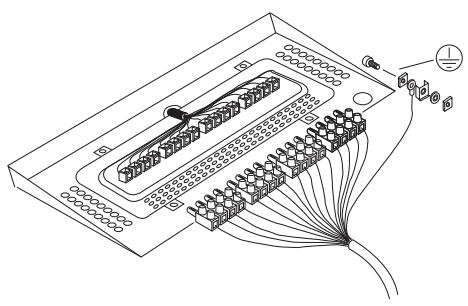

In the ovens with this kind of terminal board, no supply cable is assembled. In conformity with the kind of mains supply, use a cable according to the table below. 230V~ 400V 2N~ 400V 3N~

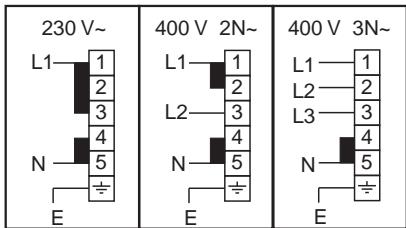

KIND OF MAINS SUPPLY Different connections can be made simply by moving the jumpers on the terminal board. 230 V~ L1

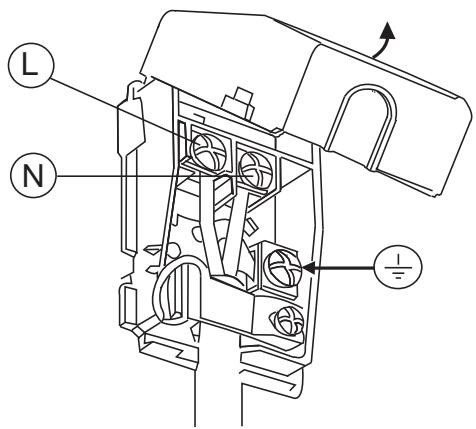

The yellow/green earth wire should not be controlled by the switch. The plug or monophase switch used for mains supply connection should be easy to access when the appliance is in position. Important: position the mains supply cable so that it is never subjected to a temperature more than 50°C above room temperature. The appliance’s electrical safety can only be guaranteed when it has been correctly connected to a properly earthed power supply, as laid down in the regulations for electrical safety. Important: the manufacturer cannot be held responsible for any damage to persons or objects due to the lack of an earth connection.

N E E OVEN MAINTENANCE ALWAYS UNPLUG THE PLUG FROM THE CURRENT SOCKET OR SWITCH OFF THE CURRENT ON THE POWER SUPPLY LINE BY MEANS OF THE MAINS CIRCUIT SWITCH, BEFORE CARRYING OUT ANY MAINTENANCE ON THE OVEN. If the cable is damaged, fit a replacement in the following way: - remove the mains cable (see fig.6-7) and replace it with one of the same length which is rubber insulated (type H05RR-F or H05RNF ) and suitable for the power rating of the appliance. The “yellow/green” earth wire, which must be connected to terminal , has to be about 10 mm longer than the other wires; the “blue” neutral wire has to be connected to the terminal marked with letter N. “Black, brown, red” live wires have to be connected to terminal L or L1-L2-L3.

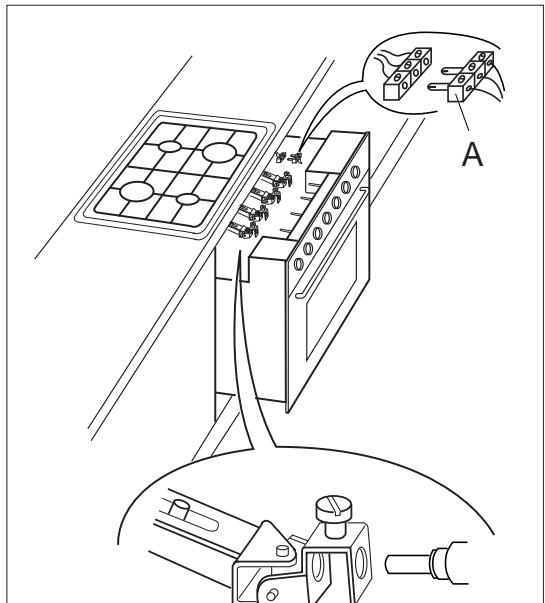

GB Special instructions for combined models . The models below can be matched with all types of built-in hobs of the electric or glass-ceramic series. These ovens, by means of the terminal boards for junction to the hob, electrically supply the heating elements of the hobs itself (see fig.8). The ways of combining them are described in the instructions supplied with the hobs. CONNECTING THE HOB TO THE OVEN MATCH UP THE COLOURED SYMBOLS BETWEEN OVEN TERMINAL BOARD AND HOB TERMINAL BOARD. EARTH THE HOB USING POINT A.

Special instructions for polyvalent models . The models below can be matched with all types of built-in hobs of the gas-electric-combined. These ovens do not electrically supply the hob elements. The hob must be separately supplied in accordance with the instructions supplied with this appliance. Sometimes on the control panel there is an ignition button for gas burners or an indicator light for the electric plates operation, or both of them. In this case the ovens are supplied with terminal board “A” (see fig. 9), enabling the connection of these components to the hob. The ways of combining them are described in the instructions supplied with the hobs. Important: the control panels of the ovens can be fitted with 4 knobs, each with a surround suitable for controlling four-burners hobs (fig. 9b), or electric hobs (see fig. 9c or fig. 9d). If the hob to be matched is of a different type (combined ), one or more of the surrounds need to be replaced using whether those of fig. 9b or those of fig. 9c or fig. 9d. N.B.: The surrounds are supplied with the oven, and the knobs, with their respective springs, are fitted to the control panel. NOTE: the oven control panel shows the positions of the hob components to be combined. As for the gas burners, use the surrounds with the simbols of fig. 9b. As for the electric plates, use the surrounds of fig. 9c or fig. 9d.

A for electric plates

to switch off the ovens, turn the knobs on position

The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking.

°C 50 70 90 110 130 150 170 190 210 230 250

the light will be on for all the following operations.

Natural convection Both the lower and upper heating elements operate together. This is the traditional cooking, very good for roasting joints, ideal for biscuits, baked apples and crisping food. You obtain very good results when cooking on a shelf adjusting the temperature between 50 and 250°C.

Lower heating element This function is particularly indicated for cooking from the bottom, warming up food or sterilizing glass jars. It is also indicated for food requiring long and slow cookings, i.e. casserole. This function is without check and adjustment of the temperature. Upper heating element It is indicated for warming up pre-cooked food when placing the grid on the second shelf from the top, or for defrosting pastry placing the grid on the first shelf from the bottom. This function is without check and adjustment of the temperature. Total grill heating element and (turnpit motor according to the models, see Fig.11). It is indicated for cooking on the spit, grilling and gratinating. This function must always be used with half-open door and control protection in position (see fig.10).

Note: the oven must be used with the door closed

All functions will start after selecting the oven temperature with the thermostat knob. The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking.

THERMOSTAT When you turn the control knob to position

the light will be on for all the following operations.

50 ÷ MAX Natural convection Both the lower and upper heating elements operate together. This is the traditional cooking, very good for roasting joints, ideal for biscuits, baked apples and crisping food. You obtain very good results when cooking on a shelf adjusting the temperature between 50 and MAX°C.

50 ÷ MAX Lower heating element This function is particularly indicated for cooking from the bottom, warming up food or sterilizing glass jars. It is also indicated for food requiring long and slow cookings, i.e. casserole. This function can be used between 50 and MAX°C.

50 ÷ MAX Upper heating element It is indicated for warming up pre-cooked food when placing the grid on the second shelf from the top, or for defrosting pastry placing the grid on the first shelf from the bottom. This function can be used between 50 and MAX°C. Total grill heating element

according to the models, see Fig.11).

50 ÷ MAX It is indicated for cooking on the spit, grilling and gratinating. This function must always be used with half-open door and control protection in position (see fig.10).

Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature.

GB AIR FORCED OVEN Note: the oven must be used with the door closed max 50

All functions will start after selecting the oven temperature with the thermostat knob. The oven is fitted with: • a lower heating element; • a circular heating element, which surrounds the fan.

THERMOSTAT KNOB When you turn the control knob to position

the light will be on for all the

following operations. Defrosting The air at ambient temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration. Fan oven Both the fan and the circular heating element operate together. The hot air adjustable between 50 and MAX°C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell. It is indicated for delicate pastries.

50 ÷ MAX Grill It is indicated for grilling and gratinating traditional food. This function must always be used with half-open door and control protection in position (see fig.10).

Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature.

The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking • a fan

THERMOSTAT + SELECTOR KNOB When you turn the control knob to position following operations.

Knob Position 1 2 3 4 5 6 7 8 9 10 11

°C 50 70 90 110 130 150 170 190 210 230 250

the light will be on for all the

Upper and lower heating element + fan This is indicated for food requiring an even heating, both from the top and the bottom. The hot air adjustable with the knob from 1 to 11 is evenly distributed by the fan inside the oven.

Grill It is indicated for grilling and gratinating traditional food. This function must always be used with half-open door and control protection in position (see fig.10).

GB MULTIFUNCTIONAL OVEN 8 FUNCTIONS Note: the oven must be used with the door closed max 50

All functions will start after selecting the oven temperature with the thermostat knob. The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking. • a circular heating element, which surrounds the fan.

THERMOSTAT When you turn the control knob to position the following operations.

the light will be on for all

Defrosting with fan The air at ambient temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration.

50 ÷ MAX Natural convection Both the lower and upper heating elements operate together. This is the traditional cooking, very good for roasting joints, ideal for biscuits, baked apples and crisping food. You obtain very good results when cooking on a shelf adjusting the temperature between 50 and MAX°C.

50 ÷ MAX Fan oven Both the fan and the circular heating element operate together. The hot air adjustable between 50 and MAX°C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell. It is indicated for delicate pastries.

50 ÷ MAX Medium grill It is indicated for grilling and gratinating small quantities of traditional food. This function can be used with closed door for very short times (5-10 minutes). For longer times, this function must always be used with half-open door and control protection in position (see fig.10).

50 ÷ MAX Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature. Total grill It is indicated for grilling and gratinating traditional food. This function must always be used with half-open door and control protection in position (see fig.10).

Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature.

Fan assisted total grill The air which is heated by the grill heating element is circulated by the fan and so helps to distribute the heat between 50 and 200°C. The fan assisted grill replaces perfectly the turnspit. You can obtain very good results also with large quantities of poultry, sausage, red meat.

Lower heating element + fan The air which is heated by the lower heating element is circulated by the fan and so helps to distribute the heat between 50 and 200°C. This function can be used for sterilizing glass jars.

GB MULTIFUNCTIONAL OVEN A 5 FUNCTIONS Note: the oven must be used with the door closed

All functions will start after selecting the oven temperature with the thermostat knob.

The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking. • a circular heating element, which surrounds the fan. N.B.: The oven light switches on and remains on upon activation of one the functions mentioned below. Natural convection Both the lower and upper heating elements operate together. This is the traditional cooking, very good for roasting joints, ideal for biscuits, baked apples and crisping food. You obtain very good results when cooking on a shelf adjusting the temperature between 50 and MAX°C.

Lower heating element This function is particularly indicated for cooking from the bottom, warming up food or sterilizing glass jars. It is also indicated for food requiring long and slow cookings, i.e. casserole. This function can be used between 50 and MAX°C.

Fan-assisted natural convection Both the top and bottom elements are on, as is the fan. This is the conventional cooking method, excellent for a variety of foods. It produces good results for cooking on one level -- ideal for biscuits, cakes and canapés -- with the temperature adjustable from 50 to 200°C.

Fan-assisted bottom element The air, heated by the grill element, is drawn in by the fan, which circulates it on the food at the desired temperature between 50 and 200°C. This function can be used for sterilizing food

Fan-assisted forced-air grill The air, heated by the grill element, is drawn in by the fan and circulated on the food at the desired temperature between 50 and 200°C. The forced-air grill is a valid substitute for a turnspit, and gives excellent results with poultry, sausages and red meats, even in large amounts.

SELECTOR KNOB All functions will start after selecting the oven temperature with the thermostat knob. Note: the oven must be used with the door closed

THERMOSTAT The oven is fitted with: • a lower heating element; • an upper heating element, which according to the cooking mode can be used for grilling or baking. • a circular heating element, which surrounds the fan.

When you turn the control knob to position following operation.

the light will be on for all the

50 ÷ MAX Total grill It is indicated for grilling and gratinating traditional food. This function must always be used with half-open door and control protection in position (see fig.10).

Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature.

Fan-assisted forced-air grill The air, heated by the grill element, is drawn in by the fan and circulated on the food at the desired temperature between 50 and 200°C. The forced-air grill is a valid substitute for a turnspit, and gives excellent results with poultry, sausages and red meats, even in large amounts. Fan-assisted thawing This position is used for circulating air at ambient temperature around the frozen food, thereby thawing it in a few minutes without modifying or altering its protein content.

50 ÷ MAX Fan oven Both the fan and the circular heating element operate together. The hot air adjustable between 50 and MAX°C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell. It is indicated for delicate pastries.

50 ÷ MAX Natural convection Both the lower and upper heating elements operate together. This is the traditional cooking, very good for roasting joints, ideal for biscuits, baked apples and crisping food. You obtain very good results when cooking on a shelf adjusting the temperature between 50 and MAX°C.

50 ÷ MAX Lower heating element This function is particularly indicated for cooking from the bottom, warming up food or sterilizing glass jars. It is also indicated for food requiring long and slow cookings, i.e. casserole. This function can be used between 50 and MAX°C.

Fan-assisted natural convection Both the top and bottom elements are on, as is the fan. This is the conventional cooking method, excellent for a variety of foods. It produces good results for cooking on one level -- ideal for biscuits, cakes and canapés -- with the temperature adjustable from 50 to 200°C.

Fan-assisted bottom element The air, heated by the grill element, is drawn in by the fan, which circulates it on the food at the desired temperature between 50 and 200°C. This function can be used for sterilizing food

Grill on This position switches on the grill element + the top element. It is used for au gratin cooking or grilling of traditional small sized dishes. This function must always be used with the door partially open and with the heat deflector fitted on the appliance (see fig.10). Some models are designed for the grill to be used with the oven door completely closed. Make sure that the oven is designed for this type of operation. Warning: In this case the deflector shown in fig. 10 is not supplied. This function can be used between 50 and 200°C as maximum temperature. 25

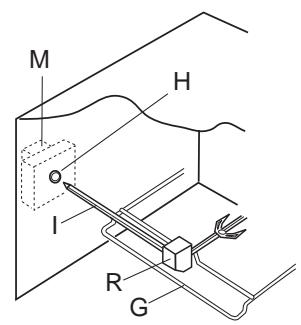

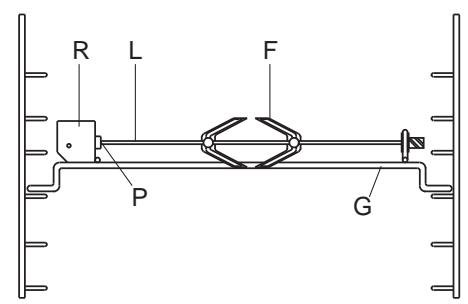

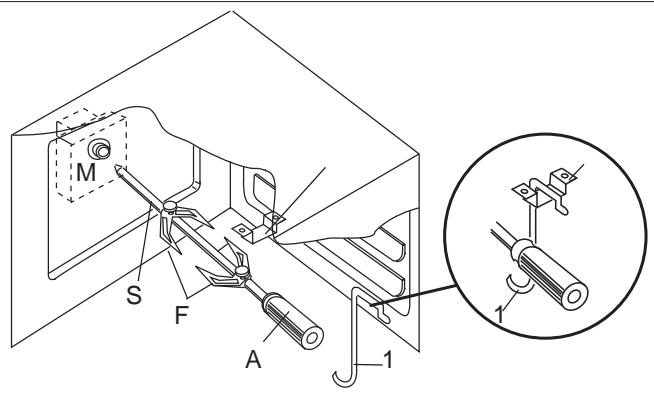

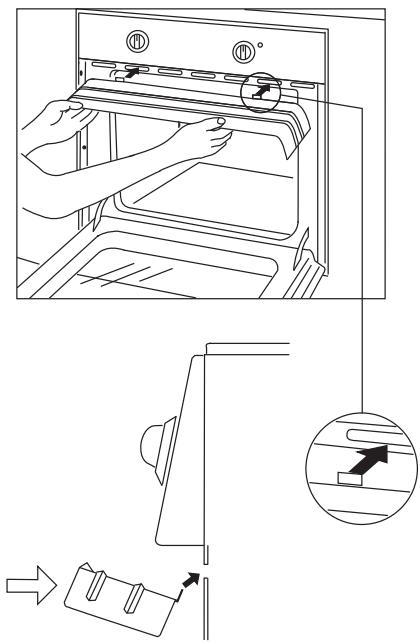

Using the turnspit In the “CONVECTIONAL OVEN” models, the turnspit can be used in combination with the grill. After fitting the food on to the spit S, block it with the two forks F. Then proceed as follows: - Fit the knobs protection as shown in fig.10 (only for oven with thermostat knob combined with commutator knob, see fig. A - B - C). - Position the spit support as shown in fig.(11) - Fit the end of the spit into the motor M at the back of the oven (fig.11). - Fit the support into the circular groove in the spit. - Unscrew and remove handle A. - Place the oven tray with a little water on the lowest shelf of the oven. - Turn the knob to position or to start up the motor. - Close the oven door . - When the cooking time is up, screw the handle on the spit and remove everything from the oven. If necessary, use an oven glove to avoid any burn. Note: for models with grill knob separated from the thermostat knob, close the oven door and set the thermostat at 200° as max temperature.

Fig. 10A R Fig. 10B L P F Fig. 10C M H G F L I A R G Using the side rotisserie unit on fan-assisted and multifunction ovens. - Place the chicken or meat cut to be roasted on the spit L, so that it is firmly held in place by the two prongs F, making sure it is balanced to avoid excessive strain on the driving gear R (fig. 10A). - Place the spit on the support G, after having inserted its opposite end in the hole P of the driving gear R (fig. 10A). - Insert the support G completely inside the oven so that rod I goes inside hole H of the turnspit motor M (fig. 10B) - Position the dripping pan, with some water inside, underneath the support G. - Close the oven door and set the thermostat for 200°, selecting the grill function. - To remove the spit, carry out the inverse procedure, using the knob A and a heat-proof oven glove (fig. 10C); naturally, in order to do this the support G must be removed from the oven.

GB INSTRUCTIONS FOR USE OF CONTROL DEVICES (ACCORDING TO THE MODELS) TIMERS Our ovens can be fitted with different types of timers:

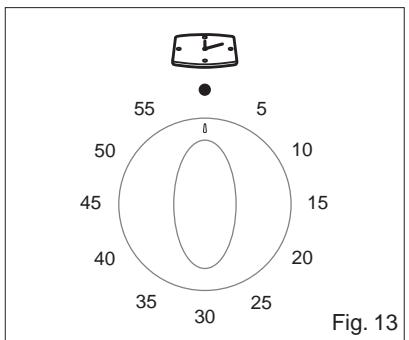

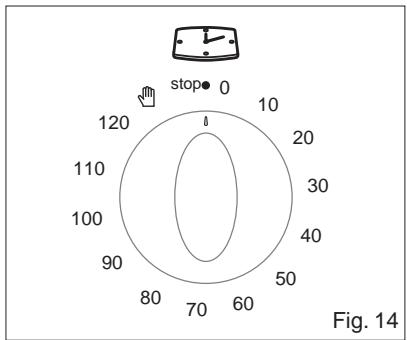

MINUTES COUNTERS Turn the knob clockwise to set the desired cooking time. The minutes minder can be adjusted from 1 to 60 minutes. A sound signal will inform you that the chosen time is up (Fig.13).

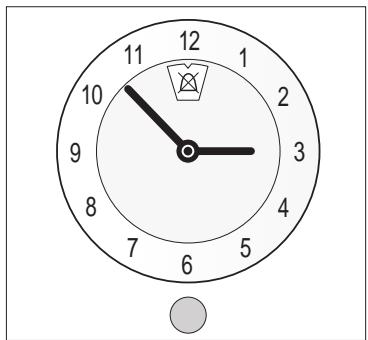

PROGRAMMER WITH COOKING END TIME For a manual operation of the programmer, turn the knob anticlockwise to . Adjust the cooking time by turning the knob clockwise. Select the cooking time with the relevant knob (max.120 min.) (Fig.14). The oven will switch off automatically when the cooking is up.

To set the clock press the knob and turn anti-clockwise. To adjust cooking time, tur n the knob clockwise without pressing it in. The end of cooking time is announced by an alarm bell, which is cancelled by turning the knob to position . For manual connection, turn the knob to position .

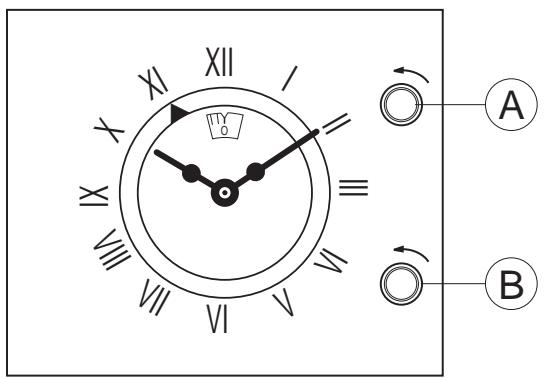

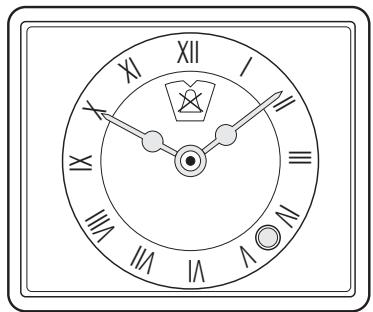

I VIII Setting the clock: press knob B and turn it anti-clockwise. Adjustment of starting time: press knob A and turn it anti-clockwise. Adjustment of connection time: turn knob B anti-clockwise without pressing it in. The end of the connection is announced by an alarm bell, which can be stopped by turning knob B to position 0 without pressing it in. Manual connection: turn knob B to position I a without pressing it in.

IX III V III V VI VII

IV Alarm programme adjustement Turn the knob clockwise without pressing it in. At the end of the programmed time an alarm will sound. To cancel it, turn the knob to the bell.

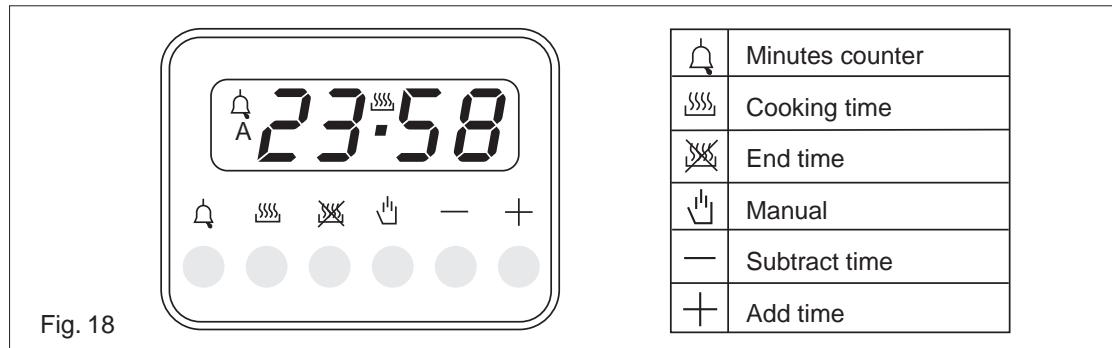

GB «LED» PROGRAMMER (Fig.18) Features 24 hours clock with automatic programme and minutes counter. Functions Cooking time, cooking end time, manual position, clock, minutes counter, times to be set up to

23 hours 59 minutes.

Display 4-figures, 7-segments diplay for cooking times and time of day. Cooking time and manual function = saucepan symbol Automatic function = AUTO Minutes counter = bell symbol The symbols light up when the corresponding functions are selected. Setting To set, press and release the desired function, and within 5 seconds set the time with + and - buttons.

Minutes counter Cooking time A End time Manual Subtract time Add time

Tasto + e + and - buttons. The + and - buttons increase or decrease the time at a speed depending on how long the button is pressed. Setting the time Press any two buttons (cooking time, end time, minutes counter) at the same time, and + or - button to set the desired time. This deletes any previously set programme. The contacts are switched off and the AUTO symbol flashes. Manual use By pressing the manual button the relay contacts switch on, the AUTO symbol switches off and the saucepan symbol lights up. Manual operation can only be enabled after the automatic programme is over or it has been cancelled. Automatic use Press the cooking time or end time button to switch automatically from the manual to the automatic function. Semi-automatic use with cooking time setting Press the cooking time button and set the desired time with + or -. The AUTO and cooking time symbols light up continuously. The relay switches on immediately. When the cooking end time corresponds to the time of day, the relay and cooking time symbol switch off, the sound signal rings and the AUTO symbol flashes. Semi-automatic use with end time setting Press the end time button. The time of day appears on the display. Set the cooking end time with + button. The AUTO and cooking time symbols light up continuously. The relay contacts switch on. When the cooking end time corresponds to the time of day, the relay and the cooking time symbol switch off. When the cooking time is up, the AUTO symbol flashes, the sound signal rings and both the relay and the cooking time button switch off. Automatic use with cooking time and end time setting Press the cooking time button and select the length of the cooking time with + or - button. The AUTO and cooking time symbols light up continuously. The relay switches on. By pressing the cooking end time button the next cooking end time appears on the display. Set the cooking end time with + button. The relay and the cooking time symbol switch off. The symbol lights up again when the time of day corresponds to the cooking start time. When the cooking time is up, the AUTO symbol flashes, the sound signal rings, the cooking time symbol and the relay switch off. Minutes counter Press the minutes counter button and set the cooking time with + or - button. The bell symbol lights up when the minutes counter is operating. When the set time is up, the sound signal rings and the bell symbol switches off. Sound signal The sound signal starts at the end of a programme or of the minutes counter function and it lasts for 15 minutes. To stop it, push any one of the functions buttons. Start programme and check The programme starts 4 seconds after it has been set. The programme can be checked at any time by pressing the corresponding button. Setting error A setting error is made if the time of day on the clock falls within the cooking start and end times. To correct the setting error, change the cooking time or cooking end time. The relays switch off when a setting error is made. Cancelling a setting To cancel a setting, press the cooking time button and then press the - button untill 00 00 appears on the display. A set programme will automatically cancel on completion. 28

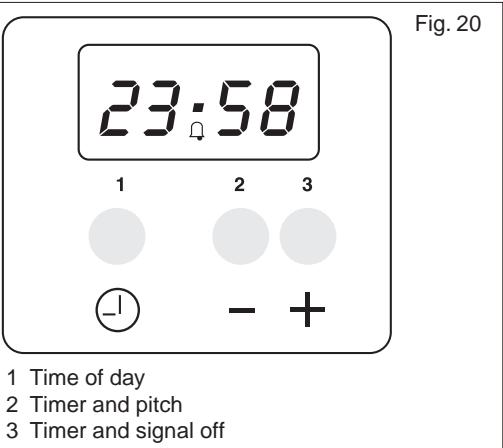

GB ELECTRONIC TIMER FOR COOKER (Fig.20) 2. Functions

On The display flashes. Time setting Press the left button. Set the time with buttons “+” and “-”. This function remains activated 7 seconds after the last +/- operation. Timer setting This function is permanently activated and it will be immediately set with +/- buttons. During setting the units are 10 seconds. During count down the timer takes priority on the display. The units are seconds. The maximum time is 99 minutes. The relay contact (when available) is closed during the count down only. 1 Time of day 2 Timer and pitch 3 Timer and signal off

Reset timer Press “+” and “-” buttons together and release “+” button first.

Signal The signal after time out will stay 7 minutes if it has not been reset with the “+” button (one touch only). Signal frequency When the display shows the time of day, the signal frequency can be selected by pressing the “-” button. Three different frequencies are selectable.

USEFUL NOTES FOR COOKING In the following table, some indicative hints for cooking:

FAULTS CAUSES REMEDIES The upper crust is dark and the lower part too pale

Not enough heat from the bottom

- Use the natural convection position - Use deeper cake tins - Lower the temperature - Put the cake on a lower shelf

The lower part is dark and the upper crust too pale

Excessive heat from the bottom

- Use the natural convection position - Use lower side tins - Lower the temperature - Put the cake on a higher shelf

The outside is too cooked and the inside not cooked enough

Too high temperature

- Lower the temperature and increase the cooking time

The outside is too dry even though of the right colour

- Increase the temperature and reduce the cooking time

COOKING WITHOUT FAN - Natural convection Preheat the oven for 10-15 minutes. Grease the meat with a little oil, put it on the drip-tray and place everything quickly into the oven. In mid-cooking change the meat position, avoiding any further opening of the door, if possible. - Grilling Preheat the grill for about 5 minutes (till the heating element becomes red). Prepare natural or aromatized meat and place it on the grill pan. Place on the shelf near the top. Place the drip-tray with a little water underneath for collecting the cooking juices. The grill can be used to gratinate and brown after normal cooking. COOKING WITH FAN - Defrosting To defrost food, place it still wrapped up in its aluminium or polythene sheet protection on a dish. Place everything on the grid in the oven centre. The door must be closed. - Fan oven It is not necessary to preheat the oven, except for very short cooking times or food with considerable quantity of liquid (e.g. fruit tartes) to avoid condensation. In case of batch cooking, you can introduce food with approximately equal cooking temperatures (even if the length of time differs) on two or more shelves without mixing tastes and flavours. It is possible to put food into the oven or to take it out of it without heat losses caused by the door opening. Heat will be quickly recovered by means of the fan. Cooking temperatures are lower than those of the convectional oven (from 20 to 30°C for pastries and from 30 to 40°C for meats) whereas times are longer (50° - 10 minutes). - Fan assisted grill It does not need preheating. Cooking must be operated with the door closed. The distance between grill and food should be proportionate to the required results: - nearer for undone meat brown on its surface - far from it for food perfectly baked inside. The drip-tray with a little water for collecting meat juices has to be placed on the first shelf underneath. MISCELLANEOUS Marinated meat and boneless meat cook quicker than other sorts; cooking progress can be checked by pressing the meat with a fork; if it does not yield, it is properly cooked. Before slicing the meat wait at least 15 minutes, to allow the juice to settle. If the meat is larded or covered by bacon, it should not be cooked at too high temperatures to avoid splattering. Pastry cakes should be cooked blind for 2/3 of the cooking time before being filled. The remaining cooking time depends on the garnishing (fruit, jam). Beaten doughs should not be too much fluid, as this could only extend cooking times. Do not place pans directly on to the oven base as the heat which comes from below cannot escape. This may cause breakage or cracking of the enamelling.

in °C Shelf position from the bottom

Cooking time in minutes

Cake Sponge cake Fruit tart Paradise cake Margareth cake Chocolate cake Meringue «Vol au vent» Puff pastry

175 170 180-190 160 160 160 100 200 200

1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf

Roast beef Roast veal Veal stew Roast lamb Roast kid Leg of roe-buck Leg of wild boar

1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf

90 120-150 60-90 60-75 50-60 90 120

Roast pigeon Turkey Goose Duck Chicken Capon

150-160 150 160 175 170 170

1st shelf 1st shelf 1st shelf 1st shelf 1st shelf 1st shelf

1st shelf 1st shelf 1st shelf 1st shelf

GB INDICATIVE TIMINGS AND TEMPERATURES FOR COOKING WITH FAN OVEN Q.ty

Short bread: Leaven doughs:

GB CLEANING AND MAINTENANCE Wait until the appliance has cooled down before attempting to clean it. Disconnect it from the power supply, either by pulling the plug out or switching off the power supply at the mains. Clean enamelled, chromed or painted parts with warm water and soap, or non-corrosive liquid detergent. Clean stainless steel parts using methylated spirit of a suitable commercially produced solution. Clean aluminium panels or edges with cotton wool or with a cloth soaked in vaseline or a seed-based oil. Clean and then go over it with methylated spirit. Never use abrasives, corrosive detergents, bleaches or acids for cleaning the oven. Do not leave corrosive or acidic substances (lemon juice, vinegar, etc.) on enamelled, painted or stainless steel parts. Removal of oven door (Fig.21) To make cleaning easier, remove the oven door as follows: insert hook A (fig.21) in hinge slot B. Half open the door and, using both hands, pull the door towards you untill it becomes unhooked. To refit the door, carry out the same operation in reverse, taking care to introduce the two sectors C correctly.

B A Removalcleaning of oven of door fixed becomes fulcrum ) more convenient if the door is removed In-depth the( oven following the instructions below:

Fig. 21B Fig. 21A C A D Fig. 21C Fig. 21D Fig. 22

Removal of inside glass (Fig.22) For some models there is the possibility to remove the inside glass (A) by opening the door and simply unscrewing screws (B). This allows internal cleaning of the glass. Always clean the outer glass parts when the oven is cold using a damp cloth. Never use abrasives.

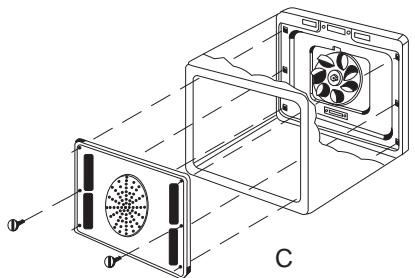

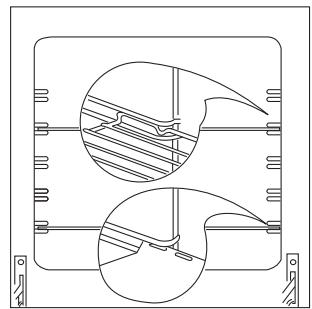

Self-cleaning panels (fig.23) If the oven is fitted with self-cleaning panels, at normal cooking temperatures the catalytic enamel helps transform grease splashes into a light dust. This dust can be removed with a damp sponge when the oven has cooled down. This helps keep the surface of the enamel porous and ensures maximum cleaning efficiency. The self-cleaning panels and the shelves frame are very easy to remove. The shelves holder frame is hooked on to three catches. Simply press the catches down slightly to remove the frame (fig.23A). This will also release the self-cleaning lateral panel (fig.23B). To release the rear self-cleaning panel (which also acts as the fan guard), refer to fig. 23C; after cleaning, reposition the self-cleaning panel by performing the above steps in the reverse order. In some models these three panels are not installed, and the selfcleaning coating is on the oven side walls. Install the grids, by placing them on the horizontal slides inside the oven wall. The raised part of the grid must be in face of the oven rear wall (fig. 9D).

B A Oven light (fig.24) The oven bulb is a special kind which is resistant to high temperatures. Replace it in the following way: disconnect the oven from the power supply, either by pulling the plug out or by switching off the power supply at the mains; remove the protective glass (A) and replace the burnt out bulb with one of the same type. Replace the protective glass.

B C Important: if you decide not to use the oven any more, it should be made inoperable by cutting the power supply cable, after unplugging it from the power supply. Disused appliances can be a safety risk as children often play with them. For this reason it is advisable to make the oven safe.

1 open the oven door completely.2flip the hinge hooks "A" outwards (see fig. 8A). 3 shut the oven door slowly until it reaches hooks "A", making sure these are locked into slots "B" of the oven door, as shown in fig. 8B. 4 Using both hands, push the oven door lightly inwards, toenable the door hinges "C" to come away from the slots "D" (see fig. 8C) and pull the door towards you until it is released from the oven. After cleaning it, reposition it correctly following the abovesteps in the reverse order and flipping hooks "A" inwardsbefore you shut the oven door (fig. 8D).
