IKG7021WRVS - Cooker INVENTUM - Free user manual and instructions

Product Type	Gas Hob (Freestanding Cooktop)
Brand	Inventum
Model	IKG7021WRVS
Number of Burners	5
Burner Types & Power (G20/20 mbar)	1 Wok (3.5 kW), 1 Rapid (3.0 kW), 2 Semi-rapid (1.75 kW each), 1 Simmer (1.0 kW)
Total Power	11.0 kW
Ignition	Automatic with thermocouple flame safety
Gas Connection	Natural gas G20 (20 mbar) or G25 (25 mbar), adjustable
Electrical Supply	230 V AC, 50 Hz (for ignition)
Dimensions (W x D x H)	720 x 510 x 45 mm
Cut-out Dimensions (W x D)	600 x 560 mm
Material	Stainless steel hob, enameled pan supports
Safety Features	Thermocouple flame failure device, automatic gas shut-off
Cleaning	Removable burner caps, pan supports, drip tray; hand wash only (not dishwasher safe)
Warranty	2 years standard, extendable to 5 years with registration
Installation	Built-in, must be installed by a qualified professional

Frequently Asked Questions - IKG7021WRVS INVENTUM

How do I ignite the burners?

Press and turn the control knob anticlockwise. Hold it down for at least 3 seconds between the highest and lowest flame setting. The automatic ignition will light the burner. After the flame appears, hold the knob down for 4 more seconds to activate the thermocouple safety device.

What should I do if a burner fails to ignite?

Check that the plug is inserted, the fuse is intact, the gas supply valve is open, and the burner components are clean, dry, and correctly positioned. If the problem persists after 15 seconds, wait one minute before trying again.

Why does the burner extinguish immediately after lighting?

This usually happens if the control knob was not pressed long enough (at least 3 seconds) or if the thermocouple is dirty. Clean the thermocouple with a toothpick or needle and ensure the knob is fully depressed for 4 seconds after ignition.

How should I clean the hob?

Clean after each use with a mild detergent. Remove the pan supports, burner caps, and drip tray. Never use abrasive cleaners or wash parts in the dishwasher. Use a plastic scouring sponge for persistent stains. For stainless steel, wipe in the direction of the grain with a dedicated cleaner.

What type of gas does this hob require?

The hob is set for natural gas G20 at 20 mbar or G25 at 25 mbar. It can be adjusted for other gas types by a qualified installer using a conversion kit.

What are the dimensions of the hob?

The overall dimensions are approximately 720 mm wide, 510 mm deep, and 45 mm high. The required cut-out in the worktop is 600 mm wide and 560 mm deep.

Can I use a wok on this hob?

Yes, the hob includes a dedicated wok burner with a power of 3.5 kW. Use a wok with a flat base and ensure it is centered on the pan support.

Does the hob have a safety feature?

Yes, each burner is equipped with a thermocouple that automatically shuts off the gas if the flame goes out, preventing gas leaks.

What is the warranty period?

The standard warranty is 2 years from purchase. By registering the product at www.inventum.eu within 45 days, you can extend the warranty to 5 years.

Can I install the hob myself?

No, installation must be carried out by a qualified installer to ensure safety and compliance with local regulations. Incorrect installation can void the warranty.

USER MANUAL IKG7021WRVS INVENTUM

Exterior view of a stainless steel cooktop with six circular burners and a control knob (no text or symbols on the stove itself)

1. safety instructions page 15
2. appliance description page 18
3. before first use page 19
4. ignition and operation page 19
5. use page 19
6. cleaning & maintenance page 20
7. faults page 20
8. installation instructions page 21
   Guarantee & after sales Service page 26

Close-up of a mechanical component with labeled parts 4 and 5 (no text or symbols beyond labels)

Isometric line drawing of a kitchen appliance with labeled components A, B, C, D (no text or symbols beyond labels)

Afmetingen in mm ABCD

Afmetingen in mm	A B C D E* F** G
IKG6010RVS/6012WGRVS	600	560	480	60	30	50	100
IKG6022WGRVS	600	560	480	60	30	50	100
IKG7021WRVS/7022WGRVS	600	560	480	60	30	50	100
IKG9022WGRVS	600	840	480	60	30	50	100

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home. The hob is only to be used for the preparation of food. The appliance is not designed for heating rooms.
• WARNING: this appliance and the accessible parts will become hot during use. Do not touch hot parts. Keep children younger than 8 away from the appliance unless they are under continuous supervision.
• This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack or experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved.
  • Children must not play with the appliance.
• Cleaning and maintenance shall not be made by children.
• Do not keep objects that children might find interesting in cupboards above or behind the appliance.
• The cooking zones heat up during use and stay hot for a while afterwards. Keep young children away from the hob during and immediately after cooking.
• The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings.
• Never open the casing of the appliance.
• Do not warm closed tins on the hob. There will be a build-up of pressure that will cause tins to explode. You might get injured or scalded.
• WARNING: danger of fire: never leave anything on the hob.
• ⚠️ WARNING: cooking with fat or oil on a hob without supervision can be dangerous and can lead to fire. NEVER try to extinguish a fire with water. Instead, switch the appliance off and then cover the flames with for example a lid or a fire blanket.
• The appliance should not be placed or used outdoors.
• Do not use the appliance as a worktop. The appliance may accidentally be switched on or still be hot or catch fire.

• Never cover the appliance with a cloth or something similar. If the appliance is still hot or is switched on, there is a risk of fire.

• Never use a pressure cleaner or steam cleaner to clean the hob.

• Do not use the appliance in temperatures below 5^ .
• When you use the hob for the first time you will notice a “new smell”. Don’t worry, this is normal. If the kitchen is well ventilated, the smell will soon disappear.

- Ensure that there is adequate ventilation during use.

- Keep all natural ventilation openings open.

- When using the hob for long periods, extra ventilation is necessary. For example, open a window or install an electric fan.

- Never flambé under a cooker hood. The high flames can cause a fire, even if the cooker hood is switched off.

- The burner components are hot during and immediately after use.

- Do not touch them, and avoid contact with non-heat resistant materials.

- Never immerse the hot burner caps and pan supports in cold water. The rapid cooling can damage the enamel.

- The distance between the pan and a knob or non-heat resistant wall should always be greater than two centimetres. In case of smaller distances the high temperature may cause the knobs or wall to discolour and/or deform.

• Always use the pan supports and suitable cookware.

- Always place the pan on the pan support. Placing the pan directly on the burner cap can result in dangerous situations.

- Aluminium trays or foil are not suitable as cooking utensils. They can burn into the burner caps and pan supports.

- The hob can only function effectively if the burner components have been assembled using the guide ridges. Ensure that the pan supports lie properly against each other and flat on the drip tray. Only then the pans can be positioned stably.

- Keep oven gloves or oven cloths away from the flame.

- This appliance should only be connected by a registered installer.

- Faulty parts may only be replaced by original parts meet safety requirements.

- Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty.

- If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.

- The electrical connection must comply with national and local regulations.

- The wall plug socket and plug should always be accessible.

- The connection cable must hang freely and should not be fed through a drawer.

16 • English

• The worktop into which the hob is fitted, should be flat.
• The walls and the worktop surrounding the appliance must be heat resistant up to at least 90°C. Even though the appliance itself does not get hot, the heat of a hot pan could discolour or deform the wall.

- Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

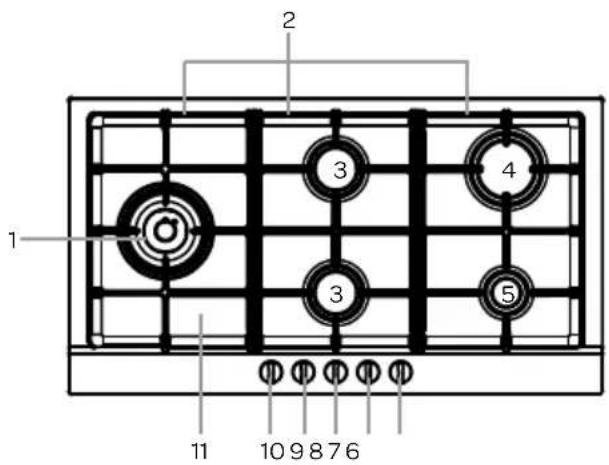

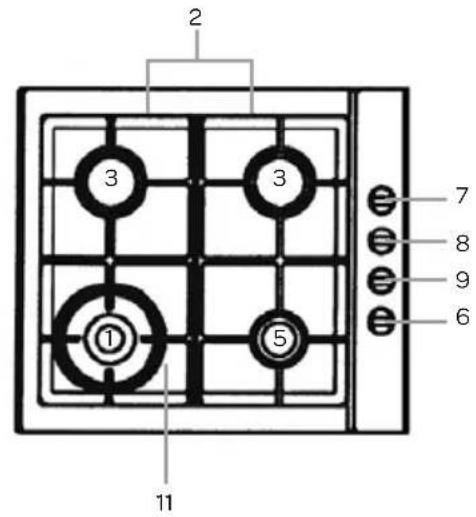

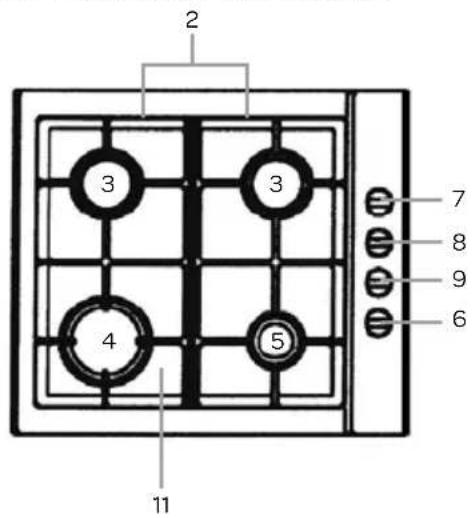

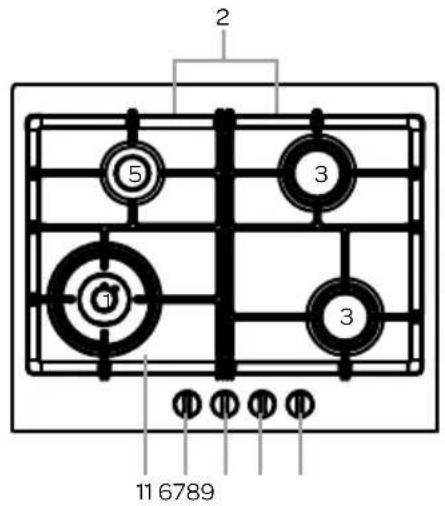

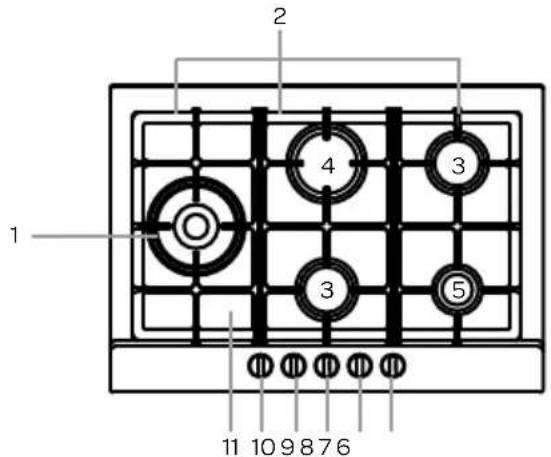

2 appliance description

IKG6010RVS IKG6012WGRVS

IKG6022WGRVS

IKG7021WRVS - IKG7022WGRVS

IKG9022WGRVS

Burners

1. Wok burner
2. Semi-rapid burner
3. Rapid burner
4. Simmer burner

Hob

1. Pan support
2. Drip tray

Controls

1. Control knob front right
2. Control knob rear right
3. Control knob rear left
4. Control knob front left
5. Control knob wok burner

18 • English

3 before first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Clean the pan supports and the burners with warm water and a mild cleaning detergent. Dry thoroughly. Clean the other part with a damp cloth. Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance and plug it in a socket. Follow the installation instructions in chapter 8 for installing the hob.

4 ignition and operation

1. gas supply closed
2. highest flame
3. lowest flame
4. ignition
5. thermocouple

Close-up of a mechanical component with labeled parts 4 and 5 (no text or symbols beyond labels)

Each control knob has an automatic ignition.

• Press the control knob and turn it anticlockwise.
• Hold the control knob down fully for at least 3 seconds between the highest and the lowest flame. The integrated ignition ignites the burner and the flame comes on.
• Hold down the control knob for 4 more seconds after the flame is on to activate the thermocouple. Otherwise the flame extinguishes immediately.
• When the burner is not ignited after 15 seconds, wait one minute before trying to ignite it again.
• When the burner accidentally goes out, the thermocouple safety pilot in each burner will close the gas supply (by boiling over, by drafts, no gas supply, etc.). No flame = no gas!

5 use

For an optimal result of the burners we recommend the following:

• Always ensure that the flames remain under the pan. When the flames burn around the pan, a lot of energy is lost and the handles from the pan may also become too hot.
• Use cookware that fit the burners in diameter. This reduces the cooking time.
• Use flat bottomed cookware.
  • Always use the right amount of liquid for boiling food and use a lid to reduce the cooking time.
• Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not stable on the pan support.

6 cleaning & maintenance

Clean the hob after each use to maintain it in good condition. Food residue can create stubborn stains if not removed directly after use.

Use a mild cleaning detergent to clean the hob. Burner parts and the pan supports should not be cleaned in the dishwasher. The dishwasher detergent can corrode the materials.

The pan supports, burners and burner caps are removable for easy cleaning of the hob.

• First clean the control knobs, burners, burner caps and pan supports.
• Check whether the thermocouple and ignition are clean. If necessary use a toothpick or needle.
• Clean the drip tray.
• Clean everything again with just a damp cloth and dry it thoroughly.
• Refit the burners. Make sure the openings are aligned for the thermocouple and the ignition.
• Refit the burner caps.
• Refit the pan supports. Place them carefully on the drip tray without sliding.

PERSISTENT STAINS

Persistent stains on the pan supports and burner caps can best be removed with a fluid detergent or a plastic scouring sponge. Never use aggressive cleaning products or sharp objects to clean the hob.

Persistent stains on stainless steel are best removed with a special stainless steel cleaning product. Always wipe in the direction of the grain to prevent damage to the protective layer.

The surface of the stainless steel drip tray can discolour slightly over time.

7 faults

If the hob does not function properly, according to you, please try to solve the problem first by checking the points in the table below before contacting the customer department.

Fault Possible cause Solution
There is a smell of gas near the hob.	The hob connection is leaking. Turn off	the main gas supply valve. Contact your installer.
A burner does not ignite. • The plug is not in the socket.• A fuse is defective/ or switched off in the fuse box.• Ignition is dirty/damp.• The burner parts are not placed correctly.• The burner parts are dirty/damp.• The main gas supply valve is closed.• A fault in the gas mains.• Wrong type of gas used.	• Put the plug into the socket.• Replace the fuse or switch on the fuse in the fuse box.• Clean/dry the ignition.• Refit the burner and watch the openings for the thermocouple and the ignition.• Clean/dry the burner parts.• Open the main gas valve.• Consult your gas supplier.• Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.
The burner extinguishes immediately after igniting.	• The control knob has not been pressed long and/or deep enough (at least 3 seconds).• The thermocouple is dirty.	• Keep the control knob fully pressed for at least 3 seconds between the highest and the lowest flame setting. This can take longer the first time because of the gas supply.• Clean/dry the thermocouple.
The burner does not burn evenly.	• The burner parts are not placed correctly.• The burner parts are dirty/damp.• The wrong type of gas is used.	• Refit the burner and watch the openings for the thermocouple and the ignition.• Clean/ dry the burner parts.• Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.

20 • English

8 installation instructions

• The safety during use can only be guaranteed when the hob is installed correctly and according to the regulations. The installer is responsible for any damage caused by a faulty installation.
• The gas connection must comply with the national and local safety regulations. The gas connection must be made by q qualified installer.
• The electrical connection must be made by a qualified electricien. This person is aware of the national and local regulations the installation must comply with.
• The appliance falls under protection class III and can only be used in combination with a grounding conductor connection. The manufacturer accepts no responsibility for any malfunction or damage caused by incorrect electrical installations.
• The appliance must be connected to a fixed installation and the means of disconnecting it from the fixed installation must be installed according to the installation instructions.
• The connection cable must hang freely. Do not tie the power cable or pass it along sharp edges. If there is an oven installed below, pass the cable along the rear corners of the oven to the connection box. It must be positioned so that it does not touch any of the hot parts of the hob or the oven.
• The connection point, the wall socket and/or plug must always be accessible.
• The worktop into which the hob is fitted should be flat. Follow the instructions of the manufacturer of the worktop.
• Damage caused by incorrect connection, incorrect use or incorrect fitting is not covered by the guarantee.
• Attention: any change to the appliance's interior, including fitting and changing the power cable, must only be performed by a qualified electricien.

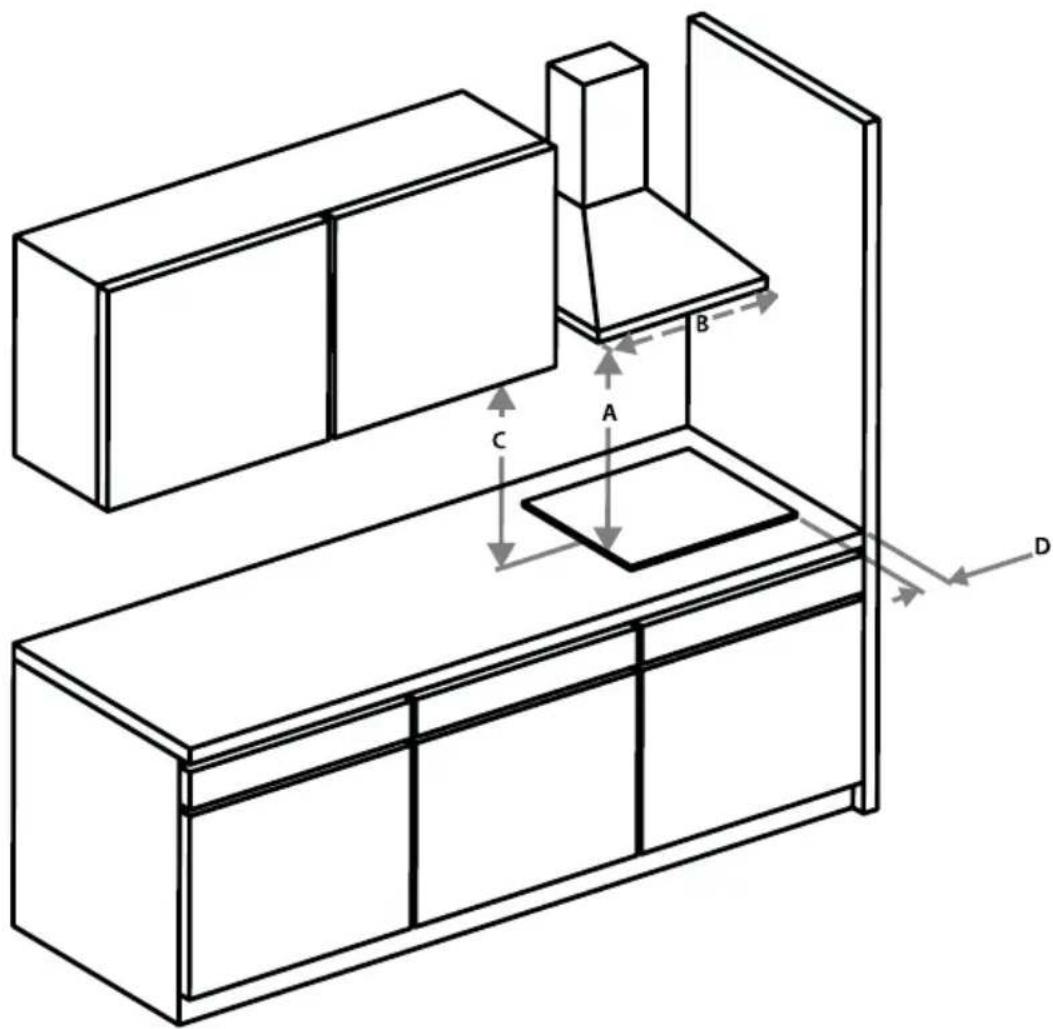

SPACE AROUND THE HOB

Sufficient clearance around the hob is essential for a safe use of the hob. Check that there is sufficient clearance.

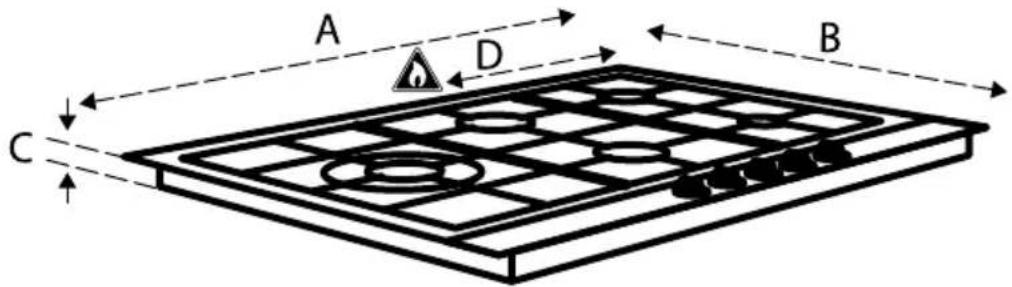

Dimensions ABCD

In the drawings below, all the dimensions are displayed in mm.

Dimensions in mm ABCD

IKG6010RVS/6012WGRVS 590 510 45 50

IKG6022WGRVS 620 510 45 200

IKG7021WRVS/7022WGRVS 720 510 45 300

IKG9022WGRVS 909 510 50 50

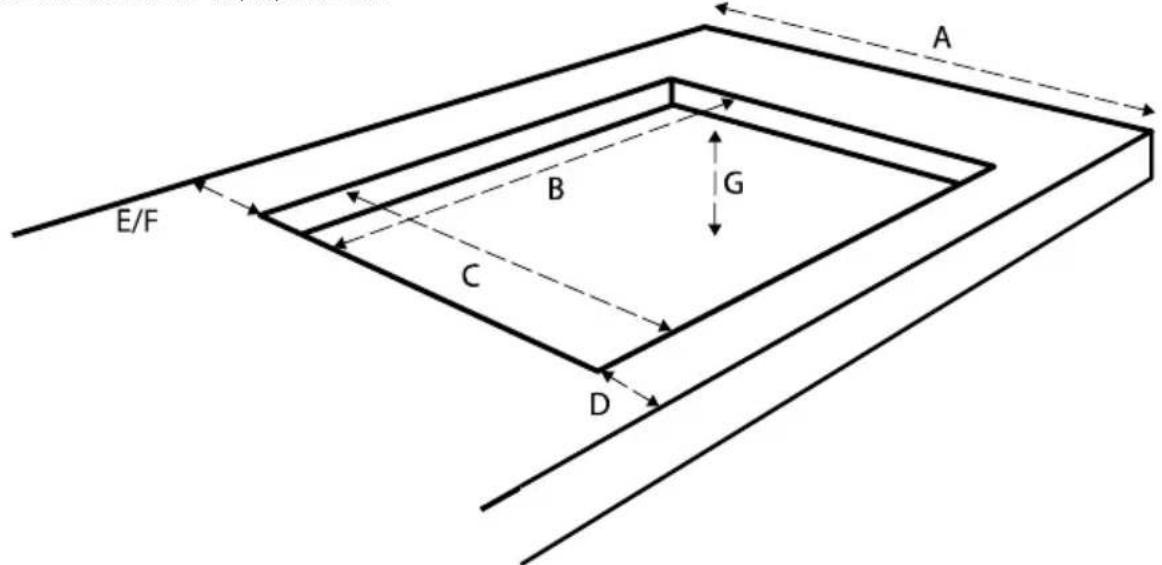

INSTALLATION DIMENSIONS

In the drawings below, all the dimensions are displayed in mm.

Dimensions in mm	A B C D E* F** G
IKG6010RVS/6012WGRVS	600	560	480	60	30	50	100
IKG6022WGRVS	600	560	480	60	30	50	100
IKG7021WRVS/7022WGRVS	600	560	480	60	30	50	100
IKG9022WGRVS	600	840	480	60	30	50	100

E* keep this distance when in case of a stone back wall, such as tiles.
F** keep this distance in case of a wooden back wall.

22 • English

GAS CONNECTION

- The connection of the hob to the gas pipe network must be made by means of a special gas hose or a stainless steel hose with a continuous-surface complying with local regulations. Always a stainless steel hose when placing the hob above an oven. Attention: the stainless steel hose must hang freely. It must not be able to touch any moving parts of the cabinet.

- Check the perfect sealing after installation using a soapy solution.

ELECTRICAL CONNECTION

• Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
  • The earthing of the appliance is compulsory by law.
• Attention: the connection point must always be accessible.

THE FITTING OF THE APPLIANCE

• Check that the cabinet and the cut-out meet the dimension and ventilation requirements.
• Remove the chips from the cutting job in the opening of the worktop and treat the saw ends of wooden or synthetic worktops with sealing varnish if necessary, to prevent moisture causing the worktop to swell.
• Remove the protective layer from the sealing tape and apply the tape on the edge of the cut out on the worktop. . Do not stick the tape around the corners, but cut 4 separate pieces to seal the corners well.
• Fit the supplied mounting brackets on the appliance.
• Lay the hob in the recess.
• Tighten the screws of the mounting brackets to firmly fit the hob in the cut-out.
• Connect the appliance to the electrical mains and the gas mains. The appliance is ready for use.
• Check that it works properly.

REMOVING THE HOB

Disconnect the hob from the electrical mains and the gas mains and loosen the screws of the mounting brackets. Remove the hob by pushing it upwards from the bottom. Attention! Beware of damage to the appliance! Do not try to remove it from the top.

	G25/25 mbar* G20/20 mbar*
	(kW) (kW)
11,01	0.1 Simmer burner
21,75	1,75 2 Semi-rapid burner
33,0	3,0 3 Rapid burner
43,5	3,5 4 Wok burner

* Check with the service organisation of Inventum if you want to adjust the appliance for different types of gas. Find the method in the manual of the conversion kit.

garantie & service

guarantee & after sales service

• INVENTUM guarantees this product for a period of 2 years starting from the date of purchase. The warranty covers proven defects in material, manufacturing and functioning of components and includes material costs, travel- or shipping costs and labor.
• INVENTUM provides not only the 2 years standard warranty, but also gives 3 years extended warranty on spare parts and labor costs. We only bill the travel- or shipping costs. This way, the quality of your INVENTUM equipment is 5 years guaranteed.

• To qualify for the extended 5 year warranty, please register your appliance within 45 days of purchase on www.inventum.eu
  • Why is registration important for you?

• You get a 5-year warranty

• All details of your appliance are known by Inventum. No need to search for your model number when you contact us.
• Inventum can provide a faster and better service when you contact our service center.

• Guarantee can only be given if proof of purchase (e.g. till receipt or copy) can be shown. Therefore keep it in a safe place. The guarantee period starts at the date of purchase.
  • Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance;

for assessment by our technical department.

• The guarantee is not valid for:

• normal wear - such as baking tray, grill rack and removal handles;
• normal wear and tear – such as glass breakage, scratches on the equipment, discoloration of plastic or painted parts; Insufficient or incorrect maintenance can cause discolouration of surfaces and rubbers and plastics can deteriorate fast. This is also not covered under warranty.
• (interchangeable) signal- and controllamps;
• defects and consequential damage caused by strong contamination and incorrect maintenance;

for assessment by our technical department.

Defects which do not significantly influence the value or operation of the device asre excluded by free repair and / or replacement.

Transport damage is not guaranteed. Therefore, check your new equipment before use. If any damage is found, please contact your supplier within 5 working days after purchase.

From warranty and/or replacement are excluded: defects, loss and damage to the appliance due to an event that usually is insured under the home contents insurance.

To whom can you turn to?

On www.inventum.eu you will find - besides advice on how to use the appliance and cleaning tips - all the answers to your service related questions. Please check the website before contacting our service center.

You can register your service request quickly and easily online at www.inventum.eu. It is also possible to do this by telephone via the INVENTUM service organization. INVENTUM Service Organization: 0900-468 36 88 (just for Holland).

To provide the best possible service and to process your service request as soon as possible, we recommend that you always first contact INVENTUM before returning your device.

Following the advice of our service organization, please send your appliance, including a copy of the original, printed proof of purchase and description of the complaint, stamped to our service address:

Attn. Service department

Generatorstraat 17

3903 LH VEENENDAAL

Website: www.inventum.eu

THE NETHERLANDS

Helpdesk: 0900-468 36 88

(just for Holland)

These warranty conditions only apply to the Netherlands. For local warranty please contact your dealer.

In countries where INVENTUM has a distributor, you can turn to them if you need the INVENTUM service organization. In other countries, contact your dealer.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Modification and printing errors reserved. The latest version of the deposited guarantee conditions can be obtained through our service organization.

26 • English

klein huishoudelijk

witgoed vrijstaand

witgoed inbouw

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

IKG-serie/01.1014
