T67682NIH - Tumble drier AEG - Free user manual and instructions

Product Type	Tumble Dryer
Brand	AEG
Model	T67682NIH
Capacity	8 kg
Energy Class	A++
Height	85 cm
Width	60 cm
Depth	60 cm
Weight	45 kg
Power Supply	230 V, 50 Hz
Drying Technology	Heat Pump
Sensor Drying	Yes
Programs	Cotton, Synthetics, Delicates, Wool, etc.
Lint Filter	Removable, clean after each cycle
Condenser Unit	Self-cleaning condenser
Water Tank	Empty after each cycle
Child Lock	Yes
Overheating Protection	Yes
Spare Parts Availability	7 years after purchase
Repairability Index	8.0/10

Frequently Asked Questions - T67682NIH AEG

How do I clean the lint filter?

Open the door, pull out the lint filter from the bottom of the door opening, remove lint by hand or with a vacuum cleaner, rinse under running water if needed, dry thoroughly, and reinsert. Clean after every cycle for efficient drying.

Why is my dryer not starting?

Check if the door is fully closed, the power cord is plugged in, and the fuse or circuit breaker is not tripped. Also ensure the start button is pressed firmly. If the child lock is activated, deactivate it.

How often should I clean the condenser?

The T67682NIH has a self-cleaning condenser that rinses automatically. However, if the dryer displays a message to clean the condenser, follow the instructions in the manual to manually clean the condenser unit.

What does the error code E51 mean?

Error E51 indicates a problem with the heating element or a blocked airflow. Turn off the dryer, clean the lint filter and condenser, and restart. If the error persists, contact authorized service.

Can I dry wool items?

Yes, select the Wool program with low temperature. Do not overload and use a mesh laundry bag for delicate items. Check the care label of the garment.

How do I drain the water tank?

Pull out the water tank from the top right corner, open the spout, pour water into a sink, close and reinsert. Empty after each drying cycle to avoid water overflow.

What is the maximum load for cotton?

The maximum load for cotton is 8 kg (dry weight). Overloading can lead to poor drying results and increased energy consumption.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds until the symbol appears on the display. Repeat to deactivate. This prevents accidental operation.

Why is my laundry still damp after a cycle?

Check if the lint filter and condenser are clean. Ensure the load is not too large for the selected program. Try a more intensive program like Extra Dry.

Where can I find the user manual?

You can download the manual for free from notice-facile.com for the AEG T67682NIH. The manual includes installation, operation, and troubleshooting instructions.

USER MANUAL T67682NIH AEG

Interior of a laundry room with two washing machines and three hanging clothes on the wall (no visible text or symbols)

CONTENTS

1. SAFETY INFORMATION......3
2. SAFETY INSTRUCTIONS....5
3. PRODUCT DESCRIPTION....7
4. ACCESSORIES....8
5. CONTROL PANEL....9
6. PROGRAMME TABLE....9
7. OPTIONS....12
8. BEFORE FIRST USE....13
9. DAILY USE....13
10. HINTS AND TIPS....15
11. CARE AND CLEANING.... 16
12. TROUBLESHOOTING....19
13. TECHNICAL DATA....21
14. INSTALLATION....22

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Read the supplied instructions.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used

only with the appliance specified in the instructions, supplied with the accessory. Read it carefully before installation (Refer to the Installation leaflet).

- The appliance can be installed as freestanding or below the kitchen counter with correct space (Refer to the Installation leaflet).

- Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, where the appliance door can not be fully opened.

- The ventilation openings in the base (if applicable) must not be obstructed by a carpet.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. (if applicable)

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Obey the maximum load volume of 8kg (refer to the "Programme chart" chapter).

- Do not use the appliance if industrial chemicals have been used for cleaning.

- Wipe away lint that has accumulated around the appliance.

- Do not run the appliance without a filter. Clean the lint filter before or after each use.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should

be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not install or use the appliance where the temperature is less than 5^ or higher than 35^ .
• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
  • Always move the appliance vertically.
• The rear surface of the appliance must be put against the wall.
• When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
- Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Do not touch the mains cable or the mains plug with wet hands.
- Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse.

- This appliance complies with the E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household only.
• Do not dry the damaged items which contain padding or fillings.
• Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label.
• If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the tumble dryer.

2.4 Internal light

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
• The type of light bulb or halogen lamp used for this appliance is only for household appliances. Do not use it for house lighting.
  • To replace the internal light, contact the Authorised Service Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.6 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with the special agent which is free from fluoro-chlorohydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

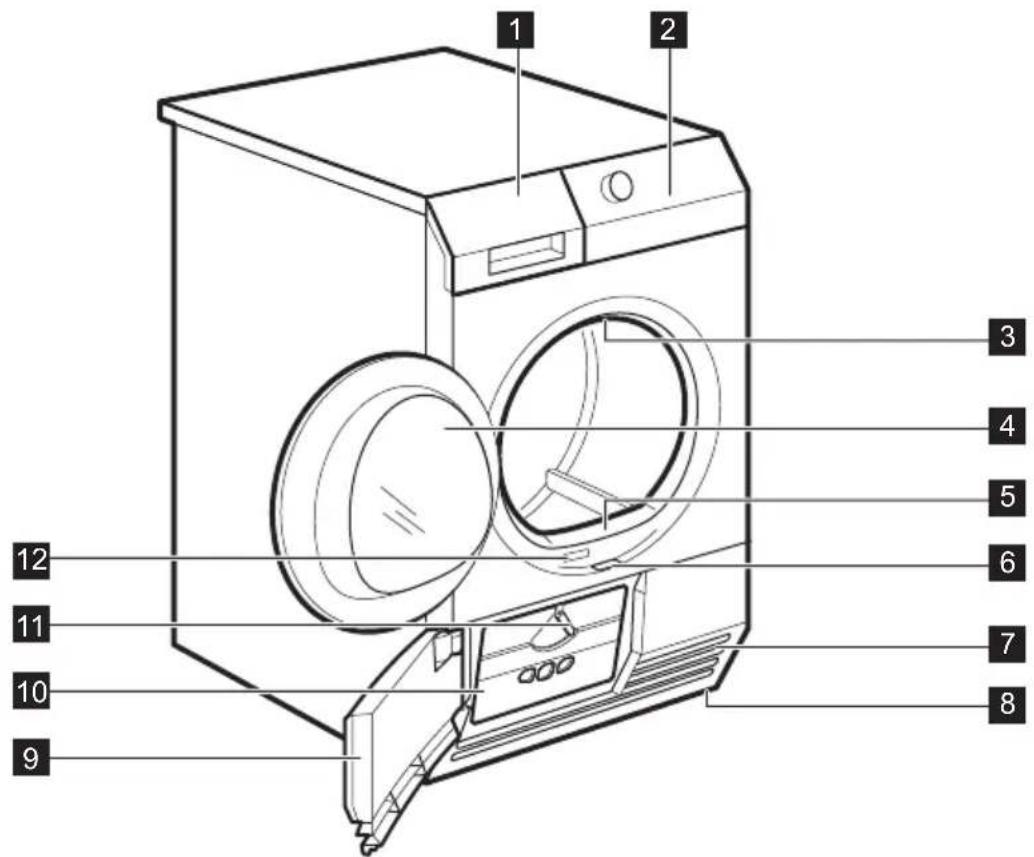

3. PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9 10 11 12

1 Water container
2 Control panel
3 Internal light
4 Appliance door
5 Filter
6 The button to open the heat exchanger door
7 Airflow slots

8 Adjustable feet
9 Heat exchanger door
10 Heat exchanger cover
11 The knob to lock the heat exchanger cover
12 Rating plate

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance (see separate leaflet).

4. ACCESSORIES

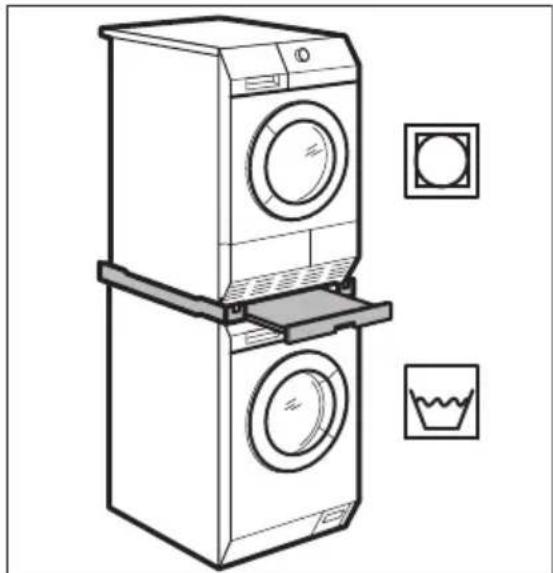

4.1 Stacking kit

Line drawing of a two-tiered washing machine with front-mounted dish, showing front panel and side bathroom fixtures (no text or symbols)

Accessory name: SKP11, STA8, STA9

Available from your authorized vendor.

Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached.

Read carefully the instructions supplied with the accessory.

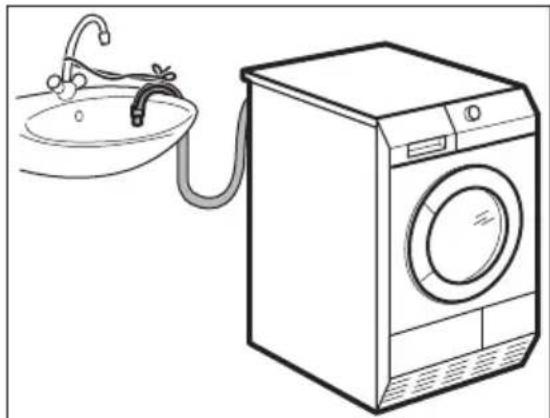

4.2 Draining kit

Line drawing of a washing machine connected to a sink with a faucet (no text or symbols)

Accessory name: DK11.

It is available from your authorized vendor (can be attached to some types of the tumble dryers)

The accessory for through draining of the condensed water into a basin, siphon, gully, etc. After the installation, the water container is drained automatically. The water container must stay in the appliance.

The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary.

Read carefully the instructions supplied with the accessory.

4.3 Pedestal with the drawer

Line drawing of a single front-loading washing machine (no text or symbols)

Accessory name: PDSTP10.

It is available from your authorized vendor.

To put the appliance higher at the level what helps to easy load and remove the laundry.

The drawer can be used for laundry storage e.g.: towels, cleaning products and more.

Read carefully the instructions supplied with the accessory.

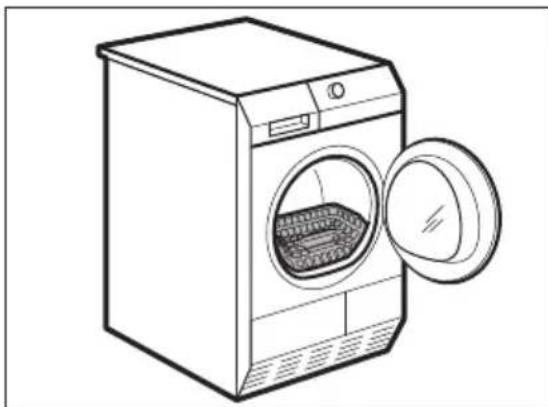

4.4 Drying rack

Line drawing of a front-loading washing machine with a lid open, showing internal components (no text or symbols)

Accessory name: RA5, RA6, RA11, RA12.

It is available from your authorized vendor (can be attached to some types of the tumble dryers). Do the check with the vendor or on the web site if the accessory is compatible with your appliance.

Drying rack accessory let to dry safely in the tumble dryer:

• sport shoes
• wool
• soft toys
• lingerie

Read carefully the instructions supplied with the accessory.

5. CONTROL PANEL

Reservoir - drain the water container

Filter - clean filter

Condensor - heat exchanger check

6. PROGRAMME TABLE

Programmes	Load 1)	Properties / Fabric mark
Katoen
2)3)	8 kg Drying level: cupboard dry.
	8 kg Drying level: applicable for iron.

Programmes	Load 1)	Properties / Fabric mark
Jeans 8 kg		Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).	/ [IMAGE]
Dekbed 3 kg		To dry one or two duvet and pillows (with feather, down or synthetic fillings).	/ [IMAGE]
Tijd 8 kg		With this programme you can use the option Tijd and set the programme duration.	/ [IMAGE]
Synthetica
Extra Droog 3,5 kg Drying level: extra dry.			/ [IMAGE]
Kastdroog2)	3,5 kg Drying level: cupboard dry.		/ [IMAGE]
Strijkdroog 3,5 kg Drying level: applicable for iron.			/ [IMAGE]
Strijkvrij	1 kg (or 5 shirts)	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other. Shake the items before you put them in the appliance.When the programme is completed, Immediately remove the items and put them on a hanger. / [IMAGE]
Sportkleding 2 kg		Sportswear, thin and light fabrics, microfiber, polyester, which are not ironed.
Zijde	1 kg	To dry hand-washable silk with warm air and gentle movement.

Programmes	Load 1)	Properties / Fabric mark
Wol	1 kg	Wool fabrics. Gentle drying for hand-washable woollens. Remove immediately the items when the programme is completed.

1) The maximum weight refers to dry items.
2) For test institutes only: Standard programmes for tests are specified in the EN 61121 document. Clean the filter after each cycle
3) The Katoen Kastdroog programme is the "Standard cotton programme" and it is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
4) The wool drying cycle of this tumble drying machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments, which are labelled "hand wash" provided that the garments are washed in a Woolmark endorsed hand washing cycle and tumble dried according to the instructions issued by the manufacturer. 1780SW13W.
e "Standard cotton programme" and it is suitable to dry client programme in terms of energy consumption for

6.1 Programmes and options selection

1) Together with the programme you can set 1 or more options.
2) Only with the drying rack — see chapter ACCESSORIES

6.2 Consumption Data

Programme Spun at / residual humidity Drying time	Energy consumption
Katoen 8 kg
Kastdroog 1400 rpm / 50% 189 min. 1,32 kWh
1000 rpm / 60% 215 min. 1,51 kWh
Strijkdroog 1400 rpm / 50% 144 min. 1,04 kWh
1000 rpm / 60% 164 min. 1,19 kWh
Synthetica 3,5 kg
Kastdroog 1200 rpm / 40% 76 min. 0,47 kWh
800 rpm / 50%	86 min. 0,53 kWh

7. OPTIONS

7.1 Anti-kreuk

Extends anti-crease phase (30 minutes) at the end of the drying cycle to 90 minutes. This option prevents laundry from creases. Laundry can be removed during the anti-crease phase.

7.2 Tijdbesparing

Decreases the time of the cycle without the effect on the drying quality. The cycle time can be shorter by 30% on the cottons and 40% on synthetics. The

appliance operates with the higher energy consumption.

7.3 Tijd

Operates only with the Tijd programme. Lets the user to set special time of drying programme from minimum 10 min. to maximum of 2 hours (in 10 min. steps).

7.4 Startuitstel

Lets to delay the start of a drying programme from minimum of 30 minutes to maximum of 20 hours.

1. Set the drying programme and options.
2. Push the Startuitstel button again and again.

8. BEFORE FIRST USE

Before you use the appliance for the first time do these operations:

• Clean the tumble dryer drum with a moist cloth.
• Start a short programme (e.g. 30 minutes) with moist laundry.

the necessary time of the delay come

into the view on the display (e.g. if the programme has to start after 12 hours.)

1. To activate the Startuitstel option, push the Start/Pauze button. The time to start decreases on the display.

12h

At the beginning of drying cycle (3-5 min.) there could be a slightly higher sound level. It is because of start of the compressor that is normal for compressor powered appliances such: refrigerators, freezers.

9. DAILY USE

9.1 Preparing the laundry

• Close the zippers.
• Close the fasteners of the duvet covers.
• Do not keep ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from the pockets.
• If an item has the internal layer made of cotton, turn it inside out. Make sure that the cotton layer is always external

• We recommend that you set the correct programme applicable for the type of fabrics that are in the appliance.

• Do not put fabrics with strong colours together with fabrics with light colours. Strong colours can bleed.

• Use an applicable programme for cotton jersey and knitwear to prevent the items to shrink.
• Make sure that the laundry weight is not more than the maximum weight that is in the programme table.
• Dry only the laundry that is applicable for tumble dryer. Refer to the fabric label on the items.

Fabric label Description
	Laundry that is applicable for tumble drying.
	Laundry that is applicable for tumble drying and resists higher drying temperature.
	Laundry that is applicable for tumble drying but only with low drying temperature.
	Laundry that is not applicable for tumble drying.

9.2 Loading the laundry

CAUTION!

Do not lock the laundry in between the appliance door and rubber seal.

1. Pull the appliance door.
2. Load loosely the laundry.
3. Close the appliance door.

9.3 Turning on the appliance

To turn on the appliance:

Push the Aan/Uit button.

If the appliance is on, some indications come in to the view on the display.

9.4 Auto stand-by function

To decrease the energy consumption, the automatic stand-by function deactivates the appliance:

• if the Start/Pauze button was not pushed in the time of 5 minutes.
  • after 5 minutes from the programme end.

Push the Aan/Uit button to activate the appliance.

If the appliance is on, some indications come in to the view on the display.

9.5 Setting a programme

Simple diagram showing a clock with arrows indicating rotation and a blank rectangle below (no text or symbols)

Use the programme dial to set the programme.

The possible time to complete the programme comes into the view on the display.

The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For the other programmes the drying time is related to the recommended loads. The drying time of the cotton and jeans programmes with the load more than 5 kg is longer.

9.6 Options

Together with the programme you can set 1 or more special options.

Pure diagram of abstract shapes and lines without any text, numbers, or symbols

To activate or deactivate the option push the applicable button.

When the option is activated the LED above the button or symbol on the display comes into the view.

9.7 Child lock option

The child lock can be set to prevent the children to play with the appliance. The child lock option locks all push buttons and the programme dial (this option does not lock Aan/Uit button).

You can activate the child lock option:

• before you push the Start/Pauze button - the appliance cannot start
• after you push the Start/Pauze button - programmes and option selection is off.

Child lock option activation:

1. Turn on the dryer.
2. Wait approximately 8 seconds.
3. Select 1 of the available programmes.
4. Push at the same time and hold down the Tijd and Startuitstel buttons.

The symbol comes into the view on the display.

1. To deactivate the child lock, push again the above buttons until the symbol goes out of the view.

9.8 Zoemer option

When the buzzer option is activated you can hear the sound at the:

• cycle end
• anti-crease phase start and end
• cycle interruption

The buzzer option is by default always on. You can use this option to activate or deactivate the sound.

You can activate the Zoemer option with all programmes.

To activate/deactivate the Zoemer option:

Push at the same time and hold down the Anti-kreuk and Tijdbesparing buttons.

The acoustic signal sounds to confirm the change.

9.9 Starting a programme

To start the programme:

Pure diagram with geometric shapes and lines, no text or symbols present

Push the Start/Pauze button.

10. HINTS AND TIPS

10.1 Ecological hints

• Spin good the laundry before drying.
• Use the load volumes which are specified in the programme chart.
• Clean the filter after each drying cycle.
• Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically.
• Use the condensate as distilled water, e.g. for steam ironing. If it is necessary

The appliance starts and the LED above the button does not flash but is stable.

9.10 Programme change

To change a programme:

1. Turn the programme dial to Stop position.

2. Set a new programme.

9.11 Programme end

Clean the filter and drain the water container after each drying cycle. (See chapter CARE AND CLEANING.)

If the drying cycle is completed, the symbol flashes on the display. If the Zoemer option is on, the acoustic signal sounds intermittently for 1 minute.

If you do not turn off the appliance, the crease guard phase starts. Laundry can be removed during this phase.

To remove the laundry:

1. Push the Aan/Uit button for 2 seconds to turn off the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

clean the condensate before (e.g. with a coffee filter) to remove possible small pieces of fluff.

• Always keep the airflow slots on the bottom of the appliance clear.

- Make sure that is good airflow in the appliance installation position.

10.2 Adjustment of the remaining laundry moisture degree

To change the default degree of the remaining moisture of the laundry:

1. Turn on the appliance.
2. Wait approximately 8 seconds.
3. Select 1 of available programmes.
4. Push at the same time and hold down the Anti-kreuk and Tijd buttons.

One of the symbols goes into the view on the display:

CO_ - the maximum dry laundry
CO= - the more dry laundry
COE - the standard dry laundry

1. Push the Start/Pauze button again and again until you set necessary degree.

2. To memorise the setting, push at the same time the Anti-kreuk and Tijd buttons for approximately 2 seconds.

10.3 Deactivating the Reservoir indicator

The water container indicator is by default on. It starts to light at the end of

11. CARE AND CLEANING

11.1 Cleaning the filter

At the end of each cycle the indicator Filter is on and you must clean the filter.

The filter collects the fluff. The fluff occurs while the cloths are dried in the tumble dryer.

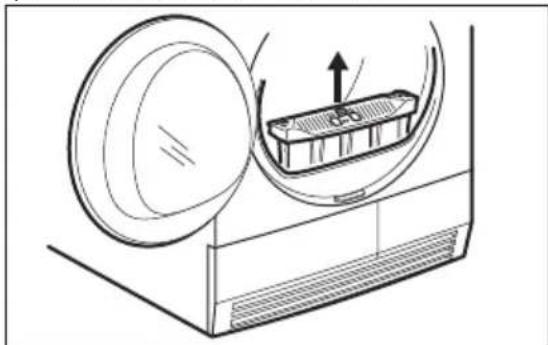

1. Open the door. Pull the filter.

Diagram of a mechanical device with a circular component and internal components, showing an upward arrow (no text or symbols)

the drying cycle or during the cycle if the water reservoir is full. If the draining kit is installed the water container is drained automatically and indicator can be permanently off.

To deactivate the indicator:

1. Turn on the appliance.
2. Wait approximately 8 seconds.
3. Select 1 of available programmes.
4. Push at the same time and hold down the Anti-kreuk and Startuitstel buttons.

One of 2 configurations is possible:

• the Reservoir indicator: is on and the symbol goes into the view - the water container indicator is permanently on

• the Reservoir indicator: is off and the symbol _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ goes into the view - the water container indicator is permanently off

• Push the hook to open the filter.

Line drawing of a hand inserting a grid into a device (no text or symbols)

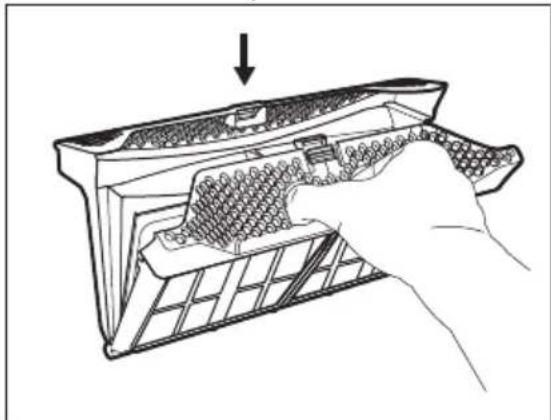

1. Use a moist hand to clean both parts of the filter.

Line drawing of a hand placing a component into an open device (no text or symbols)

1. If necessary clean the filter with the brush under warm tap water and/or a vacuum cleaner. Close the filter.

Technical line drawing of a mechanical component with a faucet pouring water from a central opening (no text or symbols)

1. If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner. Put the filter inside the filter socket.

Line drawing of a hand holding a tool interacting with a car wheel (no text or symbols)

11.2 Draining the water container

Drain the condensed water container after each drying cycle.

If the condensed water container is full, the programme breaks off automatically. The indicator Reservoir is on and you must drain the water container.

To drain the water container:

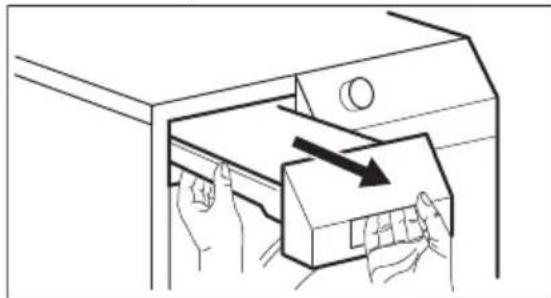

1. Pull the water container and keep it in horizontal position.

Line drawing of hands inserting a box into a drawer into a cabinet (no text or symbols)

1. Move the plastic connection out and drain the water into a basin or equivalent receptacle.

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

1. Move plastic connection in and install water container.

2. To continue the programme press the Start/Pauze button.

11.3 Cleaning the heat exchanger

If the indicator Condensor flashes, do the inspection of the heat exchanger and its compartment. If there is a dirt, clean it.

To do the inspection:

1. Open the door. Pull the filter.

Technical line drawing of a mechanical component with a circular base and internal structure (no text or symbols)

1. Move the release button on the bottom of the door to open the heat exchanger door.

Diagram showing a car interior with curved surfaces and directional arrows indicating motion or movement (no text or symbols)

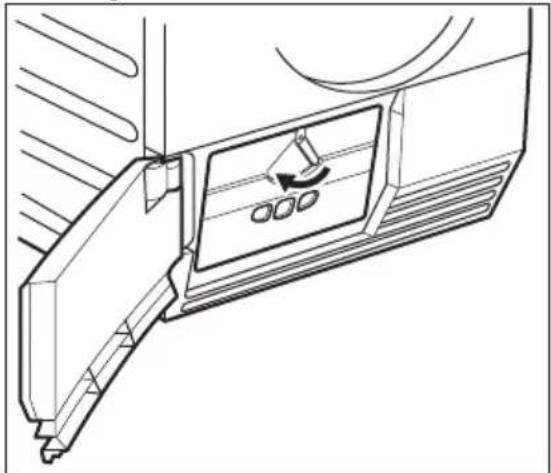

1. Turn the blockage to unlock the heat exchanger cover.

Technical line drawing of a door panel with a control panel and directional arrow (no text or symbols)

1. Lower the heat exchanger cover.

Technical line drawing of a solar panel installation with a curved arrow indicating direction (no text or symbols)

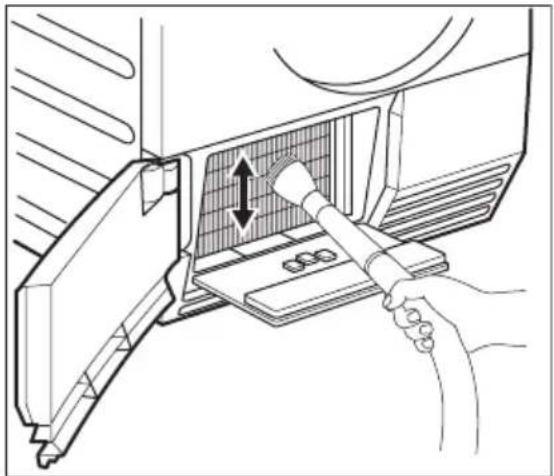

1. If necessary, remove the fluff from the heat exchanger and its compartment. You can use wet cloth and/or a vacuum cleaner with the brush.

Diagram of a hand inserting a device into a fan or panel, showing the internal structure and airflow direction (no text or symbols)

1. Close the heat exchanger cover.
2. Lock the blockage until it snaps.
3. Put the filter back.

11.4 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum ribs. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

11.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

11.6 Cleaning the airflow slots

Use a vacuum cleaner to remove the fluff from the airflow slots.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

12. TROUBLESHOOTING

Problem 1)	Possible cause Remedy
The tumble dry-er does not operate.	The tumble dryer is not connected to mains supply.	Connect in at mains socket. Check fuse in fuse box (domestic installation).
	The loading door is opened. Close the loading door.
	The Aan/Uit button was not pushed.	Push the Aan/Uit button.
	The Start/Pauze button was not pushed.	Push the Start/Pauze button.
	The appliance is in the standby mode.	Push the Aan/Uit button.
Unsatisfactory drying result.	Incorrect programme selection. Do the selection of the applicable programme.2)
	The filter is clogged.	Clean the filter.3)
	The Droog Plus option was in minimum level.4)	Change the Droog Plus option to the moderate or maximum level.4)
	Too high volume of the load. Obey the maximum load volume.
	The airflow grill is clogged. Clean the airflow grill in the bottom of the appliance.
	Dirt on the humidity sensor in the drum.	Clean the front surface of the drum.
	Incorrect remaining laundry moisture degree.	Adjust remaining laundry moisture degree.5)
	The heat exchanger is clogged.	Clean the heat exchanger.3)
The loading door does not closed	The filter not locked in the position.	Put the filter in the correct position.
	The laundry is locked between the door and the seal.	Put the load correctly in the drum.
Err(Error) on the display.	You try to change the programme or the option after the start of the cycle.	Turn the tumble dryer off and on. Make the new selection.
	The option you try to activate is not applicable with the selected programme.	Turn the tumble dryer off and on. Make the new selection.
No drum light	Defective drum lamp. Contact the service centre to replace the drum lamp.
Abnormally elapsing time on the display.	The time to end is calculated on the basis of the volume and dampness of the laundry.	The automatic procedure — this is not the appliance malfunction.
Programme inactive.	The water container is full. Drain the water container, push the Start/Pauze button. 3)
Drying cycle too short.	Too small laundry volume. Do the selection of time programme. The time value must be related to the load. To dry 1 item or small quantities of the laundry we recommend to use short times.
	The laundry is too dry. Do the selection of time programme or higher drying level (e.g. Extra Droog)
Drying cycle too long 6)	The filter is clogged. Clean the filter.
	Too high volume of the load. Obey the maximum load volume.
	The laundry not spun sufficiently. Spin correctly the laundry.
	Too low or too high room temperature - this is not the appliance malfunction.	Ensure a room temperature higher than +5°C and lower then +35°C.

1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Make a selection of the new programme. Push the Start/Pause button. Does not operate? - contact the service centre and give the error code.
2) Follow the programme description — see PROGRAMME TABLE
3) See chapter CARE AND CLEANING
4) Only dryers with the Droog Plus option
5) See HINTS AND TIPS chapter
6) Note: After maximum 5 hours the drying cycle ends automatically.

1. TECHNICAL DATA

Height x Width x Depth 850 x 600 x 600 mm (maximal 640 mm)
Max. depth with the appliance door open 1090 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230 V
Frequency 50 Hz
Necessary fuse 5 A
Total power 1000 W
Energy efficiency class A+++
Energy consumption1)	1,51 kWh
Annual energy consumption2)	176,92 kWh
Left-on mode power absorption 0,11 W
Off mode power absorption 0,11 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4
This product contains fluorinated gas hermetically sealed
Gas designation R134a
Weight	590 g
Global-warming potential (GWP)	1430

1) With reference to EN 61121. 8kg of cotton centrifuged at 1000 rpm.

2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

14. INSTALLATION

14.1 Unpacking

CAUTION!

Before use all parts of the transport packaging must be removed.

To remove the polystyrene blockages:

1. Open the door.
2. Pull plastic hose with the polystyrene blockages out from the drum.

Illustration of a hand holding a device with arrows indicating motion, no text or symbols present

14.3 Installation under a counter

The appliance can be installed as freestanding or below the kitchen counter with correct space (see picture).

600 mm > 850 mm 600 mm

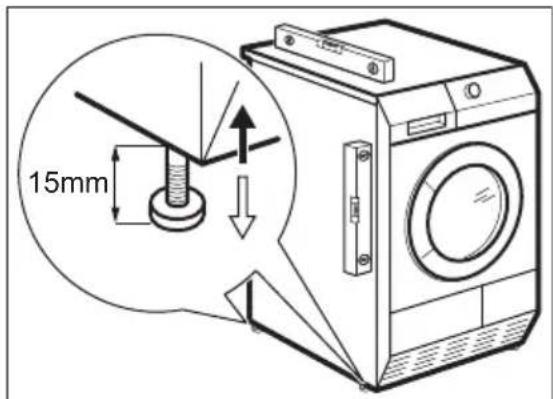

14.2 Feet regulation

It is possible to adjust the height of the tumble dryer. To do that adjust the feet.

15mm

15. ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CE
