INVENTUM VFG6012WIT - Cooker

VFG6012WIT - Cooker INVENTUM - Free user manual and instructions

Find the device manual for free VFG6012WIT INVENTUM in PDF.

📄 32 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice INVENTUM VFG6012WIT - page 17
View the manual : English EN Nederlands NL
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeFreestanding Cooker
BrandInventum
ModelVFG6012WIT
ColorWhite
Energy SourceElectric
Oven TypeConventional Electric Oven
Hob TypeCeramic Hob with 4 Cooking Zones
Oven Capacity65 Liters
Dimensions (Height x Width x Depth)90 cm x 60 cm x 60 cm
Weight50 kg
Power Supply230 V ~ 50 Hz
Power Consumption (Oven)2500 W
FunctionsBaking, Roasting, Grilling, Bottom Heat
Temperature Range50°C - 250°C
Cleaning SystemStandard Enamel Interior, Easy Clean
Child LockYes (Oven Door)
Safety FeaturesOverheat Protection, Residual Heat Indicator (Hob)
Control TypeRotary Knobs
Number of Oven Shelves2
LightingOven Interior Light
Spare Parts AvailabilityYes, through Inventum Service
Repairability IndexHigh (common parts)

Frequently Asked Questions - VFG6012WIT INVENTUM

How do I set the oven temperature?
Turn the oven function selector to the desired mode (e.g., baking, grilling). Then rotate the thermostat knob to the required temperature between 50°C and 250°C. The oven indicator light will turn on and off as the temperature is maintained.
Can I use aluminum foil in the oven?
Yes, but do not cover the oven bottom or heating elements. Place foil only on shelves or trays, and ensure it does not block air circulation or touch the oven walls to avoid fire risk.
How do I clean the ceramic hob?
Use a dedicated ceramic hob scraper and cleaner. Apply a few drops of cleaner, spread with a soft cloth, then scrape off burnt residue with the scraper at a 45° angle. Wipe clean with a damp cloth and dry.
What should I do if the oven does not heat up?
Check the power supply: ensure the cooker is plugged in and the circuit breaker is on. Verify that the oven function and temperature knobs are set correctly. If still not heating, contact an authorized technician.
How do I activate the child lock?
The child lock is a mechanical lock on the oven door. Slide the lock lever (often located near the door handle) to the locked position. The door cannot be opened when locked. To unlock, slide back.
What is the maximum load for the oven shelf?
Each oven shelf can support up to 15 kg evenly distributed. Avoid overloading or placing heavy dishes on a single shelf to prevent damage.
Can I use the hob without pans?
No, never switch on the hob without a pan or with an empty pan. This can damage the ceramic surface and create a fire hazard. Always place suitable cookware on the cooking zone before turning it on.
How often should I replace the oven light bulb?
Replace only when the bulb burns out. Use a standard 25W, 230V, E14 screw base oven bulb, rated for high temperatures (300°C). Disconnect power before replacing.
What type of cookware is suitable for the ceramic hob?
Use flat-bottomed pots and pans made of stainless steel, enameled steel, or cast iron. Avoid glass or ceramic cookware unless specified safe for ceramic hobs. Always lift, not drag, cookware to prevent scratches.
Where can I find spare parts or service?
Contact Inventum customer service or visit the official Inventum website. Use the model number VFG6012WIT to find authorized service centers and genuine spare parts such as heating elements, knobs, and shelves.

User questions about VFG6012WIT INVENTUM

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Cooker in PDF format for free! Find your manual VFG6012WIT - INVENTUM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VFG6012WIT by INVENTUM.

USER MANUAL VFG6012WIT INVENTUM

natural_image Exterior view of a modern stainless steel electric stove with four gas stove covers (no visible text or symbols)
  1. safety instructions page 17
  2. appliance description page 21
  3. before first use page 22
  4. ignition and operation page 22
  5. use page 22
  6. using the oven page 23
  7. cleaning & maintenance page 24
  8. problems & solutions page 26
  9. installation instructions page 26

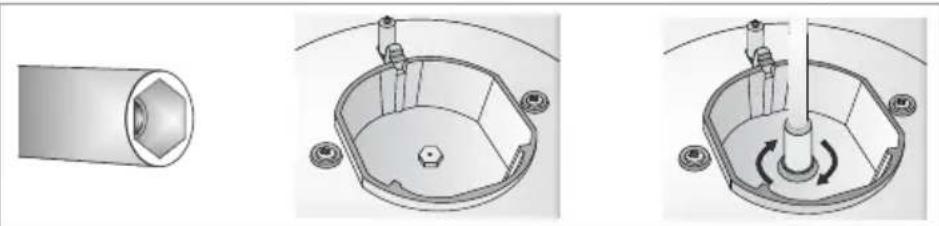

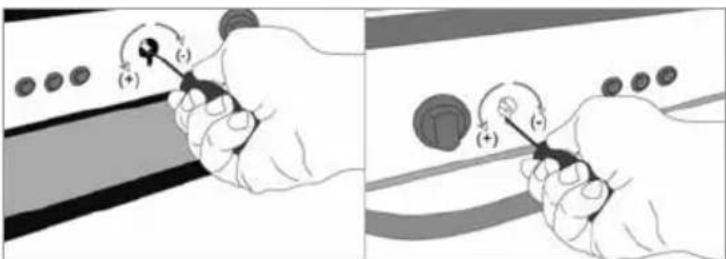

  10. converting to another type of gas page 28
    Guarantee & after sales Service page 30
natural_image Close-up of a gas stove burner with a black lid and grid lines (no text or symbols visible)

12 13 14

natural_image Simple line drawing of a cooking pot on a stove with a cross symbol (no text or labels)

INVENTUM VFG6012WIT - 2

natural_image Simple line drawing of a gas stove with a valve and handle (no text or symbols)
  1. gastoevoer dicht
  2. grootste vlam
  3. kleinste vlam
  4. thermokoppel (=vlambeveiliging)
  5. vonkontsteking

INVENTUM VFG6012WIT - 3

natural_image Close-up of a mechanical gear assembly with labeled parts (no readable text or symbols)
natural_image Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

INVENTUM VFG6012WIT - 4

natural_image Technical line drawing of a mechanical assembly with a rectangular frame and an arrow indicating direction (no text or symbols)

INVENTUM VFG6012WIT - 5

natural_image Technical diagram of a mechanical assembly with a rotating component (no text or symbols)

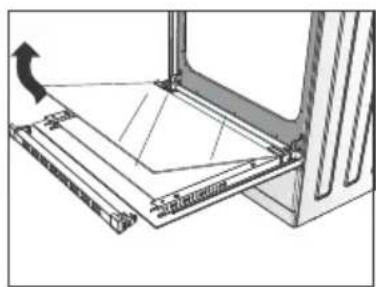

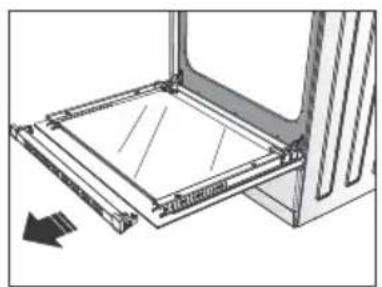

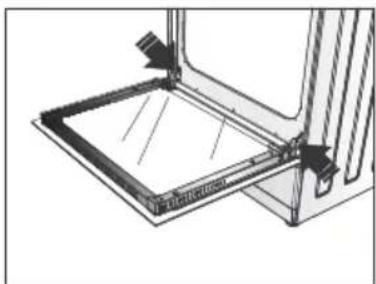

Ovendeur demonteren en monteren

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Ovenlamp vervangen

natural_image Technical illustration of a mechanical component with three views: top view, side view showing internal components, and bottom view with rotation arrows (no text or symbols)
natural_image Illustration of a hand holding a knob with a pointer and circular button, showing two different states of action (no text or symbols present)

1 safety instructions

  • Please read these instructions before operating the appliance and retain for future use.
  • The appliance is intended solely for domestic use within the home. Do not use corrosive chemicals or vapors in this appliance. This cooker is especially designed to prepare food. It is not designed for industrial or laboratory use.
  • WARNING: this appliance and the accessible parts will become hot during use. Do not touch hot parts. Keep children younger than 8 away from the appliance unless they are under continuous supervision.
  • This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack or experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved.
    • Children must not play with the appliance.
  • Cleaning and maintenance shall not be made by children.
  • Do not keep objects that children might find interesting in cupboards above or behind the appliance.
  • The cooking zones heat up during use and stay hot for a while afterwards. Keep young children away from the stove during and immediately after cooking.
  • Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  • In preparing meals containing alcohol, high temperatures may cause the alcohol to evaporate. The vapour can catch fire if it comes into contact with hot parts. Be careful opening the oven door.
  • The outside of the cooker may become hot if it is used for a long period of time at high temperatures. If the oven is used at the maximum temperature for a long time, the glass panel in the oven door may become hot. Please be careful if children are around.
  • WARNING: danger of fire: never leave anything on the stove.
  • ⚠️ WARNING: cooking with fat or oil on a stove without supervision can be dangerous and can lead to fire. NEVER try to extinguish a fire with water. Instead, switch the appliance off and then cover the flames with for example a lid or a fire blanket.
  • The cooker should be cleaned regularly and any food deposits should

English • 17

be removed.

  • Do not use any abrasive cleaners or metal scrapers to clean the glass door. This will scratch the surface which may cause the glass to break.
  • Do not use the appliance as a worktop. The appliance may accidentally be switched on or still be hot or catch fire.
  • Never cover the appliance with a cloth or something similar. If the appliance is still hot or is switched on, there is a risk of fire.
  • The appliance may not be cleaned with a high-pressure cleaner or a steam cleaner.
  • When you see smoke, switch off and unplug the oven. Keep the oven door closed in order to stifle any flames.
  • Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
  • Do not place accessories on the open oven door.
  • Never cover the bottom of the oven with aluminium foil. The foil blocks the heat flow, which may result in inferior cooking results. This can also damage the enamel of the bottom of the oven.
  • The cooker has a fan that cools the oven casing. The fan may run for some time after the oven is switched off.
  • Ensure that there is adequate ventilation during use.
  • Keep all natural ventilation openings open.
  • When using the cooker for long periods, extra ventilation is necessary. For example, open a window or install an electric fan.
  • Never flambé under a cooker hood. The high flames can cause a fire, even if the cooker hood is switched off.
  • The burner components are hot during and immediately after use.
  • Do not touch, and avoid contact with non-heat resistant materials.
  • Never immerse the hot burner caps and pan supports in cold water. The rapid cooling can damage the enamel.
  • The distance between the pan and a knob or non-heat resistant wall should always be greater than two centimetres. In case of smaller distances the high temperature may cause the knobs or wall to discolour and/or deform.
    • Always use the pan supports and suitable cookware.
  • Always place the pan on the pan support. Placing the pan directly on the burner cap can result in dangerous situations.
  • Aluminium trays or foil are not suitable as cooking utensils. They can burn into the burner caps and pan supports.
  • The cooker can only function effectively if the burner components have been assembled using the guide ridges. Ensure that the pan supports lie properly against each other and flat on the drip tray. Only then the pans can be positioned stably.

18 • English

  • Keep oven gloves or oven cloths away from the flame.
    • Always raise the glass cover when using the stove.
  • The glass cover can break through heating. Ensure that all burners are switched off and have cooled down before closing the cover.
  • If there is water on the cover, dry it before opening. If you fail to do so, moisture may enter the cooker.
  • Do not use the decorative cover as a cooking surface.
  • The appliance should only be connected by a registered installer.
  • Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.
  • If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.
  • The appliance should not be connected to the network via a multi-plug socket or extension lead, as the safe use of the appliance can then not be guaranteed.
  • The appliance must always be earthed.
  • The walls and the worktop surrounding the appliance must be heat resistant up to at least 85°C. Even though the appliance itself does not get hot, the heat of a hot pan could discolour or deform the wall.
  • Failure to maintain the cooker clean could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.
  • The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the appliance.
  • The safety during use can only be guaranteed when the cooker is installed correctly and according to the regulations. The installer is responsible for any damage caused by a faulty installation.
  • The gas connection must comply with the national and local safety regulations. The gas connection must be made by qualified installer.
  • The electrical connection must be made by a qualified electricien. This person is aware of the national and local regulations the installation must comply with.
  • The appliance falls under protection class I and can only be used in combination with a grounding conductor connection. The manufacturer accepts no responsibility for any malfunction or damage caused by incorrect electrical installations.
  • The appliance must be connected to a fixed installation and the means of disconnecting it from the fixed installation must be installed according to the installation instructions.

  • The connection cable must hang freely. Do not tie the power cable or pass it along sharp edges. It must be positioned so that it does not touch any of the hot parts of the cooker.

  • The connection point, the wall socket and/or plug must always be accessible.
  • Never immerse the power cord and plug into water or any other liquid to protect yourself against electrical hazards.
  • If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
  • Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
  • Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

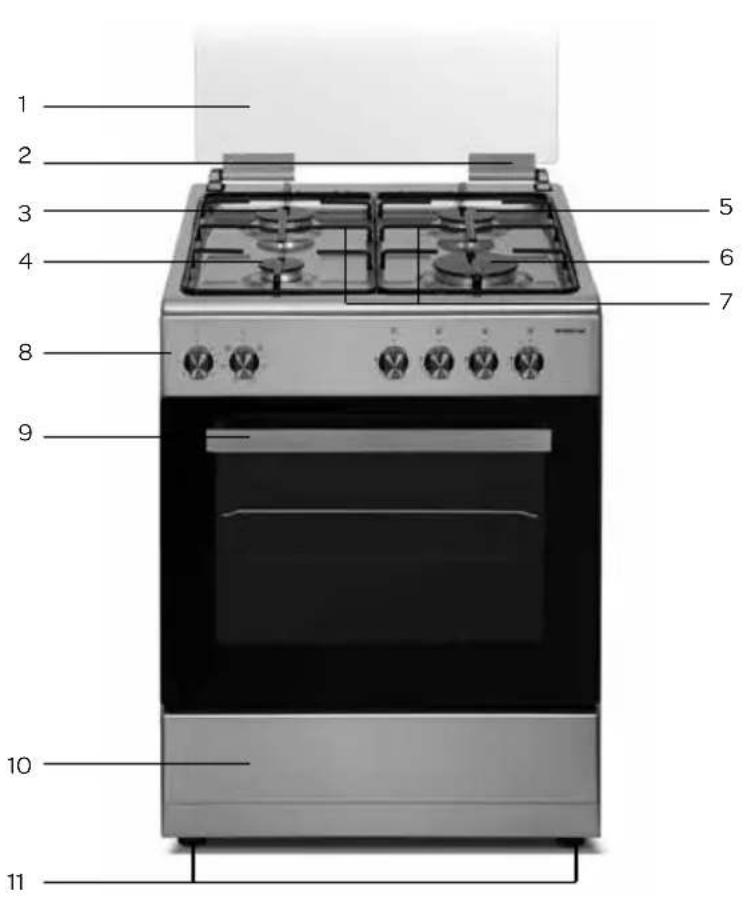

2 appliance description

1 2 3 4 5 6 7 8 9 10 11

INVENTUM VFG6012WIT - appliance description - 2

natural_image Close-up of a gas stove burner with a black lid and grid lines (no text or symbols visible)

12 13 14

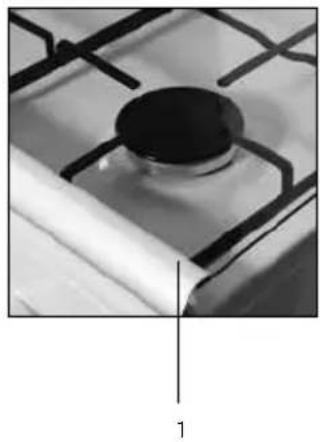

  1. Glass cover
  2. Hinge of the cover
  3. Semi-rapid burner
  4. Simmer burner
  5. Semi-rapid burner
  6. Rapid burner
  7. Pan support - 2 pieces
  8. Control panel
  9. Oven door with handle
  10. Cover of storage compartment
  11. Adjustable feet

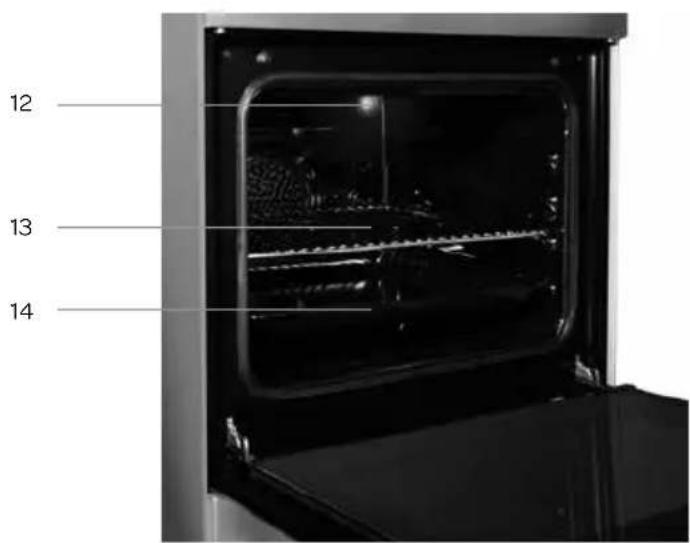

  12. Oven light
  13. Grid
  14. Baking tray

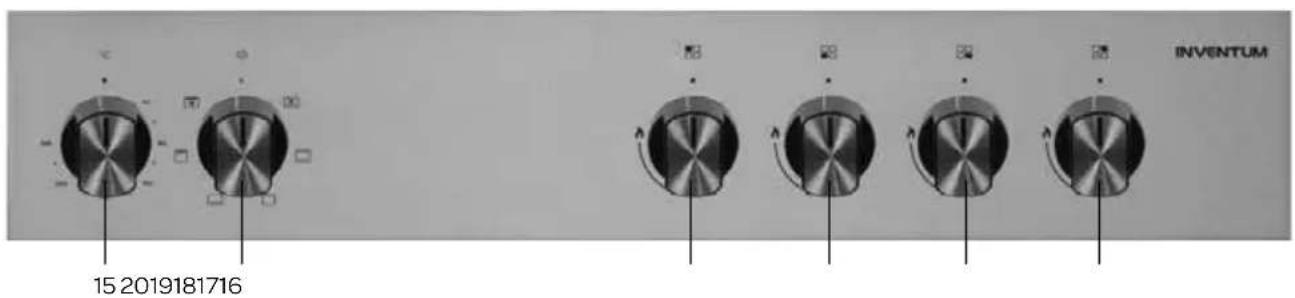

  15. Temperature knob
  16. On/off and ovenfunction knob
  17. Control knob rear left
  18. Control knob front left
  19. Control knob front right
  20. Control knob rear right

INVENTUM 15 2019181716

3 before first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Check that the voltage in your home corresponds with the voltage printed on the appliance. Follow the installation instructions in chapter 9 for installing the stove.

Clean the stove and the accessories with warm water and a mild detergent. Rinse well and dry thoroughly. Operate the oven for about 30 minutes at the maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when preparing food.

4 ignition and operation

Before operating the hob please make sure that the burner caps are well positioned. The correct placement is shown in the pictures.

INVENTUM VFG6012WIT - ignition and operation - 1

natural_image Simple line drawing of a stove burner with a cross symbol above it (no text or labels)

INVENTUM VFG6012WIT - ignition and operation - 2

natural_image Simple line drawing of a gas stove on a platform with a checkmark indicating heating (no text or symbols)
  1. gas supply closed
  2. highest flame
  3. lowest flame
  4. thermocouple
  5. ignition

INVENTUM VFG6012WIT - ignition and operation - 3
Attention: always open the cover when using the hob.

1 2 3

INVENTUM VFG6012WIT - ignition and operation - 5

natural_image Close-up of a mechanical gear assembly with labeled parts (4 and 5), no readable text or symbols beyond labels

Each control knob has an automatic ignition.

  • Press the control knob and turn it anticlockwise.
  • Hold the control knob down fully for at least 3 seconds between the highest and the lowest flame. The integrated ignition ignites the burner and the flame comes on.
  • Hold down the control knob for 4 more seconds after the flame is on to activate the thermocouple. Otherwise the flame extinguishes immediately.
  • When the burner is not ignited after 15 seconds, wait one minute before trying to ignite it again.
  • When the burner accidentally goes out, the thermocouple safety pilot in each burner will close the gas supply (by boiling over, by drafts, no gas supply, etc.). No flame = no gas!

Attention: the control knob blocks if it is set to the highest flame. Press the control knob slightly to lift the blockade and turn the control knob.

5 use

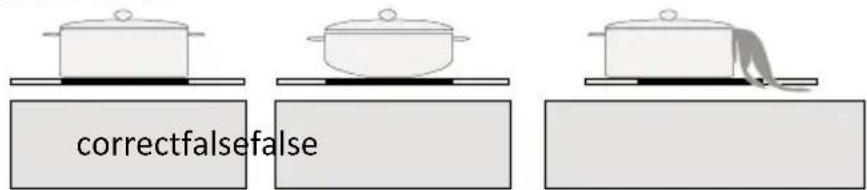

For an optimal result of the burners we recommend the following:

- Always ensure that the flames remain under the pan. When the flames burn around the pan, a lot of energy is lost and the handles from the pan may also become too hot.

correctfalsefalse

  • Use cookware that fit the burners in diameter. This reduces the cooking time.
    • Use flat bottomed cookware.
    • Always use the right amount of liquid for boiling food and use a lid to reduce the cooking time.
  • Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not stable on the pan support.

22 • English

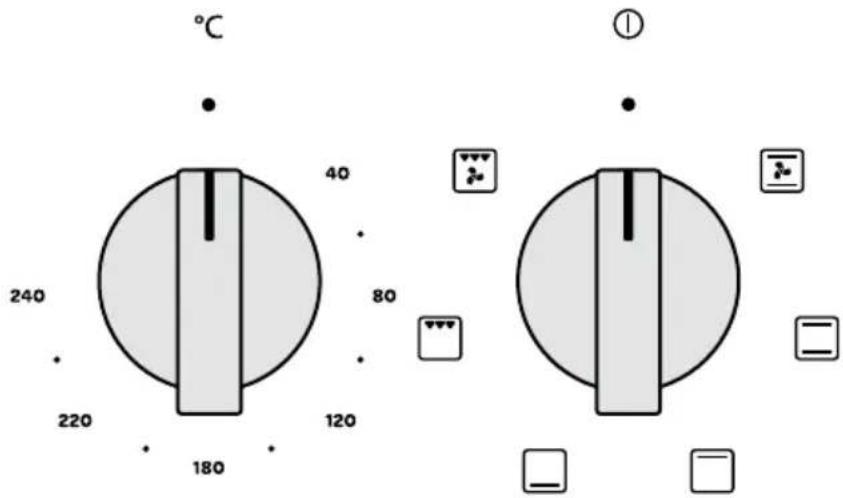

To set the oven, use the two knobs. One knob is for setting the temperature and one knob for switching the oven on and off and for selecting an oven function.

°C 240 40 80 220 120 180 ①

SWITCHING ON

To switch the oven on, turn the oven function knob to the desired setting and the temperature knob to the right temperature. As soon as the oven has reached the set temperature, the thermostat light goes out. Preheating the oven takes about 5 minutes, depending on the desired temperature.

SWITCHING OFF

To switch the oven off, turn the oven function knob back to the setting and the temperature knob to

The oven has the following functions:

Ovenfunction Description
INVENTUM VFG6012WIT - SWITCHING OFF - 1Hot airThe fan circulates the heat of the top and bottom heating element through the entire oven.
INVENTUM VFG6012WIT - SWITCHING OFF - 2Top- and bottom heating elementThe dish is heated by the radiation heat of the top and bottom element. Always place the dish in the centre of the oven. For pizzas, meat, flans or cake.
INVENTUM VFG6012WIT - SWITCHING OFF - 3Top heating element Only the top heating element radiates heat.
INVENTUM VFG6012WIT - SWITCHING OFF - 4Bottom heating element Only the bottom heating element radiates heat.
[BY8G]Grill element The grill element heats up. For grilling meat, fish, bread or gratin.
INVENTUM VFG6012WIT - SWITCHING OFF - 5Grill element with fanThe heat of the grill element is circulated by the fan around the dish.

The tables below are indicative:

INVENTUM VFG6012WIT - SWITCHING OFF - 6INVENTUM VFG6012WIT - SWITCHING OFF - 7INVENTUM VFG6012WIT - SWITCHING OFF - 8INVENTUM VFG6012WIT - SWITCHING OFF - 9INVENTUM VFG6012WIT - SWITCHING OFF - 10
CakeCupcake & cookiesPizzaFishSausages
FunctionINVENTUM VFG6012WIT - SWITCHING OFF - 11[SAW3]INVENTUM VFG6012WIT - SWITCHING OFF - 12INVENTUM VFG6012WIT - SWITCHING OFF - 13INVENTUM VFG6012WIT - SWITCHING OFF - 14INVENTUM VFG6012WIT - SWITCHING OFF - 15INVENTUM VFG6012WIT - SWITCHING OFF - 16
°C160-200160-180200-230210-220160-180190230-250
2-321-322-32-34-5
Time (min.)30-6020-4010-2045-6045-6060-7014-18
INVENTUM VFG6012WIT - SWITCHING OFF - 17INVENTUM VFG6012WIT - SWITCHING OFF - 18INVENTUM VFG6012WIT - SWITCHING OFF - 19INVENTUM VFG6012WIT - SWITCHING OFF - 20
Beef Pork Poultry Vegetables
Function
°C 225-250210-230 200-220 160-180190-210 170-190
2 2 2-3 2 2 3
Time(min.)120-150 90-120 50-6045-6040-5040-50

7 cleaning & maintenance

Switch the stove off before cleaning and let it cool down. Do not clean the appliance with a pressure cleaner or steamcleaner.

CLEANING THE GLASS COVER

Clean the glass cover with a glass-cleaning product. For easy cleaning of the cover and the cooking part of the stove, the cover can be removed.

Open the cover and hold it on both sides. Lift the cover straight upwards.

After cleaning replace the cover in reverse order.

CLEANING THE COOKING PART

Clean the hob after each use to maintain it in good condition. Food residue can create stubborn stains if not removed directly after use. Use a mild cleaning detergent to clean the hob. Burner parts and the pan supports should not be cleaned in the dishwasher. The dishwasher detergent can corrode the materials.

The pan supports, burners and burner caps are removable for easy cleaning of the hob.

  • First clean the control knobs, burners, burner caps and pan supports.
  • Check whether the thermocouple and ignition are clean. If necessary use a toothpick or needle.
  • Clean the drip tray.
  • Clean everything again with just a damp cloth and dry it thoroughly.
  • Refit the burners. Make sure the openings are aligned for the thermocouple and the ignition.
  • Refit the burner caps.
  • Refit the pan supports. Place them carefully on the drip tray without sliding.
  • Close the glass cover.

PERSISTENT STAINS

Persistent stains on the pan supports and burner caps can best be removed with a fluid detergent or a plastic scouring sponge. Never use aggressive cleaning products or sharp objects to clean the hob.

Persistent stains on stainless steel are best removed with a special stainless steel cleaning product. Always wipe in the direction of the grain to prevent damage to the protective layer.

The surface of the stainless steel drip tray can discolour slightly over time.

24 • English

CLEANING THE OVEN

Interior

Clean the inside of the appliance after every use. Use a damp cloth. To clean the oven thoroughly, an ovenspray may be used. Rinse well. Dry the inside will a dry cloth.

Accessories

Clean the accessories, such as the baking tray and the grid with warm water and a mild detergent. Dry thoroughly before reusing.

Exterior

Clean the exterior of the appliance with a damp cloth or sponge. If necessary, clean the exterior with warm water and a mild detergent. Also clean the oven door and the door seal.

For easy cleaning the oven door can be removed.

Removing and installing the oven's front door glass

To clean the oven door properly, the inner glass can be removed.

• To remove the inner glass, open the oven door completely.

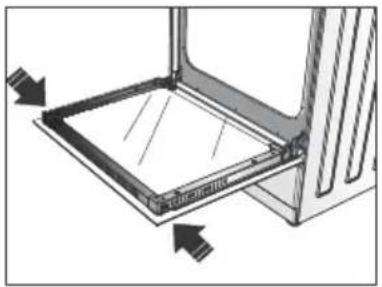

- Remove the profile by pressing the plastic latches on both left and right sides with your fingers.

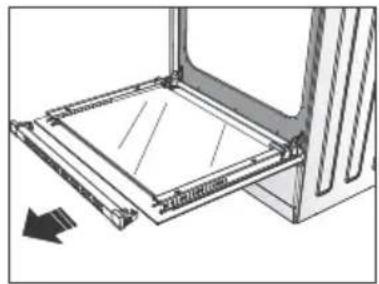

- Remove the profile.

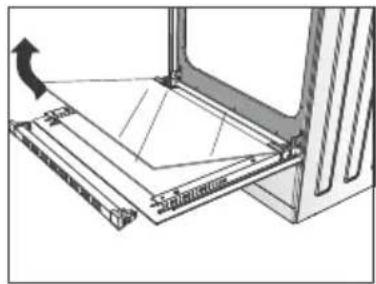

- Carefully lift the glass and remove it.
- Place the inner glass on a cloth.
- Clean the glasses with a soft cloth and a glass-cleaning product.
- Replace the inner glass after cleaning in reverse order.

INVENTUM VFG6012WIT - Removing and installing the oven's front door glass - 1

natural_image Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

INVENTUM VFG6012WIT - Removing and installing the oven's front door glass - 2

natural_image Technical diagram of a mechanical assembly with a rectangular frame and directional arrow (no text or symbols)

INVENTUM VFG6012WIT - Removing and installing the oven's front door glass - 3

natural_image Technical diagram of a mechanical assembly with a rotating component (no text or symbols)

Removing and installing the oven door

The oven door can be removed to clean the interior and the door easily.

• To remove the oven door, open it completely.
- Lift the two levers at the hinges. If necessary use a small screwdriver.
- Carefully close the door as far as the first stop, caused by the raised levers.
- Lift the door upwards and outwards, to remove it from the mountings.
- Place the hinges of the oven door in the mountings. Make sure the door is level.
- Lower the two levers at the hinges back.
- Close the oven door.

INVENTUM VFG6012WIT - Removing and installing the oven door - 1

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Replacing the oven lamp

Before proceeding, disconnect the appliance from the power line to avoid the possibility of electric shock.

  • Unscrew the glass cover of the lamp.
  • Replace the light bulb with a new equal bulb (15 W, 230V, E14 connection and must be resistant to high temperatures - upto 300°C).
  • Refit the glass cover.
  • Plug the appliance in.

Tips for cleaning

  • Clean the oven after every use to prevent food residue to stain.
  • Grease can be best removed when the oven is still a bit warm. Use warm water and a mild detergent.
  • Use for stubborn stains a special ovencleaner. Rinse the residue of the cleaning agent with water.
  • Never use any abrasive pads or corrosive cleaners.
  • Make sure not to spray on the heating elements when using a special ovenspray.

8 problems & solutions

Problem Solution
The oven lamp is not lit. Replace the oven lamp according to the instructions.
The oven is not heating up. - Has the correct temperature and oven function been set?- Is the door of the oven closed properly?
The control light of the oven function is not lit up.- Is an oven function selected?- Is the beginning of the cooking time delayed? The oven will not start until it reaches the set time.

9 installation instructions

  • The safety during use can only be guaranteed when the hob is installed correctly and according to the regulations. The installer is responsible for any damage caused by a faulty installation.
  • The electrical connection must be made by a qualified electricien. This person is aware of the national and local regulations the installation must comply with.
  • The appliance falls under protection class I and can only be used in combination with a grounding conductor connection. The manufacturer accepts no responsibility for any malfunction or damage caused by incorrect electrical installations.
  • The appliance must be connected to a fixed installation and the means of disconnecting it from the fixed installation must be installed according to the installation instructions.
  • The connection cable must hang freely. Do not tie the power cable or pass it along sharp edges. It must be positioned so that it does not touch any of the hot parts of the oven.
  • The connection point, the wall socket and/or plug must always be accessible.
  • The walls and the worktop surrounding the appliance must be heat resistant up to at least 85°C. Even though the appliance itself does not get hot, the heat of a hot pan could discolour or deform the wall.
  • Damage caused by incorrect connection, incorrect use or incorrect fitting is not covered by the guarantee.

Attention: any change to the appliance's interior, including fitting and changing the power cable, must only be performed by a qualified electricien.

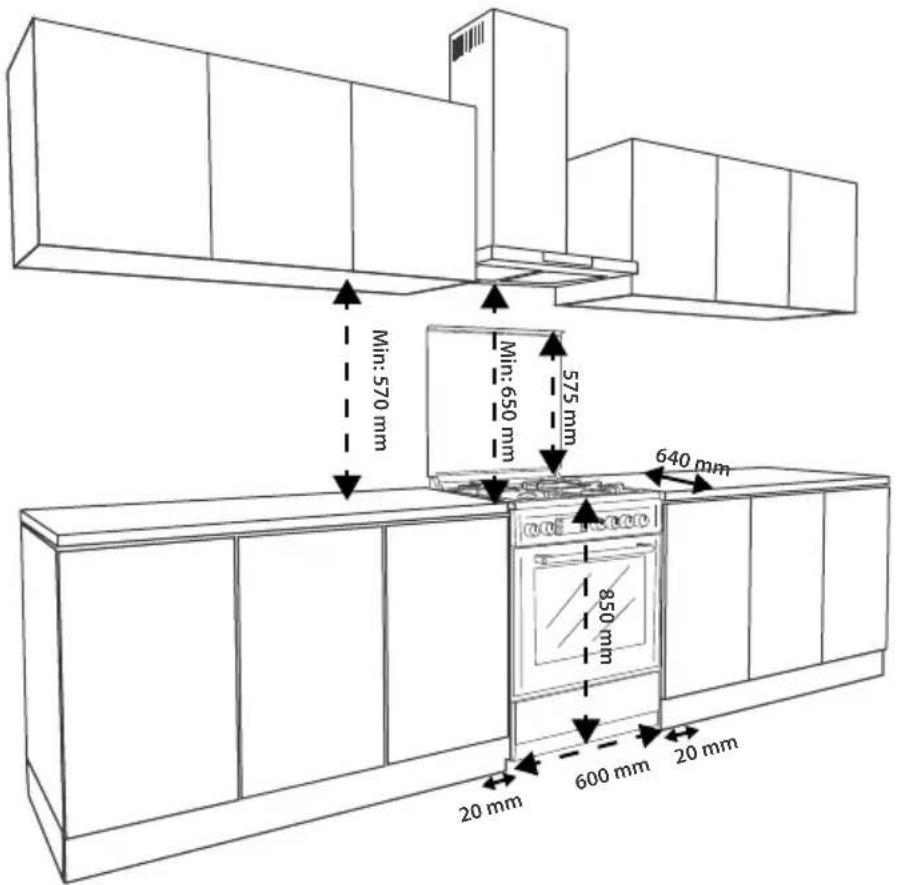

DIMENSIONS

In the drawing below, all the dimensions are displayed in mm.

Min: 570 mm Min: 650 mm 575 mm 640 mm 850 mm 20 mm 600 mm 20 mm

INVENTUM VFG6012WIT - DIMENSIONS - 2

GAS CONNECTION

- The connection of the hob to the gas pipe network must be made by means of a special gas hose or a stainless steel hose with a continuous-surface complying with local regulations.

Always a stainless steel hose when placing the hob above an oven. Attention: the stainless steel hose must hang freely. It must not be able to touch any moving parts of the cabinet.

- Check the perfect sealing after installation using a soapy solution.

INVENTUM VFG6012WIT - GAS CONNECTION - 1

ELECTRICAL CONNECTION

  • Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
    • The earthing of the appliance is compulsory by law.
  • Attention: the connection point must always be accessible.

THE FITTING OF THE APPLIANCE

  • Check that the space you want to place the stove meets the dimension requirements.
  • Slide the stove in its position.

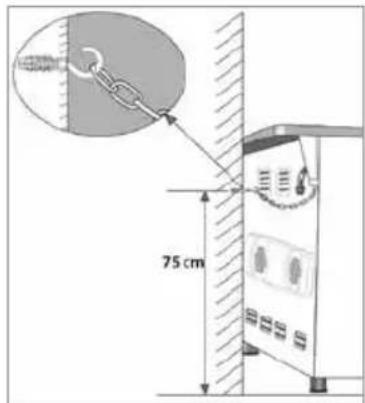

    • To prevent the stove from falling over, fix it to the wall with the supplied chain. Ensure that the hook is screwed into the wall securely.
  • Open the cover of the storage compartment.
  • Turn the adjustable feet up or down, until the stove is level.
  • Close the cover.
  • Plug the appliance in and set the clock.
    • The appliance is ready for use.

75 cm

10

converting to another type of gas

Your stove is delivered from the factory with a natural gas connection. Check this on the rating label. If you want to use the stove with another type of gas, the stove can be converted to LPG (propane). This must be done by a qualified installer according to the following instructions and with the supplied nozzles.

  • Remove the burner caps and burners.
  • Use a driver with a special head (a hexagonal screwdriver - nr. 7) to remove the nozzle.
  • Remove the nozzle and place the new nozzle for LPG. Attention: use the correct nozzle for the right burner.

INVENTUM VFG6012WIT - converting to another type of gas - 1

natural_image Technical illustration of a pipe fitting with three views showing internal components and rotation arrows (no text or symbols)

After installing the new nozzles, you must change the capacity of the flame. If this is not done the burners will not burn correctly.

  • Carefully pull of the control knobs.
  • Turn with a small screwdriver on the screw in the middle of the gas cock according to the table below. Repeat this for each gas control knob.
  • Press the control knobs back on the stove.

INVENTUM VFG6012WIT - converting to another type of gas - 2

natural_image Illustration of a hand holding a knob with directional arrows indicating rotation (no text or symbols present)
From natural gas to LPG From LPG to natural gas
Simmer burner 2 turns clockwise 2 turnscounterclockwise
Semi-rapid burner 2,5 turns clockwise 2,5turns counterclockwise
Rapid burner 3 turns clockwise 3 turns cocounterclockwise

INVENTUM VFG6012WIT - converting to another type of gas - 3

G25/25 mbar LPG G31
(kW) (kW)
10,880,881 Simmer burner
21,611,782 Sem -rapid burner
33,003,00 3 Rapid burner

28 • English

garantie & service

guarantee & after sales service

  • INVENTUM guarantees this product for a period of 2 years starting from the date of purchase. The warranty covers proven defects in material, manufacturing and functioning of components and includes material costs, travel- or shipping costs and labor.
  • INVENTUM provides not only the 2 years standard warranty, but also gives 3 years extended warranty on spare parts and labor costs. We only bill the travel- or shipping costs. This way, the quality of your INVENTUM equipment is 5 years guaranteed.
  • To qualify for the extended 5 year warranty, please register your appliance within 45 days of purchase on www.inventum.eu
    • Why is registration important for you?

  • You get a 5-year warranty

  • All details of your appliance are known by Inventum. No need to search for your model number when you contact us.
  • Inventum can provide a faster and better service when you contact our service center.
  • Guarantee can only be given if proof of purchase (e.g. till receipt or copy) can be shown. Therefore keep it in a safe place. The guarantee period starts at the date of purchase.
    • Guarantee is not valid in case of:

  • normal wear;

  • damage through misuse use or when the instructions were not followed correctly;
  • lack of maintenance;
  • not following the operation- and safety instructions;
  • incompetent montage or repairs made by yourself or others;
  • using accessories and spare parts which are not suitable for the appliance;

for assessment by our technical department.

• The guarantee is not valid for:

  • normal wear - such as baking tray, grill rack and removal handles;
  • normal wear and tear – such as glass breakage, scratches on the equipment, discoloration of plastic or painted parts; Insufficient or incorrect maintenance can cause discolouration of surfaces and rubbers and plastics can deteriorate fast. This is also not covered under warranty.
  • (interchangeable) signal- and controllamps;
  • defects and consequential damage caused by strong contamination and incorrect maintenance;

for assessment by our technical department.

Defects which do not significantly influence the value or operation of the device asre excluded by free repair and / or replacement.

Transport damage is not guaranteed. Therefore, check your new equipment before use. If any damage is found, please contact your supplier within 5 working days after purchase.

From warranty and/or replacement are excluded: defects, loss and damage to the appliance due to an event that usually is insured under the home contents insurance.

To whom can you turn to?

On www.inventum.eu you will find - besides advice on how to use the appliance and cleaning tips - all the answers to your service related questions. Please check the website before contacting our service center.

You can register your service request quickly and easily online at www.inventum.eu. It is also possible to do this by telephone via the INVENTUM service organization. INVENTUM Service Organization: 0900-INVENTUM (0900-468 36 88) (just for Holland).

To provide the best possible service and to process your service request as soon as possible, we recommend that you always first contact INVENTUM before returning your device.

Following the advice of our service organization, please send your appliance, including a copy of the original, printed proof of purchase and description of the complaint, stamped to our service address:

Attn. Service department

Generatorstraat 17

3903 LH VEENENDAAL

Website: www.inventum.eu

THE NETHERLANDS

Helpdesk: 0900-468 36 88

(just for Holland)

These warranty conditions only apply to the Netherlands. For local warranty please contact your dealer.

In countries where INVENTUM has a distributor, you can turn to them if you need the INVENTUM service organization. In other countries, contact your dealer.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Modification and printing errors reserved. The latest version of the deposited guarantee conditions can be obtained through our service organization.

INVENTUM VFG6012WIT - To whom can you turn to? - 1
klein huishoudelijk

INVENTUM VFG6012WIT - To whom can you turn to? - 2
witgoed vrijstaand

INVENTUM VFG6012WIT - To whom can you turn to? - 3
witgoed inbouw

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

INVENTUM VFG6012WIT - To whom can you turn to? - 4

INVENTUM VFG6012WIT - To whom can you turn to? - 5

INVENTUM VFG6012WIT - To whom can you turn to? - 6

VGF6012/01.1214

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : INVENTUM

Model : VFG6012WIT

Category : Cooker
