Product Type	Chest Freezer
Brand	Orima
Model	ORHC-331-X
Net Capacity	331 L
Energy Class	E
Annual Energy Consumption	257 kWh
Climate Class	N-ST
Noise Level	42 dB (A)
Freezing Capacity	15 kg/24h
Storage Time During Power Failure	18 h
Thermostat Control	Mechanical
Defrost Type	Manual
Refrigerant	R600a
Voltage	220-240 V ~ 50 Hz
Power Input	150 W
Product Dimensions (HxWxD)	860 x 1410 x 780 mm
Net Weight	50 kg
Minimum Ambient Temperature	10 °C
Maximum Ambient Temperature	38 °C
Temperature Range	-18 °C to -24 °C
Adjustable Feet	Front 2
Interior Light	No
Lockable Lid	Yes
Basket Included	2 Wire Baskets

Frequently Asked Questions - ORHC-331-X Orima

How do I adjust the temperature on my Orima ORHC-331-X freezer?

The temperature is controlled by a mechanical thermostat dial inside the freezer. Turn the dial to the desired setting: 1 for warmest, 7 for coldest. Typically, setting 3-4 is recommended for daily use at -18°C.

Why is my freezer not freezing properly?

Possible causes: door not sealing properly, too much frost buildup, incorrect thermostat setting, or blocked air vents. Check the door gasket for debris, defrost if ice thickness exceeds 1 cm, and ensure not overfilled. If issue persists, contact support.

How do I defrost the Orima ORHC-331-X?

Unplug the freezer and remove all food. Leave the lid open to allow ice to melt. Do not use sharp objects to scrape ice. Place towels to absorb water. Once defrosted, clean and dry interior before restarting.

What is the correct way to clean my freezer?

Unplug the appliance. Remove all food and baskets. Clean interior with a mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners. Clean the door gasket regularly with a damp cloth.

How long can food be stored during a power failure?

The freezer can keep food frozen for up to 18 hours if the lid remains closed. Avoid opening the lid unnecessarily. After power is restored, check food condition and discard if partially thawed.

What should I do if the door seal is damaged?

A faulty door seal can cause excessive frost and energy waste. You can try cleaning the seal with warm water and checking for alignment. If damaged, order a replacement seal from Orima or an authorized service center.

How do I level the freezer?

Use the two adjustable feet at the front. Turn them clockwise or counterclockwise to raise or lower each side until the freezer is stable and level. Use a spirit level to verify.

Can I use an extension cord with the freezer?

It is not recommended. The freezer should be plugged directly into a properly grounded outlet. If an extension cord is necessary, use a heavy-duty cord rated for the appliance's power and ensure it is fully rated.

Why does my freezer make unusual noises?

Normal sounds include compressor hum, refrigerant flow (hissing), and occasional clicks. If you hear loud rattling or banging, check if the freezer is level and if items inside are secure. If noise persists, contact service.

What warranty does Orima offer for the ORHC-331-X?

Orima typically offers a 2-year warranty for manufacturing defects. Keep your proof of purchase. For specific terms, refer to the warranty card included in the manual or contact Orima customer service.

USER MANUAL ORHC-331-X Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

LIVRE D'INSTRUCTIONS

facebook.com/orima.pt

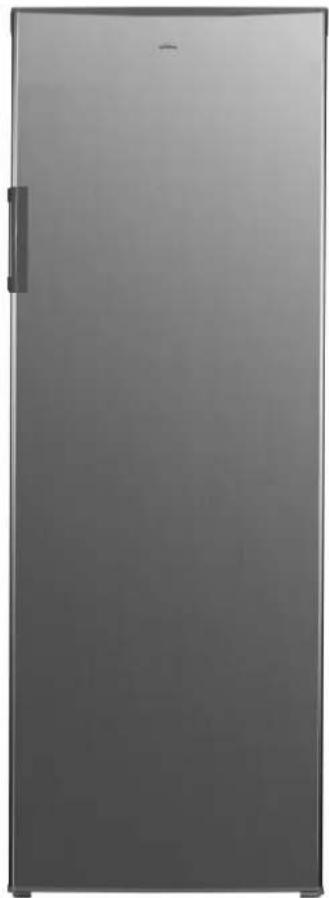

Front view of a modern stainless steel refrigerator with no visible text or symbols on the door or side.

MMA

MÁRIO MIRANDA DE ALMEIDA

CONGELADOR VERTICAL

Vertical Freezer | Congelador Vertical | Congélateur Vertical

ORHC-331-X

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone]

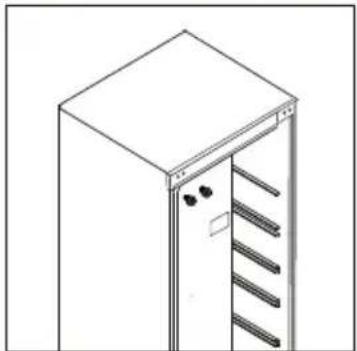

Isometric line drawing of a cabinet with ladder and support structure (no text or symbols)

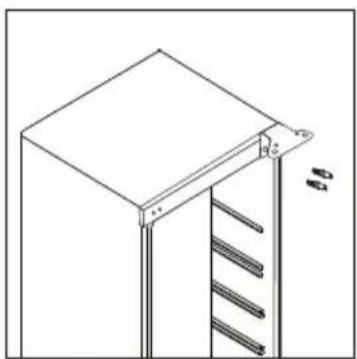

Isometric line drawing of a cabinet with ladder and mounting bracket (no text or symbols)

Line drawing of a server cabinet with rack panels (no text or symbols)

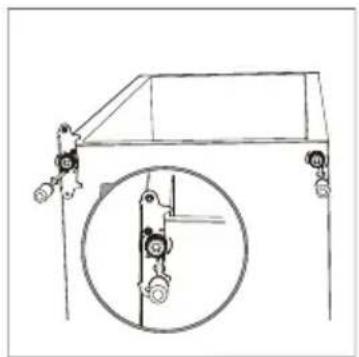

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

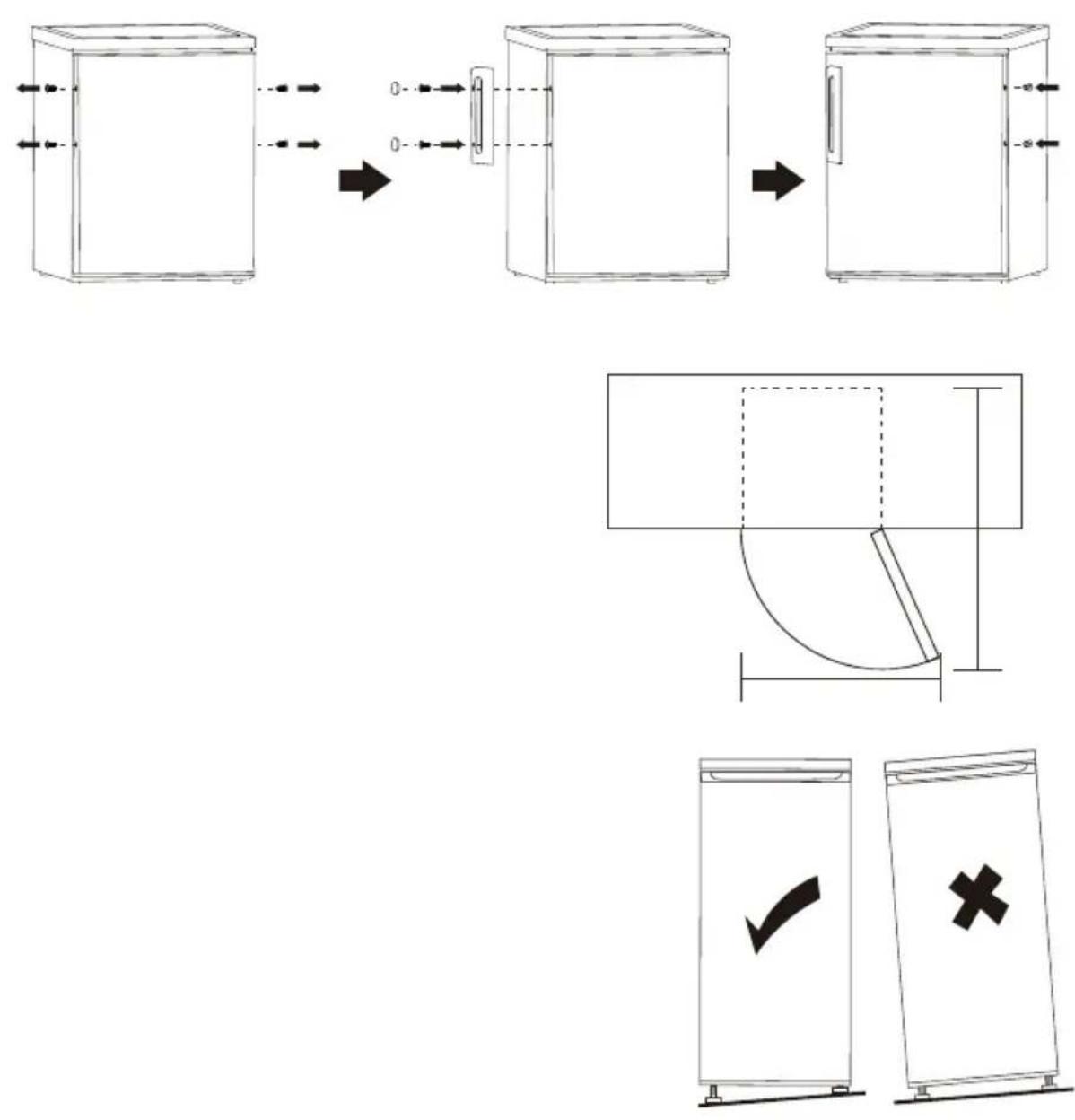

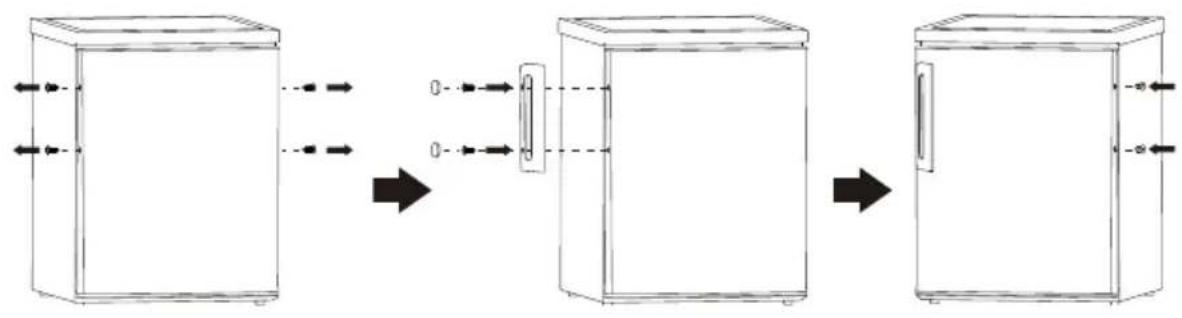

Porta Reversível

Diagram showing a mechanical clamp or bracket being adjusted from left to right, with no visible text or symbols.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

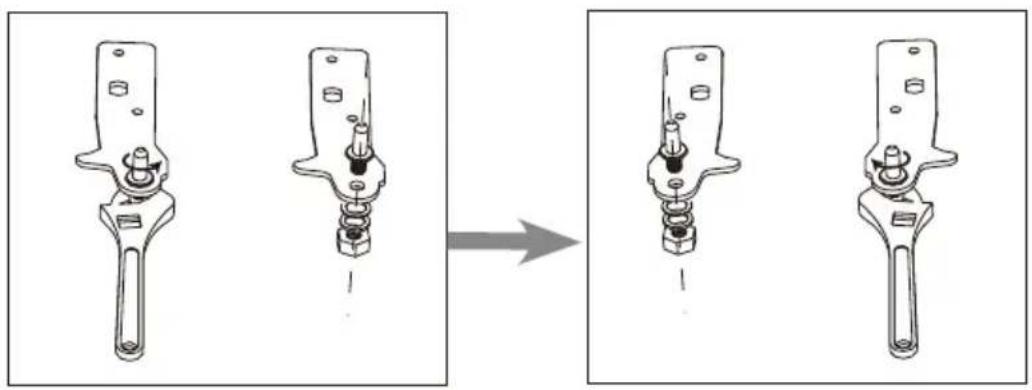

Two mechanical bracket components with mounting holes and a tool, shown in line drawing without any text or symbols.

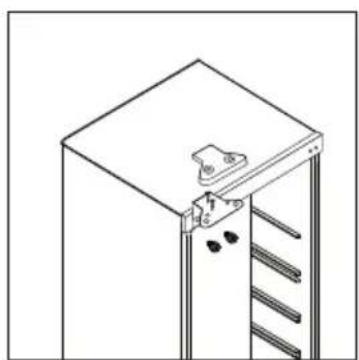

Technical line drawing of a mechanical assembly with a bracket and ladder (no text or symbols)

Espaço Requisito

Pure geometric diagram showing a rectangle with a dashed square and a curved arc, no text or symbols present.

Diagram showing two labeled signs: a checkmark and an 'X' symbol, likely indicating cancellation or rejection.

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática indicada na placa de características do aparelho:

Classe Climatica	Temperatura Ambiente
SN	+10°C a +3°C
N	+16°C a +3°C
ST	+16°C a +3°C
T	+16°C a +43°C

Localização

NORMAL MIN MAX

Congelamento de alimentos frescos

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Technical line drawing of a multi-level storage unit with internal compartments and ventilation slots (no text or symbols)

Isometric line drawing of a cabinet with ladder and support structure (no text or symbols)

Isometric line drawing of a mechanical structure with a ladder and bracket (no text or symbols)

Line drawing of a server cabinet with rack-mounted doors (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a vehicle suspension system with a magnified inset showing internal components (no text or labels)

Two identical mechanical bracket components with mounting holes and a screw end (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and ladder (no text or symbols)

Two vertical gray gradient bars with no text or symbols

NORMAL MIN MAX

Freezer drawer(s)/shelf

·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Technical Information

Model XORHC 331 X
Total Net Volume, L	242
Refrigerator Net Volume, L -
Freezer Net Volume, L	242
Actual consumption depends on how the device is used and the location
Energy efficiency class	F
Power consumption: kWh/year	267
Climate Class	N,ST
Dimensions (A x L x P), mm 1700x600x600
Noise Level, db(A) re 1pw 40
Eletrical Information	See in the product rating label
Note: The manufacturer reserves the right to make future changes to the Specifications and technical parameters.
