USER MANUAL BES351210M AEG

Simple line drawing of a kitchen oven (no text or symbols)

CONTENTS

1. SAFETY INFORMATION......2
2. SAFETY INSTRUCTIONS......4
3. PRODUCT DESCRIPTION....6
4. CONTROL PANEL....7
5. BEFORE FIRST USE....8
6. DAILY USE....8
7. CLOCK FUNCTIONS....10
8. USING THE ACCESSORIES....11
9. ADDITIONAL FUNCTIONS.... 12
10. HINTS AND TIPS.... 12
11. CARE AND CLEANING.... 25
12. TROUBLESHOOTING....28
13. ENERGY EFFICIENCY....29

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.

• Children of less than 3 years of age should be kept away unless continuously supervised.

- Do not let children play with the appliance.

- Keep all packaging away from children and dispose of it appropriately.

- Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

- If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Only a qualified person must install this appliance and replace the cable.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or put in accessories or ovenware.

- Before carrying out any maintenance, disconnect the appliance from the power supply.

• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

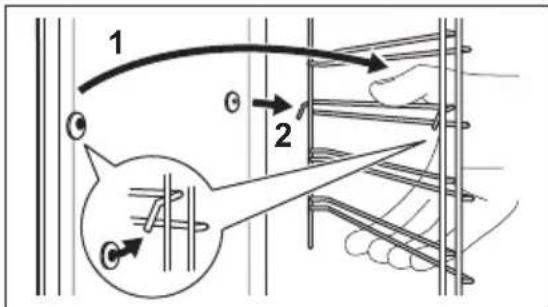

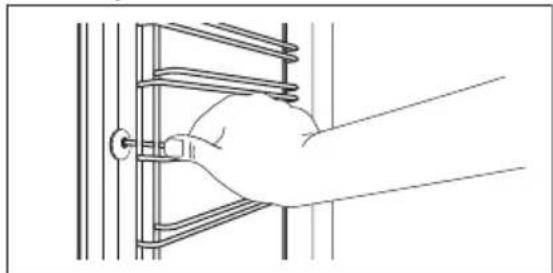

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from other appliances and units.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door, especially when the door is hot.
• The shock protection of live and insulated parts must be fastened in

such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance complies with the E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• This appliance is for household use only.
• Do not change the specification of this appliance.
  • Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom.
- do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.

- Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
  • Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance is in operation. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instruction on it's packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

2.5 Internal lighting

WARNING!

Risk of electric shock.

3. PRODUCT DESCRIPTION

3.1 General overview

• The type of light bulb or halogen lamp used for this appliance is for household appliances only. Do not use it for house lighting.
• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

2.6 Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

1 Control panel
2 Knob for the heating functions
3 Power lamp / symbol
4 Display
5 Control knob (for the temperature)
6 Temperature indicator / symbol
7 Plus Steam
8 Heating element
9 Lamp
10 Fan
11 Shelf support, removable
12 Cavity embossment
13 Shelf positions

3.2 Accessories

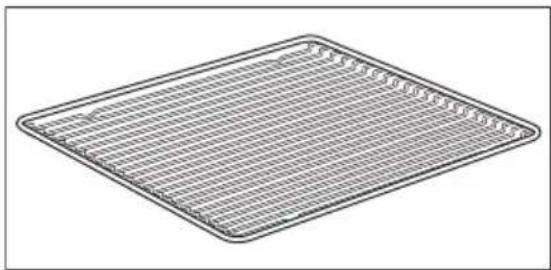

Wire shelf

Line drawing of a rectangular plate with grid pattern, no text or symbols present

For cookware, cake tins, roasts.

To bake and roast or as a pan to collect fat.

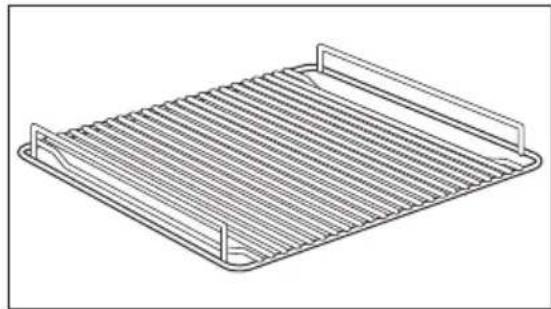

Trivet

Line drawing of a rectangular tray with horizontal slats and two side handles (no text or symbols)

For roasting and grilling.

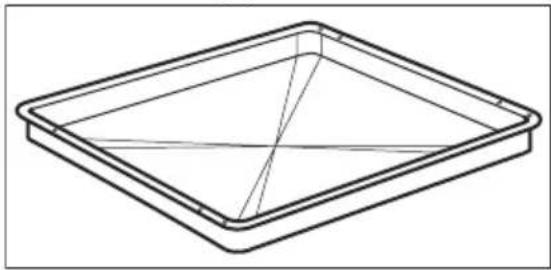

Grill- / Roasting pan

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

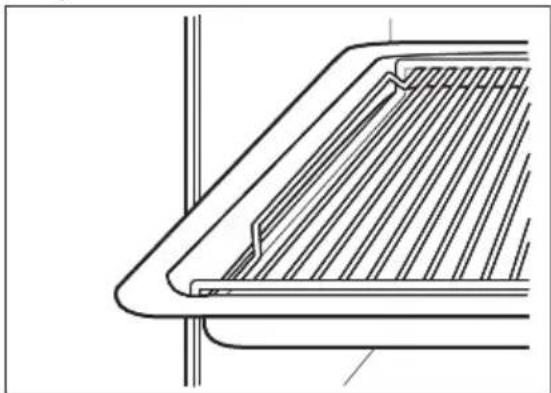

Use the trivet only with the Grill- / Roasting pan.

4. CONTROL PANEL

4.1 Buttons

Sensor field / Button Function Description
—	MINUS To set the time.
	CLOCK To set a clock function.
+	PLUS To set the time.
	PLUS STEAM To turn on the True Fan Cooking PLUS function.

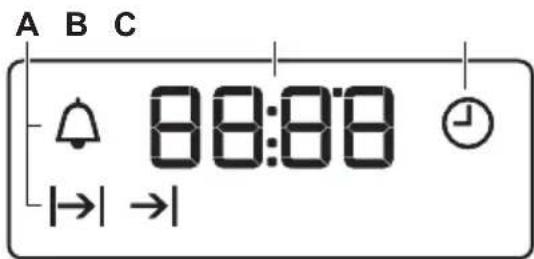

4.2 Display

A. Clock functions
B. Timer
C. Clock function

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

To set the Time of day refer to "Clock functions" chapter.

5.1 Initial Cleaning

Remove all accessories and removable shelf supports from the oven.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

6.2 Setting a heating function

1. Turn the knob for the heating functions to select a heating function.

2. Turn the control knob to select the temperature.

The lamp turns on when the oven operates.

1. To turn off the oven, turn the knob for the heating functions to the off position.

6.3 Heating functions

Oven function Application

The oven is off.

Off position

Light

To turn on the lamp with- out a cooking function.

Refer to "Care and cleaning" chapter.

Clean the oven and the accessories before first use.

Put the accessories and the removable shelf supports back to their initial position.

Oven function Application

True Fan Cooking / True Fan Cooking PLUS / Aqua Cleaning

To bake on up to three shelf positions at the same time and to dry food.

Set the temperature 20 - 40 °C lower than for Conventional Cooking.

To add humidity during the cooking. To get the right colour and crispy crust during baking. To give more juiciness during reheating.

For more information about Aqua Cleaning, refer to "Care and cleaning" chapter.

Pizza Setting

To bake pizza. To make intensive browning and a crispy bottom.

Conventional Cooking

To bake and roast food on one shelf position.

(Top / Bottom Heat)

Bottom Heat

To bake cakes with crispy bottom and to preserve food.

Oven function Application

Defrost

To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.

Moist Baking

This function is designed to save energy during cooking. For the cooking instructions refer to "Hints and tips" chapter, Moist Baking. The oven door should be closed during cooking so that the function is not interrupted and to ensure that the oven operates with the highest energy efficiency possible. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving. This function was used to comply with the energy efficiency class according to EN 60350-1.

Grilling

To grill flat food and to toast bread.

Turbo Grilling

To roast larger meat joints or poultry with bones on one shelf position. To make gratins and to brown.

The lamp may turn off automatically at a temperature below 60 °C during some oven functions.

6.4 Setting the function: True Fan Cooking PLUS

This function allows to improve humidity during the cooking.

WARNING!

Risk of burns and damage to the appliance.

Released humidity can cause burns:

• Do not open the oven door when the function works.
• Open the oven door with care after the function stops.

Refer to "Hints and tips" chapter.

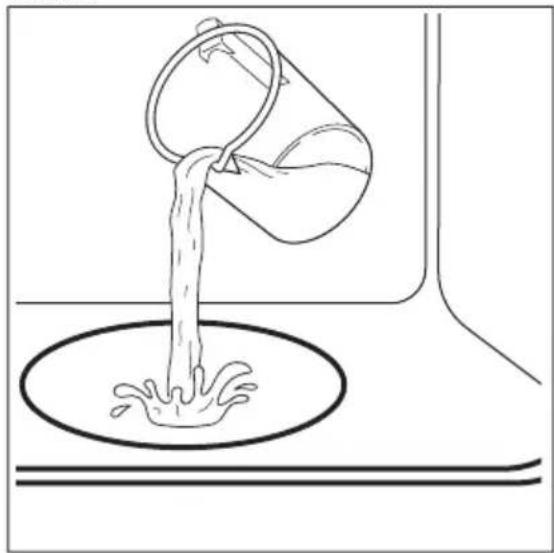

1. Fill the cavity embossment with tap water.

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

The maximum capacity of the cavity embossment is 250 ml. Fill the cavity embossment with water only when the oven is cold.

CAUTION!

Do not refill the cavity embossment with water during cooking or when the oven is hot.

1. Put food in the oven and close the oven door.

2. Set the function:

1. Press: Plus Steam

It works only with the function: True Fan Cooking PLUS.

The indicator turns on.

1. Turn the control knob to select a temperature.

2. Turn the knob for the heating functions to the off position, press

Plus Steam 📁 to turn off the oven.

The indicator turns off.

1. Remove water from the cavity embossment.

WARNING!

Make sure that the oven is cold before you remove the remaining water from the cavity embossment.

7. CLOCK FUNCTIONS

7.1 Clock functions table

Clock function Application
	TIME OF DAY To set, change or check the time of day.
	DURATION To set how long the appliance operates.
	END To set when the appliance deactivates.
	TIME DELAY To combine DURATION and END function.
	MINUTE MINDER To set countdown time. This function has no effect on the operation of the appliance. You can set the MINUTE MIND-ER at any time, also when the appliance is off.

7.2 Setting the time. Changing the time

You must set the time before you operate the oven.

The flashes when you connect the appliance to the electrical supply, when there was a power cut or when the timer is not set.

Press the + or - to set the correct time.

After approximately five seconds, the flashing stops and the display shows the time of day you set.

To change the time of day press 🙏 again and again until ⏰ starts to flash

7.3 Setting the DURATION

1. Set an oven function and temperature.

2. Press again and again until starts to flash.

3. Press + or - to set the DURATION time.

The display shows

1. When the time ends, flashes and an acoustic signal sounds. The appliance deactivates automatically.

2. Press any button to stop the acoustic signal.

3. Turn the knob for the oven functions and the knob for the temperature to the off position.

7.4 Setting the END

1. Set an oven function and temperature.

2. Press again and again until starts to flash.

3. Press + or - to set the time. The display shows →

4. When the time ends, flashes and an acoustic signal sounds. The appliance deactivates automatically.

5. Press any button to stop the signal.

6. Turn the knob for the oven functions and the knob for the temperature to the off position.

7.5 Setting the TIME DELAY

1. Set an oven function and temperature.
2. Press again and again until starts to flash.
3. Press or to set the time for DURATION.
4. Press ⚠️.
5. Press or to set the time for END.
6. Press to confirm.

Appliance turns on automatically later on, works for the set DURATION time and stops at the set END time. At the set time an acoustic signal sounds.

1. The appliance deactivates automatically. Press any button to stop the signal.
2. Turn the knob for the oven functions and the knob for the temperature to the off position.

7.6 Setting the MINUTE MINDER

1. Press again and again until starts to flash.

8. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

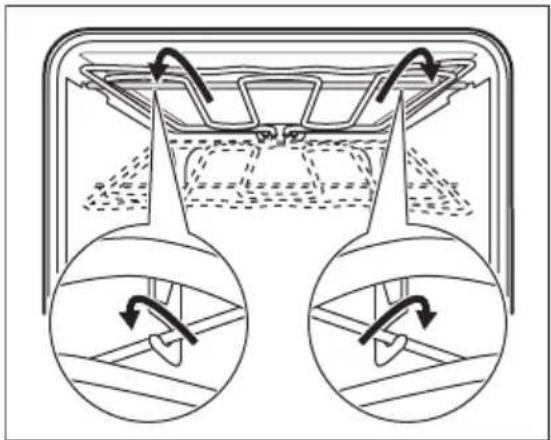

8.1 Inserting the accessories

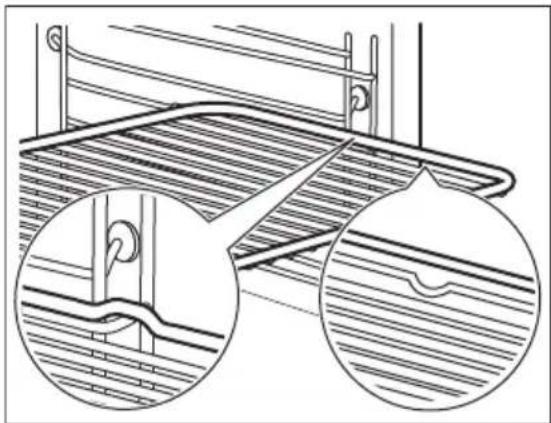

Wire shelf:

Push the shelf between the guide bars of the shelf support.

Technical line drawing of a ladder support structure with two magnified views showing internal components (no text or symbols)

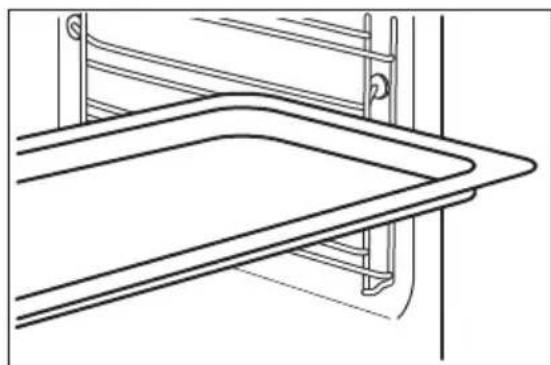

Deep pan:

1. Press or to set the necessary time.

The Minute Minder starts automatically after 5 seconds.

1. When the set time ends, an acoustic signal sounds. Press any button to stop the acoustic signal.
2. Turn the knob for the oven functions and the knob for the temperature to the off position.

7.7 Cancelling the clock functions

1. Press the ① again and again until the necessary function indicator starts to flash.
2. Press and hold. The clock function goes out after some seconds.

Push the deep pan between the guide bars of the shelf support.

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

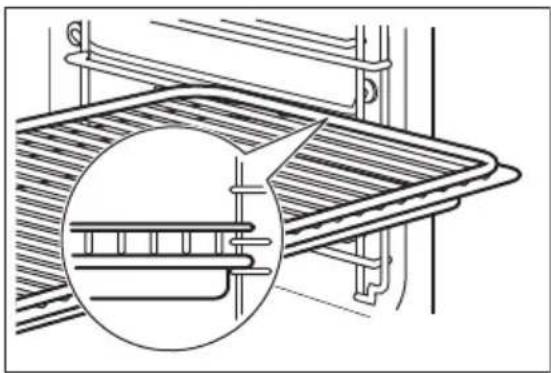

Wire shelf and deep pan together:

Push the deep pan between the guide bars of the shelf support and the wire shelf on the guide bars above.

Technical line drawing of a structural component with an inset magnified detail (no text or symbols)

i

Small indentation at the top increase safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

8.2 Trivet and Grill- / Roasting pan

WARNING!

Be careful when you remove the accessories from a hot oven. There is a risk of burns.

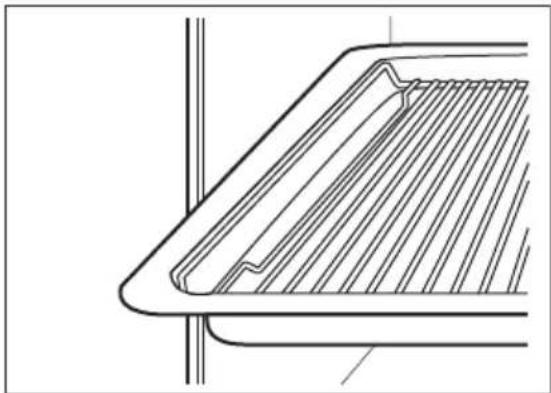

You can use the trivet to roast larger pieces of meat or poultry on one shelf position.

1. Put the trivet into the deep pan so that the supports of the wire shelf point up.

9. ADDITIONAL FUNCTIONS

9.1 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the

10. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

Technical line drawing of a mechanical component with internal grooves and mounting brackets (no text or symbols)

1. Put the deep pan into the oven on the necessary shelf position. You can use the trivet to grill flat dishes in large quantities and to toast.

2. Put the trivet into the deep pan so that the supports of the wire shelf point down.

Technical line drawing of a structural component with parallel grooves and a central ridge (no text or symbols)

1. Put the deep pan into the oven on the necessary shelf position.

surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10.1 Cooking recommendations

Your oven may bake or roast differently to the oven you had before. The below tables provide you with the standard settings for temperature, cooking time and shelf position.

If you cannot find the settings for a special recipe, look for the similar one.

10.2 Inner side of the door

On the inner side of the door you can find:

- the numbers of the shelf positions.

10.3 True Fan Cooking PLUS

Cakes / pastries / breads

Preheat the empty oven for 5 minutes.

Use the baking tray.

Use the second shelf position.

• information about the oven functions, recommended shelf positions and temperatures for dishes.

Food Water in the cavity embossment (ml)		Temperature (°C) Time (min)
Cookies, scones, croissants	100 150 - 180 10 - 20
Focaccia 100 200 - 210 10 - 20
Pizza 100 230 10 - 20
Bread rolls 100 200 20 - 25
Bread 100 180 35 - 40
Plum cake, apple pie, cinnamon rolls baked in a cake mould.	100 - 150 160 - 180 30 - 60

Frozen ready meals

Preheat the empty oven for 10 minutes.

Use the second shelf position.

Food Water in the cavity embossment (ml)	Temperature (°C) Time (min)
Pizza 150 200 - 210 10 - 20
Croissants 150 170 - 180 15 - 25
Lasagna 200 180 - 200 35 - 50

Food regeneration

Use the second shelf position.

Use 100 ml of water.

Set the temperature to 110 °C.

Food Time	(min)
Bread rolls 10 - 20

Food Time	(min)
Bread 15 - 25
Focaccia	15 - 25
Meat	15 - 25
Pasta	15 - 25
Pizza 15 - 25
Rice 15 - 25
Vegetables 15 - 25

Roasting

Use the glass baking dish.

Use the second shelf position.

Use 200 ml of water.

Food Temperature (°C)	Time (min)
Roast beef 200 50 - 60
Chicken 210 60 - 80

Food Temperature (°C)	Time (min)
Roast pork 180 65 - 80

10.4 Baking

• Use the lower temperature the first time.
• You can extend baking times by 10 – 15 minutes if you bake cakes on more than one shelf position.
• Cakes and pastries at different heights do not always brown equally. There is no need to change the temperature setting if an unequal browning occurs. The differences equalize during baking.
• Trays in the oven can twist during baking. When the trays become cold again, the distortions disappear.

10.5 Tips on baking

Baking results Possible cause Remedy
The bottom of the cake is not browned sufficiently.	The shelf position is incorrect.	Put the cake on a lower shelf.
The cake sinks and becomes soggy, lumpy or streaky.	The oven temperature is too high.	The next time you bake, set a slightly lower oven temperature.
	The baking time is too short.	Set a longer baking time. You cannot decrease baking times by setting higher temperatures.
	There is too much liquid in the mixture.	Use less liquid. Be careful with mixing times, especially if you use a mixing machine.
The cake is too dry. The oven temperature is too low.		The next time you bake, set a higher oven temperature.
		The baking time is too long. The next time you bake, set a shorter baking time.
The cake browns unevenly.	The oven temperature is too high and the baking time is too short.	Set a lower oven temperature and a longer baking time.
	The mixture is unevenly distributed.	Spread the mixture evenly on the baking tray.

Baking results Possible cause Remedy

The cake is not ready in the baking time given.

The oven temperature is too low.

The next time you bake, set a slightly higher oven temperature.

10.6 Baking on one level:

Baking in tins

Food Function Temperature		(°C)	Time (min) Shelf position
Ring cake / Brio-che	True Fan Cook-ing	150 - 160 50 - 70 1
Madeira cake / Fruit cakes	True Fan Cook-ing	140 - 160 70 - 90 1
Flan base - short pastry	True Fan Cook-ing	170 - 1801)	10 - 25 2
Flan base - sponge mixture	True Fan Cook-ing	150 - 170 20 - 25 2
Cheesecake Top / Bottom Heat		170 - 190 60 - 90 1

1) Preheat the oven.

Cakes / pastries / breads on baking trays

Food Function Tempera-		ture (°C)	Time (min)	Shelf position
Plaited bread / Bread crown Top / Bottom Heat 170 - 190 30 - 40 3
Christmas stolen Top / Bottom Heat		160 - 180^1)	50 - 70 2
Bread (rye bread):	Top / Bottom Heat	1. 230 1)	1. 20	1
1. First part of baking procedure.		2. 160 - 180	2. 30 - 60
2. Second part of baking procedure.
Cream puffs / Eclairs Top / Bottom Heat		190 - 210^1)	20 - 35 3
Swiss roll	Top / Bottom Heat	180 - 200^1)	10 - 20 3
Cake with crumble topping (dry)	True Fan Cooking	150 - 160 20 - 40 3
Buttered almond cake / Sugar cakes	Top / Bottom Heat	190 - 210^1)	20 - 30 3
Fruit flans (made with yeast dough / sponge mixture) ^2)	True Fan Cooking	150	35 - 55 3
Food Function Temperature			Time (min) Shelf position
		(°C)
Fruit flans (made with yeast dough / sponge mixture) ^2)		Top / Bottom Heat 170 35 - 55 3
Fruit flans made with short pastry		True Fan Cooking 160 - 170 40 - 80 3
Yeast cakes with delicate toppings (e.g. quark, cream, custard)		Top / Bottom Heat 160 - 180 ^1)	40 - 80 3
1) Preheat the oven.2) Use a deep pan.Biscuits
Food Function Temperature		Time (min) Shelf position
Short pastry biscuits	True Fan Cooking	150 - 160 10 - 20 3
Biscuits made with sponge mixture	True Fan Cooking	150 - 160 15 - 20 3
Pastries made with egg white / Meringues	True Fan Cooking	80 - 100 120 - 150 3
Macaroons True	Fan Cooking	100 - 120 30 - 50 3
Biscuits made with yeast dough	True Fan Cooking	150 - 160 20 - 40 3
Puff pastries True	Fan Cooking	170 - 180 ^1)	20 - 30 3
Rolls True Fan Cooking		160 ^1)	10 - 25 3
Rolls Top / Bottom Heat		190 - 210 ^1)	10 - 25 3

1) Preheat the oven.

10.7 Bakes and gratins

Food Function Temperature		(°C)	Time (min) Shelf position
Pasta bake Top / Bottom Heat		180 - 200 45 - 60 1
Lasagne Top / Bottom Heat		180 - 200 25 - 40 1
Vegetables au gratin1)	Turbo Grilling 160 - 170 15 - 30 1
Baguettes topped with melted cheese	True Fan Cook-ing	160 - 170 15 - 30 1
Sweet bakes Top / Bottom Heat		180 - 200 40 - 60 1
Fish bakes Top / Bottom Heat		180 - 200 30 - 60 1
Stuffed vegeta-bles	True Fan Cook-ing	160 - 170 30 - 60 1

1) Preheat the oven.

10.8 Moist Baking

For best results follow suggestions listed in the table below.

10.9 Multilevel Baking

Use the function: True Fan Cooking.

Cakes / pastries / breads on baking trays

Food Temperature (°C)		Time (min) Shelf position
		2 positions 3 positions
Cream puffs / Eclairs	160 - 1801)	25 - 45 1 / 4 -
Dry streusel cake	150 - 160 30 - 45 1 / 4 -

1) Preheat the oven.

Biscuits / small cakes / pastries / rolls

Food Temperature (°C)	Time (min) Shelf position
	2 positions 3 positions
Short pastry bis-150 - 160 20 - 40 1 / 4 1 / 3 / 5 biscuits

Food Temperature (°C)	Time (min) Shelf position
		2 positions 3 positions
Biscuits made with sponge mixture	160 - 170 25 - 40 1 / 4 -
Biscuits made with egg white,meringues	80 - 100 130 - 170 1 / 4 -
Macaroons 100 - 120 40 - 80 1 / 4 -
Biscuits made with yeast dough	160 - 170 30 - 60 1 / 4 -
Puff pastries	170 - 1801)	30 - 50 1 / 4 -
Rolls 180 20 - 30 1 / 4 -

1) Preheat the oven.

10.10 Pizza Setting

Food Temperature (°C) Time (min) Shelf position
Pizza (thin crust)	200 - 2301)2)	15 - 20 2
Pizza (with a lot of topping)	180 - 200 20 - 30 2
Tarts 180 - 200 40 - 55 1
Spinach flan 160 - 180 45 - 60 1
Quiche Lorraine	170 - 190 45 - 55 1
Swiss Flan 170 - 190 45 - 55 1
Cheesecake 140 - 160 60 - 90 1
Apple cake, covered	150 - 170 50 - 60 1
Vegetable pie	160 - 180 50 - 60 1
Unleavened bread	230 - 2501)	10 - 20 2
Puff pastry flan	160 - 1801)	45 - 55 2
Flammekuchen (Pizza-like dish from Al-sace)	230 - 2501)	12 - 20 2

Food Temperature (°C) Time (min) Shelf position

Piroggen (Russian version of calzone)

180 - 2001)

15 - 25 2

1) Preheat the oven.
2) Use a deep pan.

10.11 Roasting

Use heat-resistant ovenware.

Roast large roasting joints directly in the tray or on the wire shelf placed above the tray.

Put some water in the tray to prevent the meat juices or fat from burning.

Meat with crackling can be roasted in the roasting tin without the lid.

Turn the roast after 1/2 - 2/3 of the cooking time.

To keep meat more succulent:

• roast lean meat in the roasting tin with the lid or use roasting bag.
• roast meat and fish in large pieces (1 kg or more).
• baste large roasts and poultry with their juices several times during roasting.

10.12 Roasting tables

Beef

Food Quantity Function Temperature			Time (min) Shelf position
			ture (°C)
Pot roast 1 - 1.5 kg Top / Bottom Heat			230 120 - 150 1
Roast beef or fillet: rare	per cm of thickness	Turbo Grill-ing	190 - 2001)	5 - 6 1
Roast beef or fillet: medium	per cm of thickness	Turbo Grill-ing	180 - 1901)	6 - 8 1
Roast beef or fillet: well done	per cm of thickness	Turbo Grill-ing	170 - 1801)	8 - 10 1

1) Preheat the oven.

Pork

Food Quantity(kg)	Function Temperature (°C)		Time (min)	Shelf position
Shoulder / Neck / Ham joint	1 - 1.5 Turbo Grilling	160 - 180	90 - 120	1
Chop / Spare rib	1 - 1.5 Turbo Grilling	170 - 180	60 - 90	1

Food Quantity (kg)	Function Temperature (°C)	Time (min) Shelf position
Meatloaf 0.75 - 1 Turbo Grill-ing	160 - 170 50 - 60 1
Pork knuckle (precooked)	0.75 - 1 Turbo Grill-ing	150 - 170 90 - 120 1

Veal

Food Quantity (kg)	Function Temperature (°C)	Time (min) Shelf position
Roast veal 1 Turbo Grill-ing	160 - 180 90 - 120 1
Knuckle of 1.5 - 2 Turbo Grill-ing	160 - 180 120 - 150 1

Lamb

Food Quantity (kg)	Function Temperature (°C)	Time (min)	Shelf position
Leg of lamb / Roast lamb	1 - 1.5 Turbo Grill-ing	150 - 170	100 - 120
Saddle of lamb	1 - 1.5 Turbo Grill-ing	160 - 180	40 - 60

Game

Food Quantity (kg)		Function Temperature (°C)	Time (min)	Shelf position
Saddle / Leg of hare	up to 1 Top / Bottom Heat	2301)	30 - 40	1
Saddle of venison	1.5 - 2 Top / Bottom Heat	210 - 220 35 - 40	1
Haunch of venison	1.5 - 2 Top / Bottom Heat	180 - 200 60 - 90	1

1) Preheat the oven.

Poultry

Food Quantity (kg)		Function Temperature (°C)		Time (min) Shelf position
Poultry por- tions	0.2 - 0.25 each	Turbo Grill- ing	200 - 220 30 - 50	1
Half chicken	0.4 - 0.5 each	Turbo Grill- ing	190 - 210 35 - 50	1

Food Quantity (kg)		Function Temperature (°C)	Time (min) Shelf position
Chicken, poulard	1 - 1.5 Turbo Grill-ing	190 - 210 50 - 70 1
Duck 1.5 - 2 Turbo Grill-ing		180 - 200 80 - 100 1
Goose 3.5 - 5 Turbo Grill-ing		160 - 180 120 - 180 1
Turkey 2.5 - 3.5 Turbo Grill-ing		160 - 180 120 - 150 1
Turkey 4 - 6 Turbo Grill-ing		140 - 160 150 - 240 1

Fish (steamed)

Food Quantity (kg)	Function Temperature (°C)	Time (min) Shelf position
Whole fish 1 - 1.5 Top / Bottom Heat	210 - 220 40 - 60 1

10.13 Grilling

• Always grill with the maximum temperature setting.
- Set the shelf into the shelf position as recommended in the grilling table.
• Always set the pan to collect the fat into the first shelf position.

• Grill only flat pieces of meat or fish.
  • Always preheat the empty oven with the grill functions for 5 minutes.

CAUTION!

Always grill with the oven door closed.

Grilling

Food Temperature(°C)		Time (min) Shelf position
		1st side 2nd side
Roast beef 210 - 230 30 - 40 30 - 40 2
Filet of beef 230	20 - 30 20 - 30 3
Back of pork	210 - 230 30 - 40 30 - 40 2
Back of veal	210 - 230 30 - 40 30 - 40 2
Back of lamb	210 - 230 25 - 35 20 - 25 3
Whole Fish, 500- 1000 g	210 - 230 15 - 30 15 - 30 3 / 4

10.14 Frozen Foods

Use the function True Fan Cooking.

Food Temperature (°C) Time (min) Shelf position

Pizza, frozen 200 - 220 15 - 25 2

Pizza American, fro- 190 - 210 20 - 25 2zen

Pizza, chilled 210 - 230 13 - 25 2

Pizza Snacks, frozen 180 - 200 15 - 30 2

French Fries, thin 200 - 220 20 - 30 3

French Fries, thick 200 - 220 25 - 35 3

Wedges / Cro- 220 - 230 20 - 35 3quettes

Hash Browns 210 - 230 20 - 30 3

Lasagne / Cannello- 170 - 190 35 - 45 2ni, fresh

Lasagne / Cannello- 160 - 180 40 - 60 2ni, frozen

Oven baked cheese 170 - 190 20 - 30 3

Chicken Wings 190 - 210 20 - 30 2

10.15 Defrost

- Remove the food packaging and put the food on a plate.

- Use the first shelf position from the bottom.

- Do not cover the food with a bowl or a plate, as this can extend the defrost time.

- For large portions of food place an upturned empty plate on the bottom of the oven cavity. Put the food in a deep plate or dish and set it on top of the plate inside the oven. Remove shelf supports if necessary.

Food Quantity (kg)		Defrosting time (min)	Further de-frosting time (min)	Comments
Chicken 1	100 - 140	20 - 30	Put the chicken on an upturned saucer in a big plate. Turn halfway through.
Meat	1	100 - 140	20 - 30	Turn halfway through.
Trout	0.15	25 - 35	10 - 15	-
Strawberries	0.3	30 - 40	10 - 20	-
Butter	0.25	30 - 40	10 - 15	-

Food Quantity (kg)	Defrosting time (min)	Further de-frosting time (min)	Comments
Cream 2 x 0.2 80 - 100 10 - 15 Whip the cream when still slightly frozen in places.
Gateau 1.4 60 60 -

10.16 Preserving - Bottom Heat

• Use only preserve jars of the same dimensions available on the market.
• Do not use jars with twist-off and bayonet type lids or metal tins.
• Use the first shelf from the bottom for this function.
• Put no more than six one-litre preserve jars on the baking tray.
• Fill the jars equally and close with a clamp.

• The jars cannot touch each other.
- Put approximately 1/2 litre of water into the baking tray to give sufficient moisture in the oven.
- When the liquid in the jars starts to simmer (after approximately 35 - 60 minutes with one-litre jars), stop the oven or decrease the temperature to 100^ (see the table).

Soft fruit

Food Temperature (°C) Cooking time until		simmering (min)	Continue to cook at 100 °C (min)
Strawberries / Blue-berries / Raspberries / Ripe gooseberries	160 - 170 35 - 45 -

Stone fruit

Food Temperature (°C) Cooking time until simmering (min)		Continue to cook at 100 °C (min)
Pears / Quinces / Plums	160 - 170 35 - 45 10 - 15

Vegetables

Food Temperature (°C) Cooking time until		simmering (min)	Continue to cook at 100 °C (min)
Carrots1)	160 - 170 50 - 60 5 - 10
Cucumbers 160 - 170 50 - 60 -
Mixed pickles 160 - 170 50 - 60 5 - 10
Kohlrabi / Peas / As-	160 - 170 50 - 60 15 - 20
paragus

1) Leave standing in the oven after it is deactivated.

10.17 Drying - True Fan Cooking

Cover trays with grease proof paper or baking parchment.

For a better result, stop the oven halfway through the drying time, open the door and let it cool down for one night to complete the drying.

Vegetables

For one tray use the third shelf position.

For 2 trays use the first and fourth shelf position.

Food Temperature (°C) Time (h)

Beans 60 - 70 6 - 8

Peppers 60 - 70 5 - 6

Vegetables for sour 60 - 70 5 - 6

Mushrooms 50 - 60 6 - 8

Herbs 40 - 50 2 - 3

Fruit

Food Temperature (°C)	Time (h) Shelf position
		1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8	3 1 / 4
Pears 60 - 70 6 - 9	3 1 / 4

10.18 Information for test institutes

Tests according to EN 60350-1:2013 and IEC 60350-1:2011.

Baking on one level. Baking in tins

Food	Function	Temperature (°C)	Time (min)	Shelf position
Fatless sponge cake	True Fan Cooking	140 - 150	35 - 50	2
Fatless sponge cake	Top / Bottom Heat	160	35 - 50	2
Apple pie (2 tins ∅20 cm, diagonally off set)	True Fan Cooking	160	60 - 90	2
Apple pie (2 tins ∅20 cm, diagonally off set)	Top / Bottom Heat	180	70 - 90	1

Baking on one level. Biscuits Use the third shelf position.

Food Function Temperature (°C) Time (min)
Short bread / Pastry stripes True Fan Cooking 140 25 - 40
Short bread / Pastry stripes Top / Bottom Heat	1601)	20 - 30
Small cakes (20 per tray) True Fan Cooking	1501)	20 - 35
Small cakes (20 per tray) Top / Bottom Heat	1701)	20 - 30

1) Preheat the oven.

Multilevel Baking. Biscuits

Food Function Temperature		(°C)	Time (min)	Shelf position
				2 positions	3 positions
Short bread / Pastry Stripes	True Fan Cooking	140 25 - 45	1 / 4 1 / 3 /		5
Small cakes (20 per tray)	True Fan Cooking	1501)	23 - 40	1 / 4 -

1) Preheat the oven.
Grilling
Preheat the empty oven for 5 minutes.

Grill with the maximum temperature setting.

Food Function Time (min) Shelf position
Toast Grilling 1 - 3	5
Beef Steak	Grilling	24 - 30 ^1)	4

1) Turn halfway through.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Clean the front of the oven with a soft cloth with warm water and a mild cleaning agent.

To clean metal surfaces, use a dedicated cleaning agent.

Clean the oven interior after each use.

Fat accumulation or other food remains

may result in a fire. The risk is higher for the grill pan.

Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent. Do not clean the accessories in the dishwasher.

Clean stubborn dirt with a special oven cleaner.

If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can cause damage to the nonstick coating.

Clean the moisture from the cavity after each use.

11.2 Cleaning the cavity embossment

The cleaning procedure removes limestone residue from the cavity embossment after cooking with steam.

For the function: True Fan Cooking PLUS we recommend to do the cleaning procedure at least every 5 - 10 cooking cycles.

1. Put 250 ml of white vinegar into the cavity embossment at the bottom of the oven.
   Use maximum 6% vinegar without any additives.
2. Let the vinegar dissolve the residual limestone at the ambient temperature for 30 minutes.
3. Clean the cavity with warm water and a soft cloth.

11.3 Removing the shelf supports

To clean the oven, remove the shelf supports.

CAUTION!

Be careful when you remove the shelf supports.

1. Pull the front of the shelf support away from the side wall.

Line drawing of a hand adjusting a metal shelf with a valve (no text or symbols)

1. Pull the rear end of the shelf support away from the side wall and remove it.

Install the removed accessories in the opposite sequence.

11.4 Aqua Cleaning

This cleaning procedure uses humidity to help remove remaining fat and food particles from the oven.

1. Put 200 ml of water into the cavity embossment at the bottom of the oven.
2. Set the function: 🎨 and press .
3. Set the temperature to 90 °C.
4. Let the oven operate for 30 minutes.
5. Turn off the oven and let it cool down.
6. When the oven is cool, clean it with a soft cloth.

WARNING!

Make sure that the oven is cool before you touch it. There is a risk of burns.

11.5 Oven ceiling

WARNING!

Deactivate the appliance before you remove the heating element. Make sure that the appliance is cold. There is a risk of burns.

Remove the shelf supports.

You can fold down the heating element on the oven ceiling to clean the oven ceiling easily.

1. Hold the heating element with two hands at the front.
2. Pull it forwards against the spring pressure and out of two holders.

Diagram of a vehicle interior showing two circular insets with arrows indicating rotational motion (no text or symbols)

The heating element folds down.

1. Clean the oven ceiling.

2. Install the heating element in the opposite sequence.

Install the heating element correctly above the supports on the inner walls of the appliance.

1. Install the shelf supports.

11.6 Removing and installing the door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

1. Open the door fully.

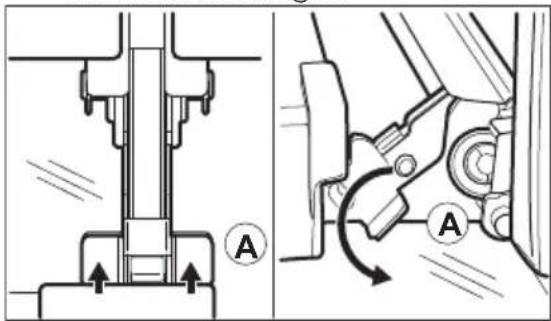

2. Fully press the clamping levers (A) on the two door hinges.

1. Close the oven door to the first opening position (approximately 70^ angle).

2. Hold the door with one hand on each side and pull it away from the oven at an upwards angle.

3. Put the door with the outer side down on a soft cloth on a stable surface.

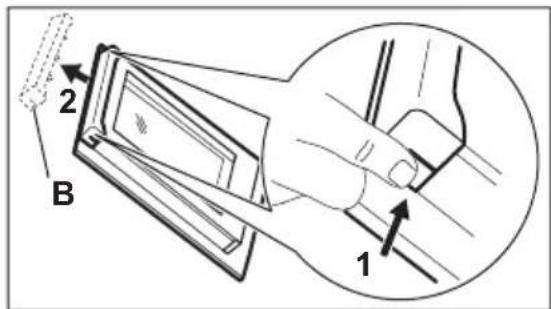

4. Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.

1. Pull the door trim to the front to remove it.

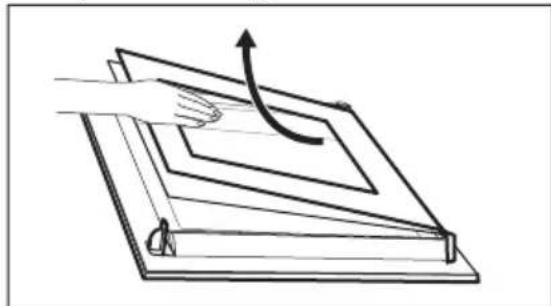

2. Hold the door glass panels on their top edge one by one and pull them up out of the guide.

Diagram of a hand pressing down an open book with an arrow indicating motion (no text or symbols)

1. Clean the glass panel with water and soap. Dry the glass panel carefully. When the cleaning is completed, do the above steps in the opposite sequence. Install the smaller panel first, then the larger and the door.

One of the hinge-arms (normally the right one) is free to move. Make sure, that both hinge-arms are in the same position (approximately 70° angle).

WARNING!

Make sure that the glasses are inserted in the correct position otherwise the surface of the door may overheat.

11.7 Replacing the lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

1. Turn off the oven.
   Wait until the oven is cooled down.
2. Disconnect the oven from the mains.
3. Put a cloth on the bottom of the cavity.

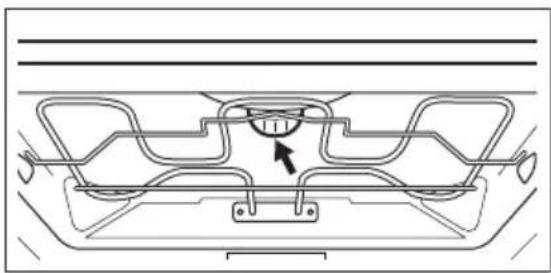

The top lamp

1. Turn the lamp glass cover to remove it.

Technical line drawing of a mechanical component with no visible text or symbols

1. Clean the glass cover.
2. Replace the lamp with a suitable 300 °C heat-resistant lamp.
3. Install the glass cover.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

Problem Possible cause Remedy
You cannot activate or operate the oven. The display shows "400" and an acoustic signal sounds.	The oven is incorrectly connected to an electrical supply.	Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are not set.		Make sure that the settings are correct.
The oven does not heat up. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation settle on the food and in the cavity of the oven.	You left the dish in the oven for too long.	Do not leave the dishes in the oven for longer than 15 - 20 minutes after the cooking process ends.
There is no good cooking performance using the function: True Fan Cooking PLUS.	You did not turn on the function: True Fan Cooking PLUS.	Refer to "Activating the function: True Fan Cooking PLUS".
There is no good cooking performance using the function: True Fan Cooking PLUS.	You did not turn on correctly the function: True Fan Cooking PLUSwith the Plus Steam button.	Refer to "Activating the function: True Fan Cooking PLUS".
There is no good cooking performance using the function: True Fan Cooking PLUS.	You did not fill the cavity embossment with water.	Refer to "Activating the function: True Fan Cooking PLUS".
You want to activate the True Fan Cooking function, but the indicator of the Plus Steam button is on.	The True Fan Cooking PLUS function operates.	Push the Plus Steam buttonto stop the True Fan Cooking PLUS function.
The water in the cavity embossment does not boil.	The temperature is too low.	Set the temperature at least to 110 °C.Refer to "Hints and tips" chapter.
The water comes out of the cavity embossment.	There is too much water in the cavity embossment.	Deactivate the oven and make sure that the appliance is cold. Wipe the water with a cloth or sponge. Add the correct amount of water to the cavity embossment. Refer to the specific procedure.

12.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is

on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:

Model (MOD.) ....

Product number (PNC) ....

Serial number (S.N.) ....

13. ENERGY EFFICIENCY

13.1 Product Fiche and information according to EU 65-66/2014

Supplier's name AEG

Model identification	BEB351010B
	BEB351010W
	BEK351010M
	BES351010M
	BES351210M
Energy Efficiency Index 95.3
Energy efficiency class A
Energy consumption with a standard load, conventional mode	0.99 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.81 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass	BEB351010B 33.0 kg
	BEB351010W 33.0 kg
	BEK351010M 33.0 kg
	BES351010M 33.0 kg
	BES351210M 33.0 kg

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The oven contains features which help you save energy during everyday cooking.

General hints

Make sure that the oven door is closed properly when the oven operates. Do not open the door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal dishes to improve energy saving.

When possible, do not preheat the oven before you put the food inside.

When the cooking duration is longer than 30 minutes, reduce the oven temperature to minimum 3 - 10 minutes before the end of the cooking time, depending on the duration of the cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep breaks between baking as short as possible when you prepare few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

Moist Baking

Function designed to save energy during cooking.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 🌐 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.

CE
