FR60RT-BS-STK - Plate warmers Perlick - Free user manual and instructions

Product Type	Plate Warmer
Brand	Perlick
Model Number	FR60RT-BS-STK
Category	Commercial Plate Warmer
Width	60 inches (1524 mm)
Height	27 inches (686 mm)
Depth	24 inches (610 mm)
Weight	Approx. 120 lbs (54 kg)
Power Source	120V, 60Hz, 15A
Power Consumption	1800W
Heating Type	Electric forced air or radiant
Temperature Range	120°F - 180°F (49°C - 82°C)
Plate Capacity	Up to 60 standard dinner plates
Material	Stainless steel interior and exterior
Control Type	Thermostatic dial or digital (depending on configuration)
Installation Type	Undercounter or freestanding
Thermostat	Adjustable, with temperature indicator
Safety Features	Overheat protection, cool-to-touch handle
Cleaning Instructions	Wipe with damp cloth; mild detergent for stainless steel
Warranty	1 year parts and labor
Certifications	ETL, NSF, or UL (verify)

Frequently Asked Questions - FR60RT-BS-STK Perlick

What is the typical temperature range for the FR60RT-BS-STK plate warmer?

The typical temperature range is 120°F to 180°F (49°C to 82°C), adjustable via the thermostat.

How many plates can this plate warmer hold?

It can hold up to 60 standard dinner plates, depending on plate size and spacing.

What are the dimensions of the FR60RT-BS-STK?

The unit is 60 inches wide, 27 inches high, and 24 inches deep (1524 x 686 x 610 mm).

Can this plate warmer be installed under a counter?

Yes, it is designed for undercounter or freestanding installation. Ensure proper ventilation.

What type of power supply does it require?

It requires 120V, 60Hz, 15A dedicated circuit. Power consumption is 1800W.

How do I clean the plate warmer?

Wipe the interior and exterior with a damp cloth and mild detergent. Avoid abrasive cleaners on stainless steel.

Is the FR60RT-BS-STK safe to leave on unattended?

It includes overheat protection, but we recommend monitoring and not leaving it unattended for extended periods.

What is the warranty on this product?

Perlick typically offers a 1-year parts and labor warranty. Verify with the retailer.

Can I use it to warm other items besides plates?

It is intended for plates, but you can also warm bowls or platters as long as they are heat-safe and not overcrowded.

How long does it take to preheat?

Preheat time is typically 15-30 minutes depending on ambient temperature and load.

USER MANUAL FR60RT-BS-STK Perlick

Installation & Operation Manual

Glass/Mug Frosters

FR Series

Exterior view of a silver refrigerated industrial machine (no visible text or symbols on the device body)

R290

Refrigerant

The Perlick Corporation verifies this product does not contain a prohibited refrigerant as defined by the California Air Resource Board (CARB), the state of New York, and any other state with HFC prohibition laws. This product does not contain HFC's. The following disclosure statement is provided to comply with the CARB regulation:

This equipment is prohibited from use in California with any refrigerants on the "List Of Prohibited Substances" for that specific end use, in accordance with the California Code of Regulations, title 17, section 95374. This disclosure statement has been reviewed and approved by the Perlick Corporation and the Perlick Corporation attests under penalty of perjury, that these statements are true and accurate.

Form No. Z2633

Rev. 04.20.23

Front view of a white industrial refrigerator with cooling fans and ventilation slots (no visible text or symbols)

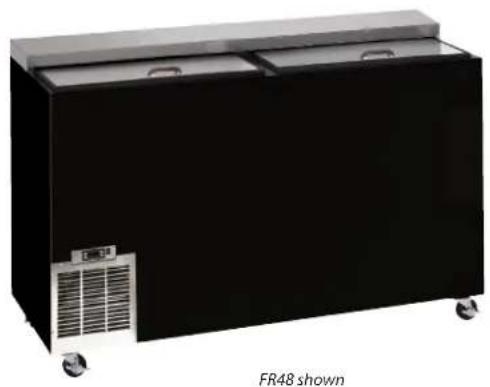

Black FR48 refrigerated stainless steel container with cooling fans and wheels (no visible text or symbols)

JOB
AREA
ITEM NO.
MODEL NO.

MODEL NUMBERS FR24 FR36 FR48 FR60
EXTERIOR CABINET DIMENSIONS	Length - in. (mm) 24 (610) 36 (914) 48 (1219) 60 (1524)
	Depth - in. (mm) 24 (610) 24 (610) 24 (610) 24 (610)
	Height - in. (mm) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866)
INTERNAL NET VOLUME - cubic ft. (liters) 4.2 (118) 8.6 (242) 12.5 (353) 16.3 (462)
PLATE CAPACITY * 135 Plates 215 Plates 300 Plates 400 Plates
GLASS CAPACITY *		90 Glasses	142 Glasses	214 Glasses	286 Glasses
W/ OPTIONAL THIRD SHELF		N/A	172 Glasses	273 Glasses	363 Glasses
SHIPPING WEIGHT LBS. (KG.)		190 (86)	245 (111)	300 (136)	353 (160)
CABINET CONSTRUCTION (INTERIOR)		All models have stainless steel walls and floor.
CABINET CONSTRUCTION (EXTERIOR)		Choice of black, stainless steel and all stainless. Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized. Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized. All Stainless Option: Front, ends, back and bottom are all stainless steel.
DOORS AND HARDWARE		Sliding style open. Stainless steel top and bottom pans. Die cast handle
PLUMBING		No drain required. Condensate evaporates automatically.
INSULATION		2 inch foamed-in-place, environmentally friendly Ecomate® polyurethane insulation.
VENTILATION		FR24 model is front vented, all other models require 2" clearance from wall on either left end or back of cabinet for proper air flow.
TEMPERATURE SPECIFICATIONS	Default Temperature Setpoint: Standard Temp Models - °F [°C]	0 [-17.75]
	Adjustable Setpoint Range: Standard Temp Models - °F [°C]	(-) 10 to (+)10 [-23.3 to -12.2]
ELECTRICAL SPECIFICATIONS	Supply	120 VAC/60 Hz/1 Ph
	Running Load Amps	3.8	3.8	3.8	3.8
	Power Cord	6-foot length with NEMA 5-15 plug.
	Thermostat	NSF Listed electronic control.
	Automatic Defrost	Automatic electric defrost every 4 hours for approximately 20 minutes.
	Manual Defrost	Push button defrost system, manually initiated at the end of each day. Automatically terminates after six hours.
REFRIGERATION SPECIFICATIONS	Condensing Unit	Hermetic condensing unit pulls out for service and cleaning.
	Expansion Device	Capillary Tube
	Refrigerant	R290
	Refrigerant Charge (g)	80	100	100	115
	Compressor H.P.	1/4	1/4	1/4	1/4
	Total Heat of Rejection At 75°F ambient (BTU/h)	1530	1625	1625	1670
OPTIONAL ACCESSORIES		Flat shelving • Divider shelving • Roller basket shelving Set of 4 Adjustable legs (Multiple sizes available) Set of 4 Casters w/ brakes (Multiple sizes available) • 2; 3; 4; and 5' Bottle Rail (field Installed)

* Capacity based on use of 3" diameter glass and 9-1/2" diameter X 1/2" thick plate.

This product is evaluated by NSF for the chilling of glassware and plates. This product is not intended for the storage of food products.

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

TABLE OF CONTENTS

Cabinet Specifications....2

Installing

• Refrigerant....4
• Uncrating and Inspection....4
• Plumbing 4
• Electrical....4
  -Adjusting Partitions....4
• Installing Casters and Legs 4
• Placing the Cabinet 4
• Sealing to the Floor 5

Temperature Control....5

Defrosting the Unit....5

Cleaning the Cabinet 6

Wiring Diagrams 7/8

Replacement Parts 8/9

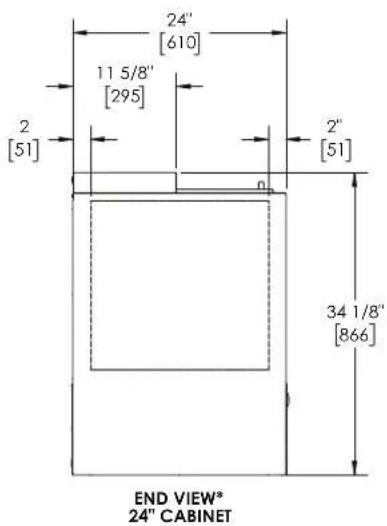

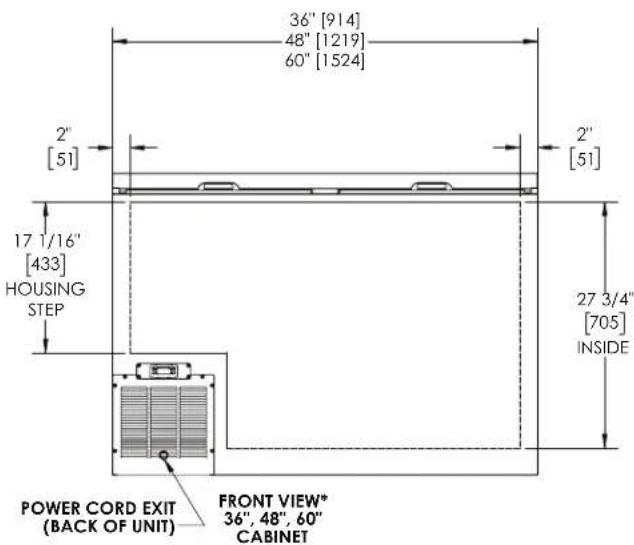

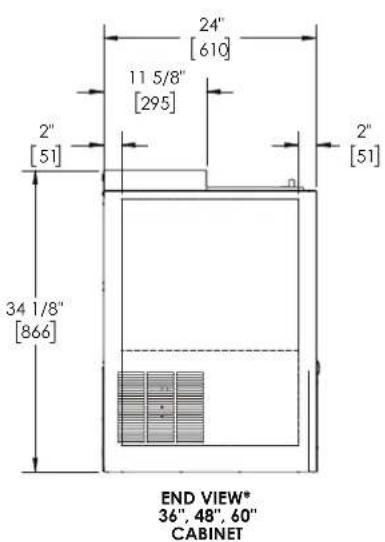

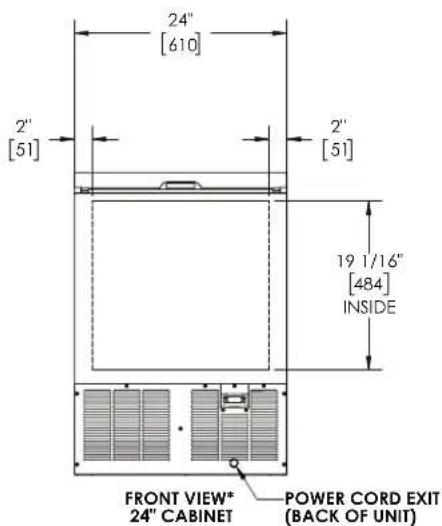

Spec Drawings 10

GENERAL INFORMATION SAF

Introduction

This manual has been prepared to assist you in the installation of your Glass Froster and to acquaint you with its operation and maintenance.

We dedicate considerable time to ensure that our products provide the highest level of customer satisfaction. If service is required, call Perlick at 1-800-777-7267 or your dealer who can provide you with a list of qualified service agents. For your own protection, never return merchandise for credit without our approval.

We thank you for selecting a Perlick product and assure you of our continuing interest in your satisfaction.

Warranty

To register your product, visit our web site at www.perlick.com. Click on “Commercial”, then “Service”. Click on the link “Warranty Registration Form”. You must complete and submit this form or the installation date will revert back to the ship date.

Please record the purchase date and the dealer's name, address and telephone number below.

Model Number:

Serial Number:

Purchase Date:

Dealer Name & Address

Phone Number

PLEASE READ all instructions completely before attempting to install or operate the unit. Take particular note of the DANGER, WARNING an CAUTION information in the manual. The information is important for the safe and efficient installation, operation and care of your Perlick unit.

DANGER

Indicates a hazard that WILL result in serious

injury or death if precautions are not followed.

WARNING

Indicates a hazard MAY cause serious injury or

death if precautions are not followed.

CAUTION

Indicates a hazard where minor injury or product

damage may occur if precautions are not followed.

IMPORTANT!

Read and understand all information in this manual before attempting the installation.

All plumbing and electrical work must be performed by a qualified technician and conform to all applicable state and local codes.

WARNING: California Prop 65 Notice

These products may expose you to chemicals including Chromium, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information on whether a product in this list contains these chemicals, please refer to the specific product page at perlick.com. Or to find out more about Prop 65, go to P65Warnings.ca.gov.

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

PREPARING THE CABINET - GLASS FROSTERS

Refrigerant

All models covered in this user manual are manufactured using refrigerant R290 (Propane). R290 is a hydrocarbon. This refrigerant is flammable and is only allowed for use in appliances which fulfill the requirements of UL 471 (To cover potential risk originated from the use of flammable refrigerants). Consequently, R290 is only allowed to be used in refrigerating appliances which are designed for this refrigerant and fulfill the above-mentioned standard.

■ R290 is heavier than air. The concentration will always be highest at floor level.
■ The explosion limits are as follows:

• Lower Limit: 1.7% by vol. (37 g/m3)
• Upper Limit: 9.5% by vol. (177 g/m3)
• Ignition Temperature: 470 °C

DANGER Take caution when handling, moving and using the product to avoid damaging the refrigerant tubing or increasing the risk of a leak.

WARNING All service work shall be performed by factory

authorized service personnel and all component parts shall be replaced with like components to minimize the risk of possible ignition due to incorrect parts or improper service.

⚠️ CAUTION If service is necessary, repair work must be performed by a

Perlick authorized servicer. Work done by unqualified individuals could potentially be dangerous and will void the warranty.

Uncrating and Inspection

Remove all crating material. Carefully inspect cabinet for hidden damage. If damage is discovered, file your claim immediately with the transport company. Perlick is not responsible for damage in transit.

Plumbing

No plumbing connections are required. Condensate from the cooling coil automatically evaporated through a condensate pan located in the condensing unit section.

Electrical

The cabinet must be connected to a separately fused power source (see Electrical Specification Plate affixed to unit) in accordance with National and Local electrical codes.

CAUTION Do not attempt to operate the equipment on any other power source than that listed on the Electrical Specification Plate.

Adjustable Partitions & Shelving

Perlick Glass Frosters may be provided with adjustable partitions and shelving which will accommodate various bottle sizes.

■ When placing glasses in chiller make sure to ensure proper air flow between glasses.
- When loading product into cabinet, care must be taken to avoid blocking airflow into and out of the evaporator. Maintain at least 2" of clearance on evaporator air intake and exhaust for proper operation.

Installing Casters or Legs (optional)

Attach casters or legs to the cabinet bottom in holes provided. Use the supplied 1/4" - 20 hex head self-tapping machine screws. If unit is tipped on its back, wait 24 hours after unit is uprighted to plug the unit in.

Placing the Cabinet

To assure maximum performance, fresh air must be allowed to circulate through the machinery compartment. It is important to allow at least two inches of clearance at the back or left end of the cabinet. Do not place anything in front of the cabinet that would obstruct air flow at these grilles. Do not place the unit in an unventilated small room.

⚠️ CAUTION Removing the factory installed back clearance spacers without providing proper left side grill clearance for compressor air flow will void the warranty.

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

HOW TO OPERATE- GLASS FROSTERS

Cabinet should be leveled.

For installation of a cabinet directly to the floor, (without legs or casters), the cabinet must be sealed to the floor to prevent liquid spillage passing under inaccessible portions of the equipment and to maintain the equipment's NSF sanitation certification. The floor surface shall be level and smooth. It is recommended to be sealed to the floor using an NSF certified silicone sealer. (Figure 1).

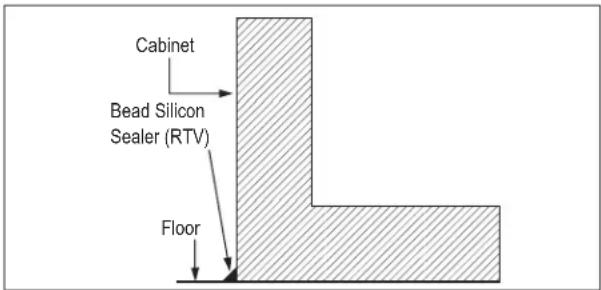

Cabinet Bead Silicon Sealer (RTV) Floor

Figure 1. Sealing Cabinet to Floor

Temperature Control

A digital temperature control is located on the front face of the Glass Froster, above the condensing unit housing. It is factory set at approximately 0^ F.

Digital Temperature Control

To display the Set point values press the set key when the 'SET' label is displayed. The Set point value appears on the display. To change the Set point value, press the and keys within 15 seconds. Press set to confirm the modification.

The condenser fan motor turns off and on with compressor. The evaporator fan motor runs continuously.

-8.00 (min) °F AUX °C SET

Figure 2: Digital Temperature Controller

Defrosting The System

This system consists of a six-hour, as well as a four hour defrost cycle. The six hour defrost cycle is manually activated and automatically terminated, while the four hour cycle is completely automatic.

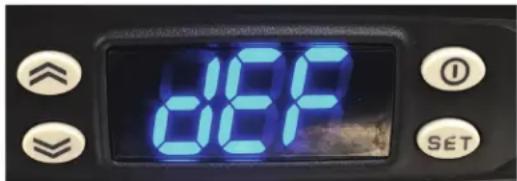

The Six Hour Manual Defrost

The six hour manual defrost shuts off the power to the condensing unit, door frame heater, evaporator heater, and the automatic four hour defrost timer, while it supplies power to the evaporator fan. To activate the six hour defrost system, depress (and hold for 3 seconds) the defrost switch located next to the controller above the front grill of the cabinet. When the manual defrost cycle initiates a fan icon will appear on the controller display as well as “def” (figure 3a). When the defrost cycle ends, the cabinet resumes normal operation. To cancel a manual defrost cycle, momentarily turn off the electricity to the machine (unplug unit).

8.8F x Perlick

Figure 3a

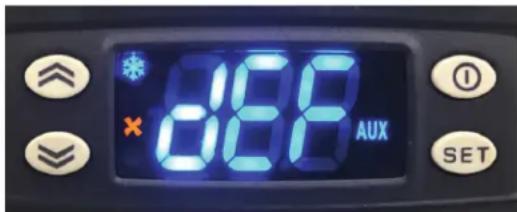

Automatic Defrost

This automatic defrost ensures that frost will not buildup on the evaporator coil. Every four hours it shuts down the condensing unit, box frame heater, evaporator fan and supplies power to the defrost element clamped to the bottom of the evaporator. When automatic defrost is initiated the controller will display a melting snowflake as well as “def” for the duration of the defrost (figure 3b).

8.8 SET

Figure 3b

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

HOW TO OPERATE- GLASS FROSTERS

To manually initiate the automatic defrost cycle press and hold either the up or down arrows. The defrost cycle lasts for approximately 20 minutes followed by 2 minutes of drip time (where the evaporator fan shuts off to allow water to drip off the coil and drain before it can refreeze). (figure 3c).

80F SET

Figure 3c

When the cycle is complete the unit will resume cooling operation shown on the controller with a snowflake and fan icon, however “def” will remain on the display screen until the next time the set point value is reached (figure 3d). During normal operation it is recommended that the doors are not left open to prevent excessive frost buildup on the coil.

8.8 AUX SET

Figure 3d

Cleaning the Condenser

DANGER Flammable Refrigerant. Risk of fire or explosion. Do not damage refrigeration tubes.

■ The condenser (located behind the front grille) should be inspected every 30 days, and cleaned, if necessary. Condenser should be cleaned using a soft bristled brush and vacuum. Failure to keep the condenser clean will cause a loss in condensing unit efficiency, or compressor failure.

Cleaning the Doors

■ Doors should be periodically removed from the cabinet and inspected for a buildup of foreign materials, such as syrups, beer, etc. Buildups on the underside of the doors, along with the cabinet breaker strips on which they ride, will cause them to bind, and therefore, not function as designed. If dirty, these surfaces should be cleaned with a mild detergent and water and then coated with an NSF certified silicone lubricating material.

To remove doors:

■ With door closed, lift it upward by its handle and slide forward until doors clears the cabinet top. Use the reverse procedure to reinstall the doors.

Cleaning the Cabinets

■ Use a damp cloth with a mild detergent and water to clean the inside and outside of the cabinet. Dry thoroughly. Do not allow cleaning agents or large amounts of water to go down the drain. Use an acceptable stainless steel polish to clean all stainless steel surfaces. Never use steel wool or scouring pads to clean stainless steel.

Avoiding Stainless Steel Corrosion

Corrosion can be prevented by following product cautions, cleaning instructions and avoiding use of certain chemicals or objects which will cause stainless steel corrosion.

STAINLESS STEEL ENEMY

■ Steel wool or steel scouring pads
■ Cherry/Orange/Olive juice
■ Chlorine Bleach
■ Sharp Objects

WIRING DIAGRAM - GLASS FROSTERS

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

REPLACEMENT PARTS- GLASS FROSTERS

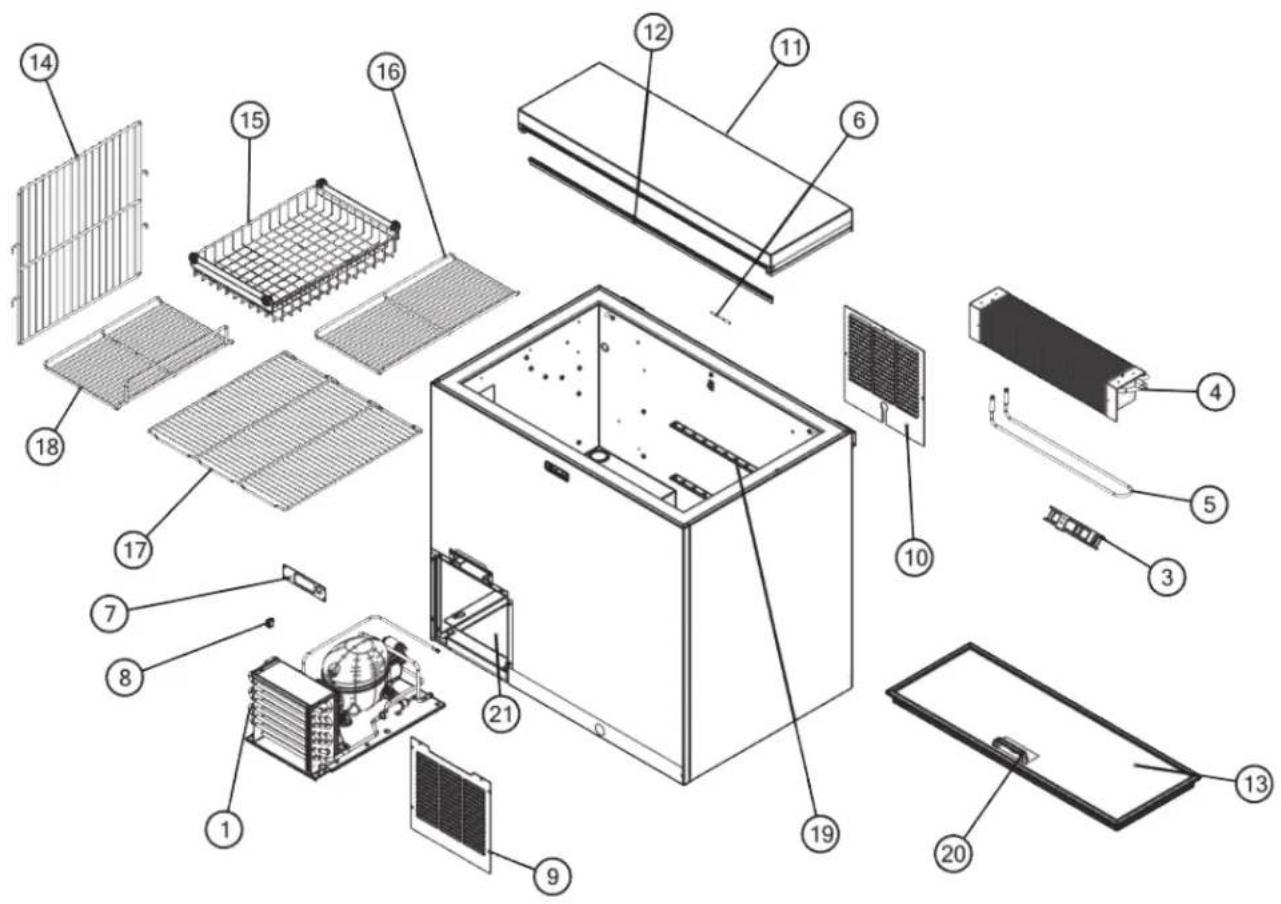

Exploded view diagram of a refrigerator with numbered parts for identification

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

REPLACEMENT PARTS- GLASS FROSTERS

MODEL NOS. FR24 RT - 3 FR36 RT - 3 FR48 RT - 3 FR60 RT - 3
Item Description Part Numbers
1	Complete condensing unit 1018400 1018400 1018400 1018400
	Replacement compressor, R290 C22999CMP11 C22999CMP11 C22999CMP11 C22999CMP11
	Condensing unit fan motor assy. 1013047 1013047 1013047 1013047
	Condensing unit filter drier C22999DAH01 C22999DAH01 C22999DAH01
	Condensing units electrical components	C22999STCP10	C22999STCP10	C22999STCP10	C22999STCP10
3	Evaporator fan	71386	71386	71386	71386
4	Evaporator coil	64785-1EP	C17511-1EP	C17511-1EP	C17511-2EP
5	Defrost heater	C25655-1	65045-1	65045-1	61900
6	Temperature sensor	1005668	1005668	1006584	1006584
7	Controller Bracket	1024461-1	1024228-2	1024428-2	1024228-2
8	Manual Defrost Switch	1026317	1026317	1026317	1026317
9	Front grille	1024465-1	1024230-1	1024230-1	1024230-1
10	Rear grille/panel	66498-1	65662-3	65662-3	65662-3
11	Top assembly	RT-SL2	RT-SL2	RT-SL2	RT-SL2
12	Top wiper gasket	63671-24	63671-36	63671-48	63671-60
13	Door assembly	RD-SL2	RD-SL2	RD-SL2	RD-SL2
14	Vertical partition	65503	66441	66441	66441
15	Roller basket	N/A	66442-1	66442-1	66442-1
16	Wide shelf	N/A	64811-1	64811-1	64811-1
17	Narrow shelf	64809-1	64809-1	64809-1	64809-1
	Bottom floor rack (wide)	64814-1	64814-1	64814-1	64814-1
18	Bottom floor rack (narrow)	N/A	N/A	64815-1	64815-1
	Shelf with side rail	N/A	64810-1	64810-1	64810-1
19	Shelf bracket	65653-24	65653-36	65653-48	65653-60
20	Door handle	63931	63931	63931	63931
21	Evaporator drain pan	1025311-1	1025311-2	1025583-1	1025583-2

ITEMS NOT SHOWN

Wire harness, main	1026161 1026161 1026161 1026161
Suction line and capillary tube assembly	1026509	1026509	1026526	1026528
Mullion assembly	N/A	N/A	66551	66551
Refrigerant charge (grams R290)	80	100	100	115
Defrost temp. limit switch	57676	57676	57676	57676
Evaporator fan DC driver	68758	68758	68758	68758
Digital temperature controller	1026455 1026455 1026455 1026455

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

SPEC DRAWINGS - GLASS FROSTERS

24" CABINET

24" [610] 11 5/8" [295] 2 [51] 2" [51] 34 1/8" [866] END VIEW* 24" CABINET

24" [610] 2" [51] 2" [51] 19 1/16" [484] INSIDE FRONT VIEW* 24" CABINET POWER CORD EXIT (BACK OF UNIT)

36", 48", 60" CABINET

24" [610] 11 5/8" [295] 2" [51] 34 1/8" [866] END VIEW* 36", 48", 60" CABINET

36" [914] 48" [1219] 60" [1524] 2" [51] 2" [51] 17 1/16" [433] HOUSING STEP 27 3/4" [705] INSIDE POWER CORD EXIT (BACK OF UNIT) FRONT VIEW* 36", 48", 60" CABINET

NOTES

Perlick®

Form No. Z2633

Rev. 04.20.23
