Product Type	Microwave oven with grill
Model	MG30T5018AC
Dimensions (W x H x D)	517 x 297.3 x 425.3 mm (including handle)
Oven Cavity Dimensions (W x H x D)	357 x 255 x 357 mm
Capacity	30 liters
Net Weight	Approx. 15.9 kg
Power Supply	230 V, 50 Hz AC
Maximum Power Consumption	2900 W
Microwave Power Consumption	1400 W
Grill Power Consumption	1500 W
Microwave Output Power	100 W / 900 W (6 levels, IEC-705)
Operating Frequency	2450 MHz
Cooking Modes	Microwave, Grill, Microwave+Grill (3 power levels), Power Defrost (4 programs), Auto Cook (32 pre-sets)
Control Panel	Display, dial, buttons for Microwave, Grill, Microwave+Grill, Power Defrost, Auto Cook, Turntable Off, Clock, STOP/Eco, START/+30s
Additional Features	Child Lock, Turntable On/Off, Eco mode, Beeper on/off, Clock setting (12/24h)
Accessories Included	Roller ring, Turntable, Grill rack
Safety Features	Door safety interlocks, child lock, automatic shutdown when empty, overheat protection
Cleaning	Wipe with soft damp cloth; mild detergent for interior; do not use abrasive cleaners or steam cleaner
Warranty	Limited warranty; Samsung will charge for repair of cosmetic defects caused by customer

Frequently Asked Questions - MG30T5018AC SAMSUNG

How do I set the clock on my Samsung MG30T5018AC microwave?

Press OK (Clock) button. Use < or > to select 12h or 24h, then press OK. Set hour and minute using < or >, pressing OK after each.

How do I activate Child Lock?

Press and hold START/+30s for 3 seconds. The display shows 'L'. To deactivate, press and hold again for 3 seconds.

Why is my microwave not heating?

Check that the door is closed properly and the power is supplied. Ensure you have selected a cooking function and time. If empty, the oven will not operate.

Can I use metal containers in this microwave?

No, metal containers are not allowed during microwave cooking as they can cause arcing and fire. Only use microwave-safe utensils.

How do I clean the microwave interior?

Use a soft cloth with soapy water to clean the interior and door seals. Rinse and dry well. For stubborn odors, heat a cup of diluted lemon juice on max power for 10 minutes.

What does error code C-d0 mean?

C-d0 indicates control buttons were pressed for over 10 seconds. Clean the keys and check for moisture. If it persists, unplug for 30 seconds and try again. Contact Samsung if issue continues.

How do I use the Power Defrost function?

Press Power Defrost. Select food type (meat, poultry, fish, bread/cake) with < or > and press OK. Enter weight and press START/+30s. Turn food over when prompted.

Can I grill without microwaves?

Yes, press Grill and set time (max 60 minutes). Place food on the grill rack. Preheating for 3-5 minutes improves browning.

What is the maximum cooking time for microwave mode?

The microwave mode allows you to set cooking time up to 99 minutes and 99 seconds (depending on model). Use < or > to adjust.

How do I switch off the beeper?

Press < and > (Decrease/Increase) buttons simultaneously to turn off the beeping sound. Press again to turn it back on.

USER MANUAL MG30T5018AC SAMSUNG

samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

8 Ελληνικά

Εγκατάσταση

Εξαρτήματα

Technical line drawing of a mechanical component with a circular base and central hub (no text or symbols)

Line drawing of a chicken inside a rectangular frame with dashed lines indicating hidden edges (no text or symbols)

Simple line drawing of a circular object with internal structure and two protrusions (no text or symbols)

Safety instructions 3

Important safety instructions 3

General safety 6

Microwave operation precautions 7

Limited warranty

Product group definition 8

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 8

Installation 9

Accessories

Installation site

Turntable

Maintenance 10

Cleaning

Replacement (repair)

Care against an extended period of disuse

Microwave oven features 11

Microwave oven 11

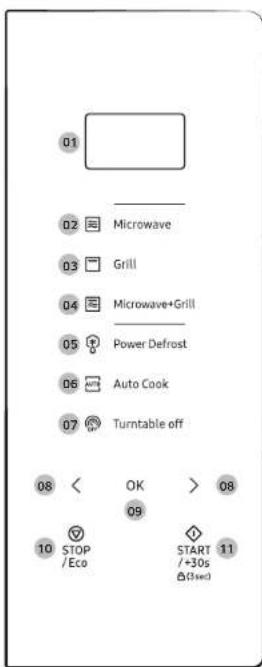

Control panel

Microwave oven use 12

How a microwave oven works

Checking that your microwave oven is operating correctly

Cooking/Reheating

Setting the time

Power levels and time variations

Adjusting the cooking time

Stopping the cooking

Setting the energy save mode

Using Power Defrost

Using Auto Cook 18

Grilling

24

Combining microwaves and grill 24

Using Child Lock 25

Using Turntable On/Off 25

Switching the beeper off 25

Cookware guide 26

Cooking guide 27

Troubleshooting and information code 35

Troubleshooting

35

Information code 39

Technical specifications 39

2 English

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;

• bed and breakfast type environments.

Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Safety instructions

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The care should be taken not to displace the turntable when removing containers from the appliance.

The appliance shall not be cleaned with a steam cleaner.

The appliance should not be cleaned with a water jet.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

The microwave oven has to be positioned so that plug is accessible.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The door or the outer surface may get hot when the appliance is operating.

The temperature of accessible surfaces may be high when the appliance is operating.

The surfaces are liable to get hot during use.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

Safety instructions

General safety

Any modifications or repairs must be performed by qualified personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven.

Do not install the oven: near a heater or flammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface.

This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts.

Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord.

Do not touch the power cord with wet hands.

While the oven is operating, do not turn it off by unplugging the power cord. Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre.

Do not apply excessive pressure or impact to the oven.

Do not place the oven over fragile objects.

Ensure the power voltage, frequency, and current matches the product specifications.

Firmly plug the power plug into the wall socket. Do not use multiple plug adapters, extension cords, or electric transformers.

Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven.

Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre.

Do not pour or directly spray water onto the oven.

Do not place objects on the oven, inside, or on the oven door.

Do not spray volatile materials such as insecticide on the oven.

Do not store flammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol.

Children may bump themselves or catch their fingers on the door. When opening/closing the door, keep children away.

Microwave warning

Microwave heating of beverages may result in delayed eruptive boiling; always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating.

In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking.

Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils.

6 English

Microwave oven precautions

Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc.

Remove wire twist ties. Electric arcing may occur.

Do not use the oven to dry papers or clothes.

Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources.

To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.

Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally.

Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.)

Use caution when connecting other electrical appliances to sockets near the oven.

Microwave operation precautions

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

• Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.
• Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.

- Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician.

Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.

- All adjustments or repairs must be done by a qualified technician.

Safety instructions

Limited warranty

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

- Door, handles, out-panel, or control panel that are dented, scratched, or broken.

- A broken or missing tray, guide roller, coupler, or wire rack.

Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur, it is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven.

Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com.

Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven. To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained.

Product group definition

This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

8 English

Installation

Accessories

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

01 Roller ring, to be placed in the centre of the microwave oven. The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre fitting to the coupler.

The turntable serves as the main cooking surface; it can be easily removed for cleaning.

03 Grill rack, to be placed on the turntable. The metal rack can be used in grill and combination cooking.

CAUTION

Do not operate the microwave oven without the roller ring and turntable.

Installation site

A. 20 cm above
B. 10 cm behind
C. 10 cm on the side
D. 85 cm above the floor

• Select a flat, level surface approximately 85 cm above the floor. The surface must support the weight of the microwave oven.
• For ventilation, secure 20 cm above and 10 cm at the left/right/rear side of the microwave oven.
• Do not install the microwave oven in hot or damp surroundings, such as next to other microwave ovens or radiators.
• Conform to the power supply specifications of this microwave oven. Use only approved extension cables if you need to use.
• Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

Turntable

Simple line drawing of a circular mechanical component with a central hub and an arrow indicating direction (no text or symbols)

Remove all packing materials inside the microwave oven. Install the roller ring and turntable. Check that the turntable rotates freely.

Maintenance

Cleaning

Clean the microwave oven regularly to prevent impurities from building up on or inside the microwave oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the microwave oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the microwave oven

1. With an empty microwave oven, put a cup of diluted lemon juice on the centre of the turntable.
2. Heat the microwave oven for 10 minutes at max power.
3. When the cycle is complete, wait until the microwave oven cools down. Then, open the door and clean the cooking chamber.

CAUTION

• Keep the door and door scaling clean and ensure the door opens and closes smoothly. Otherwise, the microwave oven's lifecycle may be shortened.
  • Take caution not to spill water into the microwave oven vents.
• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the microwave oven, use a mild detergent to clean the cooking chamber after waiting for the microwave oven to cool down.

Replacement (repair)

WARNING

This microwave oven has no user-removable parts inside. Do not try to replace or repair the microwave oven yourself.

• If you encounter a problem with hinges, scaling, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.
• If you encounter a problem with the outer housing of the microwave oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

If you don't use the microwave oven for an extended period of time, unplug the power cord and move the microwave oven to a dry, dust-free location. Dust and moisture that builds up inside the microwave oven may affect the performance of the microwave oven.

10 English

Microwave oven features

Microwave oven

01 Door handle
02 Door
03 Ventilation holes
04 Heating element
05 Light
06 Door latches
07 Turntable
08 Coupler
09 Roller ring
10 Safety interlock holes

Control panel

01 Display
02 Microwave
03 Grill
04 Microwave+Grill
05 Power Defrost
06 Auto Cook
07 Turntable Off
08 Decrease/Increase (Weight/Serving/Time)
09 OK (Clock)
10 STOP/Eco
11 START/+30s (Child Lock)

English 11

Microwave oven use

How a microwave oven works

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
• Reheat
  • Cook

Cooking principle

Line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the container used and the properties of the food:

• Quantity and density
- Water content
- Initial temperature (refrigerated or not)

NOTE

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the microwave oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre.
• The same temperature throughout the food.

12 English

Checking that your microwave oven is operating correctly

The following simple procedure enables you to check that your microwave oven is working correctly at all times.

If you have any problems, see the "Troubleshooting" section on pages 35 to 39.

NOTE

The microwave oven must be plugged into an appropriate wall socket. The turntable must be placed in the microwave oven. If a power level other than the maximum (100% - 900 W) is used, the water takes longer to boil.

1. Pull the handle to open the microwave oven door.
2. Place a glass of water on the turntable, and then close the door.
3. Press Microwave.
4. Press START/+30s repeatedly to set the time to 4 or 5 minutes.
5. The microwave oven heats the water for the set time. Check and make sure the water is boiling.

Cooking/Reheating

The following procedure explains how to cook or reheat food.

CAUTION

Always check your cooking settings before leaving the microwave oven unattended.

1. Pull the handle to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.

CAUTION

Do not operate the microwave oven when it is empty.
3. Press Microwave.

- The control panel display shows the corresponding icon (1) and the maximum power level (900 W).

1. Press < or > (Decrease/Increase) to select the desired power level, and then press OK.
2. Refer to the "Power levels and time variations" section on page 14 for the appropriate power level.
3. Press < or > (Decrease/Increase) to select the desired power level, and then press OK.

1. Press < or > (Decrease/Increase) to set the desired cooking time.

- The control panel display shows the cooking time.

1. Press START/+30s to start cooking.

2. The light turns on and the turntable starts to rotate.

3. When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Microwave oven use

Setting the time

When power is supplied, "88:88" and then "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour clock. You must set the clock:

- When you first install your microwave oven

• After a power failure

NOTE

You must manually change the time to apply daylight saving time.

1. Press OK.

2. Press < or > (Decrease/Increase) to select 24-hour or 12-hour clock, and then press OK.

3. Press < or > (Decrease/Increase) to set the hour, and then press OK.
4. Press < or > (Decrease/Increase) to set the minute, and then press OK.

NOTE

The control panel display shows the time when the microwave is not in use.

Power levels and time variations

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels.

Power level Percentage Output
HIGH 100 % 900 W
MEDIUM HIGH 67 % 600 W
MEDIUM 50 % 450 W
MEDIUM LOW 33 % 300 W
DEFROST 20 % 180 W
LOW 11 % 100 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

• The cooking time decreases if you select a higher power level.
• The cooking time increases if you select a lower power level.

14 English

Adjusting the cooking time

You can increase or decrease the cooking time while the microwave oven is cooking.

- Check how cooking is progressing at any time simply by opening the door, and then increase or decrease the cooking time if necessary.

Method 1

Press START/+30s to increase the cooking time by 30 seconds.

• Example: To add three minutes, press START/+30s six times.

NOTE

You can only increase the cooking time.

Method 2

Press < or > (Decrease/Increase) to adjust the cooking time.

Stopping the cooking

You can stop cooking at any time so that you can:

• Check the food
  • Turn the food over or stir it
• Leave it to stand

To stop the cooking temporarily

1. Open the door or press STOP/Eco once.
   • Cooking stops temporarily.
2. To resume cooking, close the door and press START/+30s.

To stop the cooking completely

1. Open the door or press STOP/Eco once.
   • Cooking stops temporarily.
2. Press STOP/Eco button again.

Microwave oven use

Setting the energy save mode

The microwave oven has an energy save mode.

• Press STOP/Eco. The control panel display turns off.
• To cancel the energy save mode, open the door or press STOP/Eco. The control panel display shows the current time.

NOTE

Auto energy saving function

The product returns to standby status if there is no input for 25 minutes in the middle of setting or while the operation has been paused. Also, if you leave the door open, the interior lamp automatically turns off after 5 minutes.

Using Power Defrost

Power Defrost enable you to defrost meat, poultry, fish, bread and cake. The defrost time and power level are set automatically. You simply select the programme and the weight.

CAUTION

Use only containers that are microwave-safe.

1. Pull the handle to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.

3. Press Power Defrost.

4. Press < or > (Decrease/Increase) to select the type of food, and then press OK.

- For more information, see the "Power defrost programme description" section on page

1. Press < or > (Decrease/Increase) to set the serving size, and then press OK.

2. Press START/+30s to start defrosting.

3. When the microwave oven beeps, open the door and turn the food over.

4. Close the door, and then press START/+30s to resume defrosting.

5. When the defrosting is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

16 English

Power defrost programme description

The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations.

Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat glass dish or ceramic plate.

Code	Food Serving Size	Instructions
1	Meat 200-1500 g	Shield the edges	with aluminium foil. Turn the meat over, when the microwave oven beeps.This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-60 minutes.
2	Poultry 200-1500 g	Shield the leg	and wing tips with aluminium foil. Turn the poultry over; when the microwave oven beeps.This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-60 minutes.
3	Fish 200-1500 g	Shield the tail of a	whole fish with aluminium foil. Turn the fish over, when the microwave oven beeps.This programme is suitable for whole fishes as well as for fish fillets. Stand for 20-50 minutes.

Code Food Serving Size Instructions

4 Bread/Cake 125-1000 g Put bread

on a piece of kitchen paperand turn over, as soon as the microwave oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the microwave oven beeps.This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle.This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 5-20 minutes.

Microwave oven use

Using Auto Cook

Auto Cook has 32 pre-programmed cook settings. You do not need to set either the cooking times or the power level.

CAUTION

Use only containers that are microwave safe.

1. Pull the handle to open the microwave oven door.

2. Place the food on the centre of the turntable, and then close the door.

3. Press Auto Cook

4. Press < or > (Decrease/Increase) to select the desired category, and then press OK. • 1. Healthy Cooking • 2. Home Dessert

5. Press < or > (Decrease/Increase) to select the type of food, and then press OK.

- For more information, see the "Auto Cook programme description" section on pages 19 to 23.

1. Press < or > (Decrease/Increase) to select the weight of food, and then press OK.

2. For more information, see the "Auto Cook programme description" section on pages 19 to 23.

3. Depending on the selected menu, you may have only one weight option available to select.

4. You do not have to select a weight for Home Dessert.

5. Press START/+30s to start Auto Cook.

6. The microwave oven cooks the food according to the selected pre-programmed setting.

7. When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

18 English

The following table presents quantities and appropriate instructions about 32 pre-programmed cooking options. The pre-programmes are categorized into Healthy Cooking and Home Dessert.

CAUTION

Use oven gloves when taking out food.

Auto Cook programme description

1. Healthy Cooking

Code	Food Serving Size Instructions
1-1	Ready Meal(chilled)	350 g450 gPut meal on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Stand for 2-3 minutes.
1-2	Vegetarian Meal(chilled)	350 g450 gPut meal on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 2 components (e.g. spaghetti with sauce or rice with vegetables). Stand for 2-3 minutes.
1-3	Broccoli Florets 250 g	500 gRinse and clean broccoli florets. Put them evenly into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper. Stand for 1-2 minutes.

Code	Food Serving Size	Instructions
1-4	Sliced Carrots 250 g	Rinse and clean	carrots cut into round slices evenly. Put them into a glass bowl with lid. Add 30 45 ml water. (2 3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for sliced carrots as well as cauliflower florets or turnip cabbage. Stand for 1-2 minutes.
1-5	Green Beans 250 g	Rinse and clean	green beans. Put them evenly into a glass bowl with lid. Add 30 ml (1 tbsp.) water when cooking 250 g. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
1-6	Spinach 150 g	Rinse and clean spinach. Put into a glass bowl with lid. Do not add water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
1-7	Corn on the Cob 500 g	(2 pcs.)	Rinse and clean corn on the cobs and put into an oval glass dish. Cover with microwave cling film and pierce film. Stand for 1-2 minutes.
1-8	Peeled Potatoes 250 g	500 g	Wash and peel the potatoes and cut into a similar size. Put them into a glass bowl with lid. Add 45-60 ml (3-4 tbsp.) water. Put bowl in the centre of turntable. Cook covered. Stand for 2-3 minutes.

English 19

Microwave oven use

Code	Food Serving Size Instructions
1-9	Brown Rice (parboiled)	250 g Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 5-10 minutes.
1-10	Wholemeal Macaroni	250 g Use a large glass ovenware dish with lid. Add 1 L hot boiling water, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1 minutes.
1-11	Quinoa 250 g Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 1-3 minutes.
1-12	Bulgur 250 g Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 2-5 minutes.
1-13	Vegetable Cratin 500 g Put the vegetables, such as precooked potato slices, courgette slices and tomatoes and sauce into a suitable sized glass pyrex dish. Add grated cheese on top. Put dish on the grill rack. Stand for 2-3 minutes.

Code	Food Serving Size Instructions
1-14	Grilled Tomatoes 400 g Rinse and clean tomatoes, cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on grill rack. Stand for 1-2 minutes.
1-15	Chicken Breasts 300 g (2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-16	Turkey Breasts 300 g (2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-17	Fresh Fish Fillets 300 g (2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-18	Fresh Salmon Filets 300 g (2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-19	Fresh Prawns 250 g Rinse	prawns on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.

20 English

Code	Food Serving Size Instructions
1-20	Fresh Trout 400 g	(1-2 fish)	Put 1 - 2 fresh whole fish into an microwave oven proof dish. Add a pinch salt, 1 tbsp. lemon juice and herbs. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-21	Grilled Fish 400 g	(1 - 2 fish)	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the grill rack. Turnover, as soon as the beep sounds. Stand for 3 minutes.
1-22	Grilled Salmon Steaks	300 g(2 steaks)	Put fish steaks evenly on the grill rack. Turnover, as soon as the beep sounds. Stand for 2 minutes.

1. Home Dessert

Code	Food Serving Size	Instructions
2-1	Walnut Pound Cake	1 serving IngredientsFlour 120 g, Butter 150 g, Black sugar 100 g, Egg 2 pcs., Walnut (Chopped) 50 g, Baking powder 4 g
		1. Combine a butter and black sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Add a walnut and mix well.5. Pour a mixture in greased glass or plastic bowl.6. Put the bowl in the microwave oven and select the Auto cook [2-1].7. After cooking, stand for 2-3 minutes.
2-2	Banana Bread	1 serving(6 pcs.)	IngredientsBanana 3 pcs. Pancake mix 120 g, Milk 120 g, Egg 1 pc., Malt syrup 2 tbsp.
		1. Chop the banana2. Combine a pancake mix, milk, egg, malt syrup in bowl.3. Add banana and mix well.4. Pour a mixture in 6 paper cups.5. Put paper cups in the microwave oven and select the Auto cook [2-2].6. After cooking, stand for 2-3 minutes.

English 21

Microwave oven use

Code	Food Serving Size	Instructions
2-3	Sponge Cake 1	serving IngredientsFlour 170 g, Butter 50 g, Sugar 150 g,Egg 3 pcs., Baking powder 10 g
		1. Combine a butter and sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Pour a mixture in greased glass or plastic bowl.5. Put the bowl in the microwave oven and select the Auto cook (2-3).6. After cooking, stand for 2-3 minutes.
2-4	Brownie 1 serving Ingredients		Flour 90 g, Butter (Melted) 1⁄2 cup, Sugar 230 g, Egg 2 pcs., Cocoa power 40 g
			1. Combine a butter, beaten eggs, sugar in bowl.2. Add a flour, cocoa powder and keep stirring.3. Pour a mixture in greased glass or plastic bowl.4. Put the bowl in the microwave oven and select the Auto cook (2-4).5. After cooking, stand for 20-30 minutes.

Code	Food Serving Size	Instructions
2-5	Egg Pudding 1	serving(3 pcs.)	IngredientsMilk 250 g, Sugar 40 g, Egg 2 pcs.
		1.Crack the two eggs into a bowl. Lightly beat the egg with a balloon whisk.Don't let the tip of the whisk leave the bottom of the bowl to avoid creating too much foam.2.Combine milk, sugar in other bowl.3.Add the milk to the beaten egg while whisking the mixture.4.Sieve the egg mixture with a fine mesh strainer. Scrape off the bottom of the strainer with a spatula. Remove any foam on the surface with a spoon.5.Pour the mixture into custard cups.6.Put the cups in the microwave oven and select the Auto cook [2-5].7.After cooking, refrigerate and serve.
2-6	Chocolate Mug Cake	1 serving IngredientsButter 30 g, Sugar 60 g, Egg 1 pc.Heavy cream 40 g, Flour 25 g, Cocoa powder 15 g, Vanilla 1.5 g, Semi sweet chocolate chips 50 g
		1.Combine the butter, egg and cream together in a mug until well combined.2.Add the flour, sugar and keep stirring.3.Add the cocoa, vanilla and stir until just combined.4.Stir in the chocolate chips.5.Put the mug in the microwave oven and select the Auto cook [2-6].6.After cooking, stand for 2-3 minutes.
2-7	Mug Cake 1 serving Ingredients		Butter 30 g, Sugar 60 g, Egg 1 pc., Flour 50 g, Milk 30 g, Vanilla 6 g, Almond powder 3 g, Baking powder 1.5 g
			1. Combine the butter, egg together in a mug until well combined.2. Add the flour, sugar, baking powder and keep stirring.3. Add the almond powder, vanilla and stir until just combined.4. Put the mug in the microwave oven and select the Auto cook [2-7].5. After cooking, stand for 2-3 minutes.
2-8	Café Latte 1 serving Ingredients		Instant coffee powder 2 g, Water 50 g, Milk 125 g
			1. Mix the coffee powder and water in mug.2. Pour milk in other mug.3. Put the milk in the microwave oven and select the Auto cook [2-8].4. When the beeps, take mug out.5. Put the coffee mixture in the microwave oven and press the START/+30s button.6. After cooking, mix all well and serve.

Code	Food Serving Size Instructions
2-9	Green Tea Latte	1 serving IngredientsGreen tea powder 6 g, Sugar 15 g. Milk 250 g
		1. Mix all ingredients in mug.2. Put the mug in the microwave oven and select the Auto cook [2-9].3. After cooking, mix well and serve.
2-10	Milk Tea 1 serving Ingredients	Black tea bag 2 pcs., Water 60 g, Milk 125 g
		1. Mix the black tea bag and water in mug.2. Pour milk in other mug.3. Put the tea mixture in the microwave oven and select the Auto cook [2-10].4. When the beeps, take mug out.5. Put the milk in the microwave oven and press the START/+30s button.6. After cooking, mix all well and serve.

English 23

Microwave oven use

Grilling

The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
- You can get better cooking and grilling results, if you use the grill rack.

Simple line drawing of a circular object with internal structure and two vertical supports (no text or symbols)

1. Pull the handle to open the microwave oven door.

2. Place the food on the grill rack, and then close the door.

3. Press Grill

4. The control panel display shows the corresponding icon 17.

5. You cannot set the temperature of the grill.

6. Press < or > (Decrease/Increase) to set the desired grilling time.

• The maximum grilling time is 60 minutes.

1. Press START/+30s to start grilling.

- When the grilling is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

Combining microwaves and grill

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

CAUTION

• Always use microwave safe and oven proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.
• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
- You can improve cooking and grilling, if you use the grill rack.

1. Pull the handle to open the microwave oven door.
2. Place the food on the grill rack, and then close the door.
3. Press Microwave+Grill

• The control panel display shows the default power level (600 W).
- The control panel display shows the corresponding icon (☐).

1. Press < or > (Decrease/Increase) to select the desired power level, and then press OK.

2. You can select the power level from 600 W, 450 W, or 300 W.

3. You cannot set the temperature of the grill.

Using Child Lock

Your microwave oven is fitted with a special child lock programme, which enables the microwave oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

• To activate Child Lock, press and hold START/+30s for 3 seconds.
- The control panel is locked, and the control panel display shows "L".
• To deactivate Child Lock, press and hold START/+30s again for 3 seconds.

Using Turntable On/Off

The Turntable Off function stops the turntable from rotating during cooking, which enables you to use large dishes which fill the whole microwave oven.

WARNING

Never operate the turntable without food in the microwave oven.

Reason: This may cause fire or damage to the unit.

NOTE

The results will be less satisfactory in this case as the cooking is less even. We recommend turning the dish manually halfway through the cooking process.

• To stop the turntable from rotating, press Turntable Off.
- To set the turntable to rotate again, press Turntable Off again.

NOTE

You can set this function when you set the cooking function, and also during cooking.

Switching the beeper off

You can switch the beeper off whenever you want.

• To turn the beeping sound off, press < and > (Decrease/Increase) at the same time.
• To turn the beeping sound back on, press < and > (Decrease/Increase) at the same time again.

English 25

Cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry.

The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware	Microwave-safe	Comments
Alunimium foil	√✗	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the microwave oven wall or if too much foil is used.
Crust plate	√	Do not preheat for more than 8 minutes.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packagingPolystyrene cups containersPaper bags or newspaperRecycled paper or metal trims	√✗✗	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
GlasswareOven-to-tablewareFine glassware	√√	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids.Delicate glass may break or crack if heated suddenly.

Cookware	Microwave-safe	Comments
Glass jars	√	Must remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist ties	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✗	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✗	Particularly if heat resistant thermoplastic. Some other plastics may warp or discolour at high temperatures.Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use caution

x : Unsafe

26 English

Cooking guide

Microwaves

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

Cooking

Cookware for microwave cooking

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer.

Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Serving Size Power Time (min.)
Spinach 150 g 600	W 5-6
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Broccoli 300 g 600	W 8-9
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Peas 300 g 600 W	7 8
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Green Beans 300 g	600 W 71⁄2-81⁄2
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Carrots/Peas/Corn)	300 g 600 W	7-8
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Chinese Style)	300 g 600 W	71⁄2-81⁄2
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.

Cooking guide

Cooking guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

Food Serving Size Power Time (min.)
Broccoli 250 g	500 g	900 W 41⁄2 5	7.8
	InstructionsPrepare even sized florets. Arrange the stoms to the centre.Stand for 3 minutes.
Brussels Sprouts	250 g 900 W	6-61⁄2
	InstructionsAdd 60-75 ml (4-5 tbsp.) water. Stand for 3 minutes.
Carrots 250 g 900 W 41⁄2-5
		InstructionsCut carrots into even sized slices. Stand for 3 minutes.
Cauliflower 250 g	500 g	900 W 5-51⁄2	71⁄2 81⁄2
	InstructionsPrepare even sized florets. Cut big florets into halves.Arrange stems to the centre. Stand for 3 minutes.
Courgettes 250 g	900 W 4-41⁄2
	InstructionsCut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Stand for 3 minutes.

Food Serving Size Power Time (min.)
Eggplants 250 g	900 W 31⁄2-4
	InstructionsCut eggplants into small slices and sprinkle with 1 tbsp, lemon juice. Stand for 3 minutes.
Leeks 250 g 900	W 4-41⁄2
	InstructionsCut leeks into thick slices. Stand for 3 minutes.
Mushrooms 125 g	250 g	900 W 11⁄2-2	21⁄2-3
	InstructionsPrepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper.Drain before serving. Stand for 3 minutes.
Onions	250 g 900 W	5-51⁄2
	InstructionsCut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Stand for 3 minutes.
Pepper	250 g 900 W	41⁄2-5
	InstructionsCut pepper into small slices. Stand for 3 minutes.
Potatoes	250 g500 g	900 W	4 57 8
	InstructionsWeigh the peeled potatoes and cut them into similar sized halves or quarters. Stand for 3 minutes.
Turnip Cabbage	250 g 900 W	51⁄2-6
	InstructionsCut turnip cabbage into small cubes. Stand for 3 minutes.

28 English

Cooking guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Serving Size Power Time (min.)
White Rice (Parboiled)	250 g375 g	900 W 15-16	1712-1812
	InstructionsAdd 500 ml cold water. (250 g), Add 750 ml cold water. (375 g)Stand for 5 minutes.
Brown Rice (Parboiled)	250 g375 g	900 W 20-21	22-23
	InstructionsAdd 500 ml cold water. (250 g), Add 750 ml cold water. (375 g)Stand for 5 minutes.
Mixed Rice (Rice + Wild Rice)	250 g 900 W	16-17
	InstructionsAdd 500 ml cold water. Stand for 5 minutes.
Mixed Corn (Rice + Grain)	250 g 900 W	17-18
	InstructionsAdd 400 ml cold water. Stand for 5 minutes.
Pasta 250 g 900	W 10-11
	InstructionsAdd 1000 ml hot water. Stand for 5 minutes.

Reheating

Your microwave oven will reheat food in a fraction of the time that conventional ovens and hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating.

Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if necessary.

Cooking guide

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

Reheating liquids

Always allow a standing time of at least 20 seconds after the microwave oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating.

To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

Reheating baby food

Baby food

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C.

Baby milk

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

Remark

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating liquids and food

Use the power levels and times in this table as a guide lines for reheating.

Food Serving Size Power Time (min.)
Drinks (Coffee, Tea and Water)	150 ml (1 cup)300 ml (2 cups)450 ml (3 cups)600 ml (4 cups)	900 W 1-1 12	2 2 12 3-3 12 3 12 -4
	InstructionsPour into cups and reheat uncovered:1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes.
Soup (Chilled) 250 g350 g450 g550 g		900 W 2 12 -3	3 3 12 3 12 44 12 -5
		InstructionsPour into a deep ceramic plate or deep ceramic bowl.Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes.
Stew (Chilled) 350 g 600 W 4 12 5 12
		InstructionsPut stew in a deep ceramic plate. Cover with plastic lid.Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes.

30 English

Food Serving Size Power Time (min.)
Pasta with Sauce (Chilled)	350 g 600 W	312 - 412
	InstructionsPut pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Stand for 3 minutes.
Filled Pasta with Sauce (Chilled)	350 g 600 W	4-5
	InstructionsPut filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes.
Plated Meal (Chilled)	350 g450 g	600 W 412 - 512	512 - 612
	InstructionsPlate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling film. Stand for 3 minutes.
Cheese Fondue Ready To Serve (Chilled)	400 g 600 W	6-7
	InstructionsPut the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Stand for 1-2 minutes.

Reheating baby food and milk

Use the power levels and times in this table as guide lines for reheating.

Food Serving	Size Power Time
Baby Food (Vegetables + Meat)	190 g 600 W	30 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Porridge (Grain + Milk + Fruit)	190 g 600 W	20 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered.Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Milk 100 ml	300 W 30-40 sec.200 ml 1 min	to	1 min. 10 sec.
	InstructionsStir or shake well and pour into a sterilised glass bottlePlace into the centre of turntable. Cook uncovered.Shake well and stand for at least 3 minutes.Before serving, shake well and check the temperature carefully.

English 31

Cooking guide

Defrosting

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing lime for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about 18 to 20 °C, use the following table as a guide.

Food Serving	Size Power Time (min.)
MeatMinced Meat 250Pork Steaks 250	g500 g180 W 5-7	180 W 6-7	9 12
	InstructionsPlace the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!Stand for 15-30 minutes.

Food Serving Size Power Time (min.)
PoultryChicken Pieces 500 g (2 pcs) 180 W 14-15Whole Chicken 1200 g 180 W 32-34
FishFish Fillets 200 g180 W 6-7Whole Fish 400 g180 W 11-13
FruitBerries 300 g 180 W 6-7

32 English

Food Serving Size Power Time (min.)
Bread
Bread Rolls(Each ca. 50 g)Toast/Sandwich2German Bread(Wheat + Rye Flour)	2 pcs.4 pcs.50 g 180 W 4 4 12 500 g 180 W 7 9	180 W 1-1 12	2 12 -3
	InstructionsArrange rolls in a circle or bread horizontally on kitchen paperin the middle of turntable. Turn over after half of defrostingtime! Stand for 5-20 minutes.

Grill

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly.

Cookware for grilling

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling

Chops, sausages, steaks, hamburgers, bacon and gammon rashers. thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark

Whenever the grill only mode is used, please remember that food must be placed on the grill rack, unless another instruction is recommended.

Microwave + grill

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for conking with microwaves - grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwaves + grill cooking

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark

Whenever the combination mode (microwave + grill) is used, the food should be placed on the grill rack, unless another instruction is recommended. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

English 33

Cooking guide

Grill guide for fresh and frozen foods

Preheat the grill with the grill-function for 3 minutes.

Use the power levels and times in this table as guide lines for grilling.

CAUTION

Use oven gloves when taking out.

Fresh food Serving Size Power 1 step (min.) 2 step (min.)
Toast Slices	4 pcs. (each 25 g)	Grill only	3-4	2-3
	InstructionsPut toast slices side by side on the grill rack.
Grilled Tomatoes	400 g (2 pcs.) 300 W + Grill 5-6 -
	InstructionsCut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the grill rack.Stand for 2-3 minutes.
Tomato-Cheese Toast	4 pcs. (300 g) 300 W + Grill 4-5 -
	InstructionsToast the bread slices first. Put the toast with topping on the grill rack. Stand for 2-3 minutes.
Baked Potatoes	500 g	600 W + Grill 7	8
	InstructionsCut potatoes into halves. Put them in a circle on the grill rack with the cut side to the grill.
Frozen Lasagne	400 g	300 W + Grill Grill only	18 12 -19 12 1-2	-
	InstructionsPut the fresh gratin into a small microwave oven proof dish. Put the dish on the turntable. After cooking stand for 2-3 minutes.

Fresh food Serving Size Power 1 step (min.) 2 step (min.)
Baked Apples	2 apples(ca. 400 g)	300 W + Grill 7-8 -
	InstructionsCore the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish.Place the dish directly on the grill rack.
Chicken Pieces	500 g (2 pcs.) 300 W + Grill 8-10 6-8
	InstructionsBrush chicken pieces with oil and spices. Put them in a circle on the grill rack. After grilling stand for 2-3 minutes.
Roast Chicken	1200 g 450 W + Grillturnover300 W + Grill 21-22		21-22
	InstructionsBrush the chicken oil and spices. Put in an microwave oven proof dish and place on turntable. After grilling stand for 5 minutes.
Roast Fish 400-500 g 300 W + Grill 5-7 5 12 6 12
		InstructionsBrush skin of whole fish with oil and add herbs and spices.Put two fish side by side (head to tail) on the grill rack.After grilling stand for 2-3 minutes.
Frozen Pizza	300-350 g 450 W + Grill 11-12		-
	InstructionsPut the frozen pizza on the circle on the grill rack. Put the grill rack on the turntable. Stand for 1-2 minutes.

34 English

Cooking guide

Tips and tricks

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

Cooking jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

Cooking pudding/custard

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the microwave oven. Use oven gloves while taking out!

Troubleshooting and information code

Troubleshooting

If you have any of the problems listed below try the solutions given.

Problem Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The time is not displayed.	The Eco (power-saving) function is set.	Turn off the Eco function.
The microwave oven does not work.	Power is not supplied. Make sure power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The microwave oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the START/+30s button again to start operation.

Troubleshooting and information code

Problem Cause	Action
The power turns off during operation.	The microwave oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the microwave oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the microwave oven without food inside.	Put food in the microwave oven.
	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the microwave oven.
There is a popping sound during operation, and the microwave oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.

Problem Cause	Action
The microwave oven exterior is too hot during operation.	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the microwave oven.	Remove all objects on the top of the microwave oven.
The door cannot be opened properly.	Food residue is stuck between the door and microwave oven interior.	Clean the microwave oven and then open the door.
Heating including the Warm function does not work properly.	The microwave oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	Too much food is being cooked.	Reduce the amount of food and start the function again.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the STOP/Eco button.
	The interior light is covered by foreign matter.	Clean the inside of the microwave oven and check again.

36 English

Problem Cause	Action
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the START/+30s button again to restart operation.
The microwave oven is not level.	The microwave oven is installed on an uneven surface.	Make sure the microwave oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the microwave oven/thawing functions.	Do not use metal containers.
When power is connected, the microwave oven immediately starts to work.	The door is not properly closed.	Close the door and check again.
There is electricity coming from the microwave oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
1. Water drips.2. Steam emits through a door crack.3. Water remains in the microwave oven.	There may be water or steam in some cases depending on the food. This is not an microwave oven malfunction.	Let the microwave oven cool and then wipe with a dry dish towel.

Problem Cause	Action
The brightness inside the microwave oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an microwave oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the microwave oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an microwave oven malfunction.
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turntable drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.
The turntable rattles while turning and is noisy.	Food residue is stuck to the bottom of the microwave oven.	Remove any food residue stuck to the bottom of the microwave oven.

Troubleshooting and information code

Problem Cause	Action
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
	Food is too close to the grill.	Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.
Microwave oven
The microwave oven does not heat.	The door is open. Close the door and try again.
Smoke comes out during preheating.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the microwave oven.	Plastic or non heat-resistant cookware is used.	Use glass cookware suitable for high temperatures.

Problem Cause	Action
There is a bad smell coming from inside the microwave oven.	Food residue or plastic has melted and stuck to the interior.	Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the microwave oven to remove the odour more quickly.
The microwave oven does not cook properly.	The microwave oven door is frequently opened during cooking.	If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The microwave oven controls are not correctly set.	Correctly set the microwave oven controls and try again.
	The grill or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong type or size of cookware is used.	Use suitable cookware with flat bottoms.

38 English

Troubleshooting and information code

Information code

Information code	Cause Action
C-d0	Control buttons are pressed over 10 seconds.	Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre.

NOTE

if the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre.

Technical specifications

5AMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MG30T5018A*
Power source 230 V	-50 Hz AC
Power consumption
Maximum power	2900 W
Microwave	1400 W
Grill (heating element)	1500 W
Output power 100 W / 900 W - 6 levels (IEC-705)
Operating frequency 2450 MHz
Dimensions (W x H x D)
Outside (Include Handle)	517 x 297.3 x 425.3 mm
Oven cavity	357 x 255 x 357 mm
Volume 30 liter
Weight
Net	15.9 kg approx.

English 39

SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRIA 0800 72 67 864 (0800-5AMSUNG) www.samsung.com/at/support
BELGIUM 02 201 24 18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
GERMANY 06196 77 555 77 www.samsung.com/de/support
ITALIA 800-SAMSUNG (800.7267864); www.samsung.com/it/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line	www.samsung.com/gr/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN	0771 725 785	www.samsung.com/se/support
SWITZERLAND	0800 725 785	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK	0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support

DE68-04591J00
