USER MANUAL SN13SIV LG
Please read this manual carefully before operating your set and retain it for future reference.
TYPE: WALL MOUNTED
INVERTER V
MODELS :
S10SIV S13SIV
S18SIV
TABLE OF CONTENTS
A. Safety Precautions....3
B. Electrical Safety....6
Temporary Use of an Adapter ....6
Temporary Use of an Extension Cord ......6
Symbols used in this Manual....6
C. Product Introduction....7
Indoor Units 7
Operation Indication Lamps ....7
Outdoor Unit 7
D. Operating Instructions ....8
How to insert the Batteries 8
Wireless Remote Controller Maintenance....8
Operating Method......8
Wireless Remote Controller....9
Operation Mode....10
Auto Operation 11
Healthy Dehumidification Operation......11
Auto Clean Operation....11
Energy-Saving Cooling Mode 12
Setting the Current Time ....12
PLASMA Purification Generation
Operation 12
Display Luminosity....12
Timer Setting 13
Sleep Mode 13
Vertical Vane Control....14
Horizontal Vane Control....14
Jet Cool Operation 14
Forced operation 15
Auto Restart Function....15
E. Maintenance and Service 16
Indoor Unit....16
Outdoor Unit 18
Operation Tips!......18
Self-Diagnosis Function 18
Troubleshooting Tips! Save time and money!....19
Call the service immediately in the following situations ....19
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit. Dealer's Name
Date Purchased
■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.
You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.
PRECAUTION
- Contact the authorized service technician for repair or maintenance of this unit.
- Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision. - Young children should be supervised to ensure that they do not play with the air conditioner.
- When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.
WARNING
This symbol indicates the possibility of death or serious injury.
CAUTION
This symbol indicates the possibility of injury or damage.
■ Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
WARNING
Always use a power plug and socket with a ground terminal.
• There is a risk of electric shock.
For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center. Do not disassemble or repair the product by yourself.
• There is risk of fire or electric shock.
Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
Do not install the product on a defective installation stand. Be sure that the installation area does not deteriorate with age.
- It may cause product to fall.
In outdoor unit the step-up capacitor supplies high voltage electricity to the electrical components. Be sure to discharge the capacitor completely before conducting the repair work.
- An charged capacitor can cause electrical shock.
Do not use a defective or underrated circuit breaker. Use the correctly rated breaker and fuse.
• There is risk of fire or electric shock.
Always ground the product as per the wiring diagram. Do not connect the ground wire to gas or water pipes lightening rod or telephone ground wire.
• There is risk of fire or electric shock.
Do not modify or extend the power cable. If the power cable or cord has scrathes or skin peeled off or deteriorated then it must be replaced.
- There is risk of fire or electric shock.
Never install the outdoor unit on a moving base or a place from where it can fall down.
• The falling outdoor unit can cause damage or injury or even death of a person.
When installing the unit, use the installation kit provided with the product.
- Otherwise the unit may fall and cause severe injury.
Do not use a multi consent. Always use this appliance on a dedicated circuit breaker.
- Otherwise it can cause electric shock or fire.
Install the panel and the cover of control box securely.
• There is risk of fire or electric shock due to dust, water etc.
For installation, removal or reinstall, always contact the dealer or an Authorized Service Center.
• There is risk of fire, electric shock, explosion, or injury.
When the product is soaked (flooded or submerged) in water, contact an Authorized Service Center for repair before using it again.
• There is risk of fire or eletric shock.
Be sure to use only those parts which are listed in the svc parts list. Never attempt to modify the equipment.
• The use of inappropriate parts can cause an electrical shock, excessive heat generation or fire.
Safety Precautions
| Indoor/outdoor wiring connections must be secured tightly and the cable should be routed properly so that there is no force pulling the cable from the connection terminals. | Safely dispose off the packing materials. Like screws, nails, batteries, broken things etc after installation or svc and then tear away and throw away the plastic packaging bags. | Make sure to check that the power cable plug is not dirty, loose or broken and then only insert the plug completely. |
| • Improper or loose connections can cause heat generation or fire. | • Children may play with them and cause injury. | • Dirty, loose or broken power plug can cause electric shock or fire. |
| Be sure to check the refrigerant to be used. Please read the label on the product. | Don't use a power cord, a plug or a loose socket which is damaged. | Do not touch , operate, or repair the product with wet hands. Hold the plug by hand when taking out |
| • Incorrect refrigerant used can prevent the normal operation of the unit. | • Otherwise it may cause a fire or electrical shock. | • There is risk of electric shock or fire. |
| Do not place a heater or other heating appliances near the power cable. | Do not allow water to run into electric parts. Install the unit away from water sources. | Do not store or use or even allow flammable gas or combustibles near the product. |
| • There is risk of fire and electric shock. | • There is risk of fire, failure of the product, or electric shock. | • There is risk of fire. |
| Do not use the product in a tightly closed space for a long time. Perform ventilation regularly. | Do not open the front grille of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.) | If strange sound, smell or smoke comes from product.Immediately turn the breaker off or disconnect the power supply cable. |
| • Oxygen deficiency could occur and hence harm your health. | • There is risk of physical injury, electric shock, or product failure. | • There is risk of electric shock or fire. |
| Ventilate the product room from time to time when operating it together with a stove, or heating element etc. | Turn the main power off and unplug the unit when cleaning or repairing the product. | When the product is not to be used for a long time, disconnect the power supply plug or turn off the breaker. |
| • Oxygen deficiency can occur and hence harm your health. | • There is risk of electric shock. | • There is risk of product damage or failure, or unintended operation. |
| Take care to ensure that nobody especially kids could step on or fall onto the outdoor unit. | Take care to ensure that power cable could not be pulled out or damaged during operation. | Do not place ANYTHING on the power cable. |
| • This could result in personal injury and product damage. | • There is risk of fire or electric shock. | • There is risk of fire or electric shock. |
Do not plug or unplug the power supply plug to turn the unit ON/OFF.
- There is risk of fire or electric shock.
When flammable gas leaks, turn off the gas and open a window for ventilation before turning on the product.
- Do not use the telephone or turn switches on or off. There is risk of explosion or fire.
CAUTION
Two or more people must lift and transport the product.
- Avoid personal injury.
Keep level even when installing the product.
• To avoid vibration or noise.
Do not install the product where it will be exposed to sea wind (salt spray) directly.
- It may cause corrosion on the product.
Do not install the product where the noise or hot air from the outdoor unit could damage or disturb the neighborhoods.
- It may cause a problem for your neighbors and hence dispute.
Install the drain hose to ensure that the condensed water is drained away properly.
• A bad connection may cause water leakage.
Always check for gas (refrigerant) leakage after installation or repair of product.
- Low refrigerant levels may cause failure of product.
Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.
- There is risk of damage or loss of property. • It may cause product failure.
Do not touch the metal parts of the product when removing the air filter.
• There is risk of personal injury.
Do not insert hands or other objects through the air inlet or outlet while the product is operating.
- There are sharp and moving parts that could cause personal injury.
Do not tilt the unit when removing or uninstalling it.
• The condensed water inside can spill.
Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in accordance with local and national standards.
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.
• The chemicals in batteries could cause burns or other health hazards.
Do not expose your skin or kids or plants to the cool or hot air draft.
• This could harm to your health.
Do not block the inlet or outlet of air flow.
Do not step on or put anything on the product. (outdoor units)
- There is risk of personal injury and failure of product.
Be cautious when unpacking and installing the product.
- Sharp edges could cause injury.
Do not mix air or gas other than the specified refrigerant used in the system.
- If air enters the refrigerant system, an excessively high pressure results, causing equipment damage or injury.
Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.
- There is risk of fire or product failure.
If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if the batteries have leaked.
• The chemicals in batteries could cause burns or other health hazards.
Do not drink the water drained from the product.
- It is not sanitary and could cause serious health issues.
Use a soft cloth to clean. Do not use harsh detergents, solvents or splashing water etc.
- There is risk of fire, electric shock, or damage to the plastic parts of the product.
Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.
- A dirty filter reduces the efficiency.
If the refrigerant gas leaks during the repair, do not touch the leaking refrigerant gas.
• The refrigernat gas can cause frostbite (cold burn)
If the refrigerant gas leaks during the installation, ventilate the area immediately.
- Otherwise it can be harmful for your health.
Do not recharge or disassemble the batteries. Do not dispose off batteries in a fire.
• They may burn or explode.
Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.
- Moisture may condense and wet or damage furniture.
Use a firm stool or ladder when cleaning, maintaining or repairing the product at an height.
- Be careful and avoid personal injury.
Electrical Safety
▲ WARNING
• This appliance must be properly grounded.
To minimize the risk of electric shock, you must always plug into a grounded outlet.
- Do not cut or remove the grounding prong from the power plug.
- Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.
- If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.
Temporary Use of an Adepter
We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a genuine adapter, available from most local hardware stores. Ensure that the large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.
▲ WARNING
- Never use the appliance with a broken adapter.
Temporary Use of an Extension Cord
We strongly discourage the use of an extension cord due to potential safety hazards.
▲ WARNING
This appliance should be installed in accordance with national wiring regulations. This manual acts as a guide to explaining product features.
Symbols used in this Manual
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that may cause harm to the air conditioner.
NOTE
This symbol indicates special notes.
Product Introduction
Here is a brief introduction of the indoor and outdoor units.
Indoor Unit


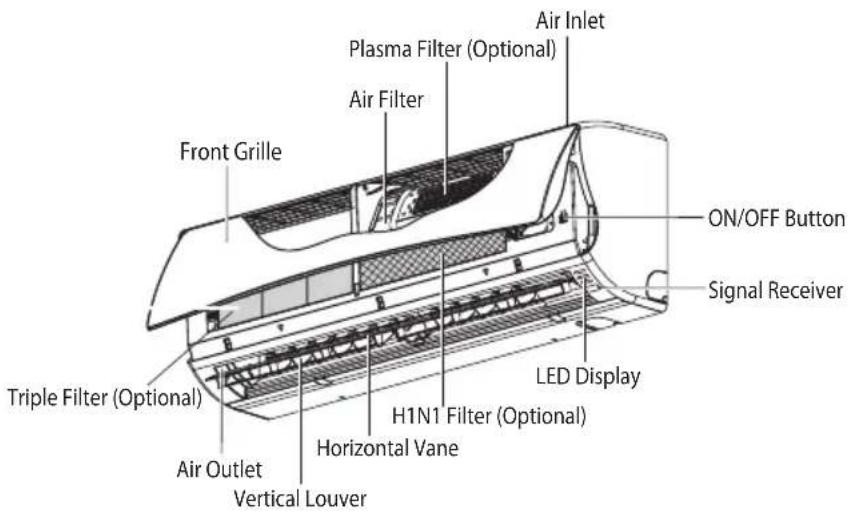

Air Inlet Plasma Filter (Optional) Air Filter Front Grille ON/OFF Button Signal Receiver Triple Filter (Optional) LED Display H1N1 Filter (Optional) Horizontal Vane Vertical Louver Air OutletOperation Indication Lamps


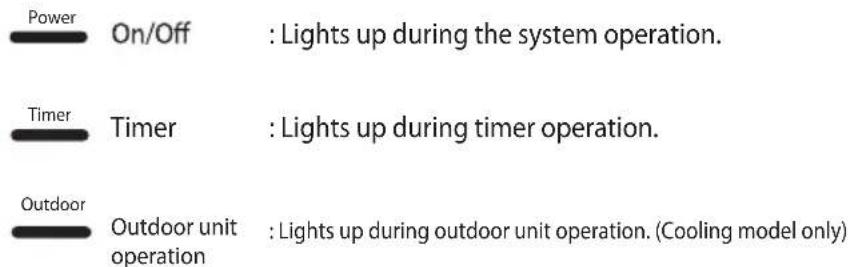

Power On/Off : Lights up during the system operation. Timer Timer : Lights up during timer operation. Outdoor Outdoor unit operation : Lights up during outdoor unit operation. (Cooling model only)Outdoor Unit


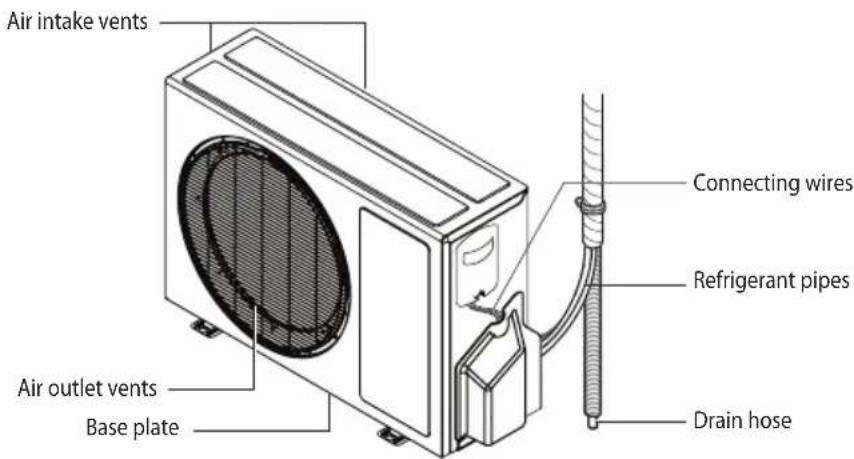

Air intake vents Connecting wires Refrigerant pipes Air outlet vents Base plate Drain hoseOperating Instructions
How to insert the Batteries

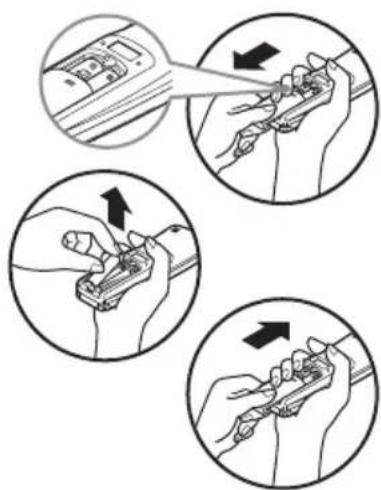

- Remove the battery cover by pulling it according to the arrow direction.
- Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
- Reattach the cover by sliding it back into position.
NOTE
- Always use/replace both batteries of same type.
- If the system is not to be used for a long time, remove the batteries to save their working life.
- If the display screen of remote controller starts, fading replace both of the batteries.
- Use 2 AAA(1.5 volt) batteries.


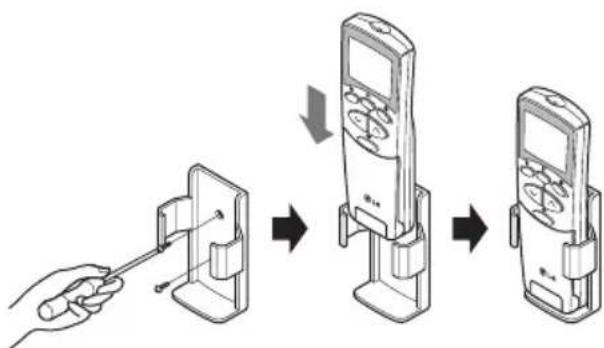

- Choose a suitable place where its safe & easy to reach.
- Fix the holder to wall etc with the supplied screws firmly.
- Slide the remote controller inside the holder.
NOTE
- Remote controller should never be exposed to direct sunlight.
-
Signal transmitter & receiver should always be clean for proper communication. Use a soft cloth to clean them.
-
In case some other appliances also get operated with remote control, change their position or consult your serviceman.
atteriesOperating Method

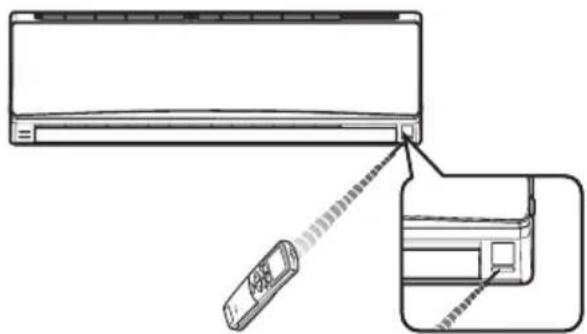

- The signal receiver is inside the unit.
- Aim the remote controller towards the unit to operate it. There should not be any blockage in between.


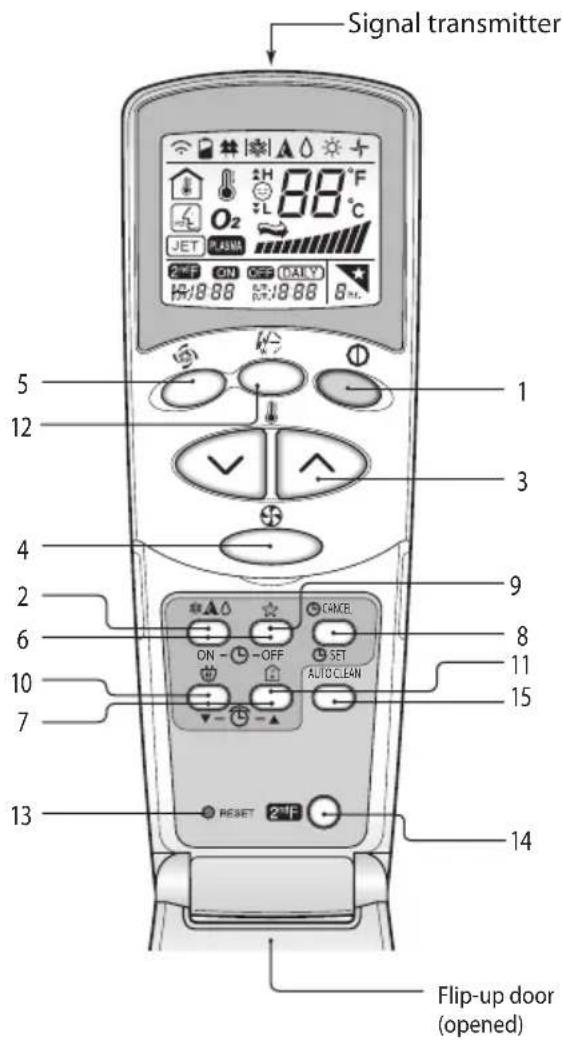

The controls will look like the following.

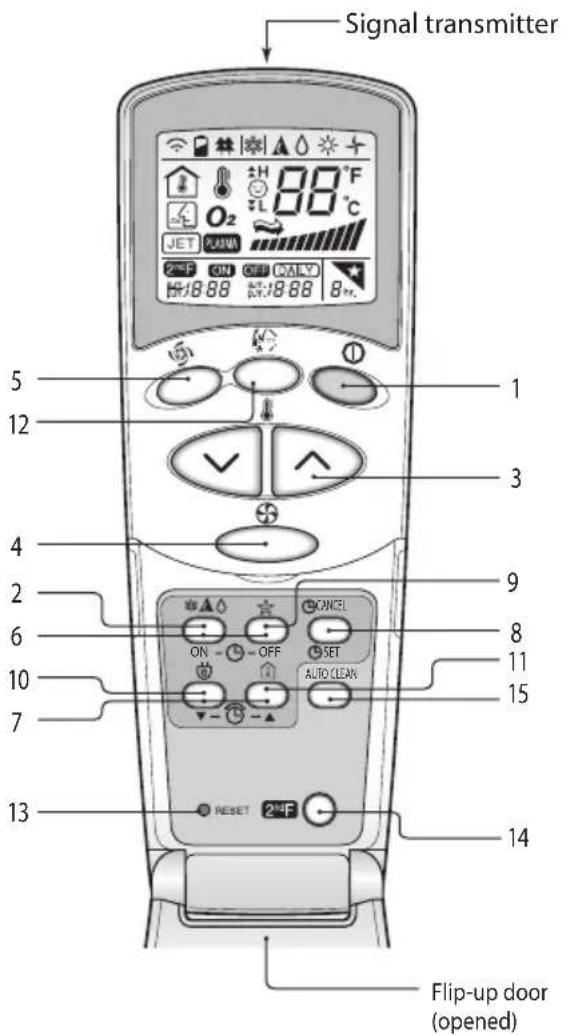

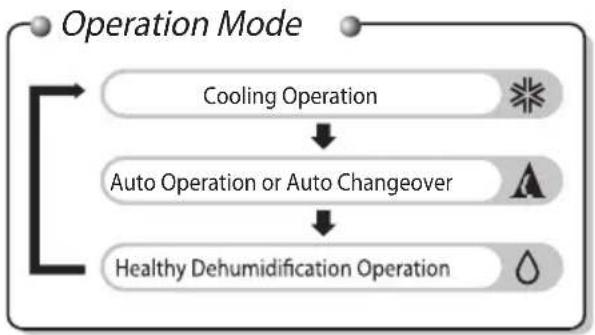

A["Operation Mode"] --> B["Cooling Operation"]
B --> C["Auto Operation or Auto Changeover"]
C --> D["Healthy Dehumidification Operation"]
NOTE
To use the functions printed in blue at the bottom of the buttons press 2^nd F button first and then the required function button. Pressing the 2^nd F button activates the blue printed function of the respective button. To cancel the function press the 2nd F button again else it will automatically cancel if remains idle after 10 seconds.
- START/STOP BUTTON
Used to turn Off/On the unit. - OPERATION MODE SELECTION BUTTON
Used to select the operation mode. - ROOM TEMPERATURE SETTING BUTTONS
Used to select the room temperature. - INDOOR FAN SPEED SELECTOR BUTTON
Used to select fan speed in four steps low, medium, high and CHAOS. - JET COOL BUTTON
Used to start or stop the speed cooling.
(It operates fan in super high speed in cooling mode) - ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping operation. - TIME SETTING BUTTONS
Used to adjust the time. - TIMER SET/CANCEL BUTTON
Used to set and to cancel the timer operation. - SLEEP MODE AUTO BUTTON
Used to set sleep mode auto operation. - ENERGY-SAVING COOLING MODE BUTTON
Used to set energy-saving cooling mode operation. - ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature. - CHAOS SWING BUTTON
Used to stop or start louver movement and
set the desired up/down airflow direction. - RESET BUTTON
Used prior to resetting time. - 2nd F BUTTON
Used prior to using modes printed in blue at the bottom of buttons. - AUTO CLEAN BUTTON
Used to set auto clean mode.
In some models this button has a 2nd function of LED luminosity control.

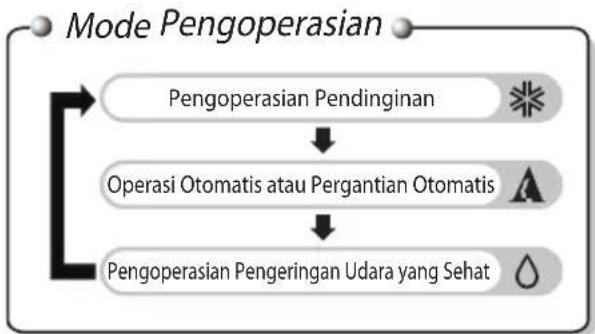

Operation Mode


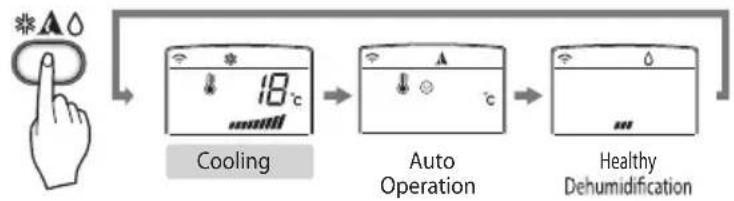

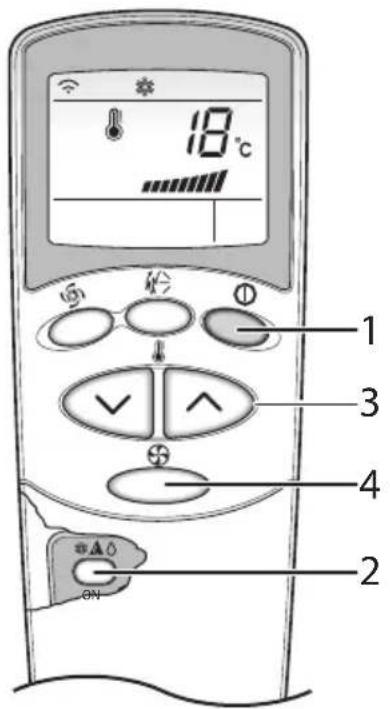

18°C 1 3 4 21 Press the START/STOP BUTTON to turn the unit on. The unit will respond with a beep.
3 For cooling or heating operation set the desired indoor temperature by pressing the ROOM TEMPERATURE SETTING BUTTONS. For cooling the temperature can be set within 18 °C\~30 °C


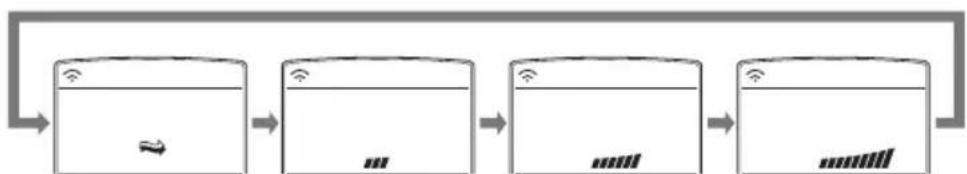

Fan speed is on low. Fan speed is on medium. Fan speed is on high. CHAOS Air
Natural wind by the CHAOS logic
☐ For fresher feeling, press the INDOOR FAN SPEED SELECTOR BUTTON selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.
Auto Operation
In this operation mode the actual setting temperature and the fan speed are automatically set by the electronic control logic based on the current room temperature. If you feel hot or cold press the temperature setting buttons respectively for more cooling or heating effect.
NOTE: You cannot set the actual setting temperature and the indoor fan speed in this operation mode. But you can use the Chaos swing in this operation.
If the system is not operating as desired, switch manually to another mode.
To run the auto operation follow steps 1, and 2. (See operation mode)
Healthy Dehumidification Operation
During Healthy Dehumidification Operation
If you select the dehumidification mode on the OPERATION MODE
SELECTION BUTTON, the product starts to run the dehumidification
function. It automatically sets the room temperature and airflow volume to the best condition for dehumidification, based on the sensed current room temperature.
In this case, however, the setting temperature is not displayed on the remote controller and you are not able to control the room temperature either.
During the healthy function, the volume is
airflow
automatically set according to the optimization algorithm responding to the current room temperature status, so that the room condition is kept healthy and comfortable even in the very humid season.
To run the healthy dehumidification mode follow steps 1, and 2 and 4 (See operation mode)
Auto Clean Operation
During auto clean function, moistures left in indoor units after cooling operation or healthy dehumidification operation can be removed.
AUTO CLEAN
- Press the AUTO CLEAN BUTTON to activate this function.
- Now whenever the unit is turned off, the indoor fan is still running for about 30 minutes internally without cooling or dehumidification operation. Also the louver is closed.
- This dries up any remains of moisture & cleans the unit internally.
- If you press AUTO CLEAN BUTTON again during operation, this function is cancelled.
NOTE
During auto clean function, only START/STOP BUTTON, PLASMA BUTTON and AUTO CLEAN BUTTON can be used.
Energy-Saving Cooling Mode
Energy-saving cooling mode can save energy in cooling, because it can operate efficiently by setting body-adaptation time according to the change of time and temperature and adjusting automatically desired temperature.
- Select cooling operation.
- Press the ENERGY-SAVING COOLING MODE BUTTON.
- To cancel the energy-saving cooling mode, press the ENERGY-SAVING COOLING MODEL BUTTON again and unit will operate in previous mode(Cooling or healthy dehumidification made).
Setting the Current Time
- Time can be set only when you press the RESET BUTTON. Having replacing the batteries, you should press the RESET BUTTON to reset the time. Press the Start/Stop button.
- Press 2nd F button and check if 2^ndF icon is on.
- Press the TIME SETTING BUTTONS until the desired time is set.
- Press the TIME SET/CANCEL BUTTON.
NOTE
Check the indicator for A.M. and P.M.
PLASMA Purification Operation (Optional)
Plasma purification generation can be started by pressing the PLASMA BUTTON on the remote controller. Repressing it will deactivate the operation.
NOTE
This feature can be used in any operation mode and any fan speed can be used while plasma filter is functioning.
Display Luminosity (Optional)
The unit display Luminosity can be adjusted by using the remote controller.
Open the cover of the remote controller and press the LED LUMINOSITY button.
Display LED will be dark. Press the button again to set bright display.
(The order of 100% → 0% LUMINOSITY is repeated whenever you press the button.)
If you press any button it will return to 100% LUMINOSITY.
But, except ROOM TEMPERATURE CHECKING BUTTON.
Timer Setting
- Make sure to set current time correctly on the display of the remote controller.
- Press 2nd F button.
- Press the ON/OFF TIMER BUTTONS to turn timer on or off.
- Press the TIME SETTING BUTTONS until the desired time is set.
- To set the selected time, press the TIMER SETTING BUTTONS aiming the remote controller at the signal receptor.
To cancel the timer setting
Check if 2^ndF icon is off.
Press the TIMER CANCEL BUTTON aiming the remote controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go off.)
NOTE
Select one of the following four types of operation.
Delay off timer
Delay on timer
Delay off and on timer
Delay on and off timer
Sleep Mode
- Press the SLEEP MODE AUTO BUTTON to set the time when you want the unit to stop automatically.
- The timer is programmed in one-hour increments by pressing the SLEEP MODE AUTO BUTTON 1 to 7 times.
The sleep mode is available for 1 to 7 times.
To alter the time period in steps of 1 hour, press the SLEEP MODE AUTO BUTTON while aiming at air conditioner.
- Make sure the Timer LED lights up.
To cancel the sleep mode, press the SLEEP MODE AUTO BUTTON several times until the Timer LED lights off.
NOTE
The sleep mode will operate indoor fan at slow speed in cooling mode and at medium speed in heating mode for pleasant sleep.
In cooling mode or healthy dehumidification mode:
The setting temperature will rise automatically two times by 1^ C over next consecutive 30 minutes ( 2^ C in 1 hour) for a comfortable sleep. Now this will be the final setting temperature as long as sleep mode is functioning.
Vertical Airflow Direction Control

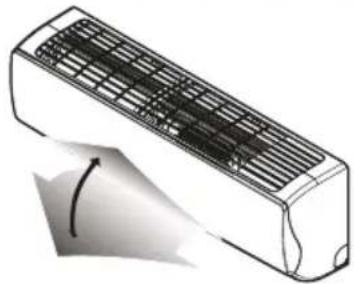

The up/down airflow (Vertical Airflow) can be adjusted
- Press Airflow Direction button and the louver will swing up and down. Press the Airflow Direction button again to sett the vertical louver at the desired airflow direction.
NOTICE
□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.
☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

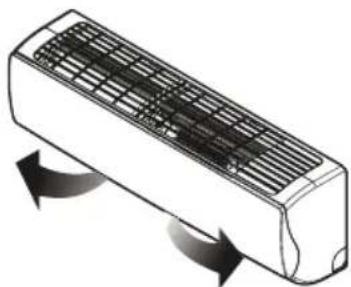

Horizontal Airflow Direction Control (Optional)
- Press the Start/Stop button to start the unit.
- Open the door on the remote control. Press the Horizontal Airflow Direction button and the louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired airflow direction.
Jet Cool Operation
Similarly, jet heat function (available only in some models) warms up the room quickly by operating at super high fan speed and 30 °C setting temperature for 60 minutes.
You can activate this operation by pressing the JET COOL BUTTON.
To change from jet cool mode to high fan speed cooling mode, press the JET COOL BUTTON or INIDOOR FAN SPEED SELECTOR BUTTON or the ROOM TERPERATURE SETTING BUTTON again.
NOTE
- Jet cool function cannot be activated during heating or auto changeover operations.
- In case of Inverter, Art Cool and Art Cool Wide(non-Deluxe) model, you can use jet heat function by pressing JET COOL BUTTON for heating operation.
- Art Cool and Art Cool Wide models close the side discharges during jet cool/heat operation, for strong cooling and heating.
Forced Operation

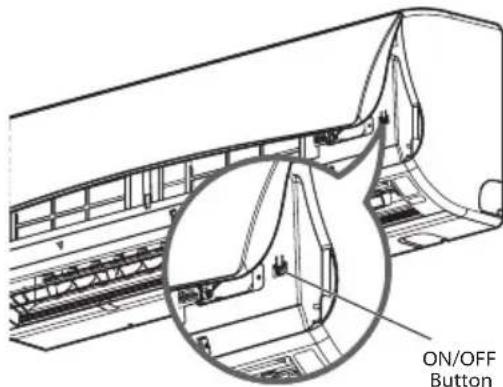

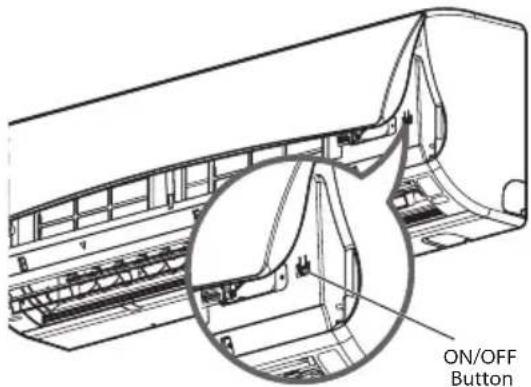

Forced operation is used when the remote controller can't be used. The operation will be started if the ON/OFF button is pressed. If you want to stop the operation, re-press the button.
| Operating mode | Cooling |
| Indoor FAN Speed | High |
| Setting Temperature | 22°C |
Test operation
During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes. During test operation, if remote controller signal is received, the unit operates as remote controller sets. If you want to use this operation, Press and hold the ON/OFF button for 3\~5 seconds, then the buzzer sound 1 'beep'. If you want to stop the operation, re-press the button.
Auto Restart Function
This function is useful in the situation of power failure.
When power regains after a failure this feature restore the previous operating condition and the air conditioner will run in the same settings.
NOTE
This feature is enabled by factory default setting, but you can disable it by pressing the ON/OFF button for 6 seconds. The unit will beep twice and the lamp will blink 6 times.
To enable it, press the button again for 6 seconds. The unit will beep twice and the blue lamp will blink 4 times.
CAUTION
Before performing any maintenance, turn off the main power to the system, disconnect the circuit breaker and unplug the power cord.
Indoor Unit
Clean the unit with a soft dry cloth. Do not use bleach or abrasives.
CAUTION
Never use any of these
• Water hotter than 40 °C. It may cause deformation and discoloration.
- Volatile substances. They may damage the surface of the air conditioner.
Air Filters

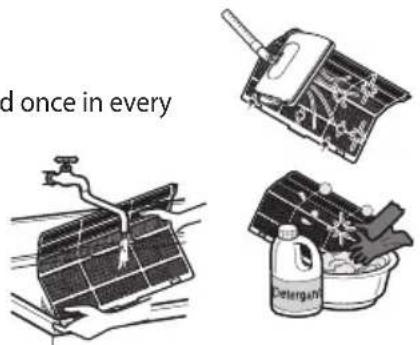

The air filters behind the front panel/grille should be checked and cleaned once in every
2 weeks or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner or warm soapy water. If dirt is not easily removed, wash with a solution of detergent in luke warm water.
Dry well in shade after washing and reinstall the filters back in place
The Plasma Filter behind the air filters should be checked and cleaned once in every 3 months or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner. If it is dirty wash it with water and dry well in shade an install back in place.
Remove the H1N1 Filter + Triple Filter behind the air filter and expose them in direct sunlight for 2 hours.
And then insert these filters into original position.


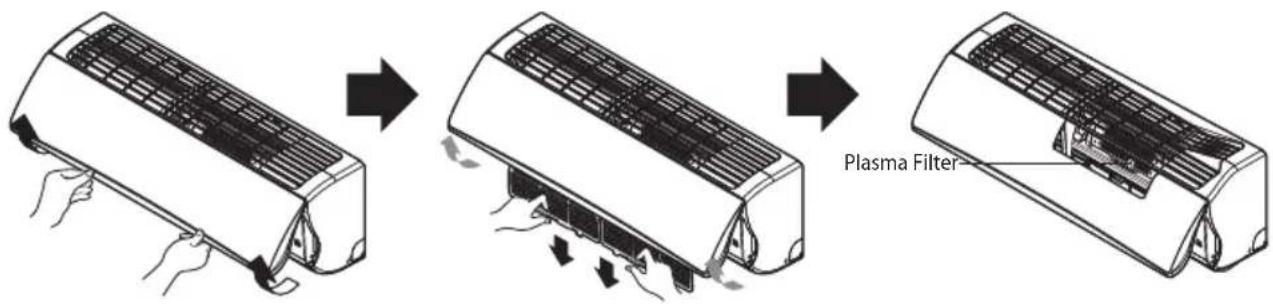

Open the front panel as shown.
Then pull the filter tab slightly forward to remove the air filter.
After removing the air filter, remove the Plasma, Triple filter and H1N1 filter by slightly pulling downwards.
Don't touch this Plasma Filter within 10 seconds after opening the inlet grille, it may cause an electric shock.
Outdoor Unit
The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.
NOTE
Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.
Operation Tips!
Do not overcool the room.
This is not good for the health and wastes electricity.
Keep blinds or curtains closed.
Do not let direct sunshine enter the room when the air conditioner is in operation.
Keep the room temperature uniform.
Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.
Make sure that the doors and windows are shut thight.
Avoid opening doors and windows as much as possible to keep the cool air in the room.
Clean the air filter regularly.
Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it is a good idea to open them and ventilate the room now and ten.
Use high fan speed for effective and fast cooling.
The unit gives its rated cooling capacity when the fan speed is high.
Self-Diagnosis Function
This unit has an inbuilt error diagnosis capability. Unit LED will blink in case if thermistor fails. Please contact your serviceman/dealer in such a situation


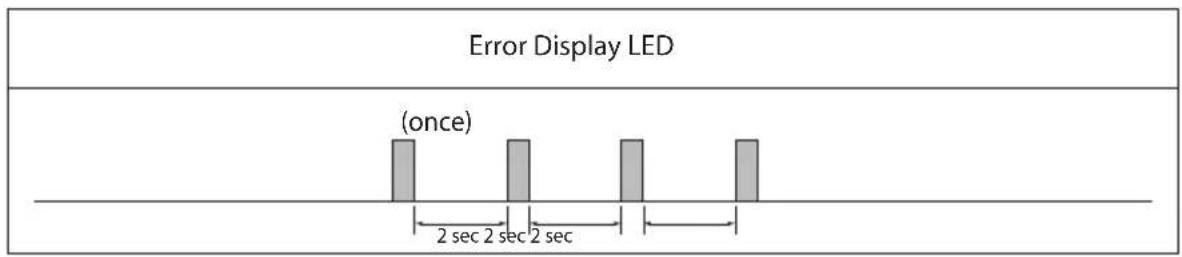

Error Display LED (once) 2 sec 2 sec 2 secTroubleshooting Tips! Save time and money!
The air conditioner may be operating abnormally when:
| Problem | What To DoPossible Causes | |
| Air conditioner does not start | ■ The air conditioner is unplugged. | ·Make sure the air conditioner plug is pushed completely into the outlet. |
| ■ The fuse is blown/circuit breaker is tripped. | ·Check the house fuse/circuit breaker box and replace the fuse or reset the breaker. | |
| ■ Power failure. | ·If power failure occurs, turn the mode control to OFF.When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload. | |
| ■ High voltage. | ·If the voltage is unusually very high or low the circuit Breaker will trip. | |
| Air conditioner does not cool as it should | ■ Airflow is restricted. | ·Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner. |
| ■ The air filter is dirty. | ·Clean the filter at least every 2 weeks.See the Maintenance and Service section. | |
| ■ The room may have been hot. | ·When the air conditioner is first turned on, you need to allow time for the room to cool down. | |
| ■ Cold air is escaping. | ·Check for open furnace floor registers and cold air returns. | |
| ■ Check the temperature settings. | ·Make sure they are correct. | |
| ■ There might be any heating source in the room. | ·Check and remove such source or turn it off while using the air conditioner. |
Call the service immediately in the following situations
- Anything abnormal such as burning smell, loud noise etc. happen. Stop the unit and turn the breaker off. Never try to repair by yourself or restart the system in such cases.
- Main power cord is too hot or damaged.
- Error code is generated by self diagnosis.
- Water leaks from indoor unit even if the humidity is low.
- Any switch, breaker (safety, earth) or fuse fails to work properly
User must carry routine checkup & cleaning to avoid unit's poor performance. In case of special situation, the job must be carried out by service person only.
LG
Life's Good
PT. LG ELECTRONICS INDONESIA
Kawasan Industri MM2100 Blok G
Kontrol-kontrol akan tampak seperti di bawah ini.
CATATAN
3 Tutup pintu remote control.
Hand pressing a button with a downward arrow icon (no text or symbols)Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer
Pengoperasian Mode Sleep
Illustration of a rectangular air conditioner unit with airflow arrows indicating direction (no text or symbols)Pengoperasian Jet Cool
Illustration of two cleaning tools: a mobile phone and a cleaning container (no text or symbols)Plasma Filter (Opsional)
Lepaskan H1N1 Filter + Triple Filter di belakang filter udara dan letakkan di bawah sinar matahari selama 2 jam.
