Product Type	Split-type Air Conditioner
Cooling Capacity (BTU/h)	9000
Heating Capacity (BTU/h)	9500
Energy Efficiency Ratio (EER)	11.5
Seasonal Energy Efficiency Ratio (SEER)	16.0
Power Supply (V/Hz)	230V / 50Hz
Refrigerant	R410A
Indoor Unit Dimensions (WxHxD)	850 x 290 x 205 mm
Outdoor Unit Dimensions (WxHxD)	700 x 530 x 230 mm
Indoor Unit Weight	10.5 kg
Outdoor Unit Weight	25.0 kg
Air Flow (Cooling)	400 m³/h
Noise Level Indoor (Low/High)	30 / 44 dB(A)
Noise Level Outdoor	52 dB(A)
Operating Modes	Cool, Heat, Fan, Dry
Air Filter Type	Washable, Anti-bacteria
Remote Control	Yes, included
Timer Function	Yes (On/Off)
Sleep Mode	Yes
Auto Restart	Yes
Self Diagnosis	Yes (via LED display)
Warranty	1 year parts and labor
Recommended Room Size (m²)	20 - 25

Frequently Asked Questions - E09NXA LG

How often should I clean the air filters?

It is recommended to clean the air filters every 2 weeks under normal usage. A dirty filter reduces efficiency and may cause the unit to freeze.

What does error code 'E1' mean?

Error code E1 typically indicates a communication fault between the indoor and outdoor units. Check the wiring connections and restart the system.

Can I use an extension cord for the air conditioner?

No, you should never use an extension cord. Plug the unit directly into a dedicated wall outlet with the correct voltage rating.

Why is water leaking from the indoor unit?

Water leakage is often due to a clogged drain pipe or dirty filter. Clean the drain line and filter, and ensure the unit is level.

How do I reset the air conditioner?

To reset, turn off the unit, unplug it for 5 minutes, then plug back in and turn on. This clears minor electronic glitches.

The remote control is not working. What should I do?

Check the batteries and replace if needed. Ensure the infrared sensor on the unit is not blocked. If still not working, use the manual button on the unit.

What is the ideal temperature setting for cooling?

For optimal comfort and efficiency, set the thermostat to 24-26°C (75-78°F) during cooling mode.

How do I activate the sleep mode?

Press the 'Sleep' button on the remote. The unit will gradually adjust temperature to provide comfortable sleep and reduce energy consumption.

Why is the air conditioner not cooling enough?

Possible causes: dirty filter, low refrigerant, improper room insulation, or an oversized room. Clean the filter first, then contact a technician if needed.

Is it normal for the outdoor unit to make noise?

Some noise from the compressor and fan is normal. However, loud rattling or buzzing may indicate loose parts or debris. Inspect or call for service.

USER MANUAL E09NXA LG

Please read this manual carefully before operating your set and retain it for future reference.

TYPE : WALL MOUNTED

TIPS FOR SAVING ENERGY

Here are some tips that will help you to minimize the power consumption when you use the air conditioner.

You can use your air conditioner more efficiently by referring to the instructions below :

• Do not cool the indoor excessively. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the Air filter may block the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer's name :

Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situation and ensure peak performance of you product.

WARNING

It can result in serious injury or death when the directions are ignored.

CAUTION

It can result in minor injury or product damage when the directions are ignored.

WARNING

• Installation or repairs made by unqualified persons can result in hazards to you and others.
  • Air conditioner shall be installed in accordance with national wiring regulations.
• The information contained in the manual is intended for use qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.
• This appliance is not intend for use by persons (including children) with reduced physical, senary or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for theirs safety.
• Children should be supervised to ensure that they do not play with the appliance.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only genuine replacement parts.

INSTALLATION

• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Failure to do so may result in electric shock or product failure.
• Contact an authorized service center when you install or relocate the air conditioner. Failure to do so may result in serious injury or product failure.
• Always use a power plug and socket with a ground terminal. Failure to do so may result in electric shock or product failure.
• Install the panel and the cover of the control box safely. Failure to do so may result in explosion or fire.
  • Install a dedicated electric outlet and circuit breaker before you use the air conditioner. Failure to do so may result in electric shock or product failure.
• Do not modify or extend the power cable. If the power cable or cord has scratches or skin peeled off or deteriorated then it must be replaced. It may result in fire or electric shock.
• Be cautious when you unpack or install the air conditioner. Failure to do so may result in serious injury or product failure.
• Do not install the air conditioner on an unstable surface or where there may be a danger of it falling. It may result in death, serious injury, or product failure.

OPERATION

• Do not let the air conditioner run for a long time when the humidity is very high or when a door or window has been left open. Failure to do so may result in product failure.
• Make sure that the power cord is not pulled or damaged while the air conditioner is operating. Failure to do so may result in fire, electric shock, or product failure.
• Do not place any objects on the power cord. It may result in electric shock or product failure.
• Do not turn on or off the air conditioner by plugging in or unplugging the power plug. It may result in fire or electric shock.
• Do not touch, operate or repair the air conditioner with wet hands. It may result in electric shock or product failure.
• Do not place a heater or other heating appliances near the power cable. It may result in fire, electric shock, or product failure.
• Do not allow water to run into the air conditioner. It may result in explosion or fire.
• Do not leave flammable substances such as gasoline, benzene and thinner near the air conditioner. It may result in explosion or fire.
• Do not use the air conditioner for an extended period of time in a small place without ventilation. Ventilate the place regularly. Failure to do so may result in explosion or fire.
• When there is a gas leak, ventilate sufficiently before using the air conditioner again. Failure to do so may result in explosion or fire.
• Unplug the power plug if there is a noise, smell or smoke coming from the air conditioner. Failure to do so may result in explosion or fire.
• Stop operating and close the window in storm or hurricane. If possible remove the product from the window before hurricane arrives.
• Do not touch the electrostatic filter after opening the front grille. Failure to do so may result in electric shock or product failure.
• Contact an authorized service center when the air conditioner is submerged into water due to flooding. Failure to do so may result in explosion or fire.
• Be cautious water could not enter the product.
• Make sure to ventilate sufficiently when this air conditioner and a heating appliance such as a heater are used simultaneously. Failure to do so may result in explosion or fire, serious injury, or product failure.
• Turn the main power off and unplug the power plug when you clean or repair the air conditioner. Failure to do so may result in death, serious injury, or product failure.
• Unplug the power plug when the air conditioner is not used for an extended period of time. Failure to do so may result in product failure.
• For inner cleaning, contact an Authorized Service Center or a dealer.
• Do not use harsh detergent that causes corrosion or damage on the unit. Harsh detergent may also cause failure of product, fire, or electric shock.

CAUTION

INSTALLATION

• Make sure to check if there is a refrigerant leak after you install or repair the air conditioner. Failure to do so may result in product failure.
  • Install the drain hose properly for smooth drainage of condensed water. Failure to do so may result in product failure.
• Keep level even when installing the product.
  • Install the air conditioner where the noise from the outdoor unit or the exhaust gas will not inconvenience the neighbors. Failure to do so may result in conflict between neighbors.
• When transporting the equipment, there should be at least 2 or more people, or a forklift. It may result in serious injury.
• Do not install the air conditioner where it will be exposed to sea wind (salt spray) directly. It may result in product failure.
• Do not turn on the breaker or power under condition that front panel, cabinet, top cover, control box cover are removed or opened. Otherwise, it may cause fire, electric shock, explosion or death.

OPERATION

• Do not expose people, animals or plants to the cold or hot wind from the air conditioner. It may result in serious injury.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system. It may result in death, fire or electric shock.
• Do not block the inlet or outlet of air flow. It may result in explosion or product failure.
• Do not use strong cleaning agents or solvents when you clean the air conditioner, or spray water. Use a smooth cloth. It may result in serious injury or product failure.
• Never touch the metal parts of the air conditioner when you remove the air filter. It may result serious injury or product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
  • Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.
• Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operating. It may result in electric shock.
• Do not drink the water drained from the air conditioner. It may result in serious health complications.
• Use a sturdy stool or ladder when you clean, maintain or repair the air conditioner at a height. Failure to do so may result in serious injury or product failure.
• Do not mix the batteries for the remote control with other types of batteries or mix new batteries with used batteries. Failure to do so may result in product failure.
• Do not recharge or disassemble the batteries. Failure to do so may result in explosion, fire or serious injury.
• Stop using the remote control if there is a battery fluid leak. If your cloth or skin is explosion to the battery fluid from a leak, wash it off with clean water. Failure to do so may result in serious injury.
• If you swallow the battery fluid from a leak. Wash out the inside of your mouth thoroughly and then consult a doctor. Failure to do so may result in serious health complications.

CONTENTS

2 TIPS FOR SAVING ENERGY

3 IMPORTANT SAFETY INSTRUCTIONS

7 BEFORE USE

7 COMPONENTS

7 - INDOOR UNIT TYPE 1

7 - INDOOR UNIT TYPE 2

8 - INDOOR UNIT TYPE 3

8 - OUTDOOR UNIT

9 INSERTING BATTERIES

9 INSTALLING THE REMOTE CONTROL HOLDER

9 OPERATING METHOD

10 USING THE REMOTE CONTROL

10 REMOTE CONTROL TYPE 1 : SKIN CARE, H'COOL, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY
11 REMOTE CONTROL TYPE 2 : ACTIVE ENERGY CONTROL, SKIN CARE, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 4 WAY
12 REMOTE CONTROL TYPE 3: ACTIVE ENERGY CONTROL, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY
13 REMOTE CONTROL TYPE 4 : H'COOL AND AIR FLOW DIRECTION 2 WAY
14 REMOTE CONTROL TYPE 5:1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY

15 BASIC FUNCTIONS

15 COOLING YOUR ROOM (COOLING OPERATION)
15 REMOVING HUMIDITY (DEHUMIDIFYING OPERATION)
15 AIRING YOUR ROOM (AIR CIRCULATION OPERATION)
16 ADJUSTING THE FAN SPEED
16 ADJUSTING THE AIR FLOW DIRECTION
16 SETTING THE TIMER
16 - SETTING THE CURRENT TIME
16 - TURNING ON THE AIR CONDITIONER AUTOMATICALLY AT A SET TIME

17 - TURNING OFF THE AIR CONDITIONER AUTOMATICALLY AT A SET TIME
17 - CANCELING THE TIMER SETTING
17 SETTING SLEEP MODE

17 ADVANCED FUNCTIONS

17 CHANGING ROOM TEMPERATURE QUICKLY (JET COOL) (OPTIONAL)
18 CHANGING ROOM TEMPERATURE QUICKLY H'COOL (HIMALAYA) MODE (OPTIONAL)
18 INDOOR AIR PURIFICATION (AUTO CLEAN OPERATION)
18 PLASMA PURIFICATION OPERATION (OPTIONAL)
19 SKIN CARE OPERATION (OPTIONAL)
19 DISPLAY SCREEN BRIGHTNESS
19 AUTO OPERATION (ARTIFICIAL INTELLIGENCE)
20 ENERGY SAVING COOLING MODE (OPTIONAL)
20 1 TOUCH SOFT AIR OPERATION (COMFORT VANE OPERATION) (OPTIONAL)

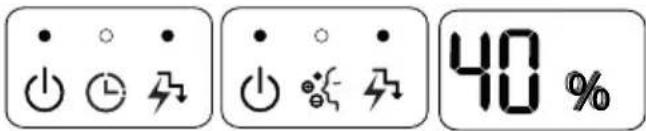

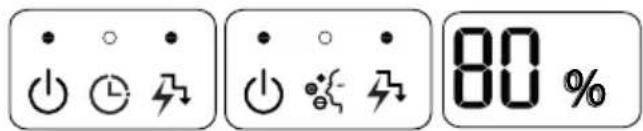

21 ACTIVE ENERGY CONTROL OPERATION (OPTIONAL)

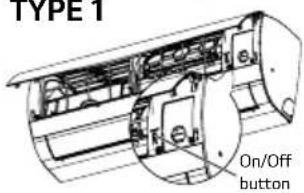

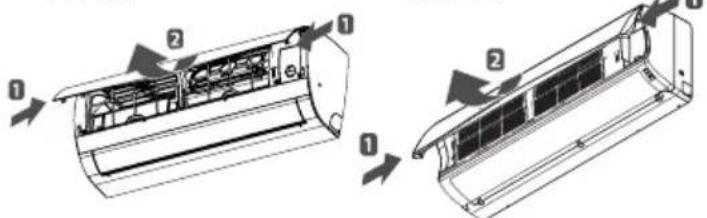

23 OPERATING THE AIR CONDITIONER WITHOUT THE REMOTE CONTROL
23 RESTARTING THE AIR CONDITIONER AUTOMATICALLY

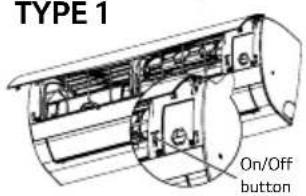

23 - DISABLING AUTO RESTART

24 MAINTENANCE

24 - INDOOR UNIT TYPE 1
24 - INDOOR UNIT TYPE 2
24 - INDOOR UNIT TYPE 3
26 CLEANING THE AIR FILTER
26 CLEANING ALLERGY FREE FILTER AND TRIPLE FILTER (OPTIONAL)

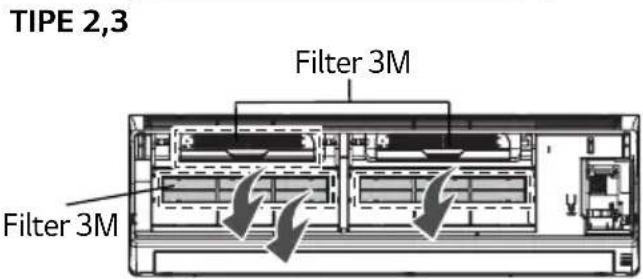

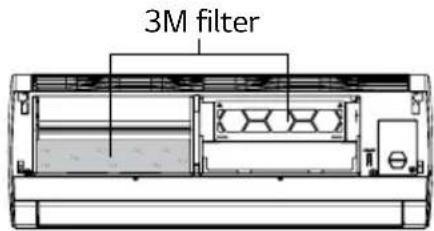

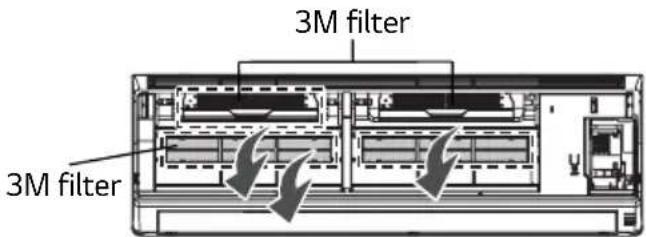

27 CLEANING 3M FILTER (OPTIONAL)

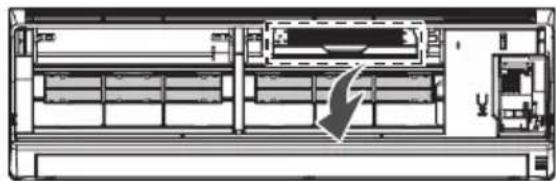

27 CLEANING PLASMA FILTER (OPTIONAL)

28 TROUBLESHOOTING

28 SELF-DIAGNOSIS FUNCTION

28 BEFORE REQUESTING SERVICE

BEFORE USE

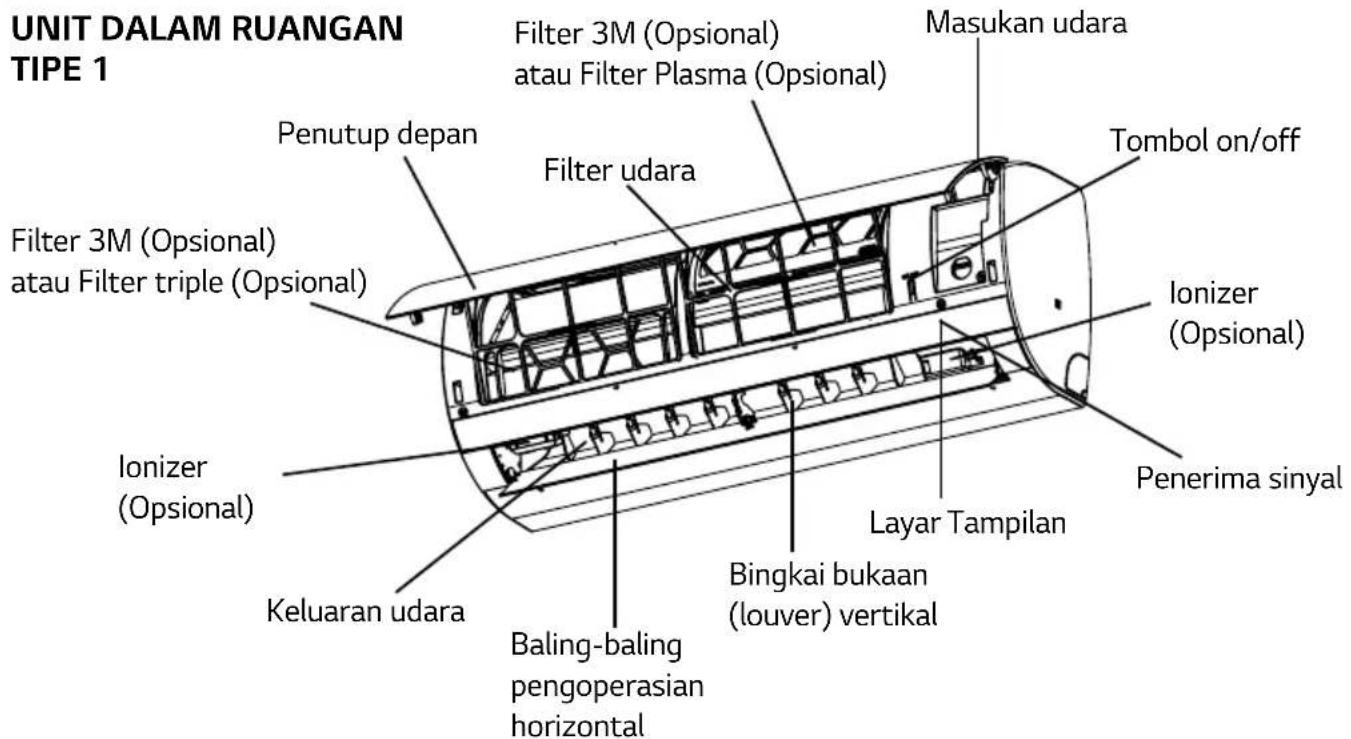

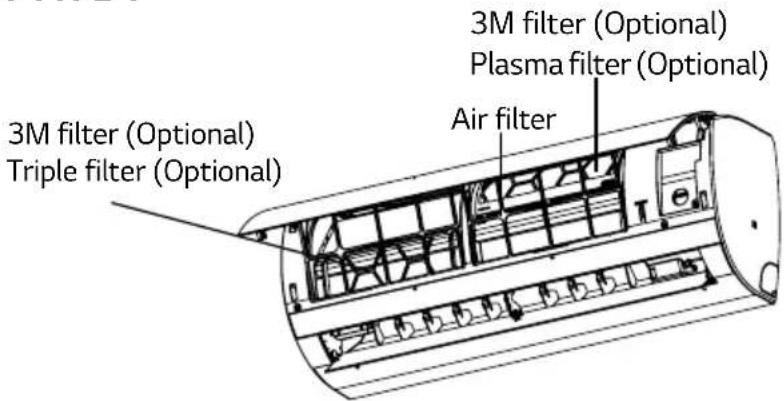

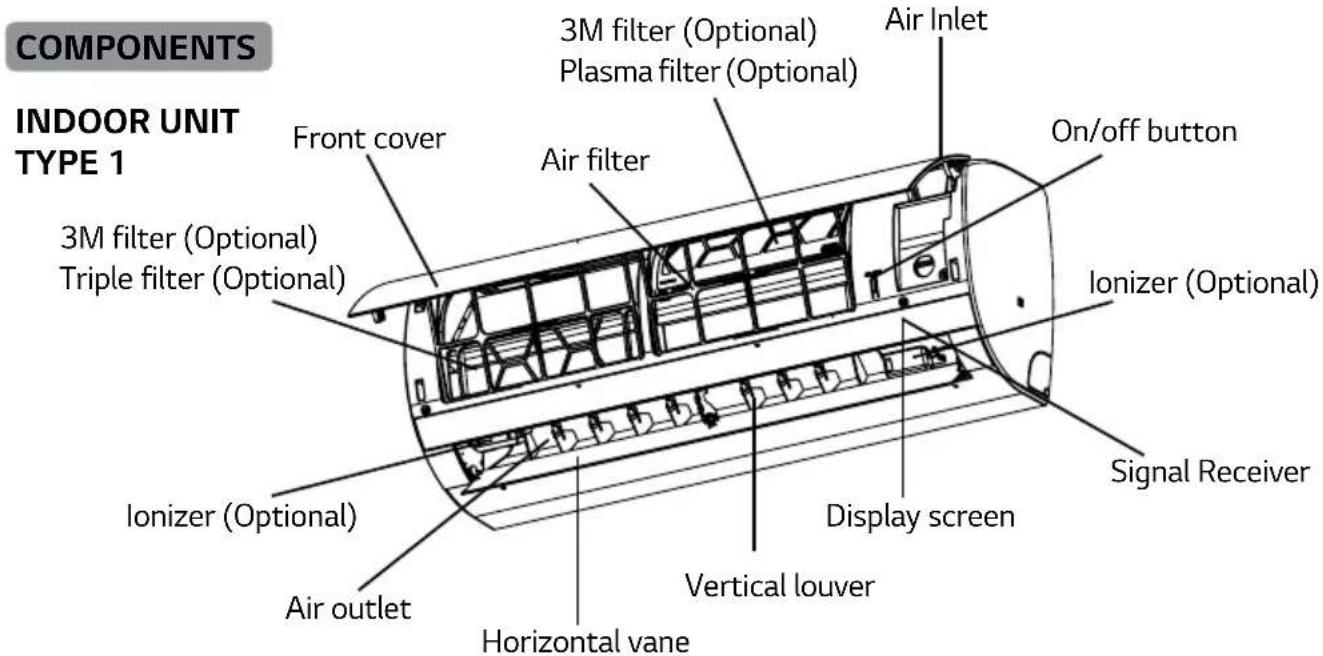

COMPONENTS INDOOR UNIT TYPE 1 3M filter (Optional) Plasma filter (Optional) 3M filter (Optional) Air Inlet On/off button Air filter 3M filter (Optional) Triple filter (Optional) Ionizer (Optional) Signal Receiver Ionizer (Optional) Display screen Vertical louver Horizontal vane Air outlet

*The feature can be changed according a type of model.

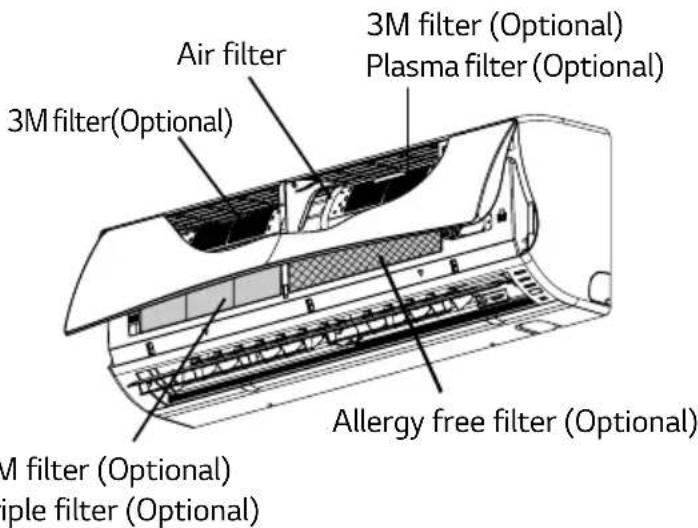

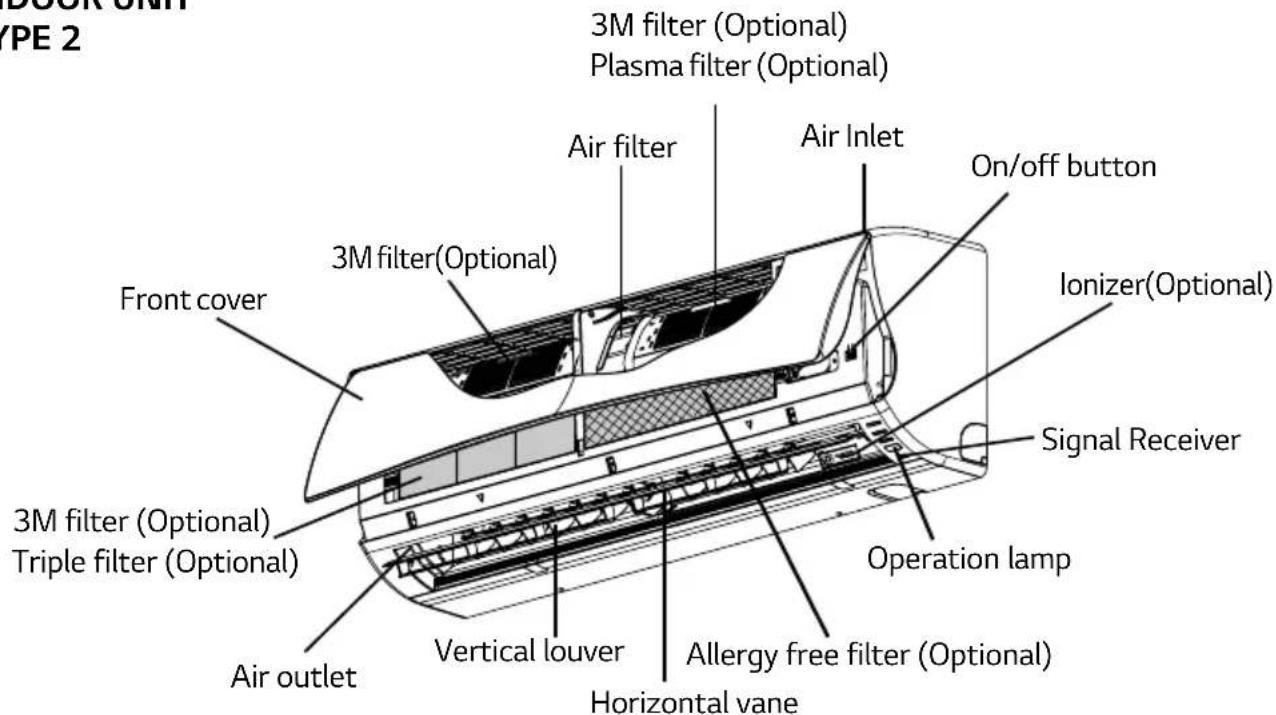

INDOOR UNIT TYPE 2

DOOR UNIT YPE 2 3M filter (Optional) Plasma filter (Optional) Air filter Air Inlet On/off button 3M filter(Optional) Ionizer(Optional) Front cover 3M filter (Optional) Signal Receiver Triple filter (Optional) Operation lamp Vertical louver Allergy free filter (Optional) Horizontal vane Air outlet

*The feature can be changed according a type of model.

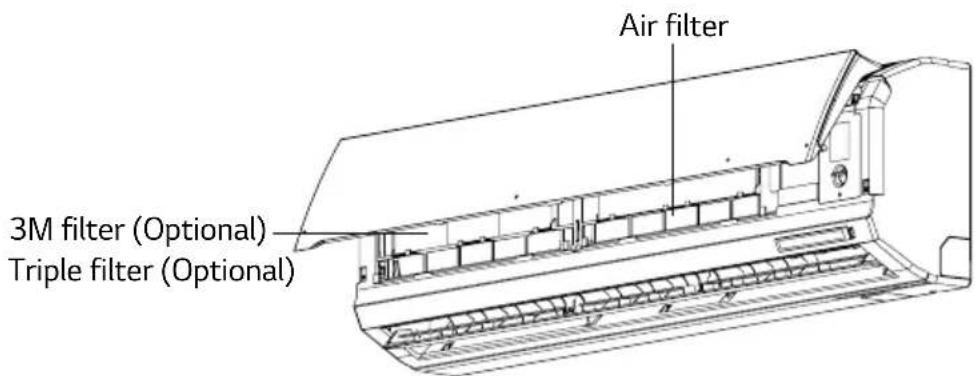

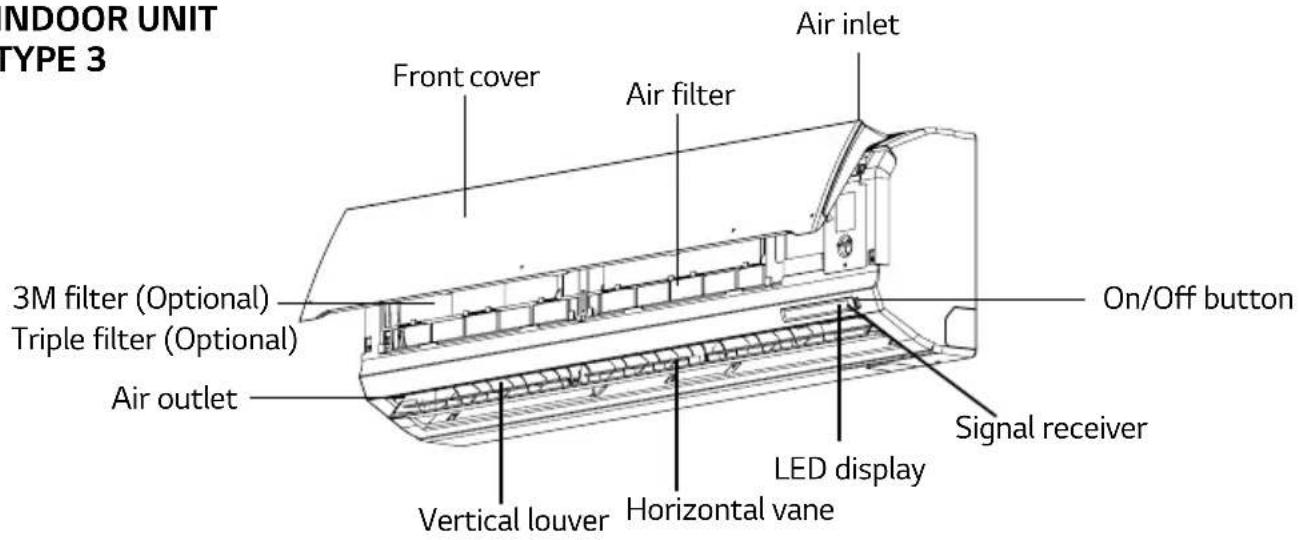

INDOOR UNIT TYPE 3

INDOOR UNIT TYPE 3 Front cover Air filter Air inlet 3M filter (Optional) Triple filter (Optional) Air outlet On/Off button Signal receiver Vertical louver Horizontal vane LED display

NOTE

- The number of operation lamps and their locations may vary, depending on the model of the air conditioner.

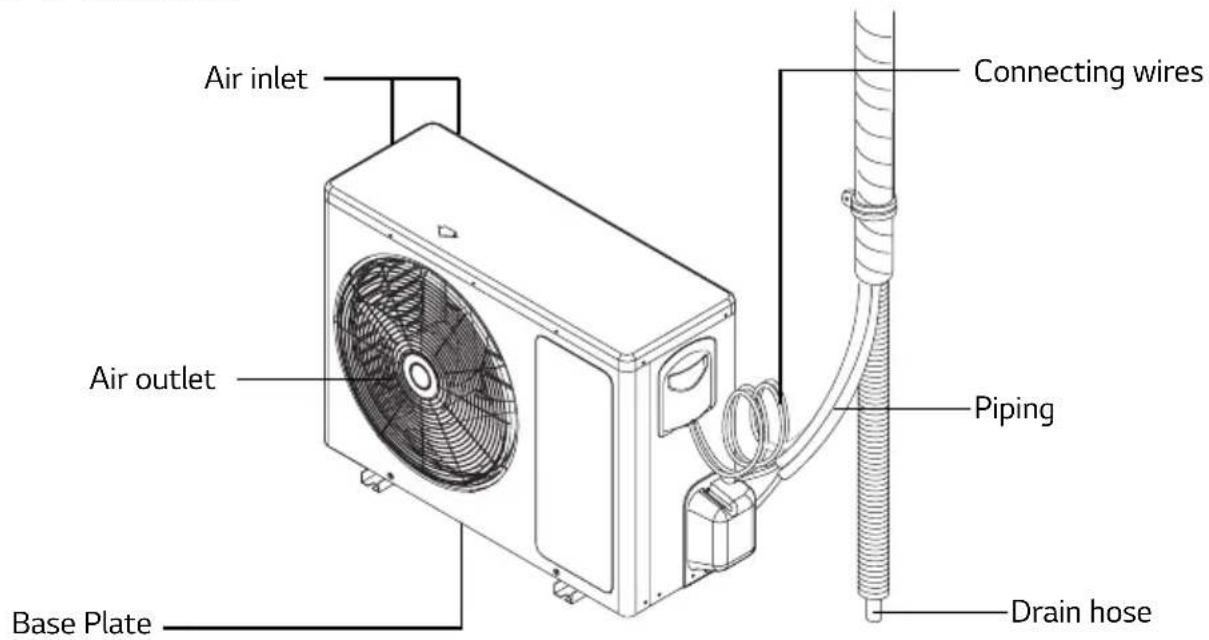

OUTDOOR UNIT

Air inlet Connecting wires Air outlet Piping Drain hose Base Plate

*The feature can be changed according a type of model.

INSERTING BATTERIES

Insert batteries before using the remote control. The battery type used is AAA (1.5 V).

1. Remove the battery cover.

Technical diagram of a remote control casing with labeled parts 1 and 2

1. Insert the new batteries and make sure that the (+) and (-) terminals of the batteries are installed correctly.

Line drawing of a remote control casing with internal components and a handle (no text or symbols)

1. Reattach the battery cover.

NOTE

- If the display screen of the remote control starts to fade, replace the batteries.

INSTALLING THE REMOTE CONTROL HOLDER

Install the holder where there is no direct sunlight to protect the remote control.

1. Choose a safe and easily-accessible place.

2. Fix the holder by fastening the 2 screws firmly with a screwdriver.

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

1. Slide the remote control into the holder.

Line drawing of a mobile phone with keypad and control buttons (no text or symbols)

OPERATING METHOD

Point the remote control towards the signal receiver at the bottom of the air conditioner to operate it.

Diagram showing a car air conditioner unit being inserted into a door panel, with no visible text or symbols.

*The feature can be changed according a type of model.

NOTE

• The remote control may operate other electronic devices if pointed towards them. Make sure to point the remote control towards the signal receiver of the air conditioner.

- For proper operation, use a soft cloth to clean the signal transmitter and receiver.

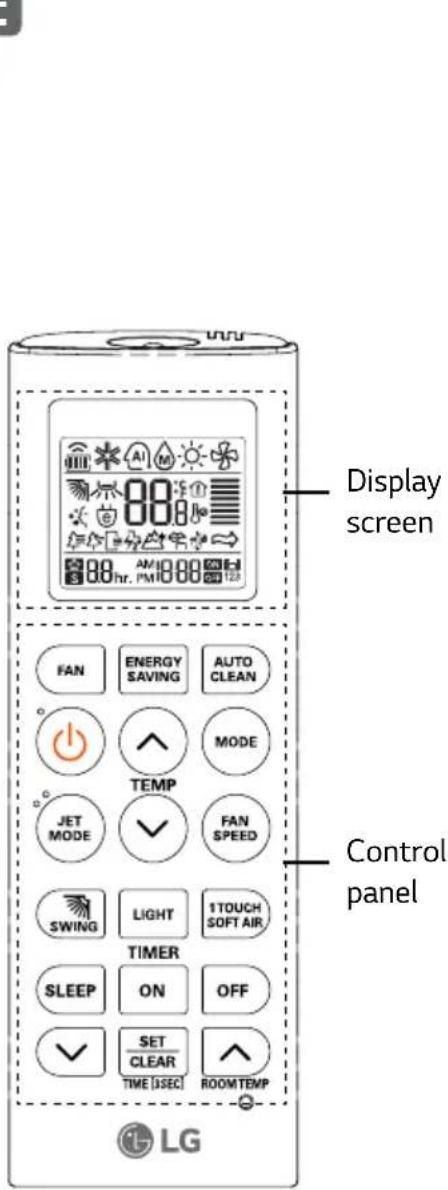

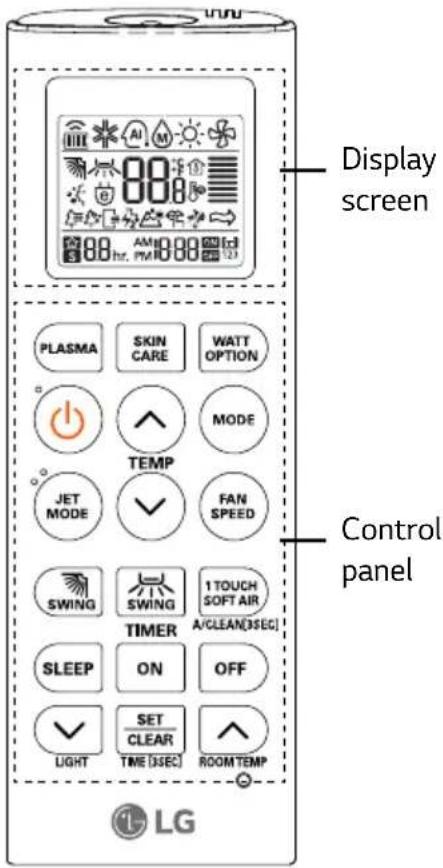

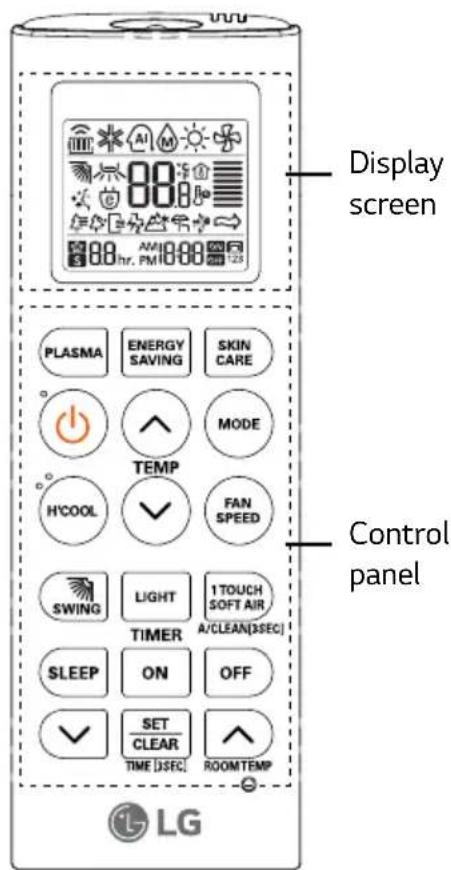

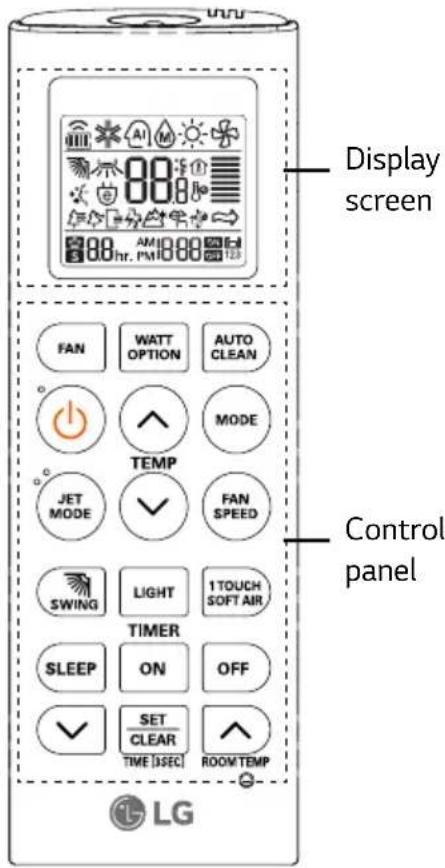

USING THE REMOTE CONTROL

You can operate the air conditioner more conveniently with the remote control.

REMOTE CONTROL TYPE 1 : SKIN CARE, H'COOL, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY

Wireless remote control

Display screen Control panel PLASMA ENERGY SAVING SKIN CARE TEMP H'COOL FAN SPEED SWING LIGHT 1TOUCH SOFT AIR TIMER A/CLEAN[DSEC] SLEEP ON OFF SET CLEAR TIME [DSEC] ROOMTEMP LG

Control panel	Display screen	Description
		Plasma button: Purifies the air by removing particles that enter the indoor unit.
		Energy saving button: Operates energy saving cooling.
	- Skin	Care button: keeps skin moisturized.
	- On/Off button: Turn the power On/Off.
		Temperature adjustment buttons: Adjust the room temperature when cooling.
		Operation mode selection button: Select the operation mode.Cooling operation (*) / Auto operation (AI)Dehumidifying operation (M) /Air circulation operation ( )
		H'Cool button: Cools down the indoor temperature within a short period of time.
		Indoor fan speed button: Adjust the fan speed.
		Air flow direction button: Adjust the air flow direction vertically.
		Light button: Adjusts the brightness of the indoor unit display.
		1 Touch soft air button: To prevent air flow directly to person.
		Sleep mode auto button: Sets the sleep mode auto operation.
		Timer button: Sets the current time and the start / end time.
		Auto clean button: Remove moisture and clean inside of the indoor unit when turn off the power.(Press the button for 3 sec to use 2^nd key)
		Temperature display button: Displays the room temperature.
	- Set/clear button: Sets or cancels functions.
		Reset button: Initialize the air conditioner settings.

REMOTE CONTROL TYPE 2 : ACTIVE ENERGY CONTROL, SKIN CARE, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 4 WAY

Wireless remote control

Display screen Control panel PLASMA SKIN CARE WATT OPTION TEMP JET MODE FAN SPEED SWING SWING 1 TOUCH SOFT AIR A/CLEAN[3SEG] TIMER SLEEP ON OFF LIGHT SET CLEAR Room TEMP LG

Control panel	Display screen	Description
		Plasma button: Purifies the air by removing particles that enter the indoor unit.
	- Skin	Care button: keeps skin moisturized.
		Active energy control button: Select Active energy control Option 80 /60 /40
	- On/Off button: Turn the power On/Off.
		Temperature adjustment buttons: Adjust the room temperature when cooling.
		Operation mode selection button: Select the operation mode.Cooling operation (*) / Auto operation (AI)Dehumidifying operation (M) /Air circulation operation (**)
		Jet cool button: Cools down the indoor temperature within a short period of time.
		Indoor fan speed button: Adjust the fan speed.
		Air flow direction button: Adjust the air flow direction vertically or horizontally.
		1 Touch soft air button: To prevent air flow directly to person.
		Sleep mode auto button: Sets the sleep mode auto operation.
		Light button: Adjusts the brightness of the indoor unit display.
		Timer button: Sets the current time and the start / end time.
		Auto clean button: Remove moisture and clean inside of the indoor unit when turn off the power.(Press the button for 3 sec to use 2^nd key)
		Temperature display button: Displays the room temperature.
	- Set/clear button: Sets or cancels functions.
	-	Reset button: Initialize the air conditioner settings.

REMOTE CONTROL TYPE 3 : ACTIVE ENERGY CONTROL, 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY

Wireless remote control

Display screen FAN WATT OPTION AUTO CLEAN TEMP JET MODE FAN SPEED SWING LIGHT 1 TOUCH SOFT AIR TIMER SLEEP ON OFF SET CLEAR TIME [3sec] ROOM TEMP LG

Control panel	Display screen	Description
		Air circulation button: Used to circulate the room air without cooling.
		Active energy control button: Select Active energy control Option 80/60/40
		Auto clean button: Remove moisture and clean inside of the indoor unit when turn off the power.
	- On/Off button: Turn the power On/Off.
		Temperature adjustment buttons: Adjust the room temperature when cooling.
MODE		Operation mode selection button: Select the operation mode.Cooling operation (*) / Auto operation (AI)Dehumidifying operation (M)
JET MODE		Jet cool button: Cools down the indoor temperature within a short period of time.
FAN SPEED		Indoor fan speed button: Adjust the fan speed.
		Air flow direction button: Adjust the air flow direction vertically.
	[227Z]	Light button: Adjusts the brightness of the indoor unit display.
[YSAD]		1 Touch soft air button: To prevent air flow directly to person.
	hr	Sleep mode auto button: Sets the sleep mode auto operation.
FF	AMW3Z5	Timer button: Sets the current time and the start / end time.
ROOMTEMP		Temperature display button: Displays the room temperature.
TIME (SEC)	Set/clear button: Sets or cancels functions.
O	-	Reset button: Initialize the air conditioner settings.

REMOTE CONTROL TYPE 4: H'COOL AND AIR FLOW DIRECTION 2 WAY

Wireless remote control

Control panel	Display screen	Description
		Air circulation button: Used to circulate the room air without cooling.
		Energy saving button: Operates energy saving cooling.
		Auto clean button: Remove moisture and clean inside of the indoor unit when turn off the power.
	- On/Off button: Turn the power On/Off.
		Temperature adjustment buttons: Adjust the room temperature when cooling.
		Operation mode selection button: Select the operation mode.Cooling operation (*) / Auto operation (AI) Dehumidifying operation (◇)
		H'Cool button: Cools down the indoor temperature within a short period of time.
		Indoor fan speed button: Adjust the fan speed.
		Air flow direction button: Adjust the air flow direction vertically.
	-	Light button: Adjusts the brightness of the indoor unit display.
		Temperature display button: Displays the room temperature.
		Sleep mode auto button: Sets the sleep mode auto operation.
		Timer button: Sets the current time and the start / end time.
	- Set/clear button: Sets or cancels functions.
	-	Reset button: Initialize the air conditioner settings.

REMOTE CONTROL TYPE 5 : 1 TOUCH SOFT AIR AND AIR FLOW DIRECTION 2 WAY

Wireless remote control

Display screen Control panel LG

Control panel	Display screen	Description
		Air circulation button: Used to circulate the room air without cooling.
		Energy saving button: Operates energy saving cooling.
		Auto clean button: Remove moisture and clean inside of the indoor unit when turn off the power.
	- On/Off button: Turn the power On/Off.
		Temperature adjustment buttons: Adjust the room temperature when cooling.
		Operation mode selection button: Select the operation mode.Cooling operation (*) / Auto operation (AI)Dehumidifying operation (M)
		Jet cool button: Cools down the indoor temperature within a short period of time.
		Indoor fan speed button: Adjust the fan speed.
		Air flow direction button: Adjust the air flow direction vertically.
	-	Light button: Adjusts the brightness of the indoor unit display.
		1 Touch soft air button: To prevent air flow directly to person.
		Sleep mode auto button: Sets the sleep mode auto operation.
		Timer button: Sets the current time and the start / end time.
		Temperature display button: Displays the room temperature.
	- Set/clear button: Sets or cancels functions.
	-	Reset button: Initialize the air conditioner settings.

BASIC FUNCTIONS

COOLING YOUR ROOM (COOLING OPERATION)

1. Press ⏻ to turn on the power.
2. Press 📂 repeatedly to select the cooling operation.
3. ✱ is displayed on the display screen.

18°C AM 12:00

1. Press ⬇ or ⏻ to set the desired temperature.

For remote control type 1,4,5

- The temperature range is 18^ C- 30^ C.

For remote control type 2,3

- The temperature range is 16^ C- 30^ C.

REMOVING HUMIDITY (DEHUMIDIFYING OPERATION)

This mode removes excess moisture from an environment with high humidity or in the rainy season, in order to prevent mold. This mode adjusts the room temperature and the fan speed automatically to maintain the optimal level of humidity.

1. Press ⏻ to turn on the power.
2. Press MODE repeatedly to select the dehumidifying operation.
3. Ⓜ or ⬇ is displayed on the display screen.

For remote control type 1,2,3,5

M = AM 12:00

For remote control type 4

Water = AM 12:00

NOTE

- In this mode you cannot adjust the room temperature, as it is adjusted automatically. Also, the room temperature is not displayed on the display screen.

AIRING YOUR ROOM (AIR CIRCULATION OPERATION)

1. Press ⏻ to turn on the power.
2. Fan button: Press ☐ turn on the air cuiculation operation. (For remote control type 3,4,5)
   Mode button : Press 📄 repeatedly to select the air circulation operation. (For remote control type 1,2)
3. ✿ is displayed on the display screen.

AM 12:00

1. Press FAN SPEED to adjust the fan speed.

ADJUSTING THE FAN SPEED

1. Press 📂 repeatedly to adjust the fan speed.

For remote control type 1,4,5

Remark Speed
	High
	Medium
	Low
	Natural wind

For remote control type 2,3

Remark Speed
	High
	Medium High
	Medium
	Medium Low
	Low
	Natural wind

ADJUSTING THE AIR FLOW DIRECTION

1. To adjust the direction of the air flow vertically, press SWING change the air flow direction automatically.

2. To adjust the direction of the air flow horizontally, press SWING change the air flow direction automatically.

NOTE

• Adjusting the air flow direction horizontally may not be supported, depending on the model.
• Adjusting the air deflector arbitrarily may cause product failure.
• If you restart the air conditioner, it starts to operate with the previously set direction of air flow, so the air deflector may not match the icon displayed on the remote control. When this occurs, press SWING or SWING to adjust the direction of the air flow again.

SETTING THE TIMER

You can use the timer function to save energy and to use the air conditioner more efficiently.

SETTING THE CURRENT TIME

1. Press SET CLEAR and hold it for longer than 3 seconds.
2. The AM/PM icon flickers at the bottom of the display screen.

1. Press √ or ▲ to select the minutes.

2. Press SET CLEAR to finish.

TURNING ON THE AIR CONDITIONER AUTOMATICALLY AT A SET TIME

1. Press ON

- The icon below flickers at the bottom of the display screen.

1. Press √ or ▲ to select the minutes.
2. Press to finish.
3. When setting the timer, current time and ON icon are displayed on the display screen indicating that the desired time is set.

TURNING OFF THE AIR CONDITIONER AUTOMATICALLY AT A SET TIME

1. Press OFF

- The icon below flickers at the bottom of the display screen.

1. Press √ or ▲ to select the minutes.
2. Press SET CLEAR to finish.
3. When setting the timer, current time and OFF icon are displayed on the display screen indicating that the desired time is set.

CANCELING THE TIMER SETTING

1. Press SET CLEAR TO cancel all timer setting.

SETTING SLEEP MODE

Use the sleep mode to turn off the air conditioner automatically when you go to sleep.

1. Press ⏻ to turn on the power.
2. Press SLEEP
3. Press √ or ∧ to select the hour (Up to
   7 hours).
4. Press SET CLEAR to finish.
5. ☆ is displayed on the display screen.

18°C 1hr. AM 12:00

NOTE

- In the Cooling and Dehumidifying modes, the temperature increases by 1°C after 30 minutes and by a further 1°C after another 30 minutes for a more comfortable sleep. The temperature increases with up to 2°C from the preset temperature.

ADVANCED FUNCTIONS

The air conditioner offers some additional advanced functions.

CHANGING ROOM TEMPERATURE QUICKLY (JET COOL) (OPTIONAL)

1. Press ⏻ to turn on the power.
2. Press (For remote control type 2,3,5)
3. P_0 is displayed on the display screen.

Po AM 12:00

- In jet cooling mode, strong air blows out at a temperature of 18^ C for 30 minutes.

NOTE

• Powerful Cooling enable in Cooling/ Fan / Dehumidifying/Artificial intelligent.
  • This function may not be supported, depending on the model.

CHANGING ROOM TEMPERATURE QUICKLY H'COOL (HIMALAYA) MODE (OPTIONAL)

This mode allows you to cool indoor air quickly in summer.

1. Press ⏻ to turn on the power.
2. Press ^5 (For remote control type 1,4)
3. HC is displayed on the display screen.

HC AM 12:00

- In H'COOL (Himalaya) mode, 30 minutes strong focused air blows out for faster cooling.

NOTE

• In Air circulation, Auto or Auto changeover mode, this function cannot be used.
• During and after H'COOL mode swing function will be ON by default.
• To OFF swing function press respective swing key.
  • This function may not be supported, depending on the model.
• This function does not have auto restart feature.

INDOOR AIR PURIFICATION (AUTO CLEAN OPERATION)

In the cooling and dehumidifying operations, moisture is generated inside the indoor unit. Use the auto cleaning function to remove such moisture.

1. Press TENUSIN and hold it for longer than 3 seconds. (For remote control type 1,2)
2. Press AUTO CLEAN (For remote control type 3,4,5)
3. ≡ is displayed on the display screen.

18°C AM 12:00

- If you turn off the power, the fan operates for 30 minutes and clean the inside of the indoor unit.

NOTE

Some buttons cannot be used while the auto cleaning function is in operation.

PLASMA PURIFICATION OPERATION (OPTIONAL)

The plasma filter developed by LG removes microscopic contaminants from the intake air completely to supply clean and fresh air.

1. Press ⏻ to turn on the power.
2. Press PLASMA (For remote control type 1,2)
3. is displayed on the display screen.

18°C AM 12:00

NOTE

• You can use this function by pressing without turning the air conditioner on.
• The plasma lamp light up while plasma purification is in operation.

SKIN CARE OPERATION (OPTIONAL)

Use the Skin Care mode to keeps skin moisturized.

1. Press ⏻ to turn on the power.
2. Press ☐ (For remote control type 1)
   Press SKIN CARE (For remote control type 2) to enter the Skin care mode.

- Nothing is going to change on the remote control display screen. But 📋 is displayed on the indoor unit display.

- This mode operates with high fan speed and setting vane directions for maximum moisturizing effect. However, temperature is not changed.

- In this mode, you can change the setting temperature, fan speed and vane directions.

NOTE

• This function can be operated on Cooling mode, Fan Mode and Plasma mode.
• Moisturizing effect may depend on the environment.

You can adjust the brightness of the indoor unit display screen.

1. Press LIGHT (For remote control type 1,3,4,5)
   Press ▼ (For remote control type 2) to turn on/off the lamp on the front cover.

In this mode, the fan speed and the temperature adjust automatically, based on the room temperature.

1. Press ⏻ to turn on the power.
2. Press MODE repeatedly to select auto operation.
3. Press ⬆ or ⬇ to select the desired operation code if the temperature is higher or lower than the desired temperature.

- Ⓜ is displayed on the display screen.

CodeDescription 2 Cool 1 Cool slightly 0 Maintain room temperature Heat slightly -1 -2Heat

NOTE

• In this mode, you cannot adjust the fan speed, but you can set the air deflector to rotate automatically.
• This function may not be supported, depending on the model.

ENERGY SAVING COOLING MODE (OPTIONAL)

This mode minimizes power consumption during cooling and increases the set temperature to the optimal level for a more comfortable environment. The temperature automatically sets at 22^ C if ambient temperature is below 22^ C. The temperature maintains if ambient temperature is above 22^ C.

1. Press ⏻ to turn on the power.
2. Press MODE1 repeatedly to select the cooling operation.
3. Press ENERGY SAVING (For remote control type 1,4,5)
4. 📋 is displayed on the display screen.

22°C AM 12:00

NOTE

• This function may not be supported, depending on the model.
• Possible, Different temperature is displayed on between remote controller and air conditioner during operation.

1 TOUCH SOFT AIR OPERATION (COMFORT VANE OPERATION) (OPTIONAL)

The comfort vane option conveniently sets the vane to a preset position that deflects the supply air away from blowing directly onto room occupants.

1. Press ⏻ to turn on the power.
2. Press 170VCH repeatedly and select the desired direction. (For remote control type 1,2,3,5)
3. or is displayed on the display screen.

18°C AM 12:00

18°C AM 12:00

NOTE

• Pressing 🐎or 🐎or 🐎 during comfort vane operation will turn off the comfort vane feature.
• Pressing during comfort vane operation will turn off the comfort vane feature and set up the auto swing of vertical direction.
• When this feature is off, the horizontal vane operates automatically depending on the set mode.

ACTIVE ENERGY CONTROL OPERATION (OPTIONAL)

This mode reduces power input from rated power input during the cooling mode.

*Active energy control operation : 80% / 60% / 40% compared to the rated power input

1. Press ⏻ to turn on the power.
2. Press 📋 repeatedly to select the cooling operation.
3. Press ☐ (For remote control type 2)
   Press WAIT OPTION (For remote control type 3) to select 80
4. 80 and ↗ are displayed on the screen.

80 AM12:00

Displayed on the Indoor unit (The display on the unit depending on the model)

Version 1 Version 3 Version 2

• ○ • ○ ⏱ ↺ • ○ • ○ %{ ↺ 80 %

1. Press WATT OPTION (For remote control type 2)

Press WATT OPTION (For remote control type 3) to select 60

- 60 and ↗ are displayed on the screen.

60 AM12:00

Displayed on the Indoor unit (The display on the unit depending on the model)

Version 1 Version 3 Version 2

• ○ • ○ ⏱ ↗ • ○ • ○ %{ - ↗ 60 %

1. Press WATT OPTION (For remote control type 2)

Press WAIT OPTION (For remote control type 3) to select 40

- 40 and ↗ are displayed on the screen.

40 AM12:00

Displayed on the Indoor unit (The display on the unit depending on the model)

Version 1 Version 3 Version 2

• ○ • ↓ ↓ ↓ • ○ • ↓ ↓ ↓ 40 %

1. Press ☐(For remote control type 2)

Press ☐WATT OPTION (For remote control type 3) one more time to return to the normal cooling operation.

18°C AM 12:00

Displayed on the Indoor unit (The display on the unit depending on the model)

Version 1 Version 3 Version 2

NOTE

• Due to 'Active energy control operation', inadequate cooling capacity may occur.
• Cooling capacity for 'Active energy control': Approximately 80% / 60% / 40% of rated cooling capacity.
• You can set desired temperature in 'Active energy control operation'. Setting temperature will be displayed for 5 seconds and then return to the display 80% / 60% / 40% .
• 'Active energy control operation' is memorized Ex) In case of restarting the air-conditioner during 'Active energy control operation 80%', It operates 'Active energy control operation 80%' automatically.

OPERATING THE AIR CONDITIONER WITHOUT THE REMOTE CONTROL

You can use the on/off button of the indoor unit to operation the air conditioner when the remote control is unavailable. However, the fan speed is set to high.

1. Open the front cover.
2. Lift up both side of the cover slightly.

TYPE 1

Technical diagram showing airflow or ventilation system components in a car air conditioner unit, with numbered parts and directional arrows indicating flow.

*The feature can be changed according a type of model.

1. Press the On/Off button.

TYPE 1

TYPE 1 On/Off button

TYPE 2 On/Off button

TYPE 3

On/Off button

*The feature can be changed according a type of model.
- For cooling and heating model, the operation mode changes, depending on the room temperature.

Room Temp. Set Temp. Operation mode
Below 21°C 24°C Heating operation
Above 21°C and below 24°C	23°C Dehumidifying operation
Above 24°C 22°C Cooling operation

- For cooling only model, the temperature is set to 22^ C.

RESTARTING THE AIR CONDITIONER AUTOMATICALLY

When the air conditioner is turned on again after a power failure, this function restores the previous settings. This function is a factory default setting.

DISABLING AUTO RESTART

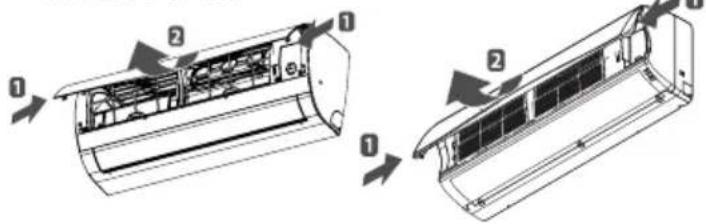

1. Open the front cover.
2. Lift up both side of the cover slightly.

TYPE 1 TYPE 2

Technical diagram showing airflow or ventilation system changes in an air conditioner unit, with numbered components and directional arrows indicating flow.

*The feature can be changed according a type of model.
2. Press the On/Off button and hold it for 6 seconds.

- The unit will beep twice and the lamp will blink twice 4 times.

TYPE 1

TYPE 1 On/Off button

TYPE 2 On/Off button

TYPE 3

On/Off button

*The feature can be changed according a type of model.

- To re-enable the function, press the On/Off button and hold it for 6 seconds. The unit will beep twice and the lamp will blink 4 times.

NOTE

- If you press and hold the On/Off button for 3-5 seconds, the unit will switch to the test operation. In the test operation, the unit blows out strong air for cooling for 18 minutes and then returns to the factory default setting.

MAINTENANCE

Clean the product regularly to maintain optimal performance and to prevent possible breakdown.

INDOOR UNIT TYPE 1

3M filter (Optional) Triple filter (Optional) 3M filter (Optional) Air filter Plasma filter (Optional)

INDOOR UNIT TYPE 2

Air filter 3M filter (Optional) 3M filter (Optional) 3M filter (Optional) Plasma filter (Optional) Allergy free filter (Optional) M filter (Optional) iple filter (Optional)

INDOOR UNIT TYPE 3

Air filter 3M filter (Optional) Triple filter (Optional)

* The feature can be changed according a type of model.

Item Cleaning	interval Cleaning method
Air filter 2 weeks See “	Cleaning Air filter”
3M filter 1 month See	“Cleaning 3M filter”
Triple filter 3 months See “	Cleaning Allergy free filter and Triple filter”
Allergy free filter 3 months See “	Cleaning Allergy free filter and Triple filter”
Plasma filter	1 month See “	cleaning Plasma filter”
Indoor unit surface	Regularly	Use a soft, dry cloth. Do not use bleach or abrasives.
Outdoor unit	Regularly	Use steam to clean the heat exchanger coils and the panel vents (consult with technician).

CAUTION

• Turn off the power and unplug the power cord before you perform any maintenance; otherwise it may cause electric shock.
• Never use water that is hotter than 40^ when you clean the filters. It may cause deformation or discoloration.
• Never use volatile substances when you clean the filters. They may damage the surface of the product.
• Do not washed the 3M filter with water, because the filter can be damaged.

NOTE

• The location and shape of the filter may differ, depending on the model.
• Make sure to clean the heat exchanger coils of the outdoor unit regularly, as dirt collected in the coil may decrease the operational efficiency or increase energy costs.

CLEANING THE AIR FILTER

Cleaning the Air filter once every 2 weeks or more if necessary.

1. Turn off the power and unplug the power cord.
2. Open the front cover.
3. Lift up both sides of the cover slightly.

TYPE 1

Technical line drawing of a car air duct system with grid structure and valve (no text or symbols)

TYPE 2

TYPE 3

Diagram of a car air conditioner unit with hands holding a handle (no text or symbols)

* The feature can be changed according a type of model.
3. Hold the knob of the Air filter, lift it up slightly and remove it from the unit.

TYPE 1

Technical line drawing of a mechanical component with no visible text or symbols

TYPE 2

TYPE 3

Diagram of a airflow or cooling system inside a refrigerated air duct (no text or symbols)

* The feature can be changed according a type of model.

1. Clean the filter with a vacuum cleaner or with warm water.

- If dirt is difficult to remove, wash the filter in lukewarm water with detergent.

1. Dry the filter in the shade.

NOTE

- For inner cleaning, contact an Authorized Service center or a dealer. Do not use harsh detergent that causes corrosion or damage on the unit. Harsh detergent may also cause failure of product, fire, or electric shock.

CLEANING ALLERGY FREE FILTER AND TRIPLE FILTER (OPTIONAL)

1. Turn off the power and unplug the power cord.
2. Open the front cover and remove Air filter (See "Cleaning Air filter").

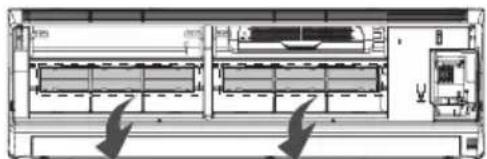

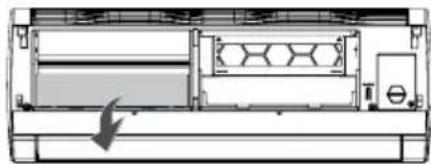

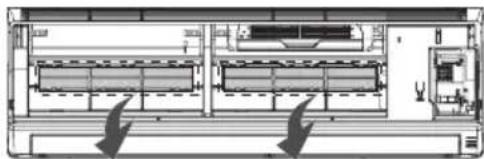

3. Pull out the Allergy free filter or Triple filter.

TYPE 1

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

TYPE 2,3

Technical line drawing of an air conditioning unit with internal compartments and control panel (no text or labels)

* The feature can be changed according a type of model.

1. Dry the filer in direct sunlight for 2 hours.

NOTE

- The location and shape of the filters may differ, depend on the model.

CLEANING 3M FILTER (OPTIONAL)

Clean the filter once every 1 months and change the new filter once every 6 months.

1. Turn off the power and unplug the power cord.
2. Open the front cover and remove Air filter. (See "Cleaning Air filter").
3. Pull out 3M filter.

TYPE 1

3M filter

TYPE 2,3

3M filter 3M filter

* The feature can be changed according a type of model.
4. Use a vacuum cleaner to remove any dirt. Do not wash the filter with water may be makes damage to the filter.

NOTE

- The location and shape of the filters may differ, depend on the model.

CLEANING PLASMA FILTER (OPTIONAL)

1. Turn off the power and unplug the power cord.
2. Open the front cover and remove Air filter. (See "Cleaning Air filter").
3. Remove the plasma filter in 10 seconds.

TYPE 2

Technical line drawing of a server rack with internal components and a directional arrow indicating movement (no text or symbols)

* The feature can be changed according a type of model.
4. Use a vacuum cleaner to remove any dirt. Do not wash the filter with water may be makes damage to the filter.

TROUBLESHOOTING

SELF-DIAGNOSIS FUNCTION

This product has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit will blink in 2 second intervals. If this occurs, contact your local dealer or service center.

BEFORE REQUESTING SERVICE

Please check the following before you contact the service center. If the problem persists, contact your local service center.

Problem Possible causes Corrective action
There is a burning smell and a strange sound coming from the unit.	-	Turn off the air conditioner, unplug the power cord and contact the service center.
Water leaks from the indoor unit even when the humidity level is low.
The power cord is damaged or generating excessive heat.
A switch, a circuit breaker (safety ground) or a fuse is not operated properly.
The air conditioner does not works.	The air conditioner is unplugged.	Check whether the power cord is plugged into the outlet.
	A fuse is blown or the power supply is blocked.	Replace the fuse or check if the circuit breaker has tripped.
	A power failure has occurred.	Turn off the air conditioner when a power failure occurs. When the power is restored, wait 3 minutes, and then on the air conditioner.
	The voltage is too high or too low.	Check if the circuit breaker has tripped.
	The air conditioner turned off automatically at a preset time.	Press the power button again.
The air conditioner does not generate cool air.	Air is not circulating properly.	Make sure that there are no cur-tains, blinds or furniture blocking the front of the air conditioner.
	The Air filter is dirty.	Clean the Air filter once every 2 weeks. See “Cleaning Air filter” for more information.
	The room temperature is too high.	In summer, it may take some time to cool indoor air. In this case, select the jet cool operation to cool indoor air quickly.
	Cold air is escaping from the room.	Make sure that no cold air is escaping through ventilation points in the room.
	The desired temperature is higher than the set temperature.	Set the desired temperature to a level lower than the current temperature.
	There is a heating source nearby.	Avoid using a heat generator such as an electric oven or a gas burner while the air conditioner is in operation.
	Air circulation operation is selected.	In the air circulation operation, air blows from the air conditioner without cooling or heating the indoor air. Switch the operation mode to the cooling operation.
It is not possible to adjust the fan speed.	The auto operation, jet operation or dehumidifying operation is selected.	In some operation modes, such as the jet or dehumidifying operation modes, you cannot adjust the fan speed. Select an operation mode in which you can adjust the fan speed.
It is not possible to adjust the temperature.	The air circulation operation or jet operation is selected.	In some operation modes, such as the air circulation or jet operation mode, you cannot adjust the temperature. Select an operation mode in which you can adjust the temperature.

LG

Life's Good

PT. LG ELECTRONICS INDONESIA

GANDARIA 8 OFFICE TOWER, LT. 29 BC & 31 ABCD

JL. SULTAN ISKANDAR MUDA

KEBAYORAN LAMA, JAKARTA SELATAN 12240

DKI JAKARTA RAYA, INDONESIA

MODEL:

E05NXA S40 E09NXA S40

LG New Hybrid

MODEL:

E10CMV SW1 E13CMV SH1

E18CMV SC1

PANDUAN PEMILIK

PENDINGIN RUANGAN

Ultra Deluxe

MODEL:

D05YXA SW2

D05ZXA SW2

D07YXA SW2

D07ZXA SW2

D09YXA SH2

D09ZXA SH2

D12YXA SH2

D18YXA SC2

16 - MENGATUR WAKTU SAAT INI

16 - MENYALAKAN PENYEJUK UDARA SECARA OTOMATIS PADA WAKTU TERTENTU

17 - MEMATIKAN PENYEJUK UDARA SECARA OTOMATIS PADA WAKTU TERTENTU

17 - MEMBATALKAN PENGATURAN TIMER

17 MENGATUR MODE TIDUR

17 FUNGSI TINGKAT LANJUT

17 MENGUBAH SUHU RUANGAN DENGAN CEPAT (JET COOL) (OPSIONAL)

18 MENGUBAH SUHU RUANGAN DENGAN CEPAT MODE H'COOL (HIMALAYA) (OPSIONAL)

18 PEMURNIAN UDARA DALAM RUANGAN (PEMBERSIHAN OTOMATIS)

19 PENGOPERASIAN PEMURNIAN PLASMA (OPSIONAL)

19 MODE PERAWATAN KULIT (OPSIONAL)

19 KECERAHAN LAYAR TAMPILAN

20 PENGOPERASIAN OTOMATIS (KECERDASAN BUATAN)

20 PENGOPERASIAN OTOMATIS (KECERDASAN BUATAN) (OPSIONAL)

21 OPERASI 1 TOUCH SOFT AIR (COMFORT VANE) (OPSIONAL)

21 PENGOPERASIAN ACTIVE ENERGY CONTROL (OPSIONAL)

23 MENGOPERASIKAN PENYEJUK UDARA TANPA REMOTE CONTROL

23 MENYALAKAN ULANG PENYEJUK UDARA SECARA OTOMATIS

23 - MENONAKTIFKAN PENYALAAN ULANG OTOMATIS

24 PERAWATAN

24 - UNIT DALAM RUANGAN TIPE 1

24 - UNIT DALAM RUANGAN TIPE 2

24 - UNIT DALAM RUANGAN TIPE 3

26 MEMBERSIHKAN FILTER UDARA

26 MEMBERSIHKAN FILTER TRIPLE (OPSIONAL)

27 MEMBERSIHKAN FILTER 3M (OPSIONAL)

27 MEMBERSIHKAN FILTER PLASMA (OPSIONAL)

28 PEMECAHAN MASALAH

28 FUNGSI DIAGNOSIS MANDIRI

28 SEBELUM MENELEPON PETUGAS SERVIS

SEBELUM MENGGUNAKAN

KOMPONEN

UNIT DALAM RUANGAN TIPE 1 Penutup depan Filter 3M (Opsional) atau Filter Plasma (Opsional) Filter udara Filter 3M (Opsional) atau Filter triple (Opsional) Penutup Penutup Filter 3M (Opsional) Opsional Ionizer (Opsional) Ionizer (Opsional) Keluaran udara Baling-baling pengoperasian horizontal Bingkai bukaan (louver) vertical Layar Tampilan Penerima sinyal Tombol on/off Masukan udara Baling-baling pengoperasian horizontal

Technical diagram of a remote control panel with labeled components 1, 2, and 3

Line drawing of a remote control device with internal components and an arrow indicating a component (no text or symbols)

1. Pasang kembali penutup baterai.

CATATAN

- Jika layar tampilan remote control mulai memudar, gantilah baterai.

MEMASANG DUDUKAN REMOTE CONTROL

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a mobile phone with keypad and buttons, showing a downward arrow (no text or symbols)

CARA MENGOPERASIKAN

Diagram of a wall-mounted air conditioner unit with a remote control panel inserted, showing internal components (no text or symbols)

Layar tampilan TEMP JET MODE FAN SPEED SWING SWING 1TOUCH SOFT AIR TIMER A/CLEAN[3SEC] SLEEP ON OFF LIGHT SET CLEAR ROOMTEMP LG

18°C AM 12:00

W M = AM 12:00

Water = AM 12:00

CATATAN

Remark Speed
	High
	Medium High
	Medium
	Medium Low
	Low
	Natural wind

MENYESUAIKAN ARAH ALIRAN UDARA

MENGATUR WAKTU SAAT INI

Po AM 12:00

18°C AM 12:00

18°C AM 12:00

CATATAN

18°C AM 12:00

18°C AM 12:00

CATATAN

40 AM 12:00

18°C AM 12:00

Versi1

Veris 2

Versi 3

CATATAN

Technical diagram showing airflow or ventilation system components with numbered parts and directional arrows indicating flow direction.

TPE 1 Tombol On/Off

TIPE 2 Tombal On/Off

TIPE 3

Tombol On/Off

Technical diagram showing airflow or ventilation process of an air conditioner unit with labeled components and directional arrows

TMBE 1 Tombol On/Off

TIPE 2 Tombol On/Off

TIPE 3

Tombol On/Off

Technical line drawing of a cylindrical air duct or duct with internal grid structure (no text or symbols)

TIPE 2

TIPE 3

Diagram of a car air conditioner unit with cooling fins and airflow direction arrow (no text or labels)

Technical line drawing of a mechanical component with hands and grid lines (no text or symbols)

TIPE 2

TIPE 3

Diagram of airflow or heat transfer between a car air conditioner unit with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

TIPE 2,3

Architectural floor plan showing room layouts and structural elements (no text or labels)

MEMBERSIHKAN FILTER 3M (OPSIONAL)

TIPE 1 Filter 3M

TIPE 2,3 Filter 3M Filter 3M

MEMBERSIHKAN FILTER PLASMA (OPSIONAL)

Architectural floor plan showing room layouts and storage areas (no text or labels)
