GK-1509S - Kettle TOSOT - Free user manual and instructions

Product Type	Electric Kettle
Brand	TOSOT
Model	GK-1509S
Capacity	1.5 L
Power	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Stainless Steel
Dimensions (H x W x D)	25 cm x 20 cm x 15 cm
Weight	1.0 kg
Cable Length	0.75 m
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Lid Type	Flip-top with lock
Base Type	360° swivel cordless base
Water Level Indicator	Yes, transparent window
Filter	Removable mesh filter
Keep Warm Function	No
Maintenance	Descaling with vinegar or citric acid
Safety Certifications	CE, RoHS

Frequently Asked Questions - GK-1509S TOSOT

What is the capacity of the TOSOT GK-1509S kettle?

The TOSOT GK-1509S has a capacity of 1.5 liters, ideal for up to 6 cups of hot water.

How do I clean the kettle?

Unplug the kettle and let it cool. For descaling, fill with a mixture of water and vinegar (1:2 ratio) and boil. Let it soak, then rinse thoroughly. Do not immerse the base in water.

Does the kettle automatically shut off?

Yes, it features automatic shut-off when the water reaches boiling point and also has boil-dry protection for safety.

Can I use the kettle to keep water warm?

No, the GK-1509S does not have a keep-warm function. It only boils water and then shuts off.

What is the power consumption?

The kettle operates at 1500 W, allowing fast boiling of water in about 3-4 minutes.

Is the kettle cordless?

Yes, it has a 360° swivel cordless base, making it easy to lift and pour without the cord getting in the way.

What material is the kettle made of?

The kettle body is made of stainless steel with a plastic handle and lid. The internal heating element is concealed and stainless steel.

How long does it take to boil a full kettle?

Approximately 3-5 minutes for a full 1.5-liter capacity, depending on the starting water temperature.

Is the kettle noisy when boiling?

Some noise is normal as water heats and boils. The kettle is designed to operate within standard noise levels.

What is the warranty for the TOSOT GK-1509S?

Typically, TOSOT offers a 1-year limited warranty. Check your purchase documentation or contact TOSOT customer support for details.

USER MANUAL GK-1509S TOSOT

Phenomenon	Causes	Troubleshooting
Power off before the water is boiling.	Too much scale. Eliminate the scale .
Electric kettle can't operate.	Power plug hasn't been inserted tightly.	Check whether the power plug is connected well.
	Temperature limiter inside the electric kettle hasn't reset; dry-burning protection device breaks off due to dry-burning.	After disconnecting power, add some cold water in kettle. Wait for a while and then reuse the kettle.
	Power cord is damaged.	Replace or repair it at Gree appointed maintenance center.
There's off-flavor in water .	This phenomenon is always existing when using the kettle for the first time .	Resolve it by referring to the method in "operation method".
There's scale in kettle or the water is not clean.	The local water quality is hard.	Eliminate the water scale in time.

Remark:

Common malfunction diagnosis and troubleshooting method are as above. As for other malfunction, please contact with company customer service or go to appointed after-sales service center for maintenance. Do not repair or refit the unit by yourself.

Line drawing of a simple 3D kettle with handle and lid (no text or symbols)

Tartalomjegyzék:

Biztonsági tanácsok

GK-120 S/GK-150 S9 9

1. Vízforraló nyílás

3.Fedélnyitó gomb

5.BE/KI gomb

7.Talp

2.Vízforraló fedél

4.Fogantyú

1. Tápkábel

2. Test

Müszaki paraméterek

The product is subject to change without notice. The graphs in this instruction manual may be different from the actual products; please refer to the actual products.

TQSOT

Liquid Heater (Electric Kettle)

Instruction Manual

Modell: GK-1509S

Line drawing of a kettle with handle and lid (no text or symbols)

Content

Safety Notices 1

Product Structure and Name 7

Technical Parameters 7

Electric Circuit Diagram 7

Operation Method 8

Clean and Maintenance 8

Troubleshooting 9

Thank you for selecting our product. Please read this instruction manual carefully before operation and keep this manual well for reference in the future. Please pay special attention to "safety notices". If you have lost the Owners Manual, please contact the local agent or visit www.gree.com or send email to [e-mail] for electronic version.

Safety Notices

Please follow

Please follow this manual strictly for the correct operation.

The safety notices are listed as below for preventing injury. Please do follow them strictly.

■ Ignorance or wrong understanding of those marks will cause below two circumstances.

Warning: It may cause heavy injury or death.

Caution: It may cause personal injury or damage to other objects.

■ The seriousness is classified by the following indicators.

This symbol indicates never to do this

This symbol indicates always to do this

Caution

1. Before putting through the power, please check whether the power voltage you used complies with the rated voltage of the product. If not, please contact local dealer.

1. Do not share the power socket with other electric appliances to prevent overcurrent. The current capacity of pwoer socket must be 10A at least. Otherwise, there may be hazard due to overcurret.

Safety Notices

Caution

3.Do not insert any objects into any gaps or holes.

1. Storage condition: The unit shall be stored at a cool and dry place with ambient temperature range within -15°C\~45°C.

1. The power must be disconnected before cleaning the kettle. Wipe off the base before reusing the kettle.

1. This product is only for household use.

7.Do not let children pull the power cord or knock the electric kettle. When using the electric kettle, put it at the place whereit is out of reach of children for preventing hazard.

1. Because the water quality is different in different areas, please try to use the water with less sundries (such as purifiedwater and distilled water).

Caution

9The electric kettle can only be operated on the provided base.

1. The label of "MAX" is the maximum water level of electric kettle.

MAX MIN

11.Do not connect the power as below circumstances: no water in kettle; when adding water; don't use the kettle, clean or remove the kettle; there's malfunction for the kettle.

1. Insert the power plug into the socket properly. Grounded wall socket must be applied to ensure proper and reliable grounding of unit.

13.Do not place the electric kettle at the place with fire source or heat source, rain or direct sunshine.

1. Please use this product at stable and flat place.

Safety Notices

Caution

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children with out supervision.

1. The normal height abovesea level for operating this product is 0\~2000m.

Safety Notices

Warning

1. Do not heat other objects, except water. During heating, the water can't exceed the rated maximum water level. Otherwise, the water will spout out. During heating water, the water can't lower than the minimum water level.

2.Do not operate the kettle when there's little water or no water to prevent distortion to heating coil and affecting service life.

1. If the electric kettle is full, boiling water may spurt out.

2. The power must be disconnected before removing the kettle from the base.

Warning

1. “☒” Do not soak electric kettle and base into water. Do not let water infiltrate into the electric parts to avoid damaging the insulation performance and causing electric shock or short circuit.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. During operation, please use handle. Do not connect kettle or the hot steam. When boiling water, you must close the cover. During water-boiling process, do not open the cover to prevent scalding.

1. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. Caution: if the kettle is overfilled, boiling water may be ejected. WARNING: Do not remove the lid while the water is boiling.

Correct Disposal of This Product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Product Structure and Name

GKW-150 S9

1.kettle nib 2.kettle cover
3.cover open button 4.handle
5.ON/OFF button 6.power cord
7.base 8.body

Technical Parameters

Model	Rated voltage	Rated frequency	Rated power	Rated capacity
GKW-1509S		50Hz 1500W 1.5L220		-240V~

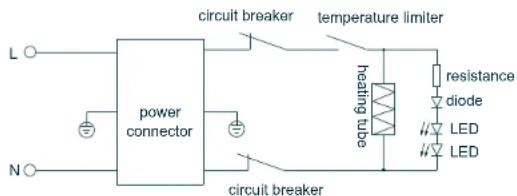

Electric Circuit Diagram

-7-

Operation Method

1. Special notice before operation
   1) Before operation, please read this instruction manual carefully, especially for the "safety notice".
   2) When using the electric kettle for the first time, please clean up the packing materials and other sundries outside or inside the kettle.
   3) Before putting through the power, please check whether the voltage you used is the same as the voltage shown on the nameplate.
   4) When using the electric kettle for the first time or reusing the electric kettle when it hasn't been used for a long time, please fill the electric kettle with water to the max water level and boil the water once or twice, and then pour out the water to clean the electric kettle. Do not drink the water for cleaning.
2. Operation procedure
   1) Take the kettle from base, open the cover, fill the kettle with appropriate quantity of water and then close the cover.
   2) Put the kettle on the base and then insert the power plug.
   3) Pull the switch downward to get through the power. After that, the indicator is on immediately and the electric kettle will start boiling water.
   4) Few minutes later, the water is boiling and the kettle will be power off automatically.
   5) After operation, pull out the power plug.
   6) Take up the body from the base and then you can pour the water for drinking.

Clean and Maintenance

1. Before cleaning the electric kettle, please make sure that the power plug is pulled out and cool down the kettle.
2. The dirt on the surface of electric kettle can be wiped off by wet cloth. Prohibit soaking the electric kettle into water or cleaning agent, or putting it into the dish washer for cleaning.
3. During cleaning period, please keep the circuit dry.
4. During cleaning period, prevent the sharp objects to contact or scratch the surface of electric kettle. Do not use abrasive cleaner, clean cream and other cleanser to clean the kettle to avoid affecting its appearance.
   5.Scale-removing

Method a: Pour 0.5L table vinegar into electric kettle to soak it for 1h, pour out the vinegar and then use clear water to clean it for 4-5 times.

Method b: Inject 25g citrate acid into 0.5L table vinegar and then pour them into kettle to boil and soak it for 30min; Pour out that liquid and clean the kettle with clear water for 4-5 times.
