USER MANUAL 101L Kramer

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

101L Video Line Amplifier 1 Power supply (12V DC)

4 Rubber feet 1 Quick Start sheet

Save the original box and packaging materials in case you need to return your 101L for service.

Step 2: Install the 101L

Attach the rubber feet and place on a table or mount the 101L in a rack (using an optional RK-1 rack mount).

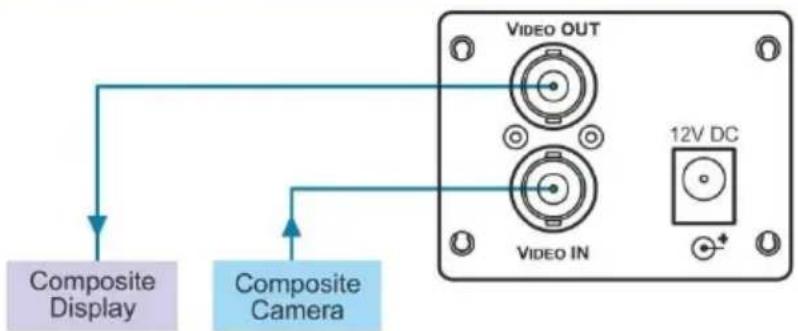

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your 101L.

Always use Kramer high-performance cables for connecting AV equipment to the 101L.

Step 4: Connect the power

Connect the 12V DC power adapter to the 101L and plug the adapter into the mains electricity.

Step 5: Operate the 101L

If needed, adjust the equalization and level.

Silhouette of a screwdriver with a pointed tip (no text or symbols)

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Defining the 101L Video Line Amplifier 4
4 Connecting the 101L 5
5 Technical Specifications 6

Figures

Figure 1: 101L Video Line Amplifier 4
Figure 2: Connecting the 101L Video Line Amplifier 5

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer 101L Video Line Amplifier, which is ideal for the following typical applications:

• Professional display systems that require long distance delivery of high quality video
  • CCTV, medical, and sports applications

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
  • Position your Kramer 101L away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The high performance 101L Video Line Amplifier is used for amplifying the video signal intensity and improving the image sharpness (the picture quality) when a video signal is transmitted over a long cable.

In particular, the 101L features:

• Extra-wide bandwidth of 500MHz
- Gain and equalization trimmer controls to compensate for signal losses inherent in long cable runs, recessed to prevent tampering

3.1 Defining the 101L Video Line Amplifier

This section defines the 101L.

1 2 3 VIDEO OUT VIDEO IN 12V DC

CONTROL EQ. LEVEL ON 4 5 6

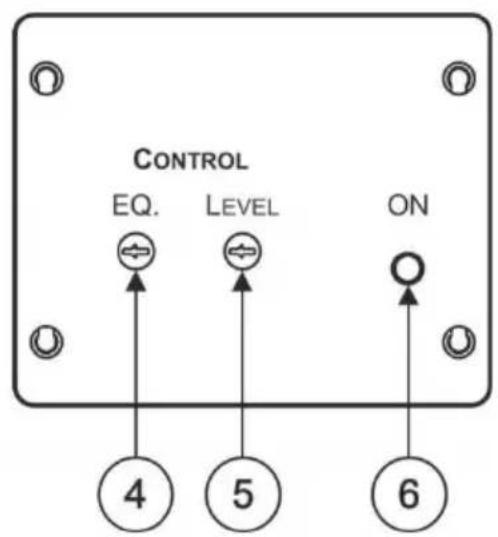

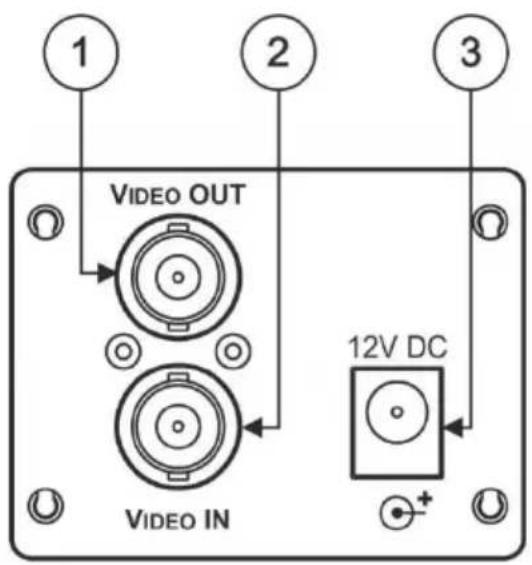

Figure 1: 101L Video Line Amplifier

#	Feature	Function
1	VIDEO OUT BNC Connector	Connects to a video acceptor
2	VIDEO IN BNC Connector	Connects to the video source
3	12V DC	+12V DC connector for powering the unit
4	CONTROL EQ. Trimmer	Adjusts the cable compensation equalization level
5	CONTROL LEVEL Trimmer	Adjusts the output signal level
6	ON LED	Illuminates when receiving power

4 Connecting the 101L

Always switch off the power to each device before connecting it to your 101L. After connecting your 101L, connect its power and then switch on the power to each device.

To connect the 101L, as illustrated in the example in Figure 2, do the following:

1. Connect the video source (for example, a composite video camera) to the VIDEO IN BNC connector.
   It is recommended that you connect the 101L closer to the source than to the acceptor.
2. Connect the VIDEO OUT BNC connector to a video acceptor (for example, a composite display).
3. Connect the 12V DC power adapter to the power socket on the 101L, and connect the adapter to the mains electricity.
   The ON LED illuminates.
4. If required, adjust the output signal level (LEVEL) and/or cable compensation equalization level (EQ.) with a small screwdriver.


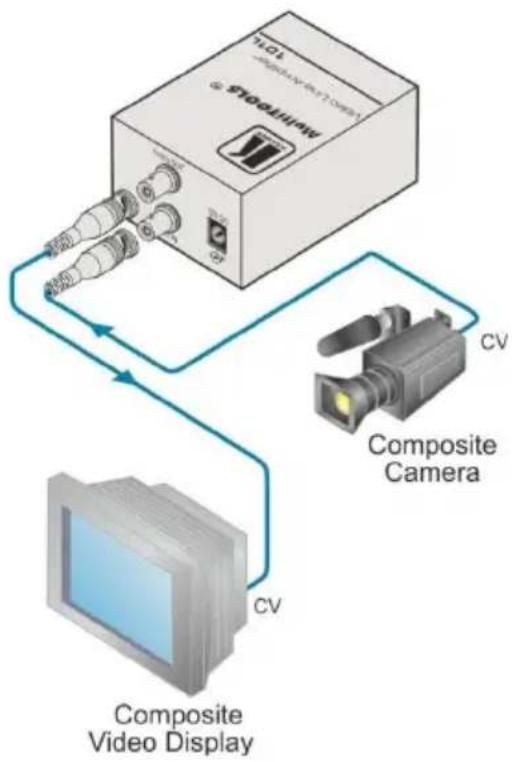

Figure 2: Connecting the 101L Video Line Amplifier

5 Technical Specifications

INPUT:	1 composite video, 1Vpp/75Ω on a BNC connector
OUTPUT:	1 composite video, 1Vpp/75Ω on a BNC connector
MAX. OUTPUT LEVEL:	2.5Vpp
BANDWIDTH:	500MHz
DIFF. GAIN:	0.03%
DIFF. PHASE:	0.03Deg.
S/N RATIO:	75dB
CONTROLS:	Level: -0.8dB to 6.5dB; equalization: 0dB to 8dB @ 5MHz
COUPLING:	DC
POWER CONSUMPTION:	12V DC, 60mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	5.32cm x 4.36cm x 7.25cm (2.09" x 1.72" x 2.85") W, D, H
WEIGHT:	0.15kg (0.55lbs) approx.
ACCESSORIES:	Power supply
OPTIONS:	RK-1 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.com
