USER MANUAL BC3423 Becken

MANUAL DE INSTRUÇÕES

Pure architectural line drawing of a two-story building facade with no text or symbols

BC3423 IX

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

1.2. Power Cord and Other Cables 5

2. OPERATING INSTRUCTIONS 11

2.1. Product Description 11
2.2. Product Usage 12
2.3. Maintenance 23
2.4. Troubleshooting 26

3. POST-SALE SERVICE 28

4. ENVIRONMENTAL PROTECTION 29

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, please read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it throughout its lifecycle will be properly informed on how to safely use the appliance.

For health safety purposes, please keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused due to omission.

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.

[you can trust]

• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Keep all packaging materials away from children, since there is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door so to avoid children from playing inside the fridge and suffer an electric shock or to lock themselves inside it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance.

This will prevent it from becoming a death trap for a child.

WARNING!: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING!: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

RNING!: Do not damage the refrigerant circuit.

WARNING!: Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

WARNING!: Do not touch the light bulb if it has been on for a long period of time since it could be very hot. ^1

^1 If there is a light in the compartment.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance's refrigerant circuit contains a refrigerant called isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

- When transporting or installing this appliance, please ensure that none of the components of the refrigerant circuit becomes damaged.

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is located

- It is dangerous to alter the specifications or modify this product in any way. Please keep in mind that any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

WARNING!: Any electrical components (plug, power cord, compressor, etc.) must be replaced by a certified service agent or qualified service personnel.

[you can trust]

WARNING!: The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting. ^1

• Please be advised that the power cord must not be lengthened.
• Make sure that the power plug does not get pressed or damaged by the back of the appliance, since a pressed or damaged power plug may overheat and cause a fire.
• Make sure that the appliance's power plug is always accessible.
• Do not pull the power cable.
• If the mains socket is loose, do not insert the power plug, as there is a risk of electric shock or fire.
• This appliance must not be operated without the lamp.
• Please note that this appliance is heavy, therefore care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Please avoid extended exposure of the appliance to direct sunlight.

Daily use

• Do not put hot food on the plastic parts inside the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^2

^1 If there is a light in the compartment. ^2 If there is a freezer compartment.

- Please store pre-packed frozen food in accordance with the frozen food manufactures instructions. ^2

- Storage recommendation provided by appliance manufactures should be strictly followed. Please refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2

- Ice lollies can cause frost burns if consumed straight from the appliance. ^2

^2 If there is a freezer compartment.

[you can trust]

2. OPERATING INSTRUCTIONS

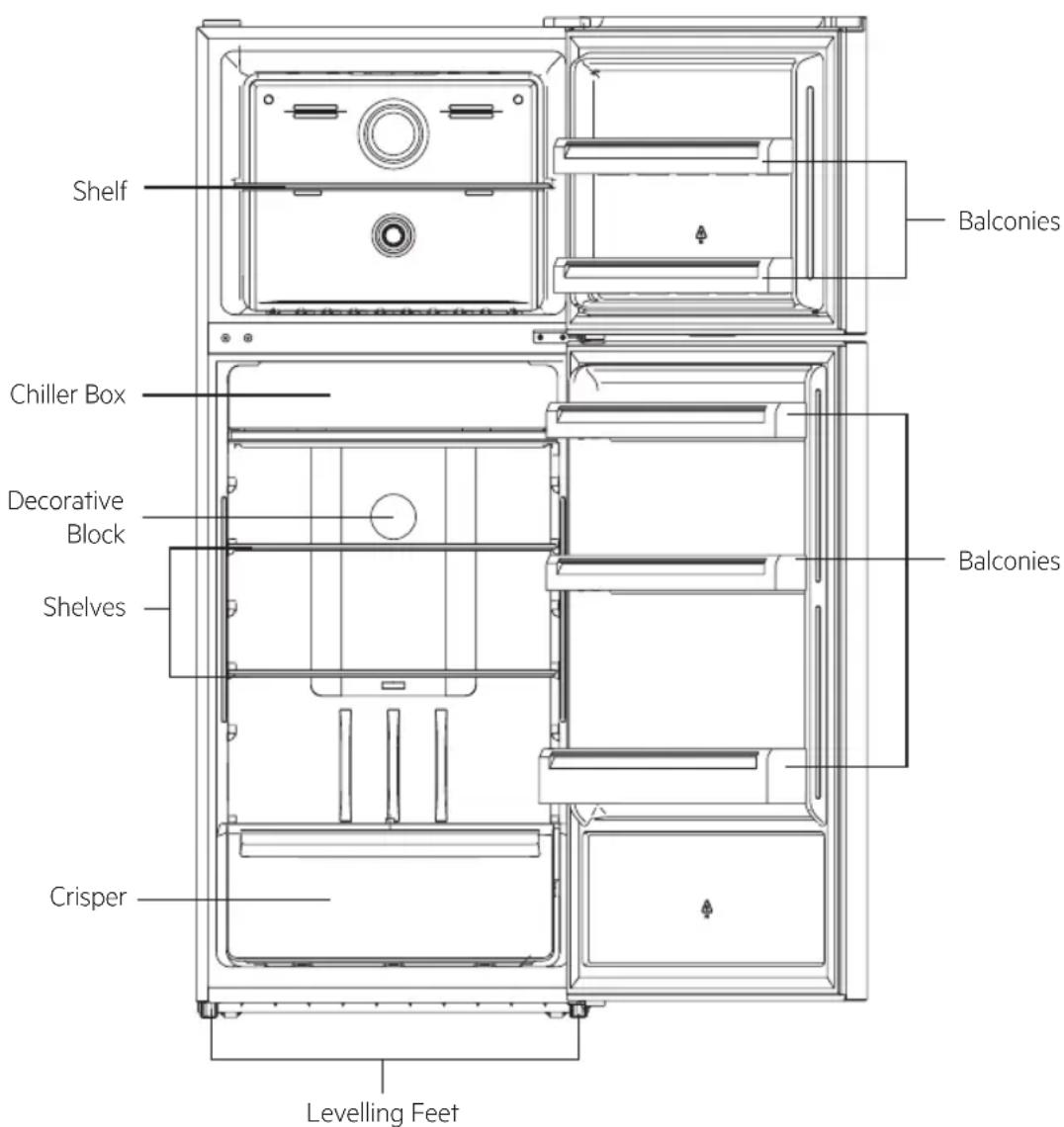

2.1. Product Description

Overview

Shelf Balconies Chiller Box Decorative Block Shelves Balconies Crisper Levelling Feet

NOTE: Above picture is for reference only. The actual appliance may be slightly different.

A. Temperature Control of Fridge Compartment
B. Power Cool / Locking / Unlocking

2.2. Product Usage

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, and then dry it thoroughly.

NO FROST 2°C 3°C 4°C 6°C 8°C * FRIDGE POWER COOL LOCK 34 A B

Important!: Do not use detergents or abrasive powders, as these will damage the finish.

Electrical connection

Before plugging your appliance to the mains, please ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. Since the appliance must be earthed, the power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the EEC Directives.

[you can trust]

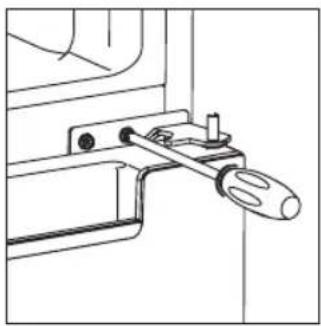

Reversing the door

Before reversing the door, please prepare below tools and materials: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

Left hinger x1

Left hinge cover x1

Left middle stopper x2

Metal block for the left middle stopper x2

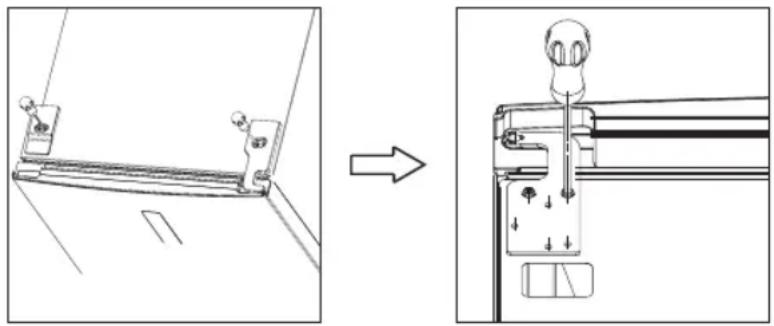

1) Close the upper door, take out the screw from the top hinge covers with a cross screwdriver.

Take the hinge cover o , disconnect the terminal, then unscrew the top hinge and take the upper door o .

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

2) Please take o the plastic cover and wire sleeve with a straight screwdriver. Please be careful with the inner part of the wire. Then move the wire with a connector to the other side and install the wire sleeve there. Place and x the cover back again.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Technical line drawing of a table with an arrow indicating downward motion (no text or symbols)

3) Unscrew the middle hinge with a cross screwdriver, then take off the lower door.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4) Lay the refrigerator down, take out the adjustable feet as shown below, then unscrew the lower hinge with a cross screwdriver.

Technical line drawing of a mechanical lifting device with a magnified inset showing internal components (no text or symbols)

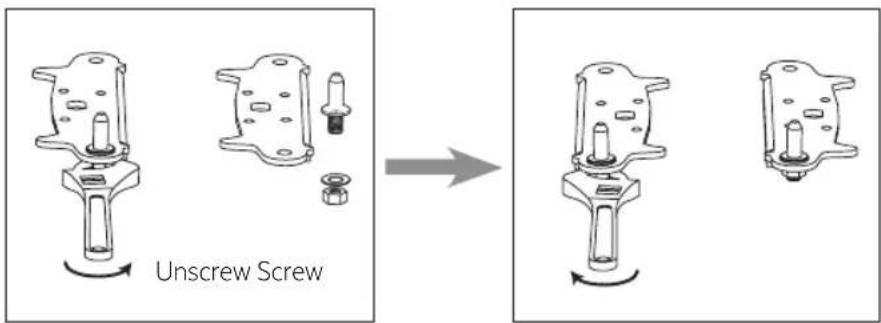

5) Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Unscrew Screw

[you can trust]

6) Refit the bracket and the bottom hinge pin. Replace both adjustable feet. Then transfer the lower door to its proper position.

Simple line drawing of a car with an inset showing a person climbing a rope (no text or symbols)

7) Unscrew the right middle stopper with a metal block from the upper door's bottom. Then install both left middle stopper and metal block on the left side of the upper door. (Perform the same operation for the lower door).

Line drawing of a flat electronic device with a cable and connector, no text or symbols present

Line drawing of a device with a switch and connector, no text or symbols present

8) Rotate the middle hinge 180^ , then transfer it to the left proper position. Place the middle hinge pin in the upper hole of the lower door, then tight the screws.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

9) Install the upper door, fix the upper door hinge onto the cabinet and connect the wire.

Simple line drawing of a person climbing a ladder (no text or symbols)

10) Take a left hinge cover from the accessories bag and install it on the top hinge. Then install the hole cover on the right side.

Line drawing of a mechanical bracket or frame assembly (no text or symbols)

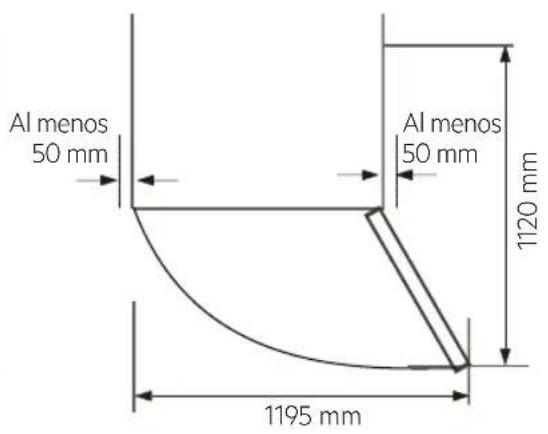

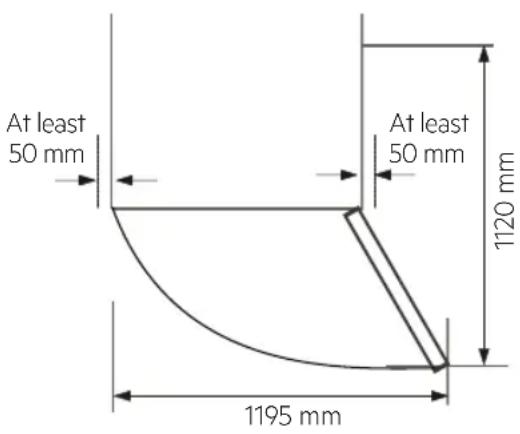

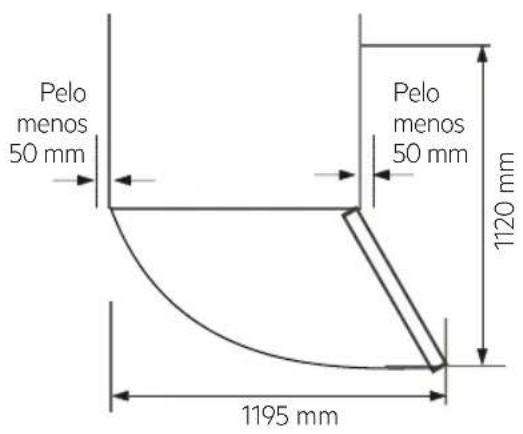

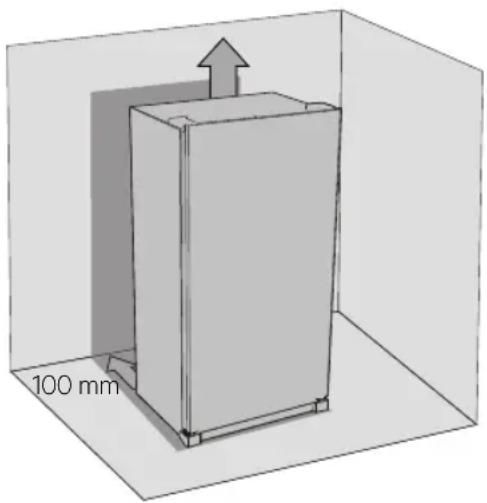

Space requirement

• Select a location without direct exposure to sunlight, with enough space for the refrigerator doors to open easily and with a levelled (or nearly levelled) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

[you can trust]

3D diagram of a rectangular box with a 100 mm height dimension label, shown in a transparent cube (no text or symbols on the box itself)

At least 50 mm At least 50 mm 1120 mm 1195 mm

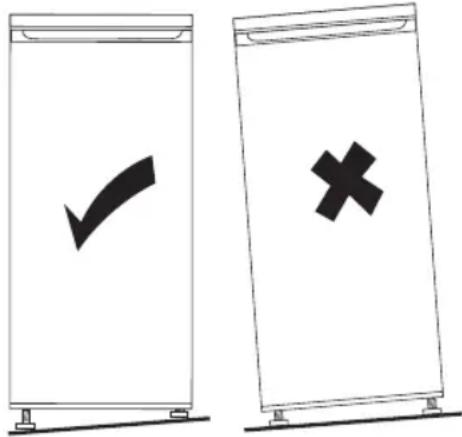

Levelling the unit

To do this you need to adjust the two levelling feet at the front of the unit.

If the unit is not levelled, the doors and magnetic seal alignments will not be covered properly.

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class specified on the appliance's rating plate:

Climate class Ambient temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

This appliance should be installed away from sources of heat such as radiators, boilers, direct sunlight, etc. Please ensure that air can circulate freely around the back of the appliance. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the appliance and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the appliance.

WARNING!: It should be possible to disconnect the appliance from the mains power supply, and so the plug must be easily accessible after installation.

Operating condition

• The control panel is 100 % lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before switching off. The system will be automatically locked for 2 seconds after the last key operation. Once locked, the panel will automatically switch off after 60 seconds counting from the last key operation.
• Both preset temperatures of the fridge compartment will be shown on the display.

Display

• The panel will light up once the door of the fridge compartment or freezer compartment is opened (one door signal detected at a time).
• The panel will be on if there is any key operation, otherwise the light will go out 1 minute after the last operation. The display is shown during normal operation.
• Temperature Display of the Fridge Compartment: states the temperature of the current setting.

[you can trust]

Keys

Temperature Control of the Fridge Compartment

This key is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this key flashes. By repeatedly touching the key, the temperature would change in a loop between 2°C, 3°C, 4°C, 6°C, 8°C, after which a 5-second flashing would mean the temperature selection is settled.

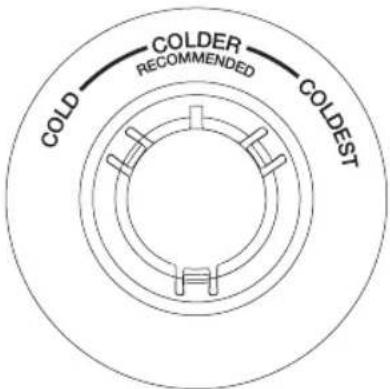

Temperature Control of the Freezer Compartment

- Plug your appliance to the mains socket. The internal temperature is controlled by a sensor and there are 3 settings COLD, COLDER, and COLDEST. COLD is the warmest setting and COLDEST is the coldest.

- The appliance may not operate at the correct temperature if it is in a particularly hot room or if you open the door often.

COLD COLDER RECOMMENDED COLDEST

Power cool / Locking / Unlocking

- Power Cool: Touch this key to Enter / Exit the Power Cool Mode when the unit is under "Unlocking" status.

When you enter it, the indicator ✦ will light up and automatically go out after in 3 hours if there is no operation.

- Long Press to Enter / Exit Locking Mode

- Unlocking: Press for 3 seconds when the unit is under locking mode; all the keys will be unlocked after the beep.

- Locking: Press for 3 seconds when the unit is under unlocking mode; all the keys will be unlocked after the beep.

Short beep after each button press. All buttons will only be valid under unlock mode.

Lock function

If there is no operation in 60 sec. the display will automatically lock.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important!: In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be quickly consumed or immediately cooked and then re-frozen (after being cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked while still frozen, directly from the freezer. In this case, the cooking process will take longer.

[you can trust]

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Line drawing of a hand holding a shelf with a tool, no text or symbols present

Diagram showing two upward-pointing arrows inside a container-like structure (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food that can be frozen in 24 hrs. is shown on the rating plate;
• The freezing process takes 24 hours. No further food to be frozen should be added during this period;
• Only freeze top quality, fresh and thoroughly cleaned foodstuffs;
• Prepare food in small portions so these can be rapidly and completely frozen and to allow to subsequently thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in temperature of the latter;

- Lean foods store better and longer than fatty ones; also remember that salt reduces food's storage life;

- Ice cubes, if consumed immediately after removing them from the freezer compartment, can possibly cause the skin to be freeze burnt;

- It is advisable to show the freezing date on each individual pack to enable a fast removal from the freezer compartment;

- It is advisable to show the freezing date on each individual pack to enable you to keep tab of the storage time.

Hints for storing frozen food

To obtain the best performance from this appliance, you should:

- Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

- Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

- Not open the door frequently or leave it open longer than strictly necessary.

- Not re-frost food; once defrosted, food deteriorates rapidly and cannot be re-frozen;

- Not exceed the storage period specified by the food manufacturer.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator;

- Do cover or wrap the food, particularly if it has a strong flavour;

[you can trust]

- Make/pre-prepared doughs (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer;

- For safety purposes, store like this only for one or two days at the most;

- Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf;

- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided;

- Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible;

- Milk bottle: these should have a cap and should be stored in the balconies on the door;

- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

2.3. Maintenance

Installation

Important!: For electrical connection, please carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are any damages on it. Do not connect the appliance if it is damaged and report possible damages immediately to the place you bought it, retaining all packing materials;

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor;

- Please allow proper air circulation around the appliance, otherwise there is a risk of overheating. To achieve sufficient ventilation, please follow the relevant instructions to installation;

- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burns;

- The appliance must not be located close to radiators or cookers;

- Please make sure that the power plug is accessible after installing the appliance.

Service

- Any electrical work required to repair or maintain the appliance should be carried out by a qualified electrician or competent person;

- This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.

Energy saving

- Do not put hot food inside the appliance;

- Do not pack food close together as this prevents air circulating;

• Make sure food does not touch the back of the compartment(s);

- If electricity goes off, do not open the door(s);

- Do not open the door(s) frequently;

- Do not keep the door(s) open for too long;

- Do not set the thermostat on exceeding cold temperatures;

[you can trust]

- Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Care and cleaning

• Before performing any maintenance to your appliance, switch it off and disconnect the power plug from the mains socket;
• Do not clean the appliance with metal objects;
• Use a plastic scraper ^2 to remove frost from the appliance, instead of using any sharp objects;
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain, because if it is blocked, water will collect at the bottom of the appliance. ^3

For hygienic reasons the appliance's interior, including interior accessories, should be regularly cleaned.

Caution!: The appliance may not be connected to the mains during cleaning, since there is a danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner because moisture could accumulate in electrical components and pose a danger of electrical shock! Hot vapours can lead to the damage of plastic parts. Therefore, the appliance should be dried before it is placed back into service.

Important!: Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, any cleanser that contains acetic acid.

^2 If there is a freezer compartment. ^3 If there is a fresh-food storage compartment.

• Do not allow such substances to come into contact with the appliance's parts;
• Do not use any abrasive cleaners;
• Remove the food from the freezer. Store it in a cool place, well covered;
• Switch the appliance off and remove the plug from the mains, or switch the circuit breaker off or turn the fuse out;
• Clean the appliance and its internal accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry;
  • After everything is dry place the appliance back into service.

Setting the humidity in the Crisper

Low humidity: move the regulator to the left High humidity: move the regulator to the right

LOWFruits Vegetables

2.4. Troubleshooting

Caution!: Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person should perform any troubleshooting that is not in this manual.

Important!: The appliance produces some sounds during normal use (compressor, refrigerant circulation), which is normal.

[you can trust]

Problem Possible cause Solution
The appliance does not work	The mains plug is not plugged in or is loose	Insert the mains plug
	The fuse has blown or is defective	Check the fuse and replace if necessary
	The socket is defective	Mains malfunctions are to be corrected by an electrician
The appliance freezes or cools too much	The temperature is set too cold	Temporarily turn the temperature regulator to a warmer setting
The food is not frozen enough	The temperature it not properly adjusted	Please refer to the initial Temperature Setting section
	The door was open for an extended period	Open the door only when needed
	A large quantity of warm food was placed in the appliance within the last 24 hours	Temporarily turn the temperature regulation to a colder setting
	The appliance is near a heat source	Please refer to the installation location section
Heavy build-up of frost on the door seal	The door seal is not air tight	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand so that it sits correctly

BECKEN

Problem Possible cause Solution
Unusual noises	The appliance is not levelled Re-adjust the feet
	The appliance is touching the wall or other objects	Slightly move the appliance
	A component, e.g. a pipe, at the back of the appliance is touching another part of the appliance or the wall	If necessary, carefully bend the component out of the way
Indicator lights flashing	Sensor error	Inform the maintenance centre

If the malfunction shows again, please contact the Service Centre.

3. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

[you can trust]

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials, and it shall not be discarded together with urban refuse and rubbish, as the insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

Disposal of the appliance

1) Disconnect the power plug from the mains socket.
2) Cut off the power cable and discard it.

Estimado cliente,

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a table with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical frame with a magnified inset showing a pulley mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Line drawing of a flat electronic device with a cable and connector, showing no text or symbols

Line drawing of a device with a screwdriver inserted into a base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a person climbing a ladder (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

3D diagram of a rectangular box inside a transparent cube with a 100 mm dimension label, showing an upward arrow (no text or symbols on the box itself)

Al menos 50 mm Al menos 50 mm 1120 mm 1195 mm

Diagram showing two labeled signs: a checkmark inside a container and a cross inside a container, both with base supports.

Posicionamiento

Line drawing of a hand holding a shelf with a tool, no text or symbols present

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Consejos útiles

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or discharge (no text present)

Vertical gray gradient bar with no text or symbols

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

Technical line drawings of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical lifting device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Line drawing of a flat electronic device with a cable and connector (no text or symbols)

Line drawing of a device with a screwdriver inserted into a base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a person climbing a ladder (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

3D diagram of a rectangular box inside a transparent cube with a 100 mm dimension label, showing upward force and no text or symbols on the box itself.

Pelo menos 50 mm 1120 mm Pelo menos 50 mm 1195 mm

Nivelar a unidade

Diagram showing two labeled containers with checkmark and cross symbols, likely indicating approval or rejection status.

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática especificada na placa de características do aparelho:

Classe climática	Temperatura ambiente
SN +10°C to	+32°C
N +16°C to	+32°C
ST +16°C to	+38°C
T +16°C to	+43°C

Illustration of a hand using a tool to clean or store shelves (no text or symbols visible)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Proteção ambiental

Vertical gray gradient bar with no text or symbols

Solid gray vertical bar with no text, symbols, or markings

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
