BSPORT-14-A - Sports Watch BRIGMTON - Free user manual and instructions

Product Type	Sports Watch / Fitness Tracker
Model	BSPORT-14-A
Brand	Brigmton
Display	Digital (LED/LCD)
Connectivity	Bluetooth
Heart Rate Monitor	Yes (real-time and all-day mode)
Pedometer	Yes
Distance Tracker	Yes (km)
Calorie Counter	Yes
Sleep Monitoring	Automatic (21:00 - 9:00)
Swimming Mode	Yes (strokes, time, calories)
Battery	Rechargeable lithium-ion (approx. 100 mAh)
Battery Life	Approx. 5-7 days (varies with usage)
Water Resistance	Yes (for swimming)
Compatibility	Android and iOS
Dimensions (approximate)	250 x 20 x 10 mm (band length adjustable)
Weight (approximate)	30 g
Material	Silicone strap, plastic body
Care and Cleaning	Clean with soft damp cloth; avoid extreme temperatures
Safety	Not for medical use; consult a doctor if concerned
Spare Parts and Repairability	Spare parts not available separately; limited repairability
General Information	Manufactured by Ferson Electrónica, S.A., Spain. Conforms to ECM directives.

Frequently Asked Questions - BSPORT-14-A BRIGMTON

How do I pair the bracelet with my phone?

Scan the QR code from the manual or app store to download the companion app. Open the app, go to settings, and match the bracelet with your device via the application. Ensure Bluetooth is enabled on your phone.

How do I activate the heart rate monitor?

From the menu, navigate to the heart rate monitor icon (heart). Hold the touch button for 2 seconds to start measurement. The device will vibrate and measure for up to 15 seconds, displaying the result. A green light indicates measurement is in progress.

How does the sleep monitoring work?

The device automatically monitors sleep quality from 21:00 to 9:00 hours. It tracks light sleep and deep sleep. Data can be viewed in the app. No manual activation required.

Can I wear it while swimming?

Yes, the bracelet has a swimming function. To enable or disable swim mode, press and hold on the screen, select the swimming icon, then hold to confirm. The display shows time, strokes, and calories during exercise.

How do I reset the device?

On the home screen, press and hold for two seconds to access the off screen. Press again to access reset, hold two seconds to enter selection, then hold two seconds to confirm. Alternatively, use the app settings.

How do I set an alarm?

Open the companion app and go to the 'Alarm' section in the configuration menu. Set the desired time and days. The alarm will sync to the bracelet via Bluetooth.

How do I change the time format between 12h and 24h?

In the app's configuration menu, select 'Time' and choose between 12-hour or 24-hour format. The change will sync to the bracelet automatically.

What does the all-day heart rate function do?

When activated from the app, the bracelet takes a heart rate measurement every 10 minutes continuously. This increases battery consumption. To disable, turn off the function in the app.

How do I clean the bracelet?

Use a soft, damp cloth to gently wipe the bracelet. Avoid using harsh chemicals or submerging in water when cleaning. Ensure the charging contacts are dry before charging.

What is the battery life of the BSPORT-14-A?

The battery typically lasts 5-7 days with normal usage. Features like all-day heart rate monitoring will reduce battery life. Charging time is approximately 1-2 hours.

USER MANUAL BSPORT-14-A BRIGMTON

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

Black fitness tracker with digital display showing heart rate 78 and battery icon (no text or symbols on the device itself)

Close-up of a black wristband with metallic contacts, resting on a human leg (no text or symbols visible)

Close-up of a hand adjusting a black wristband on a person's arm (no text or symbols visible)

Close-up of hands adjusting a black wristband with a metallic clip (no text or symbols visible)

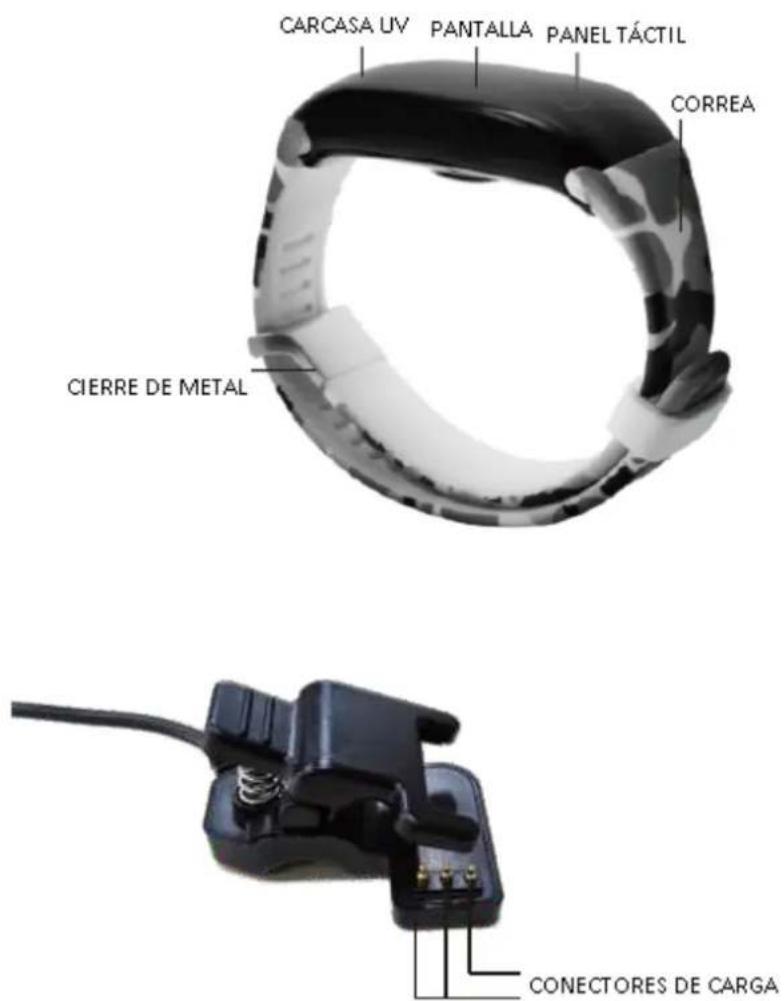

CONTROLES

FUNCIONES-PANTALLAS

Three white icons on black background: lightbulb, battery, and mouse cursor (no text or symbols)

Pantalla de estado:

Apagado:

Reset:

ANDROID

IOS

Configuración:

ANDROID

- Social Notice:

ANDROID

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

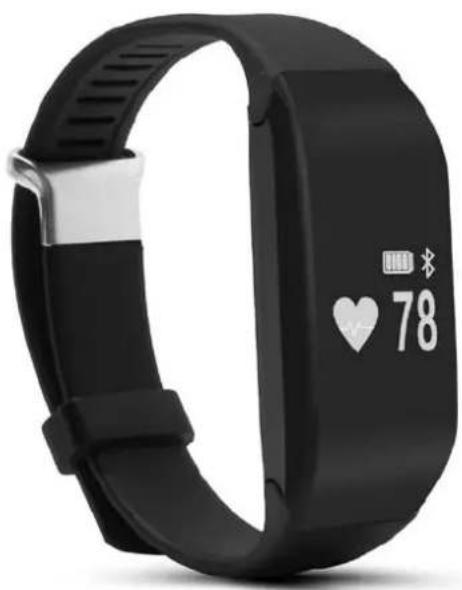

Black fitness tracker with white display showing heart rate and battery icons (no text or symbols on the device itself)

INSTRUCTION MANUAL

SPORT BRACELET - BLUETOOTH PULSOMETER - SWIMMING

BSPORT-14-B-N-A-M

ADJUSTING BELT

To adjust the belt, put the bracelet on his wrist, pass the strap through the buckle and tighten until it locks. Insert the excess through the eye.

To put or remove the new up or down strap bracelet. With the move you can make fixed or release it.

Close-up of a black wristband with metallic contacts, resting on a human leg (no text or symbols visible)

Close-up of a hand holding a black wristband with a metallic clip, showing the wrist area (no text or symbols visible)

Close-up of hands adjusting a black wristband with a metallic clip (no text or symbols visible)

CONTROLS

FEATURES-SCREEN

Date/Time/Battery Level

Heart rate monitor: Once lit, hold the touch button for 2 seconds to activate the heart rate monitor:

Pedometer: the steps are shown.

Distance: the distance in kilometers is shown.

Calories

On screen: Hold for 2 seconds to change the display mode and activate on hand to turn on or off.

Pure electrical circuit components without any text or symbols

Status Display:

When the Bluetooth icon is displayed as indicated by the display device is connected to your phone.

Swimming function:

The display shows the time, strokes and calories during exercise.

To enable/disable swim mode press and hold on the screen and select the icon swimming activated and then hold to confirm activation/deactivation.

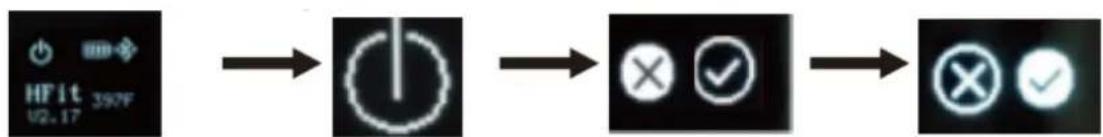

Off:

On the home screen:

Hold for two seconds, off screen appears. Hold two seconds to enter the selection and press and hold again for two seconds to confirm.

Reset:

On the home screen, press and hold for two seconds, off screen appears. Press again to access reset, hold two seconds to enter the selection and then hold two seconds to confirm.

Back to the main menu:

On the home screen, press and hold for two seconds, off screen appears. Double-click to access the function to return to the main menu and hold to return to the main menu:

BLUETOOTH CONNECTION

Scan the QR code as needed your device:

ANDROID

IOS

Open the application, go to settings and match the bracelet with the device through the application:

IOS

To disconnect your device bracelet go to the section in the option Bluetooth application settings and select disconnect.

SYNCHRONIZATION

In the configuration section of the application, press SYNC. Note: Android will automatically synchronize.

OTHER FEATURES

Automatic backlight: From 00:00 to 6:00 automatic lighting of the display will remain off to avoid discomfort during the sleep period.

Setting the device: It is recommended to take the bracelet on his left hand. Make sure the heart rate monitor sensor is in contact with the skin.

Sleep monitoring: The device automatically will monitor the quality of sleep from 21:00 to 9:00 hours.

HEART RATE MONITOR IN REAL TIME

In the menu heart rate monitor (heart) hold until the device vibrates and

start heart rate measurement. It will measure for up to 15 seconds and display the result on the screen:

A green light will stay on for the duration of the measurement.

ALL-DAY Function: You must select and activate this function from the application. Every 10 minutes bracelet make a heart rate measurement. To disable this feature you must do so from within the application. NOTE: This function increases battery consumption.

APPLICATION

On the initial screen you can check data today, yesterday and a total summary:

Screen measuring heart rate:

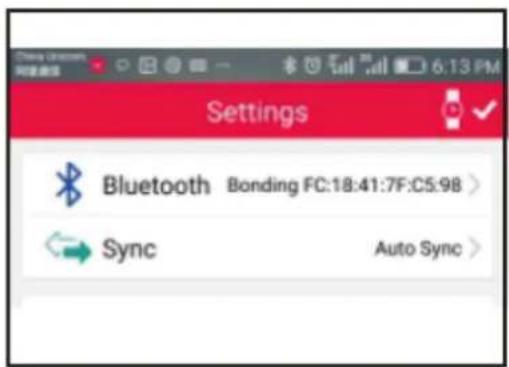

Configuration:

• Bluetooth to configure the connection and pair the device.
• SYNC: To synchronize information bracelet with the device. - NOTE: In Android this function is performed automatically.
• Alarm: Set the alarm.
• Notifications: To configure the receipt of notifications.

IOS

ANDROID

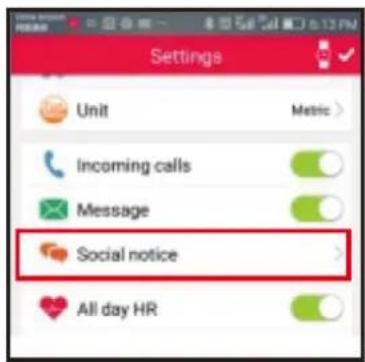

- Time: Select 12 hours or 24 hours

- Selection of measure: Meters / Imperial

- Notification of messages and calls

IOS: Activate the incoming call. Message notifications arrive automatically:

ANDROID: Activate the incoming call. Enable the message notification:

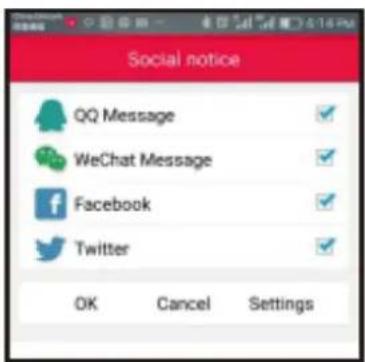

- Social Notice:

• ALL-DAY Function: Activate the measurement function and take heart rate measurement every 10 minutes.
• Screen saving mode
• Erasing data:

IOS:

ANDROID

• Upgrade / Version
• User information:

UserInfo
Goal	10000 steps
Height	165 cm
Weight	65 kg
Age	30 years
Gender	Male
BMI	23.88

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

ECM DIRECTIVES

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN62479:2010

EN301 489-1 V1.9.2 (2011-09)

EN301 489-17 V2.1.1 (2012-09)

EN300 328 V1.9.1 (2015-02)

Description of apparatus:

Model BRIGMTON BSPORT-14

Wireless device
