Brand	Brigmton
Model	BSPORT-14-C
Product Type	Sports Watch
Display	Digital LCD with backlight
Case Material	Plastic / Resin
Strap Material	Rubber / Silicone
Water Resistance	50 meters (5 ATM)
Functions	Time, date, stopwatch, countdown timer, alarm, backlight
Power Source	1 x CR2032 battery (replaceable)
Battery Life	Approximately 2-3 years under normal use
Dimensions (Case)	Approx. 45 mm x 45 mm x 12 mm
Weight	Approx. 50 g
Clasp Type	Buckle
Calendar	Automatic calendar (date and day of week)
Backlight	LED backlight with auto-off
Accuracy	±30 seconds per month
Warranty	1 year (check with seller)

Frequently Asked Questions - BSPORT-14-C BRIGMTON

How do I set the time and date on my Brigmton BSPORT-14-C?

To set the time and date, press and hold the MODE button until the seconds flash. Use START to adjust the value, and STOP/RESET to move to the next setting. Press MODE to exit.

How do I use the stopwatch?

Press MODE repeatedly until you reach the stopwatch mode (indicated by a running icon). Press START to begin timing, STOP to pause, and STOP/RESET to reset.

How do I set the alarm?

Enter alarm mode by pressing MODE until the alarm icon appears. Press STOP/RESET to turn the alarm on/off. To set the time, press and hold MODE, then adjust using START and STOP/RESET.

What is the water resistance rating?

The watch is water resistant to 50 meters (5 ATM), meaning it can withstand splashes, rain, showering, and swimming in shallow water. Do not dive or snorkel with it.

How do I replace the battery?

Use a small screwdriver to remove the back cover. Replace the old CR2032 battery with a new one, ensuring the positive side faces up. Reattach the cover and press firmly. Ensure the o-ring is seated properly to maintain water resistance.

How do I turn on the backlight?

Press the LIGHT button (usually the top-left button) to activate the backlight. It will stay on for about 3 seconds.

Why is the stopwatch not working?

Ensure you are in the correct stopwatch mode. If the watch is in countdown timer mode, press MODE until you see the stopwatch display. Also check that the battery is not low.

Can I adjust the strap length?

Yes, the rubber strap has multiple holes. Remove the buckle and cut the strap to the desired length using scissors, or use a hole puncher for additional holes. Be careful not to cut too short.

How do I reset the watch?

If the watch is unresponsive, press and hold the START and STOP buttons simultaneously for 5 seconds to perform a hard reset. This will restore factory settings.

What should I do if the watch gets foggy inside?

Moisture inside indicates a seal failure. Remove the watch from water and let it dry in a warm, dry place. If the problem persists, contact Brigmton customer service for repair or replacement.

USER MANUAL BSPORT-14-C BRIGMTON

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

Black fitness tracker with digital display showing heart rate 78 and battery icon (no text or symbols on the device itself)

Close-up of a black wristband with metallic contacts, resting on a human leg (no text or symbols visible)

Close-up of a hand adjusting a black wristband on a person's arm (no text or symbols visible)

Close-up of hands adjusting a black wristband with a metallic clip (no text or symbols visible)

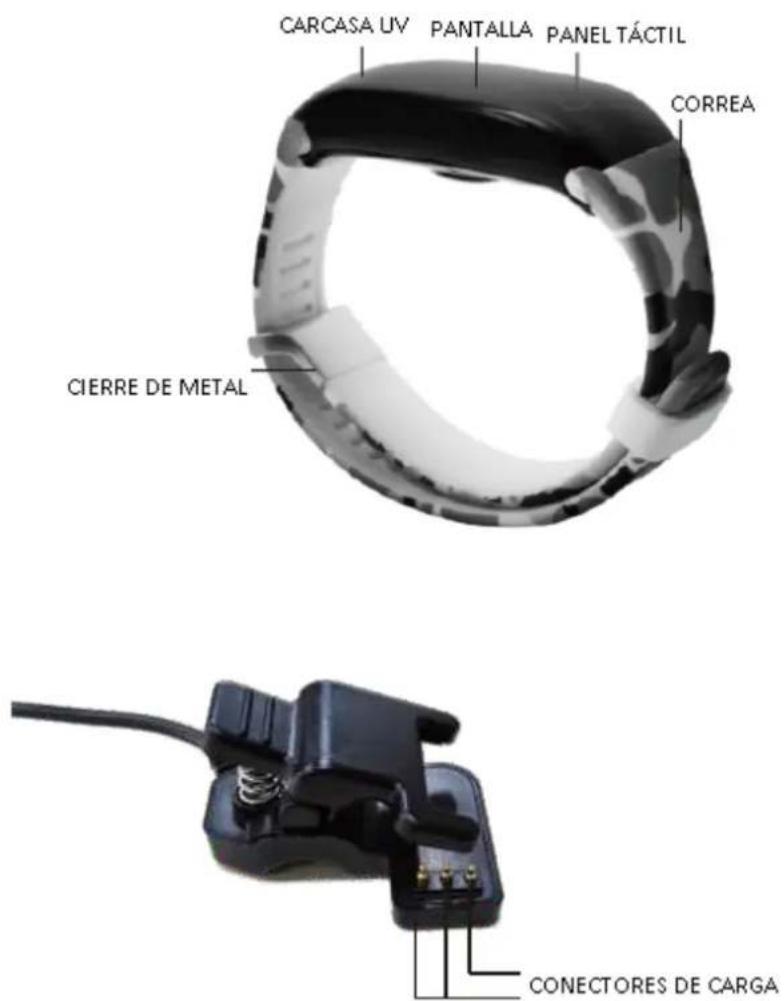

CONTROLES

FUNCIONES-PANTALLAS

Three white icons on a black background: lightbulb, battery, and mouse cursor (no text or symbols)

Pantalla de estado:

Apagado:

Reset:

ANDROID

IOS

Configuración:

ANDROID

- Social Notice:

ANDROID

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

Black fitness tracker with white display showing heart rate and battery icons (no text or symbols on the device itself)

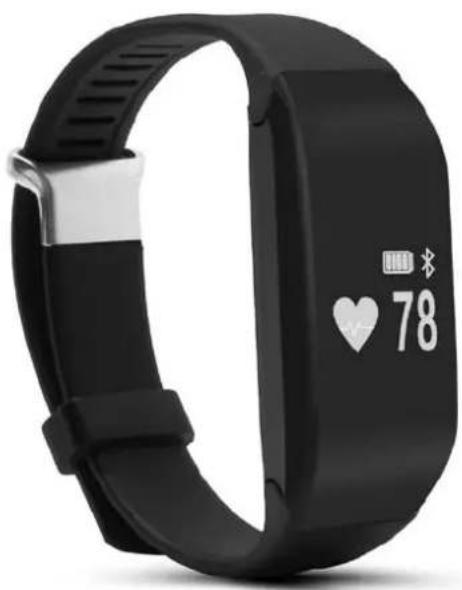

INSTRUCTION MANUAL

SPORT BRACELET - BLUETOOTH PULSOMETER - SWIMMING

BSPORT-14-B-N-A-M

ADJUSTING BELT

To adjust the belt, put the bracelet on his wrist, pass the strap through the buckle and tighten until it locks. Insert the excess through the eye.

To put or remove the new up or down strap bracelet. With the move you can make fixed or release it.

Close-up of a black wristband with metallic contacts, resting on a human leg (no text or symbols visible)

Close-up of a hand holding a black wristband with a metallic clip, showing the wrist area (no text or symbols visible)

Close-up of hands adjusting a black wristband with a metallic clip (no text or symbols visible)

CONTROLS

FEATURES-SCREEN

Date/Time/Battery Level

Heart rate monitor: Once lit, hold the touch button for 2 seconds to activate the heart rate monitor:

Pedometer: the steps are shown.

Distance: the distance in kilometers is shown.

Calories

On screen: Hold for 2 seconds to change the display mode and activate on hand to turn on or off.

Pure electrical circuit symbols without any text or labels

Status Display:

When the Bluetooth icon is displayed as indicated by the display device is connected to your phone.

Swimming function:

The display shows the time, strokes and calories during exercise.

To enable/disable swim mode press and hold on the screen and select the icon swimming activated and then hold to confirm activation/deactivation.

Off:

On the home screen:

Hold for two seconds, off screen appears. Hold two seconds to enter the selection and press and hold again for two seconds to confirm.

Reset:

On the home screen, press and hold for two seconds, off screen appears. Press again to access reset, hold two seconds to enter the selection and then hold two seconds to confirm.

Back to the main menu:

On the home screen, press and hold for two seconds, off screen appears. Double-click to access the function to return to the main menu and hold to return to the main menu:

BLUETOOTH CONNECTION

Scan the QR code as needed your device:

ANDROID

IOS

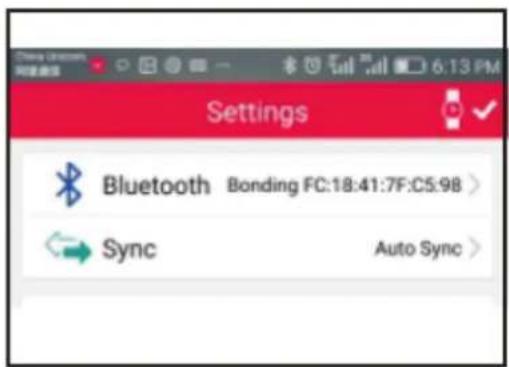

Open the application, go to settings and match the bracelet with the device through the application:

IOS

To disconnect your device bracelet go to the section in the option Bluetooth application settings and select disconnect.

SYNCHRONIZATION

In the configuration section of the application, press SYNC. Note: Android will automatically synchronize.

OTHER FEATURES

Automatic backlight: From 00:00 to 6:00 automatic lighting of the display will remain off to avoid discomfort during the sleep period.

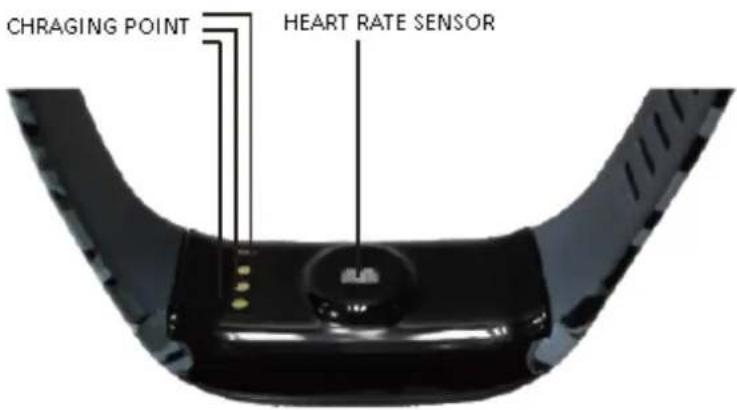

Setting the device: It is recommended to take the bracelet on his left hand. Make sure the heart rate monitor sensor is in contact with the skin.

Sleep monitoring: The device automatically will monitor the quality of sleep from 21:00 to 9:00 hours.

HEART RATE MONITOR IN REAL TIME

In the menu heart rate monitor (heart) hold until the device vibrates and

start heart rate measurement. It will measure for up to 15 seconds and display the result on the screen:

A green light will stay on for the duration of the measurement.

ALL-DAY Function: You must select and activate this function from the application. Every 10 minutes bracelet make a heart rate measurement. To disable this feature you must do so from within the application. NOTE: This function increases battery consumption.

APPLICATION

On the initial screen you can check data today, yesterday and a total summary:

Screen measuring heart rate:

Configuration:

• Bluetooth to configure the connection and pair the device.
• SYNC: To synchronize information bracelet with the device. - NOTE: In Android this function is performed automatically.
• Alarm: Set the alarm.
• Notifications: To configure the receipt of notifications.

IOS

ANDROID

- Time: Select 12 hours or 24 hours

- Selection of measure: Meters / Imperial

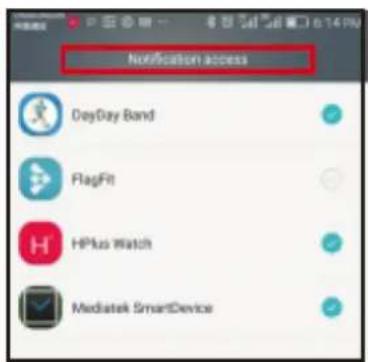

- Notification of messages and calls

IOS: Activate the incoming call. Message notifications arrive automatically:

ANDROID: Activate the incoming call. Enable the message notification:

- Social Notice:

• ALL-DAY Function: Activate the measurement function and take heart rate measurement every 10 minutes.
• Screen saving mode
• Erasing data:

IOS:

ANDROID

• Upgrade / Version
• User information:

UserInfo
Goal	10000 steps
Height	165 cm
Weight	65 kg
Age	30 years
Gender	Male
BMI	23.88

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

ECM DIRECTIVES

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN62479:2010

EN301 489-1 V1.9.2 (2011-09)

EN301 489-17 V2.1.1 (2012-09)

EN300 328 V1.9.1 (2015-02)

Description of apparatus:

Model BRIGMTON BSPORT-14

Wireless device
