USER MANUAL 2420121 Kooper

Exterior view of a black Koofer microwave oven with open lid and control knobs (no visible text or symbols on main body)

Texas 24

ATTENTION! READ THE INSTRUCTIONS GIVEN IN THIS HANDBOOK VERY CAREFULLY.

IT SHOULD BE PUT ASIDE FOR FURTHER CONSULTATION DURING THE ENTIRE LIFE-CYCLE OF THE PRODUCT SINCE IT GIVES IMPORTANT INDICATIONS ON THE PRODUCT'S FUNCTIONS AND SAFETY DURING INSTALLATION, USE AND MAINTENANCE.

PRODUCT IMPORTED BY GALILEO SPA - STRADA GALLI N. 27 - 00019 VILLA ADRIANA (RM) - MADE OUTSIDE THE EU

GENERAL SAFETY INDICATIONS

DANGER FOR CHILDREN

- A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN.

- THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.

- CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY

WITH THE APPLIANCE.

DANGER OF BURNS!

• BEFORE REPLACING THE ACCESSORIES, SWITCH OFF THE APPLIANCE AND REMOVE THE PLUG! DO NOT INSERT THE APPLIANCE PLUG INTO THE SOCKET WITHOUT FIRST INSTALLING ALL THE NECESSARY ACCESSORIES.
• PAY UTMOST ATTENTION IN CASE THE APPLIANCE IS USED IN THE PRESENCE OF CHILDREN.
• NEVER LEAVE THE APPLIANCE UNATTENDED WHILE WORKING.
• SOME PARTS OF THE APPLIANCE REACH HIGH TEMPERATURES DURING THE OPERATION. DO NOT TOUCH THE HOT SURFACES.

WARNING!

HOT SURFACE

• DISCONNECT THE PLUG FROM THE OUTLET WHEN THE APPLIANCE IS NO LONGER IN USE AND LET IT COOL BEFORE CARRYING OUT THE CLEANING.
• CONSIDERING THE ELEVATED TEMPERATURES, DO NOT USE THE APPLIANCE IN THE VICINITY OF FLAMMABLE MATERIAL OR FABRICS.
• DO NOT PUT ANY OBJECT OVER THE SLITS AND ENSURE THE FREE CIRCULATION OF AIR.
• DO NOT REMOVE THE SLICES OF BREAD WHILE THE APPLIANCE IS WORKING.
• DO NOT CLEAN WHILE THE APPLIANCE IS WORKING. DO NOT USE ANY SHARP OBJECT TO REMOVE POSSIBLE FOREIGN OBJECTS
  • THE CLEANING MUST NOT BE CARRIED OUT BY

UNSUPERVISED CHILDREN.

• THIS IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM
• NEVER ATTEMPT TO REMOVE BREAD OR OTHER ITEMS WHICH HAVE BECOME JAMMED IN THE SLOTS WITHOUT FIRST UNPLUGGING FROM THE MAINS SUPPLY
• ALWAYS TURN THE POWER OFF AT THE POWER OUTLET BEFORE YOU INSERT OR REMOVE THE POWER PLUG. REMOVE BY GRASPING THE PLUG
  • DO NOT PULL ON THE CORD
• THIS APPLIANCE IS INTENDED FOR INDOOR USE ONLY.
  • DO NOT PLACE NEAR ANY HOT SURFACE.
• DO NOT PLACE ON OR NEAR A HOT GAS FLAME, ELECTRIC ELEMENT, HEATED OVEN OR ANY HOT SURFACE.

WARNING! BREAD CAN BURN. DO NOT USE NEAR FLAMMABLE MATERIALS. DO NOT PLACE CLOSE TO CURTAINS OR OTHER MATERIALS THAT COULD EASILY CATCH FIRE. SHOULD NOT BE LEFT UNATTENDED WHEN IN OPERATION

RISK OF ELECTRICAL SHOK!

- THIS APPLIANCE IS DESIGNED TO OPERATE ONLY WITH ALTERNATING CURRENT. BEFORE OPERATING, MAKE SURE THAT THE VOLTAGE CORRE-

SPONDS TO THE ONE INDICATED ON THE DATA PLATE.

• ONLY CONNECT THE APPLIANCE TO THE POWER OUTLETS WITH A MINIMUM CAPACITY OF 10 AM-PERES.
• DO NOT PULL THE POWER CORD OR THE APPLIANCE ITSELF TO REMOVE THE PLUG FROM THE WALL SOCKET.
• FULLY UNWIND THE POWER CORD BEFORE OPERATING THE APPLIANCE.
• USE AN ELECTRIC EXTENSION CORD ONLY IF IT IS IN PERFECT CONDITION.
• NEVER LET THE POWER CORD RUN THROUGH SHARP EDGES; AVOID CRUSHING IT.
  • DO NOT LEAVE THE APPLIANCE EXPOSED TO ATMOSPHERIC AGENTS (RAIN, FROST, SUN, ETC.).
• NEVER USE THE APPLIANCE:
• WITH WET OR MOIST HANDS;
• IF IT HAS FALLEN AND HAS OBVIOUS RUPTURES OR MALFUNCTIONS;
• IF THE PLUG OR POWER CORD DEFECTIVE;
• IN HUMID OR GAS SATURATED ENVIRONMENTS.
• DO NOT COVER THE APPLIANCE WITH TOWELS, CLOTHING, ETC.
• PLACE THE APPLIANCE ONLY ON HORIZONTAL AND STABLE SURFACES, AWAY FROM SHOWERS, BATHTUB, SINKS, ETC.

• IF THE APPLIANCE IS WET OF GETS IN CONTACT WITH WATER, DO NOT USE IT AND HAVE IT CHECKED BY A SPECIALISED LABORATORY.

• ALWAYS REMOVE THE MAINS PLUG FROM THE POWER SUPPLY IMMEDIATELY AFTER USE AND BEFORE PERFORMING ANY CLEANING OR MAINTENANCE WORK.

• REPAIRS SHOULD ONLY BE CARRIED OUT BY A QUALIFIED TECHNICIAN.
• REPAIRING THE APPLIANCE BY YOURSELF CAN BE EXTREMELY DANGEROUS.
• AN APPLIANCE THAT IS NOT WORKING ANYMORE, MUST BE RENDERED UNUSABLE, BY CUTTING THE POWER CORD BEFORE THROWING IT.
• CLEAN THE APPLIANCE USING A DAMP CLOTH. DO NOT USE SOLVENTS OR ABRASIVE DETERGENTS.
• THE APPLIANCE IS DESIGNED FOR DOMESTIC USE.

ATTENTION!!! DANGER OF FIRE!

• TO PREVENT A POSSIBLE FIRE, DO NOT COVER AIR INTAKE AND GUARANTEE A RIGHT AIR CIRCULATION; DO NOT LEAN ON WALLS OR SURFACES THAT COULD BLOCK UP THE FLOW.
• DO NOT LEAVE THE APPLIANCE UNATTENDED.
- UNPLUG THE APPLIANCE FROM THE ELECTRICAL OUTLET WHEN THE APPLIANCE IS NOT USED.

• DO NOT USE THE APPLIANCE WHILE SLEEPING.
• PLACE THE APPLIANCE ON A FLAT, STABLE, HEAT-RESISTANT SURFACE.
• PLACE THE OVEN FAR FROM HEATED SURFACE. FOR A RIGHT VENTILATION, LEAVE A SURFACE OF 30 CM ABOVE THE OVEN.

- GIVE A WIDE BERTH TO DISCHARGE OF HEAT FLAMMABLE MATERIALS LIKE CUSHIONS, PAPER, WOVEN.

- DO NOT COVER THE APPLIANCE WITH WOVEN OR BLANKET WHEN THE APPLIANCE IS ACTIVATING OR IT’S HOT.

- MAINTAIN THE DISTANCE FROM THE APPLIANCE WHILE IT IS IN USE TO AVOID BURNS OR PERSONAL INJURY.

- CLEAN POSSIBLE GRIDS IF ARE BACKED UP FROM DUST TO AVOID A WRONG DISCHARGE OF HEAT.

- DO NOT USE THE APPLIANCE TO HEATH CLOTHING, BLANKET OR SHOES.

- THE APPLIANCE IS INTENDED ONLY FOR INDOOR USE.

- KEEP THE APPLIANCE AND THE POWER CORD AWAY FROM HEATED SURFACES.

ACCESSORIES

• BAKE PAN
• WIRE RACK
• PAN HANDLE

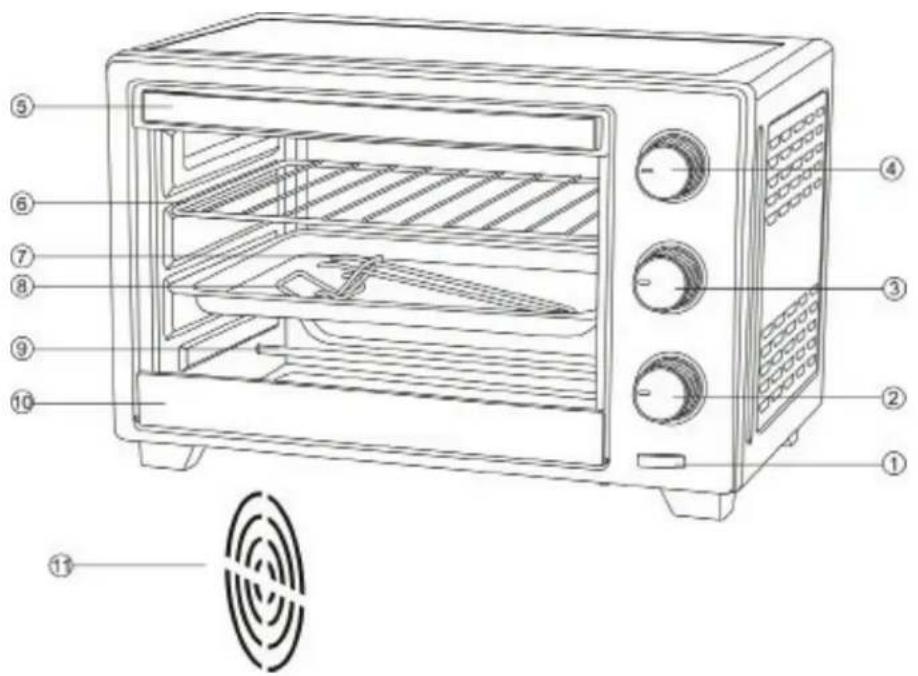

LIST OF COMPONENTS

1. Power light
2. Timer & Lamp dial
3. Selector dial
4. Thermostat dial
5. Glass door handle
6. Wire rack
7. Bake pan
8. Pan handle
9. Heating elements
10. Door clips
11. Convection

SELECTOR DIAL

1. Off
2. Top heating
3. Bottom heating
4. Top & bottom heating
5. Bottom heating & convection
6. Top & bottom heating & convection

BEFORE USE

• Ensure that there is enough ventilation around the oven.
• Ensure that the oven is completely dry before use.
• The oven should not be placed on untreated wooden surface. Place the oven on a heat resistant surface.
• The feet of the oven can leave some marks on the table, if this happens, remove the marks with a damp cloth.

OVEN USE

• Turn the thermostat dial clockwise to the desired temperature.
• Turn the selector dial to the desired position.
• Turn the timer dial clockwise to the desired cooking time.
• The inside lamp and the power light will light up when the timer is turned on, and will go out when the timer is turned to OFF.
• When the cooking time is over, the timer will auto shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.
• In the first use of this oven, there might be some light smoke coming out from the oven, this is normal. After 5-10 minutes the smoke will disappear.
• In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes.

GRILL COOKING

• Leave the door at the open point.
• Turn the selector to GRILL setting (top heating).
• Turn the temperature dial to max.
• Turn the timer to the desired grill time.
• When the grill cooking is done, turn back the timer to OFF to turn off the oven.

ATTENTION!

• TEMPERATURE AND TIME COOKING CAN VARY ACCORDING TO RECIPES, QUALITY AND QUANTITY OF INGREDIENTS USED.
• DURING COOKING OPERATION, IT IS POSSIBLE THAT AIR-COOLED VALVE STARTS INTERMITTENTLY TO REDUCE ENERGY CONSUMPTION: THIS IS NORMAL.
• AT THE END OF COOKING, AFTER SWITCHING OFF THE OVEN, THE AIR-COOLED VALVE CAN CONTINUE FUNCTIONING FOR A TIME INTERVAL.
• OPENING THE DOOR DURING COOKING, IT PRODUCES A CLEAR SLOWDOWN OF COOKING PROCESS.

MAXIMUM ACHIEVABLE DETECTED TEMPERATURE 160°

AFTER USE

• Turn back the timer to OFF.
• Turn the selector to OFF.
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

MAINTENANCE AND CLEANING

• Unplug the appliance and allow it to cool before cleaning.
  THE NON EXECUTION OF PERIODIC CLEANING OPERATIONS CAN PROVOKE THE DETERIORATION OF APPLIANCE SURFACES THAT COULD REDUCE THE DURATION.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to "separate collection".

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product. The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
