Product Type	Securing Kit for Loudspeaker Array
Brand	LD Systems
Model	CURV 500 SECURITY KIT 2 W
Color	White
Material	Steel, powder coated
Dimensions (Base Element)	73 x 20 x 2 mm
Dimensions (Safety Strip)	242 x 10 x 2 mm (2 pieces)
Weight	0.095 kg
Compatibility	CURV 500 TS double satellites, CURV 500 SmartLink adapter
Components Included	1 base element, 2 connecting elements, 6 M3 x 10 mm screws with spring washers
Function	Mechanical securing of up to three double satellites to SmartLink adapter
Installation	Attach base element to SmartLink adapter after removing rubber foot; then connect satellites using connecting elements and M3 bolts
Maintenance	Regularly check all components for completeness and firm grip
Safety	Follow installation instructions; avoid vibration noise by attaching elements in the middle of satellites
Country of Origin	Not specified in manual (estimated Germany per brand)
Warranty	See manufacturer's warranty conditions at adamhall.com

Frequently Asked Questions - CURV 500 SECURITY KIT 2 W LD Systems

What is the purpose of the CURV 500 Security Kit?

The CURV 500 Security Kit is designed to mechanically secure up to three CURV 500 TS double satellites to the CURV 500 SmartLink adapter, ensuring a stable and safe array.

How many double satellites can be secured with one kit?

The kit can secure up to three double satellites. It includes one base element and two connecting elements to accommodate this configuration.

Is the security kit available in different colors?

Yes, the CURV 500 Security Kit is available in black and white. This model (CURV 500 SECURITY KIT 2 W) is the white version.

What tools are required for installation?

The kit includes all necessary hardware: six M3 x 10 mm screws with spring washers. No additional tools are required beyond a screwdriver if needed.

How do I attach the base element to the SmartLink adapter?

First, remove the corresponding rubber foot on the underside of the SmartLink adapter. Then attach the base element using either the previously removed rubber foot or an M3 bolt and spring washer (supplied).

How do I connect the double satellites to the kit?

Place a connecting element with the offset side on the base element so that the elongated holes align. Then firmly attach both elements to the first double satellite using an M3 bolt and spring washer. Repeat for additional satellites, ensuring the connecting elements are attached in the middle of the satellites to avoid vibration noise.

How can I prevent vibration noise?

To avoid vibration noise, attach the connecting elements in the middle of the double satellites rather than at the edges. This ensures a balanced and secure fit.

How often should I inspect the security kit?

It is recommended to check all components at regular intervals for completeness and firm grip. This ensures ongoing safety and performance of the array.

Is the kit compatible with other speaker models?

The CURV 500 Security Kit is specifically designed for the CURV 500 TS double satellites and CURV 500 SmartLink adapter. It may not be compatible with other speaker models or brands.

What is the weight of the security kit?

The complete kit weighs approximately 0.095 kg (95 grams), making it lightweight and easy to handle during installation.

USER MANUAL CURV 500 SECURITY KIT 2 W LD Systems

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose
6. During installation, observe the applicable safety regulations for your country.
7. Never place sources of ignition, e.g., burning candles, on the equipment.
8. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.

9. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

10. Make certain that objects cannot fall into the device.

11. Use this equipment only with the accessories recommended and intended by the manufacturer.

12. Do not open or modify this equipment.

13. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.

14. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.

15. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

16. Clean the equipment using a dry cloth

17. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

18. Plastic bags must be kept out of reach of children.

CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90dB .

To prevent possible hearing damage, avoid listening at high volume levels over long periods of time. Even exposure to short bursts of loud noise can result in hearing loss. Please keep the volume constantly at a comfortable level.

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf

To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email [e-mail] / 49 (0) 6081 / 9419-0

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):

R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 / Low-voltage directive (2014/35/EU)

EMC Directive (2014/30/EU) / RoHS (2011/65/EU) / The full declaration of conformity can be found at www.adamhall.com. You can also request it via [e-mail]

release button on the side of the satellite. Ensure that the two guide rails of the satellite properly slide into the grooves of the SmartLink adapter in order to ensure a tight fit and establish a contact for both components. Now release the button to lock the connection and to bring the button back to its original position. Proceed in the same manner as described above to add other satellites. When disassembling, please proceed in reverse order.

SPECIFICATIONS

Model name: LDCURV500SECKIT2(W)
Type: Installation LoudspeakerAccessories
Material: Steel
Surface: Powder Coated
Colour: Black / white
Dimensions bracket base (LxWxH):	73 x 20 x 2 mm (1x)
Dimensions safety strip (LxWxH):	242 x 10 x 2 mm (2x)
Screw set: M3 x 10 mm screw + M3 spring washer (6x)
Weight: 0.095 kg

DESCRIPTION

LDCURV500SECKIT2 securing kit for mechanical securing of up to three CURV 500 TS double satellites to the CURV 500 SmartLink adapter. The securing kit is available in both black and white.

COMPONENTS AND INSTALLATION

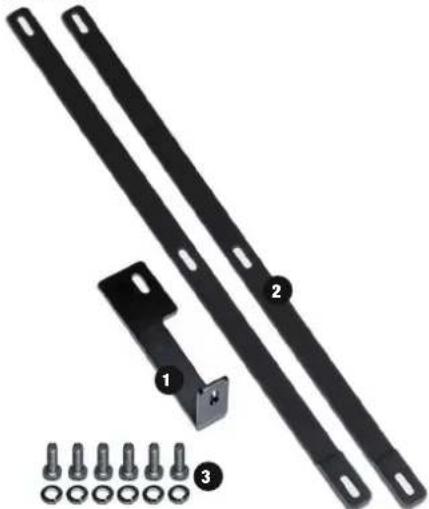

Black metal bracket with three numbered parts and a separate image of bolts and screws (no text or symbols)

1 Base element with 90^ angle for attaching the CURV 500 SmartLink adapter to the first double satellite in the array.

2 Two metal connecting elements for securing up to three CURV 500 TS double satellites.

3 Six M3 bolts with spring washers for connecting the components.

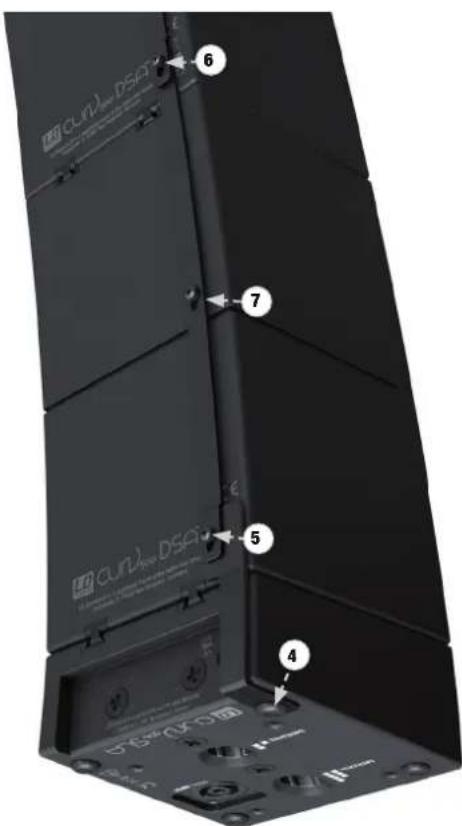

Remove the corresponding rubber foot on the underside of the SmartLink adapter (see No. 4) and firmly attach the base element (No. 1) using the previously removed rubber foot or an M3 bolt and spring washer (supplied). Place a connecting element with the offset side on the base element in such a way that the elongated holes of both elements are located on top of each other (No. 5), and firmly attach both elements to the first double satellite in the array with an M3 bolt and spring washer (supplied). Now secure the other double satellites in the array one after the other in the same way (see No. 6). In order to avoid vibration noise, attach the connecting elements in the middle to the double satellites (see No. 7). Check all components at regular intervals for completeness and firm grip!

SICHERHEITSHINWEISE

Black metal bracket with three numbered parts and a series of bolts (no text or symbols visible)
