Product Type	In-Wall Speaker
Brand	MTX Audio
Model	iWs80
Speaker Size	8-inch Woofer
Tweeter Type	1-inch Silk Dome
Power Handling (RMS)	80 Watts
Power Handling (Peak)	160 Watts
Impedance	8 Ohms
Frequency Response	40 Hz - 20 kHz
Sensitivity	89 dB @ 1W/1m
Dimensions (H x W x D)	11.8 x 7.9 x 3.5 inches
Cutout Dimensions	10.2 x 6.3 inches
Weight	4.5 lbs (2.04 kg)
Mounting Depth	3.2 inches
Enclosure Type	In-Wall (Infinite Baffle)
Grille Included	Yes, White Paintable
Installation Hardware	Dogleg Clamps
Recommended Amplifier Power	20-160 Watts per channel
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Ensure proper electrical isolation; turn off amp before wiring
Spare Parts	Grilles, screws, and dogleg clamps available from MTX
Repairability	Driver replacement possible; consult professional
Warranty	1 Year Limited

Frequently Asked Questions - iWs80 MTX Audio

What is the mounting depth of the iWs80?

The mounting depth is approximately 3.2 inches (8.1 cm). Ensure your wall cavity can accommodate this depth.

Can I use the iWs80 outdoors?

No, the iWs80 is designed for indoor in-wall installation. Exposure to moisture or extreme temperatures may damage the speaker.

What size wire should I use for installation?

For runs up to 50 feet, use 16-gauge speaker wire; for longer runs, use 14-gauge or thicker.

Does the iWs80 come with a grille?

Yes, it includes a white paintable grille that can be matched to your wall color.

What is the power handling of the iWs80?

The RMS power handling is 80 watts, with a peak capacity of 160 watts. It is recommended to use an amplifier delivering 20-160 watts per channel.

Is the iWs80 compatible with Dolby Atmos?

The iWs80 is a standard in-wall speaker and does not include up-firing drivers. It can be used in a surround sound system but not as an Atmos elevation speaker unless paired with separate modules.

How do I paint the grille?

Remove the grille, clean it, and apply thin coats of spray paint suitable for fabric. Avoid clogging the holes.

What is the impedance? Can I use it with a 4-ohm system?

The impedance is 8 ohms. It can be used with amplifiers rated for 8-ohm loads. Using two iWs80 in parallel will present a 4-ohm load.

How do I cut the hole for installation?

Use the included cutout template or dimensions (10.2 x 6.3 inches). Cut carefully with a drywall saw.

What is the frequency response?

The frequency response is 40 Hz to 20 kHz, providing good bass extension for an in-wall speaker without a subwoofer.

USER MANUAL iWs80 MTX Audio

facebook.com/MTXEurope

twitter.com/MTXEurope

iWs80

20cm (8") 80 in-wall speakers with design grills

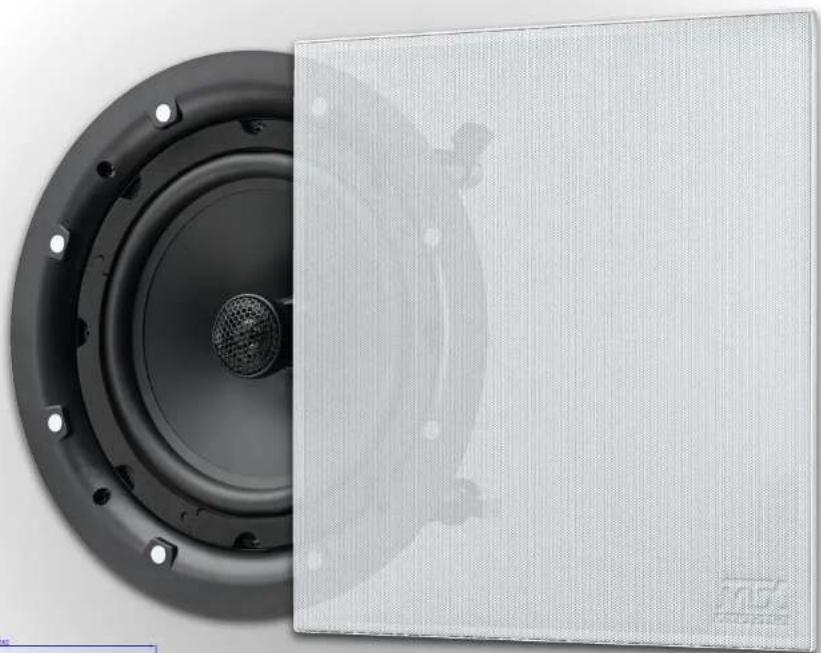

Close-up of a speaker grille next to a black speaker wheel, with a white textured cover on the right (no visible text or symbols)

MLSC MOSA CE

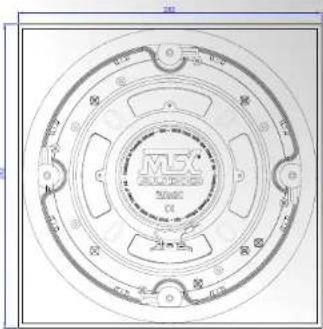

104 120 246.4

Hifi sound quality

High power handling with bass

Square ultra slim magnetic grill easy to adjust (it turns round)

25mm silk dome swivel tweeter

Waterproof paper cone

Made to be use with the MTX iWa250 in-wall amp

Specifications

• 2-way in-wall coaxial speakers
· Diameter : 20cm (8")
- Peak Power: 180W
• RMS Power : 60W
- Sensitivity: 90,5dB/2,83v/1m
• Impedance : 80
• Response : 37Hz - 25000Hz
- Mounting Depth: 101mm
- 25mm silk dome swivel tweeter
- Extra thin rimless grills
