USER MANUAL DS-2CS54C8T-PH Hikvision

Abstract graphic with red diamond shapes, a white globe icon, and a red square (no text or symbols)

WDR Covert Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Model

DS-2CS54C8T-PH

DS-2CS54D8T-PH

This manual may contain technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into “Warnings” and “Cauons”.

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical specicaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
  ● Make sure that the plug is rmly connected to the power socket.
  ● Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn of the power at once and unplug the power cord, and then contact the service center.
• Never aempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40^ to 60^ ), dusty or damp locaons, and do not expose it to high electromagnetic radiation.
• Do not touch senor modules with ngers.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.

• To avoid heat accumulaon, good venlaon is required for the operang environment.

• Keep the camera away from liquid while in use for non-water-proof device.
  ● While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon
Table 0-1 Mark Descripon

Mark	Descripon
——	DC Voltage

1.1 Product Features

The camera is applicable for indoor conditions, and the applicaon scenarios include ATM machine, VTM machine, etc.

The main features are as follows:

● High performance CMOS sensor
● Low illuminaon: 0.005 Lux @ (F1.2, AGC ON)
● Automac gain control
● 120 dB true WDR
- OSD menu
● Internal synchronizaon

1.2 Overview of the Covert Camera

1 2 3 4 5 6 7 8

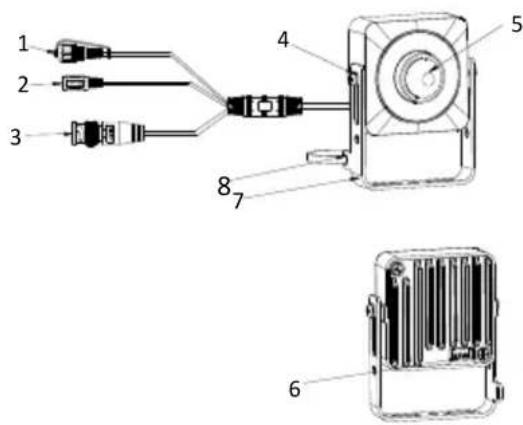

Figure 1-1 Covert Camera's Overview

Note:

Press and hold the switch buon for 3 seconds to switch the video output. Two kinds of video outputs are available: TVI and CVBS.

Table 1-1 Covert Camera Descripon

No.	Descripon	No.	Descripon
1	Switch Buon	2	12 VDC Power Cord
3	Video Cable	4	Adjustment Screw
5	Lens	6.	Power & Video Interface
7	Mounng Bracket	8	Cable Hole

2.1 Installaon Preparaon

Before you start:

● Make sure that the device in the package is in good condition and all the assembly parts are included.
● Make sure that all the related equipment is power-o during the installaon.

- Check the specicaon of the products for the installaon environment.

- Check whether the power supply is matched with your required output to avoid damage.

● Make sure the wall is strong enough to withstand three mes the weight of the camera and the bracket.

- If the wall is cement, insert expansion screws before installing the camera. If the wall is wooden, use self-tapping screw to secure the camera.

- If the product does not work properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.2 Installing the Covert Camera

Both wall moung and ceiling moung are suitable for the covert camera.

Wall Mounng Ceiling Mounng

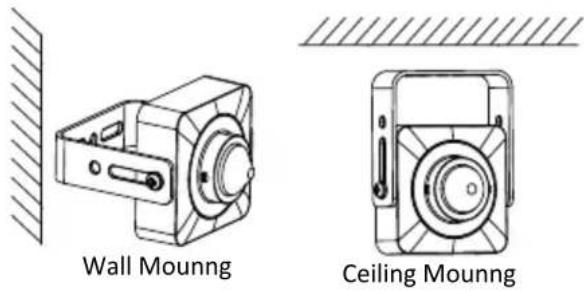

Figure 2-1 Wall Mounng and Ceiling Mounng

Note:

• Secure the camera with screw 1 to rotate the camera on the panning direcon.
• Secure the camera with screws 2 to move the camera le and right.

2 1 2 Mounting Screws

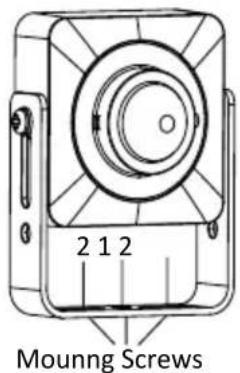

Figure 2-2 Mounng Screws

Steps:

1. Use the PA2 screw to x the bracket to the place where you want to install the camera.

Simple line drawing of a mechanical or electrical component with no text or symbols

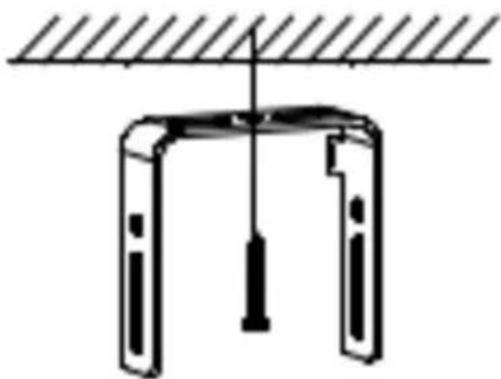

Figure 2-3 Install the Bracket

1. Fix the covert camera to the bracket with M2 adjustment screws.

|||||||||||||

Purpose:

Call the menu by clicking icon ☐ on the PTZ Control interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.


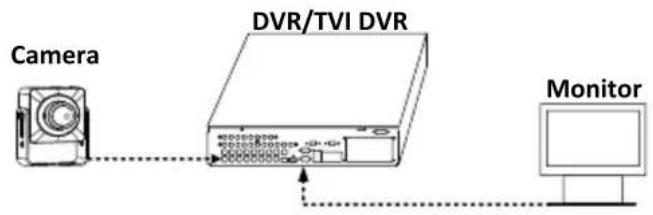

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking 📋 icon, or call preset No. 95.

    B --> I["BRIGHTNESS"]
    B --> J["EXPOSURE MODE"]
    B --> K["AGC"]
    B --> L["SENSE UP"]

    C --> M["MODE"]
    C --> N["RETURN"]

    D --> O["MODE"]
    D --> P["RETURN"]

    E --> Q["CONTRAST"]
    E --> R["SHARPNESS"]
    E --> S["COLOR GAIN"]
    E --> T["3D DNR"]
    E --> U["MIRROR"]
    E --> V["RETURN"]

    F --> W["PRIVACY"]
    F --> X["MOTION"]
    F --> Y["CAM ID"]
    F --> Z["RETURN"]

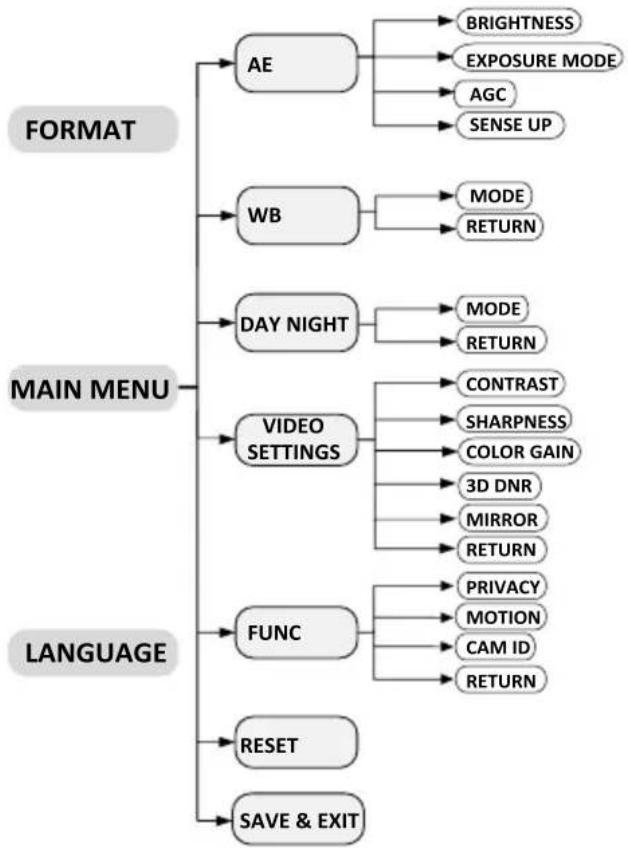

Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

(1) Click up/down direcon buon to select the item.
(2) Click Iris + to conrm the selecon.
(3) Click le/right direcon buon to adjust the value of the selected item.

3.1 FORMAT

PAL (Phase Alternang Lines)

PAL is a color encoding system for analog television used in broadcast television systems in most countries.

NTSC: (Naonal Television System Commiee)

NTSC is the analog television system that is used in most of North America, parts of South America, Myanmar, South Korea, etc.

3.2 LANGUAGE

Supports English, and Chinese.

3.3 MAIN MENU

3.3.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related parameters, which can be adjusted by BRIGHTNESS, EXPOSURE MODE, AGC, and SENSE UP.

EXPOSURE

BRIGHTNESS	5
EXPOSURE MODE	GLOBAL
AGC	MIDDLE
SENSE UP	0
RETURN

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lighng distribuon, variaons, and non-standard processing.

● BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light to the object in the front to make it clear, but this may cause the over-exposure of the background where the light is strong.

When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.

● WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear images even under backlight circumstances. WDR balances the brightness level of the whole image and provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The GAIN level can be set as HIGH, MIDDLE, or LOW. Select OFF to disable the GAIN funcon.

Note:

The noise will be amplified when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame, which makes a camera more sensitive to light, so it can produce images even in low lux conditions. You can set

the SENS-UP as OFF or AUTO according to dierent light conditions.

The SENS-UP funcon will atomically adjust itself to x2, x4, x6, x8, x10, x12, x14, and x16 according to the dierent light conditions.

3.3.2 WB (White Balance)

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image.

WB

MODE MWB

R GAIN 5

B GAIN 5

RETURN

Figure 3-4 MWB MODE

3.3.3 DAY NIGHT

Color, BW (Black White), and AUTO are selectable for DAY and NIGHT switches.

DAY NIGHT

MODE AUTO

RETURN

Figure 3-5 DAY NIGHT

COLOR

The image is colorized in day mode all the me.

B/W

The image is black and white all the me.

AUTO

Automacally switch Color or BW (Black and White) according to actual scene brightness.

3.3.4 VIDEO SETTING

Move the cursor to VIDEO SETTING and click Iris+ to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, 3D DNR, and MIRROR are adjustable.

VIDEO SETTING

CONTRAST	5
SHARPNESS	5
COLOR GAIN	5
3D DNR	5
MIRROR	DEFAULT

RETURN

Figure 3-6 VIDEO SETTING

CONTRAST

This feature enhances the difference in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color. The value ranges from 1 to 10.

3D DNR (Digital Noise Reduction)

The 3D DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp image quality. You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180° horizontally.

V: The image flips 180^ vertically.

HV: The image flips 180^ both horizontally and vertically.

3.3.5 FUNC (Functions)

In the FUNC sub-menu, you can set the privacy mask, the motion detection, camera ID, and DPC of the camera.

PRIVACY

The privacy mask allows you to cover certain areas which you don't want to be viewed or recorded. Up to 4 privacy areas are configurable.

PRIVACY

MODE	ON
AREA 0
AREA 1
AREA 2
AREA 3
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-7 PRIVACY

Select a PRIVACY area. Set the DISPLAY status as ON. Click up/down/le/down buon to dene the posion and size of the area.

MOTION

In the user-dened moon detecon surveillance area, the moving object can be detected and the alarm will be triggered. Up to 4 moon detecon areas can be congured.

MOTION

MODE	OFF
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY	50
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-8 MOTION

Select a MOTION area. Set the DISPLAY status as ON. Click the up/down/le/right buon to denote the posion and size of the area. Set the SENSITIVITY from 0 to 100.

CAMERA ID

Edit the camera ID on this secon.

CAM ID SETTING

MODE
CAM ID
X POSITION	ON
Y POSITION	75
RETURN	36
	16

Figure 3-9 CAM ID SETTING

Set the MODE as ON. Click up/don le/right button to choose the camera ID and the posion.

DPC (Defective Pixel Correcon)

Defective pixels are pixels in a CMOS image sensor fail to sense light levels correctly. This series of camera supports defective pixel correcon.

Set the mode as ON to enable this funcon, and OFF to disable the funcon.

3.3.6 RESET

Reset all the sengs to the default.

3.3.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the seng and exit the menu.
