Product Type	Flat Panel Pole Mount
Brand	Chief
Model	JPPVB
Weight Capacity	75 lbs (34.02 kg)
Tilt Range	Up-down tilt: ±15°
Swivel Range	Left-right swivel: ±75°
VESA Compatibility	100x100 mm (direct); other patterns via interface bracket
Mounting Type	Pole mount (1-1/2" NPT pipe)
Pipe Size Required	1-1/2" NPT (not included)
Material	Steel, aluminum
Color	Black (typical)
Tools Required	5/32" hex key, Phillips screwdriver, open-ended wrench, hex-head wrench
Adjustability	Roll, pitch, and yaw tension adjustable
Installation	Requires proper structural support; must support 5x total equipment weight
Warranty	Not specified; refer to Chief/Milestone AV Technologies
Safety Compliance	Designed for professional installation; warnings against exceeding capacity

Frequently Asked Questions - JPPVB Chief

What is the weight capacity of the Chief JPPVB mount?

The maximum weight capacity is 75 lbs (34.02 kg) for all components between the JPP and the display.

What pipe size is required for installation?

The mount requires a 1-1/2" NPT pipe (not included) that must be properly installed before mounting.

Does this mount support VESA 100x100mm?

Yes, for displays with a 100x100mm VESA pattern, you can mount directly to the Centris cup without an interface bracket.

What is the tilt and swivel range of the JPPVB?

The mount offers ±15° up-down tilt and ±75° left-right swivel.

Can I adjust the tension of the mount?

Yes, you can adjust roll, pitch, and yaw tension using a hex head wrench on the tension adjustment screw.

What tools are needed for installation?

You will need a 5/32" hex key, Phillips screwdriver, open-ended wrench, and hex-head wrench.

Is the mount compatible with other VESA patterns?

Yes, for patterns other than 100x100mm, you must use a compatible interface bracket (sold separately).

Can I install the mount on any structure?

No, the structure must be able to support five times the combined weight of all equipment. Reinforce if necessary.

What screw length should I use for the display?

Ensure screws are long enough to engage the threaded inserts but not exceed the depth of the mounting holes to avoid damage.

Where can I find the full installation manual?

The manual is available for free download at notice-facile.com or from Chief's official website.

USER MANUAL JPPVB Chief

INSTALLATION INSTRUCTIONS

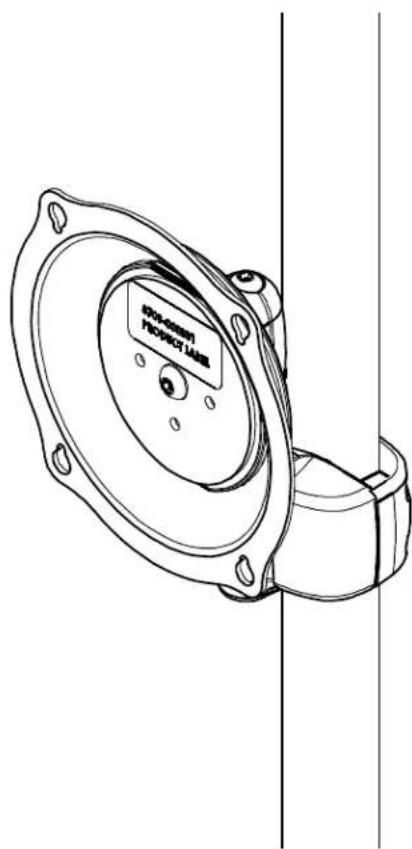

Technical line drawing of a mechanical component with mounting flanges and a control panel (no text or symbols)

Medium Panel Pole Mount

DISCLAIMER

Milestone AV Technologies, Inc., and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

IMPORTANT WARNINGS AND TIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located between the JPP up to (and including) the display does not exceed 75 lbs (34.02 kg).

- The weight capacity of the JPP mount may be LIMITED to the lowest weight capacity of any other component located between the JPP and the supporting structure!

Chief® and Centris™ are trademarks of Milestone AV Technologies, Inc. All rights reserved.

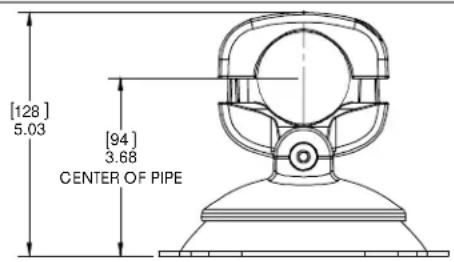

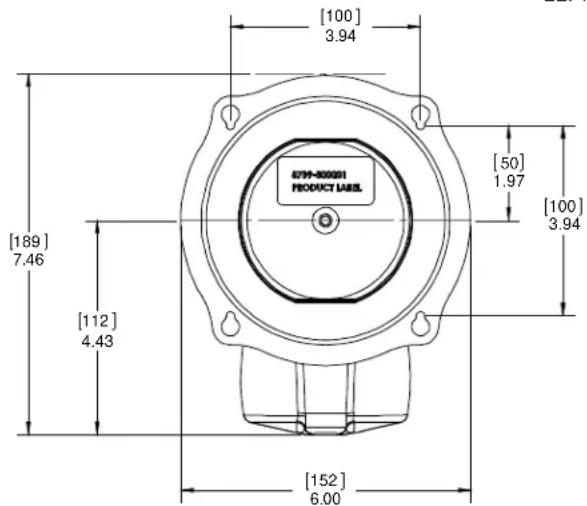

DIMENSIONS

UP-DOWN TILT ± 15° LEFT-RIGHT SWIVEL ± 75°

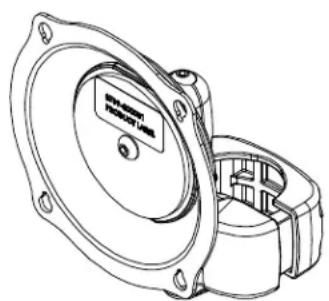

Technical line drawing of a mechanical component with mounting flanges and internal housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

MEASUREMENTS IN:
[INCHES] MILLIMETERS

LEGEND

	Tighten Fastener
	Apretar elemento de fijación
	Befestigungsteil festziehen
	Apertar fixador
	Serrare il fissaggio
	Bevestiging vastdraaien
	Serrez les fixations
	Loosen Fastener
	Aflojar elemento de fijación
	Befestigungsteil lösen
	Desapertar fixador
	Allentare il fissaggio
	Bevestiging losdraaien
	Desserrez les fixations
	Phillips Screwdriver
	Destornillador Phillips
	Kreuzschlitzschraubendreher
	Chave de fendas Phillips
	Cacciavite a stella
	Kruiskopschroevendraaier
	Tournevis à pointe cruciforme
	Open-Ended Wrench
	Llave de boca
	Gabelschlüssel
	Chave de bocas
	Chiave a punte aperte
	Steeksleutel
	Clé à fourche
	By Hand
	A mano
	Von Hand
	Com a mão
	A mano
	Met de hand
	À la main
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

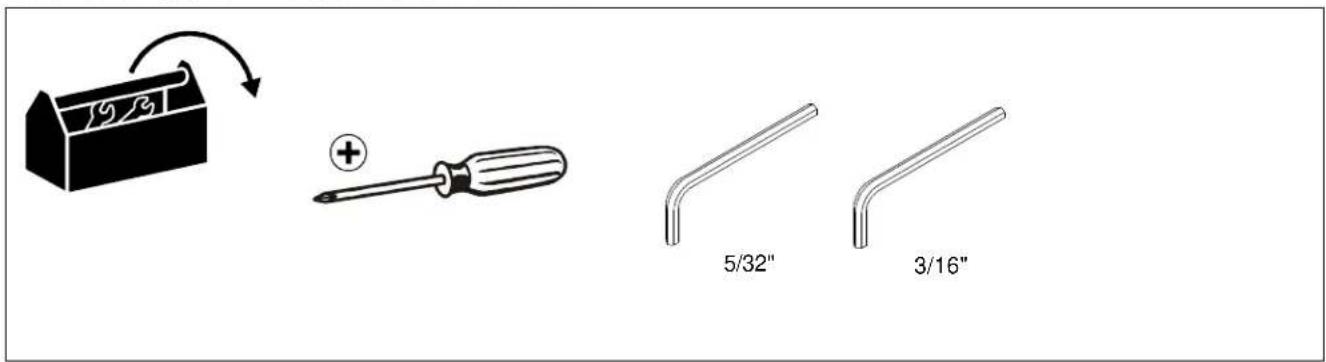

TOOLS REQUIRED FOR INSTALLATION

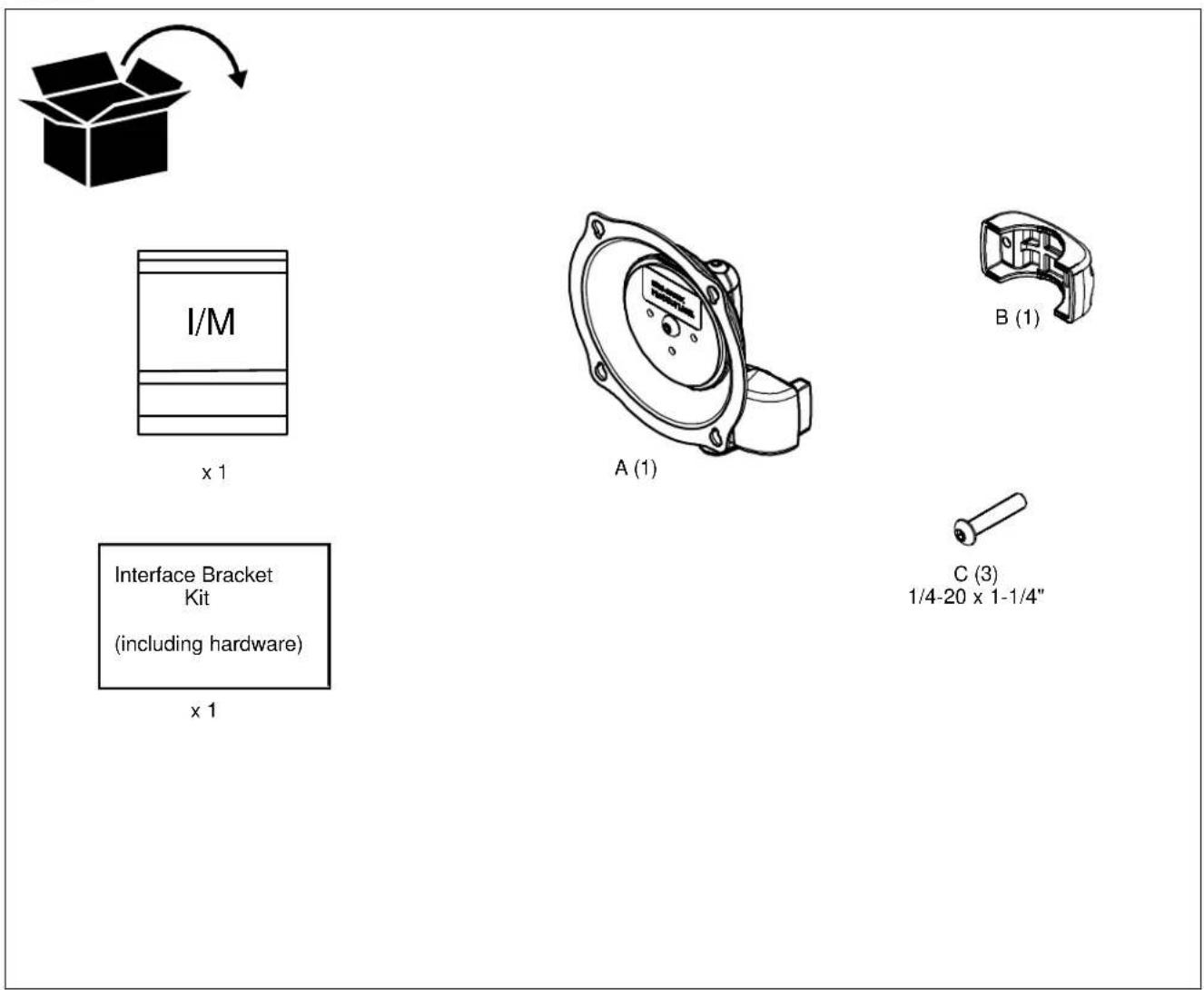

PARTS

INSTALLATION

IMPORTANT ! : The following installation instructions assume that a 1-1/2" NPT pipe has been properly installed and is in place.

1. Determine approximate location for mount keeping in mind display size, extension, height adjustment (if applicable), and pitch/roll requirements.

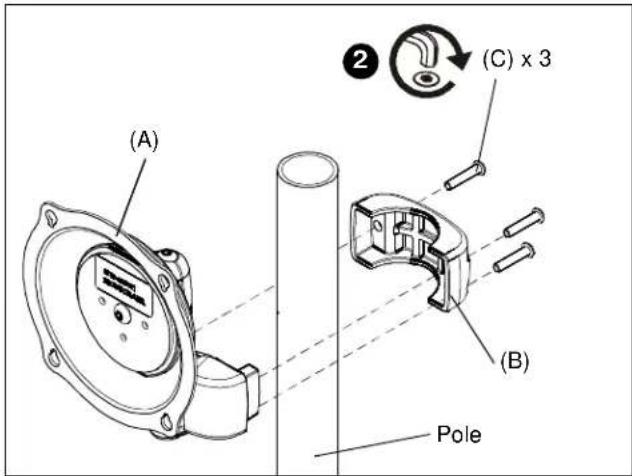

2. Place mount (A) against pole, with clamp (B) on opposite side of pole (See Figure 1). Using 5/32" hex key, loosely assemble with three 1/4-20 x 1-1/4" button head cap screws (C).

Figure 1

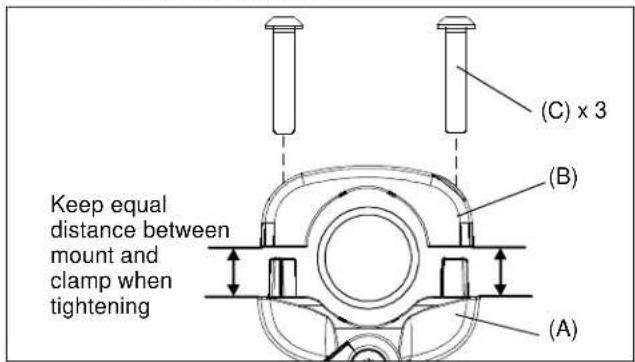

NOTE: Equally tighten screws (C) against clamp (B) and mount (A). (See Figure 2)

Figure 2

1. Position mount at desired height and orientation. Tighten screws (C) securely.

Display Installation

1. Determine mounting pattern on display.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

WARNING: IMPROPER INSTALLATION CAN LEAD TO ELECTRIC SHOCK OR DAMAGE TO EQUIPMENT! Screw length must not exceed the depth of threaded mounting insert in display.

WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.

NOTE: If the display being installed has a 100x100 VESA mounting pattern, no interface bracket is required and the display can be mounted directly to the Centris cup as outlined below.

NOTE: If the display being installed requires an interface bracket, refer to the interface bracket installation instructions.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display! Proper screws will easily and completely thread into display mounting holes. Ensure that screws are not too long.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Inadequate thread engagement in display may cause display to fall! Back out screws ONLY as necessary to allow installation of Centris cup!

1. Start two M4 x 8mm Phillips pan head screws (included in hardware kit) into upper mounting holes in display back. (See Figure 3)

NOTE: Leave at least 1/8" of each screw protruding out back of display.

Figure 3

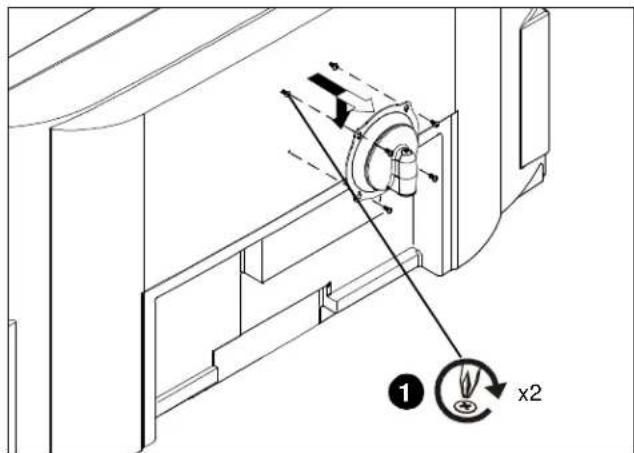

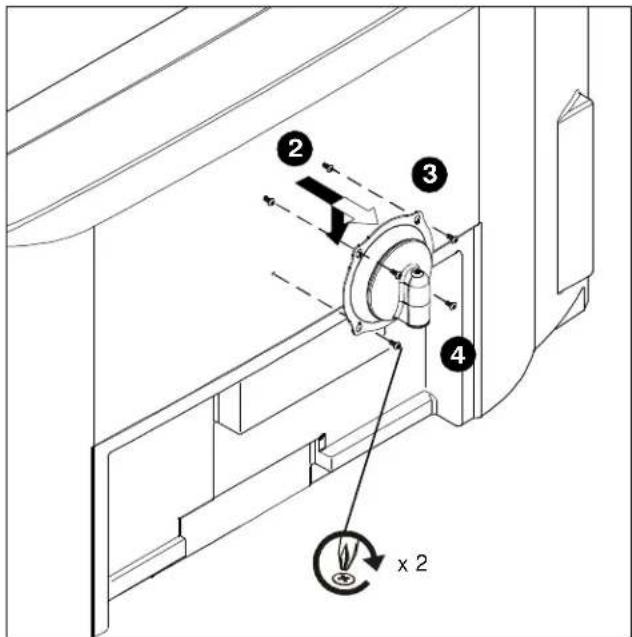

1. Align two screws in display back with upper mounting holes in Centris cup and lower display until screws are seated in lower area of teardrop mounting holes. (See Figure 4)
2. Install two more of the same screws through lower mounting holes in Centris cup and into display back. (See Figure 4)
3. Tighten all hardware.
4. Route cables and wires to display.

Figure 4

ADJUSTMENTS

To adjust display Roll, Pitch, and YAW tension:

1. Disconnect all wires and cable from the display.
2. Remove two Lower screws securing display to Centris cup.
3. Loosen two Upper screws securing display.
4. Lift display upward and away from mount.

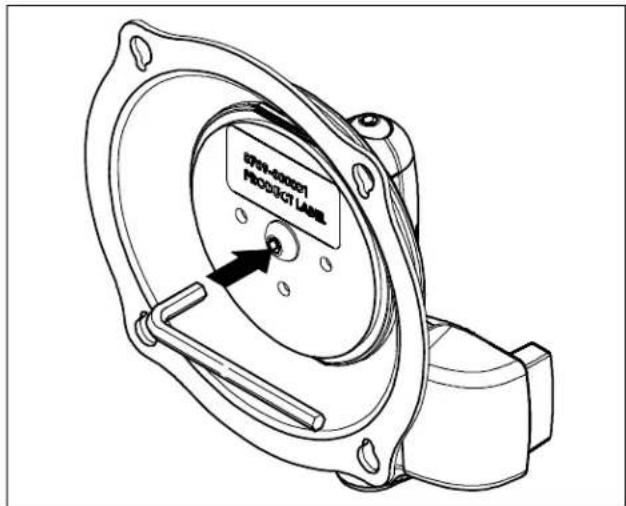

5. Using a hex head wrench, turn the tension adjustment screw clockwise to increase tension, or counter-clockwise to decrease tension. (See Figure 5)
6. Re-install display.

Figure 5
