Product type	Condensation dryer
Brand	Summit
Model	TCL73XNAADA
Drying capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	40 kg
Power supply	220-240 V, 50 Hz
Rated power	2500 W
Energy class	C
Noise level	65 dB(A)
Number of programs	15 programs
Main programs	Cotton, Synthetics, Delicates, Sport, Shirts, Quick dry
Special functions	Delayed start, Timed drying, Anti-crease, End delay
Drying system	Heat pump
Drum type	Stainless steel
Care and cleaning	Clean the lint filter after each cycle; empty the water tank; clean the condenser regularly
Safety	Child lock, automatic shutdown in case of overheating, open door detection
Spare parts	Filters, belt, heating element, pump, capacitor
Repairability	Repairability index: 7/10
Warranty	2 years
Country of manufacture	China

Frequently Asked Questions - TCL73XNAADA Summit

How to clean the lint filter of the Summit TCL73XNAADA dryer?

Open the door, remove the filter located at the bottom of the opening. Remove the lint by hand or under running water. Replace the dry filter before each use.

What to do if the dryer no longer heats?

First check that the selected program is not a cold program. Then clean the lint filter and the condenser. If the problem persists, contact the after-sales service.

How to drain the water tank?

Pull the tank forward to remove it. Empty it into a sink. Replace it by pushing until it clicks.

The dryer displays an error code E70, what does it mean?

The E70 code indicates an electronic communication problem. Turn off the appliance, wait 10 minutes, then turn it on again. If the error persists, contact a repairer.

Which program is most suitable for sheets?

Use the Cotton or Sheets program if available. Set the desired drying level.

Can you dry shoes in this dryer?

No, it is not recommended to dry shoes in this dryer. Use a dedicated program or an accessory like a drying rack if provided.

How to activate delayed start?

Select the desired program, then press the Delayed start button until the desired delay is displayed (from 30 minutes to 24 hours). Press Start.

Should you use fabric softener in the dryer?

No, fabric softener is not necessary. Optionally use dryer sheets.

The drum does not turn, what to check?

Check that the door is properly closed and the filter is in place. If nothing happens, the belt may be broken: contact a professional.

Where to find spare parts for the Summit TCL73XNAADA?

Spare parts are available from Summit authorized dealers or on specialized websites. Inquire with customer service.

USER MANUAL TCL73XNAADA Summit

Warning - Risk of Fire

Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

To reduce the risk of severe injury or death, follow all installation instructions.

Save these instructions.

Warnings and Safety Instructions, 4

Important safety instructions Grounding instructions

Dryer Description, 5

To open door The features Control panel

Start and Programs, 6-9

Choosing a program Table of programs The Controls

Laundry, 10-11

Sorting your laundry Wash care labels Special clothing items Drying times

TCL73X TCL73XS

Maintenance and Care, 12

When to switch off the electricity Clean the filter after each cycle Check the drum after each cycle Clean the drum Clean the condenser unit Cleaning the dryer

Troubleshooting, 13

Spare parts

Installation, 14-15

Electrical Where to put your dryer Exhaust ducting Stacking kit

Warranty, 16

ARISTON

EN

Warnings and Safety Instructions

EN

! The appliance has been designed and built according to international safety standards.

These warnings are given for safety reasons and must be read carefully.

Important safety instructions

WARNING:

To reduce the risk of fire, electric shock or injury to persons when using your appliance, follow the basic precautions, including the following:

• Read all instructions before using the appliance.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents or other flammable or explosive substances, as they give off vapours that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door to the drying compartment.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.

- Do not tamper with the controls.

- Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions.

- Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

- Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

- Clean the lint filter before and after each load (see Maintenance).

- Keep the area around the exhaust opening and adjacent surroundings free from the accumulation of lint, dust and dirt.

- The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.

- Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

- This tumble dryer has been designed for home, and not professional, use.

- This dryer must be used by adults, and the instructions in this booklet should be followed carefully.

- Do not touch the appliance while barefoot or with wet hands or feet.

- The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer and the rear vents behind the machine should never be obstructed (see Installation).

- Check to see if the dryer is empty before loading it.

- The back of the dryer could become very hot. Never touch it while in use.

• Do not use the dryer unless the filter and condenser are securely in place (see Maintenance).
• Clean the condenser unit at regular intervals (see Maintenance).
• Do not overload the dryer (see Laundry for maximum loads).
• Do not load items that are dripping wet.
• Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that have not been washed with water.
• Carefully check all instructions on clothing labels (see Laundry).
• Do not tumble dry large, very bulky items.
• Do not tumble dry acrylic fibres at high temperatures.
• Complete each program with its Air Fluff phase.
• Do not turn off the dryer when there are still warm items inside.
• Never climb on top of the dryer. It could result in damage.
• Comply with specified electrical requirements (see Installation).
• Always buy original spare parts and accessories (see Troubleshooting).

Grounding instructions (see Installation)

WARNING:

THIS APPLIANCE MUST BE GROUNDED.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the appliance is properly grounded!

In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DO NOT modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician or exchange the cord with an appropriate one rated for the dryer.

REFER TO THE RATING PLATE FOR VOLTAGE AND CURRENT REQUIREMENTS (see diagram for location).

The dryer should be connected to the mains supply via a suitable socket which is accessible after installing your dryer. This dryer must be connected to 30A INDIVIDUAL BRANCH CIRCUIT.

For full details see Installation Instruction sections of this book.

IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT A QUALIFIED ELECTRICIAN

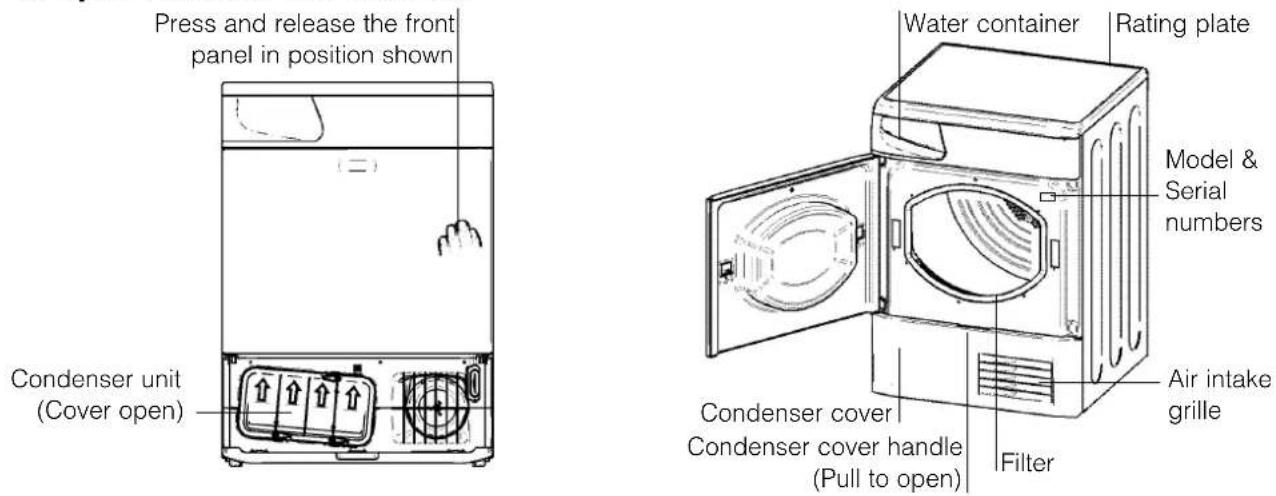

To open the door The features

Press and release the front panel in position shown Condenser unit (Cover open) Water container Rating plate Model & Serial numbers Condenser cover Condenser cover handle (Pull to open) Filter Air intake grille

EN

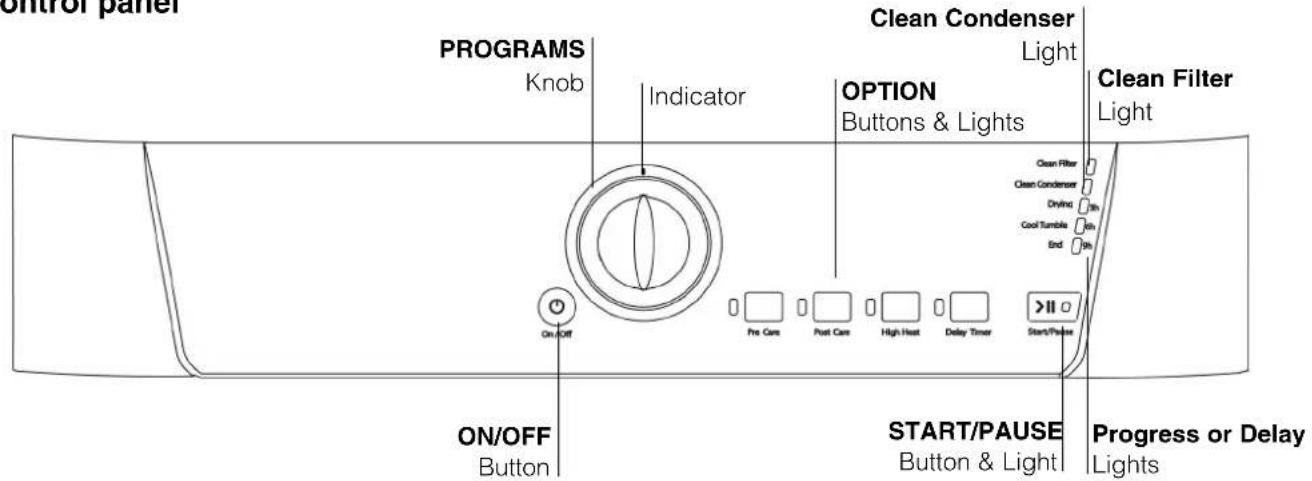

Control panel

Control panel PROGRAMS Knob Indicator Clean Condenser Light OPTION Buttons & Lights Clean Filter Light ON/OFF Button START/PAUSE Button & Light Progress or Delay Lights Pre Care Post Care High Heat Delay Timer Start/Pause

The ON/OFF (On/Off) button ⏻: If the dryer is running and this button is pressed, the dryer is turned off. Press again, the dryer restarts.

The PROGRAMS knob sets the program: rotate it until the indicator is pointing to the program you want to select (see Start and Programs).

The OPTION buttons/lights select available options for your selected program. The lights indicate that the option has been selected (see Start and Programs).

The START/PAUSE (Start/Pause) button/light >II starts a selected program. When you press this button there will be one beep and the progress lights will flash to confirm the action. When a program is running, holding this button in pauses the program and stops the dryer. The light is green when the program is running, flashing amber if the program has been paused or flashing green if on standby waiting to start a program (see Start and Programs).

The Progress or Delay lights show you the status of the program, or the delay time when they flash. During a delayed start the lights flash to show the delay selected. When (not flashing) they show each stage of the program by the corresponding light turning on (see Start and Programs).

The Clean Filter (Clean Filter) light gives you a reminder before every program that it is essential to clean the filter every time the dryer is used (see Maintenance and Care).

The Clean Condenser (Clean Condenser) light gives you a reminder that it is essential to clean the condenser at regular intervals (see Maintenance and Care).

EN

Choosing a program

1. Plug the dryer into the electrical socket.
2. Sort your laundry according to fabric type (see Laundry).
3. Open the door and make sure the filter is clean and in place and the water container is empty and in place (see Maintenance).
4. Load the machine and make sure that the items are not in the way of the door seal. Close the door.
5. If none of the lights are on: Press the On/Off button ⏻.
6. Choose a program by checking the Programs guide (see Programs) as well as the indications for each type of fabric (see Laundry).
7. Select a program by rotating the PROGRAMS knob.
8. Set a delay time and other options if necessary.
9. The Start/Pause light is flashing green, press the Start/Pause button >II to begin. The green light stops flashing.

During the drying program, you can check on your laundry and take out the items that are dry while others continue drying. When you close the door again, press the Start/Pause button >II in order to resume drying. (When the door is open the Start/Pause light will flash amber and after the door is closed and the Start/Pause button pressed will stop flashing and show green).

1. During the last few minutes of Drying Programs, before the program is completed, the final Cool Tumble phase is entered (fabrics are cooled), this phase should always be allowed to complete.

2. The buzzer (alert) will warn you when the program is complete. Open the door, take your laundry out. Clean the filter and replace it and empty the water container and replace it (see Maintenance). If the Post Care Option has been selected and you do not take the clothes out immediately, the clothes will tumble occasionally for 10 hours or until you open the door.

3. Unplug the dryer.

Note: This tumble dryer is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Easy Iron Program (15)

Easy Iron is a short 10 minute programme (8 minutes of heat followed by a 2 minute Cool Tumble period) which fluffs the fibers of clothing that have been left in the same position/location for an extended period of time. The cycle relaxes the fibers and makes them easier to iron and fold.

! Easy Iron is not a drying program and should not be used for wet articles of clothing.

For best results:

1. Do not load more than the maximum capacity.
   These numbers refer to the dry weight:
   Regular Cotton and Regular Cotton mix 5.5 lb / 2.5 kg
   Permanent Press 4 lb / 2 kg
   Denim 4 lb / 2 kg

Fabric Maximum load

1. Unload the dryer immediately after the end of the program, hang, fold or iron the articles and put them away. Should this not be possible, repeat the program.

The Easy Iron effect varies from one fabric to the next. It works very well on traditional fabrics like Regular Cottons or Regular Cotton mix, and less well on acrylic fibers.

Wool Program (13)

• This is a program for tumble dryer safe garments marked with the symbol ☐.
• It can be used for load sizes up to 2 lb / 1 kg (approximately 3 sweaters).
  • We recommend that garments are turned inside out before drying.
• This program will take about 60 minutes, but may take longer depending on the size and density of the load and the spin speed used in your washer.
• Loads dried using this program are usually ready to wear, but on some heavier garments the edges may be slightly damp. Allow these to dry naturally as over-drying could damage garments.

! Unlike other materials, the mechanism of wool shrinkage is irreversible; i.e. it will not stretch back to original size and shape.
! This programme is not suitable for Acrylic garments.

Programs

! If the On/Off light is not lit; Press the On/Off button ⏻ and then select program.

EN

SENSOR DRY

Program	What it does...	How to set it...	Note:
CottonsExtra Dry	Dries your clothes on High heat setting, ready for putting away.	1. Position the PROGRAMS knob on 1.2. Select any Options, if required.3. Press the Start/Pause button.	Options available:Delay Timer, Pre Care, Post Care.
CottonsLight Dry	Dries your clothes on High heat setting, ready for hanging.	1. Position the PROGRAMS knob on 2.2. Select any Options, if required.3. Press the Start/Pause button.
CottonsIron Dry	Dries your clothes on High heat setting, ready for ironing.	1. Position the PROGRAMS knob on 3.2. Select any Options, if required.3. Press the Start/Pause button.
Permanent pressExtra Dry	Dries your clothes on High heat setting, ready for putting away.	1. Position the PROGRAMS knob on 4.2. Select any Options, if required.3. Press the Start/Pause button.
Permanent pressLight Dry	Dries your clothes on High heat setting, ready for hanging.	1. Position the PROGRAMS knob on 5.2. Select any Options, if required.3. Press the Start/Pause button.
Permanent pressIron Dry	Dries your clothes on High heat setting, ready for ironing.	1. Position the PROGRAMS knob on 6.2. Select any Options, if required.3. Press the Start/Pause button.

TIMED DRYING

Dries wet clothing that you wish to dry on low heat or small loads (less than 2 lb / 1 kg).

Can be used with High Heat option if you prefer to use a timed program.

Consult suggested drying times (see Laundry).

The last 10 minutes of these programs is the air fluff phase (see next page).

Program	How to set it...	Note:
Timed Drying(160 minutes)	1. Position the PROGRAMS knob on 72. Select any Options, if required.3. Press the Start/Pause button.	Options available:High Heat, Delay Timer, Pre Care, Post Care.
Timed Drying(120 minutes)	1. Position the PROGRAMS knob on 82. Select any Options, if required.3. Press the Start/Pause button.
Timed Drying(90 minutes)	1. Position the PROGRAMS knob on 92. Select any Options, if required.3. Press the Start/Pause button.
Timed Drying(60 minutes)	1. Position the PROGRAMS knob on 102. Select any Options, if required.3. Press the Start/Pause button.
Timed Drying(30 minutes)	1. Position the PROGRAMS knob on 112. Select any Options, if required.3. Press the Start/Pause button.

EN

Programs

! If the On/Off light is not lit; Press the ON/OFF button ⏻ and then select program.

SPECIALS

Program	What it does...	How to set it...	Note:
Delicates Low Temp(H53C)	Dries your clothes on Low heat setting ready to be worn.	1. Position the PROGRAMS knob on 122. Select any Options, if required.3. Press the Start/Pause button.	Options available:Delay TimerPre CarePost Care
Wool(8C6D)—	Dries your Woollen clothes, (see previous page).	1. Position the PROGRAMS knob on 132. Press the Start/Pause button.	Options available:None
Air Fluff ^1_[500]	Aires your clothes with cool air, use also to cool warm clothes (20 minute program)	1. Position the PROGRAMS knob on 14.2. Press the Start/Pause button.	Options available:None
Easy Iron ^1_[27CT]	Brief program (approximately 10 minutes) that softens fibers of clothing that is ready for ironing.	1. Position the PROGRAMS knob on 15.2. Press the Start/Pause button.	Options available:None
Cool Tumble ^1_[444]	Brief program (approximately 10 minutes) that cools fibers of clothing.	1. Position the PROGRAMS knob on 162. Press the Start/Pause button.	Options available:None

The Controls

• PROGRAMS knob

! Warning, if after pressing the Start/Pause button >II the programs knob position has changed, the new position will NOT change the program selected. To change the program: Press the Start/Pause button >II to pause the program - the light flashes amber to indicate the program is paused. Select the new program and any options required - the light will flash green. Press the Start/Pause button >II and the new program will start.

• OPTION buttons / lights

These buttons are used to customize the selected program to your requirements. Not all options are available for all programs (see Start and Programs). If an option is not available and you press the button, the buzzer (alert) will beep three times. If the option is available there will be one beep and the option light next to the button lights to confirm the selection.

Progress (Drying, Cool Tumble, End) / Delay (3hr 6hr 9hr) Lights

When the light next to the delay button is on, these lights flash to indicate the delay time is selected. During other programs they indicate the progress of the dryer, each one comes on as the corresponding phase starts.

Delay Timer

The start of some programs (see Start and Programs) can be delayed for up to 9 hours in 3hr steps. Ensure that the water container is emptied before setting a delayed start.

When a delayed start is in progress the light next to the delay button will be on and the selected delay period light will flash (after the Start/Pause button has been pressed).

To set a delayed start, press the Delay Timer button, and the light next to the button will come on together with the 3hr delay light. Pressing the button again will advance the delay setting to 6hr, the 3hr light goes out and the 6hr light is on. Each time you press the button the delay setting advances 3 hours, as indicated by the corresponding light. If the 9hr light is on, pressing the button again will cancel the delay. You can also cancel the delay by holding in the On/Off button.

Pre Care

When a delayed start and this option have been selected, the clothes are tumbled occasionally during the delayed period to help prevent creases developing.

High Heat

Available for Timed Drying programs. Press this button and a high heat setting is selected and the light alongside the button comes on.

Timed programs have a default of low heat, if the light alongside the button is on then pressing the button selects a low heat setting and the light goes out.

Post Care

When available and selected, the clothes are occasionally tumbled after the end of the drying and cool tumble cycles, to help prevent creases developing should you not be available to remove the load immediately the program is complete.

The 'End light is on during this phase.

- Door Opening

Opening the door (or pressing the Start/Pause button >II) during a program will stop the dryer and have the following effects:

• The Start/Pause light flashes amber.
- During a delay phase the delay will continue to count down. The Start/Pause button must be pressed to resume the delay program.
One of the delay lights will flash to show the current delay setting.
- The Start/Pause button must be pressed to resume the program. The progress lights will change to show the current status and the Start/Pause light will stop flashing and turn green.
- During the post care phase of a drying program the program will finish. Pressing the Start/Pause button will re-start a new program at the beginning.
- Changing the Programs knob will select a new program and the Start/Pause light will flash green. You can use this to select the Cool Tumble program to cool the clothes, if you find them dry enough. Press the Start/Pause button to begin a new program.

- Note

If you have a power outage, switch off the power or remove the plug, press the Start/Pause button and the program will resume.

EN

Sorting your laundry

• Check symbols on clothing labels to make sure that the articles can be tumble dried.
• Sort laundry by fabric type.
  • Empty pockets and check buttons.
• Close zippers and hooks and tie loose belts and strings.
• Wring out each item in order to eliminate as much excess water as possible.

! Do not load dripping wet clothes into the dryer.

Maximum load size

Do not load more than maximum capacity.

These numbers refer to dry weight:

Natural fibres: 7 kg max (15 lb)

Synthetic fibres: 3 kg max (6.6 lb)

! DO NOT overload the dryer as this could result in reduced drying performance.

Typical weights

Clothes
Blouse Cotton 150	g 5 ozOther 100	g 3 oz
Dress Cotton 500 g	1 lb 2 ozOther 350	g 12 oz
Jeans 700 g 1 lb 6	oz
10 Diapers 1000 g	2 lb 3 oz
Shirt	Cotton 300Other 200	g 10 ozg 7 oz
T-Shirt		125 g 4 oz

Household Items
Duvet cover(Double)	Cotton 150Other 1000	0 g 3 lb 5 ozg 2 lb 3 oz
Large Tablecloth		700 g 1 lb	6 oz
Small Tablecloth		250 g 9 oz
Tea Towel		100 g 3 oz
Bath Towel		700 g 1 lb	6 oz
Hand Towel		350 g 12 oz
Double Sheet		500 g 1 lb	2 oz
Single Sheet		350 g 12 oz

At the end of a drying cycle, cottons could still be damp if you grouped cottons and permanent press items together. If this happens simply give them an additional short period of drying.

Wash Care Labels

Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common:

May be tumble dried

Do not tumble dry

Tumble dry at high heat setting

Tumble dry at low heat setting

What not to tumble dry in your dryer:

• Articles that contain rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable objects or objects that contain flammable substances (towels soiled with hair spray).
  • Glass fibres (certain types of draperies).
• Items which have been dry cleaned.
• Items with the ITCL Code (see Special clothing items) ☒. These can be cleaned with special at-home dry cleaning products. Follow instructions carefully.
• Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer.

Special clothing items

Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time.

Pleated or creased garments: read the manufacturer's drying instructions on the garment.

Starched articles: do not dry these with non-starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch.

Drying times

The table below presents APPROXIMATE drying times in minutes. Weights refer to dry garments:

Regular CottonsHigh (full) Heat
Drying times 800-1000rpm in washing machine
		Half Load	Full Load
2 lb 4 lb 7 lb	9 lb 11 lb	13 lb	15 lb
1 kg 2	kg 3 kg	4 kg 5	kg 6 kg	7 kg
30-40	40-55	55-70	70-80	80-90	95-120	120-140
Permanent PressLow (gentle) Heat
Drying times on reduced spin in washing machine
		Half Load			Full Load
2 lb		4 lb			7 lb
1 kg		2 kg			3 kg
40-50		50-70			70-90
Delicates/AcrylicsLow (gentle) Heat
Drying times on reduced spin in washing machine
Half Load			Full Load
2 lb			4 lb
1 kg			2 kg
40-60			55-75

Times are approximate and can vary depending upon:

• Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water.
• Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time.
• Quantity of laundry: single items or small loads may take longer to dry.
• Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry.
• Heat setting.
• Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes.
• Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished.

! Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy.

EN

When to switch off the electricity

! Unplug your dryer when not using it, when cleaning it and during maintenance activities.

Clean the filter after each cycle

The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. When finished drying, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. It may also damage your dryer.

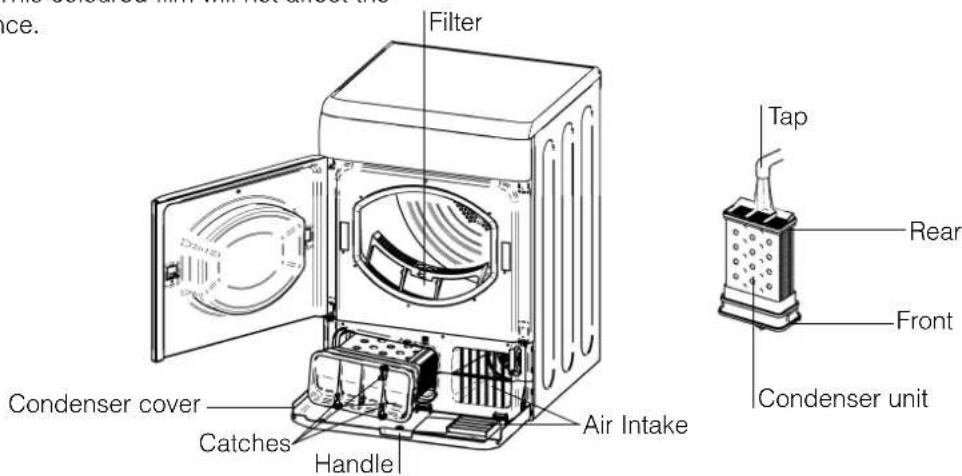

The filter is found in front of the dryer trim (see diagram). Removing the filter:

1. Pull the plastic grip of the filter upwards (see diagram).
2. Clean the filter and replace it correctly. Ensure the filter is fully located flush into the tumble dryer trim.
   ! Do not use the dryer without replacing the filter.

Check the drum after each cycle

Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind.

Cleaning the drum

! Do not use abrasives, steel wool or stainless steel cleaning agents to clean the drum.

A coloured film may start to appear on the stainless steel drum, this may be caused by a combination of water and, or cleaning agents such as fabric conditioner from the wash. This coloured film will not affect the dryer performance.

Cleaning the condenser unit

Periodically (every month) remove the condenser unit and clean any build up of fluff from between the plates by rinsing it under the tap with cold water.

This should be done with cold water from the rear of the condenser.

To remove the condenser:

1. Unplug the dryer and open the door.
2. Pull open the condenser cover (see diagram). Release the three catches by turning 90° counterclockwise then pull on the grip and remove from the dryer.
3. Clean the surface of the seals and replace, making sure that the catches have been secured.

Cleaning the dryer

• External parts in metal or plastic and rubber parts can be cleaned with a damp cloth.
• Periodically (every 6 months) vacuum the front air intake grille and vents at the rear of the dryer, to remove any build up of fluff, lint or dust. Also to remove accumulation of fluff from the front of the condenser and filter areas, clean occasionally with a vacuum cleaner.
  ! Do not use solvents or abrasives.
  ! Your dryer uses special bearing components which do not need lubrication.
  ! Have your dryer checked regularly by authorized technicians to ensure electrical and mechanical safety.

Filter Condenser cover Catches Handle Air Intake Tap Rear Front Condenser unit

Before you call our Customer Care Department, go through the following troubleshooting suggestions:

EN

Problem:

Possible causes / Solution:

The dryer won't start.

• The plug is not plugged into the socket, or not making contact.
  • There has been a power outage.
  • The fuse has blown.
  • The door is not closed securely?
• The PROGRAMS knob has not been set properly (see Start and Programs).
• The Start/Pause button has not been pressed (see Start and Programs).

Drying cycle will not begin.

- You have set a delayed time (see Start and Programs).

Its taking a long time to dry.

• The filter has not been cleaned (see Maintenance).
- The temperature setting is not ideal for the type of fabric you are drying (see Start and Programs and see Laundry).
• The condenser needs cleaning (see Maintenance).
- The correct drying time has not been selected for the load (see Laundry).
- The air intake grille or rear vents are obstructed (see Installation and see Maintenance).
• The items were too wet (see Laundry).
• The dryer was overloaded (see Laundry).

The Option lights and the Start/Pause light flash amber.

• If the Option lights and the Start/Pause light flash together with the Clean Condenser and Cool Tumble lights; Or the Progress lights and Start/Pause light flash together with the Clean Filter, Clean Condenser, Cool Tumble and End lights on, then:
• Turn off and remove the plug. Clean the filter and the condenser (see Maintenance). Then replace the plug, turn on and start another program. If the same combination of lights still flash contact our Customer Care Department.
• If the Option lights and the Start/Pause light flash with any other combination of lights on: Note down the lights that are on and contact our Customer Care Department.

Programme finishes and clothes are damper than expected.

! For safety the dryer has a maximum program time of 3 hours. If an automatic program has not sensed the required final moisture in this time the dryer will complete the program and stop. Check the above points and run the program again, if the results are still damp, contact our Customer Care Department.

If you still have a problem call our Customer Care Department on: 1 877 356 0766

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a non-authorized person try to repair it could cause harm to one or more persons and to the machine, and could invalidate the spare parts warranty.

Call an authorized service center if you experience problems while using the machine.

Contact number: 1 877 356 0766

EN

Read these instructions with care.

These instructions are provided for use by qualified installers, in addition the installation must comply with:

• In the United States, in accordance with the National Electric Code ANSI/NFPA70 - latest edition and any State, Municipal or local codes.
• In Canada, in accordance with the Canadian Electric Code C22.1 - latest edition and any Provincial, Municipal or local codes.

Electrical

The dryer comes with a four-wire power supply cord fitted with a 14-30P (plug), a receptacle should be fitted in a location accessible after the dryer is installed. The four wire dryer wire cord assembly fitted must be used when the appliance is installed in a location where grounding through the neutral is prohibited. Grounding through the neutral is prohibited for; new branch-circuit installations; mobile homes, recreational vehicles and areas were local codes do not allow grounding through the neutral conductor.

If a 10-30R (receptacle) is installed a locally obtained 3 wire dryer cord kit minimum ratings 240V, 30A, 95C and marked for clothes dryers (ring terminals) should be fitted

To fit a 10-30P dryer cord assembly follow the steps below:

1. Make sure the dryer is not plugged into a power outlet.
2. Remove the cover from the cable junction box located on the rear of the dryer.
3. Remove Green link wire from ground terminal.
4. Loosen the nut securing the cable bush, disconnect and discard the existing cable and bush.
5. Fit one end of the Green link to the ground terminal using washer and nut. Position the link wire to the Neutral terminal (N), but do not fit securing screw at this stage.

Close-up of an electrical circuit board with wires and labeled terminals (no readable text or symbols)

Green link wire.

1. Follow any instructions provided with the kit and fit the cable using the strain relief supplied with the kit, do not fully tighten the strain relief at this stage.

Close-up of electrical wiring with multiple wires and connectors (no visible text or symbols)

1. Connect the L1, N and L2 wires.

On flat cords the center wire is the Neutral conductor, fit to the terminal marked 'N'.

On round cords the Green or White conductor should be fitted to the terminal marked 'N'.

1. Fully tighten the terminal block screws and ground connection nut, position the cord, finally fully tighten the strain relief.
2. Refit the cover to the box.

Grounding

Some local codes may require a separate ground. In such cases the required ground wire, clamp and screw must be purchased separately.

NEVER ground the dryer to plastic plumbing lines, gas lines or water pipes.

NOTE: IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT A QUALIFIED ELECTRICIAN.

Where to put your dryer

Check local codes before choosing a location. Some codes do not permit installation in a garage, closet, mobile home or bedroom.

DO NOT install the dryer in an area where gasoline or other inflammable materials are kept or stored. When operating the dryer, there has to be adequate ventilation. Make sure you put the dryer in an environment that is not damp and has proper air circulation throughout. Airflow around the dryer is essential to condense the water produced during washing, the dryer will not operate sufficiently in an enclosed space or cupboard. If installed in a closet we recommend that you leave the door open when the dryer is in use.

! If using the dryer in a small room or cold room some condensation could be experienced.

Minimum installation clearances:

	Closet Closet (a)ternative) Under counter
Sides	3/4" (15mm) 0		3/4" (15mm)
Top	1/2" (10mm) 4"(100m)		1/2" (10mm)
Rear	3/4" (15mm)	3/4" (15mm)	3/4" (15mm)
Front	3/4" (15mm)	3/4" (15mm) not applicable
Vent Opening - distance from top of closet 6"(150mm) 2"(50mm)not applicable

If installed in a closet it must have the following dimensions and have two ventilation openings each having an area 72 sq.ins. (450 sq.cm) located 2" (50mm) or 6" (150mm) from top (see table) and 6" (150mm) from bottom of the door. It must NEVER be installed in a closet with a solid door.

The dryer has adjustable height feet, use these to level the dryer after fitting into its final position.

Water drain

Your dryer needs a drain to discharge the water condensed during the drying process.

Simply fit the hose provided into this drain, if the dryer is stacked onto or installed next to a washing machine it can share the same drain. The drain must be less than 3' (1 m) above the bottom of the dryer.

! Make sure that the hose is not squashed or kinked when the dryer is in its final location.

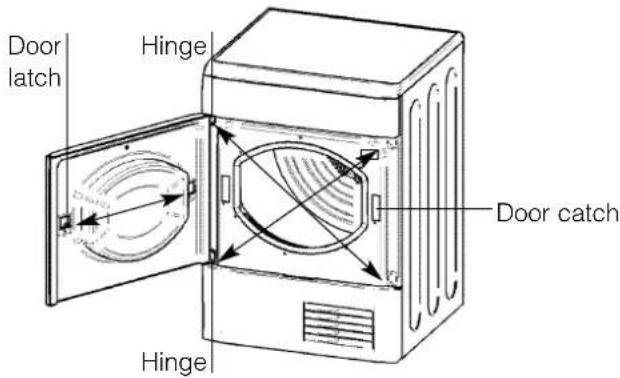

Door reversal instructions (only if stacked on top of washing machine).

Door latch Hinge Door catch Hinge

The door of your dryer is reversible and can easily be changed. Exchange diagonally the hinge brackets and blanking plugs. Exchange the door latch and catch with their opposite blanking plates (see above diagram).

Stacking kit

A stacking kit is available from your dealer, which allows the dryer to be fitted to the top of an Ariston washing machine.

Reference number: 72141 White for TCL73X or 72140 Silver for TCL73XS

The kit contains all the necessary brackets and screws. Tools needed:

No.2 Philips Screwdriver

2mm drill, power or hand drill

SAFETY

For personal safety, DO NOT try to fit the dryer on top of the washing machine on your own. A second person should help to lift the tumble dryer onto the washing machine and to relocate the stacked washer and dryer.

1. You will need to get to the sides of the washing machine to fit the stacking kit and dryer. If necessary pull the machine away from its location to gain access to the machine to fit the stacking kit and dryer.
2. Follow the instructions provided with the stacking kit.

ARISTON ONE-YEAR LIMITED

WARRANTY (USA & CANADA ONLY)

EN

WHO IS COVERED BY THIS WARRANTY

This limited one-year warranty ("Warranty") is given only to the original end-use/retail purchaser (the "First Using Purchaser") of the accompanying Ariston product(s) (the "Ariston Product").

If you purchased this Ariston Product from someone other than an authorized Ariston reseller/dealer in the United States or Canada, or if the Ariston Product was used (including but not limited to floor models or refurbished products) prior to your purchase, then you are not the First Using Purchaser and the Ariston Product that you purchased is not covered by this Warranty. This Warranty is not transferable.

WHAT IS COVERED BY THIS WARRANTY

Ariston will repair or replace any part of the Ariston Product which fails due to a defect in materials or workmanship when used under normal home-use conditions. Ariston will also provide, free of charge, all labor to repair or replace the defective part.

This Warranty applies only to Ariston Products purchased and used in the United States or Canada. Subject to the exclusions below, for Ariston Products purchased in, but used outside, the United States or Canada, this Warranty covers only warranty service within the United States or Canada (and does not include shipping outside the United States or Canada).

LENGTH OF THE WARRANTY

This warranty runs for a period of one (1) year from the date of the original purchase by the First Using Purchaser. Please note that a copy of your original purchase receipt showing the purchase date and the vendor's name and address are required to obtain service under this Warranty. For the purposes of determining the applicable warranty period, please note that any and all replaced or repaired parts shall assume the identity of the original.

WHAT IS NOT COVERED BY THE WARRANTY (EXCLUSIONS)

This warranty does not cover:

1. Improper installation, delivery, maintenance and/or improper operation of the Ariston Product. 2. Damage caused if the Ariston Product has not been used in compliance with the electricity or gas supply specifications printed on the rating plate. 3. Failure of or damage to the Ariston Product if it is altered, abused, misused, or used for other than the intended purpose, or if it is used commercially. 4. Service trips to your home to provide instructions on the use of your Ariston Product. 5. Replacement of house fuses or correction of the plumbing or electric wiring in your home. 6. Damage caused by neglect, accident, fire, floods or acts of God. 7. Physical Damage to the appearance of your Ariston Product including, without limitation, scratches, rust, dents, warping, peeling and the like. 8. Damage caused by transportation. 9. Replacement of any consumable or degradable item or accessory including, but not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters, or replacement of any removable parts made of glass or plastic. 10. Damage caused after delivery. 11. Water damage of any kind. 12. An Ariston Product not accessible to provide required service. 13. Problems arising from other than defects in materials or workmanship. 14. Travel time when installed in a recreational vehicle or marine application.

This Warranty is void if the Ariston Product is altered, serviced, maintained, dismantled, or otherwise interfered with by any person who is not authorized by Ariston.

1. Non-standard labor when installed in a marine application. 16. Water leaks of any kind. TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, WHETHER EXPRESSED BY AFFIRMATION, PROMISE, DESCRIPTION, DRAWING, MODEL OR SAMPLE. ANY AND ALL WARRANTIES OTHER THAN THIS ONE, WHETHER EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED, IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS THAT CANNOT BE EXCLUDED BY LAW, SHALL BE LIMITED TO THE SAME DURATION AS THIS WARRANTY, EXCEPT FOR THAT REPAIR OR REPLACEMENT AS DESCRIBED ABOVE, ARISTON SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR SPECIFIC RELIEF.

Some States and Provinces do not allow the exclusion or limitation of incidental or consequential damages and/or implied warranties, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from State to State or Province to Province.

WHAT YOU SHOULD DO TO OBTAIN WARRANTY SERVICE

All repairs or warranty service must be provided by Ariston or an Authorized Ariston Service Center.

To schedule warranty service please call 1-877-356-0766, email [e-mail]

Please remember to provide us with your Ariston Product's model number and serial number.

Please note that a copy of your original purchase receipt showing the purchase date and the vendor's name and address are required to obtain service under this Warranty. If the Ariston Product is located in an area where service by an Authorized Ariston Service Center is not available, you may be responsible for a trip charge or you may be required to bring the Ariston Product to an Authorized Ariston Service Center for service.

The foregoing are your sole (i.e., only) and exclusive remedies under this Warranty. This Warranty is the only warranty that Ariston is giving for this Ariston Product. This Warranty replaces all other agreements and understandings that you may have with Ariston or its representatives.

SECADO POR SENSOR 🌿 (Sensor Dry)

SECADO POR TIEMPO ✿ (Timed Drying)

Close-up of an electrical component with wires and labeled terminals (no readable text or symbols)

Close-up of electrical wiring with multiple wires and connectors (no visible text or symbols)

Causes possibles / Solution:

Close-up of an electrical component with wires and labeled terminals (no readable text or symbols beyond basic labels)

Close-up of electrical wiring and components (no visible text or symbols)

GARANTIE LIMITÉE D'UN AN ARISTON

(ÉTATS-UNIS ET CANADA SEULEMENT)

195084733.00

06/2010 - SIMLEX . Four Ashes, Wolverhampton

F

PERSONNES COUVERTES PAR CETTE GARANTIE
