USER MANUAL E24c+ AVer

Line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

E24c

User Manual

WARNING

ALWAYS FOLLOW SAFETY PRECAUTIONS

NEVER climb, sit or stand on the cart.

Symbolic illustration of a person pushing a cart with a cross symbol (no text or numbers present)

ONLY ADULTS should move the cart.

Silhouette of a person pushing a cart on a black background (no text or symbols)

To reduce risk of electric shock ONLY use indoors.

Symbolic illustration of a person standing next to a vehicle with a cross crossed out, under a sunburst (no text or symbols present)

CAUTION

This cart is intended for use only with loading as indicated. Use with loads greater than indicated may result in instability causing possible injury.

$$ \leq 4 4. 0 9 \mathrm{lbs} (2 0 \mathrm{kg}) $$

$$ \leq 9 5. 9 8 \mathrm{lbs} (4 3. 5 4 \mathrm{kg}) $$

$$ \leq 9 5. 9 8 \mathrm{lbs} (4 3. 5 4 \mathrm{kg}) $$

Simple line drawing of a container with two hanging items and a horizontal bar, no text or symbols present.

■ Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
■ Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child.

CAUTION!

■ DO NOT allow anyone to sit, stand or climb on the cart.
■ DO NOT lift the cart.
■ DO NOT block the ventilation holes used for air circulation.
■ DO NOT overload objects on the cart shelves. (Work platform maximum loading = 20kg / 44.09lbs; each shelf maximum loading = 43.54kg / 95.98lbs).
■ DO NOT put any devices that the weight is over the maximum loading weight on top of the cart.
■ When moving the cart, DO NOT put any devices (ex: TV, Monitor, Document camera...etc.) on top of the cart.
■ No TV/monitor is to be used on top of the cart.
■ Before moving the cart, disconnect the power from the wall outlet.
■ While moving the cart, make sure the power cord is secured and tightly wrapped.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive

2014/30/EU.

Warning: This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

COPYRIGHT

©2019 AVer Information Inc. All rights reserved.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

Contents

Package Contents .... 1

Dimensions....1

Diagram 2

Door Lock 3

Installation....4

Adapter Installation 4

Cable Management 5

Charging Cart 6

Troubleshooting 7

Specifications....8

Service and Warranty 9

Package Contents

The following items are included in the package. Please check if each item is available before using.

Line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

E24c Cart

AVte E24c User Manual

User Manual

Door key x4

Coiled black cable with two connectors (no text or symbols visible)

Power Cord*

*The power cord type may vary as they are country dependent.

Dimensions

639.6mm(25.18") 632mm(24.88") 1039mm(40.91")

Technical line drawing of a rectangular mechanical device with four wheels and a central mounting hole (no text or symbols)

Diagram

1 2 3 4 5 6 7

Front view of a rectangular electronic device with four wheels and mounting tabs (no text or symbols visible)

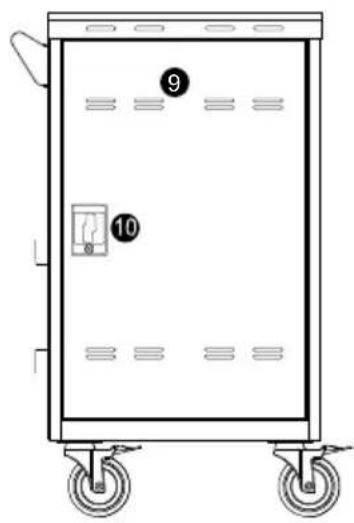

Diagram of a rectangular electrical cabinet with labeled parts 9 and 10, showing internal components and wheels.

Front Side Back

1. Work platform
2. Ventilation holes
3. Door lock
4. Handle
5. Power cable wrap brackets
6. 5" directional lock caster*

7. 5" locking caster

8. Power inlet 9. Ventilation holes

9. Door lock

*Keep the cart rolling in the fixed direction

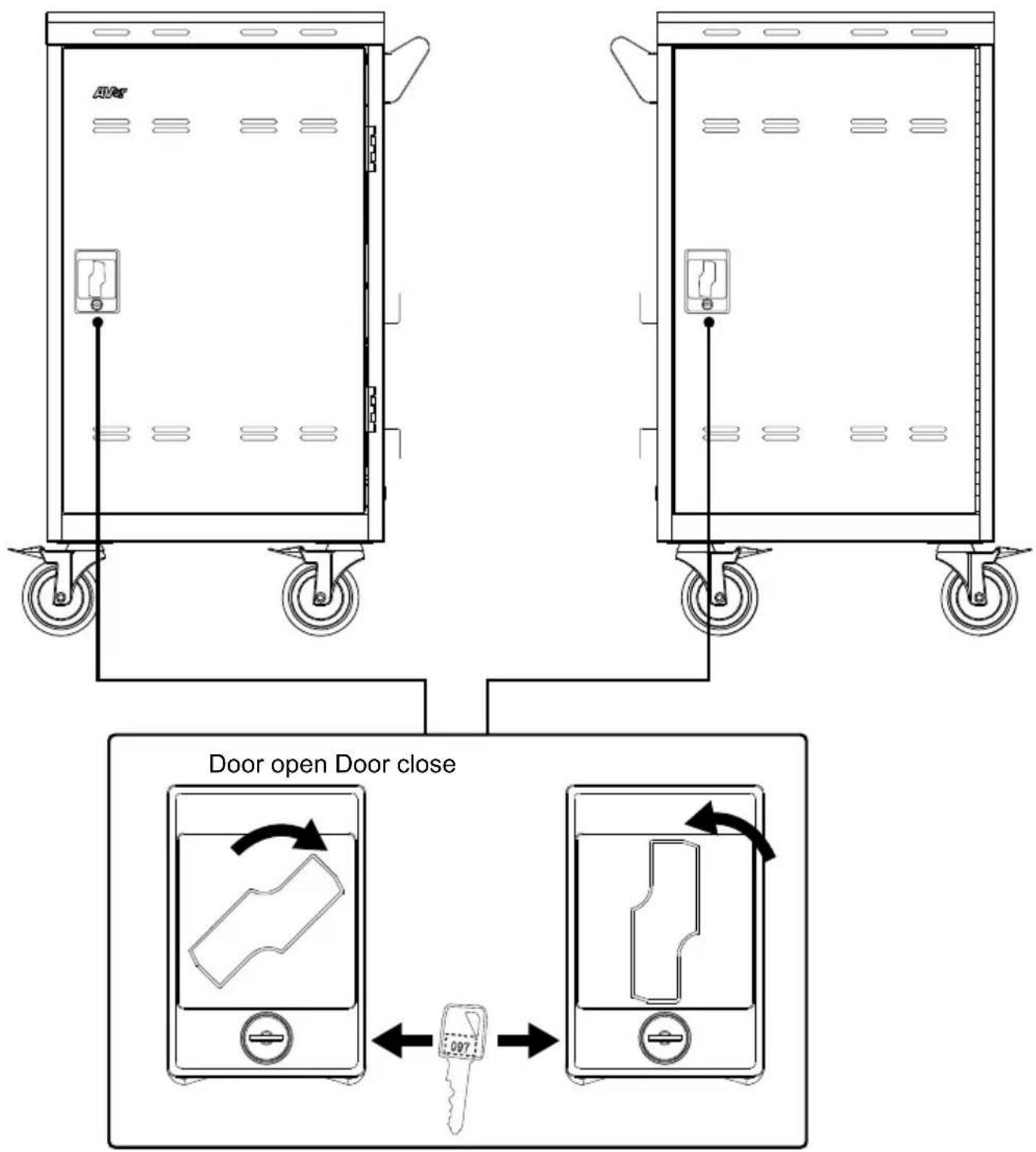

Door Lock

Door open Door close

Installation

[Note]

1. It is recommended to use cable ties (optional) to secure and manage cables.
2. It is recommended to allocate 2 persons for efficient device cabling.

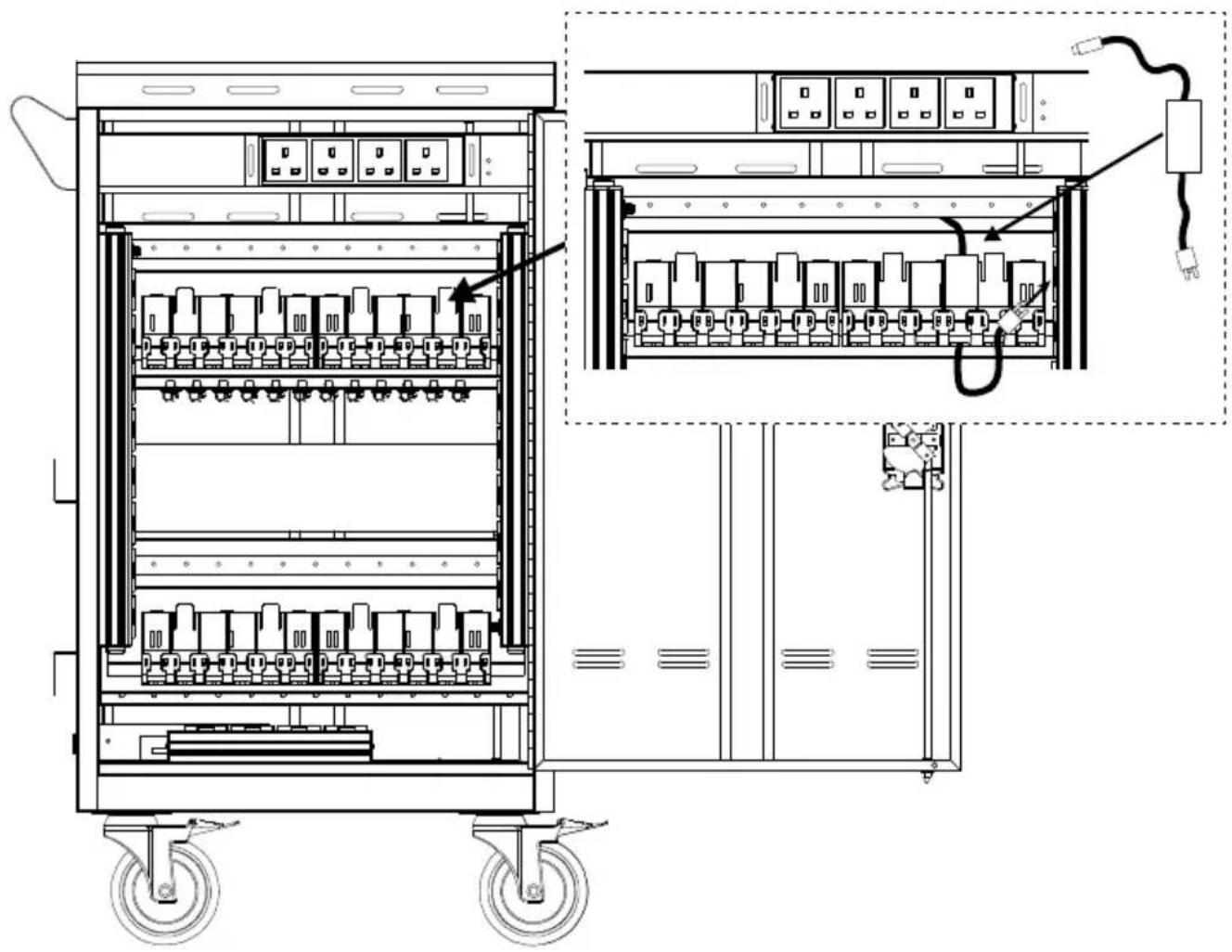

Adapter Installation

1. Open the rear door.
2. Place the power adapter into the individual adapter compartment.
3. Pass the DC-end of the adapter cable to the front of the cart through the space provided.
4. Plug-in the AC-end power cord to the corresponding power AC socket.
5. Bundle the cable and secure it with a cable tie or zip-tie (not supplied).

Technical line drawing of an electrical cabinet with wheels and internal components, showing wiring connections (no text or labels)

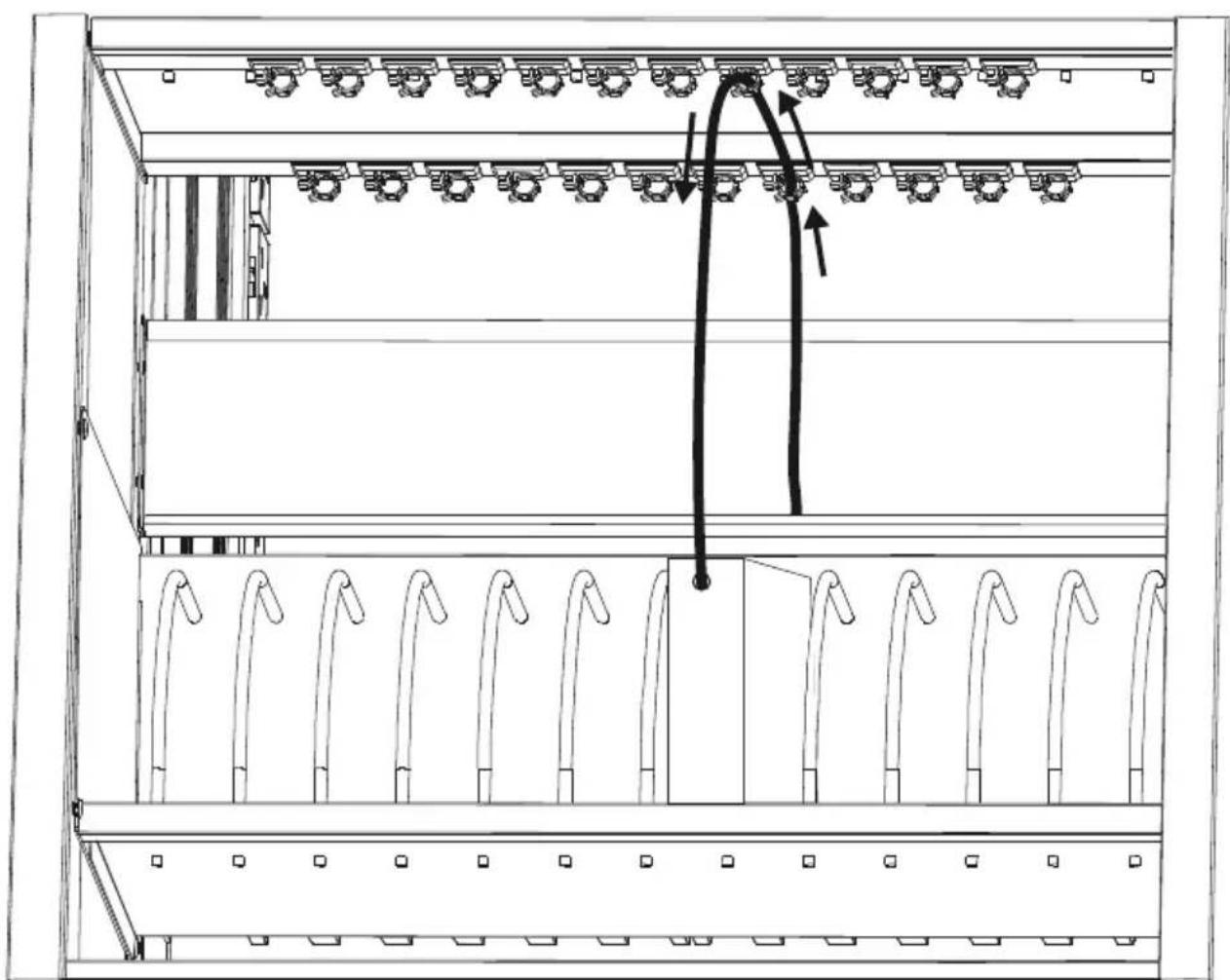

Cable Management

1. Open front door.
2. Route the cable through the cable hook as figure shown.
3. Place the mobile device into the bay.
4. Plug in the DC-connector to the mobile device.

Technical line drawing of a server rack with multiple racks and a curved arrow indicating motion (no text or symbols)

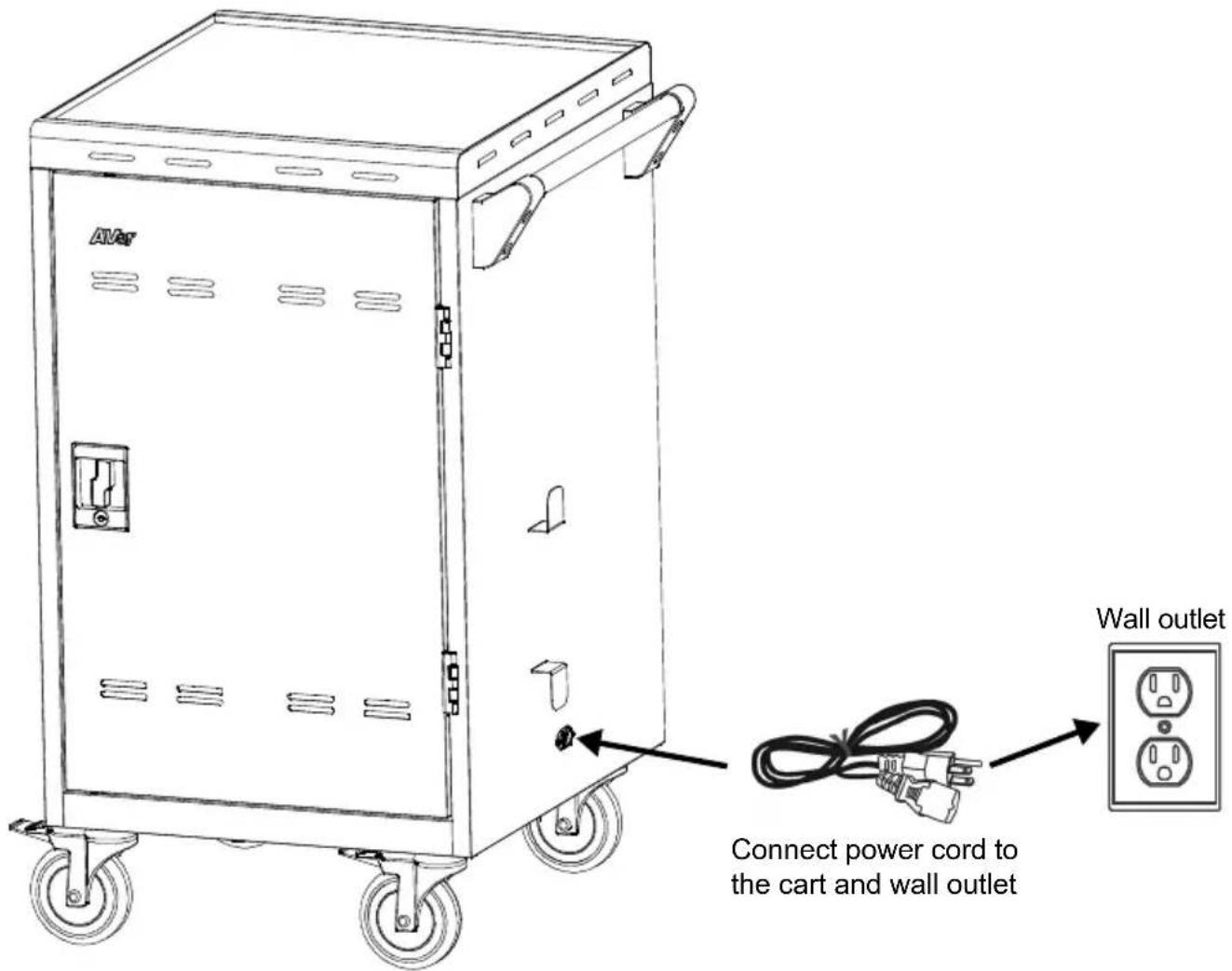

Charging Cart

AVR Wall outlet Connect power cord to the cart and wall outlet

[Note] The power inlet and power cord type may vary as they are country dependent.

Troubleshooting

Q: Why are all of my devices plugged in but not charging?

A: 1. Make sure power cords are undamaged.

1. Make sure power cords are firmly inserted into the available socket with the stable current.

2. Make sure the power plug and current consumption are compliant with your country specification standards.

Q: My cart's main power cord or cart components are damaged. Are they covered under warranty?

A: We provide a 10 year warranty on the cart and tray, and 5 years warranty on the electrical components.

Q: How do I know if my devices will exceed more than the allotted current?

A: Have a qualified electrician verify the current consumption of your devices. Perform the test with devices installed and batteries discharged.

Q: When I plug in the device it trips the circuit breaker. What is wrong?

A: You may have other equipment or appliances sharing the same circuit that is causing a circuit overload. Have a qualified electrician check that adequate power is available in the circuit.

Specifications

Model	E24c
Capacity	24 (two shelves, 12 bays per shelf)
Supported Devices	Mobile devices up to 14"
Charging Type	Smart Cycling Charge
Power Specification	AC IN: 220~240V, 50/60Hz, 8APower Strip: 220~240V, 50/60Hz, 8A
Security	Front Doors: 2-point steel locking mechanismRear Doors: 2-point steel locking mechanism
Casters	Four 5" casters: two are lockable and two directional lock
Door Hinge	180°
Work Platform Loading	20kg (44.09lbs)
Shelf Loading(ea.)	43.54kg (95.98lbs)
Adapter Shelves Loading(ea.)	3kg(6.6lbs)
Working Temperature	0°~30°C
Working RH%	10%~90%
Storage Temperature	-40°C~60°C
Storage RH%	5%~95%
Warranty	10 years cart and tray5 years electrical components
Cart Dimensions(W x D x H)	639.6 (W) x 632 (D) x 1039 (H)mm25.18"(W) x 24.88"(D) x 40.91"(H)
Slot Dimensions(W x D x H)	Upper side drawer :32(W) x 366.5(D) x 300.8(H)mm1.26"(W) x 14.43"(D) x 11.84"(H)Lower side drawer:32(W) x 366.5(D) x 341.5(H)mm1.26"(W) x 14.43"(D) x 13.44"(H)
Weight without Devices	50 Kg (110.23lbs)

Service and Warranty

All of our products come with a quality and safety assurance.

For customers located outside North America, please visit AVer Global support site:

http://www.aver.com/

For customers located in Europe, please visit the AVer support site for comprehensive RMA, Warranty, and Service information:

http://presentation.aver.com/warranty
