Product Type	Kitchen extractor hood
Model	3CFT-9060B
Brand	Fagor

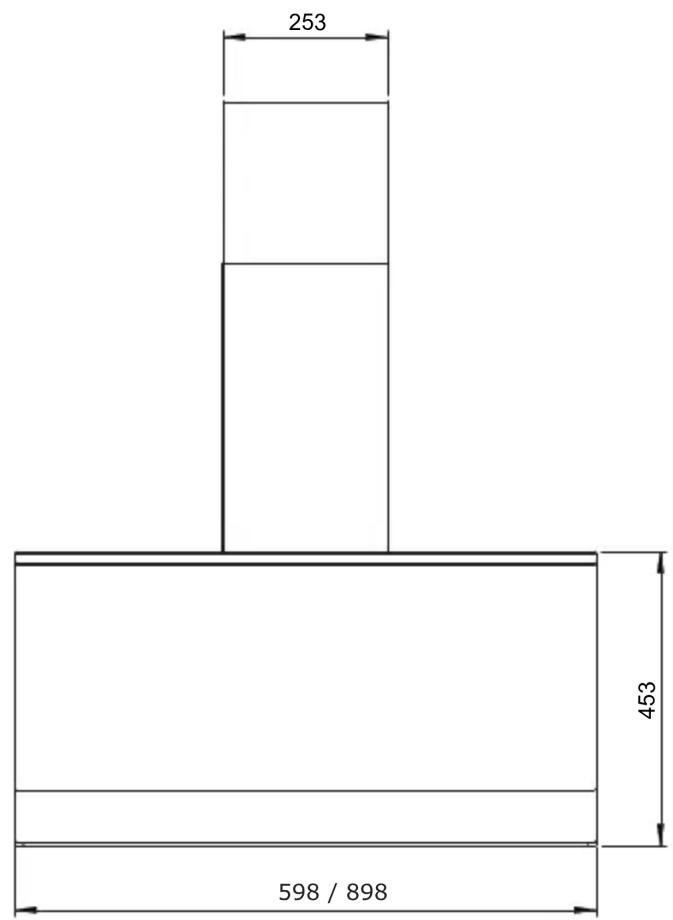

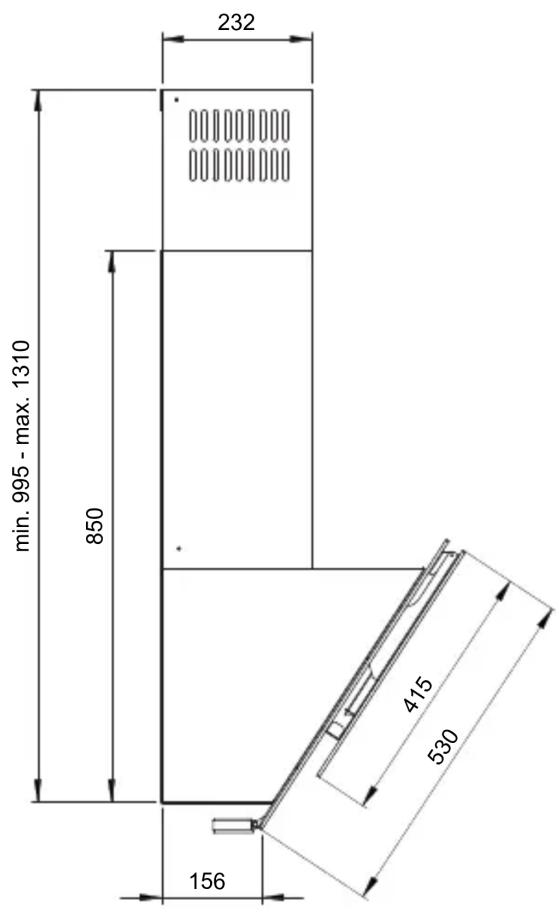

Width	90 cm
Control Type	Touch controls with slider
Number of Fan Speeds	9 speeds (including highest boost)
Max Airflow (estimated)	600 m³/h
Noise Level (max speed)	65 dB(A)
Lighting	LED, brightness adjustable
Off-Timer	Yes (5/10/15 min)
Eco Boost Function	Yes (auto-reduces speed after high setting)
Standby Mode	Yes (deactivates after 20 sec)
Grease Filter Type	Aluminium, washable
Grease Filter Cleaning Indicator	Yes (after ~110 hours)
Charcoal Filter Compatible	Yes (for recirculation mode)
Installation Type	Wall-mounted (chimney)
Extraction/Recirculation	Both modes supported
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption (est.)	200 W
Weight (approx.)	15 kg
Warranty	As per warranty card (standard 2 years)
Safety Features	Auto shut-off, child lock (via standby)

Frequently Asked Questions - 3CFT-9060B FAGOR

How do I install the Fagor 3CFT-9060B cooker hood?

The hood must be installed by a qualified installer. It is designed for wall mounting over a gas or electric hob. Ensure the wall structure is strong enough to support its weight (approx. 15 kg). For extraction mode, connect to a ventilation duct (diameter 120 or 150 mm) not longer than 4-5 m. For recirculation mode, install an activated charcoal filter.

How do I clean the aluminium grease filters?

Clean the aluminium grease filters at least once a month. They can be washed in a dishwasher or by hand using mild detergent. After washing, dry them thoroughly before reinstalling.

When should I replace the activated charcoal filter?

The charcoal filter should be replaced every 2 months, or more often if the hood is used intensively. It cannot be washed or regenerated.

How do I change the LED lights?

LED lights are part of a module. Refer to the manual (Figure 7) for replacement instructions. If not available, contact authorised service.

What does the 'clean filter' indicator mean?

The indicator lights up after approximately 110 hours of fan operation to remind you to clean the aluminium grease filters. To reset, touch and hold the T sensor for about 2 seconds.

How do I use the off-timer?

Touch the T sensor once. The slider bars will flash. Slide to select delay time: 3 bars = 5 min, 6 bars = 10 min, 10 bars = 15 min. Touch T again to confirm. The T symbol will flash while active. Touch T again to cancel.

What is the minimum distance between the hob and the hood?

Refer to the technical sheet for electric hobs. For gas hobs, follow the gas cooker's instructions; if greater distance specified, use that. Typically minimum 65 cm for electric and 75 cm for gas.

Can I use the hood without the grease filters?

No, operating without the aluminium grease filters is strictly forbidden as it creates a fire hazard and may damage the hood.

How do I adjust the brightness of the lights?

Touch and hold the L sensor for about 2 seconds. The brightness will change cyclically. Release when desired brightness is reached.

What should I do if the hood does not function after installation?

Check that the power cord is properly connected and not trapped. Ensure the mains supply voltage matches the nameplate. If still not working, contact authorised service.

USER MANUAL 3CFT-9060B FAGOR

Kitchen extractor hood

3CFT-9060N / 3CFT-6060N /

3CFT-6060B / 3CFT-9060B

EN- Table of contents

NOTES ON SAFETY 28

UNPACKING 31

DISPOSAL OF OLD APPLIANCE 31

OPERATION 32

COOKER HOOD CONTROLS 32

OFF-TIMER 32

INDICATION TO CLEAN THE ALUMINIUM FILTERS 33

ECO BOOST 33

STANDBY 33

BRIGHTNESS ADJUSTMENT 33

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 34

CLEANING AND MAINTENANCE 35

MAINTENANCE 35

GREASE FILTER 35

ACTIVATED CHARCOAL FILTER 35

LIGHT 35

WARRANTY AND AFTER SALES SERVICE 36

WARRANTY 36

Estimado Cliente

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

FAGOR

NOTES ON SAFETY

- Before using the appliance, please carefully read this manual!

- The appliance is designed for household use only.

- The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

- The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.

- Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).

- The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

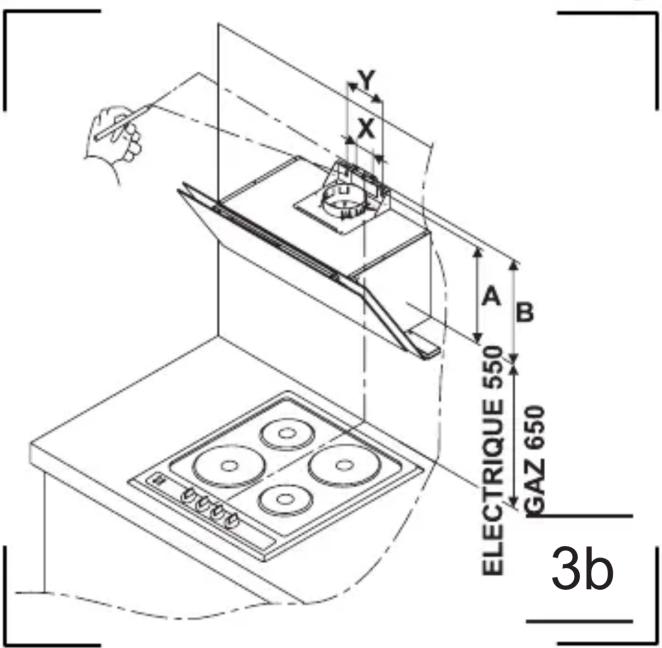

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual).. Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

- Particular attention should be paid not to allow unaccompanied children to use the appliance.

• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appli- ance are environmentally friendly; they are

100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of 'used electrical' and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

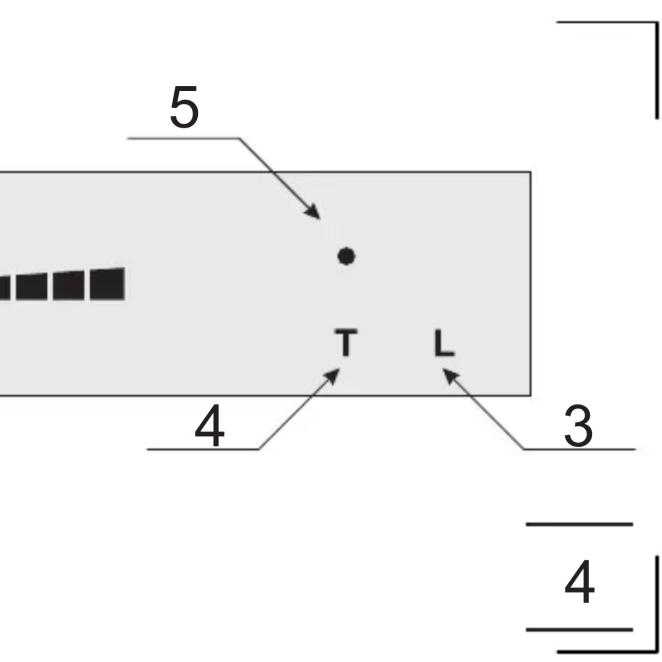

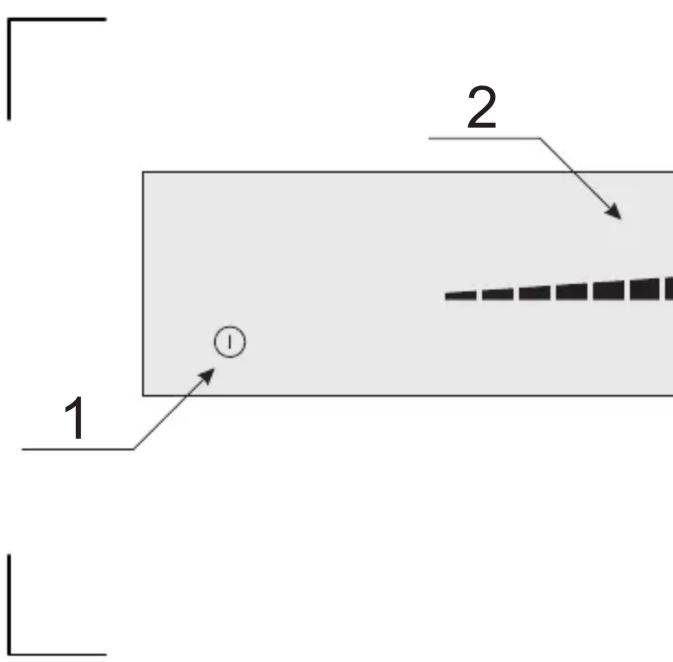

Control Panel is shown in Figure 4, for reference it is also shown below:

The control panel is equipped with touch controls: Control functions are described below:

1. Touch the ① sensor to turn the appliance on or off. The fan will operate at the last selected speed.
2. Slider display indicates fan speed. Slide your finger on the slider to smoothly adjust fan speed.
3. The L sensor turns light on/off
4. T is the Off-Timer (see below for details).
5. Clean the filter indicator

Note: There are 9 fan speeds and highest speed is indicated by the entire length of the slider bar.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. Delays of 5, 10 or 15 minutes are available. To activate the Off-Timer at any time, touch the T sensor once and the slider bars will flash. Then, adjust the slider length to select the delay:

Slider bar length Delay time [min]
3	5
6	10
10 15

Touch T to confirm the selected Off-Timer delay. Flashing T indicates that the Off-Timer has been enabled. Touch T again to cancel the Off-Timer.

Indication to clean the aluminium filters

When the indicator is on, you need to clean the aluminium filters.

To acknowledge the indication, touch and hold T for approximately 2 seconds.

Note: Clean the filter indication will be displayed after approximately 110 hours of fan operation.

Eco Boost

When operating at the highest speed, the appliance will eventually reduce the fan speed down to 6. The time until fan speed is reduced depends on the initial fan speed.

StandBy

The appliance will deactivate about 20 seconds after you turn off the fan and the light. Some sensors will be dimmed or turned off. Touch any sensor to activate the appliance.

Brightness adjustment

Use this function to adjust brightness. To adjust brightness, touch and hold the L sensor for about 2 seconds. The lighting brightness will change

Other important information concerning the operation of the hood

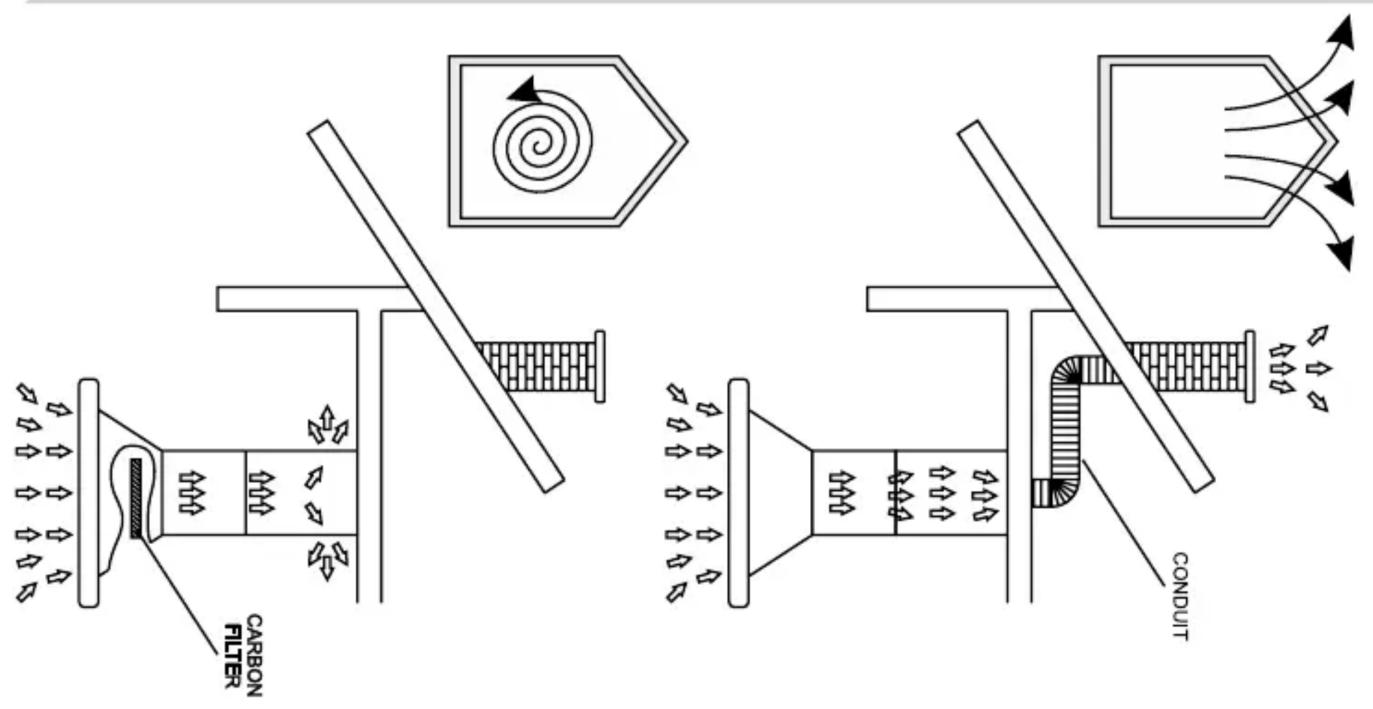

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

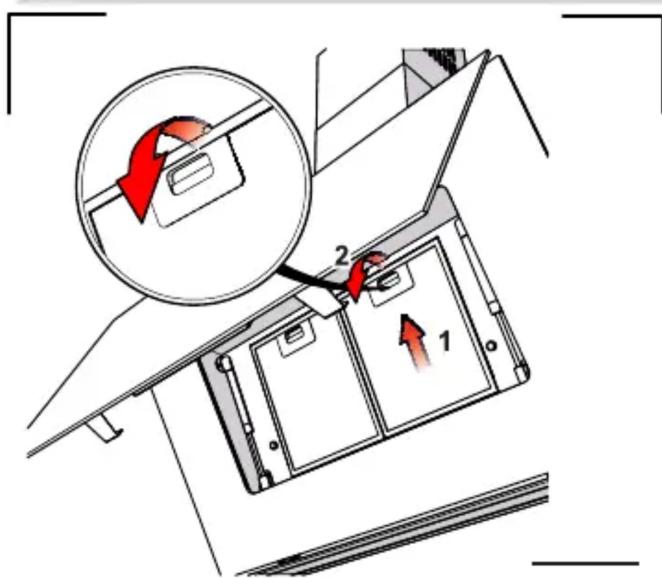

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the C€ symbol and been issued with a declaration of compliance made available to market regulators.

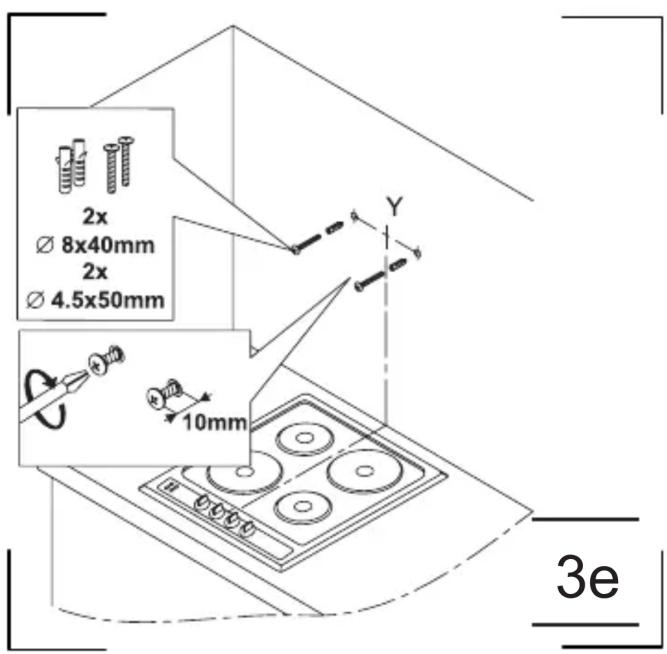

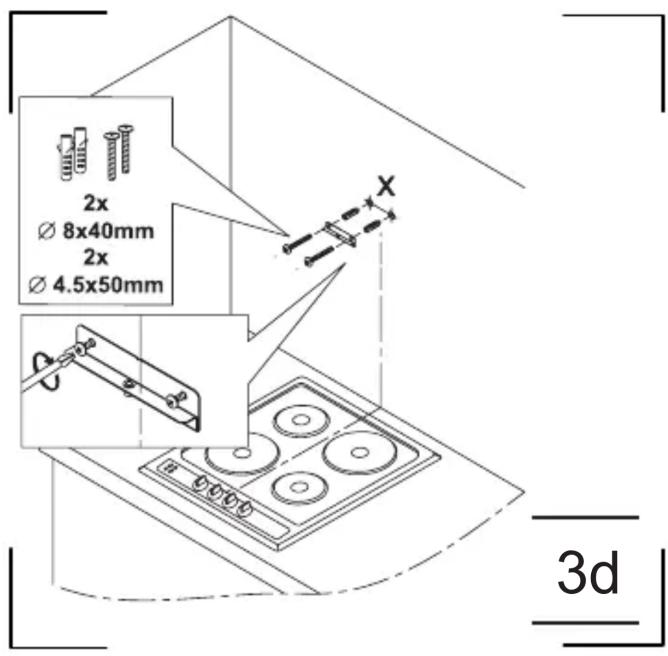

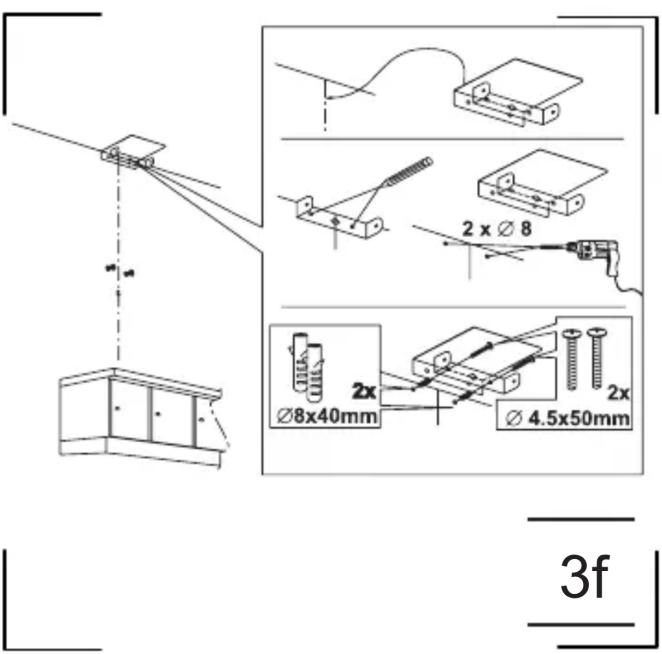

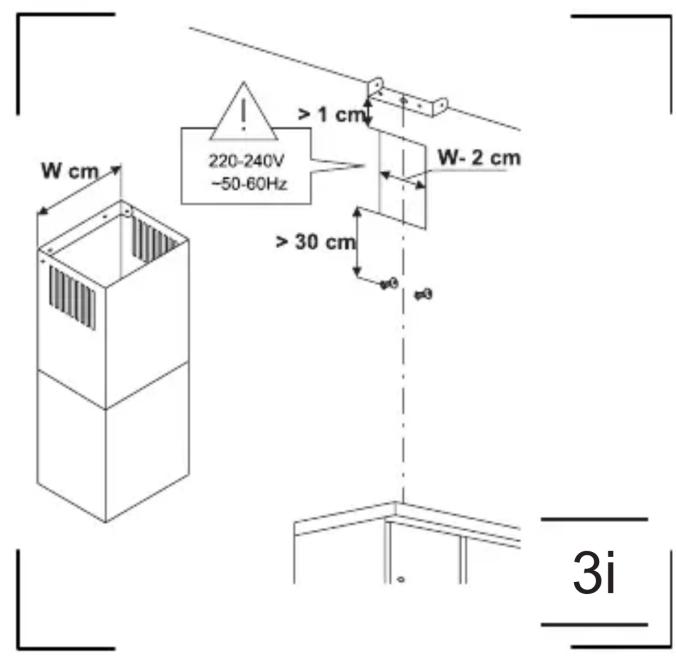

Pure geometric lines forming an L-shape (no text or symbols)

3h

3g

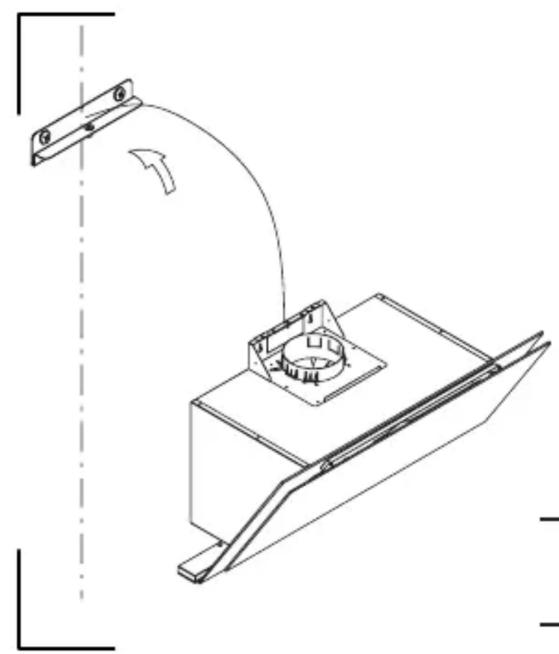

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and directional arrows (no text or symbols)

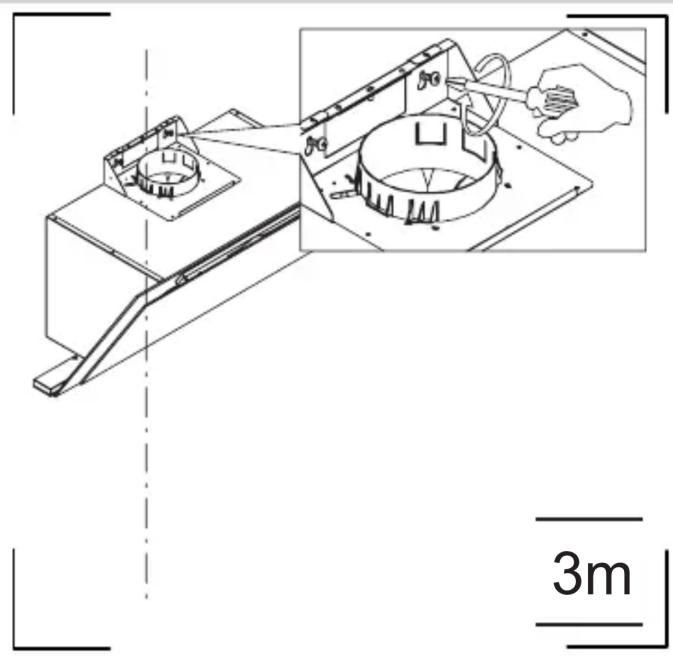

Technical line drawing of a mechanical assembly with a 3m scale indicator (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with cylindrical components and coiled spring (no text or symbols)

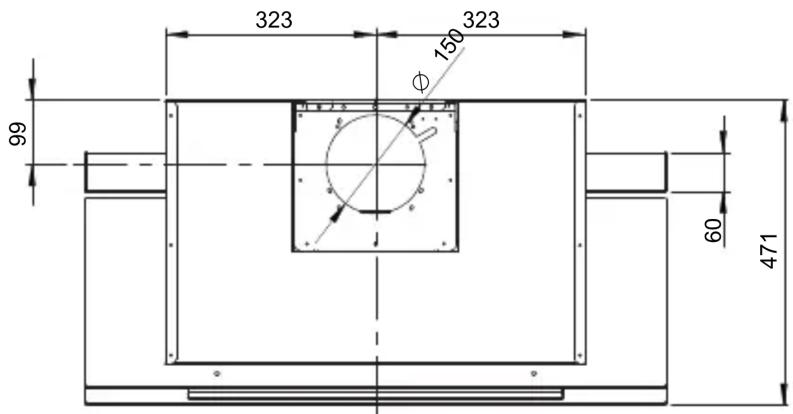

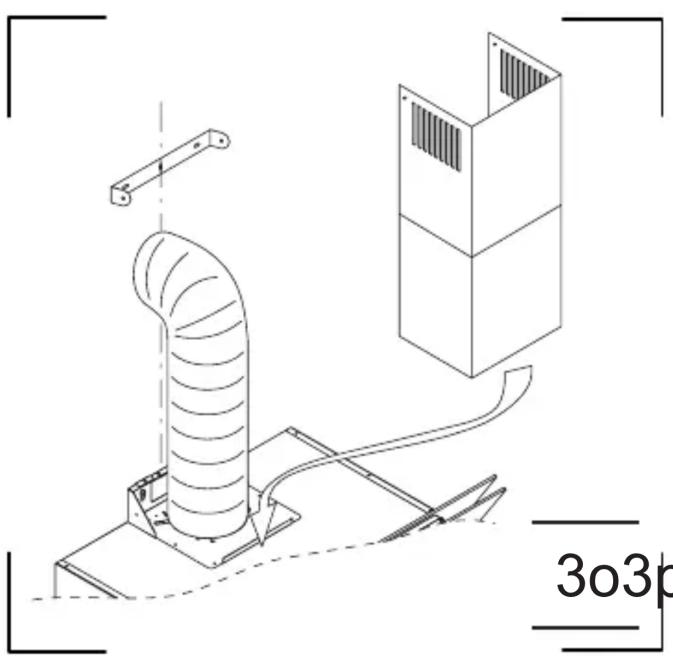

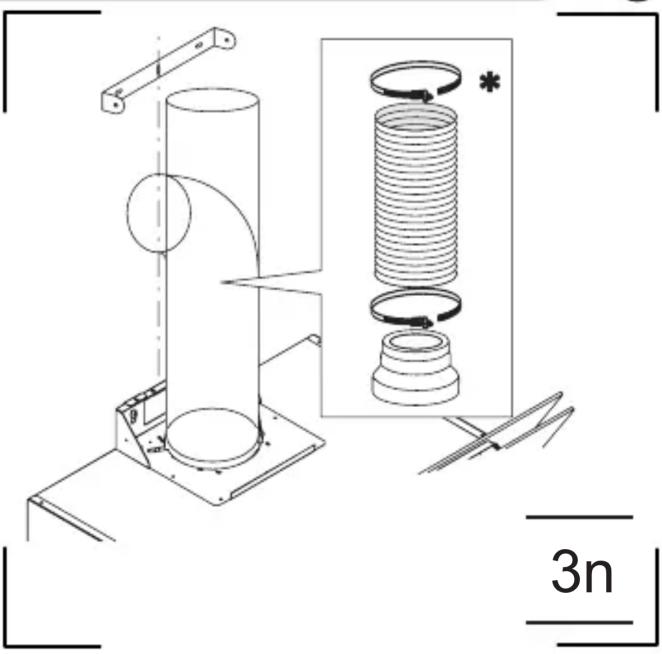

Technical line drawing of an air duct system with a tower and cabinet, no text or symbols present

Diagram showing three steps of solar panel installation with red arrows indicating direction (no text or symbols)
