Type	Portable Turntable
Brand	Brigmton
Model	BTC-404-R
Supported Record Speeds	33 1/3, 45, 78 RPM
Built-in Speakers	Yes (2)
Audio Outputs	AUX-L and AUX-R
USB Port	Yes (for computer connection)
Included Software	Audacity (recording & editing)
Auto-Stop Function	Switchable ON/OFF
45 RPM Adapter	Included
Stylus (Needle)	Replaceable
Power Supply	AC mains
Country of Origin	Spain
Safety Compliance	CE
Recommended Use	Vinyl playback and digitization
Connection to Computer	USB
Recording Capability	Yes, via Audacity
Installation	Software CD included
Control	Power/Volume knob, speed selector, auto-stop switch
Arm	With locking clip

Frequently Asked Questions - BTC-404-R BRIGMTON

How do I replace the needle (stylus)?

To replace the needle, place a screwdriver at the end of the old needle and gently push down. Disconnect the wiring, then connect the new needle in the same position.

How can I record vinyl records to my computer?

Connect the turntable to your computer via USB. Install Audacity from the included CD. In Audacity, select 'USB PnP Audio Device' as the recording device, then press Record after starting playback on the turntable.

What software is included with the turntable?

The turntable includes Audacity, a free audio recording and editing software. It allows you to record, edit, and export your vinyl records to digital formats.

How do I adjust the recording level in Audacity?

To adjust recording level, go to Control Panel > Sounds and Audio Devices > Volume > Advanced. In the Master Volume window, select Properties, choose 'USB PnP Audio Device', and adjust the recording level slider.

How do I export my recordings as MP3?

After editing, click File > Export as MP3. You will need the lame_enc.dll file from the installation CD; copy it to the Audacity folder on your hard drive. The software will then allow MP3 export.

The turntable does not spin. What should I check?

Ensure the power cord is plugged in and the power/volume knob is turned on. Check that the auto-stop switch is in the correct position. If the needle is placed on the record, the turntable should start spinning automatically.

Can I play 78 RPM records?

Yes, the turntable supports 78 RPM records. Use the speed switch to select 78 RPM. Note that you may need a special needle for 78 RPM records; the included needle is suitable for all speeds.

How do I connect external speakers?

The turntable has AUX-L and AUX-R outputs. You can connect external speakers or an amplifier to these outputs using standard RCA cables.

What is the auto-stop function?

The auto-stop function automatically stops the turntable when the record finishes playing. It can be turned ON or OFF using the auto-stop switch. When off, the turntable will continue spinning until you manually lift the tonearm.

How should I clean the turntable?

Keep the turntable free of dust and dirt. Use a soft, dry cloth to clean the exterior. For the needle, use a stylus brush. Do not use any liquids or immerse the device in water.

USER MANUAL BTC-404-R BRIGMTON

Black rectangular CRT television set with a brightton and open case, no visible text or symbols on the device itself.

BTC-404-N-M-R

TOCADISCOS PORTÁTIL

Close-up of a hand holding a small mechanical component (no visible text or symbols)

Close-up of gloved hands holding a small electronic component (no visible text or symbols)

Close-up of hands using a tool to cut or sample material (no visible text or symbols)

Close-up of hands performing a manual task with a tool on a wooden surface (no visible text or symbols)

Four-panel sequence showing hands assembling or repairing electronic components, labeled 5 to 8 (no text or symbols present)

- El software comenzará a instalarse:

Black rectangular CRT television set with a brightton and a CD, placed on its open case (no visible text or symbols on the main subject)

BTC-404-N-M-R PORTABLE TURNTABLE

INSTRUCTION MANUAL

SECURITY

1. Read Instructions: All safety and operating instructions should be read before operating the machine
2. Retain Instructions: The instructions should be retained for future reference.
3. Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions: All operating and use instructions should be followed.
5. Water and moisture: The appliance should not be used near water; for example, near a bathtub, kitchen sink, laundry tub, in a damp or near a swimming pool basement, and the like.
6. Ventilation: The appliance should be situated so that its location or position does not interfere with proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings; or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. Heat: The appliance should be situated away from heat sources such as radiators, heaters, stoves or other apparatus (including amplifiers) that produce heat.
8. Power Sources: The appliance must be connected to a power supply of the type described in the operating instructions or as marked on the appliance.
9. Grounding or Polarization: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.
10. Power Cord Protection: Power supply cords should be routed so they are not walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, receptacles, and the point where they exit from the appliance.
11. Plug Protection: The unit is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If you need to replace the plug, make sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.
12. Non-use Periods: The power cord of the appliance should be disconnected from the outlet when not in use for a long period of time.
13. Object and Liquid Entry: Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service: The appliance should be serviced by qualified service personnel when:
15. The power cord or plug has been damaged
16. Have Debris or liquid has been spilled into the appliance
17. The appliance has been exposed to rain
18. The appliance does not appear to operate normally or exhibits a marked change in performance
19. The appliance has been dropped or the cabinet damaged.
20. Servicing: The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
    When using electrical appliances, basic safety precautions should always be followed.
21. Children should be supervised to ensure they do not play with the appliance.
22. Do not leave the appliance unattended while connected to the network electric.
23. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
24. Do not immerse in water or any other liquid.
25. Unplug from the outlet when not in use.
26. Do not unplug by pulling the cable. To unplug, grasp the plug, not the cord.
27. Do not use a power cord or plug damaged.
28. Do not use if the unit has been dropped or damaged in any way.
29. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
30. Place the unit in a place free from vibrations and away from heat sources.
31. Do not leave the unit plugged in for long periods of time.
32. Do not use with wet hands.
33. Do not put any object into openings.
34. Keep free of dust, dirt, etc.
35. Do not use this unit for anything other than its intended use.
36. Never place the unit on or near the speakers an acoustic coupling occurs.

CONTROLS

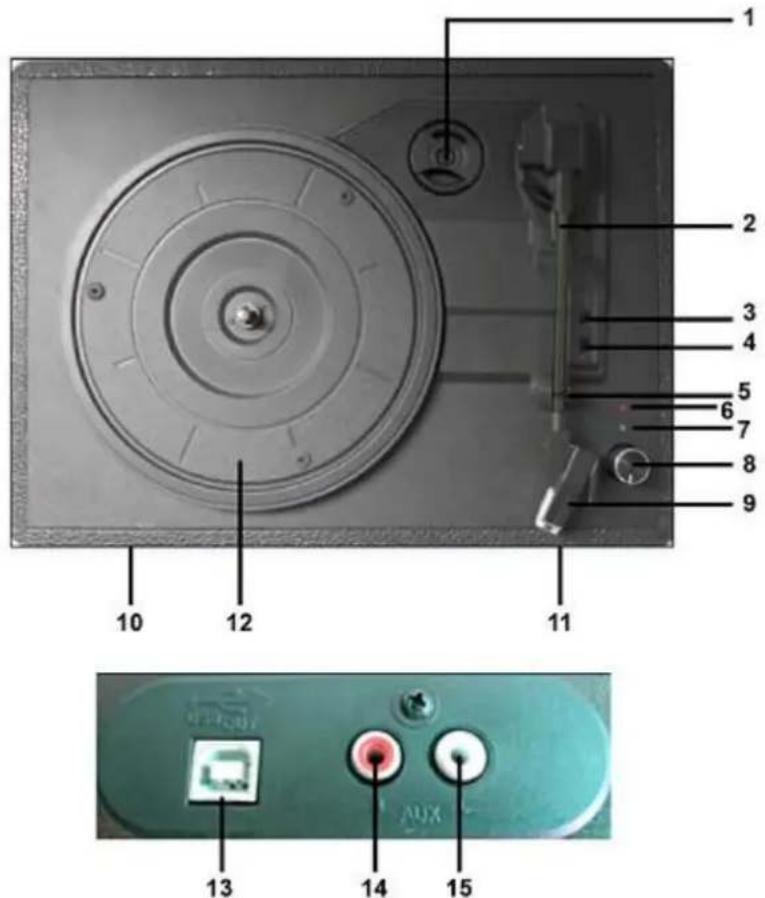

1. Adapter 45 rpm.
2. Arm
3. Auto-Stop switch.
4. Speed Switch (33½ / 45/78 RPM)
5. Clip clamping arm.
6. LED battery charge indicator.
7. LED operation.
8. Power and Volume Control.
9. Needle.
   10/11. Speakers.
10. Base turntable.
11. Enter supply.
12. AUX-R output
13. Output AUX-L

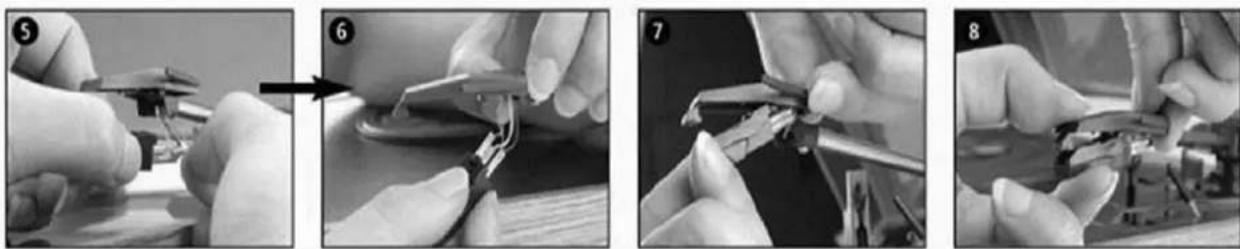

REPLACING THE NEEDLE

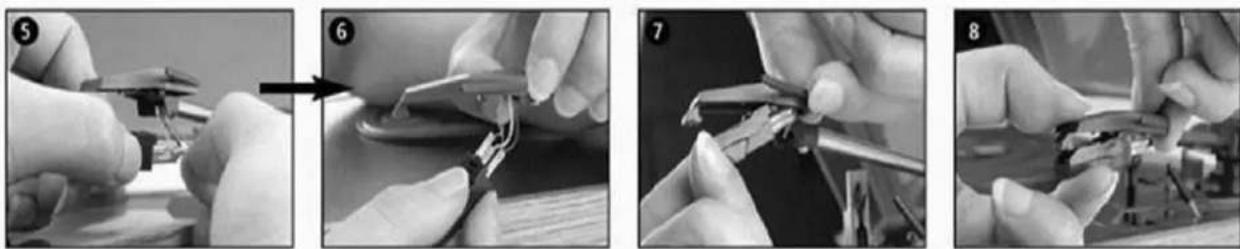

Place a screwdriver at the end and gently push down. Then disconnect the wiring and connect the new needle in the same position.

Close-up of a hand holding a small electronic component (no visible text or symbols)

Close-up of hands using a tool to adjust or install a small object (no visible text or symbols)

Close-up of hands holding a small electronic component (no visible text or symbols)

Close-up of hands holding a small object with a metallic component (no visible text or symbols)

Four-panel sequence showing hands using a small electronic component to adjust or repair a circuit board, labeled 5 to 8 (no text or symbols present)

PLAYING A DISC

• Place the disc on the turntable. If necessary, be sure to attach the adapted.
• Select the desired playback speed using the speed selection switch between 33.3, 45 and 78rpm.
• Turn the rotary power switch and select the volume.

- Raise the arm retaining clip.

- Raise the arm slightly.

- Place the needle vertically on the first track and the turntable starts to spin automatically.

- Slowly lower the needle on the disc to be played.

- When the disc comes to an end, the record player will automatically stop if auto stop switch is in the ON position. If the switch is in the OFF position then continue turning until the tone arm returns to the rest position.

• Lift the tone arm and place in the holder when finished.
• Replace the protective cap over the needle and close the lock arm.

INSTALLING THE SOFTWARE

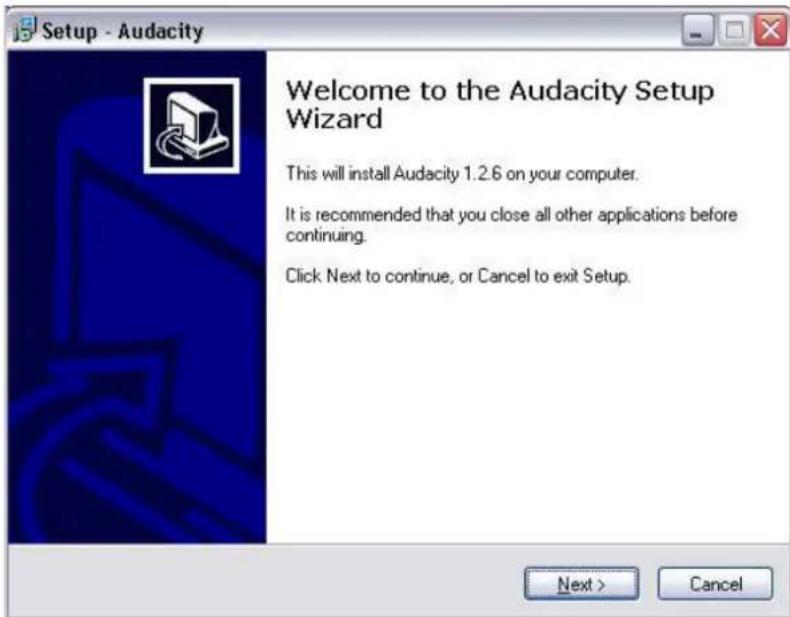

- Place the supplied CD into the drive of your computer, follow the instructions and the software will automatically install as follows:

- Click 'Next'

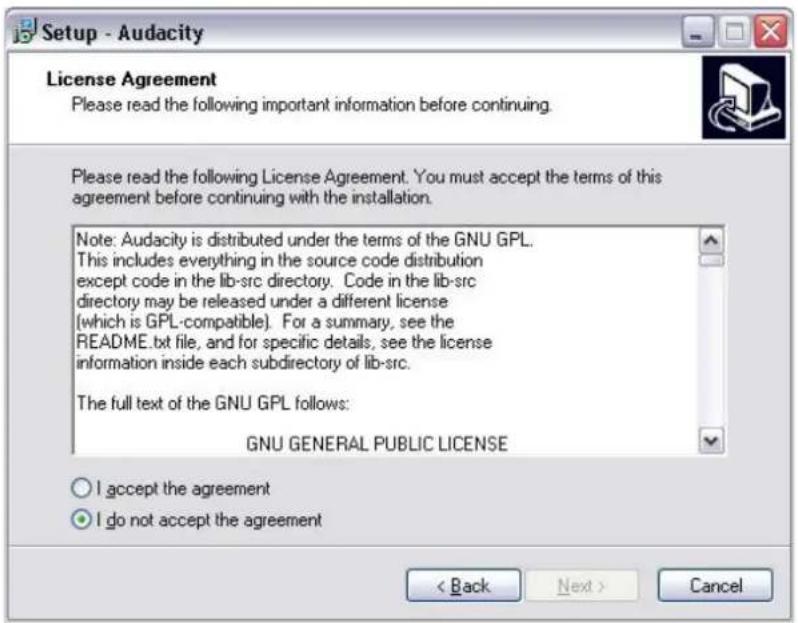

- Select 'I accept' option then click 'Next':

- Click 'Next':

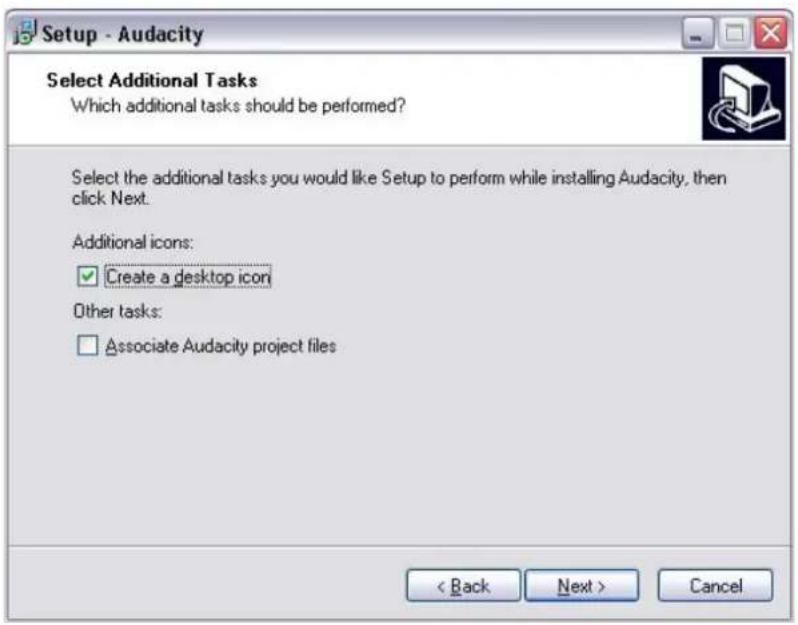

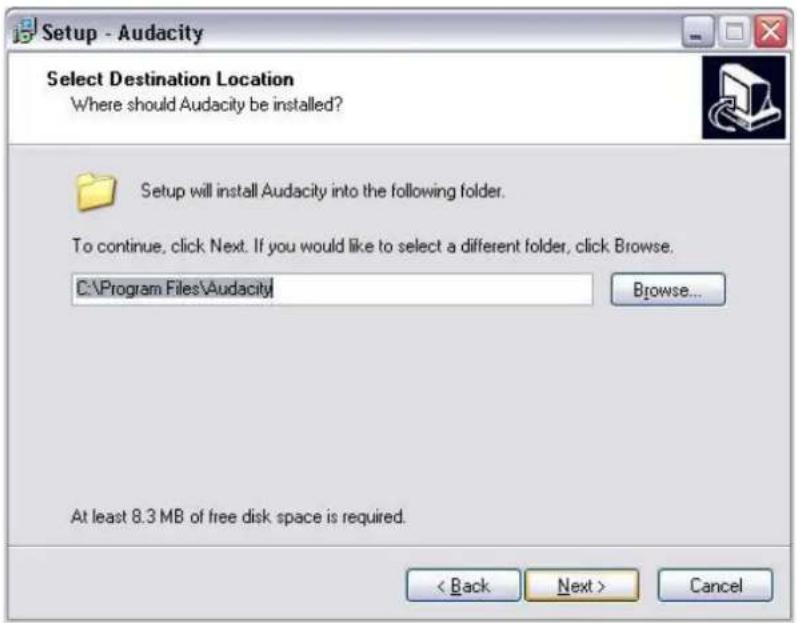

- Here either select another location or click 'Next' to continue (recommended):

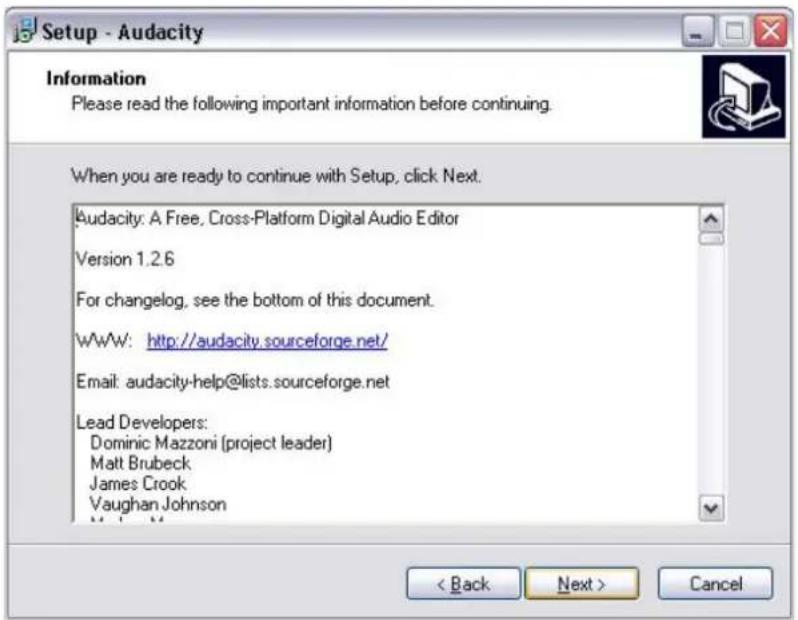

- Click 'Next' to continue:

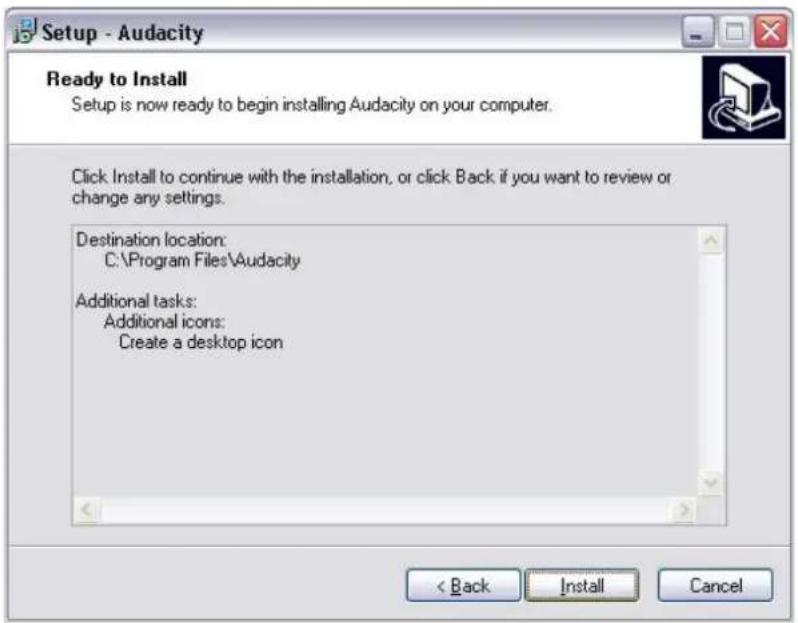

- Click 'Install' to continue:

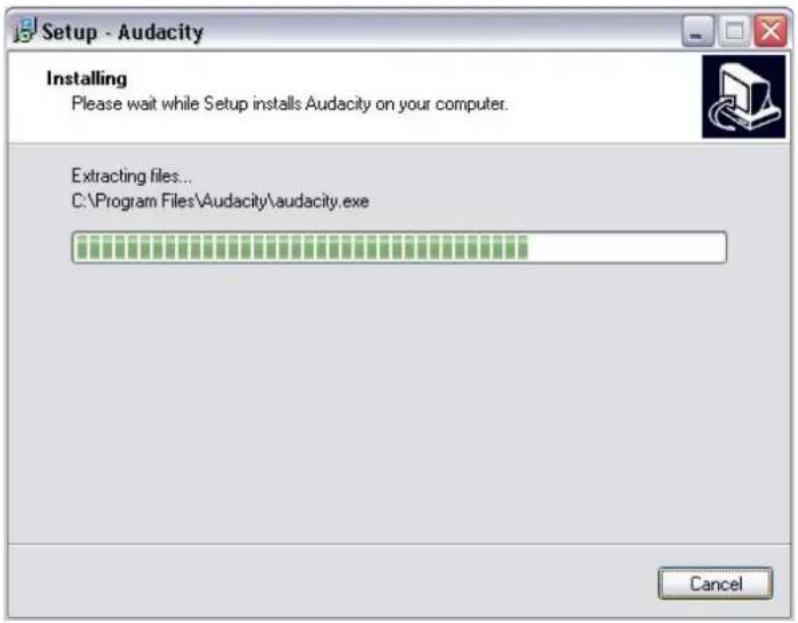

- The software will start to install:

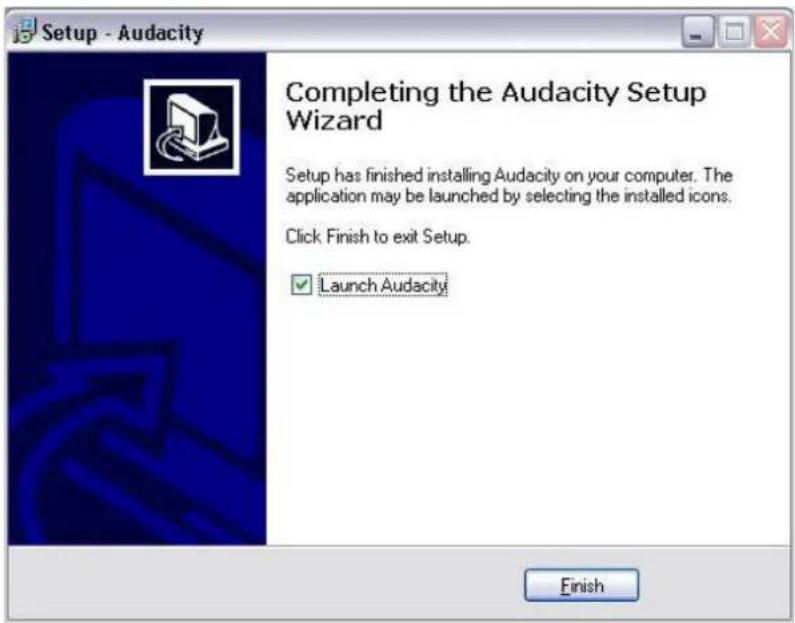

- Click on 'Finish' to complete the installation:

Audacity should automatically start up, if not follow the next sequence:

- The Audacity icon will now be seen on the desktop, double click on it to start Audacity running, if an icon does not appear, go to the 'C' drive under 'My Computer', click on 'Program files' and then 'Audacity'. Right click on the 'orange ball wearing Headphones' icon and select 'Send to' then 'Desktop (create shortcut)'.

Using Audacity

• Plug the USB cable into the back of the unit and the other end into a spare USB port on your computer.
• Run the Audacity software by double clicking the Audacity icon.
• Before recording, click on Edit at the top of the main page; select Preferences at the bottom of the menu which will open up Preferences.

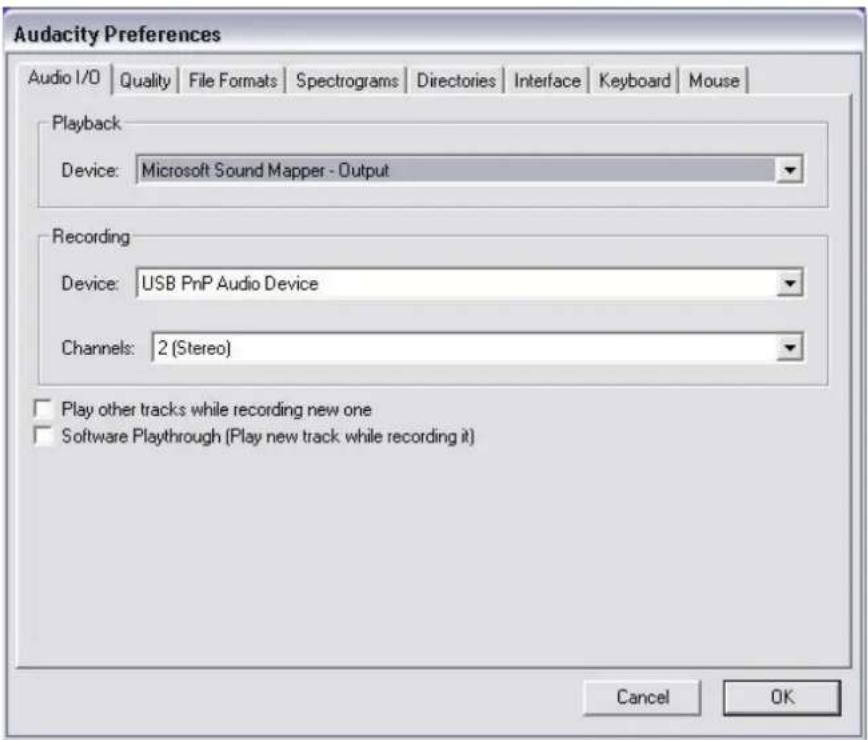

• At the recording part of the window open the Device menu by using the down arrow on the right hand side. Select the USB PnP Audio Device option from the menu. Also tick the box next to 'Software Play through (Play new track while recoding it)'.
• The lower box enables the number of recording channels to be set, 1 is Mono and 2 is Stereo, select the Stereo option.
• Click 'OK' once the options have been selected:

Recording to computer using Audacity

• Start the record playing as described above, and press Record at the top of the Audacity window to start recording to the computer.
• Once recorded use the Transport controls at the top of the screen to, Go to start, Play, Record, Pause, Stop and Go to end of Wave form as below:

Use the file, Edit, View, Project, Generate, Effect and Analyse menus to Save, Export and Manipulate your music.

• If the recording level requires adjustment, click on 'START', 'SETTINGS' and select control panel. Under Control Panel select 'SOUNDS and AUDIO DEVICES', click on the 'VOLUME' tab and select 'ADVANCED'.
• On the Master volume window select options at the top left hand corner, click on properties in the drop down menu.
• In the Properties window select "USB PnP Audio Device" from the drop down menu at the top. Click on "OK" to confirm the selection and a window will now appear with a control for the recording level. Move this control up if the recording is too quiet and down if the recording is too loud

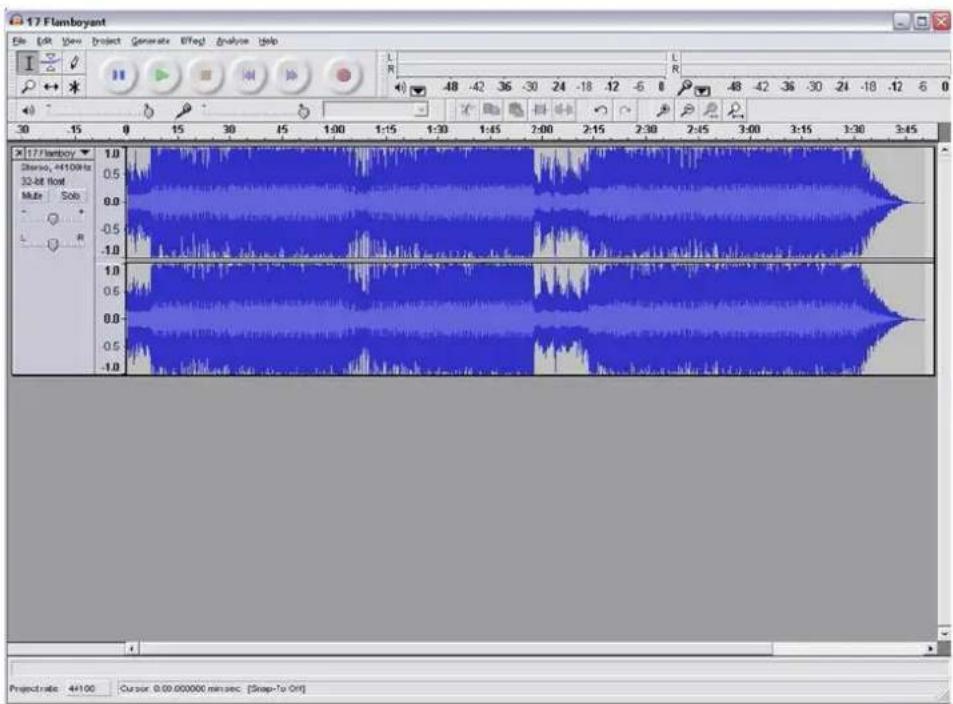

• NOTE: the blue wave form should sit in the Audacity window such that the peaks of it stop short of the top and bottom
• Before editing your music, the recorded waveform will need to be highlighted.
• To highlight your wave form, click with the left mouse button on the left hand side of the waveform (under the L+R controls) and the waveform will go darker.
• At this point the whole waveform can be edited. However if only a section of the waveform needs to be edited (or saved) the section required can be highlighted by placing the mouse over the beginning of the section holding the left button down and dragging it right over the area required and releasing it when the end of the desired section is reached. This darkened section will now be the only audio that will be edited.
• Alternatively click on the EDIT menu at the top left and then click on SELECT then choose from: All (whole wave form), Start to Cursor or Cursor to end.
• NOTE: after recording to the Computer, the USB cable may have to be removed from the USB port in order to enable playback later from the Computer.

Exporting your music files (.WAV)

- Once you have recorded and edited your music, you will need to save your files to the computer. To do this, click on file and move down to Export as WAV tab.

- Click on this and you will promptly be asked for the file name of the music recorded which will be saved in the location shown. At this point either make a note of the folder where your music is saved or save it in a folder of your choice.

- This can either be an existing one or a new folder.

Exporting your music files (.Mp3)

• Once you have recorded and edited your music, you will need to save your files to the computer. To do this click on file and move down to Export as Mp3 tab.

• Click on this and you will promptly be asked for the file name of the music recorded which will be saved in the location shown. At this point either make at note of the folder where your music is saved or save it in a folder of your choice.

• This can be either an existing one or a new folder.

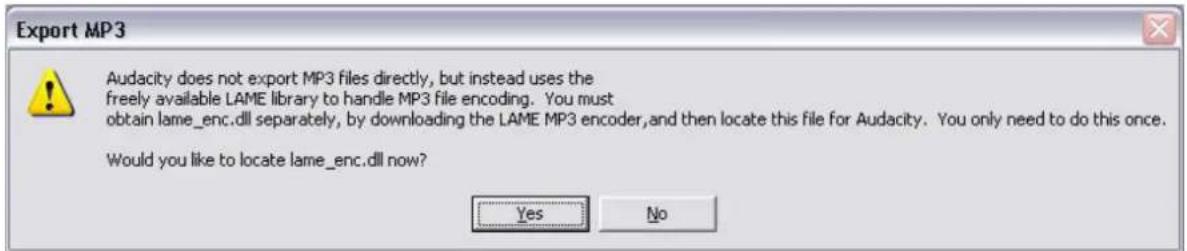

• NOTE: In order to activate the Export to Mp3 feature, it will be necessary to copy a file named lame_enc.dll from the installation CD and paste it in the AUDACITY folder that contains the software on the hard drive that was copied earlier from the CD. The software will automatically detect this file and exporting as an mp3 will now be possible.

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

EMC DIRECTIVES

EN 55013:2013

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3: 2013

EN 55020: 2007+A11: 2011

Description of apparatus:

BRIGMTON Model BTC-404

Portable Turntable

CE
