USER MANUAL WM1873FDS LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the washer is installed correctly and safely.

Leave these instructions near the washer after installation for future reference.

WD1387FDS

TABLE OF CONTENTS

3 PRODUCT FEATURES

4 IMPORTANT SAFETY INSTRUCTIONS

4 BASIC SAFETY PRECAUTIONS

5 GROUNDING INSTRUCTIONS

6 SAFETY INSTRUCTIONS FOR INSTALLATION

7 SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL

8 INTRODUCING YOUR WASHING MACHINE

8 Parts and Accessories

9 Control panel features

11 INSTALLATION INSTRUCTIONS

11 Preview installation order

12 Checking and choosing the proper location

13 Unpacking and removing shipping bolts

14 Connecting the water lines

15 Connecting the drain line

16 Leveling the washing machine

17 Plugging in the power cord and grounding

17 Test run

18 PREPARATION

18 Sorting wash loads

18 - Precautions for fabric care before wash cycle

19 - Fabric care labels

19 - Sorting laundry

20 Using detergent/fabric softener

20 - Recommended detergent

20 - Loading the dispenser

22 USING YOUR WASHING MACHINE

22 Basic operation

23 Cycle guide

24 Main cycle

24 - For cotton and polyester item, STEAM FRESH™

24 - Reduce laundry allergen, ALLERGIENE

24 - Reduce laundry bacteria, SANITARY

24 - For white fabrics, BRIGHT WHITES™

24 - Blankets or bulky items, BULKY/LARGE

24 - Heavy soiled items, HEAVY DUTY

24 - Normal items, COTTON/NORMAL

24 - Wrinkle free items, PERM. PRESS

24 - Items labeled wool or hand-washable, HAND

WASH/WOOL

24 - Sheer items, DELICATES

24 - Quick wash, SPEED WASH

25 Cycle setting buttons

25 Setting options before cycle

25 - Setting the water temperature, WASH TEMP.

25 - Setting spin speed, SPIN SPEED

25 - Setting soil level of laundry, SOIL LEVEL

26 - Adjusts the melody and button tones, Dry

26 - Prewashing, PRE-WASH

27 - Rinse, drain and spin only, RINSE + SPIN

27 - Adding extra rinse cycle, EXTRA RINSE

27 - Presetting the start time, DELAY WASH

27 - Efficiency cleaning, STEAM

28 - Saving energy, COLD WASH™

28 Setting options during cycle

28 - Button lock feature, CHILD LOCK

28 - Saving customized wash cycle, PGM SAVE

28 - Selecting your customized cycle, FAVORITE

29 MAINTENANCE

29 Care

29 - Care after wash

29 - Care in cold climates

30 Cleaning

30 - Clean your the drum, TUB CLEAN

31 - Cleaning the detergent dispenser drawer

31 - Cleaning the water inlet filters

32 - Cleaning the drain pump filter

33 - Cleaning the door seal

34 TROUBLESHOOTING

34 Checking error messages

35 Before calling for service

36 SPECIFICATIONS

37 USING SMARTDIAGNOSIS™

PRODUCT FEATURES

INVERTER DIRECT-DRIVE MOTOR

The inverter motor, which is directly connected to the tub, minimizes energy loss and produces little noise and vibration.

SMARTDIAGNOSIS™

Should you experience any technical difficulty with your washing machine, it has the capability of transmitting data by phone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis (Refer to page 38).

TUB CLEAN

Regular cleaning of the tub on a monthly basis using TUB CLEAN can help keep the tub clean and fresh.

MAGNETIC DOOR PLUNGER

Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote air circulation and allow the interior of the machine to dry. To use this feature, after the load has been removed, do not close the door completely. When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of the washer to dry.

LARGE CAPACITY STAINLESS STEEL DRUM

The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow easier access for large items.

CHILD LOCK

Use this option to disable the controls during a wash cycle. This option can prevent children from changing cycles or operating the machine.

DETERGENT DISPENSER DRAWER

The four-compartment dispenser drawer makes it easy to separate the pre-wash detergent, the main laundry detergent, liquid bleach, and fabric softener into different compartments.

HIGH-EFFICIENCY STEAM CYCLES

During LG's unique high-efficiency STEAM cycles, with hot steam a gently removes tough stains.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

Your Safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

BASIC SAFETY PRECAUTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Use this appliance only for its intended purpose as described in this owner's Manual.
• Before use, the washer must be properly installed as described in this manual.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.
• Before the washer is removed from service or discarded, remove the lid to prevent children from climbing inside.
• Do not install or store the washer where it will be exposed to the weather or freezing temperatures.
• Do not tamper with controls.
• Keep the area underneath and around your appliances free of

combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

• Do not repair or replace any part of the washer or attempt any servicing other than as described in this manual. We strongly recommend that any service be performed by a qualified technician.
  • See Installation Instructions for grounding requirements.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
• Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
• Do not use to dry articles containing foam rubber or similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.
• Always check the inside of the washer for foreign objects before loading laundry. Keep the lid closed when not in use.
• Do not reach into the appliance if the tub or agitator is moving.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are packed with the washer for installer's reference. If the washer is moved to a new location, have it checked and reinstalled by a qualified service technician. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance.
• This washer must be plugged into a 120 V\~,60Hz grounded outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Do not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak damage.
• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

- The washer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

- Never unplug your washer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

- Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

- When installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

- The washer must be installed and electrically grounded by a qualified service person in accordance with local codes to prevent shock hazard and assure stability during operation.

- The washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in back or other injury.

- Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious leak damage.

- Do not install the washer in humid spaces to reduce the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

- To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could result in property damage, injury to persons or death.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Unplug the washer before cleaning to avoid the risk of electric shock.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.
• Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.
• Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.
• Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Do not combine laundry products for use in one load unless specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.

• Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the drum to coast to a complete stop before reaching inside. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to comply with these warnings could result in serious injury to persons or death.

• Destroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers. Failure to comply with these warnings could result in serious injury to persons or death.
• Keep laundry products out of children's reach. To prevent injury to persons, observe all warnings on product labels. Failure to comply with these warnings could result in serious injury to persons or death..
• Remove the door to the washing compartment to avoid the danger of children or small animals getting trapped inside before your washer is removed from service or discarded. Failure to do so can result in serious injury to persons or death.

INTRODUCING YOUR WASHING MACHINE

Parts and Accessories

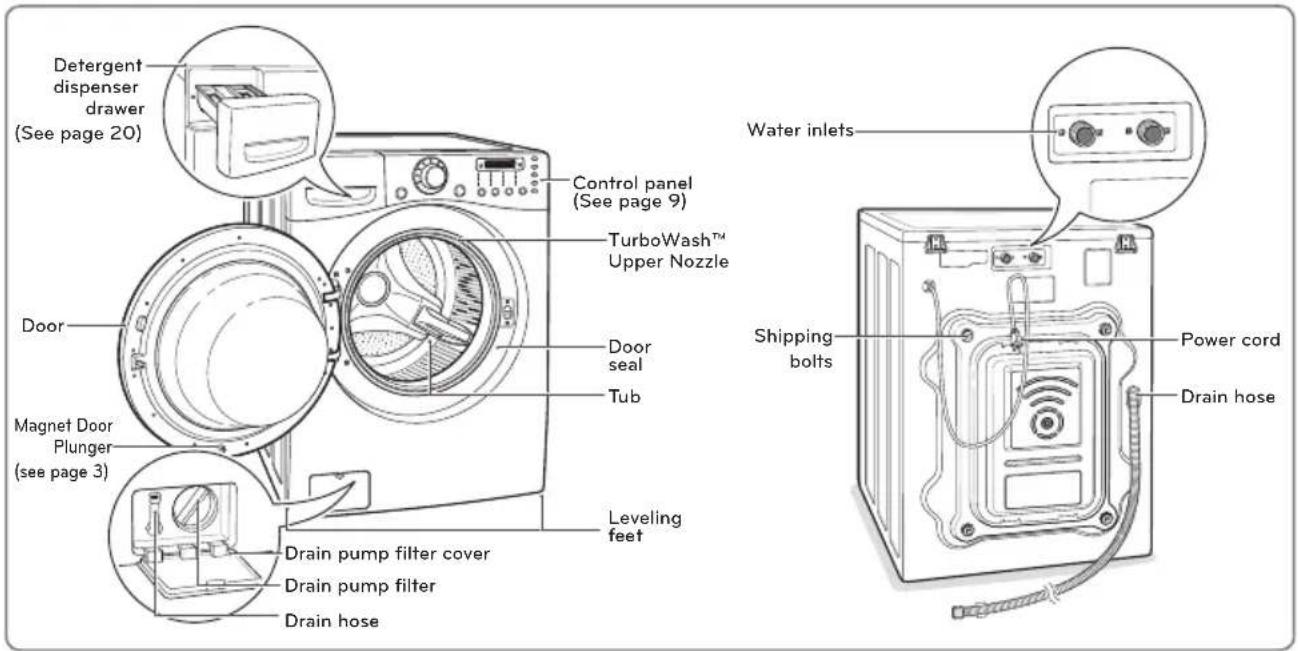

Parts

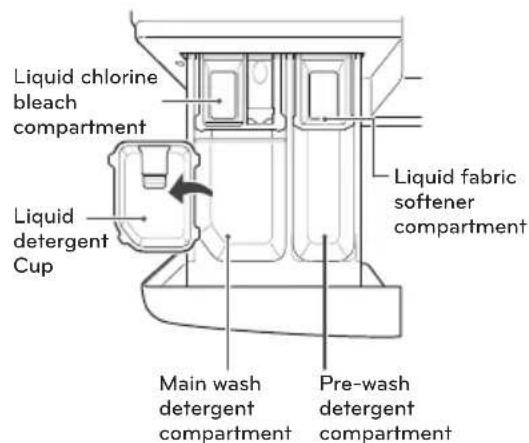

Detergent dispenser drawer (See page 20) Control panel (See page 9) TurboWash™ Upper Nozzle Door Magnet Door Plunger (see page 3) Door seal Tub Leveling feet Drain pump filter cover Drain pump filter Drain hose Water inlets Shipping bolts Power cord Drain hose

Accessories

INCLUDED Accessories

Hot/cold water hoses Non-skid pads
Caps for covering shipping bolt holes

Wrench Tie strap Elbow bracket
(for securing drain hose)

OPTIONAL Accessories

Pedestal (sold separately)
Stacking Kit (sold separately)

Control panel features

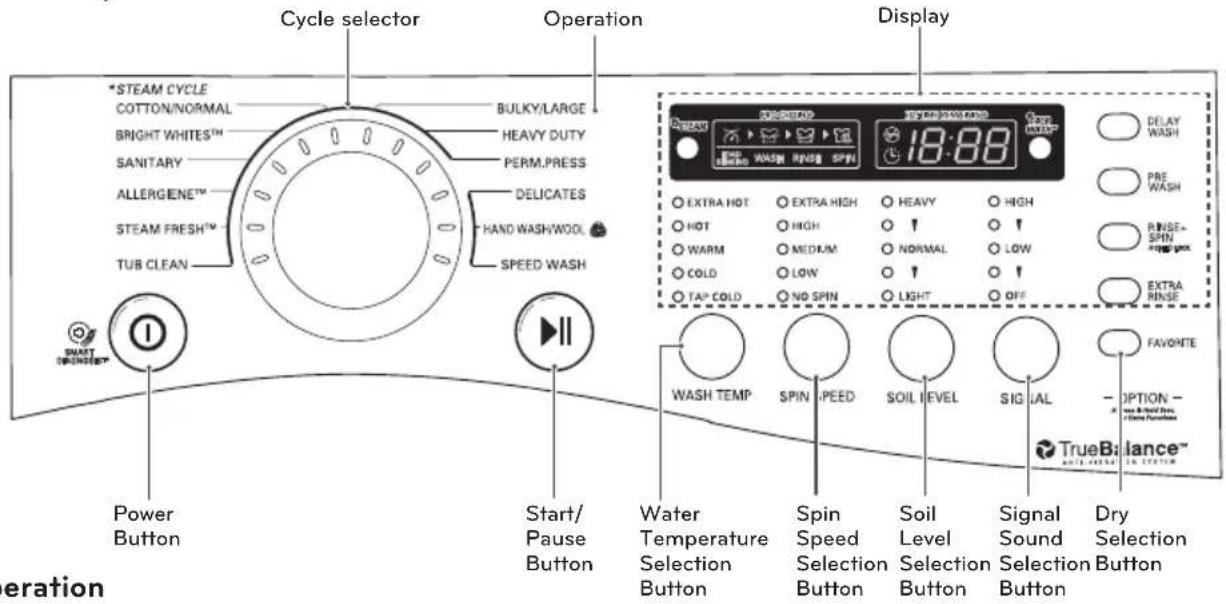

Cycle selector Operation Display *STEAM CYCLE COTTON/NORMAL BULKY/LARGE BRIGHT WHITES™ HEAVY DUTY SANITARY PERM.PRESS ALLERGENETM DELECATES STEAM FRESH™ HAND WASH/WOOL TUB CLEAN SPEED WASH EASTRA HOT EXTRA HIGH HEAVY HIGH PREWASH HOT HIGH LOW PULSE- SPIN WARM MEDIUM NORMAL LOW COLD LOW TAP COLD NO SPIN LIGHT OFF EXTRA RINSE WASH TEMP SPIN SPEED SOIL LEVEL SIGNAL FAVONTE OPTION - Power Button Start/ Pause Button Water Temperature Selection Button Spin Speed Selection Button Soil Level Selection Button Signal Sound Selection Button Dry Selection Button TrueBalance™

Operation

Button Description
		Turns the washing machine on and off.(During the wash cycle) stops operation, and cancels the settings.
		TUB CLEAN- For tub clean (see page 30)STEAM FRESHTM- For dress, shirts, blouses (see page 24)ALLERGIENETM- For cotton, underwear (see page 24)SANITARY- For underwear, diaper etc. (see page 24)BRIGHT WHITESTM- For white fabrics (see page 24)COTTON/NORMAL- For general laundry, such as cotton T-shirts or towels (see page 24)BULKY/LARGE- For blankets or large bulky items (see page 24)HEAVY DUTY- For heavy soiled cotton fabric (see page 24)PERM. PRESS- For wrinkle-free fabrics (see page 24)DELICATES- For sheer and delicate fabrics (see page 24)HAND WASH/WOOL- For wool or hand-wash fabrics (see page 24)SPEED WASH- For small quantities of lightly soiled items (see page 24)
		Starts or pauses the washing machine cycle.- If you do not press the button within 4 minutes of selecting a cycle, the washing machine will turn off automatically.
WASH TEMP		(Press repeatedly) Selects the water temperature for the wash cycle (see page 25).- Select water temperature from 5 settings.
SPIN SPEED		(Press repeatedly) Selects the spin speed in the desired level (see page 25).- Selects spin speed from 5 settings.
SOIL LEVEL		(Press repeatedly) Selects a wash cycle by soil level (see page 25).- Selects soil level from 5 settings.
SIGNAL		(Press repeatedly) Select a Melody or Button sound by signal (see page 26)
Button Description
	DELAYWASH	Set delay time of starting cycle (See page. 26).
	PREWASH	(Press before wash cycle) Pre-wash heavily soiled laundry (See page.26).(Press and hold) Tuning on/off melody and button tones (See page. 26)
	RINSE+SPIN*CHILD LOCK	Use this option to rinse detergent from load (See page. 26).(Pres and hold during wash cycle) Lock/Unlock the button (See page 26)
	EXTRARINSE	Add extra rinse cycle to the selected one (See page. 26).
	FAVORITE	Use this option to save special combination of settings that you use frequently(See page 28)
		(Press before starting wash cycle) Use this option to add steam for extra cleaning power(See page. 26 ).
WASH*		Use this option to save special combination of settings that you use frequently(See page. 27).

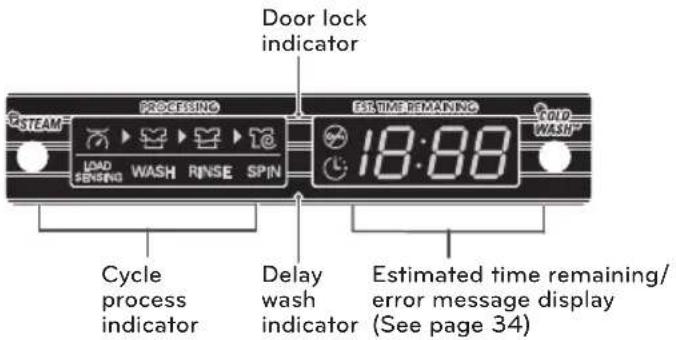

Display

Door lock indicator STEAM PROCESSING EST. TIME REMAINING TOLD WASH LOAD SENSO WASH RINSE SPIN 18:88 Cycle process indicator Delay wash indicator Estimated time remaining/ error message display (See page 34)

Display Icon Description
	This portion of the display shows which stage of the wash cycle is currently underway LOAD SENSING, WASH, RINSE, SPIN.
	Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the START/ PAUSE button to stop the washer.
	This indicator shows that the washer has been set for DELAY WASH. The washer will start automatically after the set delay time has passed.
	When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle.

INSTALLATION INSTRUCTIONS

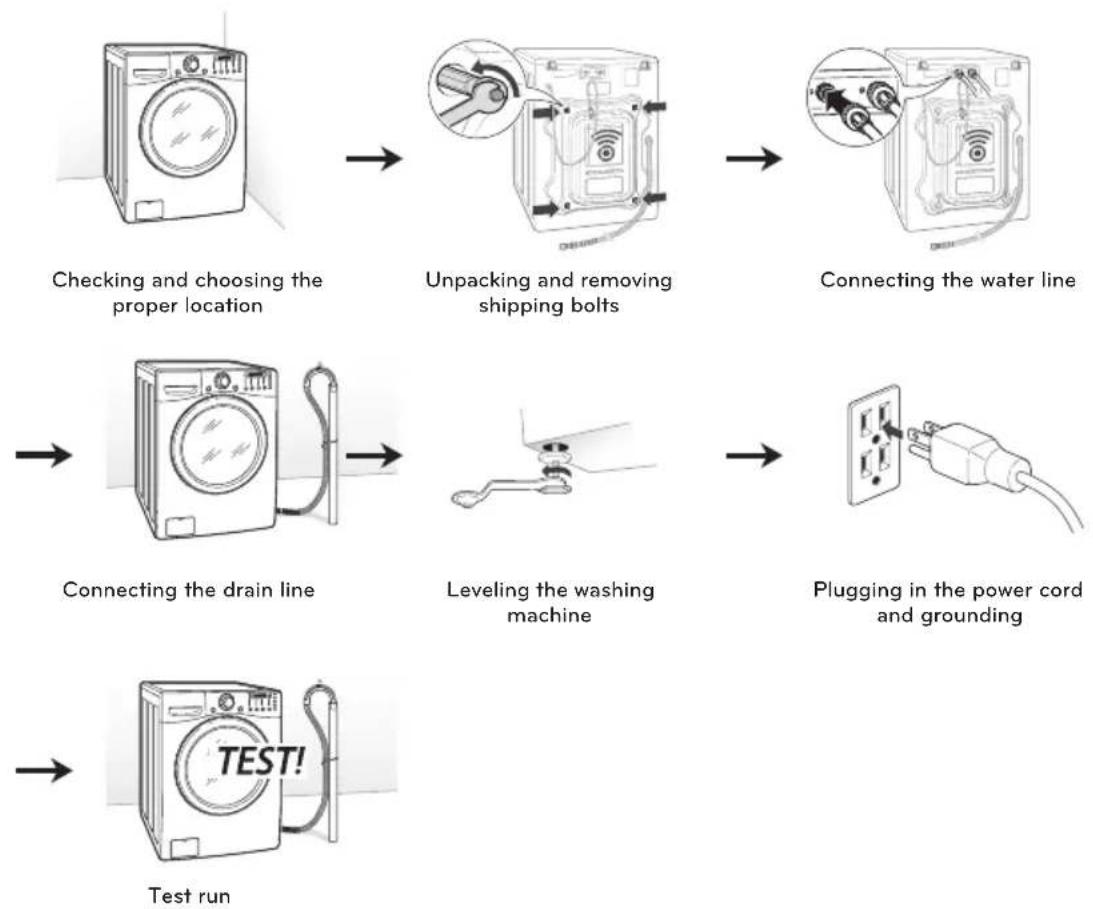

Preview installation order

WARNING

• Washer is heavy! Two or more people are required when moving and unpacking the washer. Failure to do so can result in back or other injury.
• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• Properly ground washer to conform with all governing codes and ordinances. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
• The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.
• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

Checking and choosing the proper location

Install the washing machine on a solid floor that is strong and rigid enough to support the weight of the washing machine, even when fully loaded, without flexing or bouncing. If the floor has too much flex, you may need to reinforce it to make it more rigid. If the floor is not solid, it may cause severe vibration and noise.

1 Clean the floor before installation.
- Make sure to select solid and smooth ground.
2 Two or more people are needed for moving and unpacking the washing machine.
3 Allow for sufficient space between the walls and the washing machine for installation.

Space requirements

You must allow sufficient space for water lines, the drain line, and airflow.

NOTE

- Be sure to allow for wall, door, or floor moldings that may increase the required clearances.

Installing on a floor

22 1/4" (57 cm) 29 3/4" (75.6 cm) 51" (129.5 cm) 4" (10 cm) 1" (2.5 cm) 27" (68.6 cm) 1" (2.5 cm)

NOTE

• The floor must be strong and rigid enough to support the weight of the washer, when fully loaded, without flexing or bouncing. If your floor has too much flex, you may need to reinforce it to make it more rigid.
  A floor that is adequate for a top-loading washer may not be rigid enough for a front loading washer, due to the difference in the spin speed and direction. If the floor is not solid, your washer may vibrate and you may hear and feel the vibration throughout your house.
• Before installing the washer, make sure the floor is clean, dry and free of dust, dirt, water and oils so the washer feet can not slide easily. Leveling feet that can move or slide on the floor can contribute to excess vibration and noise due to poor contact with the floor.
• If a drip pan must be used, take extra care to follow the instructions provided with the drip pan and make sure the leveling feet are adjusted for firm and even contact with the pan. Use of drip pans and failure to properly level the machine may result in increased vibration and noise during operation.

Installing on a pedestal or stacking kit

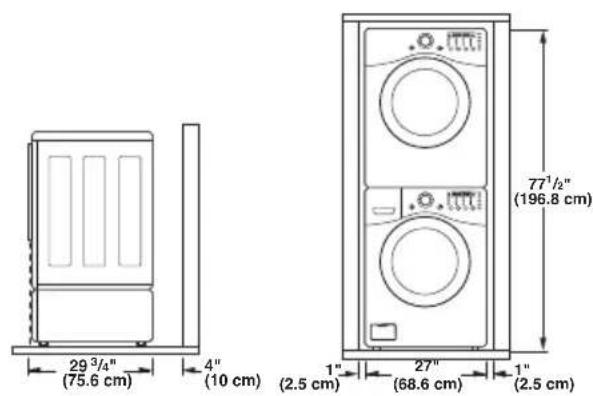

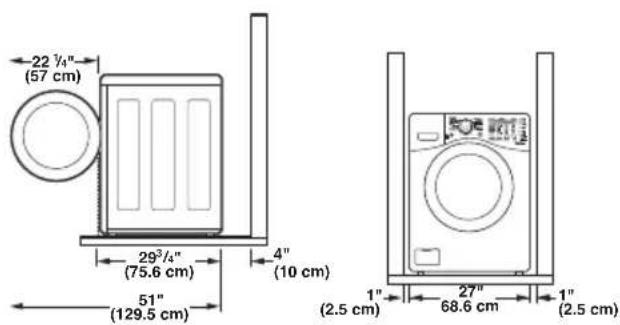

29 3/4" (75.6 cm) 4" (10 cm) 77 1/2" (196.8 cm) 1" (2.5 cm) 27" (68.6 cm) 1" (2.5 cm)

NOTE

- Refer to the instructions packaged with the optional PEDESTAL or STACKING KIT before installing with a PEDESTAL or a STACKING KIT.

Unpacking and removing shipping bolts

When removing the washer from the carton base, be sure to remove the foam drum support in the middle of the carton base.

If you must lay the washer down to remove the base packaging materials, always lay it carefully on its side.

Do NOT lay the washer on its front or back.

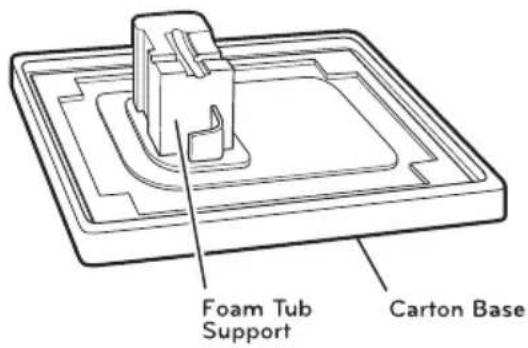

Foam Tub Support Carton Base

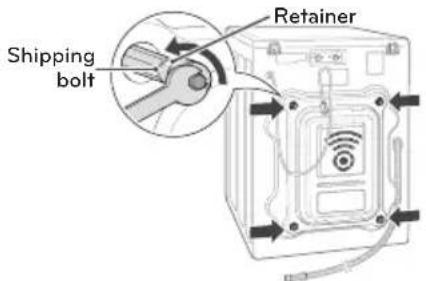

1 Remove the bottom two shipping bolts with the wrench (included) to fully loosen all four shipping bolts by turning them counterclockwise and then pulling them out.

Shipping bolt Retainer

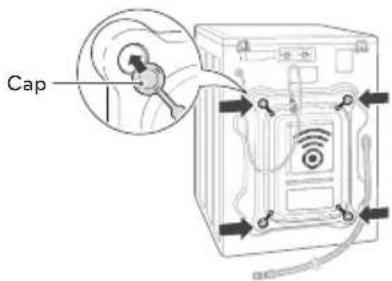

2 Locate the four hole caps included in the accessory pack and install them in the shipping bolt holes.

Cap

NOTE

• Save the bolt assemblies for future use. To prevent damage to internal components, DO NOT transport the washer without reinstalling the shipping bolts.
• Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washer. The cord is secured to the back of the washer with a shipping bolt to help prevent operation with shipping bolts in place.

Connecting the water lines

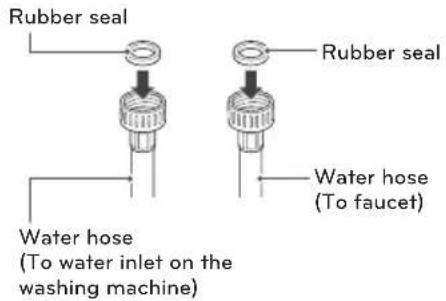

1 Check the rubber seals on both sides of the hose.

- Insert a rubber seal into the threaded fittings on each hose to prevent leaking.

Rubber seal Rubber seal Water hose (To faucet) Water hose (To water inlet on the washing machine)

2 Connect the water supply hoses to the HOT and COLD water faucets tightly by hand and then tighten another 2/3 turn with pliers.

- Connect the blue hose to a cold water faucet and the red hose to a hot water faucet.

WARNING

- Do not overtighten. Damage to the coupling can result.

3 After connecting inlet hose to water faucets, turn on the water faucets to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket, and check the water temperature.

4 Connect the hoses to the water inlets tightly by hand and then tighten another 2/3 turn with pliers.

- Connect the blue hose to the cold water inlet and the red hose to the hot water inlet.

Cold water inlet Hot water inlet

WARNING

- Do not overtighten the hoses. Overtightening can damage the valves resulting in leaking and property damage.

5 Check for leaks by turning on the faucets.

- If water leaks, check steps 1 to 4 again.

NOTE

- For your safety, and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized parts.

- Use new hoses when you install the washing machine. Do not reuse old hoses. Use only the inlet hoses provided with the washer. LG does not recommend the use of aftermarket hoses.

• Periodically check the hoses for cracks, leaks and wear, and replace the hoses every 5 years.

- Do not stretch the water hoses intentionally, and make sure that they are not crushed by other objects.

- Water supply pressure must be between 14.5 PSI and 116 PSI (100\~800 kPa). If the water supply pressure is more than 116 PSI, a pressure reducing valve must be installed.

- To provide optimum washing performance the hot water temperature should be set at 120-135°F (48-57°C) and the cold at 60°F (15°C).

Connecting the drain line

Secure the drain hose in place to prevent moving and leaking.

NOTE

• The drain hose should be properly secured. Failure to properly secure the drain hose can result in flooding and malfunction.
• Total height of the house end should not exceed 96 inches (244.8 cm) from the bottom of the washer.
• The drain must be installed in accordance with any applicable local codes and regulations.
  • Make sure that the water lines are not stretched, pinched, crushed, or kinked.

Using a standpipe

1 Clip the end of the hose into the elbow bracket.

- Connect the elbow bracket within 4 inches (10 cm) from the end of the drain hose. If the drain hose is extended more than 4 inches (10 cm) beyond the end of the elbow bracket, mold or microorganisms could spread to the inside of the washer.

No more than 4 inches (10 cm) Elbow bracket

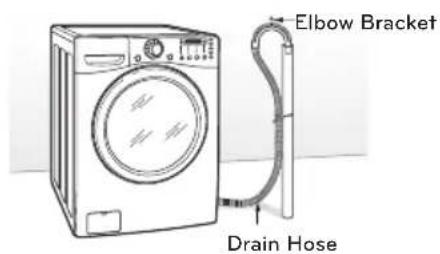

2 Insert the end of the drain hose into the standpipe.

Elbow Bracket Drain Hose

3 Use a tie strap to secure the drain hose in place.

Using a laundry tub

1 Clip the end of the hose into the elbow bracket.

- Connect the elbow bracket within 4 inches (10 cm) from the end of the drain hose. If the drain hose is extended more than 4 inches (10 cm) beyond the end of the elbow bracket, mold, or microorganisms could spread to the inside of the washer.

No more than 4 inches (10 cm) Elbow bracket

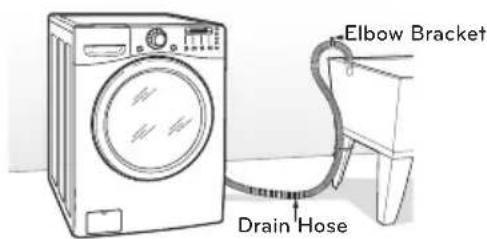

2 Hang the end of the drain hose over the side of the laundry tub.

Elbow Bracket Drain Hose

3 Use a tie strap to secure the drain hose in place.

Leveling the washing machine

The washer tub of your new washing machine spins at very high speeds. To minimize vibration, noise, and unwanted movement, the floor must be perfectly level and solid.

1 Check the washing machine's level.

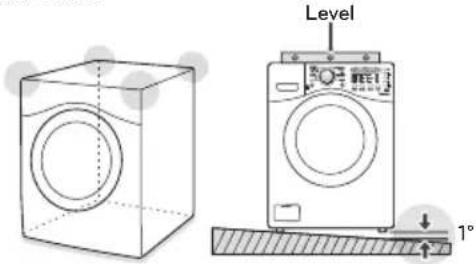

- Check the precise level by rocking the top edges of the washing machine or placing a level on the washing machine. The slope beneath the washing machine must not exceed 1°, and all four leveling feet must rest firmly on the floor.

Level 1°

2 Turn the lower leveling feet clockwise to level the washing machine.

- Turning the lower leveling feet clockwise raises the washing machine.

Diagram of a mechanical device with an upward arrow and curved arrow indicating motion (no text or symbols)

Raise

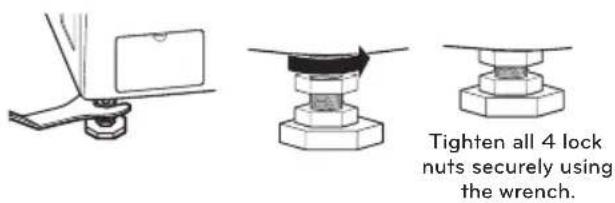

3 Turn the locknuts counterclockwise and tighten them when the washing machine is level.

Tighten all 4 lock nuts securely using the wrench.

4 Check the washing machine's level again.

• Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock.
• If the washing machine rocks, repeat steps 1 to 3.

WARNING

• Using the washing machine without leveling, it may result in malfunction caused by the production of excess vibration and noise.
• If you are installing the washing machine on the optional pedestal, you must adjust the leveling feet on the pedestal to level the washing machine. The washing machine's leveling feet should be minimized and turn the locknuts counterclockwise to secure.
• Use the leveling feet only when you level the washing machine. If you raise the leveling feet unnecessarily, it may cause abnormal vibration of the washing machine.

Using non-skid pads (optional)

If you install the washing machine on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. In the event of this, lay the non-skid pads under the leveling feet and adjust the level.

1 Clean the floor to attach the non-skid pads. - Use a dry rag to remove and clean foreign objects or moisture. If moisture remains, the non-skid pads may slip.

2 Adjust the level after placing the washing machine in the installation area.

3 Place the adhesive side of the non-skid pad on the floor.

- It is most effective to install the non-skid pads under the front legs. If it is hard to place the pads under the front legs, place them under the back legs.

This side up A B Adhesive side Remove backing O X A

4 Check the washing machine's level again.

- Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock. If the washing machine rocks, level the washing machine again.

Plugging in the power cord and grounding

Make sure to ground the washing machine to prevent a short circuit or an electric shock when plugging in.

Using a 3-prong outlet

Plug in the electrical outlet without additional grounding.

Line drawing of an electrical outlet with a plug and cable (no text or symbols)

WARNING

• The power outlet must be within 60 inches (1.5 m) of either side of the washer.
• The appliance and outlet must be positioned so that the plug is easily accessible.
• Do not overload the outlet with more than one appliance.
• The outlet must be grounded in accordance with current wiring codes and regulations.
• Time-delay fuse or circuit breaker is recommended.
• It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician.
• Do not use a worn or damaged power cord or power plug. Replace or repair it immediately. Failure to do so may result in death, fire, electric shock, or malfunction.
• Do not modify the power cord and take care not to damage it when installing or moving the washing machine. Failure to do so may result in death, fire, electric shock, or malfunction.
• Make sure that the washing machine is grounded.
• Connect this washing machine to a grounded outlet conforming to the rating prior to use. Failure to do so may result in fire, electric shock, or malfunction.
• Do not use adaptors or extension cords. The washing machine should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. Failure to do so may result in fire, electric shock or disorder.
• Do not damage or cut off the ground prong of the power cord. Doing so may cause death, fire, electric shock, or product malfunction.

Test run

Check if the washing machine is properly installed and run a test cycle.

1 Load the washing machine with 6 pounds of laundry.
2 Press ⓞ and turn ⏱ on the right
3 Press to RINSE + SPIN.
4 Press ▶.

- The wash cycle starts.

5 Check if water is supplied, that the washing machine does not rock or vibrates excessively, and that it drains well during the spin cycle.

• If water leaks during water supply, see page 14, Connecting the water lines to connect them properly.
• If the washing machine rocks and vibrates excessively, see page 16, Leveling the washing machine to level it again.
• If the drain does not work, see page 15, Connecting the drain line to install it properly.

PREPARATION

Sorting wash loads

Precautions for fabric care before wash cycle

Read and observe the following to prevent shrinkage or damage to clothes.

◆ Check all pockets to make sure that they are empty.
- Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.
◆ Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.
◆ Pretreat heavily stained areas before washing. - Doing so will produce clean, stain-free results.
◆ Combine large and small items in a load. Load large items first.
◆ Large items should not be more than half of the total washload.

◆ The washer can be fully loaded, but the drum should not be tightly packed with items. -The door of the washer should close easily.

Do not wash single items, except for bulky items such as blankets. Make sure to wash laundry in similar types of loads.

- Washing a single small item may result in the tub becoming unbalanced, vibrating and making a noise.

- Do not wash waterproof clothes. - This may cause abnormal vibration, or may cause the load to bounce, which could damage the tub.

◆ Check if there are any other foreign objects in the door seal and take extra care that clothes do not get caught there.

- Foreign objects in the door seal may stain clothes, and water may leak if clothes get caught in the door seal.

◆ Wash underwear or small, light items in a laundry net.

- Small, light items may get caught in the door seal, and a brassiere hook may damage other items or the tub.

◆ Brush heavy soil, dust, or hair off fabrics before washing.
- Laundry may not wash clean if there is dirt or sand on the fabrics, or they may damage due to particles rubbing against sheer fabrics.
◆ Wash blankets individually. - Washing more than one blanket together may produce unclean results due to tangling or an unbalanced load.
◆ Always separate fabrics according to their colors and wash them separately to prevent colors from running.
- Fabrics may damage or become stained due to fabric dyes running, or due to foreign objects transferring from one fabric to another.

Fabric care labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Category Label Directions
Washing		Hand Wash
		Machine Wash, Normal Cycle
		Use Permanent Press/ Wrinkle Resistant washing machine setting (which has a cool down or cold spray before the reduced spin)
		Use Gentle/Delicate washing machine setting (slow agitation and/ or reduced wash time).
		Do Not Wash
		Do Not Wring
Water Temperature	...	Hot
	..	Warm
	.	Cold/Cool
Bleach symbols		Any Bleach (When Needed)
		Only Non-Chlorine Bleach (When Needed)
		Do Not Bleach

Sorting laundry

It is recommended that you sort laundry into similar loads that are washable in the same cycle.

Refer to the following chart for sorting clothes

Colors	Whites / Lights / Darks
Soil	Heavy / Normal / Light
Fabric	Delicates / Easy Care / Sturdy Cottons
Lint	Lint Producers / Lint Collectors

Using detergent/fabric softener

Recommended detergent

Low sudsing detergent is recommended for this washer. Use the manufacturer's recommended amount.

If low sudsing detergent is not available, a reduced amount of regular detergent may be used.

Because reducing the amount of detergent may reduce cleaning, it is important to pretreat stains, sort carefully by color and soil level, and avoid overloading.

Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.

For best results, avoid using too much detergent.

NOTE

• Use less detergent for soft water.
• Wipe up any spills immediately, as liquids could damage the finish and the control panel of the washing machine.
• Using too much detergent can cause a build-up in the tub resulting in unsatisfactory performance and machine malfunction.
• If you use a detergent that does not dissolve easily or a detergent with high viscosity, it will leave a residue on the tub, which may not rinse properly.

Loading the dispenser

The detergent dispenser drawer of the washing machine has a dispenser compartment for each detergent type. Add the appropriate detergents into its respective compartments.

1 Pull out the detergent dispenser drawer.

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Add the appropriate detergent to its allocated compartment.

• If you use a liquid detergent, check if the liquid detergent cup is in place.
• If you use a powdered detergent, remove the liquid detergent cup and put the powder in the main wash detergent compartment.

Liquid chlorine bleach compartment Liquid fabric softener compartment Liquid detergent Cup Main wash detergent compartment Pre-wash detergent compartment

3 Close the detergent dispenser drawer slowly.

- Slamming the detergent dispenser drawer may result in the detergent overflowing into another compartment or pouring into the tub earlier than programmed.

NOTE

- It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

Pre-wash Detergent Compartment

Add liquid or powdered detergent to this compartment when using the pre-wash option.

NOTE

• If liquid detergent is to be used for the main wash when using the pre-wash option, the liquid detergent cup accessory must be used in main wash dispenser to prevent the main wash liquid detergent from being dispensed immediately.
• The amount of detergent added for the pre-wash option is 1/2 the amount recommended for the main wash cycle. For example, if the main wash cycle requires one measure of detergent, add 1/2 measure for the pre-wash option.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the main wash cycle, which is added to the load at the beginning of the cycle.

Never exceed the manufacturer's recommendations when adding detergent. Using too much detergent can result in detergent buildup in clothing and the washer. Either powdered or liquid detergent may be used.

NOTE

• Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type.
• When using liquid detergent, make sure the liquid detergent cup and insert are in place. Do not exceed the maximum fill line.
• When using powdered detergent, remove the insert and liquid detergent cup from the compartment. Powdered detergent will not dispense with the liquid detergent cup and insert in place.

Liquid Bleach Compartment

This compartment holds liquid chlorine bleach, which will be dispensed automatically at the proper time during the wash cycle.

NOTE

• Do not add powdered or liquid color-safe bleach to this compartment.
• Always follow the manufacturer's recommendations when adding bleach. Do not exceed the maximum fill line. Using too much bleach can damage fabrics.
• Never pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.

Fabric Softener Compartment

This compartment holds liquid fabric softener, which will be automatically dispensed during the final rinse cycle.

NOTE

• Always follow the manufacturer's recommendations when adding fabric softener. Do not exceed the maximum fill line. Using too much fabric softener may result in stained clothes.
• Dilute concentrated fabric softeners with warm water. Do not exceed the maximum fill line.
• Never pour fabric softener directly onto the load or into the drum.

USING YOUR WASHING MACHINE

Basic operation

1

Diagram showing a device with labeled parts 1 and 2, indicating a process or operation.

Load the laundry into the washing machine and close the door.

2

Press Ⓤ.

- The lights around the cycle selector knob will illuminate and a chime will sound.

3

Turn Ⓞ to the desired cycle.

• The proper default option is automatically set according to the wash cycle. See page 23, Cycle guide, for more detailed default options for each cycle.
• See page 24, Main cycle, for details on the wash cycles.
• To change the options, press the option button and select the desired option. See page 25, Setting options before cycle, for more details on options.
• Skip to step 4 to use the default setting without changing the options.

4

Add the proper amount of detergent and additions (bleach, softener) into the detergent dispenser drawer.

- See page 20, Using detergent/fabric softener, for more details on using detergent.

5

Press ▶.

- The washing machine will start.

6

When the melody plays, the wash cycle is finished.

• When the washing cycle is finished, the door will unlock. Open the door and remove the laundry immediately.
• Make sure to check around the door seal when taking out the finished load. Small items may be caught in the door seal.

WARNING

- To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

NOTE

• The front-load washing machine rotates the laundry in a way that allows it to use less water while still fully saturating your clothing. It is normal to not be able to see water during the wash cycle.
• If the temperature or the water level inside the machine is too high, the door locks and cannot be opened. To open the door while washing, use the Rinse + SPIN feature.

Cycle guide

The cycle guide below shows the options and recommended fabric types for each cycle.

● = Available option

RECOMMENDED LOADS

CYCLE FABRIC TYPE		DISPLAY TIME(MIN)	BASIC OPTION (★=DEFAULT)			ADDITIONAL OPTIONS				Maximum Load
			WASH TEMP.	SPIN SPEED	SOIL LEVEL	PRE-WASH	EXTRA RINSE	STEAM	COLD WASHTM
TUB CLEAN	This cycle is designed to remove a mildewy	89						●		-
STEAM FRESHTM										Less than 2.0 kg
ALLERGIENETM	Cotton, underwear, pillow covers, bed sheets, baby wear	99 ~ 132		EXTRA HIGH HIGH★ MEDIUM LOW NO SPIN			●	●		Less than 8.0 kg
SANITARY Heavily soiled underwear, work clothes, diapers, etc.		98 ~ 107	EXTRA HOT★	EXTRA HIGH HIGH★ MEDIUM LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●	●		Less than 8.0 kg
BRIGHT WHITESTM	White Fabrics 66~76	HOT	★ WARM COLD TAP COLD	EXTRA HIGH HIGH★ MEDIUM LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●	●		Less than 8.0 kg
COTTON/NORMAL	Cotton, linen, towels, shirts, sheets, jeans, mixed loads	39~59	HOT WARM★ COLD TAP COLD	EXTRA HIGH HIGH★ MEDIUM LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●	●	●	Less than 20.0 kg
BULKY/LARGE	Large items such as blankets and comforters	56 HOT	WARM★ COLD TAP COLD	MEDIUM★ LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●	●	●	Less than 8.0 kg
HEAVY DUTY	Heavy soiled Cotton Fabrics	83 ~ 98	HOT WARM★ COLD TAP COLD	EXTRA HIGH★ HIGH MEDIUM LOW NO SPIN	HEAVY★ NORMAL LIGHT	●	●	●	●	Less than 8.0 kg
PERM.PRESS	Dress shirts/pants, wrinkle-free clothing, poly/cotton blend clothing, tablecloths	35 ~ 44	HOT WARM★ COLD TAP COLD	HIGH MEDIUM★ LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●	●		Less than 8.0 kg
DELICATES Dress	less shirts/blouses, nylons, sheer or lacy garments	41 WARM COLD★ TAP COLD	MEDIUM★ LOW NO SPIN	HEAVY NORMAL★ LIGHT	●	●			●	Less than 4.0 kg
HAND WASH/WOOL	Items labeled "hand-washable"	55 WARM ★ COLD TAP COLD	LOW★ NO SPIN	NORMAL★ LIGHT					●	Less than 3.5 kg
SPEED WASH	Lightly soiled clothing and small loads	15 HOT ★ WARM COLD TAP COLD	EXTRA HIGH★ HIGH MEDIUM LOW NO SPIN	HEAVY NORMAL LIGHT★		●			●	Less than 4.0 kg

• Cycle time depends on water pressure, type and amount of load and chosen additional options.
• To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

Main cycle

You can wash laundry items more thoroughly by selecting the wash cycle that best suits the type of items to be washed. Turn the Ⓞ to the desired cycle. When you select a wash cycle, the light for the corresponding wash cycle will turn on. See page 22, Basic operation, for more details on operating methods.

For cotton and polyester item, STEAM FRESHTM

Removes wrinkles within 20mins with steam

Reduce laundry allergen, ALLERGIENE™

This cycle is a powerful, high temperature cycle designed specifically to reduce certain allergens.

NOTE

• Selecting the ALLERGIENE™ cycle automatically incorporates steam into the wash cycle.
• The ALLERGIENE™ cycle can significantly reduce allergens in bedding and clothing.
• The ALLERGIENE™ cycle helps reduce dust mite populations and helps reduce allergens.
• Due to the higher energy and temperatures used, the ALLERGIENETM cycle is not recommended for wool, silk, leather, or any other delicate or temperature sensitive items

Reduce laundry bacteria, SANITARY

This wash cycle reduces 99.9% bacteria on laundry through high temperature.

For white fabrics, BRIGHT WHITES™

This cycle is for washing white items only.

Normal items, COTTON/NORMAL

Use this cycle to wash all normal items, except delicate fabrics such as wool or silk.

NOTE

- If you press A and then C without selecting another cycle, the washing machine proceeds to c.

Blankets or bulky items, BULKY/LARGE

This cycle is for washing blankets or bulky items.

Heavy soiled items, HEAVY DUTY

This cycle is for washing heavily soiled laundry though more powerful tub rotation.

Wrinkle free items, PERM. PRESS

This cycle is for washing items such as wrinkle-free clothes or tablecloths to minimize wrinkles.

Sheer items, DELICATES

This cycle is for washing lingerie or sheer and lacy clothes which can easily be damaged.

Items labeled wool or hand-washable,

HAND WASH/WOOL

This cycle is for washing shrinkable woolen or hand-washable items requiring delicate care. Only wash woolen items that are labeled machine washable or hand-washable.

NOTE

• Laundry weight should be less than 8 pound (3.6 kg) to prevent damage to the fabric.
• Use only natural or wool-safe detergent harmless to fabrics and load 1/2 of the normal amount of detergent.
• The HAND WASH/WOOL cycle uses a gentle tumble rotation angle and low speed spin for the ultimate fabric care.

WODLMARK

The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0807

Quick wash, SPEED WASH

Use the Speed Wash cycle to quickly wash lightly soiled clothing and small load. For high wash and rinse efficiency, it is recommended to wash small loads of 2-3 lightly soiled garments.

NOTE

- Use a little detergent in this cycle. If you want more rinsing, you can add extra rinse by using the option button.

Cycle setting buttons

Each cycle has preset settings that are selected automatically. You may also customize the settings using the cycle setting buttons. Press the button for that option to view and select other settings. The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency. It may seem there is no water inside the drum in some cycles, but this is normal.

NOTE

- To protect your garments, not every wash/ rinse temperature, spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details.

Setting options before cycle

You can select and add the desired optional functions before you start the washing machine.

Setting the water temperature, WASH TEMP.

Set the water temperature for the wash cycle. Set the appropriate temperature, as specified in the fabric care label.

1 Press Ⓞ and turn Ⓞ to the desired cycle.

2 Press repeatedly to select the desired water temperature:

- When an optional item is selected, an indication light for the corresponding optional item turns on.

3 Press the desired option button to use the other options.

- Skip to step 4 to use the default setting without changing the options.

4 Press

NOTE

• Cold rinses use less energy.
• Your washer features a heating element to boost the hot water temperature for Extra Hot settings. This provides improved wash performance at normal water heater settings.
• Select the water temperature suitable for the type of load you are washing. Follow the fabric care label for best results.

Setting spin speed, SPIN SPEED

You can set the desired spin speed. Use this feature properly according to the characteristics of the load.

1 Press Ⓓ and turn Ⓞ to the desired cycle.
2 Press repeatedly to select the desired spin speed.
- When an optional item is selected, an indication light for the corresponding optional item turns on.
3 Press the desired option to use the other options.
- Skip to step 4 to use the default setting without changing the options.
4 Press ▶.

NOTE

- The Spin Speed button also activates the Drain & Spin cycle to drain the tub and spin clothes; for example, if you want to remove clothes before the cycle has ended.

Setting soil level of laundry, SOIL LEVEL

You can wash your laundry more thoroughly by setting the proper soil level on the washing machine.

1 Press Ⓓ and turn Ⓞ to the desired cycle.
2 Press repeatedly to select a soil level.
- When an optional item is selected, an indication light for the corresponding optional item turns on.
3 Press the desired option to use the other options.
- Skip to step 4 to use the default setting without changing the options.
4 Press ▶.

NOTE

- This feature needs more time for heavily soiled loads or less time for lightly soiled loads.

Adjusts the melody and button tones, SIGNAL

The washing machine plays a melody when the wash cycle is finished. The buttons make a sound each time a button is pressed. The melody and button tones can be changed and off as desired.

1 Press Ⓤ.
2 Press Ⓞ to the desired cycle.
3 Press Adjust the melody and button tones as desired.
4 Press the desired option to use the other options.
5 Press ▶.

Prewashing, PRE-WASH

Pre-wash for 16 minutes when clothes are covered in dirt or dust. This feature is suitable for heavily soiled items.

1 Press Ⓓ and turn Ⓞ to the desired cycle.
2 Press . PRE WASH - light will turn
3 Press the desired option to use the other options.

- Skip to step 4 to use the default setting without changing the options.

4 Press ▶.

Rinse, drain and spin only, RINSE+SPIN

Use this cycle to rinse detergent from load.

1 Press Ⓞ and turn Ⓞ to the desired cycle.
2 Press ○ RINSE+SPIN + CHILD LOCK
3 Press the desired option to use the other options.

- Skip to step 4 to use the default setting without changing the options.

4 Press ▶.

Adding extra rinse cycle, EXTRA RINSE

You can add an extra rinse cycle to the default rinse cycle.

1 Press Ⓓ and turn Ⓞ to the desired cycle.
2 Press . EXTRA RINSE

- light will turn on.

3 Press the desired option to use the other options.
- Skip to step 4 to use the default setting without changing the options.
4 Press ▶II.

Presetting the start time, DELAY WASH

You can set the desired start time.

1 Press Ⓞ and turn Ⓞ to the desired cycle.
2 Press the desired option to use the other options.
3 Press repeatedly to select the desired start time.

• light will turn on.
• The set start time appears on the display panel.
• Each press of the button increases the delay time by one hour, up to 19 hours.

4 Press ▶.

Efficiency cleaning, STEAM

Adding the Steam option to these cycles provides superior cleaning performance while reducing energy and water consumption.

By using a hot steam fabrics get the cleaning benefits of a super hot wash, without the energy usage or potential damage to fabrics.

1 Press Ⓞ and turn Ⓞ to the desired cycle.
2 Press The washer will automatically adjust the cycle settings.
3 Set any other desired options.
4 Press ▶.

WARNING

• Do not touch the door during steam cycles. The door surface can become very hot. Allow the door lock to release before opening the door.
• Do not attempt to override the door lock mechanism or reach into the washer during a steam cycle. Steam can cause severe burns.

NOTE

• The steam option cannot be used with all cycles.
• Steam may not be clearly visible during the steam cycles. This is normal. Too much steam could damage clothing.
• Do not use steam with delicate fabrics such as wool, silk, or easily discolored fabrics.

Saving energy, COLD WASH™

Adding the COLD WASH ^™ option reduces energy usage and provides the same washing performance as a warm water wash.

By using 6 different washing motion (Tumbling, Rolling, Stepping, Scrubbing, Swing, Filtration), fabrics get the cleaning benefits, without the energy usage.

1 Press Ⓞ and turn Ⓞ to the desired cycle.
2 Press The washer will automatically adjust the cycle settings.
3 Set any other desired options.
4 Press ▶II.

NOTE

• When you select the COLD WASH™ option, wash time will be increased up to 10 minutes.
• For high wash efficiency, it is recommended to use less than 8 pounds (3.6kg).

Setting options during cycle

You can add the desired options during the wash cycle.

Button lock feature, CHILD LOCK

You can lock the washing machine to prevent children or others from changing the cycle settings by pressing the buttons during the cycle.

To enable child lock

Press and hold ○ RINSE+ SPIN for 3 seconds during the wash cycle.

- When the CHILD LOCK is enabled, a message and the remaining wash time are displayed, in turn, on the display panel of the washing machine.

To disable child lock

(When the CHILD LOCK is activated.)

Press and hold for 3 seconds during the wash cycle.

NOTE

- CHILD LOCK lasts after the end of cycle. If you want to deactivate this function, Press and hold the PREWASH button for 3 seconds.

Saving customized wash cycle, PGM SAVE

You can save a cycle with all the settings and options you use most frequently.

To save cycle

1 Press Ⓐ and turn Ⓞ to the desired cycle.

2 Press the desired option to use the other options.

3 Press and hold for 3 seconds during the wash cycle.

- The cycle with your preferred settings and options is saved.

Selecting your customized cycle, FAVORITE

You can recall the customized wash cycle you had previously saved.

To recall cycle

1 Press Ⓞ after then press . FAVORITE

2 Press ▶.

MAINTENANCE

Care

Care after wash

After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture. Leave the door open to dry the washer tub interior. Wipe the body of the washing machine with a dry cloth to remove any moisture.

WARNING

• Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.
• Do not use volatile substances (benzene, paint thinner, alcohol, acetone, etc.) or detergents with strong chemical components when cleaning the washing machine. Doing so may cause discoloration or damage to the machine, or it may cause a fire.

Care in cold climates

Storing the washing machine for an extended period of time

Follow the instructions for storing the washing machine if you do not use it for an extended period of time in cold climates below freezing point.

1 Turn off the faucets connected with the water lines.
2 Unscrew the water lines from back of the washer.

Diagram showing two connected cables with numbered labels and directional arrows indicating connection points.

3 Empty any water out of the water lines.
4 Press Ⓤ.
5 Open the door and add 1 gallon (3.8 L) of nontoxic recreational vehicle (RV) antifreeze to the empty washer tub. Close the door.
6 Press for draining and spinning.
7 Press ①.

- Drain the water from the washing machine for 1 minute. Not all of the RV antifreeze will be expelled.

8 Press Ⓞ to turn off the washing machine and pull out the power plug.
9 Dry the tub interior of the washer tub with a soft cloth, and close the door.

Diagram of a car interior with labeled compartments and directional arrows indicating movement or flow.

10 Press down hard on the disengage button and pull out the detergent dispenser drawer.
11 Drain the water from the detergent dispenser drawer and dry out each compartment.
12 Store the washing machine in an upright position.

NOTE

• To remove the antifreeze after storing the washing machine, add detergent to the dispenser, and run one cycle. Do not load any laundry at this time.

When the water line is frozen

1 Turn off the faucets connected with the water lines.
2 Pour hot water on the frozen faucets to thaw the water lines and pull them out.
3 Immerse the water lines in hot water to thaw them.
4 Connect the water lines with the water inlets of the washing machine and faucets.
- See page 14, Connecting the water lines for details.

5 Turn on the faucets.
6 Press ①.
7 Press ○ RINSE+ SPIN #0000 LOCK
8 Press Ⓓ. - Verify the water fills properly.

When the Drain Line is Frozen

1 Pour hot water in the washer tub and close the door.
- Leave it for 10 minutes.
2 Press ① after 10 minutes.
3 Press for draining and spinning.
4 Press ▶. - Check if the water drains.

Cleaning

Periodically clean the washing machine to help maintain its performance and to minimize the chance of malfunction.

Clean your the drum, TUB CLEAN

"Improper installation or use of the washing machine in a humid space for a long period of time potentially could lead to a buildup of detergent residue in the washing machine that may produce mildew or musty smells. If you clean the washer tub regularly on a monthly basis using TUB CLEAN it will minimize the possibility that detergent residue will build up and mildew or musty smells may occur."

1 Add tub cleaner or lime scale remover into the detergent dispenser drawer.

• Do not exceed the maximum detergent limit line when you add it. Detergent may remain in the washer tub after cleaning.
• When you use liquid chlorine bleach, load it into the liquid chlorine bleach compartment.
• When you use a powdered cleaner, pull out the liquid detergent cup and add it into the main wash detergent compartment.
• When you use cleaning tablets, place them directly into the washer tub. (Do not add tablet cleaner to the drawer.)

2 Press ①.

3 Turn to TUB CLEAN.

-£ cl message appears in the display.

- The indication light for TUB CLEAN turns on.

4 Press ▶II.

NOTE

• Never load laundry while using TUB CLEAN. The laundry may be damaged. Make sure to clean the washer tub when it is empty.
• It is recommended to leave the door open after finishing the laundry to keep the tub clean.
• It is recommended that TUB CLEAN should be repeated monthly.
• If you notice mildew or musty smells, run TUB CLEAN for 3 consecutive weeks.
• Safely and conveniently secure the door slightly ajar with a magnetic door plunger. This will promote air circulation and help the machine to dry.

Automatic alert for cleaning washing machine

When the power is on and the t cl message blinks, it means the washer tub needs cleaning. Use TUB CLEAN to clean the washer tub. The automatic indication alert for cleaning the washer tub depends on the frequency of use, however, the message will generally blink every 1\~2 months.

Removing mineral buildup

If you live in an area with hard water, mineral scale can form on the internal components of the washing machine. Take extra care to periodically clean the mineral buildup on the internal components to extend the lifespan of the washing machine.

Removing mineral buildup from the washer tub

Check if the descaler is suitable for cleaning the washer tub before using it and run the TUB CLEAN cycle. See page 30, Tub clean for details on tub clean.

NOTE

• In areas with hard water, it is recommended to use a water softener.
• Make sure to remove all loads from the washer tub before cleaning the washer tub. Cleaning the washer tub together with a load may result in contamination of or damage to the laundry.

Removing lime buildup on stainless steel

Wipe lime buildup or other spots on stainless steel with a soft cloth soaked in stainless steel cleaner.

NOTE

- Never use steel wool or abrasive cleansers. Doing so may damage the washing machine.

Cleaning the detergent dispenser drawer

Leaving detergent in the detergent dispenser drawer for an extended period of time or using the washing machine for a long period of time may cause the build-up of scales in the detergent dispenser drawer. Pull out and clean the detergent dispenser drawer once a week.

1 Pull out the detergent dispenser drawer.

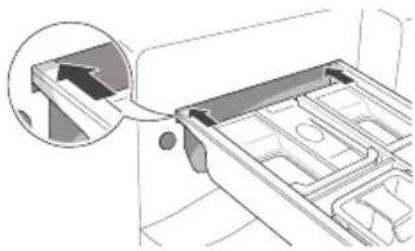

2 Press down hard on the disengage button and pull out the detergent dispenser drawer.

Technical diagram of a car interior with labeled parts, showing numbered components for identification.

3 Remove the inserts from the drawer.

4 Clean them with warm water.

- Use a soft cloth or brush for cleaning and remove any residue.

5 Wipe any moisture with a dry towel or cloth after cleaning.

6 Replace the detergent dispenser drawer.

Diagram of a vehicle door handle assembly with an inset showing the lever mechanism (no text or symbols)

WARNING

- Do not spray water inside the washing machine. Doing so may cause fire or electric shock.

NOTE

- Use water only when you clean the detergent dispenser drawer. Make sure to use RINSE+SPIN to rinse the washer tub before the wash cycle when you use a cleaning detergent to clean the washer tub.

Cleaning the water inlet filters

Clean the water inlet filters periodically to prevent clogging. Take extra care to clean the water inlet filters for areas using hard water. Water may not be supplied if there are foreign objects, such as rust, sand, or stones in the water inlet filters.

1 Press Ⓓ to turn off the washing machine and pull out the plug.
2 Turn off the faucets connected with the water inlets.
3 Remove the water inlets.

Diagram showing two connected cables with labeled ports and directional arrows indicating connection points

4 Pull out the water inlet filter.

Diagram of a device with two connectors and a cable, showing directional arrows (no text or symbols)

5 Remove foreign objects from the water filter inlet.
- Soak the water filter inlets in white vinegar or a lime scale remover or use a toothbrush to remove foreign objects and rinse thoroughly.
6 Press the water filter inlets back into place.
7 Reattach the water lines to the washing machine.

Diagram showing two cables connected to a device with labeled ports and directional arrows indicating connection points.

WARNING

- Unplug the power cord and turn off the faucets before cleaning. Failure to do so may cause electric shock.

- Do not use the washing machine without the inlet filters. If you use the washing machine without the inlet filters it will cause leaks and malfunction.

- If you use the washing machine in an area with hard water, the inlet filter may clog due to lime buildup. Contact your nearest LG customer service center if the inlet filter is not clean or is missing.

- Unplug the power cord and turn off the faucets before cleaning. Failure to do so may cause electric shock. - Do not use the washing machine without the inlet filters. If you use the washing machine without the inlet filters it will cause leaks and malfunction. - If you use the washing machine in an area with hard water, the inlet filter may clog due to lime buildup. Contact your nearest LG customer service center if the inlet filter is not clean or is missing.

NOTE

- E message will blink on the display when the water pressure in the detergent drawer is weak or an inlet filter is clogged with dirt. Clean the inlet filter.

Cleaning the drain pump filter

The washing machine fails to drain if the drain pump filter is clogged. Periodically clean the drain filter to prevent clogging with foreign objects.

1 Press Ⓓ to turn off the washing machine and pull out the plug.

2 Open the drain pump filter cover.

Simple line drawing of a folder with a download arrow, no text or symbols present

3 Unclip the drain hose and remove the plug from the drain hose to drain the remaining water.

Simple line drawing of a washing machine with a bowl and tubing (no text or symbols)

4 Twist the pump filter counterclockwise to remove.

Line drawing of a kitchen sink with a bowl and a kitchen appliance (no text or symbols)

5 Clean the pump filter and opening.

Illustration showing two hand positions: one with a plug, the other with a device (no text or symbols)

6 Recap the plug onto the drain hose and reattach the drain hose.

Simple line drawing of a mechanical device with a circular component and adjustment knob (no text or symbols)

7 Insert the drain pump filter.

Simple line drawing of a mechanical device with a knob and rotating arrows (no text or symbols)

8 Close the drain pump filter cover.

WARNING

- Make sure to pull out the plug before cleaning. Failure to do so may cause electric shock.

- Opening the drain filter will result in water overflowing if there is water in the washer tub. Make sure to check if the water is completely drained before opening the drain filter.

- If you use the washing machine with the drain filter reassembled incorrectly after cleaning it, or if you use the machine without the filter, it may cause leaks or malfunction of the washing machine.

NOTE

- OE message will blink when the drain pump filter is clogged with dirt. Clean the drain pump filter.

Cleaning the door seal

Clean the door seal once a month to prevent build-up of dirt in the door seal.

1 Wear rubber gloves and protective goggles.
2 Dilute 3/4 cup (177 ml) of liquid chlorine bleach in 1 gallon (3.8 L) of water.
3 Soak a sponge or a soft cloth in this diluted solution and wipe down all around the door seal.
4 Wipe any moisture with a dry towel or cloth after cleaning.
5 Leave the door open to allow the door seal to dry completely.

CAUTION

- Cleaning the door seal with an undiluted solution may cause malfunction of the door seal and washing machine parts.

TROUBLESHOOTING

Checking error messages

If the following message appears on the display, check the following and take the appropriate corrective action.

Message	Possible Causes Solutions
	Item of clothing has gathered on one side of the tub.There are not enough items in the machine.Have your items gathered in one area, or is the load too small?Did you wash a stuffed animal, a mat, or knitwear?Did you wash two different blankets together?	· Rearrange items to help balance the load.· Stuffed animals or mats can become unbalanced during spinning and the washing machine may fail to drain. Rearrange the knitwear to help balance the load and drain it again.· Put one blanket in at a time.
	Water is not supplied or the water pressure is lowIs the faucet turned off?Is the water supply stopped or the faucet frozen?Is the water pressure low or is an inlet filter clogged?Is the water line properly connected with the cold water inlet?Is the water line pinched or bent?	· Turn on the faucets.If a faucet is frozen, thaw it with warm water.If the inlet filter is clogged, clean it. (see page 32)Connect the water line properly with the cold water inlet. (see page 14)Check that the water lines are not pinched or bent.Take extra care that water lines are not twisted or pinched by other objects.
	Water line leaks in connectionAre the water lines connected with the faucets properly?	· Connect the water lines properly with the faucets. (see page 14)
	The tub does not rotateIs the door secured?	· Close and secure the door. If the message keeps appearing, unplug the power and contact your nearest LG service center.
	The washing machine drains slowly or not at allIs the drain hose installed over 3 1/4 feet (1 m) beyond the end of the elbow bracket?Is the drain hose pinched or clogged inside?Is the drain hose frozen?Is the drain hose clogged with foreign objects?	· Lower the drain hose within 3 feet below the end of the elbow bracket.Place the drain hose on a smooth surface to prevent bending.If the drain hoses are frozen, thaw them in warm water.Open the drain pump plug cap and remove the dirt.
	A power failure has occurred.	· Press Ⓞ to turn off the washing machine and press it again to turn it on.
	Control Error.	· Unplug the power cord and contact your nearest LG service center.
	The water supply does not stopDo the water supply and the drain keep repeating in turn?	· Unplug the power cord and contact your nearest LG service center
	The water level is not controlledIs the water level too low or high compared with the size of the load?	· The water level sensor is not working correctly.Unplug the power cord and contact your nearest LG service center.
	The tub does not rotateIs the washing machine overloaded?	· Rearrange the load size and restart the washing machine.If the load size is big, the tub may not rotate due to an overheated motor. Allow the washing machine to stand for a while and restart the cycle. Unplug the power cord and contact your nearest LG service center if the same error message appears.
	· To clean up the tub, please run the TUB CLEAN cycle.	· Please empty the tub and insert bleach into the detergent dispenser and select the TUB CLEAN cycle.If you want to skip the TUB CLEAN, turn the CYCLE SELECTOR KNOB or push option buttons to select desired cycle. In this case, you would see the message again until few washing times and it would be disappear until next point of time to clean the tub.

Before calling for service

Check the following before calling for service.

Problem Possible	Causes Solutions
Clicking sound	Do you hear a sound when you close or lock and unlock the door?	This sound is normal and occurs when the door is closed, locked or unlocked.
Spraying or hissing sound	Is water spraying in the tub?	This sound is normal as water is spraying or circulating during the cycle.
Buzzing or gushing sound	Is the washing machine draining water?	This sound is normal as the drain pump drains water from the washing machine after the cycle.
Splashing sound	Is the washing machine washing a load of laundry?	This sound is normal as the load is moving up and down during the wash and rinse cycles.
Rattling and clanking noise	Are there any foreign objects such as keys, coins, or safety pins in the tub or drain filter?	Check if there are any foreign objects in the tub and drain the filter after stopping the cycle.Unplug the power cord and contact your nearest LG service center if the noise persists.
Thumping sound	Is the washing machine overloaded?Is the load out of balance?	This sound is normal and occurs when the load is out of balance. Stop the cycle and rearrange the load for balancing.
Vibrating noise	Are the shipping bolts removed?Is the load evenly distributed in the tub?Is the washing machine level balanced?Is the washing machine installed on a solid and smooth surface?	See page 13, Unpacking and removing shipping bolts to remove the shipping bolts.Stop the cycle and rearrange the load for balancing.See page 16, Leveling the washing machine to level the washing machine.Check if the floor is solid and level.
Water leaking around washer	Does water leak from a faucet or a water line?Is a drain pipe or a drain hose clogged?	Check the faucets or water lines.- If the water lines are loosely connected, see page 14, Connecting water lines to connect them properly.Unclog the drain pipe or drain hose.Contact a plumber if necessary.
Excessive suds or failure to rinse	Did you use more than the recommended amount of detergent?Is the soil level higher than the size of the load?	Use the recommended amount of detergent for load.If the contamination level is low, reduce the detergent quantity to less than the recommended level.
Staining	Did you add detergent directly to the tub?Did you remove the load immediately after it finished?Did you sort and wash the clothes by color or soil?	Make sure to load detergent into the detergent dispenser drawer.Remove the load immediately after it finishes.Sort and separate dark colors from light or white ones, and heavily soiled items from lightly soiled ones. See page 19, Sorting laundry for details
Wrinkling	Did you remove the load immediately after it finished?Did you overload the tub?Did you reverse the hot and cold water inlets?	Remove the load immediately after it finishes.Do not overload the tub.Hot water rinse can cause garments to wrinkle. Check the inlet hose connections.
Power is not turned on	Is the power cord plugged in properly?Has a house fuse blown, a circuit breaker tripped, or a power outage occurred?	Make sure that the plug is secured in a grounded 3-prong, 120 V (60 Hz) outlet.Reset the circuit breaker or replace the fuse. Do not increase the fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
The door does not open when the cycle pauses or finishes	Is the temperature in the tub too high?Is the water level in washer high?	The washing machine has a safety lock built into the door to prevent burning.Leave the door closed and wait until the door lock icon disappears from the display.Allow the washer to complete the programmed cycle, or Press the SPIN button.
The wash cycle time is longer than usual	Is the washing machine overloaded? Are other options added to the wash cycle?	This is normal. The washing machine automatically adjusts the cycle time for the amount of laundry, water pressure, water temperature, and other operating conditions.
It is musty or moldy in the tub	Has the incorrect detergent been used?Did you clean the tub periodically?	See page 30, clean the inside and outside of the washing machine periodically.

SPECIFICATIONS

Model WD1873RDS
Description Front loading washing machine
Electrical requirements 120 V~, 60 Hz
Dimensions 686 mm(W) x 767 mm(D) x 982 mm(H) / 1295 mm (D, door open)
Net weight 94 kg(207lbs)
Wash capacity 18,0 kg (40 lbs)
Max. Watt Washer : 1200 W
Max. spin speed 770 rpm max
Max. water pressure 100 – 1000 kPa (1.0-10.0 kgf/cm 2)

USING SMARTDIAGNOSIS™

• Only use this feature when instructed to do so by the call center.
  The transmission sounds similar to a fax machine, and so has no meaning except to the call center.
• SmartDiagnosis™ cannot be activated if the washer does not power up.
  If this happens, then troubleshooting must be done without SmartDiagnosis™.

If you experience problems with your washer, call to Customer information center.

Follow the call center agent's instructions, and do the following steps when requested:

1. Press the POWER button to turn on the washer. Do not press any other buttons or turn the cycle selector knob.

2. When instructed to do so by the call center, place the mouthpiece of your phone very close to the POWER button.

SMART DIAGNOSSE™

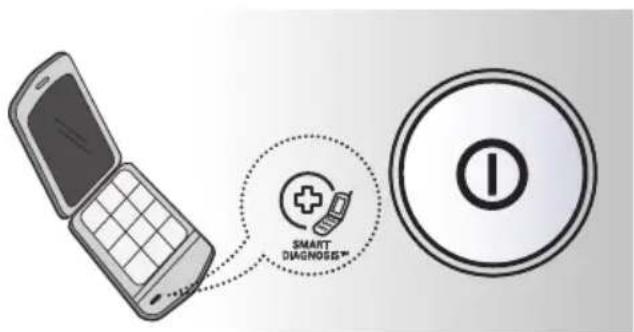

1. Press and hold the button for three seconds, while holding the phone mouthpiece to the icon or POWER button.
2. Keep the phone in place until the tone transmission has finished.

This takes about 6 seconds, and the display will count down the time.

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

• Pressing the POWER button during the transmission will shut off the SmartDiagnosis™.

• Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis at the call center.

"Smart Diagnosis is a troubleshooting feature designed to assist, notreplace, the traditional method of troubleshooting through service calls.

The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located.

Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue."

MANUAL DE PROPIETARIO

LAVADORA

22 1/4" (57 cm) 293/4" (75.6 cm) 51" (129.5 cm) 4" (10 cm) (2.5 cm) 1" 27" 68.6 cm 1" (2.5 cm)

NOTA

29 3/4" (75.6 cm) 4" (10 cm) 77 ½" (196.8 cm) 1" (2.5 cm) 27" (68.6 cm) 1" (2.5 cm)

NOTA

Diagram of a mechanical device with an upward arrow and curved arrow indicating motion (no text or symbols)

Para levantar

Line drawing of an electrical outlet with a plug and cable (no text or symbols)

PRECAUCIÓN

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a washing machine with labeled parts 1 and 2, indicating a process or operation.

Diagram showing two connected cables with numbered labels and directional arrows indicating movement or connection points.

Diagram of a car interior air intake tray with numbered components and directional arrows indicating flow or movement.

Diagram of car interior compartments with numbered labels pointing to different compartments

Diagram of a door handle mechanism with an inset showing a mechanical component (no text or symbols)

ADVERTENCIA

Diagram showing two connected electrical connectors with labeled parts and directional arrows indicating connection points.

Diagram showing two cables connected to a panel with labeled ports and directional arrows indicating movement or connection.

ADVERTENCIA

Simple line drawing of a door handle with a circular component and arrow indicating direction (no text or symbols)

Simple line drawing of a washing machine with a bulb and pipe, no text or symbols present

Simple line drawing of a kitchen scene with a bowl, a pipe, and a stove (no text or symbols)

Illustration showing two different electrical switch configurations: one with a motor handle and another with a power plug (no text or symbols)

Simple line drawing of a mechanical device with a circular component and mounting base (no text or symbols)

Simple line drawing of a mechanical device with rotating components and a handle (no text or symbols)
