FH2A8HDN2 - Washing machine LG - Free user manual and instructions

Product Type	Front-load washing machine
Brand	LG
Model	FH2A8HDN2
Capacity	8 kg
Maximum Spin Speed	1400 rpm
Energy Class	A+++
Water Consumption per Cycle	Approx. 50 L
Annual Energy Consumption	Approx. 150 kWh
Dimensions (H x W x D)	85 x 60 x 55 cm
Net Weight	67 kg
Noise Level Washing/Spinning	54 dB / 73 dB
Display Type	LED with touch controls
Motor Type	Inverter Direct Drive
Drum Material	Stainless steel
Number of Programs	14
Special Functions	Steam, Quick Wash, Delay Start, Child Lock, Tub Clean
Connectivity	Wi-Fi (LG SmartThinQ)
Safety Features	Child lock, overflow protection, unbalanced load detection
Maintenance	Clean tub cycle, drain filter cleaning indicator
Door Opening	Front loading, reversible door
Installation Type	Freestanding
Warranty	2 years parts and labor (typical)

Frequently Asked Questions - FH2A8HDN2 LG

How do I install the LG FH2A8HDN2 washing machine?

Ensure the machine is on a level, solid surface. Connect the inlet hose to a water supply with a pressure of 0.1-1 MPa. Insert the drain hose into a standpipe or sink. Plug into a grounded outlet. Remove the transit bolts before first use.

What does the 'OE' error code mean?

The OE error indicates a drainage problem. Check if the drain hose is kinked or clogged. Clean the drain filter at the bottom front panel. If the issue persists, contact LG support.

How do I clean the drum on my LG washing machine?

Use the Tub Clean cycle. Run it empty with a drum cleaner or a cup of bleach once a month. Also wipe the door gasket and leave the door open to prevent mold.

Can I use a surge protector for my washing machine?

Yes, but LG recommends plugging directly into a grounded outlet to avoid electrical issues. Use a surge protector rated for high current (10A+) if needed.

How do I enable the child lock feature?

Press and hold the Child Lock button (icon of a lock) for 3 seconds. The indicator lights up. To disable, press and hold again. This prevents accidental button presses during cycle.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm for cotton programs. You can adjust it manually from no spin to 1400 depending on fabric type.

How much detergent should I use?

Use about 25-40 ml of liquid detergent for an 8 kg load, or follow detergent instructions. For HE machines, use high-efficiency detergent to avoid oversudsing.

Why does my washing machine take so long?

LG machines use sensor technology to adjust cycle time based on load weight and soil level. Normal cycles can take 1-3 hours. Quick cycles (30 min) are available for small loads.

How do I reset the filter cleaning indicator?

After cleaning the drain filter, press and hold the Pause/Start button for 3 seconds. The indicator should turn off. Refer to manual for exact procedure.

Is the door reversible?

Yes, the FH2A8HDN2 has a reversible door. To switch, remove hinge screws, rotate door 180°, and reattach on the opposite side. Use a screwdriver and follow instructions in the manual.

USER MANUAL FH2A8HDN2 LG

RELEASING THIS DRAWING WITHOUT PERMISSION LG Electronics SHOULD BE ACCUSED ACCORDING TO THE LAWS AND COMPANY RULES.

SEC.WORK				PRINTING DEGREE	MATERIAL AND PRINTING DESCRIPTION	LG MODEL	SUFFIX	LANGUAGE	PAGE	REMARK
	BRAND	MODEL	P/NO.
01	LG	FH2A8HDNW2	MFL67794633	1	OFFSET WHITE 80 g	F H/I×A8HD(N)(W)(0~B)	A**PDAL	ENGLISHHUNGARIANBULGARIANCROATIANSERBIANALBANIANMACLDON ANROMANIAN	340	Prime ClassicNon SteamWashing Machine

<< NOTES >>

1. Material, printing and exterior size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE) and details should comply with LG standard of LG(63)-A-5501-34

	DR COMPLETED
PDF
ILLUSTRATOR

△	ACO TO THE SYSTEM MANUAL	130.6200025	12.62 2016	POT MARGIN	Δ/°
△
△
△
					APPROVED

PREPAREDATREF. NO REV NO. REVISION DESCRIPTION

TRIG.		UNIT SCALE/m		N/S	TITLE	MANUAL,OWNER'S
MODELING		REVIEWED	RESIGNED	APPROVED
	A/Wasstroryx12.02.2016	M.Gratek Sutorbowski 12.02.2016	N.Km12.02.2016	12.02.2016		DRUM-EXPORT	1/1
LGEWRLG Electronics Inc.				RELATED DWG.	DWG.No.	MFL67794633
				----

OWNER'S MANUAL

WASHING MACHINE

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

F H/1 2A8HD(N)(W)(0\~9)

F H/1 0A8HD(N)(W)(0\~9)

MFL67794633

ver. 05022016.00

TABLE OF CONTENTS

This manual is produced for a group of products and may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS ....03

Important Safety Instructions....05

INSTALLATION....08

Specifications 08

Accessories 08

Installation Place Requirements....09

Unpacking and Removing Shipping Bolts 10

Using Non-Skid Pads (Optional).... 11

Wooden Floors (Suspended Floors).... 11

Leveling the Washing Machine....12

Connecting Inlet Hose 12

Installation of Drain Hose 15

Electrical Connections (In the UK Only)....15

OPERATION ....16

Using the Washing Machine....16

Sorting laundry 17

Adding Cleaning Products....18

Control Panel....20

Programme Table 21

Option Cycle 25

Using Smart Function (Optional) 28

MAINTENANCE....29

Cleaning your Washing Machine....29

Cleaning the Water Inlet Filter 29

Cleaning the Drain Pump Filter 30

Cleaning the Dispenser Drawer....31

Tub Clean (Optional) 31

Caution on Freezing During Winter 32

Using the Smart Diagnosis™ Function ....34

TROUBLESHOOTING....35

Diagnosing Problems ....35

Error Messages....37

WARRANTY 39

OPERATING DATA 42

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the product.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to the indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.
WARNING - This indicates that the failure to follow the instructions can cause serious injury or death.
CAUTION - This indicates that the failure to follow the instructions can cause the minor injury or damage the product.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

CHILDREN IN THE HOUSEHOLD

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

GROUNDING REQUIREMENTS

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death.

• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

DISPOSAL OF YOUR OLD APPLIANCE

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Installation

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. It can cause electric shock or injury.
• This appliance is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in injury.
• Store and install this appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to do so can result in leakage.
• Tighten the drain hose to avoid separation. Splashing of water may cause electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Operation

• Do not use a sharp object like drill or pin to press or separate an operation unit. It can cause the electric shock or injury.
• Only an authorized repair person from LG Electronics service centre should disassemble, repair, or modify the product. Improper service may cause injury, electric shock or fire.
• Do not spray the water inside or outside the product to clean it. Water can damage the insulation, causing electric shock or fire.
• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc. Improper use can cause fire or explosion.
• Do not put living animals, such as pets into the product. It may cause injury.

• Do not leave this appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.

• Never reach into this appliance while it is operating. Wait until the drum has completely stopped. Failure to do so may result in injury.

• Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.). Improper use can cause fire or explosion.
• In case of flood, stop using the product and contact the LG Electronics service centre. Contact with water can cause electric shock.
• Do not push down the door excessively, when the appliance door is open. Doing so may topple over the appliance and it can cause the injury.
• Use new hose-sets supplied with the appliance. Old hose-sets should not be reused. Water leakage may cause property damage.
• Do not touch the door during steam cycles, drying or high-temperature washing. The door surface can become very hot. Allow the door lock to release before opening the door. Failure to do so may result in injury.
• Do not use inflammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) around the product. It may cause explosion or fire.

- If the drain hose or inlet hose is frozen during winter, use it only after thawing. Freezing may cause fire or electric shock, and frozen parts may cause product malfunction or reduction in product life span.

- Keep all washing detergents, softener and bleach away from children. These products contain poisonous materials.

- Do not plug multiple products into multiple socket-outlets or extension cords. This can cause fire.

- Remove the power plug when you clean the product. Not removing the plug may result in electric shock or injury.

- Do not touch the power plug with wet hands. It can cause the electric shock or injury.

- When pulling out the power plug from an outlet, hold the power plug, not the cable. Damage of the cable can cause the electric shock or injury.

- Do not bend the power cable excessively or place a heavy object on top of it. Damage of the power cable can cause electric shock or fire.

Disposal

• Before discarding an old appliance, unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse.
• Dispose of the packaging material (such as vinyl and styrofoam) away from children. The packaging material can suffocate a child.
• Remove the door to the washing compartment before this appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside. Failure to do so can result in serious injury to persons or death.

INSTALLATION

Specifications

① Transit bolts
2 Power plug
③ Drawer
4 Control panel
5 Drum
6 Door
⑦ Drain hose
8 Drain plug
9 Drain pump filter
10 Cover cap (Location may vary depending on products)
11 Adjustable feet

• Power supply : 220–240 V\~, 50 Hz
- Size : 600 mm (W) X 480 mm (D) X 850 mm (H)
• Product weight : 61 kg
- Wash Capacity : 7 kg
- Permissible water pressure : 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)
- Appearance and specifications may vary without notice to improve the quality of the product.

Accessories

Inlet hose (1EA) (Option: Hot (1EA))

Spanner Caps for covering shipping bolt holes

Anti-slip sheets (2EA) (Optional)

Installation Place Requirements Location

Level floor : Allowable slope under the entire washing machine is 1°.

Power outlet : Must be within 1.5 meters of either side of the location of the washing machine.

- Do not overload the outlet with more than one appliance.

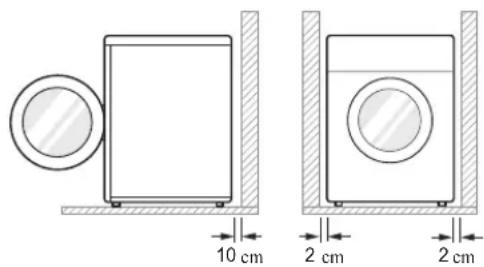

Additional Clearance : For the wall, 10 cm: rear /2 cm: right & left side

• Do not place or store laundry products on top of the washing machine at any time.
  • These products may damage the finish or controls.

Positioning

• Install the washing machine on a flat hard floor.
- Make sure that air circulation around the washing machine is not impeded by carpets, rugs, etc.
- Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under the washing machine.
- If it is impossible to avoid positioning the washing machine next to a gas cooker or coal burning insulation (85x60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.

• Do not install your washing machine in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
• Please ensure that when the washing machine is installed, it is easily accessible for an engineer in the event of a breakdown.
• With the washing machine installed, adjust all four feet using the transit bolt spanner provided to ensure the appliance is stable, and a clearance of approximately 20 mm is left between the top of the washing machine and the underside of any work-top.
• This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

Electrical Connection

• Do not use an extension cord or double adapter.
• Always unplug the washing machine and turn off the water supply after use.
• Connect the washing machine to an earthed socket in accordance with current wiring regulations.
• The washing machine must be positioned so that the plug is easily accessible.
• Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service centre.
• If the washing machine is delivered in winter and temperatures are below freezing, place the washing machine at room temperature for a few hours before putting it into operation.

Unpacking and Removing Shipping Bolts

1 Lift the washing machine off the foam base.

• After removing the carton and shipping material, lift the washing machine off the foam base. Make sure the tub support comes off with the base and is not stuck to the bottom of the washing machine.
• If you must lay the washing machine down to remove the carton base, always protect the side of the washing machine and lay it carefully on its side. DO NOT lay the washing machine on its front or back.

2 Remove the bolt assemblies.

- Starting with the bottom two shipping bolts, use the spanner (included) to fully loosen all shipping bolts by turning them counterclockwise. Remove the bolt assemblies by wiggling them slightly while pulling them out.

3 Install the hole caps.

- Locate the hole caps included in the accessory pack and install them in the shipping bolt holes.

NOTE

• Save the bolt assemblies for future use. To prevent damage to internal components, DO NOT transport the washing machine without reinstalling the shipping bolts.
• Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washing machine. The cord is secured to the back of the washing machine with a shipping bolt to help prevent operation with shipping bolts in place.

Using Non-Skid Pads (Optional)

If you install the washing machine on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. If this occurs, install the non-skid pads under the leveling feet and adjust the level.

1 Clean the floor to attach the non-skid pads.

- Use a dry rag to remove and clean foreign objects and moisture. If moisture remains, the non-skid pads may slip.

2 Adjust the level after placing the washing machine in the installation area.

3 Place the adhesive side of the non-skid pad on the floor.

- It is most effective to install the non-skid pads under the front legs. If it is difficult to place the pads under the front legs, place them under the back legs.

4 Ensure the washing machine is level.

- Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock. If the washing machine rocks, level the washing machine again.

Wooden Floors (Suspended Floors)

- Wooden floors are particularly susceptible to vibration. - To prevent vibration we recommend you place rubber cups at least 15 mm thick of the each foot of the washing machine, secured to at least two floor beams with screws.

Rubber Cup

- If possible install the washing machine in one of the corners of the room, where the floor is more stable.

• Fit the rubber cups to reduce vibration.

- You can obtain rubber cups (p/no.4620ER4002B) from the LG Service Centre.

NOTE

• Proper placement and leveling of the washing machine will ensure long, regular, and reliable operation.
• The washing machine must be 100% horizontal and stand firmly in position.
• It must not 'Seesaw' across corners under the load.
• The installation surface must be clean, free from floor wax and other lubricant coatings.
• Do not let the feet of the washing machine get wet. Failure to do so may cause vibration or noise.

Leveling the Washing Machine

If the floor is uneven, turn the adjustable feet as required (Do not insert pieces of wood etc. under the feet). Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level (Use a spirit level).

- Once the washing machine is level, tighten the lock nuts up towards the base of the washing machine. All lock nuts must be tightened.

- Diagonal Check

When pushing down the edges of the washing machine top plate diagonally, the washing machine should not move up and down at all (Check both directions). If the washing machine rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

• Timber or suspended type flooring may contribute to excessive vibration and unbalance.
• If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Connecting Inlet Hose

• Water supply pressure must be between 0.1 MPa and 1.0 MPa (1.0–10.0 kgf/cm²).
• Do not strip or crossthread when connecting inlet hose to the valve.
• If the water supply pressure is more than 1.0 MPa, a decompression device should be installed.
• Periodically check the condition of the hose and replace the hose if necessary.

Checking Rubber Seal Inlet Hose

Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the connection to taps is sufficiently tight.

Connecting Hose to Water Tap

Connecting screw-type hose to tap with thread

Screw the hose connector onto the water supply tap.

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Connecting screw-type hose to tap without thread

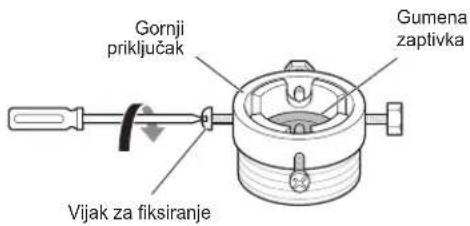

1 Loose the four fixing screws.

2 Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the four fixing screws.

Line drawing of a hand holding a faucet with a valve, no text or symbols present

3 Push the inlet hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap and then tighten it by screwing it to the right.

Connecting one touch type hose to tap without thread

1 Unscrew the adapter ring plate and loose the four fixing screws.

2 Remove the guide plate if the tap is too large to fit the adapter.

3 Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the adapter ring plate and the four fixing screws.

Illustration of a hand valve with a wrench and rotating arrow (no text or symbols)

4 Pull the connector latch plate down, push the inlet hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

NOTE

- After connecting the inlet hose to the water tap, turn on the water tap to flush out foreign substances (dirt, sand, sawdust, etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

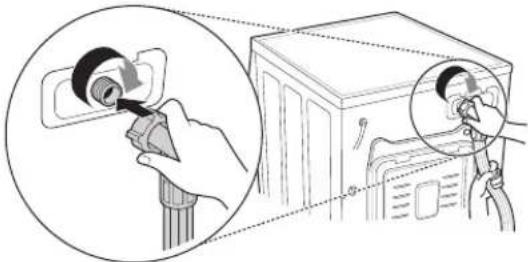

Connecting Hose to Washing Machine

Make sure that there are no kinks in the hose and that they are not crushed.

When your washing machine has two valves.

- The Inlet hose with the red connector is for the hot water tap.

Illustration showing a hand inserting a device into a device with an inset close-up of the device's tip (no text or symbols present)

NOTE

- After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the guide plate before inserting the tap into the adaptor.

Using the horizontal tap

Horizontal tap

Extension tap

Square tap

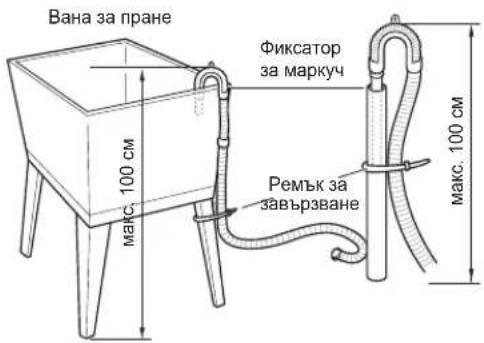

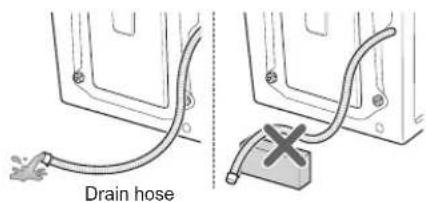

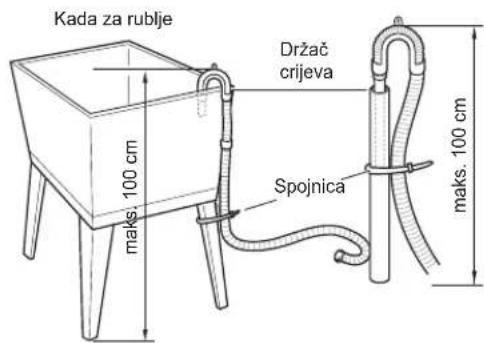

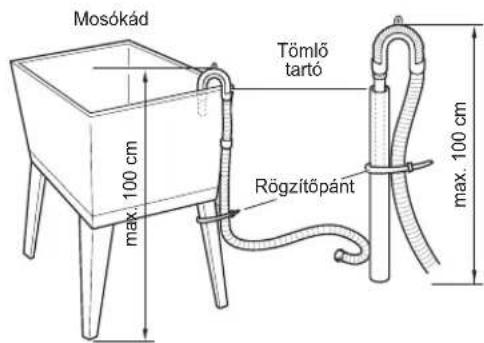

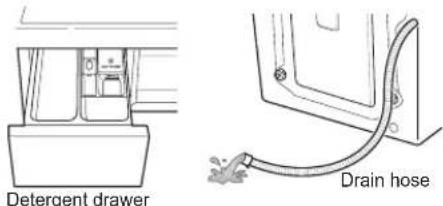

Installation of Drain Hose

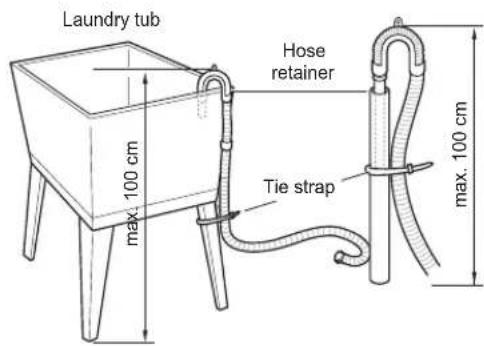

• The drain hose should not be placed higher than 100 cm above the floor. Water in the washing machine may not drain or may drain slowly.
• Securing the drain hose correctly will protect the floor from damage due to water leakage.
• If the drain hose is too long, do not force it back into the washing machine. This will cause abnormal noise.

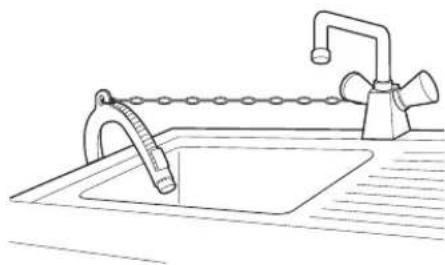

• When installing the drain hose to a sink, secure it tightly with string.
• Securing the drain hose correctly will protect the floor from damage due to water leakage.

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Electrical Connections (In the UK Only)

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

This appliance must be earthed.

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ( ± ) or coloured Green or Green and Yellow.

The blue wire must be connected to the terminal which is marked with the letter N or coloured Black.

The brown wire must be connected to the terminal which is marked with the letter L or coloured Red.

If a 13 amp (BS 1363) plug is used, fit a 13 amp BS 1362 fuse.

OPERATION

Using the Washing Machine

Before the first wash, select a cycle (Cotton 60°C, add a half load of detergent), allow the washing machine to wash without clothing. This will remove residue and water from the drum that may have been left during manufacturing.

1 Sort laundry and load items.

- Sort laundry by fabric type, soil level, colour and load size as needed. Open the door and load items into the washing machine.

2 Add cleaning products and/or detergent and softener.

- Add the proper amount of detergent to the detergent dispenser drawer. If desired, add bleach or fabric softener to the appropriate areas of the dispenser.

3 Turn on the washing machine.

- Press the Power button to turn ON the washing machine.

Two hand icons pointing at circular buttons with a 'I' and 'O' button (no text or symbols)

4 Choose the desired washing cycle.

- Press the Cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

Diagram of a circular mechanical component with two curved arrows indicating rotational motion (no text or symbols)

5 Begin cycle.

- Press the Start/Pause button to begin the cycle. The washing machine will agitate briefly without water to measure the weight of the load. If the Start/Pause button is not pressed within 5 minutes, the washing machine will shut off and all settings will be lost.

6 End of cycle.

- When the cycle is finished, a melody will sound. Immediately remove your clothing from the washing machine to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

Sorting laundry

1 Look for a care label on your clothes.

• This will tell you about the fabric content of your garment and how it should be washed.
• Symbols on the care labels.

Wash temperature

Normal machine wash

Permanent press

Delicate

Hand wash

Do not wash

2 Sorting laundry.

• To get the best results, sort clothes into loads that can be washed with the same wash cycle.
• Different fabrics need to be washed at varying temperatures and spin speeds.

• Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

• Soil (Heavy, Normal, Light)
  Separate clothes according to amount of soil.

• Colour (White, Lights, Darks)

Separate white fabrics from coloured fabrics.

– Lint (Lint producers, Collectors)

Wash lint producers and lint collectors separately.

3 Caring before loading.

• Combine large and small items in a load. Load large items first.
• Large items should not be more than half the total wash load. Do not wash single items. This may cause an unbalanced load. Add one or two similar items.
• Check all pockets to make sure that they are empty. Items such as nails, hair clips, matches, pens, coins and keys can damage both your washing machine and your clothes.

• Close zippers, hooks and strings to make sure that these items don't snag on other clothes.
• Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.
• Check the folds of the flexible gasket (gray) and remove any small articles.
• Check inside the drum and remove any items from a previous wash.

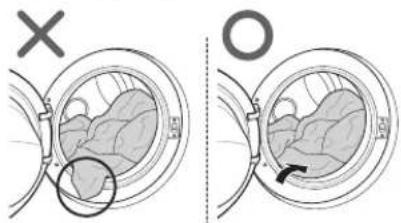

- Remove any clothing or items from the flexible gasket to prevent clothing and gasket damage.

Medical illustration showing a hand operating a device to interact with a patient's ear (no text or symbols present)

Adding Cleaning Products

Detergent Dosage

• Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.
• If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.
• If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer.
• You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.
• Do not use liquid detergent if you are using Time delay, or if you have selected Pre Wash, as the liquid may harden.
• If too many suds occur, reduce the detergent amount.
• Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.
• Refer to the label of the clothes, before choosing the detergent and water temperature:
• When using the washing machine, use designated detergent for each type of clothing only:

– General powdered detergents for all types of fabric
– Powdered detergents for delicate fabric
– Liquid detergents for all types of fabric or designated detergents only for wool

• For better washing performance and whitening, use detergent with the general powdered bleach.
• Detergent is flushed from the dispenser at the beginning of the cycle.

NOTE

• Do not let the detergent harden.
  Doing so may lead to blockages, poor rinse performance or odour.
• Full load : According to manufacturer's recommendation.
  • Part load : 3/4 of the normal amount
  • Minimum load : 1/2 of full load

Adding Detergent and Fabric Softener

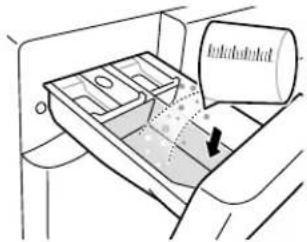

Adding detergent

• Main wash only → 📊
• Pre wash+Main wash → ∪ · ∪

NOTE

• Too much detergent, bleach or softener may cause an overflow.
• Be sure to use the appropriate amount of detergent.

Adding fabric softener

- Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which may stain clothes. Close the dispenser drawer slowly.

• Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may harden).
• Softener will automatically be added during the last rinse cycle.
• Do not open the drawer when water is being supplied.
• Solvents (benzene, etc) should not be used.

NOTE

- Do not pour fabric softener directly on the clothes.

Adding water softener

• A water softener, such as Anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to the amount specified on the packaging. First add detergent and then the water softener.
• Use the quantity of detergent required for soft water.

Line drawing of a hand placing a component into a container with a control panel (no text or symbols)

Using tablet

1 Open the door and put tablets into the drum.

Illustration of a washing machine with a lid removed and a magnified inset showing the inner circle, alongside two smaller cylindrical objects (no text or symbols)

2 Load the laundry into the drum and close the door.

Illustration of a washing machine with a close-up of its lid and a separate T-shirt, showing the next appearance (no text or symbols)

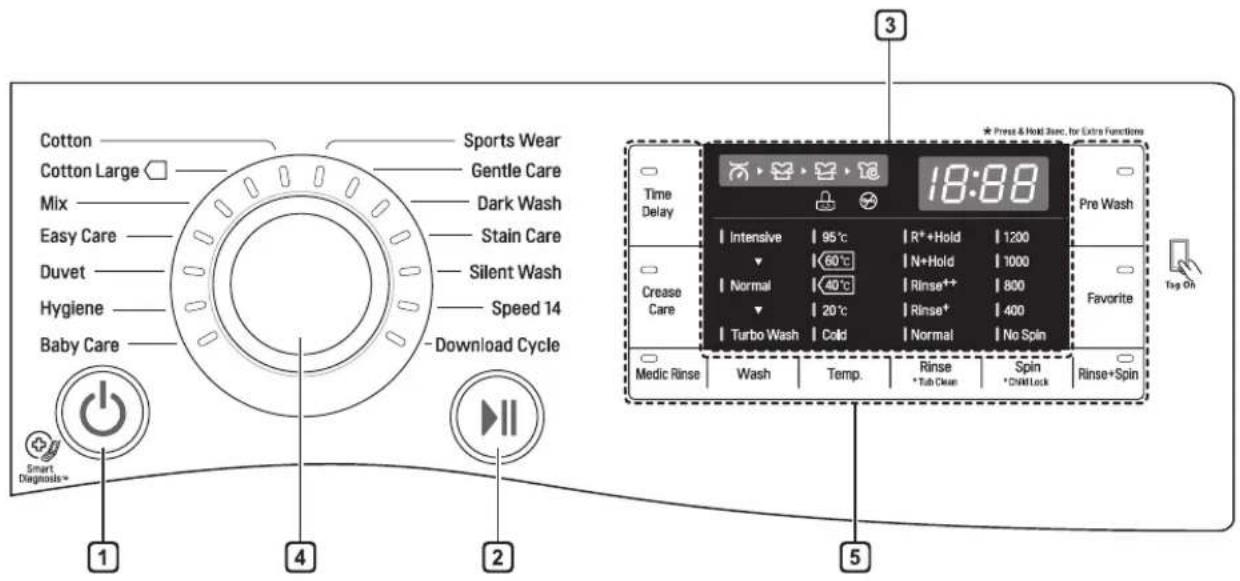

Control Panel

1 Power button

• Press the Power button to turn the washing machine on.
• To cancel the Time Delay function, the Power button should be pressed.

2 Start/Pause button

• This Start/Pause button is used to start the wash cycle or pause the wash cycle.
• If a temporary stop of the wash cycle is needed, press the Start/Pause button.

3 Display

• The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.
• The display shows estimate time remaining. While the size of the load is being calculated automatically, blinking or 'Detecting' appears.

4 Programme Dial

• Programmes are available according to laundry type.
• Lamp will light up to indicate the selected programme.

5 Options

• This allows you to select an additional cycle and will light when selected.
• Use these buttons to select the desired cycle options for the selected cycle.

Programme Table

Washing Programme

Programme Description Fabric Type			Proper Temp.	Maximum Load
Cotton	Provides better performance by combining various drum motions.	Coloured fast garments (shirts, nightdresses, pajamas, etc) and normally soiled cotton load (underwear).	40°C(Cold to 95°C)	Rating
Cotton Large	Provides optimised washing performance for large amount of laundry with less energy consumption.		60°C(Cold to 60°C)
Easy Care	This cycle is suitable for casual shirts that do not need ironing after washing.	polyamide, acrylic, polyester	40°C(Cold to 60°C)	4.0 kgMix
	Enables various fabrics to be washed simultaneously.	Various kind of fabrics except special garments (silk/delicate, sports wear, dark clothes, wool, duvet/curtains).	40°C(Cold to 40°C)
Hygiene Washes laundry in a hot cycle		cotton, underwear, pillow covers, bed sheets, baby wear	60°C
Silent Wash	Provides less noise and vibration and saves money by using overnight electricity.	Color fast garments (shirts, nightdresses, pajamas, etc) and lightly soiled white cotton (underwear).	40°C(Cold to 60°C)	4.5 kg
Baby Care	Removes solid and protein stains, provides better rinse performance.	Lightly soiled baby wear.	60°C(95°C)
Duvet	This cycle is for large items such as bed covers, pillows, sofa covers, etc.	Cotton bedding except special garments (delicates, wool, silk, etc.) with filling: duvets, pillows, blankets, sofa covers with light filling	40°C(Cold to 40°C)	1 single size
Sports Wear	This cycle is suitable for sports wear such as jogging clothes and running wear.	coolmax, gore-tex, fleece and sympatex		2.0 kg
Dark Wash	If it's possible for clothes to decolourate, please use this cycle. The cycle prevent decolorization. (Please use detergent for colored fabrics.)	Dark garments made from cotton or mixed fabrics.	20°C(Cold to 40°C)
Speed 14	This cycle provides fast washing time for small loads and lightly soiled clothes.	Coloured laundry which is lightly soiled fast.CAUTION: Use less than 20g of detergent (for 2.0kg load) otherwise detergent may remain on the clothes.	20°C(20°C to 40°C)	2.0 kg
Gentle Care	This cycle is for hand and machine washable delicate clothes such as washable wool, lingerie, dresses etc.(Use detergent for machine washable woolens).	wool, hand washable clothes,delicate, easily damaged laundry	20°C(Cold to 20°C)	1.5 kg
Stain Care	Wash off several kinds of stain such as wine, juice, dirt, etc. (Water temperature is increased step by step for washing various stains.)	cotton blended fabrics, NO delicate clothes	40°C(40°C to 60°C)	3.0 kg
Download Cycle	For downloadable cycles. If you did not download any cycles, the default is Rinse+Spin.

• Water Temperature: Select the appropriate water temperature for chosen wash cycle. Always follow garment manufacturer's care label or instructions when washing.
• Set program at "Cotton Large 40°C (Half Load)", "Cotton Large 60°C (Half Load)", "Cotton Large 60°C (Full Load)" option for test in conformity with EN60456 and Regulation 1015/2010.

- Standard 60°C cotton program : Cotton Large □ + 60°C (Full Load)

- Standard 60°C cotton program : Cotton Large □ + 60°C (Half Load)

- Standard 40°C cotton program : Cotton Large □ + 40°C (Half Load)

(They are suitable to clean normally soiled cotton laundry.)

(They are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry.)

* Actual water temperature may differ from the declared cycle temperature.

- The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling utilized detergent, fluctuations in the main electricity supply and chosen additional options.

NOTE

• Neutral detergent is recommended.

Extra Options

Programme	Turbo Wash	Pre Wash	Rinse	Intensive Spin		Medic Rinse	Crease Care	Favorite	Time Delay
Cotton
Cotton Large
Easy Care
Mix
Hygiene
Silent Wash
Baby Care		^**				^**
Duvet
Sports Wear
Dark Wash
Speed 14	^*
Gentle Care
Stain Care		^*

* : This option is automatically included in the cycle and can not be deleted.
**: This option is automatically included in the cycle and can be deleted.

Operating Data

Programme 1200 RPM		1000 RPM
Cotton	1200	1000
Cotton Large	1200	1000
Easy Care	1000	900
Mix	1200	1000
Hygiene	1200	1000
Silent Wash	1000	900
Baby Care	1000	900
Duvet	1000	900
Sports Wear	800	800
Dark Wash	1200	1000
Speed 14	800	800
Gentle Care	800	800
Stain Care	1200	1000

NOTE

• Information of main washing programmes at half load.

Program Time in minutes Remaining moisture content Water in Liter Energy in kWh
Cotton (40°C) 96 53 % 60 0.55			53 %
Cotton Large (60°C) 240 53 % 32 0.52			53 %

Option Cycle

Time Delay

You can set a time delay so that the washing machine will start automatically and finish after a specified time interval.

1 Press the Power button.
2 Select a washing programme.
3 Press the Time Delay button and set time required.
4 Press the Start/Pause button.

NOTE

- The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

Crease Care

If you want to prevent creasing, select Crease Care option.

1 Press the Power button.
2 Select a cycle.
3 Press the Crease Care button.
4 Press the Start/Pause button.

Pre Wash

If the laundry is heavily soiled, the Pre Wash cycle is recommended.

1 Press the Power button.
2 Select a washing programme.
3 Press the Pre Wash button.
4 Press the Start/Pause button.

Favorite

Favorite programme allows you to store a customized wash cycle for future use.

1 Press the Power button.
2 Select a washing programme.
3 Select the cycle (Washing method, number of rinses, spin speed, water temperature etc.).
4 Press and hold the Favorite button for 3 seconds.

The favorite programme is now stored for future use.

To reuse the programme, select favorite programme and press the Start/Pause button.

Medic Rinse

For best results or for cleaner rinsing.

This allows the final rinse to be heated to 40 degrees.

1 Press the Power button.
2 Select a cycle.
3 Press the Medic Rinse button and set time required.
4 Press the Start/Pause button.

Wash

Turbo Wash

Wash cycle in under 1 hour with energy and water saving. (based on half of laundry)

Intensive

If the laundry is normal and heavily soiled, the Intensive option is effective.

1 Press the Power button.
2 Select a washing programme.
3 To choose Turbo Wash or Intensive touch the Wash button.
4 Press the Start/Pause button.

Rinse

Rinse+

Add rinse once.

Rinse++

Add rinse twice.

R^+ +Hold

Add rinse once then after rinsing process, the course is paused until start button is pressed again.

N+Hold

The cycle is paused until start button is pressed again when rinse is finished.

Spin

• Spin speed level can be selected by pressing the Spin button repeatedly.
• Spin Only

1 Press the Power button.

2 Press the Spin button to select RPM.

3 Press the Start/Pause button.

NOTE

- When you select 'No Spin', it will still rotate for a short time to drain quickly.

Rinse+Spin

This can be helpful in preventing fresh stains from setting in fabrics. This is a separate cycle.

1 Press the Power button.

2 Select a cycle.

3 Press the Rinse+Spin button.

4 Press the Start/Pause.

Temp.

The Temp. button selects the wash and rinse temperature combination for the selected cycle. Press this button until the desired setting is lit. All rinses use cold tap water.

- Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

Child Lock (

Select this function to lock the buttons on the control assembly to prevent tampering.

Locking the control panel

1 Press and hold the Child Lock button for 3 seconds.
2 A beeper will sound, and "L" will appear on the display. When the child lock is set, all buttons are locked except the Power button.

NOTE

- Turning off the power will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the control panel

Press and hold the Child Lock button for 3 seconds.

- A beeper will sound and the remaining time for the current programme will reappear on the display.

Beep On / Off

1 Press the Power button.
2 Press the Start/Pause button.
3 Press and hold the Crease Care and Pre Wash button simultaneously for 3 seconds to set the Beep on/off function.

NOTE

• Once the Beep on/off function is set, the setting is memorized even after the power is turned off.
• If you want to turn the Beeper off, simply repeat this process.

Using Smart Function (Optional)

Using the Tag On Function

The Tag On function allows you to conveniently use the LG Smart Diagnosis™ and Cycle Download features to communicate with your appliance right from your own smart phone.

- The Tag On function can only be used with most smart phones equipped with the NFC function and based on the Android operating system (OS).

Installation of the application

- Search "LG Smart Laundry" on the Google Play Store from your smart phone.

Using the Application

LG Smart Laundry application allows you to use various features for your convenience.

- Cycle Download

- Smart Diagnosis™

- Tag On Cycle Set

- Laundry Stats

NOTE

- Press ? the LG Smart Laundry application for a more detailed guide on how to use the Tag On function.

- Depending on the smart phone manufacturer and Android OS version, the NFC activation process may differ. Refer to the manual of your smart phone for details.

- Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal sticker or a protective case on the phone, transmission will not be good. In some cases, NFC-equipped phones may be unable to transmit successfully.

- The content found in this manual may differ depending on the version of "LG Smart Laundry" application, and it may be modified without informing customers.

EU Conformity Notice

CE

Hereby, LG Electronics European Shared Service Center B.V., declares that this Washing machine is compliant with the essential requirements and other relevant provisions of Directive 1999/5/EC. The complete Declaration of Conformity may be requested through the following postal address:

LG Electronics European Shared Service Center B.V.

Krijgsman 1

1186 DM Amstelveen

The Netherlands

or can be requested at our dedicated DoC website:

http://www.lg.com/global/support/cedoc/cedoc#

MAINTENANCE

WARNING

• Unplug the washing machine before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washing machine. They may damage the finish.

Cleaning your Washing Machine

Care After Wash

• After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture.
• Leave the door open to dry the drum interior.
• Wipe the body of the washing machine with a dry cloth to remove any moisture.

Cleaning the Exterior

Proper care of your washing machine can extend its life.

Door:

- Wash with a damp cloth on the outside and inside and then dry with a soft cloth.

Exterior:

• Immediately wipe off any spills.
• Wipe with a damp cloth.
• Do not press the surface or the display with sharp objects.

Care and Cleaning of the Interior

• Use a towel or soft cloth to wipe around the washing machine door opening and door glass.
  • Always remove items from the washing machine as soon as the cycle is complete. Leaving damp items in the washing machine can cause wrinkling, colour transfer, and odour.
• Run the Tub Clean cycle once a month (or more often if needed) to remove detergent buildup and other residue.

Cleaning the Water Inlet Filter

• Turn off the stopclock if the washing machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.
• 'E' icon will be displayed on the control panel when water is not entering the detergent drawer.
• If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it occasionally.

1 Turn off the water tap and unscrew the water inlet hose.

Simple line drawing of a cable inserted into a socket with an arrow indicating direction (no text or symbols)

2 Clean the filter using a hard bristle brush.

Cleaning the Drain Pump Filter

• The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your washing machine.
• Allow the water to cool down before cleaning the drain pump, carrying out emergency emptying, or opening the door in an emergency.

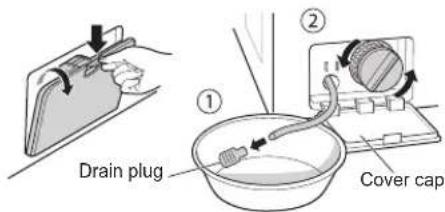

1 Open the cover cap and pull out the hose.

Illustration of a hand holding a clipboard with a ruler, showing a downward arrow (no text or symbols)

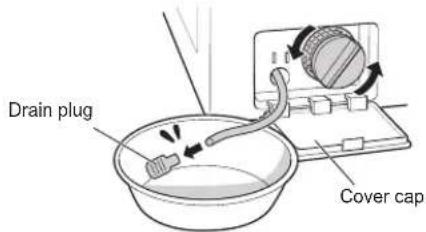

2 Unplug the drain plug and open the filter by turning it to the left.

3 Remove any extraneous matter from the pump filter.

4 After cleaning, turn the pump filter and insert the drain plug.

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

5 Close the cover cap.

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

CAUTION

• First drain using the drain hose and then open the pump filter to remove any threads or objects.
• Be careful when draining, as the water may be hot.

Cleaning the Dispenser Drawer

Detergent and fabric softener may build up in the dispenser drawer. Remove the drawer and inserts and check for buildup once or twice a month.

1 Remove the detergent dispenser drawer by pulling it straight out until it stops.

- Press down hard on the disengage button and remove the drawer.

2 Remove the inserts from the drawer.

• Rinse the inserts and the drawer with warm water to remove buildup from laundry products. Use only water to clean the dispenser drawer. Dry the inserts and drawer with a soft cloth or towel.
  3 To clean the drawer opening, use a cloth or small, non-metal brush to clean the recess.
• Remove all residue from the upper and lower parts of the recess.
  4 Wipe any moisture off the recess with a soft cloth or towel.
  5 Return the inserts to the proper compartments and replace the drawer.

Tub Clean (Optional)

Tub Clean is a special cycle to clean the inside of the washing machine.

A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly.

1 Remove any clothing or items from the washing machine and close the door.
2 Open the dispenser drawer and add Anti limescale (e.g. Calgon) to the main wash compartment.
3 Close the dispenser drawer slowly.
4 Power On and then press and hold Tub Clean button for 3 seconds. Then 'tcl' will be displayed on the display.
5 Press the Start/Pause button to start.
6 After the cycle is complete, leave the door open to allow the washing machine door opening, flexible gasket and door glass to dry.

CAUTION

- If there is a child, be careful not to leave the door open for too long.

NOTE

- Do not add any detergent to the detergent compartments. Excessive suds may generate and leak from the washing machine.

Caution on Freezing During Winter

• When frozen, the product does not operate normally. Make sure to install the product where it will not freeze during winter.
• In case the product must be installed outside on a porch or in other outdoor conditions, make sure to check the following.

How to Keep the Product from Freezing

- After washing, remove water remaining inside the pump completely with the opening hose plug used for removal of residual water. When the water is removed completely, close the hose plug used for removal of residual water and cover cap.

- Hang down drain hose to pull out water inside the hose completely.

CAUTION

- When the drain hose is installed in a curved shape, the inner hose may freeze.

- After closing the tap, disconnect the cold inlet hose from the tap, and remove water while keeping the hose facing downwards.

Check for Freezing

- If water does not drain when opening the hose plug used for removal of residual water, check the drainage unit.

- Turn the power on, select Rinse and Spin, and press the Start/Pause button.

NOTE

- Check that water is coming into the detergent drawer while rinsing, and water is draining through the drain hose while spinning.

- When 'F F' is shown in display window while the product is in operation, check water supply unit and drainage unit (Some models do not have an alarm function that indicates freezing).

How to Handle Freezing

- Make sure to empty the drum, pour warm water of 50–60°C up to the rubber part inside the drum, close the door, and wait for 1–2 hours.

CAUTION

- Do not use boiling water. It may cause burns or damage to the product.

- Open the cover cap and hose plug used for removal of residual water to extract water completely.

NOTE

- If when water does not drain, this means the ice is not melted completely. Wait more.

- When water is removed completely from the drum, close the hose plug used for removal of residual water, select Rinse and Spin, and press the Start/Pause button.

Diagram of a drain hose connection to a wall-mounted device (no text or symbols on the diagram itself)

NOTE

- Check that water is coming into the detergent drawer while rinsing, and water is draining through the drain hose while spinning.

- When water supply problems occur, take the following measures.

- Turn off the tap, and thaw out the tap and both connection areas of inlet hose of the product using a hot water cloth.

- Take out inlet hose and immerse in warm water below 50–60°C.

Using the Smart Diagnosis™ Function

Use this function if you need an accurate diagnosis by an LG Electronics service centre when the product malfunctions or fails. Use this function only to contact the service representative, not during normal operation.

1 Press the Power button to turn on the washing machine. Do not press any other buttons or turn the cycle selector knob.
2 When instructed to do so by the call centre, place the mouthpiece of your phone close to the Power button.

3 Press and hold the Temp. button for 3 seconds, while holding the phone mouthpiece to the icon or Power button.
4 Keep the phone in place until the tone transmission has finished. Time remaining for data transfer is displayed.

• For best results, do not move the phone while the tones are being transmitted.
• If the call centre agent is not able to get an accurate recording of the data, you may be asked to try again.

LG Electronics service centre

5 Once the countdown is over and the tones have stopped, resume your conversation with the call centre agent, who will then be able to assist you using the information transmitted for analysis.

NOTE

• The Smart Diagnosis™ function depends on the local call quality.
• The communication performance will improve and you can receive better service if you use the home phone.
• If the Smart Diagnosis™ data transfer is poor due to poor call quality, you may not receive the best Smart Diagnosis™ service.

TROUBLESHOOTING

- Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washing machine does not function properly or does not function at all, check the following before you call for service:

Diagnosing Problems

Symptoms Reason Solution
Rattling and clanking noise	Foreign objects such as coins or safety pins may be in drum or pump.	·Stop washing machine, check drum and drain filter.·If noise continues after washing machine is restarted, call your authorised service centre.
Thumping sound	Heavy wash loads may produce a thumping sound. This is usually normal.	·If sound continues, washing machine is probably out of balance. Stop and redistribute wash load.
Vibrating noise	Have all the transit bolts and tub support been removed?Are all the feet resting firmly on the ground?	·If not removed during installation, refer to Installation guide for removing transit bolts.·Wash load may be unevenly distributed in drum. Stop washing machine and rearrange wash load.
Water leaks	Inlet hoses or drain hose are loose at tap or washing machine.House drain pipes are clogged.	·Check and tighten hose connections.·Unclog drain pipe. Contact plumber if necessary.
Oversudsing		·Too much detergent or unsuitable detergent may cause excessive foaming which may result in water leaks.
Water does not enter washing machine or it enters slowly	Water supply is not adequate in that location.Water supply tap is not completely open.Water inlet hose(s) are kinked.The filter of the inlet hose(s) clogged.	·Check another tap in the house.·Fully open tap.·Straighten hose.·Check the filter of the inlet hose.
Water in the washing machine does not drain or drains slowly	Drain hose is kinked or clogged.The drain filter is clogged.	·Clean and straighten the drain hose.·Clean the drain filter.
Washing machine does not start	Electrical power cord may not be plugged in or connection may be loose.House fuse blown, circuit breaker tripped,or a power outage has occurred.Water supply tap is not turned on.	Make sure plug fits tightly in wall outlet.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician.Turn on water supply tap.
Washing machine will not spin	Check that the door is firmly shut.	Close the door and press the Start/Pause button. After pressing the Start/Pause button, it may take a few moments before the washing machine begins to spin. The door must be locked before spin can be achieved. Add 1 or 2 similar items to help balance the load. Rearrange load to allow proper spinning.
Door does not open		Once washing machine has started, the door cannot be opened for safety reasons. Check if the ‘Door Lock’ icon is illuminated. You can safely open the door after the ‘Door Lock’ icon turns off.
Wash cycle time delayed		The washing time may vary by the amount of laundry, water pressure, water temperature and other usage conditions. If an imbalance is detected or if the suds removing programme is on, the wash time will increase.
Fabric softener overflow	Too much softener may cause an overflow.	Follow softener guidelines to ensure appropriate amount is used. Do not exceed the maximum fill line.
Softeners dispensed too early		Close the dispenser drawer slowly. Do not open the drawer during the wash cycle.
Dry problem Does not dry		Do not overload. Check that the washing machine is draining properly to extract adequate water from the load. Clothes load is too small to tumble properly. Add a few towels.

Error Messages

Symptoms Reason Solution
		Water supply is not adequate in area.Water supply taps are not completely open.Water inlet hose(s) are kinked.The filter of the inlet hose(s) are clogged.If water leakage occurred in the inlet hose, indicator ‘A’ will become red.May vary depending on the model.	Check another tap in the house.Fully open tap.Straighten hose(s).Check the filter of the inlet hose.
		Drain hose is kinked or clogged.The drain filter is clogged.	Clean and straighten the drain hose.Clean the drain filter.
		Load is too small.Load is out of balance.The appliance has an imbalance detection and correction system.If individual heavy articles are loaded (e.g. bath mat, bath robe, etc.) this system may stop spinning or even interrupt the spin cycle altogether.If the laundry is still too wet at the end of the cycle, add smaller articles of laundry to balance the load and repeat the spin cycle.	Add 1 or 2 similar items to help balance the load.Add 1 or 2 similar items to help balance the load.Rearrange load to allow proper spinning.Rearrange load to allow proper spinning.
		Ensure door is not open.	Close the door completely.If ‘dE,dE’ is not released, call for service.
			Unplug the power plug and call for service.
		Water overfills due to the faulty water valve.	Close the water tap.Unplug the power plug.Call for service.
		Water level sensor has malfunctioned.	Close the water tap.Unplug the power plug.Call for service.
		Over load in motor.	Allow the washing machine to stand for 30 minutes to allow the motor to cool, then restart the cycle.
		Water leaks.	Call for service.

WARRANTY

This limited warranty does not cover:

• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interruptions or inadequate electrical service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual.
• Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
• Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage where the product was not properly installed.
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or consumable cleaning products that are not approved by LG.
• Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship.
• Damage or missing items to any display, open box, discounted, or refurbished Product.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
• Increases in utility costs and additional utility expenses.
• Repairs when your Product is used in other than normal and usual household use or contrary to the instructions outlined in the Product's owner's manual.
  • Costs associated with removal of your Product from your home for repairs.
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG's owner's and installation manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by LG.

Strange vibration or noise caused by not removing transit bolts or tub support.				Remove the transit bolts & tub support.
Leakage caused by dirt (hair, lint) on gasket and door glass.				Clean the gasket & door glass.
Not draining caused by clogging of pump filter.	→			Clean the pump filter.
Water is not coming because water inlet valve filters are clogged or water inlet hoses are kinked.	→			Clean the inlet valve filter or reinstall the water inlet hoses.
Water is not coming because too much detergent use.	→			Clean the detergent disperser drawer.
Laundry is hot or warm after finished washing because the inlet hoses are installed in reverse.	→			Reinstall the inlet hoses.
Water is not supplied because the water tap is not turned on.	→			Turn on the water tap.
Leakage caused by improper installation of drain hose or clogged drain hose.	→			Reinstall the drain hose.
Leakage caused by improper installation of water inlet hose or using other brand inlet hoses.	→			Reinstall the inlet hose.
No power problem caused by loose connection of power cord or electrical outlet problem.	→			Reconnect the power cord or change the electrical outlet.
Service trips to deliver, pick up, install the product or for instruction on product use. The removal and reinstallation of the Product.	→			The warranty covers manufacturing defects only. Service resulting from improper Installation is not covered.
If all screws are not installed properly, it may cause excessive vibration (Pedestal model only).	→			Install 4 screws at each corner (Total 16EA).
Water hammering (banging) noise when washing machine is filling with water.	→			Adjust the water pressure by turning down the water valve or water tap in the home.

OPERATING DATA

Product fiche_Commission Delegated Regulation(EU) No 1061/2010

Supplier's name or trade mark LG
Supplier's model	F H/1 2A8H D(N)(W)(0~9)	F H/1 0A8H D(N)(W)(0~9)
Rated capacity 7 kg		7
Energy efficiency class	A+++	A+++
Awarded an "EU Ecolabel award" under Regulation (EC) No 66/2010 No		No
Weighted annual energy consumption (AEC) in kWh per year based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.	156	156	kWh/year
The energy consumption
the standard 60 °C cotton programme at full load kWh	0,82	0,82
the standard 60 °C cotton programme at partial load kWh	0,52	0,52
the standard 40 °C cotton programme at partial load. kWh	0,50	0,50
Weighted power consumption of the off-mode and of the left-on mode. W	0,45	0,45
Weighted annual water consumption (AWC) in litres per year based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.	7300	7300	litres/year
Spin-drying efficiency class on a scale from G (least efficient) to A (most efficient).	B	B
Maximum spin speed attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the lower, and remaining moisture content attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the greater.	1200	1000	rpm
	53	53	%
Standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption;	"Cotton Large 60 °C/40 °C"
The programme time
the standard 60 °C cotton programme at full load min.	279	279
the standard 60 °C cotton programme at partial load min.	240	240
the standard 40 °C cotton programme at partial load. min.	240	240
The duration of the left-on mode (TI) min.	10	10
Airborne acoustical noise emissions expressed in dB(A) re 1 pW and rounded to the nearest integer during the washing and spinning phases for the standard 60 °C cotton programme at full load	58	58	dB(A)
	76	76
Free-Standing

KÉZIKÖNYV

MOSÓGÉP

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Line drawing of a faucet with a handle and valve (no text or symbols)

Illustration of a hand valve with a wrench and valve handle, showing fluid flow direction (no text or symbols)

Illustration of a hand inserting a plug into a device, showing the process (no text or symbols present)

MEGJEGYZÉS

Line drawing of a kitchen sink with a faucet and measuring tape (no text or symbols)

Two hand icons pointing at a button with concentric circles (no text or symbols)

Diagram of a circular mechanical component with two curved arrows indicating rotational motion (no text or symbols)

5 Indítsa el a programot.

Diagram of a medical device with internal organ structure and a cross symbol (no text or labels)

Diagram of a garment sleeve with a circular opening and internal fabric pattern (no text or symbols)

Medical illustration showing a hand holding a small object near a textured surface, with an inset close-up of the object's interior (no text or symbols)

Line drawing of a hand opening a door with a device inside (no text or symbols)

Illustration of a washing machine with a lid and a black arrow pointing to it, next to three circular objects (no text or symbols)

Vezérlőpanel

1 Bekapcsoló gomb

Simple line drawing of a cable being inserted into a socket (no text or symbols)

Illustration of a hand holding a clipboard with a scroll, showing a hand holding a pen and a black arrow indicating rotation (no text or symbols present)

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard with directional arrows (no text or symbols)

VIGYÁZAT

Illustration of a washing machine with a magnifying glass and a spoon, showing steam rising from the side (no text or symbols)

VIGYÁZAT

Simple line drawing of a water pipe connecting a container (no text or symbols)

Leeresztő tömlő

MEGJEGYZÉS

Line drawing of a washing machine with an attached electrical socket (no text or symbols)

Two mechanical assembly diagrams showing a bolt and nut on a base plate, with no text or symbols present.

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Line drawing of a faucet with a handle and valve (no text or symbols)

Illustration of a hand valve with a wrench and directional arrow indicating rotation (no text or symbols)

Illustration showing a hand holding a device with an inset close-up of the device's tip, no text or symbols present.

ЗАБЕЛЕЖКА

Line drawing of a kitchen sink with a faucet and chain, no text or symbols present

Two hand icons pointing at circular buttons with a plus sign, no text or symbols present

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Diagram of a medical device with a cross symbol and a magnified view of internal organs (no text or labels)

Diagram of a liver inside a liver vessel with an arrow indicating a specific region (no text or labels present)

Illustration showing a hand pressing down on a textured surface with a magnified inset (no text or symbols)

Line drawing of a hand holding a small object over a container with a control panel (no text or symbols)

Illustration of a washing machine with a magnifying glass and a circular button, accompanied by three coin blocks (no text or symbols)

Illustration of a washing machine with a close-up of its lid and arrow pointing to a T-shirt (no text or symbols)

Контролен панел

① Бутон Мощност

Time Delay (Забавяне)

Simple line drawing of a cable being inserted into a device (no text or symbols)

Illustration of a hand holding a folder with a knife, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component being inserted into a slot, with a magnified inset illustrating the insertion process (no text or symbols present)

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard with directional arrows (no text or symbols)

ВНИМАНИЕ

Simple line drawing of a cable or hose inserted into a container (no text or symbols)

① Matični vijci za prijevoz
② Strujni utikač
3 Ladica
4 Upravljačka ploča
5 Bubanj
6 Vrata
7 Odvodno crijevo
8 Odvodni čep
9 Filtar odvodne pumpe
10 Pokrovni poklopac (Lokacija može varirati ovisno o proizvodima)
11 Podesive noge

• Napajanje: 220 – 240 V\~, 50 Hz
• Veličina: 600 mm (Š) X 480 mm (D) X 850 mm (V)
- Težina proizvoda: 61 kg
- Kapacitet pranja: 7 kg
- Dopušteni tlak vode: 0,1 – 1,0 Mpa (1,0 – 10,0 kgf / cm²)
- Izgled i tehnički podatci mogu varirati bez obavijesti kako bi se poboljšala kvaliteta proizvoda.

Pribor

Two technical diagrams showing a bolt and nut assembly with a magnified view of the nut (no text or symbols)

4 Pobrinite se da je perilica rublja ravna.

- Gurnite ili zaljuljajte gornje rubove perilice rublja lagano kako biste provjerili ljulja li se perilica rublja. Ako se perilica rublja ljulja, ponovno poravnajte perilicu rublja.

Drveni podovi (uzdignuti podovi)

• Drveni podovi posebno su osjetljivi na vibraciju.
• Kako biste spriječili vibraciju, preporučujemo da postavite gumene prstene debljine barem 15 mm na svaku nogu perilice rublja, učvršćene na barem dvije podne grede s vijcima.

Gumeni prsten

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Spajanje vijčanog crijeva na slavinu bez navoja

Simple line drawing of a faucet with a valve and handle (no text or symbols)

3 Gurnite dovodno crijevo okomito prema gore tako da gumena brtva unutar crijeva može prionuti potpuno slavini i zatim ga zategnite zavijanjem udesno.

Spajanje crijeva s brzim spajanjem na slavinu bez navoja

1 Odvijte prstenastu pločicu prilagodnika i otpustite četiri fiksirajuća vijka.

2 Uklonite vodeću pločicu ako je slavina prevelika za postavljanje prilagodnika.

3 Gurnite prilagodnik na kraj slavine tako da se gumenom brtvom stvori vodonepropusna veza. Zategnite prstenastu pločicu prilagodnika i četiri fiksirajuća vijka.

Illustration of a hand holding a faucet with a valve and tool, showing a rotating handle (no text or symbols)

Illustration showing a hand inserting a plug into a device, with an inset magnified view of the device's internal components (no text or symbols present)

NAPOMENA

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

2 Dodajte proizvode za čišćenje i/ili deterdžent i omekšivač.

- Dodajte ispravnu količinu deterdženta u ladicu dozatora deterdženta. Ako želite, dodajte izbjeljivač ili omekšivač tkanine u odgovarajuće dijelove dozatora.

3 Uključite perilicu rublja.

- Pritisnite gumb Napajanje kako biste UKLJUČILI perilicu rublja.

Two hand icons pointing at circular buttons with a plus sign, no text or symbols present

4 Odaberite željeni ciklus pranja.

Illustration showing a hand pressing down on a textured surface with a magnified inset (no text or symbols)

• Nemojte ostavljati omekšivač tkanina u ladici deterdženta dulje od 2 dana (Omekšivač tkanina može se stvrdnuti).
• Omekšivač će se automatski dodati tijekom posljednjeg ciklusa ispiranja.
  • Nemojte otvarati ladicu dok se voda dovodi.
• Otapala (benzen itd.) se ne smiju koristiti.

NAPOMENA

Line drawing of a hand pressing down on a device component (no text or symbols visible)

Upotreba tableta

1 Otvorite vrata i stavite tablete u bubanj.

Illustration of a washing machine with a lid and a black arrow pointing to it, next to three circular objects (no text or symbols)

2 Napunite rublje u bubanj i zatvorite vrata.

Upravljačka ploča

1 Gumb Napajanje

• Pritisnite gumb Napajanje kako biste uključili perilicu rublja.
• Da biste poništili funkciju Vremenska odgoda, potrebno je pritisnuti gumb Napajanje.

2 Gumb Pokretanje/Zaustavljanje

• Ovaj gumb Pokretanje/Zaustavljanje služi za pokretanje ciklusa pranja ili za zaustavljanje ciklusa pranja.
• Ako je potrebno privremeno zaustaviti ciklus pranja, pritisnite gumb Pokretanje/Zaustavljanje.

3 Zaslon

LG Electronics European Shared Service Center B.V.

Krijgsman 1

1186 DM Amstelveen

Nizozemska

ili se može zatražiti na našoj specijaliziranoj DoC web stranici:

http://www.lg.com/global/support/cedoc/cedoc#

ODRŽAVANJE

UPOZORENJE

Simple line drawing of a cable being inserted into a socket (no text or symbols)

2 Očistite filtar četkom s tvrdim čekinjama.

Čišćenje filtra odvodne pumpe

Illustration of a hand holding a clipboard with a tool, showing a downward arrow and scroll (no text or symbols)

2 Izvadite odvodni čep i otvorite filtar okretanjem ulijevo.

3 Uklonite sve strane tvari iz filtra pumpe.

Diagram showing a mechanical component being inserted into a device, with an inset close-up of a device (no text or symbols present)

4 Nakon čišćenja okrenite filtar pumpe i umetnite odvodni čep.

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

5 Zatvorite pokrovni poklopac.

Hand pressing down on a laptop screen with directional arrows (no text or symbols)

OPREZ

Simple line drawing of a pipe or tube inserted into a container (no text or symbols)

Odvodno crijevo

NAPOMENA

① Transportni vijci sa navrtkom
2 Utikač za napajanje
3 Dozirna posuda
4 Kontrolna tabla
5 Bubanj
6 Vrata
7 Odvodno crevo
8 Odvodni zapušač
9 Filter odvodne pumpe
10 Poklopac (lokacija može da se razlikuje u zavisnosti od proizvoda)
11 Podesiva stopala nogara

• Napajanje: 220–240 V\~, 50 Hz
  • Veličina: 600 mm (š.) X 480 mm (d.) X 850 mm (v.)
• Težina proizvoda: 61 kg
• Kapacitet pranja: 7 kg
• Dozvoljeni pritisak vode: 0,1–1,0 MPa (1,0–10,0 kgf/cm²)

Two technical diagrams showing a bolt and nut assembly (labeled A and B) with a magnified inset view of the nut (no text or symbols present)

4 Proverite da li je mašina za pranje veša iznivelisana.

- Lagano gurnite ili zaljuljajte gornje ivice mašine za pranje veša da biste potvrdili da se mašina za pranje veša ne ljulja. Ako se mašina za pranje veša ljulja, ponovo je iznivelišite.

Drveni podovi

Illustration of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Povezivanje creva za navrtanje na slavinu bez navoja

1 Otpustite četiri vijka za fiksiranje.

2 Gurnite adapter na kraj slavine tako da gumena zaptivka napravi spoj koji ne propušta vodu. Stegnite četiri vijka za fiksiranje.

Illustration of a hand holding a faucet with a tool inserted, no text or symbols present

3 Gurnite dovodno crevo vertikalno nagore, tako da gumena zaptivka u crevu može u potpunosti da bude uz slavinu, a zatim ga pričvrstite uvrtanjem nadesno.

Povezivanje creva za nameštanje jednim dodirom na slavinu bez navoja

1 Odvrnite prstenastu ploču adaptera i otpustite četiri vijka za fiksiranje.

2 Uklonite vodič-ploču ako je slavina prevelika da se uklopi u adapter.

3 Gurnite adapter na kraj slavine tako da gumena zaptivka napravi spoj koji ne propušta vodu. Stegnite prstenastu ploču adaptera i četiri vijka za fiksiranje.

Illustration of a hand valve with a wrench and rotating arrow (no text or symbols)

4 Povucite kopču priključka nadole, gurnite dovodno crevo na adapter i otpustite kopču priključka. Proverite da li se adapter zaključao na svom mestu.

NAPOMENA

- Kada povežete dovodno crevo sa slavinom za vodu, uključite slavinu za vodu da biste isprali strane materije (prašinu, pesak, opiljke itd.) iz creva za vodu. Pustite da voda iscuri u kofu i proverite temperaturu vode.

Illustration showing a hand inserting a plug into a device, with an inset magnified view of the device's internal components (no text or symbols present)

NAPOMENA

- Kada dovršite povezivanje, ako voda curi iz creva, ponovite iste korake. Koristite najstandardniji tip slavine za dovod vode. U slučaju da je slavina u obliku kvadrata ili prevelika, uklonite vodič-ploču pre umetanja slavine u adapter.

Korišćenje horizontalne slavine

Horizontalna slavina

Produžna slavina

Kvadratna slavina

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Električni priključci (samo u UK)

Žice u kablu za napajanje obojene su u skladu sa sledećim kodom:

Zelena i žuta: uzemljenje

Plava: nula

Braon: faza

Ovaj uređaj mora da se uzemlji.

Kako boje žica u kablu za napajanje ovog uređaja možda ne odgovaraju obojenim oznakama koje identifikuju terminale u vašem utikaču, nastavite ovako:

Zelena i žuta žica moraju biti povezane sa terminalom u utikaču koji je označen slovom E ili simbolom za uzemljenje ( ± ) ili obojen zelenom ili zelenom i žutom bojom.

Plava žica mora biti povezana sa terminalom koji je označen slovom N ili obojen crnom bojom.

Braon žica mora biti povezana sa terminalom koji je označen slovom L ili obojen crvenom bojom.

Ako se koristi utikač od 13 amp. (BS 1363), postavite BS 1362 osigurač od 13 amp.

RAD

2 Dodajte proizvode za čišćenje i/ili deterdžent i omekšivač.

Two hand icons pointing at circular buttons with a 'I' and 'O' button (no text or symbols beyond basic symbols)

4 Izaberite željeni ciklus pranja.

Hand gesture pointing at a button and a circular dial with arrow indicating clockwise rotation (no text or symbols)

5 Pokrenite ciklus.

• Zakopčajte rajsferšluse, dugmad i kopče da biste obezbedili da se ne zakače za drugu odeću.
• Pre pranja tretirajte prljavštinu i fleke utrljavanjem male količine deterdženta rastvorenog u vodi na fleke kao pomoć pri uklanjanju prljavštine.
• Proverite nabore fleksibilnog zaptivača (sivo) i uklonite sve sitnije stvari.
• Proverite unutar bubnja i uklonite sve stvari iz prošlog pranja.

Diagram showing a hand adjusting a textured surface with a magnified inset (no text or symbols)

Line drawing of a hand opening a container with a device inside (no text or symbols)

Korišćenje tableta

1 Otvorite vrata i stavite tablete u bubanj.

Illustration of a washing machine with a circular component being removed, showing a blue arrow and two smaller containers (no text or symbols)

2 Stavite veš u bubanj i zatvorite vrata.

Illustration of a washing machine with a circular inset showing the inner circle, and a separate T-shirt outline (no text or symbols)

Kontrolna tabla

1 Dugme Napajanje

• Pritisnite dugme Napajanje da biste uključili mašinu za pranje veša.
• Da biste otkazali funkciju Odlaganje, potrebno je da pritisnete dugme Napajanje.

2 Dugme Početak/pauza

• Ovo dugme Početak/pauza koristi se za pokretanje ciklusa pranja ili za njegovo pauziranje.
• Ako je potrebno privremeno zaustaviti ciklus pranja, pritisnite dugme Početak/pauza.

3 Ekran

Simple line drawing of a cable being inserted into a socket (no text or symbols)

Čišćenje filtera odvodne pumpe

Illustration of a hand holding a clipboard with a tool, showing a curved arrow indicating rotation (no text or symbols present)

2 Izvadite odvodni zapušač i otvorite filter okretanjem nalevo.

3 Uklonite svu stranu materiju iz filtera pumpe.

4 Nakon čišćenja okrenite filter pumpe i umetnite odvodni zapušač.

Hand holding a circular object with an arrow indicating rotation, next to a mechanical component (no text or symbols)

5 Zatvorite poklopac.

Illustration of a hand pressing down on a laptop keyboard with arrows indicating press or scroll (no text or symbols)

OPREZ

• Prvo izbacite vodu pomoću odvodnog creva, a zatim otvorite filter pumpe da biste uklonili sve niti ili predmete.
• Budite pažljivi prilikom izbacivanja vode, jer ona može biti vruća.

Čišćenje dozirne posude

Diagram of a pipe with label 'Odvodno crevo' indicating a water source or component (no other text or symbols)

NAPOMENA

- Proverite da li voda dolazi u dozirnu posudu za deterdžent tokom ispiranja i da li se izbacuje kroz odvodno crevo tokom centrifuge.

Korišćenje funkcije Smart Diagnosis™

Koristite tu funkciju ako vam je potrebna precizna dijagnoza koju pruža servisni centar LG Electronics kada proizvod ne radi ispravno ili je pokvaren. Koristite tu funkciju samo za kontaktiranje predstavnika servisa, ne tokom normalnog rada.

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Lidhja e tubit me vidhosje me rubinetin pa fileta

Simple line drawing of a hand holding a faucet with a valve, no text or symbols present

Illustration of a hand valve with a wrench and rotating arrow (no text or symbols)

SHËNIM

Illustration of a hand inserting a plug into a device, showing the process (no text or symbols present)

SHËNIM

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

3 Ndizeni lavatriçesh.

Two hand icons pointing at circular buttons with a plus sign, no text or symbols present

Diagram of a fetus inside a maternal organ with a cross symbol (no text or labels)

Diagram of a mechanical device with internal components and a circular housing (no text or symbols)

Diagram showing a hand pressing down on a textured surface with a magnified inset highlighting the detail (no text or symbols present)

Line drawing of a hand placing a component into a container with control panel (no text or symbols)

Illustration of a washing machine with a lid removed and a black arrow pointing to it, next to three circular items (no text or symbols)

Paneli i Kontrollit

1 Butoni Energji

LG Electronics European Shared Service Center B.V.

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Simple line drawing of a cable being inserted into a socket (no text or symbols)

Illustration of a hand holding a clipboard with arrows indicating rotation (no text or symbols)

Diagram showing a mechanical component being inserted into a slot, with a magnified inset illustrating the insertion process (no text or symbols present)

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

5 Mbylleni tapën e kapakut.

Hand pressing down on a laptop keyboard (no text or symbols visible)

! KUJDES

Simple line drawing of a tube with a hose, no text or symbols present

shkarkimit

SHËNIM

Line drawing of a washing machine with an electrical outlet, showing airflow direction (no text or symbols)

Подножје (Изборно) Картонска основа

Two technical diagrams showing a bolt and a cross symbol on a base plate (no text or labels)

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Simple line drawing of a faucet with a handle and valve (no text or symbols)

Illustration of a hand valve with a wrench and rotating arrow (no text or symbols)

Illustration of a hand using a pump jack to adjust or install a device, with magnified inset showing the close-up of the component (no text or symbols present)

НАПОМЕНА

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

Two hand icons pointing at circular buttons with a plus sign, no text or symbols present

Diagram showing a hand pressing down on a textured surface with a magnified inset (no text or symbols)

Line drawing of a hand placing a component into a container with control panel (no text or symbols)

Користење таблети

Illustration of a washing machine with a close-up of its lid and a magnified inset showing the inner circle, alongside two coin-like blocks (no text or symbols)

Контролна табла

1 Копче Напојување

LG Electronics European Shared Service Center B.V Krijgsman 1

1186 DM Amstelveen

The Netherlands

Simple line drawing of a cable being inserted into a socket (no text or symbols)

Illustration of a hand holding a folder with a knife inserted, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component being inserted into a slot, with an inset illustrating the insertion process (no text or symbols present)

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

ВНИМАНИЕ

INSTRUCTIUNI DE SIGURANTĂ ....03

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or symbols)

Line drawing of a faucet with a valve and handle (no text or symbols)

Illustration of a hand valve with a wrench and rotating arrow (no text or symbols)

Illustration showing a hand inserting a device into a computer case, with no visible text or symbols.

NOTĂ

Line drawing of a kitchen sink with a measuring tape and faucet (no text or symbols)

Two hand icons pointing at circular buttons with a plus sign, no text or symbols present

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Medical illustration showing a hand holding a tool near a textured surface, with an inset close-up of the tool interacting with another hand (no text or symbols present)

Line drawing of a hand holding a small object into a container with internal compartments (no text or symbols)

Utilizarea tabletei

Illustration of a washing machine with a lid removed and a magnifying glass inside, showing a blue arrow pointing to the interior (no text or symbols)

Illustration of a washing machine with a close-up of its side panel and a separate T-shirt, showing no text or symbols.

Panou de control

① Buton de Alimentare

Medic Rinse (Clătire medical)

LG Electronics European Shared Service Center B.V.

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Simple line drawing of a cable being inserted into a socket (no text or symbols)

Illustration of a hand holding a folder with a hand operating it, showing a curved arrow indicating rotation (no text or symbols present)

Hand holding a circular object with an arrow indicating rotation, next to a tool (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard with directional arrows (no text or symbols)

! ATENTIE
