| Product Type | Bike Light |
| Brand | Spanninga |
| Model | Thor 800 |
| Light Source | LED |
| Brightness | 800 Lumens |
| Power Source | Rechargeable Li-ion Battery |
| Battery Capacity | 4000 mAh |
| Charging Time | Approximately 4 hours |
| Battery Life | Up to 6 hours (high beam) / 20 hours (eco mode) |
| Dimensions (L x W x H) | 110 x 35 x 40 mm |
| Weight | 130 g |
| Material | Aluminum housing |
| Mounting Type | Handlebar bracket (tool-free) |
| Water Resistance | IPX6 (weatherproof) |
| Light Modes | High, Medium, Low, Eco, Flashing |
| Beam Pattern | Wide symmetrical beam with cut-off |
| Daytime Running Light | Yes (flashing mode) |
| Battery Level Indicator | LED indicator on unit |
| Charging Port | USB-C |
| Standards Compliance | StVZO (Germany) approved |
| Included Accessories | USB charging cable, handlebar bracket |
Frequently Asked Questions - Thor 800 Spanninga
How do I charge the Thor 800?
Use the USB-C cable included. Connect to a standard USB power source (5V/1A). The LED indicator will show red during charging and turn green when fully charged.
How long does the battery last on a full charge?
Battery life varies by mode: up to 6 hours in high beam, 12 hours in medium, and 20 hours in eco mode.
Is the Thor 800 waterproof?
It has an IPX6 rating, meaning it is resistant to heavy rain and splashes but should not be submerged.
How do I mount the light on my bike?
The light attaches via a tool-free handlebar bracket. Place the bracket on the handlebar, tighten the rubber strap, and slide the light onto the bracket until it clicks.
Can I use the light during the day?
Yes, the Thor 800 features a daytime running light mode (flashing) that increases visibility in daylight.
How do I switch between light modes?
Press the power button repeatedly to cycle through modes: High -> Medium -> Low -> Eco -> Flashing -> Off.
What is the beam pattern like?
It produces a wide symmetrical beam with a horizontal cut-off to avoid blinding oncoming traffic, compliant with StVZO.
How do I clean the light?
Use a soft, damp cloth to wipe the housing. Avoid solvents or abrasive cleaners that may damage the lens or seals.
Is the battery replaceable?
The battery is built-in and not user-replaceable. If the battery fails, contact Spanninga or a qualified service center.
What should I do if the light does not turn on?
Ensure the battery is charged. If still off, try a reset by pressing the power button for 10 seconds. If the problem persists, contact support.
User questions about Thor 800 Spanninga
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Bike light in PDF format for free! Find your manual Thor 800 - Spanninga and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Thor 800 by Spanninga.
USER MANUAL Thor 800 Spanninga


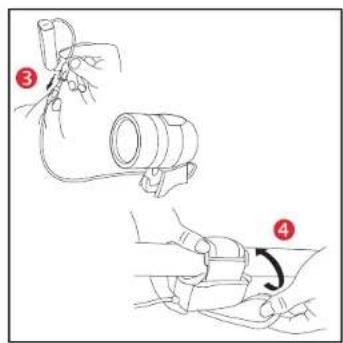

① ② Ø 22.2 - 35mm


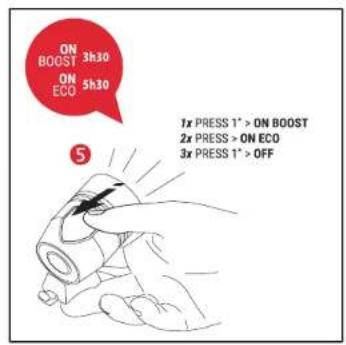

ON BOOST 3h30 ON ECO 5h30 1x PRESS 1" > ON BOOST 2x PRESS > ON ECO 3x PRESS 1" > OFF

