| Product Type | Split Air Conditioner |
| Brand | Kelvinator |
| Model | KSV35CRG |
| Cooling Capacity | 3.5 kW (12,000 BTU/h) |
| Heating Capacity | 3.8 kW (13,000 BTU/h) |
| Power Supply | 220-240 V, 50 Hz, 1 Ph |
| Refrigerant | R32 |
| Indoor Unit Dimensions (W x H x D) | 800 x 300 x 200 mm |
| Indoor Unit Weight | 10 kg |
| Outdoor Unit Dimensions (W x H x D) | 800 x 600 x 300 mm |
| Outdoor Unit Weight | 30 kg |
| Functions | Cooling, Heating, Fan, Dehumidifier, Sleep Mode, Timer, Auto Restart |
| Remote Control | Included (with LCD display) |
| Air Flow (Indoor) | Up to 600 m³/h |
| Energy Efficiency Class (Cooling) | A+ (SEER 5.1) |
| Energy Efficiency Class (Heating) | A+ (SCOP 4.0) |
| Filter Type | Washable Mesh Filter |
| Maintenance | Clean filter every 2 weeks; professional service annually |
| Safety Features | Overload protection, Auto shut-off, Leakage protection |
| Suitable Room Size | Up to 35 m² |
| Noise Level (Indoor) | Low: 25 dB, High: 45 dB |
| Operating Temperature Range | Cooling: 16-43°C, Heating: -15-24°C |
| Warranty | 1 year parts and labor (check local) |
Frequently Asked Questions - KSV35CRG KELVINATOR
User questions about KSV35CRG KELVINATOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual KSV35CRG - KELVINATOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KSV35CRG by KELVINATOR.
USER MANUAL KSV35CRG KELVINATOR
Australians love a Kelvinator
For over 90 years, Kelvinator has been delivering reliability and performance to Australian families. It's a brand you can trust to get the job done well and it's easy to see why. There's peace of mind in knowing that with Kelvinator, you will be comfortable for years to come.
Discover the perfect blend of functional design and practical innovation. An air
conditioner that looks great and performs well is an asset to your home and makes life that much more enjoyable.
Whether you live in the country or on the coast, in a house or an apartment, there is a Kelvinator air conditioner to suit your needs. What's more, our air conditioners are easy to keep clean, simple to use and sensitive to the environment, your family and your energy bill.


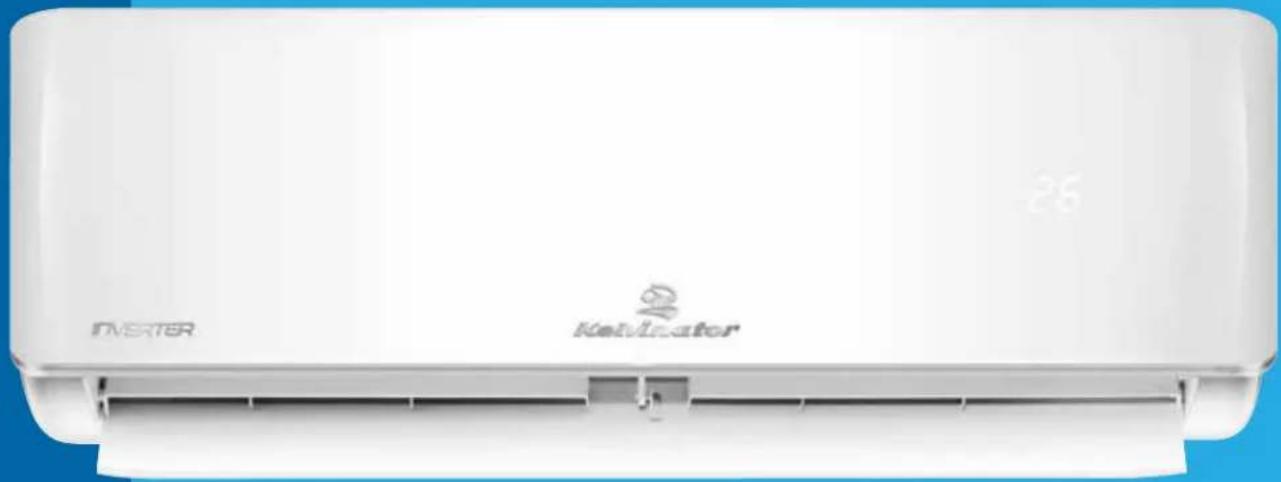

Front view of a white air conditioner unit with 'INSITER' and 'Ketivator' branding, shown against a blue background (no text beyond labels)
Brand
All Kelvintor products go through rigorous testing to ensure they meet stringent Australian performance and quality standards.
Quality
Kelvinator air conditioners are built for the harsh and varied Australian climate. With corrosion resistance on both the indoor and outdoor units, you can relax knowing that your air conditioner will last no matter where you live.
Heritage
With 90 years' experience in refrigeration systems, you know your Kelvinator is a product backed by years of innovation and the highest standards of quality.
Warranty
For added peace of mind, all Kelvinator air conditioners feature a five year parts and labour warranty. This applies to all systems purchased at an approved stockist or retailers, properly sized for the selected room and correctly installed by a licenced installer.
Expertise
Kelvinator air conditioners are backed by our national Top Service after sales program which includes delivery, home service and spare parts.
With user-friendly features like the wireless remote control, multiple fan speeds and a 24-hour timer, operating your Kelvinator air conditioner will be simple and easy. When it's time to shut down, simply activate the self clean function to purge your air conditioner of moisture to help prevent mould growth.
A breath of fresh air with advanced air filtration
Enjoy improved air quality with a combination of 3 filters. A high density dust filter which filters and collects dust from the airstream is combined with 2 additional special filters. The BIO/HEPA filter purifies the air by eliminating 95% of bacteria and captures 99% of particles down to 0.3μm while the lon filter freshens the air to ensure cleaner, fresher air in your home.
Create the perfect indoor environment
All Kelvinator split system air conditioners feature inverter technology which ensures a quiet operation, they use less energy and maintain the desired room temperature at all times. Set the Follow Me mode and your air conditioner will set the temperature to wherever the remote control is located ensuring personalised comfort. Plus Turbo Mode provides fast cooling and heating when you need it most.
Energy efficiency
With built-in features such as high efficiency DC componentry and inverter technology these air conditioners use less power than ever before. With some models reaching a 5 star energy rating, year round comfort can be more affordable for you and your family.
PeakSmart technology\*
Energy-saving PeakSmart technology caps energy consumption when the electricity network reaches peak demand.
Air conditioning features
Intelligent Inverter Technology
Kelvinator's intelligent inverter technology accurately controls the speed of the compressor to meet the exact settings you have selected.
Low Noise Fan
A DC motor drives the indoor fan with a total of 12 speed settings, providing the optimum combination of temperature control and low noise.
Multi-Level Filtration
Enjoy improved air quality with a combination of 3 filters. A high density dust filter combined with 2 additional special filters work together to ensure cleaner, fresher air in your home.
Stylish
All models feature smooth fronts with gently curved edges and an elegant clear trim. This is offset by a concealed digital display which can be turned off when watching a movie or sleeping.
User-friendly Remote Control
A handy remote control with an easy-to-read back-lit LCD and luminescent keypad lets you conveniently control all functions, even in low light
Follow Me
Select Follow Me and your air conditioner will set the temperature based on a sensor in the remote control. This ensures the temperature is perfect, exactly where you want it to be.
Sleep Mode
Gently increases or decreases (reverse cycle models in heating mode) the temperature to adjust to your needs for a peaceful night's sleep. Energy consumption is also reduced, whilst keeping the temperature at a comfortable level.
Powered Air Swing
At the touch of a button on the remote control, the motorised louvres will oscillate the airflow up and down providing even distribution of air in your home.
Choosing the right air conditioner
It's important to select the right sized air conditioner for your room in order to ensure effective and efficient cooling and heating.
- Total size of room ( m^2 )?
- Do you have ceiling insulation?
- Direction the main window faces?
- Do you require an air conditioner that heats and cools or cools only?
Go to kelvinator.com.au/AirConSelectionWizard or refer to the table below.
| ceiling insulated | ||||
| main window facing north or west south or east north or west south or east | ||||
| model room size m | ^2 | room size m^2 | room size m^2 | room size m^2 |
| split system inverter cooling only | ||||
| KSV25CRG 16 18 14 16 | ||||
| KSV35CRG 22 24 16 19 | ||||
| KSV70CRG 46 48 40 44 | ||||
| split system inverter reverse cycle | ||||
| KSV25HRG/KSD25HRG | 16 18 14 16 | |||
| KSV35HRG/KSD35HRG | 22 24 16 19 | |||
| KSV50HRG/KSD50HRG | 30 33 26 29 | |||
| KSV70HRG/KSD70HRG | 46 48 40 44 | |||
| KSV80HRG/KSD80HRG | 57 59 51 56 | |||
This is a guide only. Values in chart apply if air conditioners are used under average conditions and installed in accordance with manufacturer's instructions. Prior to installation selection should be verified by your authorised Kelvinator retailer or a licenced installer.
Reverse cycle
• Auto & manual operation
- 24 hour timer
- Auto restart
- Blue shield corrosion protection
- 5 year warranty
- Climate control
• Inverter compressor technology -
Ambient temperature range -15°C to 50°C
• 2-way auto air swing -
Sleep mode
• HEPA filter and negative ion filter - Digital display
- Remote control
Specifications
| type | heating & cooling | heating & cooling | heating & cooling | heating & cooling | heating & cooling |
| cooling capacity (kW) | 2.5 | 3.5 | 5.0 | 7.0 | 8.0 |
| cooling capacity (Btu/h) | 8500 | 11900 | 17100 | 23900 | 27300 |
| heating capacity (kW) | 3.2 | 4.0 | 6.0 | 8.0 | 9.0 |
| heating capacity (Btu/h) | 10900 | 13600 | 20500 | 27300 | 30700 |
| running current (A) | 2.9 | 4.1 | 6.5 | 9.9 | 11.1 |
| maximuim current (A) | 9.5 | 10.5 | 15.5 | 17.5 | 19.5 |
| indoor unit dimensions w x h x d (mm) | 802 x 297 x 189 | 802 x 297 x 189 | 1080 x 335 x 226 | 1080 x 335 x 226 | 1080 x 335 x 226 |
| outdoor unit dimensions w x h x d (mm) | 885 x 554 x 365 | 885 x 554 x 365 | 924 x 702 x 382 | 924 x 702 x 382 | 1040 x 810 x 455 |
| performance | |||||
| indoor sound pressure (dBA) high/low fan setting | 42/25 | 42/25 | 49/32 | 50/33 | 50/34 |
| outdoor sound power max. (dBA) | 60.5 | 59.4 | 64.1 | 65.0 | 66.8 |
| ambient temperature range2(°C) | -15°C to 50°C | -15°C to 50°C | -15°C to 50°C | -15°C to 50°C | -15°C to 50°C |
| indoor air circulation max (m3/h) | 600 | 600 | 1200 | 1170 | 1200 |
| moisture removal (L/h) | 1.0 | 1.2 | 1.9 | 2.4 | 3.0 |
| energy star rating cool/heat | 5.0/5.0 | 4.0/4.0 | 3.5/3.5 | 2.5/2.5 | 2.5/2.5 |
Models with model codes commencing with KSD are DRED enabled ^2 May operate outside this range but at less than rated performance.
Please note: By law, only a licensed Room Air Conditioner installer is allowed to install split system models. In accordance with the Electrolux warranty,
Electrolux is not liable if the appliance is damaged by incomplete or improper installation. † Refer to product information details on page 7. For further information on our Kelvinator air conditioning range, or to obtain dimension and installation requirements please call 1300 363 640 or visit kelvinator.com.au
Cooling only
• Auto & manual operation
- 24 hour timer
- Auto restart
- Blue shield corrosion protection
- 5 year warranty
- Climate control
• Inverter compressor technology - Ambient temperature range 17°C to 50°C
-
2-way auto air swing
-
Sleep mode
• HEPA filter and negative ion filter - Digital display
- Remote control
Specifications
| type cooling cooling cooling | |||
| cooling capacity (kW) 2.5 3.5 7.0 | |||
| cooling capacity (Btu/h) | 8500 | 11900 | 23900 |
| running current (A) 2.3 3.6 8.7 | |||
| maximuim current (A) | 9.5 | 10.5 | 17.5 |
| indoor unit dimensions w x h x d (mm) | 802 x 297 x 189 | 802 x 297 x 189 | 1080 x 335 x 226 |
| outdoor unit dimensions w x h x d (mm) | 885 x 554 x 365 | 885 x 554 x 365 | 924 x 702 x 382 |
| performance | |||
| indoor sound pressure (dBA) high/low fan setting | 42/25 | 42/25 | 50/33 |
| outdoor sound power max. (dBA) | 60.5 | 59.4 | 65.0 |
| ambient temperature range ^1 (°C) | 17°C to 50°C | 17°C to 50°C | 17°C to 50°C |
| indoor air circulatiun max (m ^3 /h) | 600 | 600 | 1170 |
| moisture removal (L/h) | 1.0 | 1.2 | 2.4 |
| energy star rating | 5.0 4.0 2.5 | ||
May operate outside this range but at less than rated performance.
Please note: By law, only a licensed Room Air Conditioner installer is allowed to install split system models. In accordance with the Electrolux warranty, Electrolux is not liable if the appliance is damaged by incomplete or improper installation. † Refer to product information details on page 7. For further information on our Kelvinator air conditioning range, or to obtain dimension and installation requirements please call 1300 363 640 or visit kelvinator.com.au
Piping length elevation & additional quantity of gas
| Model | Suction pipe diameter | Discharge pipe diameter | Maximum pipe length (A) | Maximum height difference between indoor & outdoor units (B) | Standard pre-charged pipe length | Additional refrigerant for pipe length above precharge length |
| KSV25CRG, KSV25HRG, KSD25HRG | 9.52mm (3/8") | 6.35 (1/4") 25m 10m 5m 15g/m | ||||
| KSV35CRG, KSD35HRG, KSD35HRG, | 12.7mm (1/2") | 6.35 (1/4") 25m | 10m 5m 15g/m | |||
| KSV50HRG, KSD50HRG | 12.7mm (1/2") | 6.35 (1/4") | 30m | 20m 5m 15g/m | ||
| KSV70CRG, KSV70HRG, KSD70HRG | 15.9 (5/8") | 9.52 (3/8") 50m | 25m 5m 30g/m | |||
| KSV80HRG, KSD80HRG | 15.9 (5/8") | 9.52 (3/8") 50m | 25m 5m 30g/m |

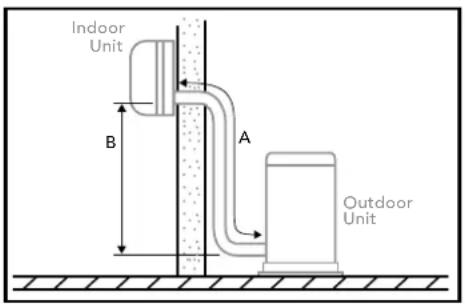

Installation requirements
Outdoor unit must be accessible for service. If the outdoor unit is located greater than 2m above ground, additional service charges may apply.
Electrolux Top Service
Electrolux Top Service encompasses our after sales service including delivery, home service and spare parts for Kelvinator air conditioners.
Delivery
The purchase of a new appliance is an exciting experience. Kelvinator customers can, for an additional charge, choose to have their new appliance delivered by our experienced staff. Delivery is available in Adelaide, Brisbane, Melbourne, Perth and Sydney. Delivery may not be available in some rural locations.
Home service
Home Service is provided for repairs to appliances by trained technicians. For repairs to appliances that are outside the manufacturer's warranty period and not required as a result of a manufacturing defect, a service fee is payable. Home Service is available Australia-wide on all models.
Spare parts
Home Service and Spare Parts can be contacted by phoning 13 13 49 for Service and 13 13 50 for Spare Parts (for the cost of a local call) or visit our website at electrolux.com.au
Warranty
Electrolux Home Products warrants that for domestic or equivalent applications the Kelvinator products featured in this brochure are free from defects in materials and workmanship for 2 years. This is extended by an additional 3 years if evidence is provided that the unit was installed by a licensed Air Conditioner installer.
All warranties are subject to the conditions set out in the warranty card accompanying the product when purchased.
†product information
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of continuous product development, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to ensure this publication correctly describes the products that are being offered for sale. All information supplied is to be used for general reference purposes only and is on the understanding that Electrolux Home Products Pty Ltd will not be liable for any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours of products illustrated are as close as printing limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and Regulations.
