DI-340AHD36 - Security Camera Provision-ISR - Free user manual and instructions

Product Type	AHD Security Camera
Brand	Provision-ISR
Model	DI-340AHD36
Image Sensor	1/3" 4MP CMOS
Effective Pixels	2688(H) × 1520(V)
Resolution	2560 × 1440 (4MP)
Min. Illumination	0.01 Lux
Day & Night	True Day & Night (ICR)
IR Range	Up to 20m (2 LED Array)
Video Output	AHD (Analog HD)
Lens	3.6mm fixed
Power Supply	DC 12V ±10%, ~280mA
Power Consumption	~3.36W (12V * 0.28A)
Operating Temperature	-30°C to +50°C (-4°F to 122°F)
Weatherproof Rating	IP66
Dimensions (W×H×D)	104 × 82 × 93.2 mm
Net Weight	270 g
Backlight Compensation	Off / BLC / HSBLC
Noise Reduction	2D-DNR
White Balance	AWB, AWC, Indoor, Outdoor, Manual
OSD Menu	Via CoC (Control over Coax) – 12 Languages
Maintenance & Cleaning	Do not touch sensor. Clean with cotton swab or lens paper, use neutral detergent diluted with water if needed.
Safety Precautions	Do not open camera; ensure correct voltage and avoid direct sunlight when powered on.

Frequently Asked Questions - DI-340AHD36 Provision-ISR

How do I access the OSD menu on the DI-340AHD36?

The OSD menu is accessed via CoC (Control over Coax). From your AHD DVR's PTZ interface, press Iris+ to open the menu. Use PTZ direction arrows to navigate and Iris+ as Enter. Note: Provision-ISR DVRs from version 3.4.4 support CoC.

What is the night vision range of this camera?

The DI-340AHD36 features True Day & Night (ICR) with an IR range of up to 20 meters using 2 LED arrays.

Is the DI-340AHD36 waterproof?

Yes, the camera has an IP66 weatherproof rating, meaning it is protected against strong water jets and dust ingress. However, the manual cautions that these cameras are not fully waterproof; minimize dust and moisture erosion.

What power supply does the DI-340AHD36 require?

The camera requires DC 12V ±10% with a current of approximately 280mA (3.36W). Ensure the power supply meets these requirements to avoid damage.

How do I clean the lens or sensor?

Do not touch the sensor surface. Use a cotton swab or lens paper to gently remove foreign objects. If difficult, use a neutral detergent diluted with water.

What is the resolution of this camera?

The camera offers 4MP resolution with effective pixels of 2688(H) × 1520(V) and digital output of 2560×1440.

Does the camera support motion detection?

According to the specifications, motion detection is not available on this model. However, the product features list mentions it; it may be a variant. For certain, the manual states motion detection is not supported.

What type of cable is recommended for video transmission?

Use RG59 coaxial cable for AHD video transmission. The transmission distance can reach over 200 meters.

Can I install the camera outdoors?

Yes, the camera has an IP66 rating, suitable for outdoor use. However, avoid extreme temperatures beyond -30°C to +50°C and do not direct the camera at sunlight when powered on.

What is the warranty or repair policy?

The manual does not specify warranty details. For repairs, consult a professional service person. Do not open the camera yourself to reduce the risk of electric shock.

USER MANUAL DI-340AHD36 Provision-ISR

Four technical line drawings of mechanical components, showing front, side, top, and side views (no text or symbols)

FCC

www.provision-ISR.com

Solid red rectangular shape with a curved gray border on the right (no text or symbols)

Now you can see!

USER MANUAL

■ 4MP AHD Camera Series

Contents

1) Cautions:
2) Product Introduction

2.1 Camera Introduction
2.2 Product Features

3) Menu Setup
4) Product Installation

4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Setting the video output type
4.5 Setting the Camera
4.6 Connection
4.7 OSD Control

5) Technical Specification

1 Cautions:

1. To reduce the risk of electric shock, do not open the camera or perform internal maintenance by yourself. Please consult a professional service person if needed.
2. To prevent fire or electrical shock hazard, make sure that the input voltage, current, polarity and operating temperature meet the requirements of the camera.
3. Please note the operating temperature and environmental limits of the camera. Do not install in higher/lower temperatures than -30^ +50^ ( -4^ 122^ ). These cameras are not waterproof! Minimize dust and moisture erosion, otherwise camera would be damaged.
4. Avoid directing the camera to sunlight while powered on, otherwise the sensor will be damaged.

5. Do not touch the sensor surface. If any foreign objects exist use a cotton swab or lens paper to clean, if it is difficult to remove, use a neutral detergent diluted with water.

6. In order to ensure smooth and satisfactory image, the power and video cables shouldn't be too long. Please follow general AHD/Analog sepcifications for cables types and lenghts.

7. In order to prevent the camera from falling, please install the camera on a stable surface.
8. The camera should not be placed near a radiator or heating resistor.

2 Product Introduction

2.1 Camera Introduction

PROVISION-ISR's new series of cameras are adopted CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. Moreover, it supports monitoring signals coaxial transmission. Transmission distance can reach more than 200M based on Rg59 coaxial cable. The series can support AHD output, which also can realize high speed, long distance and real time video transmission.

2.2 Product Features

• Auto Day/Night (ICR)
- HBLC, BLC
• 2D Noise Reduction
- Motion Detection, Privacy Mask
• Super High Resolution Lens
- OSD Menu Available by OSD cable and CoC control.

3 Menu Setup

"Iris+" from DVR's PTZ interface to call Menu.

4 Product Installation

4.1 General Notes

1. Make sure the unit is powered off before installation.
2. Check that power supply voltage complies with the camera requirement to prevent damage to the camera.
3. The installation and maintenance of this product should be done by a professional. Please do not remove or modify the camera in any way.

4.2 Installation Tools and Information:

Prepare the required tools and instructions. Before installation please prepare the following tools: A straight or a Phillips-head screwdriver, multi-meter, cutter, needle nose pliers, measuring tape, pencil.

4.3 Installation Method:

1. Check the camera for any external damage.

2. Mount the bracket or base:

① For cement wall, install the expansion screws, and then mount the bracket/base.
② For wooden wall use self-tapping screws to mount.

4.5. Setting the camera:

a. Dome Camera

Adjust the lens position so it aims at the main monitoring point and gives a clear picture.

b. Bullet Camera

Adjust the body so that the lens aims at the main monitoring point and gives a clear picture. Tighten the screws to ensure that it does not move.

Note:

The wall needs to bear at least 3 times the weight of the camera.

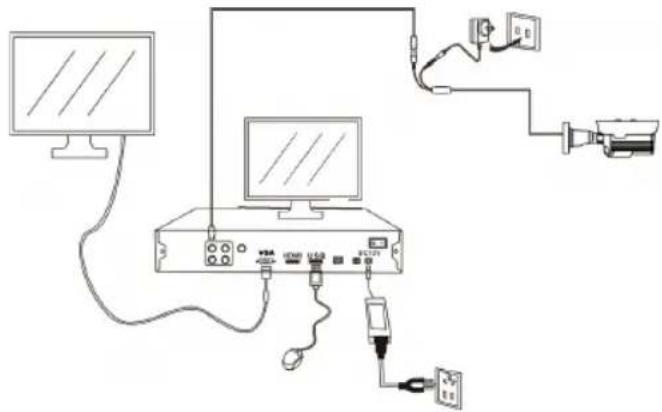

4.4 Connections

Connection as shown in the figure below

Line drawing of a network device with monitor, switch, and cable connections (no text or symbols)

4.5 OSD Control

The preferred control method is CoC (Control over Coax). If your AHD DVR supports this function*, access the DVR's PTZ interface to press on "Iris+" and open the OSD menu. Navigate through the OSD menu by the PTZ direction arrows. "Iris+" performs as "Enter".

*All of Provision-ISR's DVRs support CoC Starting from version 3.4.4

4.6 OSD Layout Scheme

OSD Menu List

Main Menu		Second Menu		Third Menu
EXPOSURE		SHUTTER	AUTO
			1/25s-1/50000s
		AGC	0-15
		BRIGHTNESS	1-100
		D-DWR	OFF
			AUTO
			ON	0-15
BACKLIGHT	OFF
	BLC	LEVEL	LOW
			MIDDLE
			HIGH
		AREA
		DEFAULT
	HSBLC	SELECT	AREA1-4
		DISPLAY	OFF
			ON
		BLACK MASK	ON/OFF
		LEVEL	0-100
		MODE	ALL DAY
			NIGHT	AGC LEVEL	0-255
		DEFAULT

Main Menu		Second Menu		Third Menu
WHITE BAL	ATW
	MANUAL	BLUE	0-100
		RED	0-100
	OUTDOOR
	INDDOR
	AWC-SET
DAY/NIGHT	AUTO	D-N(AGC)	2-255
		D-N(DELAY)	0-60
		N-D(AGC)	1-254
		N-D(DELAY)	0-60
	COLOR
	B/W	IR-SMART	ON	LEVEL	0-15
				AREA
			OFF
	EXT	D-N(DELAY)	0-60
		N-D(DELAY)	0-60
NR	2DNR	LOW/MIDDLE/HIGH/OFF
SPECIAL	MIRROR	OFF
		ROTATE
		V-FLIP
		MIRROR
	DPC	LIVE DPC	ON	AGC LEVEL	0-255
				LEVEL	0-100
			OFF

Main Menu		Second Menu		Third Menu
SPECIAL	DPC	WHITE DPC	ON	POS/SIZE
				START
				DPC VIEW	OFF/ON
				LEVEL	0~60
				AGC	0~14
			OFF
		BLACK DPC	ON	POS/SIZE
				START
				DPC VIEW	ON/OFF
				LEVEL	0~60
			OFF
	LANGUAGE		13 choices
ADJUST	SHARPNESS	AUTO	LEVE	0-10
			START AGC	0-255
			END AGC	0-255
			OFF
	MONITOR	GAMMA	USER 0.45~1.00
		BLUE GAIN	0~100
		RED GAIN	0~100
	LSC		OFF
			ON
	OUT PUT MODE	FORMAT	AHD
		VIDEO.OUT	PAL
			NTSC
		NRT	OFF
			ON

5 Specifications:

4MP AHD camera

Model	DI-340AHD36	DI-340AHDVF
Image Sensor	1/3" 4MP Sensor
Effective Pixels	2688(H)×1520(V)
Scanning System	Progressive
Resolution	Digital: 2560X1440
Min. Illumination	0.01Lux
Day & Night	True Day & Night (ICR)
IR LED	2 LED Array (20m)	3 LED Array (25m)
OSD Menu	Available via CoC Only (12 Languages)
CoC Support	Yes
Day & Night Mode	EXT, Color, B&W, Auto
Backlight Compensation	Off / BLC / HSBLC
S/N Ratio	≥50dB (AGC Off)
White Balance	AWB, AWC, Indoor, Outdoor, Manual
Noise Reduce	2D-DNR
Video Output	AHD
Defog	Not Available
Privacy Mask	Not Available
Motion Detection	Not Available
D-Effect	Flip/Mirror
Lens	3.6mm	2.8-12mm
Power	DC12V±10%, ~280mA	DC12V±10%, ~360mA
Operation temp.	-30°C~+50°C
Waterproof	IP66
Dimension	104*82*93.2mm	129.5*119*104mm
Net Weight	270g	476g

13-340AHD36 / 14-340AHDVF

Model	I3-340AHD36	I4-340AHDVF
Image Sensor	1/3" 4MP Sensor
Effective Pixels	2688(H)×1520(V)
Scanning System	Progressive
Resolution	Digital: 2560X1440
Min. Illumination	0.01Lux
Day & Night	True Day & Night (ICR)
IR LED	3 LED Array (30m)	4 LED Array (40m)
OSD Menu	Available via CoC Only (12 Languages)
CoC Support	Yes
Day & Night Mode	EXT, Color, B&W, Auto
Backlight Compensation	Off / BLC / HSBLC
S/N Ratio	≥50dB (AGC Off)
White Balance	AWB, AWC, Indoor, Outdoor, Manual
Noise Reduce	2D-DNR
Video Output	AHD
Defog	Not Available
Privacy Mask	Not Available
Motion Detection	Not Available
D-Effect	Flip/Mirror
Lens	3.6mm	2.8-12mm
Power	DC12V±10%, ~360mA	DC12V±10%, ~450mA
Operation temp.	-30°C~+50°C
Waterproof	IP66
Dimension	206.5*67.6*68.5mm	286*77*85.6mm
Net Weight	380g	836g
