Product Type	Security Camera
Brand	Provision-ISR
Model	DI-380AHDVF
Image Sensor	1/3" 1.3MP Sony Sensor
Effective Pixels	1280(H) x 960(V)
Resolution (Digital)	1280x960P
Resolution (Analog)	960H
Min. Illumination	0.01 Lux (0 Lux IR on)
Day & Night	EXT, Color, B&W, AUTO
IR LED	3 Array LED, 25m range
Lens	2.8-12mm varifocal (manual zoom)
Video Output	AHD / CVBS (selectable via OSD)
Signal to Noise Ratio	≥60 dB (AGC Off)
White Balance	AWB, ATW, AWC, Indoor, Outdoor, Manual
Noise Reduction	3D-DNR (AHD), 2D-DNR (Analog)
Backlight Compensation	OFF / BLC / HSBLC
Motion Detection	4 areas, selectable sensitivity
Privacy Mask	4 areas, color and transparency adjustable
Special Effects	Freeze, Mirror, Negative Image
Power Supply	DC 12V±10%, ~400mA
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Dimensions (W x H x D)	129.5 x 90 x 119 mm
Net Weight	476 g
OSD Menu	11 languages, full control
Defog	On / Off

Frequently Asked Questions - DI-380AHDVF Provision-ISR

How do I switch between AHD and CVBS output on the DI-380AHDVF?

You can switch the video output signal via the OSD menu. Alternatively, press and hold the LEFT key for 3 seconds to change from AHD to 960H, or press RIGHT for 3 seconds to change from 960H to AHD.

How do I adjust the OSD menu settings?

Press the MENU button on the camera to enter the main menu. Use UP and DOWN to navigate, LEFT and RIGHT to adjust values or select items. Press MENU again to enter a submenu. After changes, select SAVE&END to exit.

What is the operating temperature range for this camera?

The operating temperature is -10°C to +50°C (14°F to 122°F). Avoid exposing the camera to temperatures outside this range to prevent damage.

How should I install the DI-380AHDVF camera?

First, ensure the wall can bear at least 3 times the weight of the camera and bracket. For cement walls, use expansion screws; for wooden walls, use self-tapping screws. Mount the bracket securely, then attach the camera. Adjust the lens to aim at the monitoring area and tighten all screws.

What should I do if the image is not clear?

Check the lens focus and adjust if needed. Ensure the camera is not exposed to direct sunlight or glare. Clean the sensor if dirty using a cotton swab or lens paper with a neutral detergent. Also verify that the video cable is not too long (max 300m on 75-3 coaxial).

How do I clean the camera sensor?

Do not touch the sensor surface directly. If foreign objects are present, use a cotton swab or lens paper to gently wipe. For stubborn dirt, use a neutral detergent diluted with water. Do not use corrosive solutions.

What power supply is required?

The camera requires a DC 12V ±10% power supply with a current rating of at least 400mA. Use a certified power adapter that meets the voltage and current requirements.

What is the IR range of the DI-380AHDVF?

The camera is equipped with 3 Array LEDs that provide an infrared range of up to 25 meters (approximately 82 feet) in complete darkness.

How do I set the day/night mode?

In the OSD menu, go to DAY/NIGHT and select AUTO, COLOR, B/W, or EXT. In AUTO mode, the camera switches based on light level. You can also adjust delay times for switching.

What are the D-effect options available?

The D-EFFECT menu includes options for FREEZE (freeze the current image), MIRROR (horizontal flip), and NEGATIVE IMAGE (invert colors). These can be enabled or disabled via the OSD.

USER MANUAL DI-380AHDVF Provision-ISR

Four technical line drawings of mechanical components, showing front, side, top, and side views (no text or symbols)

FCC

www.provision-ISR.com

Solid red rectangular shape with a curved gray border (no text or symbols)

PROVISION ISR

Now you can see!

USER MANUAL

Eco-AHD Series
■ Pro-AHD Series

Contents

1 CAUTIONS
2 Product Introduction

2.1 Production Instruction
2.2 Product Feature

3 Menu Instruction
4 Product Installation

4.1 Note
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Connection

5 Specification

1 CAUTIONS

1. To reduce the risk of electric shock, do not open the machine and maintain by yourself, please consult a professional service person.

2. To prevent fire or shock hazard, use the power after safety certification, the input voltage, current, voltage polarity and operating temperature must meet the requirements of this camera.

3. Please note the operating temperature and environmental requirements of the camera, avoid too low or too high temperature. General operating temperature range of -10^ +50^ (Fahrenheit temperature is 14^ 122^ ). Avoid flooding and rain, minimize dust and moisture erosion, otherwise camera would be damaged.

4. Cameras in use should avoid direct sunlight, glare, otherwise the sensor will be damaged.

5. Do not touch the sensor surface, if any foreign objects exits, a cotton swab or lens paper can be used to wipe, if it is difficult to remove, a neutral detergent diluted with water would be useful. Do not use corrosive solution.

6. In order to make the camera work smoothly and obtain asatisfactory image, the power cord and video connection can not be too long, otherwise the increase of line loss will lead to the inadequate magnitude of the operating voltage of the camera or video signal Inadequate.

7. In order to prevent the camera from falling, please do not place the camera on an unstable bracket, base or other unstable objects. Otherwise it will lead to injury, at the same time, the camera will be damaged.

8. The camera cannot be placed near the radiator or heating resistor.

2 Product Introduction

2.1 Production Instruction

PROVISION-ISR's new series of cameras are adopted CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. Moreover, it supports monitoring signals coaxial transmission. Transmission distance can reach more than 300M based on 75-3 coaxial cable. The series can support both AHD/CVBS 960H output as well as realize high speed, long distance and real time video transmission.

2.2 Product Feature

• Coaxial cable adopted, BNC connector as cable standard.
  • Auto Day/Night (ICR)
  • Auto Defog, HBLC
  • Digital WDR, 2D/3D NR
• Motion Detection, Privacy Mask
  • AHD/CVBS Signal Selectable from OSD

AHD-960H: Press left 3 seconds;

960H-AHD: Press right 3 seconds;

PAL-NTSC: Press down 3 seconds to switch

between PAL&NTSC

3 Menu Instruction

Press "MENU" button to enter the main MENU, press "UP" and "DOWN" selection menu, press "LEFT" and "RIGHT" choice or set the corresponding function, to enter submenu please press "MENU" again. Set up save and exit.

4 Product Installation

4.1 Note

1. Make sure the unit is powered off before installation.
2. Check power supply voltage consistent with the electric voltage to prevent voltage unworthy, resulting in damage to the device.

3. Do not use in the environment beyond the boundaries of the temperature, and maintain good ventilation to prevent the rain in order to reduce the risk of fire or electric shock.

4. The installation and maintenance of this product should be professional, please do not in any way to remove or modify the equipment; can only use the required accessories of manufacturers. Problems caused by unauthorized repair are at your own risk.

4.2 Installation Tools and Information

Prepare the required engineering data and instructions. Before installation please prepare the following tools and instrumentation: A straight or a Phillips-head screwdriver, multi-meter, scissors, needle nose pliers, tape measure, pencil and so on.

4.3 Installation Method

1. Check the equipment whether it is damaged.

2. Mounting bracket or base.

① If the cement wall, install the expansion screws (expansion screw holes need stand or base hole), and then mount bracket or base.

② If the wooden wall, use self-tapping screws to mount.

1. Mounting the camera

a. Dome Camera

Adjust the lens position and make it aim at the monitoring points and present a clear picture, manually fix lens location and adjust the hemisphere cover. Re-examine the screen whether the character meets the requirement. Tighten the hemisphere cover.

b. Bullet Camera

Adjust the body so that the lens aims at the monitoring points and presents a clear picture. Tighten the screws, to ensure that it does not move.

Installation method above is for reference only, the specific installation, please be kind.

Note:

The wall needs to bear at least 3X weight of bracket (base) and camera.

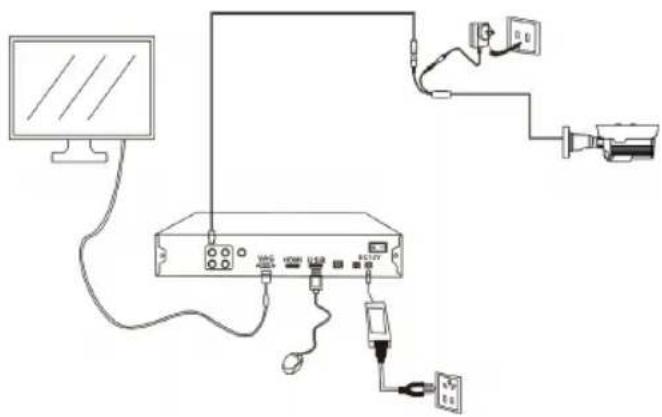

4.4 Connection

Connection as show in the figure below

OSD Menu List

Main Menu		Second Menu		Third Menu
LENS	DC	Indoor
		Outdoor	↓	MIN_SHU
				MAX_SHU
	Manual
EXPOSURE	↓	SHUTTER	AUTO1/25s-1/50000sX2-X30
		AGC	0-15
		SENS-UP	AUTO	SENS-UP	x2-x30
		BRIGHTNESS	1-100
		D-DWR	OFF
			AUTO
			ON
		DEFOG	OFF
			AUTO	POS/SIZE
				GRADATION
				DEFAULT
BACKLIGHT	OFF
	BLC	LEVEL
		AREA
		DEFAULT
	HSBLC	SELECT	AREA1-4
		DISPLAY	OFF
			ON	POS/SIZE
		BLACK MASK	ON/OFF
		LEVEL	1-100
		MODE	ALL DAY
			NIGHT	AGC LEVEL	0-255
		DEFAULT
WHITE BAL	ATW
	AWB
	MANUAL	BLUE	1-100
		RED	1-100
	OUTDOOR
	INDOOR
	AWC-SET
DAY/NIGHT	AUTO
	COLOR
	B/W
	EXT	↓	D-N(DELAY)	0-60
			N-D(DELAY)	0-60

NR	↓	2DNR	LOW/MID/
			HIGH
		3DNR	LOW/MID/
			HIGH
SPECIAL	↓	CAM TITLE
		D-EFFECT	↓	FREEZE
				MIRROR	OFF
					ROTATION
					V-FLIP
					MIRROR
				NEO IMAGE
		MOTION	SELECT	AREA1-4
			DISPLAY	ON/OFF
			SENSITIVITY	0-100
			ALARM	ON/OFF
		PRIVACY	SELECT	AREA1-4
			COLOR	W/R/B/G
			TRANS	0.25-1.0
		LANGUAGE		12 choices
		DEFECT	↓	WHITE	ON/OFF
				BLACK	ON/OFF
		RS485
ADJUST	↓	SHARPNESS	↓	LEVEL	1-10
				VALUE	0-255
		VIDEO OUT		PAL/NTSC
		Monitor		CRT/LCD and LSC
EXIT		SAVE&END

5 Specifications:

PRO-AHD camera (720P)

DI-380AHD36 / DI-380AHDVF / DAI-380AHDVF

I3-380AHD36 / I4-380AHDVF / BX-382AHD

Model	DI-380AHD36	DI-380AHDVF	DAI-380AHDVF	I3-380AHD36	I4-380AHDVF	BX-382AHD
Image Sensor	1/3" 1.3MP Sony Sensor
Effective Pixels	1280(H)×960(V)
Scanning System	Progressive
Resolution	Digital:1280×960P, Analog:960H
Min. Illumination	0.01Lux / (0Lux IR On)					0.01Lux
Day & Night	EXT, Color, B&W, AUTO
IR LED	2 Array LED (20m)	3 Array LED (25m)	3 Array LED (25m)	3 Array LED (25m)	4 Array LED (40m)	N/A
OSD Menu	Available (11 Languages, AHD/CVBS Output selectable)
Backlight Compensation	OFF/BLC/HSBLC
S/N Ratio	≥60dB (AGC Off)
White Balance	AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
Noise Reduce	3D-DNR (For AHD), 2D-DNR (For Analog)
Video Output	AHD / CVBS (Signal Selectable from OSD)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror, Negative Image
Lens	3.6mm	2.8-12mm	2.8-12mm	3.6mm	2.8-12mm	CS Mount
Power	DC12V±10%, ~310mA	DC12V±10%, ~400mA	DC12V±10%, ~250mA	DC12V±10%, ~410mA	DC12V±10%, ~480mA	DC12V±10%, ~100mA
Operation temp.	-10°C~+50°C(14°F~122°F)
Dimension	104*70.8*93.2mm	129.5*90*119mm	45*119.5mm	206.5*67.6*68.5mm	286*77*85.6mm	123.5*63.7*65mm
Net Weight	269g	476g	810g	380g	836g	300g

PRO-AHD camera (1080P)

DI-390AHD36 / DI-390AHDVF

I3-390AHD36 / I4-390AHDVF

Model	DI-390AHD36	DI-390AHDVF	I3-390AHD36	I4-390AHDVF
Image Sensor	1/3" 2MP Sony Sensor
Effective Pixels	1984(H)×1225(V)
Scanning System	Progressive
Resolution	Digital:1920×1080P, Analog:960H
Min. Illumination	0.01Lux / (0Lux IR On)
Day & Night	EXT, Color, B&W, AUTO
IR LED	2 Array LED (20m)	3 Array LED (25m)	3 Array LED (25m)	4 Array LED (40m)
OSD Menu	Available (11 Languages, AHD/CVBS Output selectable)
Backlight Compensation	OFF/BLC/HSBLC
S/N Ratio	≥72dB (AGC Off)
White Balance	AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
Noise Reduce	3D-DNR (For AHD), 2D-DNR (For Analog)
Video Output	AHD / CVBS (Signal Selectable from OSD)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror, Negative Image
Lens	3.6mm	2.8-12mm	3.6mm	2.8-12mm
Power	DC12V±10%, ~310mA	DC12V±10%, ~400mA	DC12V±10%, ~410mA	DC12V±10%, ~480mA
Operation temp.	-10 C~+50 C(14 F~122 F)
Dimension	104*70.8*93.2mm	129.5*90*119mm	206.5*67.6*68.5mm
Net Weight	269g	476g	380g	286*77*85.6mm

ECO-AHD camera (720P)

DI-380AHDE36 / DI-380AHDEVF

I1-380AHDE36 / I3-380AHDE36 / I4-380AHDEVF

Model	DI-380AHDE36	DI-380AHDEVF	I1-380AHDE36	I3-380AHDE36	I4-380AHDEVF
Image Sensor	1/3" 1MP Sensor
Effective Pixels	1280(H)×720(V)
Scanning System	Progressive
Resolution	Digital:1280×720P, Analog:960H
Min. Illumination	0.1Lux / (0Lux IR On)
Day & Night	EXT, COLOR, B&W, AUTO
IR LED	24 LED (15m)	36 LED (25m)	24 LED (15m)	36 LED (25m)	42 LED (35m)
OSD Menu	Available (11 Languages, AHD/CVBS Output selectable)
Backlight Compensation	OFF/BLC/HSBLC
S/N Ratio	≥44dB (AGC Off)
White Balance	AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
Noise Reduce	3D-DNR (For AHD), 2D-DNR (For Analog)
Video Output	AHD / CVBS (Signal Selectable from OSD)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror, Negative Image
Lens	3.6mm	2.8-12mm	3.6mm	3.6mm	2.8-12mm
Power	DC12V±10%, ~230mA	DC12V±10%, ~250mA	DC12V±10%, ~190mA	DC12V±10%, ~360mA	DC12V±10%, ~380mA
Operation temp.	-10°C~+50°C(14°F~122°F)
Dimension	104*70.8*93.2mm	129.5*90*119mm	163*60*60mm	206.5*67.6*68.5mm	286*77*85.6mm
Net Weight	269g	476g	275g	380g	836g
