USER MANUAL VLC36SK-HD-R2 Black Box
BASIC CHARGING CARTS
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
BLACK BOX
TABLE OF CONTENTS
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.87 7.8 7 7.2269
SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3
Important Safety Information....3
Electrical Precautions....3
1. SPECIFICATIONS....4
1.1 Basic Charging Carts General Specifications 4
1.2 Basic Charging Carts Specifications for Hinged Door....5
2. OVERVIEW....6
2.1 Introduction....6
2.2 What's Included 6
3. CONFIGURATION AND SETUP....7
3.1 Unpacking 7
3.2 Routing the Cables 7
3.3 Plugging In the Cart ...... 10
3.4 Turning On the Cart....10
3.5 Moving the Cart....10
APPENDIX A. REGULATORY INFORMATION....11
A.1 FCC Statement....11
A.2 NOM Statement (Electrical Safety)....11
TRADEMARKS USED IN THIS MANUAL....13
SAFETY INFORMATION/ELECTRICAL PRECAUTIONS
IMPORTANT SAFETY INFORMATION
WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.
WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.
- Only adults should move the cart.
- Do not leave the cart unattended in areas where children have access.
- Do not block the air vent openings.
- The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
- The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
- Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.
ELECTRICAL PRECAUTIONS
DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.
- The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
- The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
- The Cart must only be used by adults or with adult supervision.
- Never pull the Cart by the power cord.
Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.
- Do not use an extension cord in conjunction with the Cart.
- Do not use liquids in or around the Cart environment.
- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.
For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.
The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.
The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.
1.1 BASIC CHARGING CARTS GENERAL SPECIFICATIONS
TABLE 1-1. GENERAL SPECIFICATIONS
| SPECIFICATION DESCRIPTION | |
| General | |
| Approvals UL | * 60950 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2 |
| Use Indoor office and mobile use only | |
| Assembled Yes | |
| Material 18 ga (1.2 mm) minimum thick steel | |
| Construction Fully welded box frame, riveted and bolted panels | |
| Finish Powder Coat | |
| Color Gray | |
| Electrical | |
| Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph | |
| Input Power Cord | (3) NEMA 5-15P plugs, min. 6-ft. (1.8-m) cord |
| Power Cord Access | (2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner) |
| On/Off Switch | (1) illuminated switch on each PDU, (3) total |
| Device Charging Type | (3) PDUs with (36) total NEMA 5-15R outlets |
| Auxiliary Power | No |
| Dimensions | |
| Unit Height 42.1" (106.9 cm) | |
| Unit Width | 20.2" (51.3 cm) w/o handle, 23.7" (60.2 cm) w/ handle |
| Unit Depth | 21.3" (54.1 cm) |
| Unit Weight | 125 lb. (56.8 kg) |
| Shipping Height | 48.1" (122.2 cm) |
| Shipping Width | 35" (88.9 cm) |
| Shipping Depth | 32" (81.3 cm) |
| Shipping Weight | 150 lb. (68.2 kg) |
| Top Weight Capacity | 150 lb. (68.2 kg) |
| Frame | |
| Ventilation | Min. 75% high flow steel mesh, (2) places per shelf |
| Top | 2.00-mm thick steel top |
| Casters | |
| Type | (2) Fixed, (2) Swiveling and Locking |
| Diameter | 3" (7.6 cm) |
| Wheel | Polyurethane tread |
| Frame | Nickel Plated Steel |
| Warranty | |
| Cart | Lifetime |
| Electronics | 3 Years |
CHAPTER 1: SPECIFICATIONS
NEED HELP? LEAVE THE TECH TO US
LIVE 24/7 TECHNICAL SUPPORT
1.87 7.877.2269
1.2 BASIC CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR
TABLE 1-2. BASIC CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR
| PART NUMBER TYPICAL | DEVICE QUANTITY | LOCK TYPE | MAX. DEVICE SIZE (INCHES) MAX. WALL WART SIZE (INCHES) | MAX. POWER BRICK SIZE (INCHES) | ||||||||
| HEIGHT | WIDTH | DEPTH | HEIGHT | WIDTH | DEPTH | HEIGHT | WIDTH | DEPTH | ||||
| VLC30SK-HD | Tablet or Chromebook | 30 | Key lock | 10.5 | 1.57 | 14.4 | 2.4 | 1.1 | 5.7 | 5.1 | 1.57 | 5.7 |
| VLC30SK-HD-HASP Tablet or Chromebook | 30 | Padlock | 10.5 | 1.57 | 14.4 | 2.4 | 1.1 | 5.7 | 5.1 | 1.57 | 5.7 | |
| VLC36SK-HD-R2 | Tablet or Chromebook | 36 | Key lock | 10.5 | 1.57 | 14.4 | 2.4 | 1.1 | 5.7 | 5.1 | 1.57 | 5.7 |
| VLC36SK-HD-HASP Tablet or Chromebook | 36 | Padlock | 10.5 | 1.57 | 14.4 | 2.4 | 1.1 | 5.7 | 5.1 | 1.57 | 5.7 | |
2.1 INTRODUCTION
The Basic Charging Cart is designed to store, charge and transport tablets, e-readers, laptops, netbooks, Chromebooks and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with a charging unit that efficiently charges devices while ensuring the cart won't overload the electrical circuit.
The Basic Charging Cart can be equipped in four configurations according to the following standard options.
• 30 or 36 stored devices
- Split hinged steel front door
• Keyed front and back lock or padlock front and back lock
• Three fixed 10-slot or 12-slot shelves
- Three 12-outlet power distribution units (PDUs) with (36) total outlets
- 19" Rackmount Equipment
All Basic Carts feature a heavy-duty, fully welded steel frame, 2.0-thick steel top, heavy duty, 3" casters and 19"/23" EIA-310 rackmount rails for mounting of equipment.
Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.
2.2 WHAT'S INCLUDED
Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com.
(1) Cart
(2) sets of keys
CHAPTER 3: CONFIGURATION AND SETUP
NEED HELP? LEAVE THE TECH TO US
LIVE 24/7 TECHNICAL SUPPORT
1.87 7.877.2269
3.1 UNPACKING
Remove and discard all packaging materials and lock the lockable casters.
Open and inspect the cart to verify all doors, locks, and casters are working properly.
Do not plug the cart into a wall outlet until all configurations and setup are complete.
3.2 ROUTING THE CABLES

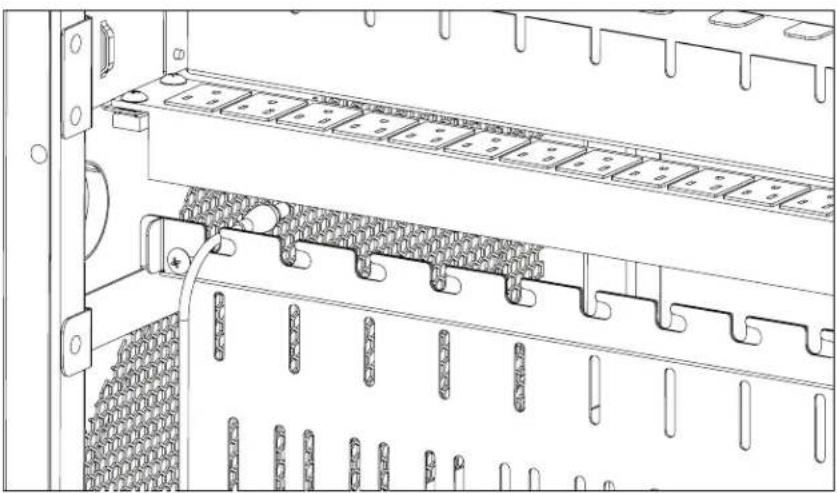

- At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.
- Slide back the top section of the cable manager and tighten the screws.
- Route the device side of the charging cable to the front of the cart.
CHAPTER 3: CONFIGURATION AND SETUP
NEED HELP? LEAVE THE TECH TO US
LIVE 24/7 TECHNICAL SUPPORT
1.87 7.877.2269

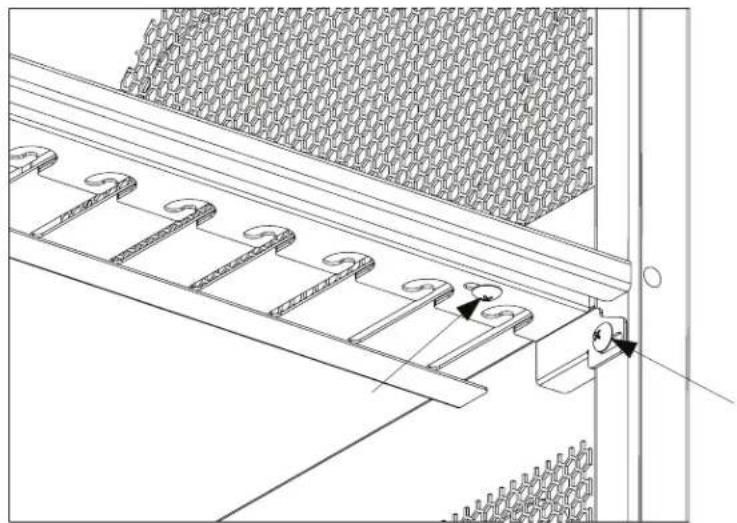

- At the front of the cart, loosen the screws on the side and front of the cable manager.


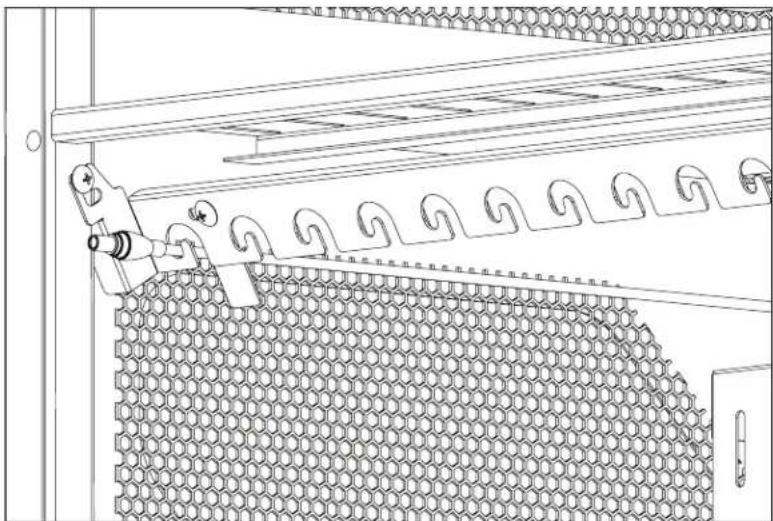

- Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.
CHAPTER 3: CONFIGURATION AND SETUP
NEED HELP? LEAVE THE TECH TO US
LIVE 24/7 TECHNICAL SUPPORT
1.87 7.877.2269

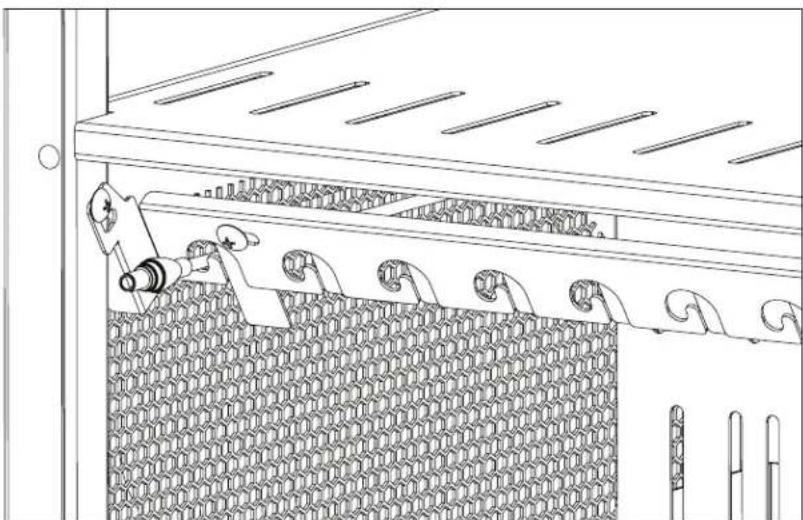

- Slide back the top section and tighten the front screws.
- Push up and pull back on the cable manager to secure it.
- Wrap any excess cable around the cable wrap on the back of the shelf.
- Attach the power brick to the back of the shelf using the hook and loop strap.

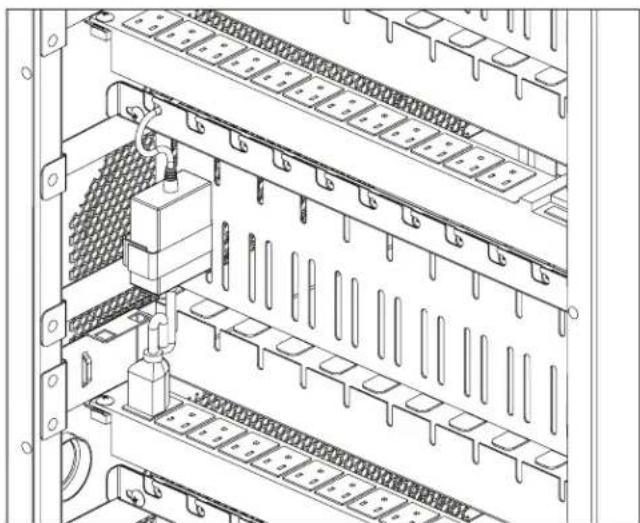

- Plug the charger power plug into the power strip located below the shelf.
CHAPTER 3: CONFIGURATION AND SETUP
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.87 7.877.2269
3.3 PLUGGING IN THE CART
After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.
3.4 TURNING ON THE CART
Locate the internal power switches on the power strips of the Cart and push the switches to the ON position. They will illuminate if on.
3.5 MOVING THE CART
- Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
- Close and lock the hinged or sliding doors.
◆ Unlock the locking and swiveling casters before moving the cart to a new location.
When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.
A.1 FCC STATEMENT
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.
