Product Type	Dual-band Wireless Access Point
Model	AP322
Wireless Standard	802.11ac Wave 2
Frequency Bands	2.4 GHz / 5 GHz
MIMO Configuration	2x2 MU-MIMO
Maximum Data Rate	1.2 Gbps
Ethernet Ports	1x Gigabit Ethernet (RJ-45)
Power Supply	PoE (802.3af/at) or 12V DC adapter
Power Consumption	10 W typical
Dimensions (W x D x H)	165 x 165 x 35 mm
Weight	0.4 kg
Mounting Options	Wall or ceiling mount (kit included)
Operating Temperature	0°C to 40°C
Humidity Range	10% to 90% non-condensing
Antenna Type	Internal dual-band antennas
LED Indicators	Power, LAN, 2.4G/5G
Management	WatchGuard Wi-Fi Cloud, Web UI, CLI, SNMP
Security Features	WPA2/WPA3, MAC filtering, rogue AP detection, captive portal
VLAN Support	Yes, 802.1Q VLAN tagging
Quality of Service	WMM, 802.1p, DSCP
Regulatory Certifications	FCC, CE, RoHS
Warranty	Limited lifetime warranty (subject to terms)

Frequently Asked Questions - AP322 WatchGuard

How do I set up the WatchGuard AP322 for the first time?

Connect the AP322 to your network via PoE or DC power. Use the WatchGuard Wi-Fi Cloud app or web interface to adopt the device. Follow the on-screen wizard to configure SSID, security, and management settings.

Can the AP322 be mounted on a wall or ceiling?

Yes, the AP322 includes a mounting kit for both wall and ceiling installation. Ensure the mount is securely attached to a solid surface and the device snaps into place.

Does the AP322 support PoE? What standard?

Yes, it supports Power over Ethernet (PoE) according to the 802.3af/at standards. A PoE switch or injector is required.

How can I update the firmware on the AP322?

Firmware updates are handled via WatchGuard Wi-Fi Cloud. The cloud automatically pushes the latest firmware. You can also manually upload from the local web interface.

What is the default IP address for the AP322?

By default, the AP322 obtains an IP via DHCP. If no DHCP server is available, it uses a fallback IP of 192.168.1.100. Check your router's client list for the actual IP.

How do I reset the AP322 to factory defaults?

Press and hold the reset button on the device for 10 seconds using a paperclip. The LEDs will flash, indicating the factory reset is complete.

What wireless channels does the AP322 support?

For 2.4 GHz: channels 1-11 (US) or 1-13 (EU). For 5 GHz: channels 36-48, 52-64, 100-144, 149-165 (depending on regulatory domain). DFS channels are supported.

Can I manage the AP322 without WatchGuard Wi-Fi Cloud?

Yes, the AP322 can be managed locally via its web interface (HTTP/HTTPS) or SSH. However, cloud management provides additional features and central control.

What is the maximum number of concurrent clients supported?

The AP322 can handle up to 100+ simultaneous clients under typical conditions, depending on traffic and environment.

Does the AP322 support VLAN tagging?

Yes, the AP322 supports 802.1Q VLAN tagging for both management and SSID-to-VLAN mapping. Configure VLANs in the network settings.

USER MANUAL AP322 WatchGuard

Copyright and Patent Information

Copyright© 2017 WatchGuard Technologies, Inc. All rights reserved.

WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the "Terms of Use" portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc. and/or its subsidiaries in the United States and/or other countries. All other trademarks are the property of their respective owners.

Printed in the United States of America.

Revised: April 19, 2017

Complete copyright, trademark, patent, and licensing information can be found in the WatchGuard product documentation. You can find this document online at: http://www.watchguard.com/wgrd-help/documentation/overview

Notice to Users

Information in this guide is subject to change without notice. Updates to this guide are posted at:

http://www.watchguard.com/wgrd-help/documentation/hardware-guides

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this guide may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of WatchGuard Technologies, Inc.

ABOUT WATCHGUARD

WatchGuard ^® Technologies, Inc. is a global leader of integrated, multi-function business security solutions that intelligently combine industry standard hardware, best-of-breed security features, and policy-based management tools. WatchGuard provides easy-to-use, but enterprise-powerful protection to hundreds of thousands of businesses worldwide. WatchGuard is headquartered in Seattle, Wash. with offices throughout North America, Europe, Asia Pacific, and Latin America.

To learn more, visit WatchGuard.com.

ADDRESS

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

SUPPORT

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

SALES

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

Hardware Specifications

The WatchGuard® AP family of wireless access points provide secure, reliable, wireless communications while delivering high performance and broad coverage—a perfect combination of services to meet the needs of enterprise-level customers, small businesses, branch offices, campuses, and hotels alike.

Internal antennas, slim cases, minimalist labeling, and small LEDs, coupled with flexible mounting options, make these devices ideal for low profile wireless deployment scenarios.

WatchGuard AP322 devices are intended for outdoor use and feature MIMO 802.11ac Wave 1 capability, and dual radios that supports 2.4GHz (802.11b/g/n) and 5GHz (11a/n/ac) to provide wireless clients with enhanced reliability and performance. Power can be provided by any Power over Ethernet (PoE+) power source.

There are two ways you can manage your AP322 device:

WatchGuard Wi-Fi Cloud

A powerful cloud-based enterprise wireless management solution for AP configuration, security, and monitoring.

WatchGuard Firebox Gateway Wireless Controller

Local management, configuration, security, and monitoring of AP devices directly from your WatchGuard Firebox. The WatchGuard Firebox requires Fireware OS v11.12.2 or higher.

For more information about how to set up and manage your WatchGuard AP device, you can find documentation online at: http://www.watchguard.com/wgrd-help/documentation/overview

Package Contents

■ WatchGuard AP device
- Quick Start Guide
■ Wall-mount and pole-mount accessories

About Your Hardware

Hardware Specifications

AP322

Radio Type and 2.4GHz, 802.11b/g/n. Max data rate: 450 Mbps

Frequency Band 5GHz, 802.11a/n/ac. Max data rate: 1.3 Gbps

Antenna Six integrated omnidirectional antennas

Ethernet interface 1 x 10/100/1000 Mbps Gigabit Ethernet (LAN1) 802.3at PoE+

1 x 10/100/1000 Mbps Gigabit Ethernet (LAN2) (for wired extension of SSID)

Power Interface LAN1 PoE+: 19W (802.3at)

Dimensions 210mm × 210mm × 67mm

Weight 3.22 lb. (1.46 kg)

Environmental Requirements

To safely install your WatchGuard AP device, we recommend that you:

• Install the device indoors or outdoors, preferably under cover.
  ■ Make sure the device has adequate clearance for air flow and cooling.

Other environmental requirements:

Operating temperature -20^ to 55^ ( -4^ to 151^ )

Operating relative humidity 5% to 95% non-condensing

Non-operating temperature -40°C to 70°C (-40°F to 158°F)

Non-operating relative humidity 5% to 95% non-condensing

Hardware Description

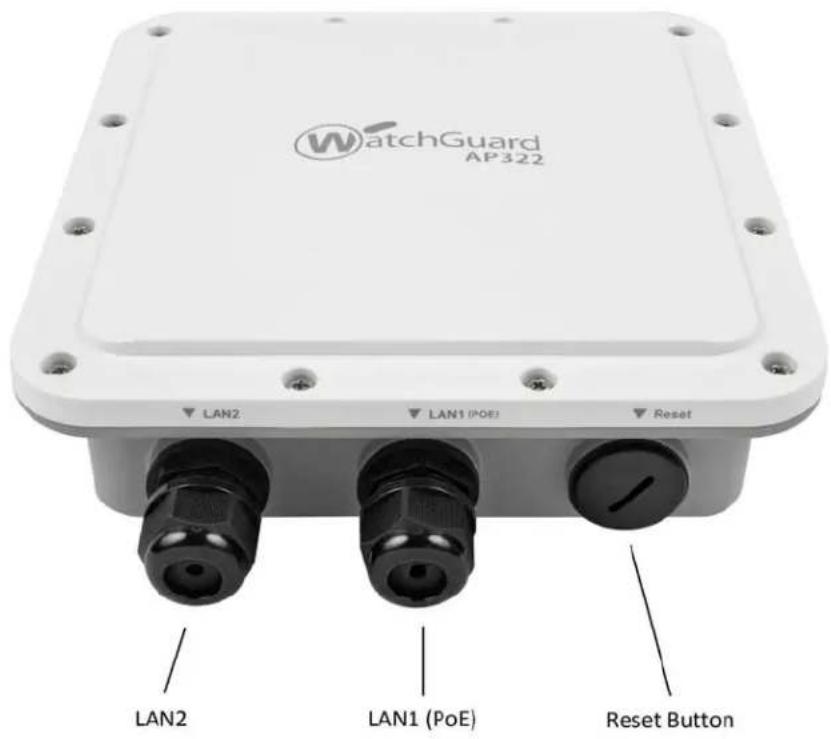

Device Connections and Buttons

Ethernet Network Interfaces

LAN1: Standard RJ45 connector that supports link speeds of 10/100/1000 Mbps and PoE+ connectivity. The WatchGuard AP322 can be powered by an 802.3at PoE+ connection on the LAN1 interface.

LAN2: Standard RJ45 connector that supports link speeds of 10/100/1000 Mbps. You can use the LAN2 interce for a wired SSID extension.

Reset Button

Resets the WatchGuard AP device to factory-default settings. You must use a paper clip or other small object to press the reset button through the hole.

To reset the device to factory-default settings, power cycle the device (remove the power cable and reconnect it again). While you reconnect the power source, press and hold the reset button for at least 60 seconds until the power, LAN1, and 2.4 GHz indicators are green.

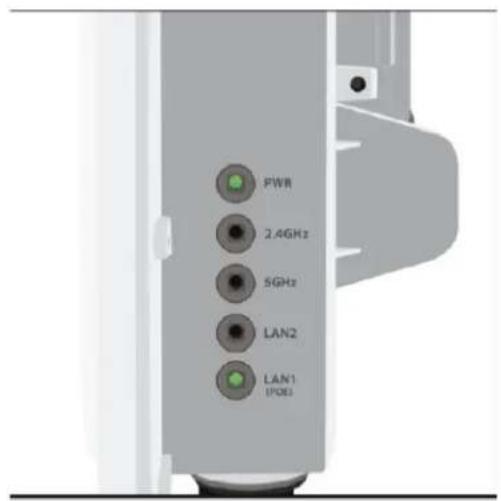

Device Indicators

The side of the AP device has these status indicators

White WatchGuard AP322 device with black connectors and ports (no readable text beyond branding)

Device Indicators in AP Mode

Power	LAN1	LAN2	2.4 GHz	5 GHz	Description
Solid green Solid green On/Off Any Any Powered on and operating
					correctly. Connected to WatchGuard Wi-Fi Cloud services.
Solid green Slow flash green	On/Off	Any	Any		Software upgrade in progress.
Solid amber Solid green On/Off Any Any No Ethernet link.
Solid amber Fast flash green	On/Off	Any	Any		Did not receive a valid IP address from DHCP.
Solid amber Slow flash green	On/Off Any Any Cannot connect to WatchGuard Wi-Fi Cloud services.
Off	Off	Off	Off	Off	Not powered on or in startup process.

Device Indicators in WIPS Mode

These indicators are active when the AP device is set to dedicated WIPS (Wireless Intrusion Prevention System) mode. For more information about WIPS mode, see the WatchGuard Wi-Fi Cloud help.

Power	LAN1	LAN2	2.4 GHz	5 GHz	Description
Solid green	Solid green On/Off Solid		green	Solid green	Powered on and operating correctly. Connected to WatchGuard Wi-Fi cloud services.
Solid green	Slow flash green	On/Off	Slowflash green	Any Software upgrade in process.
Solid amber	Solid green On/Off Solid		green	Any No Ethernet link.
Solid amber	Fast flash green	On/Off	Fast flash green	Any Did not receive a valid IP address from DHCP.
Solid amber	Slow flash green	On/Off	Slowflash green	Any C cannot connect to WatchGuard Wi-Fi Cloud services.
Off	Off	Off	Off	Off	Not powered on or in startup process.
Solid green	Solid green On/Off Solid		Green	Solid green	Sensor is troubleshooting on 802.11b/g/n
Solid green	Solid green	On/Off	Solid Green	Fast flash green	Sensor is troubleshooting on 802.11a/n/ac
Solid green	Solid green On/Off Solid		Green	Fast flash green	Sensor is troubleshooting on both 802.11b/g/n and 802.11a/n/ac
Solid green	Solid green	On/Off	Solid Green	Solid green	Sensor is performing intrusion prevention on 802.11b/g/n

If the Ethernet connection for an AP322 device drops down to 10/100 Mbps, the amber indicator for LAN1 will flash while the green indicator for LAN1 remains in its original state. The amber indicator for LAN1 may continue to flash even if the Ethernet connection switches back to 10/1000 Mbps mode. These indicators return to normal operation after you restart the AP device.

Mounting Instructions

Your package includes the AP322 device, wall-mount and pole-mount accessories.

x2

Metal bracket component with mounting holes (no text or symbols visible)

x1

x4

x4

x2

×1

Wall Mount

1 Attach mounting bracket to the wall

Technical line drawing of a mechanical or electrical enclosure with internal components and directional arrows indicating movement (no text or symbols)

2 Attach device to the mounting bracket

Diagram showing a mechanical component being cut with a red arrow indicating the process (no text or symbols present)

3 Insert screws in the slots on the mounting bracket

4 Fasten the screws

Technical line drawing of a mechanical or electrical enclosure with mounting flanges and internal components (no text or symbols)

The MAC address and serial number of your AP device are printed on a label on the back of the device. Make sure you record this information before you mount the AP device.

Pole Mounting

Use the supplied pole-mounting accessories to install the AP322 on a pole.

1 Place the device on the pole

Technical line drawing of a mechanical or electrical enclosure with mounting holes and a vertical cylindrical component (no text or symbols)

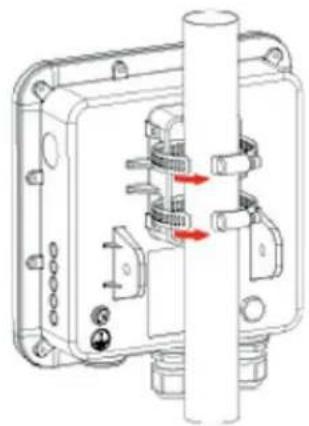

2 Insert the straps in the slots on the device and wrap around the pole

Technical diagram of a mechanical or electrical component with internal springs and shafts, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

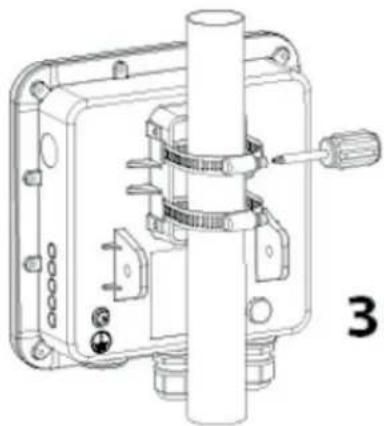

3 Fasten the screws and make sure the device is firmly attached to the pole

The MAC address and serial number of your AP device are printed on a label on the back of the device. Make sure you record this information before you mount the AP device.

Connect the AP Device

You can power the WatchGuard AP322 with an 802.3at PoE+ connection.

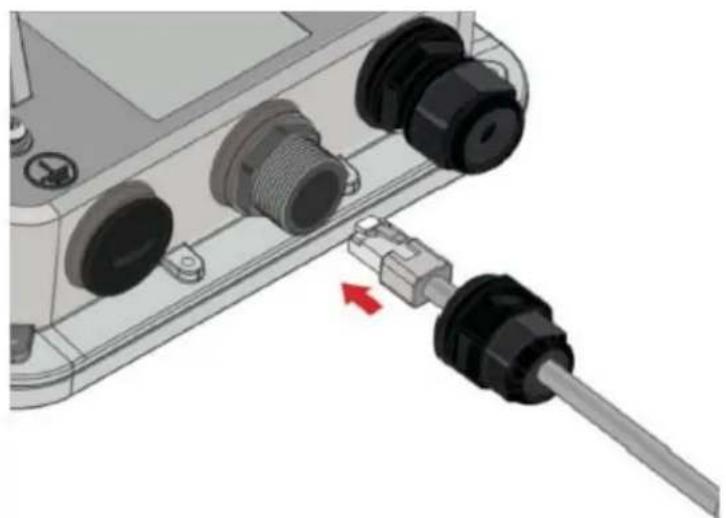

To power on and connect the AP322 to the network with PoE+:

1. Connect one end of the network interface cable to the LAN1 port on the AP322.

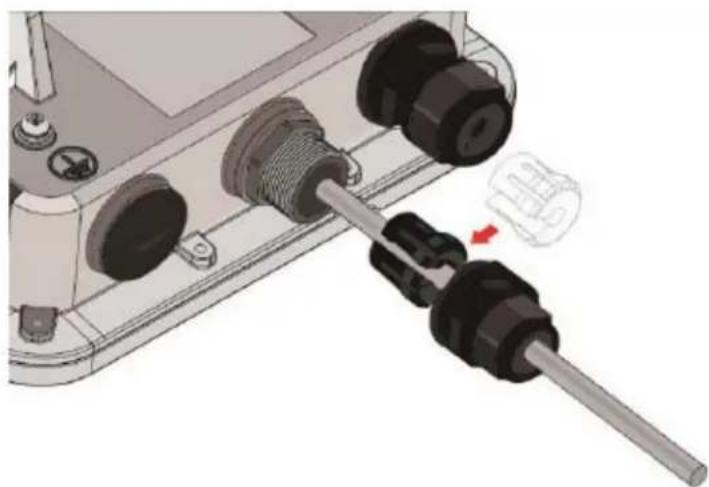

2. Connect the other end of the network interface cable to an Ethernet jack that provides 802.3at PoE+ power.

Mechanical component diagram showing a screwdriver inserted into a housing with multiple connectors (no text or symbols visible)

Mechanical assembly diagram showing a screwdriver inserted into a housing component (no text or symbols visible)

Safety Notices

All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards. Read these instructions carefully before you operate the product, and refer to them as needed for continued safe operation of your product.

Product Safety Certification

The WatchGuard product is safety certified under the following standards:

■ IEC 60950-1:2005 (Second Edition)+Am 1:2009+Am 2:2013
■ EN 60950-1:2006+A11+A1+A12+A2:2013
■ EN 61000-3-2:2006+A1:2009+A2:2009
■ EN 61000-3-3:2008

Safety Warning

• Do not place objects on the power cord.
• Do not obstruct the ventilation openings. These openings prevent overheating of the machine.
• Never push objects of any kind into slots or openings on this equipment. Making a contact with a voltage point or shorting out a part may result in fire or electrical shock.
• When removing or installing an appliance, follow the general installation safety instructions.

Disclaimer

WatchGuard shall not be held liable if the end user alters, modify, or repairs any WatchGuard hardware appliance.

Legal and Regulatory Information

Limited Hardware Warranty

This Limited Hardware Warranty (the "Warranty") applies to the enclosed hardware product, not including any associated software, which is licensed pursuant to a separate end-user license agreement and warranty (the "Product"). BY USING THE PRODUCT, YOU (either an individual or a single entity) AGREE TO THE TERMS HEREOF. If you do not agree to these terms, please return this package, along with proof of purchase, to the authorized dealer from which you purchased it for a full refund. WatchGuard Technologies, Inc. ("WatchGuard") and you agree as set forth below or on the reverse side of this card, as applicable:

1. LIMITED WARRANTY. WatchGuard warrants that upon delivery and for one (1) year thereafter (the "Warranty Period"): (a) the Product will be free from material defects in materials and workmanship, and (b) the Product, when properly installed and used for its intended purpose and in its intended operating environment, will perform substantially in accordance with WatchGuard applicable specifications.

This warranty does not apply to any Product that has been: (i) altered, repaired or modified by any party other than WatchGuard except for the replacement or inclusion of specified components authorized in, and performed in strict accordance with, documentation provided by WatchGuard; or (ii) damaged or destroyed by force majeure events, accidents, power spikes or similar events, or by any intentional, reckless or negligent acts or omissions of any party. You may have additional warranties with respect to the Product from the manufacturers of Product components. However, you agree not to look to WatchGuard for, and hereby release WatchGuard from any liability for, performance of, enforcement of, or damages or other relief on account of, any such warranties or any breach thereof.

1. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product; provided, that you will be responsible for returning the Product and for all costs of shipping and handling. Repair or replacement of the Product shall not extend the Warranty Period. Any Product, component, part or other item replaced by WatchGuard becomes the property of WatchGuard. WatchGuard shall not be responsible for return of or damage to any software, firmware, information or data contained in, stored on, or integrated with any returned Products.

2. DISCLAIMER AND RELEASE. THE WARRANTIES, OBLIGATIONS AND LIABILITIES OF WATCHGUARD, AND YOUR REMEDIES, SET FORTH IN PARAGRAPHS 1 AND 2 ABOVE ARE EXCLUSIVE AND IN SUBSTITUTION FOR, AND YOU HEREBY WAIVE, DISCLAIM AND RELEASE ANY AND ALL OTHER WARRANTIES, OBLIGATIONS AND LIABILITIES OF WATCHGUARD AND ALL OTHER RIGHTS, CLAIMS AND REMEDIES YOU MAY HAVE AGAINST WATCHGUARD, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, WITH RESPECT TO ANY NONCONFORMANCE OR DEFECT IN THE PRODUCT (INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ANY IMPLIED WARRANTY ARISING FROM COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE, ANY WARRANTY OF NONINFRINGEMENT, ANY WARRANTY OF UNINTERRUPTED OR ERROR-FREE OPERATION, ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT ARISING FROM THE NEGLIGENCE (WHETHER ACTIVE, PASSIVE OR IMPUTED) OR FAULT OF WATCHGUARD OR FROM PRODUCT LIABILITY, STRICT LIABILITY OR OTHER THEORY, AND ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OR DAMAGE TO, OR CAUSED BY OR CONTRIBUTED TO BY, THE PRODUCT).

1. LIMITATION AND LIABILITY. WATCHGUARD'S LIABILITY (WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE OR IMPUTED NEGLIGENCE AND STRICT LIABILITY AND FAULT) OR OTHER THEORY) WITH REGARD TO ANY PRODUCT WILL IN NO EVENT EXCEED THE PURCHASE PRICE PAID BY YOU FOR SUCH PRODUCT. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY. IN NO EVENT WILL WATCHGUARD BE LIABLE TO YOU OR ANY THIRD PARTY (WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE OR IMPUTED NEGLIGENCE AND STRICT LIABILITY AND FAULT) OR OTHER THEORY) FOR COST OF COVER OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, BUSINESS, OR DATA) ARISING OUT OF OR IN CONNECTION WITH THIS WARRANTY OR THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF WATCHGUARD HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY.

2. MISCELLANEOUS PROVISIONS. This Warranty will be governed by the laws of the state of Washington, U.S.A., without reference to its choice of law rules. The provisions of the 1980 United Nations Convention on Contracts for the International Sales of Goods, as amended, shall not apply. You agree not to directly or indirectly transfer the Product or use of the product or associated documentation to any country to which such transfer would be prohibited by the U.S. Export laws and regulations. If any provision of this Warranty is found to be invalid or unenforceable, then the remainder shall have full force and effect and the invalid provision shall be modified or partially enforced to the maximum extent permitted by law to effectuate the purpose of this Warranty. This is the entire agreement between WatchGuard and you relating to the Product, and supersedes any prior purchase order, communications, advertising or representations concerning the Product AND BY USING THE PRODUCT YOU AGREE TO THESE TERMS. IF THE PRODUCT IS BEING USED BY AN ENTITY, THE INDIVIDUAL INDICATING AGREEMENT TO THESE TERMS BY USING THE PRODUCT REPRESENTS AND WARRANTS THAT (A) SUCH INDIVIDUAL IS DULY AUTHORIZED TO ACCEPT THE WARRANTY ON BEHALF OF THE ENTITY AND TO BIND THE ENTITY TO THE TERMS OF THIS WARRANTY; (B) THE ENTITY HAS THE FULL POWER, CORPORATE OR OTHERWISE, TO ENTER INTO THE WARRANTY AND PERFORM ITS OBLIGATIONS UNDER THE WARRANTY AND; (C) THE WARRANTY AND THE PERFORMANCE OF THE ENTITY'S OBLIGATIONS UNDER THE WARRANTY DO NOT VIOLATE ANY THIRD-PARTY AGREEMENT TO WHICH THE ENTITY IS A PARTY. No change or modification of the Warranty will be valid unless it is in writing and is signed by WatchGuard.

All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards. Please read the following instructions carefully before operating the product, and refer to them as needed to ensure the continued safe operation of your product. Additional information can be found in the electronic Hardware Guide.

Declaration of Conformity

Declaration of Conformity

WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directives and standards identified in this declaration.

Product (a):

Wireless Access Point, WatchGuard Model AP322

EIL Directive(s):

Radio & Télécommunications Terminal Equipment (1999/S/EC)

Low Voltage (2006/95/EC)

Electromagnetic Compatibility (2004/108/EC)

Energy-related Products (2009/125/EC)

RoHS (2002/95/EC)

WEEE Directive 2002/96/EC

Common Standard(s):

EN 60950-1:2006+A11+A1+A12+A2:2013

EN 55022:2010/AC:2011

EN 55024:2010

EN 55032:2012/AC:2013

EN 62311:2008

EN 50385:2002

EN 61000-3-2:2014

EN 61000-3-3:2013

Safety for ITE

Class B Emissions for ITE

Immunity for ITE

Harmonics

Flicker

Wireless Standard(s):

EN 301 489-01 v1.9.2 (2011-09)

EN 301 489-17 v2.2.1 (2012-09)

EN 300 328 v1.9.1 (2015-02)

EN 301 893 v1.8.1 (2015-03)

In accordance with the Radio and Telecommunications Terminal Equipment Act (FTEG) and

Directive 1999/5/EC (R&TTE Directive).

Manufacturer / Hersteller:

WatchGuard Technologies

505 5th Ave S. Suite 500, Seattle, WA 98104 USA

Wireless Access Point

AP322

802.11a,b,g,n,ac (2.4GHz & 5GHz)

Indoor Access Point

Class II

Radio Equipment / Funkanlage:

The above device complies with the essential requirements and other relevant provisions to Directive

1999/5/EC when used for its intended purpose. This equipment may be operated in the USA, Canada, & Europe

Union.

Warning! This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Full Name: Laurence Huang

Position: Manufacturing Program Manager

Date: Dec 13, 2016

FCC Certification

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

* FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

For operation within 5.15 \~ 5.25GHz / 5.47 \~ 5.725GHz frequency range, it is restricted to indoor environment. The band from 5600-5650MHz will be disabled by the software during the manufacturing and cannot be changed by the end user. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 24cm between the radiator & your body.

Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU).

CE

This equipment should be installed and operated with minimum distance 24cm between the radiator & your body.

Industry Canada Certification

This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;

(iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and

(iv) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated.

(v) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

Radiation Exposure Statement:

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 24cm between the radiator & your body.

For Model No.: 0-90 / AP322
Ant. Brand Model No. Antenna			Connector Gain (dBi)
			Type5GHz
1	LITEON	WP938 AP	PCB	MMCX	7.9	8.8
2	LITEON	WP938 AP	PCB	MMCX	7.9	11.1
3	LITEON	WP938 AP	PCB	MMCX	5.0	10.2

Dynamic Frequency Selection (DFS) for devices operating in the bands 5250-5350 MHz, 5470-5600 MHz and 5650-5725 MHz.

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN60950-1/A12:2011+A2:2013

Safety of Information Technology Equipment

EN 50385:2002

Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public

EN 300 328 V1.8.1:2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2.4GHz ISM band and using wide band modulation techniques; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

EN 301 893 V1.7.1:2012

Broadband Radio Access Networks (BRAN); 5GHz high performance RLAN; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

EN 301 489-1 V1.9.2:2011

Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements-EN 301489-17 V2.2.1:2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems

csČesky [Czech]	WatchGuard Technologies tímto prohlašuje, že tento AP322 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
daDansk [Danish]	Undertegnede WatchGuard Technologies erklærer herved, at følgende udstyr AP322 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
deDeutsch [German]	Hiermit erklärt WatchGuard Technologies, dass sich das Gerät AP322 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
etEesti [Estonian]	Käesolevaga kinnitab WatchGuard Technologies seadme AP322 vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
enEnglish	Hereby, WatchGuard Technologies, declares that this AP322 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
esEspañol [Spanish]	Por medio de la presente WatchGuard Technologies declara que el AP322 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
elΕλληνική [Greek]	ME THN ΠΑΡΟΥΣΑ WatchGuard Technologies ΔΗΛΩΝΕΙ ΟΤΙ ΑΡ322 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
frFrançais [French]	Par la présente WatchGuard Technologies déclare que l'appareil AP322 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
itItaliano [Italian]	Con la presente WatchGuard Technologies dichiara che questo AP322 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo WatchGuard Technologies deklarē, ka AP322 atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]	Šiuo WatchGuard Technologies deklaruoja, kad šis AP322 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nlNederland s [Dutch]	Hierbij verklaart WatchGuard Technologies dat het toestel AP322 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
ntMalti [Maltese]	Hawnhekk, WatchGuard Technologies, jiddikjara li dan AP322 jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
huMagyar [Hungarian]	Alulírott, WatchGuard Technologies nyilatkozom, hogy a AP322 megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelyv egyéb előírásainak.
plPolski [Polish]	Niniejszym WatchGuard Technologies oświadcza, że AP322 jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
ptPortuguês [Portuguese]	WatchGuard Technologies declara que este AP322 está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
slSlovensko [Slovenian]	WatchGuard Technologies izjavlja, da je ta AP322 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]	WatchGuard Technologies týmto vyhlasuje, že AP322 spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fiSuomi [Finnish]	WatchGuard Technologies vakuuttaa täten että AP322 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
svSvenska [Swedish]	Härmed intygar WatchGuard Technologies att denna AP322 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

RoHS Statement

The member states of the European Union approved directive 2002/95/EC, Restrictions of Hazardous Substances ("RoHS directive") that became valid on July 1, 2006. It states that all new electrical and electronic equipment put on the market within the member states must not contain certain hazardous materials. This device complies with the European Union's R0HS directive 2002/95/EC and similar regulations that may be adopted by other countries for European Sales.

WEEE Statement

WEEE is a general set of requirements dictated in the EU Directive 2002/96/EC. This Directive mandated that member EU countries enact regulations governing the Waste of Electrical and Electronic Equipment (WEEE). The Directive, and its individual transpositions into specific country laws and legislation, is aimed at the reduction of WEEE through reuse, recovery, and recycling of WEEE.

WatchGuard is working in partnership with our European Union (EU) distribution partners to ensure that our products are in compliance with the WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product's end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at:

U.S. Customers: 877.232.3531

International Customers: +1.206.613.0456

WatchGuard is reasonably confident that our products do not contain any substances or hazardous materials presently banned by any legislation, and do not present a risk due to hazardous materials. WEEE recovery professionals should also note that these products do not have any materials that are of particular high value in their individual form.

REACH Certificate of Compliance

The new EU chemicals policy REACH (Registration, Evaluation, Authorization and restriction of Chemicals) came into effect on June 1, 2007. REACH is Europe's new chemicals legislation, which is applicable in all 27 EU Member States as well as the EFTA European Economic Area (EEA). REACH creates a new system for gathering information, assessing risks to human health and the environment, and authorizing or restricting the marketing and use of chemicals produced or supplied in the EEA. REACH has an impact on EEA producers and importers of finished products and users of chemicals in the course of industrial or professional activities.

WatchGuard supports the overall REACH objective of improving the protection of human health and the environment and will meet all applicable REACH requirements. WatchGuard is strongly committed to working with our customers and supply chain to define and implement the REACH requirements and ensure a smooth transition to compliance.

One of the REACH requirements is that manufacturers and importers have the duty to register substances they are producing or importing. In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons:

• WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH.
• WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.

Our products do not contain the listed substances at more than 0.1% by weight of the whole product/part.

VCCI Notice Class B ITE (Japan)

VCCI Notice Class B ITE(Japan)

This equipment should be installed and operated with minimum distance 22cm between the radiator & your body.

Taiwan NCC

低功率電波輻射性電機管理辦法

Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor

Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

Terms and Conditions for Copying, Distribution, and Modification

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or

a portion of it, either verbatim or with modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

• You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
• You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
• If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

2. Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

3. Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

- Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
