Product Type	Electronic desktop calculator with printer
Display	12-digit LCD with symbols (memory, minus, error, grand total)
Printing	2-color ink ribbon; printing speed approx. 2.0 lines/sec
Paper Roll Width	57 mm
Power Supply	AC 120 V, 60 Hz
Dimensions (approx.)	8.0 x 6.0 x 2.0 inches (203 x 152 x 51 mm)
Weight (approx.)	0.8 kg (1.8 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Memory	Two independent memories (M1, M2), grand total memory
Decimal Selector	Floating, 0, 2, 3, 4, 6 positions
Rounding Selector	Up (↑), 5/4, Down (↓)
Constant/Add Mode	K (constant) and A (add mode) selector
Grand Total Mode	GT selector for accumulating totals
Key Functions	Paper feed, last digit correction, non-add/subtotal, total, mark-up, percent change, sign change, tax/discount rate store and recall
Item Count	Up to 3 digits (max ± 999)
Error Conditions	Overflow (>12 digits integer), entry >12 digits or 11 decimals, division by zero
Cleaning	Use a soft dry cloth; avoid solvents or wet cloth
Storage	Keep away from extreme temperature, moisture, dust, and liquids
Safety	Must be used with specified voltage; unplug when not in use for extended period
Regulatory	FCC Part 15 compliant (Class B digital device)

Frequently Asked Questions - VX-2652H SHARP

How do I set the decimal place on my Sharp VX-2652H?

Use the DECIMAL SELECTOR switch on the front. Positions: F (floating), 0, 2, 3, 4, 6 fixed decimals. For example, set to 2 for two decimal places in currency calculations.

How does the rounding selector work?

The ROUNDING SELECTOR offers three modes: ↑ (round up), 5/4 (round off), and ↓ (round down). Choose based on your calculation needs; e.g., for tax, use 5/4.

How do I use the memory functions?

The calculator has two memories. Use M1 (first memory) and M2 (second memory) keys. Press M+ to add to memory, M- to subtract, MR to recall, and MC to clear. The display shows M1 or M2 symbol when a value is stored.

What does the 'E' error mean?

The E symbol indicates an overflow or error. Common causes: entering more than 12 digits (or 11 decimals), result exceeding 12 integer digits, or division by zero. Press CE/C or ◀ to clear the error.

How do I store and use a tax rate?

Press STORE (or SET) key, enter the rate (max 4 digits), then press %. For example, to set 8% tax: press STORE, 8, %. Use TAX+ to add tax, TAX- to subtract. To recall the stored rate, press MR (or RECALL) then %.

How do I replace the paper roll?

Lift the paper holder, fold the leading edge 3-5 cm, insert from the left with paper feeding from bottom, feed into the slot, and press the PAPER FEED key to advance until it exits the cutter.

How do I change the ink ribbon?

Open the printer cover, remove the old ribbon cartridge, insert a new one (Sharp compatible), and ensure it is properly seated. Close the cover. The calculator uses a 2-color ribbon (black/red).

Can I use the calculator in silent (non-print) mode?

Yes. Set the PRINT MODE SELECTOR to • (non-print) position. In this mode, calculations are displayed but not printed. To resume printing, set to P (print) or P IC (print with item count).

What is the item count feature?

When the selector is set to P IC, each addition or subtraction increments or decrements a counter (up to 3 digits). The count is printed with the result. Use ◀ or C to clear the counter.

How do I clean the calculator?

Use a soft, dry cloth to wipe the exterior. Do not use solvents, water, or wet cloth. To avoid damage, keep the calculator away from moisture, dust, and extreme temperatures.

USER MANUAL VX-2652H SHARP

The socket outlet shall be installed near the equipment and shall be easily accessible.

Aviso!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Thank you for your purchase of the SHARP electronic calculator, model VX-1652H/2652H. Your SHARP calculator is specially designed to save work and increase efficiency in all business applications and general office calculations. Careful reading of this manual will enable you to use your new SHARP calculator to its fullest capability.

ESPAÑOL

INTRODUCCION

To insure trouble-free operation of your SHARP calculator, we recommend the following:
1. The calculator should be kept in areas free from extreme temperature changes, moisture, and dust.
2. A soft, dry cloth should be used to clean the calculator.
Do not use solvents or a wet cloth.
3. Since this product is not waterproof, do not use it or store it where fluids, for example water, can splash onto it.
Raindrops, water spray, juice, coffee, steam, perspiration,
etc. will also cause malfunction.
4. If you are not going to use the calculator for a time period, please pull out the power cord to cut electricity completely. In this case, the presently stored tax/discount rate will be cleared.
5. If service should be required on this equipment, use only a SHARP servicing dealer, a SHARP approved service
a SHARP servicing dealer, a SHARP approved facility or SHARP repair service where available
6. Do not wind the AC cord around the body or otherwise forcibly bend or twist it.

WARNING

THE VOLTAGE USED MUST BE THE SAME AS SPECIFIED ON THIS CALCULATOR. USING THIS CALCULATOR WITH A VOLTAGE HIGHER THAN THAT SPECIFIED IS DANGEROUS AND MAY RESULT IN A FIRE OR OTHER TYPE OF ACCIDENT CAUSING DAMAGE. SHARP WILL NOT BE HELD RESPONSIBLE FOR ANY DAMAGE RESULTING FROM USE OF THIS CALCULATOR WITH OTHER THAN THE SPECIFIED VOLTAGE.

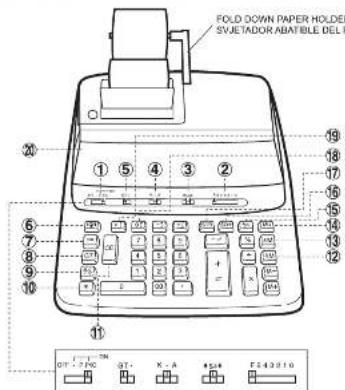

OPERATING CONTROLS

④ OEEA BNC

POWER SWITCH: PRINT / ITEM COUNT

MODE SELECTOR:

"OFF": Power OFF.

"*": Power ON. Set to the non-print mode.

(………)

P. Power ON. Set to the print mode ("111-1114B" will be printed.)

"P·IC": Power ON. Set to the print and item

count mode

The counter will count the number of

times that ± has been pressed in

Notes: 1. Each time □ is used in subtraction

Notes: Each time is used in subtraction 1 will be subtracted from the count

• The count is printed when the

calculated result is obtained

- Pressing of *, × or + clears the

- The count

of 3 digits (up to +999).

If the count exceeds th

the counter will recount from zero.

② F643210

DECIMAL SELECTOR:

Presets the number of decimal places in the

answer.

In the "F" position, the answer is displayed in the floating decimal system.

③ ↑ 5/4 ↓

OUNDING SELECTOR:

example: Set decimal selector to "2"

÷ 9 = 0.444 ..., 5 ÷ 9 = 0.555 .

Note: The decimal point floats during successive calculation by the use of × or + . If the decimal selector is set to "F" then the answer is always rounded down ( ).

④ K·A

CONSTANT / ADD MODE SELECTOR:

“K”：The following constant functions will be

performed:

Multiplication: The calculator will automatically remember the first

number entered (the multin

and × instruction.

Division: The

remember the second number entered (the diviner) and □

entered (the advisor) and ▼ instruction.

“*”: Neutral

"A": Use of the Add mode permits addition and subtraction of numbers without entry of the decimal point. When the Add mode is activated, the decimal point is automatically positioned according to the decimal selector setting. Use of , × , and will automatically override the Add mode and decimally correct answers will be printed at the preset decimal position.

⑤ GT·

GRAND TOTAL MODE SELECTOR:

"GT": This selector will accumulate the following:

(* +* will be printed.)

1. Addition and subtraction totals obtained

2. Product and equivalent totals obtained

with ± or - =

1. Answers obtained with % or MU

“+”: Neutral

⑥

PAPER FEED KEY

⑦ →

LAST DIGIT CORRECTION KEY

B GT

GRAND TOTAL KEY:

Prints and clears the "GT" memory contents.

⑨ %

NON-ADD / SUBTOTAL KEY:

Non-Add - When this key is pressed right after entry of a number in the Print mode, the entry is printed on the left-hand side with "#". This key is used to print out numbers not subject to calculations such as codes, dates, etc.

Subtotal - Used to get subtotal(s) of additions and/or subtractions. When pressed following ± or - , the subtotal is printed with “◇” and the calculation may be continued.

By pressing this key even in the Non-print mode, the displayed number is printed with "P".

⑩ *

TOTAL KEY:

Prints the total of addition and subtraction with “*”. This key also serves as a clear key for the calculation register and resets an error condition.

Clears numbers entered prior to use of a function

key. Also used to sign an overflow time saved by an

entry.

⑫ ◎M

FIRST RECALL MEMORY KEY

⑬ *M

FIRST RECALL AND CLEAR MEMORY KEY

⑭ MU

MULTIPLE USE KEY:

Performs mark-ups, percent change and automatic

⑬

CHANGE SIGN KEY:

Changes the algebraic sign of a number (i.e.

positive to negative or negative to posi

⑮ TXX+

TAX-INCLUDING KEY:

This key is used for calculations with the tax/discount rate.

2.2.1.1

⑰ STR

STORE KEY:

This key is used to store the tax/discount rate.

• A maximum of 4 digits can be stored (dec point is not counted as a digit)

• To store a discount rate press

• Only one rate can be stored. If you enter a new

rate, the previous rate will be cleared.

⑱ ◇I

SECOND RECALL MEMORY KEY

⑲ *I

SECOND RECALL AND CLEAR MEMORY KEY

20 DISP

Display format:

VX-1652H

VX-2652H

Symbols:

M:FI

rst memory symbol

opears when a number has been stored in First

T : S

memory. second memory symbol

A

peears when a number h

m

emory.

- : M

inus symbol

A

opears when a number is a negative.

E : E

tor symbol

A

spears when an overflow or other error is detected

• : G

Grand total memory symbol Appears when a number is in the grand total memory.

⑪ CE

TECLA DE USO MULTIPLE:

INK RIBBON REPLACEMENT

1. Remove the paper roll from the calculator. (Tea and remove it from the print mechanism by wai
   and remove it from the print mechanism by using ⏻ 1.2. Set the power switch to OFF.
   Make sure that the print wheel has stopped.
2. Remove the printer cover by sliding it towards the back of the calculator (Fig. 4).
3. Remove the used ribbo
4. Install the new ribbon
5. With the black side of the ribbon facing upwards, place one
   of the reels on the reel shall on the right. (Fig. 2) Make sure that the reel is securely in place.
6. Thread the ribbon around the outside of the metal guides
   (FIG. 3)
7. Replace the printer cove
8. Replace the paper roll.

Fig. 1

PAPER ROLL REPLACEMENT

1. Lift the paper holder up. (Fig. 1)
2. Fold the leading edge of the paper roll 3 to 5 cm.
   (Do not fold it slantwise.) (Fig. 2)
3. Insert the paper roll from the left side of the paper holder
   and make sure the paper roll is set in the proper direction
   (with the paper feeding from the bottom), (Fig. 3)
4. Insert the leading edge of the paper into the open
   directly behind the print mechanism. (Fig. 4)
5. Drop the papers feed key and feed the papers under the
6. Press the paper feed key and feed the paper under the edge of the paper cutter. (Fig. 5)

edge of the paper cutter. (Fig. 5)

There are several situations which will cause an overflow or an error condition. When this occurs, the error symbol "E" will be displayed and all keys will electronically lock.

The contents of the memory at the time of the error a

retained.

If an "0·E" is displayed at the time of the error. * must be

used to clear the calculator.

If an "E" with any numerals except zero is displayed, the error

If an L with any numerals except Zero is displayed, the error may be cleared with or and the elevation can still be

may be cleared with CE of → and the calculation can suit continued.

co

Error conditions:

1. VX-1652H : Entry of more than 10 digits or 9 decimals.

VX-2652H : Entry of more than 12 digits or 11 decimals

This error can be cleared with CE or →

This error can be cleared with

1. VX-1652H: When the integer portion of an answer

exceeds 10 digits.

VX-2652H: When the integer portion of an answer

exceeds 12 digits

1. 1961-1970: Will be the first session of the second session of the

2. VX-1652H : When the integer portion of the contents of the

memory exceeds 10 digits.

(Ex. ■M 9999999999 M+ 1 M+)

VX-2652H: When the integer portion of the contents of the

memory exceeds 12 digits

(Ex: *M 999999999999 M+ 1 M+)

(Ex. 555555555555 1)

1. When any number is divided by zero. (Ex. 5 ÷ 0 ‡)

1. Set the decimal selector as specified in each example. The rounding selector should be in the first position:

The rounding selector should be in the '5/4' position unless otherwise specified.

1. The grand total mode selector and the constant/abs mode selector should be in the "A" position (off position) unless otherwise specified.

2. The print/item count mode selector should be in the

specified.

1. If an error is made while entering a number, press or - and enter the correct

number.

1. Negative values are printed with “—” symbol in red.

1、本次发行的种类、面值及认购数量、

Note: All totals and sub-totals may be used for further calculations. RE-ENTER

the number into the calculator by using the FUNCTION key and continue

the problem.

REPEAT ADDITION AND SUBTRACTION /

REPETICION DE SUMAS Y RESTAS

123 + 123 + 123 + 456 = 100 = 100 =

123 - 125 - 126 - 150 - 160 - 190

Selector Selector (1)	Operation Operación (2)	Display Exhibición (3)	Print impresión (4)
F443215	123 1/2	123.	123 +
		246.	123 +
		369.	123 +
	456 1/2	825.	456 +
	100 1/2	725.	100 -
		625.	100 -
			625 *
		625.

ADDITION AND SUBTRACTION WITH ADD MODE /

SUMA Y RESTA CON MODO DE SUMA

12.45 + 16.24 + 19.35 - 5.21 =

(1)	(2)*5	(3)	(4)
F643210	1245 1/2	12.45	12:45 +
	1624 1/2	28.69	16:24 +
	1935 1/2	48.04	19:35 +
X - A	521 -n/x	42.83	5:21 -
			42:83 *
		42.83

*1 : □ was not used in the entries.

Four arithmetic calculations,

constant multiplication and division compensation

division, power calculation,

add-on/discount calculation,

repeat addition and subtraction

reciprocal calculation, grand

total calculation, item count

calculation markup calculation

memory calculation, etc.

memory cancellation, etc.

Operation temperature:

Power consumption:

Dimensions:

DIMENSIONS:

[Non-Text]

[Non-Text]

10.14

Weight:

Accessories

[Non-Text]

Note: All totals and sub-totals may be used for further calculations. RE-ENTER

the number into the calculator by using the FUNCTION key and continue

the problem.

RECIPROCAL / RECIPROCOS

[Non-Text]

(1)	(2)	(3)	(4)
104.1	7+	7.	7÷
	+	1.	7÷
	1.5		7-=
F6432110			0-14285714285●
		0.14285714285
		(0.142857142	0-142857142●VX-1652H)

ADD-ON AND DISCOUNT / RECARGOS Y DESCUENTOS

A. 5% add-on to 100. / Un 5% de recargo sobre 100.

(1)	(2)	(3)	(4)
F643219	100 × 5 M	100.	100- × 5-%
			5-00 { Increased amountIncremento
			105-00 • { New amountNueva cantidad
		105.00

B. 10% discount an 100. / Un 10% de descuento sobre 100.

(1)	(2)	(3)	(4)
F443219	100 ×	100.	100-×
	10 %		- 10%
			- 10-00 { Discount Descuento
			90-00 • { Net amount Cantidad neta
		90.00

MARKUP AND MARGIN

INCREMENTO PORCENTUAL Y MARGEN

Markup and Profit Margin are both ways of calculating percent profit.

– Profit margin is percent profit vs. selling price.

– Markup is percent profit vs. cost

- Cost is the cost

- Coal is the coal. - Sell is the selling

- GP is the gross profit.

- Mkup is the percent profit based on cos

– Mrgn is the percent profit based on selling price

Table 1. (2) The following table provides the original data:

To find | Knowing | Operation

Para encontrar	Sabiendo	Operación
Mrgn	Sell, Cost	Cost	→	Sell	+ M2
Mkup	Sell, Cost	Sell	B	Cost	→ M2
Sell	Cost, Mrgn	Cost	+	Mrgn	M2
Cost	Sell, Mrgn	Sell	×	Mrgn	4L M2
Sell	Cost, Mkup	Cost	×	Mkup	M2
Cost	Sell, Mkup	Sell	+	Mkup	4L M2

Ex./Ej.

Cost	Sell	GP	Mkup	Mrgn
200	250	$50	25%	20%

(1)	(2)	(3)	(4)
F843210	200 + 20	200.	200 ÷ Cost20 %M Mrgn250 00 ★ Sell50 00 GP GP
		50.00

PERCENT CHANGE / CAMBIO PORCENTUAL

• Calculate the dollar difference (a) and the percent change (b) between two yearly

sales figures \1.500 in one year and \1.300 in the previous.

*2 : Press ⚠M to clear the memory before starting a memory calculation

ITEM COUNT CALCULATION /

CALCULO DE CUENTA DE ARTICULOS

Bill No. N° de factura	Number of bills Cantidad de facturas	Amount Importa
1	1	100.55
2	1	200.00
3	1	200.00
4	1	400.55
5	1	$500.65
Total Total	(a)	(b)

(1)	(2)	(3)	(4)
100.55	100.55	100.55+
200	300.55	200.00+
	500.55	200.00+
400.55	901.10	400.55+
500.65	1,401.75	500.65+
		005	(a)
			1:401.75* (b)
		1,401.75

[Non-Text]

GRAND TOTAL / TOTAL GLOBAL

100 + 200 + 300 =

100 + 200 + 300 = ①

+) 300 + 400 + 500 = ②

+) 500 - 600 + 700 = ①

Grand total / Total global ④

•

(1)	(2)	(3)	(4)
	300	100.	100+
	100
	200		200+
	300		300+
			600+ 1
		600_
	300		300+
	400		400+
	500		500+
			1:200+ 2
		1,200_
	500		500+
	600		600-
	700		700+ 4
			600+ 5
		600_
	300		2:400*G 6
		2,400_

MEMORY / MEMORIA

A 46×78=①

A. 46×78=① ①)105÷5=②

4) 125 ÷ 5 = ②

一) 12 × 8 = ⓣ

Total / Total ④

(1)	(2)	(3)	(4)
4641219	46 × 78 M	46.	46 × 78 =
		3,588M	3-588 +M 1
	125 ÷ 5 M	125M	125 ÷ 5 =
		25M	25 +M 2
	72 × 8 M	72M	72 × 8 =
		576M	576-M 4
	4641219		3-037 · M 5
		3,037M

B. (123 + 45) × (456 - 89) =

(1)	(2)	(3)	(4)
	+3
81.	123 90	123 M	123 +M
	45 90	45 M	45 +M
	456 1	456 M	456 +
	89 -0	367 M	89 -
			367 0
		367 M	367 ×
		168 M	168 OM
	+		168 =
			61-656 *
		61,656 M

*3: Press •M to clear the memory before starting a memory calculation.

*4: Press ⚪M then ⚪I to clear the contents of the First and Second memories before
