USER MANUAL WFE1076A BRANDT

• Safety warnings 2
• Recommendations 2

SECTION 2:INSTALLATION 3

• Removal of transportation screws 3
• Adjustment of feet 3
• Electrical connection 4
  • Water supply connection 4
• Water drain connection 5

SECTION 3:TECHNICAL SPECIFICATIONS 6

SECTION 4:CONTROL PANEL 7

• Start/Pause button 7
• Function indicator lights 7
• Function buttons 7
• Spin speed selector 8
• Program knob 9

SECTION 5:WASHING YOUR LAUNDRY 12

• Before washing 12
• Running the machine 14

SECTION 6: MAINTENANCE AND CLEANING 15

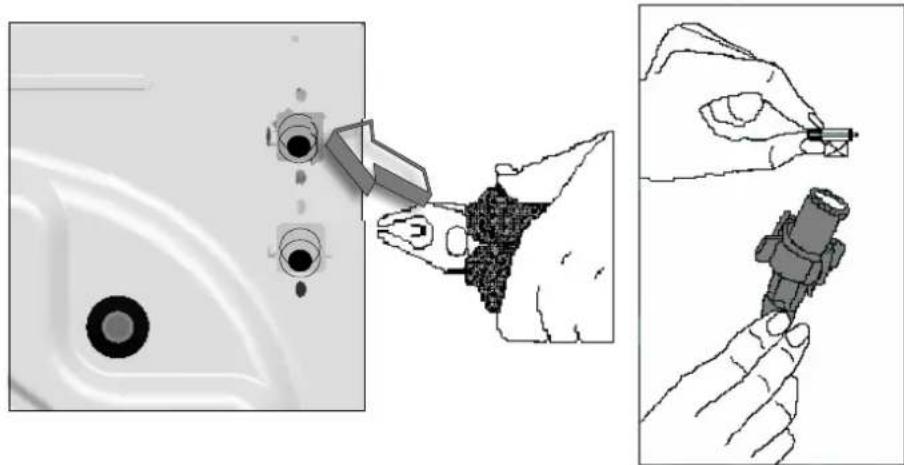

• Water inlet filters 15

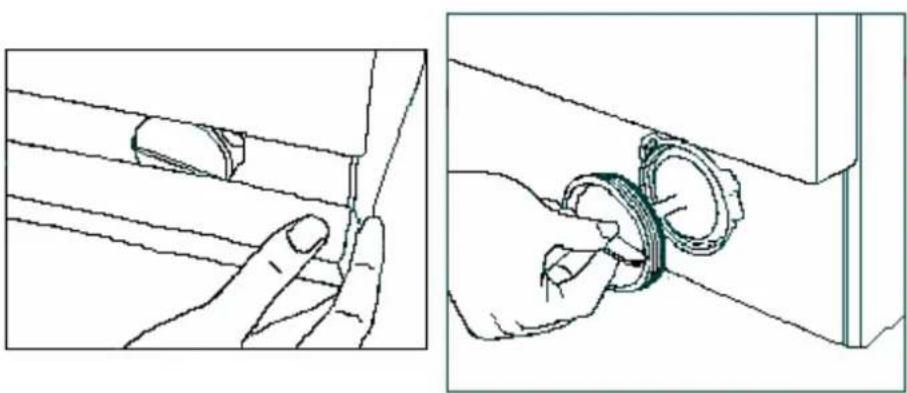

• Pump filter 16

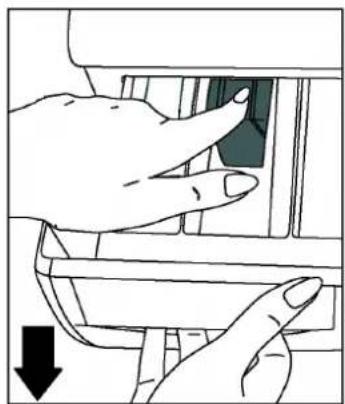

• Detergent drawer 17
• Siphon plug 18
• The cabinet 18
  • The drum 18
• Remove of your machine from lime 18

SECTION 7: PRACTICAL INFORMATION ....19

SECTION 8: AVOIDING MINOR FAULTS 20

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM 24

SECTION 10:INTERNATIONAL WASHING SIGNS 27

SECTION 1: BEFORE USING

SAFETY WARNINGS

• Do not use a multiple socket or extension cord.
• Do not insert a plug with damaged or broken cord into the socket.
• If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard.
• Never remove the plug from the socket by pulling from the cord section. Remove the plug by holding.

- Do not plug the power supply with wet hands.

- Never touch the machine with wet hands or feet.

- Never open the detergent drawer while the device is running.

- Never force to open the door of the machine while the machine is running.

- Since the machine can reach high temperatures while running, do not touch the drain hose and water during draining.

- In case of any failure, first unplug the device and close the water tap. Do not attempt to repair. Please apply to the nearest authorized service station.

- Do not forget that the packing material of your machine may be hazardous for children.

- Do not let your children play with the washing machine.

- Keep your pet away from your machine.

- Your machine should only be used by adults within the information written in this manual.

- Your machine is designed for use in house environment. Warranty will be invalid if you use it for commercial purposes.

RECOMMENDATIONS

• The detergent or softener in contact with air for a long time will dry and stick to your detergent drawer. To avoid this put your detergent and softener into the detergent drawer just before washing.
• It is recommended that you use pre-washing program for only very dirty clothes.
• Please do not exceed the maximum loading capacity.

- If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour.

- As a result of the quality control procedures, a certain amount of water may remain in your machine. This is not harmful for your machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing machine.

REMOVAL OF TRANSPORTATION SCREWS

• Transportation screws, which are located at the back side of the machine, must be removed before running the machine.
• Loosen the s crews by rotating counterclockwise by a suitable wrench. (DIAGRAM-1)
• Remove the screws by pulling them.(DIAGRAM-2)
• The plastic parts located in the interior part of your machine will fall down under the device.
• Lift your machine up slightly, pick up the plastic parts.
• If all of the plastic parts of screw groups have not fallen down; open the door of your machine, move the drum until all plastic parts fall down. Collect the parts that have fallen to the floor.
• To the holes where the transport screws have been removed, insert the plastic transport screw taps found in the accessories bag. (DIAGRAM-3)
• The transportation screws, that have been removed from the machine should be kept in hand for any other transportation necessities.

DIAGRAM-2

DIAGRAM-1

Close-up of a black mechanical component with a circular hole and a separate gray bracket (no text or symbols visible)

DIAGRAM-3

Abstract graphic with a dark circle and arrow, no text or symbols present

ADJUSTMENT OF FEET

• Do not install your machine on rugs or similar surfaces.
• For your machine to work silently and without any vibration, it should be settled on a flat, non-slippery and tough ground.

- You can adjust the balance of your machine from its feet.

- First, loosen the plastic adjustment nut.

- Adjust by rotating the feet upwards or downwards.

- After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards.

- Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

Close-up of a mechanical knob or dial with a metallic knob and a small metallic clip (no visible text or symbols)

Close-up of a mechanical component with a black base and metallic components (no visible text or symbols)

ELECTRICAL CONNECTION

- Your washing machine works with 220-240V and 50Hz.

- A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the electricity line attached to this should also be 10 ampere. If you have no such sockets and fuses in your house, let it be made by a qualified electrician.

- Our company will not be responsible for any damages that may occur as a result of usage without grounding.

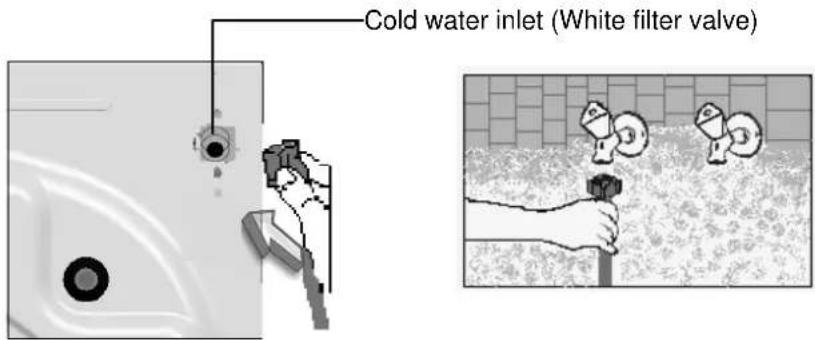

WATER SUPPLY CONNECTION

- Depending on the features your machine, may be with single water inlet (cold) or double water inlet (cold/hot). The white headed hose is for cold water inlet and red headed hose is for hot water inlet (valid for machines with hot&cold water inlet).

- To prevent leakage from the connection joints, 1 (valid for cold water inlet) or 2 (valid for machines with hot&cold water inlet) seals are included in the hose packing. Fit these seals at the end of water inlet hoses on the tap side.

- Connect the white headed hose to the water inlet valve with white filter and connect the red headed hose to the water inlet valve with red filter (latter is valid in machines with hot&cold water inlet). Tighten the plastic parts of the connections with your hand. Please call a qualified plumber for safer connections.

• Water pressure of 1-10 bars from your tap will enable your machine to work more efficiently.(1 bar pressure means water flow of more than 8 liters in 1 minute from a fully opened tap).
• After connections are completed, check for the non-leakage of the connection joints by turning on your tap completely.
• Be sure that water inlet hoses are not folded, broken or crushed.
• Mount the water inlet hoses to a 3"/4, geared water tap.

Cold water inlet (White filter valve)

WATER DRAIN CONNECTION

• Be sure that water inlet hoses are not folded, twisted, crushed or elongated by stretching.
• Water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.
• The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand.
• Never attempt to extend the water drain hose by adding extra parts.

Line drawing of a washing machine with a sink and water dispenser, no text or symbols present

SECTION 3: TECHNICAL SPECIFICATIONS

WFE606A		WFE876A	WFE1076A	WFS0835A	WFE877A	WFE1077A
Maximum Spinning Speed (RPM)	600 800	1000 800 800	1000
Maximum dry laundry capacity (kg)	5 6 6	5 7 7
Height (cm) 85 85 85	85 85 85
Width (cm) 59.6	59.6 59.6	59.6 59.6 59.6
Depth (cm)	51 54 54	39.4	57 57

Bread 4 5 6 7

1-Upper tray
2-Detergent drawer
3-Control panel
4-Door

5-Handle
6-Filter cover
7-Kickplate

SECTION 4:CONTROL PANEL

Brandt 1 2 3 4 5 6 Color Synthetic Products Fluid 1. Incomplete BF 2. Discrete BF 3. Incomplete BF 4. Normal BF 5. Normal BF 6. Normal BF 7. Normal BF 8. Normal BF 9. Normal BF 10. Normal BF 11. Normal BF 12. Normal BF 13. Normal BF 14. Normal BF 15. Normal BF 16. Normal BF 17. Normal BF 18. Normal BF 19. Normal BF 20. Normal BF 21. Normal BF 22. Normal BF 23. Normal BF 24. Normal BF 25. Normal BF 26. Normal BF 27. Normal BF 28. Normal BF 29. Normal BF 30. Normal BF 31. Normal BF 32. Normal BF 33. Normal BF 34. Normal BF 35. Normal BF 36. Normal BF 37. Normal BF 38. Normal BF 39. Normal BF 40. Normal BF 41. Normal BF 42. Normal BF 43. Normal BF 44. Normal BF 45. Normal BF 46. Normal BF 47. Normal BF 48. Normal BF 49. Normal BF 50. Normal BF 51. Normal BF 52. Normal BF 53. Normal BF 54. Normal BF 55. Normal BF 56. Normal BF 57. Normal BF 58. Normal BF 59. Normal BF 60. Normal BF 61. Normal BF 62. Normal BF 63. Normal BF 64. Normal BF 65. Normal BF 66. Normal BF 67. Normal BF 68. Normal BF 69. Normal BF 70. Normal BF 71. Normal BF 72. Normal BF 73. Normal BF 74. Normal BF 75. Normal BF 76. Normal BF 77. Normal BF 78. Normal BF 79. Normal BF 80. Normal BF 81. Normal BF 82. Normal BF 83. Normal BF 84. Normal BF 85. Normal BF 86. Normal BF 87. Normal BF 88. Normal BF 89. Normal BF 90. Normal BF 91. Normal BF 92. Normal BF 93. Normal BF 94. Normal BF 95. Normal BF 96. Normal BF 97. Normal BF 98. Normal BF 99. Normal BF 100. AA.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - AA.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com - Aaa.com

1-Detergent drawer

6-Program knob

2-Start/pause light

7-Start/pause button

3-Function indicator lights

8-Function buttons

4-Spin speed selector

9-Program end light

5-Program ready light

START/PAUSE BUTTON

Start/Pause Used to start a selected program or pause during running.

WARNING!

It is required for the program knob to be brought to I(off) position before selecting the program or changing a continuing program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed, the corresponding light turns on. The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed.

The function indicator lights are also used in failure detection system mentioned in section 9.

FUNCTION BUTTONS

Rinse hold

This function is recommended to be used when the clothes cannot be taken immediately after the end of the program. This will prevent occurrence of wrinkles. When this button is pressed, the last rinsing water is not drained. For the program to continue from the same point, repress the same button.

If you do not want your sensitive clothes to be spinned or you want them to be spinned sensitively, turn the program knob to I (off) position. Bring the program knob on one of the draining or spinning programs you desire and press the start/pause button. If the program you have selected is a drain program, your machine will draining the water inside. If you have selected a spinning program, your machine will perform a spinning operation and then end the program.

Extra rinse

You can have one more rinsing done in addition to the rinses which your machine has made in all washing programs by using this function.

Easy ironing

By using this function, you can ensure your clothes to come out less wrinkled after the washing.

WARNING!

Functions vary depending on the model you have chosen. If you forgot to use additional function and your machine starts to wash push the additional function button if the indicator light is on. Additional function will be activated. If the indicator light is not on, additional function will not be activated.

SPIN SPEED SELECTOR

By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes. The speed adjustment interval is between (No spin) and the maximum spinning speed of your machine.

NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode.

400 rpm 800 500 700 600

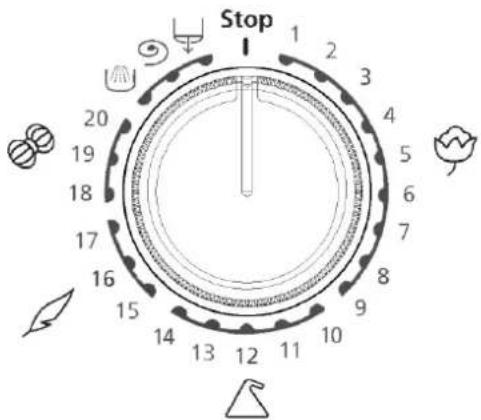

PROGRAM KNOB

With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to I(off) position, while your machine is running, your program will remain incomplete.

Stop 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Cotton

1 Intensive 90°
2 Prewash 60°
3 Normal 60°
4 Normal 40°
5 Eco 40°

10 Intensive 60°
11 Normal 50°
12 Normal 40°
13 Intensive 40°
14 Cold

Delicates

15 Normal 40°
16 Normal 30°
17 Cold

Wool

18 Handwash
19 Normal 30°
20 Cold

I Off 13 Synthetic 40°

1 Cotton 90° 14 Synthetic cold
2 Cotton 60°(prewash) 15
3 Cotton 60° 16 Delicate 30°
4 Cotton 40° 17 Delicate cold
5 Eco 40° 18
6 Cotton 30° 19 Wool 30°
7 Flash 40' 20 Wool cold
8 Cotton cold
9 Cotton 40°(mix wash)
10 Synthetic 60°
11 Synthetic 50(Baby wash)
12 Synthetic 40°

(Sport clothes)

Delicate 40° (Curtain wash)

Hand wash

Rinsing

Spinning

Draining

PROGRAM	DETERGENT COMPART.	ADDITIONAL FUNCTION BUTTON	WFE 606A WFS 3835A	WFE 876A 1076A	WFE 877A 1076A	TYPE OF LAUNDRY EXPLANATIONS
1-COTTON 90° 2			5			Dirty, boil, cotton and linen textile
2-COTTON 60° (PREWASH)	1+2		5 6 7			Very dirty, cotton, coloured and linen textile
3-COTTON 60° 2			5 6 7			Dirty, cotton, coloured and linen textile
4-COTTON 40° 2			5 6 7			Slightly dirty, paint to get out, cotton, coloured and linen textile
5-ECO 40°	2		5 6 7			Dirty, cotton, coloured and linen textile
6-COTTON 30° 2			5 6 7			Slightly dirty, cotton, coloured and linen textile
7-FLASH 40° 2			2.5 3	3.5		Slightly dirty, cotton, coloured and linen textile
8-COTTON COLD	2		5 5 7			Slightly dirty cotton, coloured and linen textile.Washed without heating the tap water.
9-COTTON 40° (MIX WASH)	2		5 5 7			Dirty or very dirty, stain , cotton, coloured and linen textile
10-SYNTHETIC 60° 2			3 3 3			Dirty, synthetic or synthetic mixture textile
11-SYNTHETIC 50° (BABY WASH)	2		3 3 3			Baby laundry All baby laundry
12-SYNTHETIC 40° 2			3 3 3			Slightly dirty, synthetic or synthetic mixture textile

TABLE-1

PROGRAM	DETERGENT COMPART.	ADDITIONAL FUNCTION BUTTON	MAX DRY LOAD CAPACITY (kg)	TYPE OF LAUNDRY EXPLANATIONS
13-SYNTHETIC 40°(SPORT CLOTHES)	2		3	Sport clothesAll spore clothes and jeans
14-SYNTHETIC COLD	2		3	Slightly dirty, synthetic or synthetic mixture sensitive laundry.Washed without heating the tap water.Nylon socks, blouse
15-DELICATE 40°(CURTAIN WASH)	1+2		2	Tulle and curtain as sensitive laundryTulle, curtain, diolen, dralon
16-DELICATE 30° 2			2	Slightly dirty, cotton, coloured, synthetic or synthetic mixture sensitive laundrySilk mixture, shirt, blouse, polyester, poliamid, mixture textile
17-DELICATE COLD	2		2	Very slightly dirty, cold water with to wash cotton, coloured, synthetic or synthetic mixture sensitive laundry
18-HAND WASH	2		2	Slightly dirty, wash in hand cotton, coloured, synthetic or synthetic mixture laundryHand wash to all laundry
19-WOOL 30° 2			2	Dirty, hand and machine to wash wool laundryAll wool laundry
20-WOOL COLD 2			2	Very slightly dirty, cold water, hand and machine to wash wool laundry
RINSING	When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
SPINNING	When you need an additional spinning to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
DRAINING	This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to be drained before the program ends, you can use this program.

(*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of the softener producer. Fill your softener in its (softener) compartment of the detergent drawer.

OPTION COMPATIBILITIES

	Rinse Hold	Extra Rinse	Easy Ironing
Rinse Hold	YES NO
Extra Rinse	YES
Easy Ironing

SECTION 5: WASHING YOUR LAUNDRY

• Plug the machine.
• Open the tap water.

First wash cycle

There may be water left inside your machine after factory tests and trials. It is recommended that the first wash cycle should be made without any laundry so that carry out this water; pour half a measuring cup of normal all-purpose detergent into compartment 2 and select cotton program at 90^ C.

BEFORE WASHING

Discrimination of your laundry

• Discriminate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc.), washing temperatures and level of dirtiness.
• Never wash your white and coloured clothes together.
• Since your new coloured clothes may shed dye on the first wash, wash them separately.
• Be careful that no metal pieces are found on or in the pockets of your clothes, remove if there is any.
• Zip and button your clothes.

• Remove the plastic or metal hooks of the curtains and laces or place them inside a washing bag and tie.

• Pull the textiles like trousers, knitted fabric, t-shirt and sweat shirt inside out.

• Wash your small clothes like socks and handkerchiefs in a washing bag.

Wash up tol 90 °C Wash up to 60 °C Wash up to 30 °C Not washable in washing machine

Placement of the clothes into the machine

• Open the door of your machine.
• Fill your clothes in your machine in a well-spread manner.
• Place each cloth separately.
• When you shut the door of your machine, be careful that no cloth is jammed between the cover and the gasket.
• Shut the door of your machine tightly otherwise your machine will not start the washing process.

Filling detergent in the machine

The quantity of the detergent that you will fill in your machine depends on the following criteria:

• Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer.
• For your excessively dirty clothes, select a program with pre-washing, fill 14 portion of the detergent you will put in compartment 1 in the detergent drawer and the remaining portion in compartment 2.
• In your machine, use the detergents developed especially for automatic washing machines. The quantities that will be used for your clothes are written on the packing of the detergents.
• As the hardness of your water increases, the amount of the detergent to be consumed will also increase.
• As the amount of your clothes increases, the amount of the detergent to be consumed will also increase.
• Fill your softener in the softener compartment in your detergent drawer. Do not exceed the MAX level. Otherwise, the softener will diffuse in the washing water via the siphon.
• The softeners with high density should be diluted with some water before filling in the drawer. That is because the softener with high density obstructs the siphon and prevents the flow of the softener.

- You can use fluid detergents in all programs without pre-washing. For this, mount the fluid detergent level plate in the second compartment of the detergent drawer and arrange the amount of fluid detergent according to the levels on this plate.

RUNNING THE MACHINE

Program selection and features

Select the program and additional functions appropriate for your clothes from Table-1.

Start/Pause

By pressing this button, you can start the program you have selected or pause a running program.

Starting the program

• Adjust the program knob to a program you desire.
• The program ready light will be on.
• If you want, you can select one or more additional functions.
• Run the program which you have selected by pressing the Start/Pause button.

Changing the program

If you have selected a program and you do not want if to continue:

• Press the start/pause button.
• Bring the program knob to I(off) status.
• Adjust the program knob to the program you desire.(You can select the program that you desire from Table-1).
• The program ready light will be on.
• By pressing the start/pause button, run the program which you have selected.

Cancellation of the Program

If you desire to end a running program early:

• Press the start/pause button.
• Turn the program knob to I(off) status.
• Turn the program knob to "Draining" or "Spinning" programs.
• The program ready light will be on.
• Run the program you have selected by pressing the start/pause button.

Program ending

• Your machine will automatically stop when the program you have selected ends.
  • The program end light will be on.

• Turn the program knob to I(off) position.

• The door will be unlocked in approximately two minutes after the program ends. You can open the door by pulling the handle of the door towards yourself and take out your clothes.

• After you unload your clothes leave the door open to dry the interior of your machine.
• Unplug your machine.
• Close the water tap.

WARNING!

If the power is off end on again after a while on any stage of the washing program, your machine will continue the program from the point where it was interrupted. This is not harmful for your machine.

Child lock

The Child Lock prevents unauthorised changes on the control panel while the machine is in operation. The child lock will be activated after the start/pause button on the control panel is pressed for a period longer than 2 seconds. To inactivate it, you have to press the same button for a period of longer than 2 seconds. At the end of the program child lock will automatically be off.

WARNING!

Your machine will inactivate the spin speed selector (valid for A3 models) and function buttons when the child lock is activated.

SECTION 6: MAINTENANCE AND CLEANING

• Unplug your machine.
• Close the water tap.

WATER INLET FILTERS

On the tap part of your machine's water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is opened, these filters should be cleaned.

• Remove the water inlet hose.
• Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush.
• Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal.
• After you clean the filters, you can fit them the same way as you have removed.

Illustration showing a hand inserting a plug into a sink with a close-up of the plug being held, alongside a close-up of the plug being inserted (no text or symbols present)

PUMP FILTER

The pump filter system elongates the life of your pump, which is used to drain the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter in every 2-3 months is recommended. To clean your pump filter:

• Remove the kickplate by pushing with your hand upwards from the lower claws and pulling towards yourself.
• Before opening the filter cover, place a cup in front of the filter cover to prevent flow of the remaining water in the machine.
• Loosen the filter cover by rotating it counter clockwise and drain the water.
• Remove the foreign materials from the filter.
• Check for the rotation of the pump manually.
• After you have cleaned the pump, fit the filter cover by rotating clockwise.
• Fit in the kickplate by holding from the claws and push it.
• Do not forget that if you do not fit in the filter cover properly, it will leak water.

WARNING!

Danger of being scalded!

Since the water inside the pump maybe hot, wait for it to cool.

Technical illustration showing two steps of a hand holding a small mechanical component, no text or symbols present.

DETERGENT DRAWER

Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergentdrawer:

• Pull the detergent drawer to the end.(DIAGRAM-1)
• Lift the front of the drawer, continue to pull until the drawer is pull out.(DIAGRAM-2)

- Wash will an old toothbrush and excessiveamount of water.

• Take off the leftover detergent avoid to drop into your machine.

• After drying the detergentdrawer put into the housing in the same manner you pull out.

Line drawing of a hand opening a window with a black object inside (no text or symbols)

DIAGRAM-1

Illustration of hands inserting a component into a device (no text or symbols visible)

DIAGRAM-2

SIPHON PLUG

Pull out the detergent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly.

THE CABINET

Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet. After rinsing with clean water, wipe it with a soft and dry cloth.

WARNING!

If the machine is installed in a location where the ambient temperature can fall below 0 ^ , do the following when it will not be in use:

• Plug in the machine.
• Close the water tap and pull out the water inlet hose or hoses from the tap.
• Place the ends of the water drain and water inlet hoses in a cup on the ground.

- Adjust the program knob to "Draining" program.

- The program ready light will be on.

- Run the program by pressing the start/pause button.

- Unplug your machine when the program is over (program end light is on).

When you complete these proces, the remaining water inside the machine will be drained and thus formation of ice in the machine will be prevented. When you operate your machine again, be sure that the ambient temperature is above 0 °C.

THE DRUM

Do not leave metal parts like needles, staples or coins inside your machine. These pieces cause formation of rust stains in the drum. To eliminate these stains of rust, use a cleaning substance without chlorium and follow the warnings of the cleaning substance producer. For cleaning of the rust stains, never use dish-washing wires or similar rough objects.

REMOVE OF LIME FROM YOUR MACHINE

If you arrange the amount of the detergent you use in your machine properly, there will be no need for lime removal. However, if you desire to apply the removal procedure, use the lime protectors in the market and pay attention to their warnings.

WARNING!

The lime eliminating substances contain acids and this may cause colour modifications in your clothes along with an adverse effect on your machine.

SECTION 7: PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed cold water, than should be wiped with glycerine and water be rinsed with water mixed with vinegar.

Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96

(degrees) mixed in 2 units of water and then washed with lukewarm water.

Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can be on it. If the type of your cloth is suitable, wash it with lye.

colate and cocoa: By leaving your clothes in cold water and ing with soap or detergent, wash it in the highest temperature the type of your cloth can endure. If there is still a stain of oil wipe with oxygenated water (in proportion of 3%).

to paste: After scraping the dried pieces without ruining the cloth, leave in cold water for about 30 minutes and wash by using with detergent.

Meat broth-egg: Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye.

Grease and oil stains: First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water.

rd: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit l, 2 units water should be used)

Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (e-spoons of ammonia in 4 liters of water) for 30 minutes.

Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not disappeared, apply lye on the fabric of your clothes in proper portion.(Do not use lye on coloured clothes.)

Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%).

Hold the stained area under cold water and wait until the inky water completely runs off. Then rub with water diluted with lemon and detergent, wash after waiting for 5 minutes.

: Stretch the stained area of your clothes on the top of a container and pour cold water on it. Do not pour hot water on the stain. Wipe with cold water and apply glycerine. Wait for 1-2 hours rinse after wiping with a few drops of white vinegar.

Grass stain: Rub the stained part with detergent. If the type of fabric is suitable for use of lye, wash it with lye. Rub your woolen clothes with alcohol.(For coloured ones, a mixture of 1 unit pure oil and 2 units of water).

Oil Paint: The stain should be eliminated before it dries by applying thinner on it. Then it should be rubbed with detergent and d.

Burnt stain: If your cloth is suitable for use of lye, you can add lye into your washing water. For woolen fabric, a cloth damped in oxygenated water should be covered on the stain and it should be ironed with a dry cloth on it. It should be washed after rinsing well.

SECTION 8: AVOIDING MINOR FAULTS

All repairing which must be done on the machine should be done by authorized service. When a repairing is required for your machine or you are unable to eliminate the failure with the help of the information given below:

• Unplug the machine.
• Close the water tap.
• Apply to the nearest authorized service station.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
Your machine does not operate.	It is unplugged.	Insert the plug into the socket.
	Your fuse is defected.	Change your fuse.
	The electric power is off.	Check the electric power.
	Start/pause button has not been pressed.	Press the start/pause button.
	The program knob is in I(off) status.	Bring the program knob on the desired status.
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine does not receive water.	Water tap is closed. Open water tap.
	The water inlet hose may be bent.	Check the water inlet hose.
	The water inlet hose is obstructed.	Clean the filters of water inlet hose. (*)
	The valve inlet filter is obstructed.	Clean the valve inlet filters. (*)
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine is not draining water.	The drain hose is obstructed or bent.	Check the drain hose.
	The pump filter is obstructed.	Clean the pump filter. (*)
	The clothes are not placed inside the machine in a well-balanced manner.	Spread the clothes inside the machine in an orderly and well-balanced manner.
Your machine is vibrating.	The feet of your machine are not adjusted.	Adjust the feet. (**)
	Transportation screws are not removed.	Remove transportation screws. (**)

(*)See the section concerning the maintenance and cleaning of your machine.
(**)See the section concerning installations your machine.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
Your machine is vibrating.	There is a small amount of clothes in the device.	It does not prevent operation of the machine.
	Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner.	Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well-balanced manner.
	Your machine touches a ripid object.	Prevent your machine's leaning on a tough place .
Excessive foam in the detergent drawer.	Too much detergent has been used.	Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process.
	Wrong detergent has been used.	Use only the detergents produced for full automatic machines.
The washing result is bad.	Your laundry too dirty for the program you have selected.	Select a suitable program. (see Table-1)
	The amount of detergent used is not sufficient.	Use more detergent according to the detergent.
The washing result is not good.	Clothes exceeding the maximum capacity has been filled in your machine.	Put the clothes in your machine in a manner not to exceed its maximum capacity.
	Your water may be hard.	Use the amount of detergent according to the declaration of the detergent producer.
	Distribution of the clothes in your machine is not well-balanced.	Spread the clothes inside the machine in an orderly and well-balanced manner .
The water is drained from the machine as soon as it is filled.	The end of the water drain hose is in a position too low according to the machine.	Place the water drain hose in an appropriate height.(**)
No water is seen in the drum during washing.	No failure. The water is at the lower part of the drum.	-
There are residues of detergent on the clothes.	The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains.	By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush.
There are gray stains on the clothes.	These stains may be caused by oil,cream or ointment .	In the next washing operation, use the maximum detergent amount declared by the detergent producer.

(**) See the section concerning installations your machine.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
The spinning process is not done or starts with delay.	No failure. The unbalanced load control may works in that way.	The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spinning process will be realized.In the next washing process,place your clothes into the machine in a well-balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes.

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 01	The start/pause light blinks.	The door is not shut properly.	Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately.
Err 02	The program ready light blinks.	The water level in your machine is below heater. The pressure of your water supply may be low or locking.	Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service.
Err 03	The start/pause light and program ready light blinks.	The pump has failed or the pump filter is obstructed.	Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*)

(*) See the section regarding the maintenance and cleaning of your machine.

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 05	The start/pause light and program end light blink.	The heater of your machine or the heat sensor has failed.	Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service.
Err 06	The program ready light and program end light blink.	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 07	The program start/pause light, ready light and program end light stays on permanently.	Configuration error.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 08	The start/pause light,program ready light and program end light blink.	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 09	The program ready light and program end light stays on permanently.	The network voltage is too high or too low.	If the network voltage is lower than 150V or higher than 260V, your machine will automatically stop. When the network voltage is recovered, your machine will continue its operation.

SECTION 10: INTERNATIONAL WASHING SIGNS

Washing temperature.	Do not wash (hand wash)	Lukewarm iron.	Medium hot iron.

Drip dry. Dry flat. Do not bleach. Handy to bleach.

All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.Garments bearing these symbols should not be washed in your machine unless the label says otherwise.

After Sales Service:

Possible maintenance on your washing machine should be undertaken by :

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the complete reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to the rear of the equipment.

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
