USER MANUAL DCT104D Lanzar

Distinct Gold Series Subwoofers

IASCA

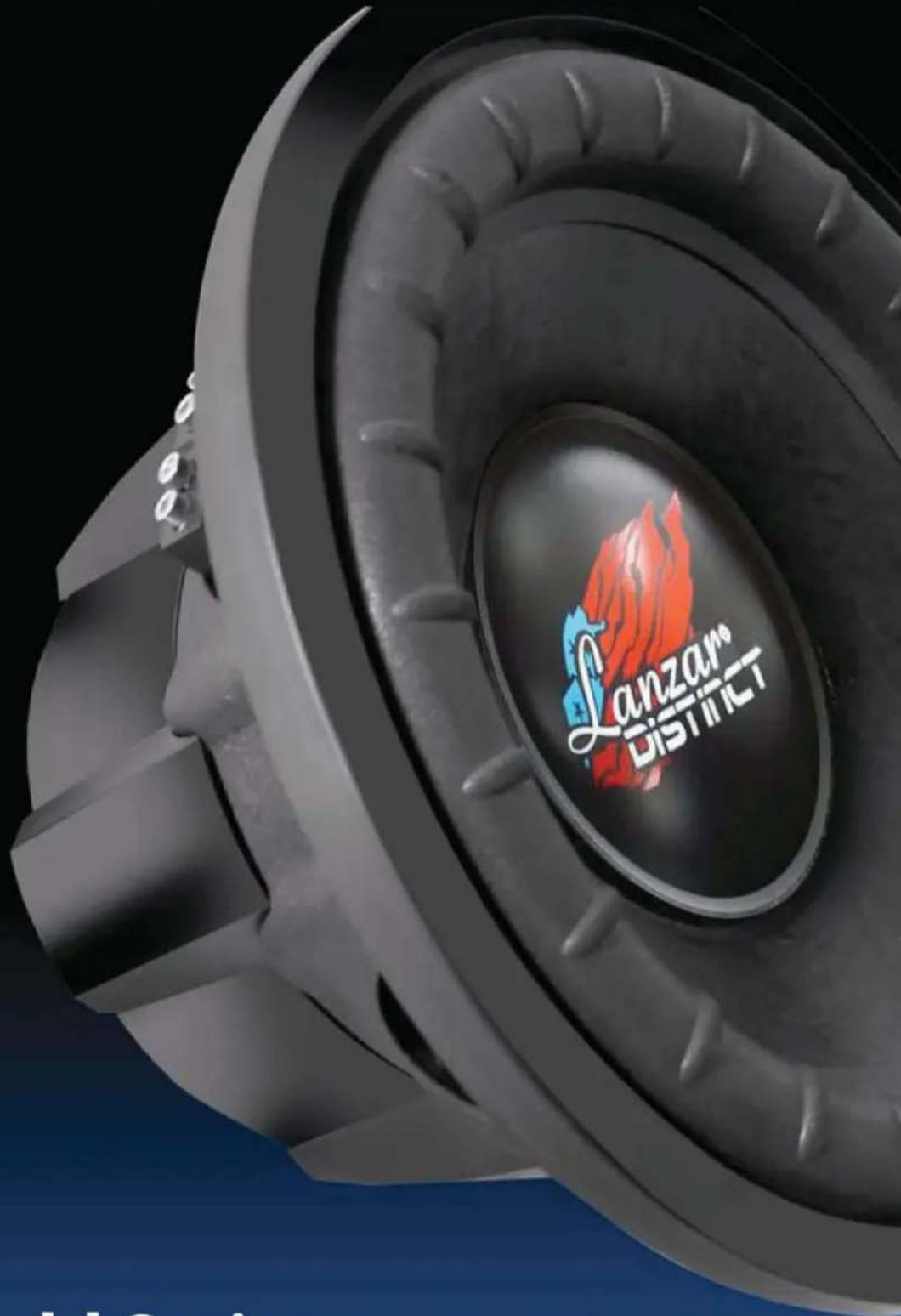

Distinct Series Subwoofers

If you're looking for a unique, powerful, and versatile new sound, Lanzar has your subwoofer solution. Lanzar's Distinct Series Subwoofers add unbelievable quality and performance enhancements to your audio system. These rugged award-winning subs are capable of generating rich, accurate and deep bass sounds that you only find in higher-end audio setups. Along with adding depth and dimension to your music, the Distinct Subwoofer Series will give you professional sound with some serious attitude. These powerhouses are the driving force behind any great audio setup and will provide you with the sound quality and performance you've been missing. The Distinct Series High-Power Subwoofer features include Dual High-Temperature Aluminum Voice Coils, Dual High-Density Barium Ferrite Magnets, Silver Push-In Terminals, impressive power handling capabilities -- along with plenty more technologically advanced, next-generation features to give you that 'Distinct' sound you've been looking for!

In this booklet you will find information and specification to achieve the best performance of your subwoofer.

Key Subwoofer Terms:

FS: Free Air Resonance – The lowest audible frequency value of the subwoofer (in HZ)

Q: Describes the degree of control which the speaker exhibits, also known as 'damping' and is due to both mechanical characteristics (QMS) and electrical characteristics (QES). A speaker's total damping value is referred to as QTS

SPL: Sensitivity of the speaker

VAS: Describes (in cubic feet) the maximum amount of air which is displaced by the speaker cone in a single excursion.

Features

• Rugged Stamped Steel Basket
• Die Cast Aluminum Basket Frame
• Special Designed Rubber Magnet Boot
• Heady Double-Stacked Magnet Structure
• Dual High Temperature Aluminum Voice Coils
- Black Non-Pressed Paper Cone with Wide Rubber Surround

Specification	DCT104D	DCT124D	DCT154D
Power (Watt Peak) 1000	1600		2000
Impedance (Ohms) Dual 4	Dual 4 Dual 4
SPL (dB) 85	85		87
FS (HZ) 35	28		25
QTS 0.626	0.773	0.772
VAS (Cu ft.)	0.70	1.256	3.491
Voice Coil Diameter	2” BAEISV	2.5” BAEISV	2.5” BAEISV
Voice Coil Layer	Dual	Dual	Dual
Magnet (oz.)	40 + 40	50 + 50	60 + 60

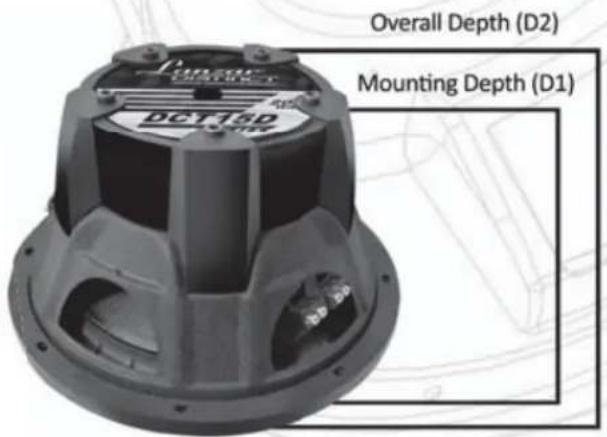

Mounting Depth (D1)	9.064	10.998	13.942
Overall Depth (D2) 10.828	12.796		15.434

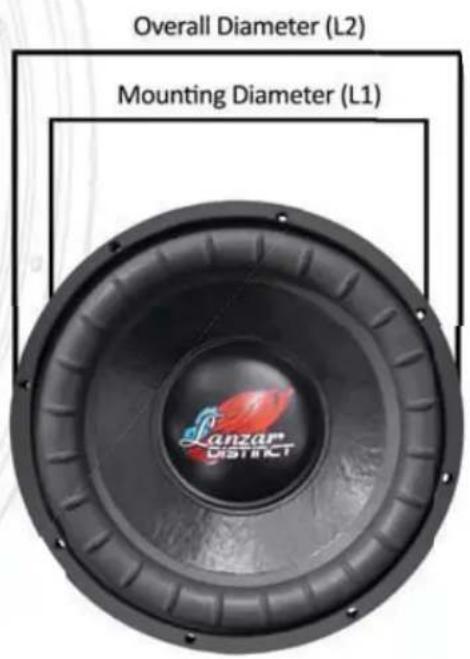

Mounting Diamter (L1)	9.064	10.998	13.942
Overall Diameter (L2)	10.828	12.796	15

Lanzar Sound Corp. warrants this unit to be free from defective material or workmanship and will repair or replace this unit any part thereof if it proves defective in normal use or service within the products one year limited warranty period.

Our obligation under this warranty is limited to the repairing or replacing, at our discretion, the defective instrument of any part thereof when it is returned, transportation prepaid to the Lanzar Service Center at the address below. This warranty will be considered void if the unit has been tampered with, improperly serviced, subject to abuse or misuse or if installed in a commercial vehicle. This warranty does not cover accidental damage. When returning this unit for service, please include the proper postage and handling fee.

Lanzar Service Center

1600 63rd Street

Brooklyn, New York 11204 – USA

Important:

Pack carefully in original carton if possible. We are not responsible for damage incurred when and if you return items for repair. A letter stating your exact street address, daytime phone number and the problem you are experiencing should be included. You must also enclose a copy of the original receipt as proof of date of purchase.
