| Product Type | Range Hood |
| Brand | Elica |
| Model | Elibloc 9 ST GR A/80 |
| Width | 80 cm |
| Depth | 50 cm |
| Height (min-max) | 30 - 40 cm (adjustable) |
| Weight | 18 kg |
| Power Supply | 220-240 V, 50 Hz |
| Maximum Extraction Capacity | 680 m³/h |
| Noise Level (max) | 64 dB(A) |
| Control Type | Electronic push buttons |
| Lighting | LED, 2 x 3 W |
| Number of Motors | 1 |
| Filter Type | Washable aluminium grease filter |
| Material | Stainless steel and tempered glass |
| Duct Diameter | 150 mm |
| Energy Class | A |
| Installation Type | Wall-mounted |
| Operating Modes | Extraction and recirculation (with carbon filter) |
| Remote Control | Not included |
| Warranty | 2 years |
Frequently Asked Questions - Elibloc 9 ST GR A/80 ELICA
How do I install the Elibloc 9 ST GR A/80 range hood?
Installation must be carried out by a qualified professional. Follow the instructions in the manual: ensure the hood is at least 65 cm above the cooktop, connect the ducting to the exhaust outlet (diameter 150 mm), and secure the hood to the wall using the provided brackets. For recirculation mode, install the carbon filter.
How do I clean the grease filters?
Remove the aluminium grease filters by pulling the handle downwards. Wash them with warm soapy water or in a dishwasher at low temperature (max 65°C). Allow them to dry completely before reinstalling. Clean every month or more often if heavy use.

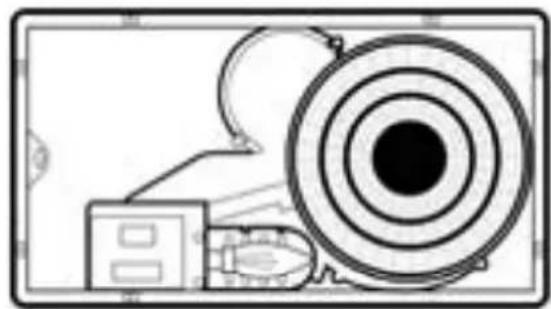

How do I replace the carbon filter?
The carbon filter is used in recirculation mode. To replace, first remove the grease filters, then locate the carbon filter at the motor unit. Push the tabs to release the old filter and install a new one. Replace every 4-6 months or as indicated by the filter saturation indicator.
What type of bulbs does the hood use?
The Elibloc 9 ST GR A/80 uses LED bulbs (2 x 3 W, G4 base). To replace, pry off the old bulb and insert a new one with the same specifications. Always turn off the power before replacing.
What is the maximum extraction capacity?
The maximum extraction capacity is 680 m³/h in extraction mode. This may vary depending on duct length and bends. For optimal performance, keep ducts short and straight.
How do I use the timer function?
The timer function allows the hood to run for a set time after cooking. Press the timer button (if equipped) until the desired duration (usually 5, 10, or 15 minutes) is displayed. The hood will automatically turn off after the set time.
Is the hood suitable for recirculation mode?
Yes, the hood can operate in recirculation mode. You need to purchase a carbon filter separately (model specific to Elica). In recirculation mode, air is filtered through the carbon filter and returned to the kitchen.
What is the noise level?
The noise level at maximum speed is 64 dB(A). Lower speeds are quieter. This corresponds to normal conversation level, suitable for open kitchens.

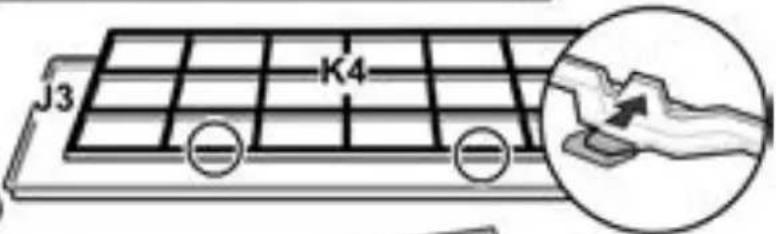

How do I remove the grease filter?
To remove the grease filter, pull the filter handle down gently. The filter will unclip from its housing. Slide it out and clean as directed. To reinstall, align the filter and push it up until it clicks.
What safety precautions should I take?
Always disconnect the power before maintenance. Do not flambé under the hood. Ensure the hood is installed at the correct height (min 65 cm). Do not use the hood without grease filters in place. For recirculation, replace carbon filters regularly to avoid fire hazard.
