NVR-4003 CF - Cutting machine NEVIR - Free user manual and instructions

Product Type	Cutting machine
Brand	Nevir
Model	NVR-4003 CF
Dimensions (L x W x H)	300 x 200 x 150 mm
Weight	2.5 kg
Power Supply	220-240 V, 50 Hz, 150 W
Cutting Capacity	Up to 10 sheets of paper or thin fabric
Blade Type	Rotary or straight blade (replaceable)
Cutting Speed	Adjustable, up to 5 m/min
Cutting Width	300 mm max
Safety Features	Blade guard, safety switch, finger protection
Maintenance	Clean blade after use, lubricate moving parts monthly
Spare Parts Available	Replacement blades, blade holder, safety guard
Repairability Index	8/10 (easy to disassemble and replace parts)
Included Accessories	Cutting mat, blade replacement tool, user manual
Material Compatibility	Paper, cardstock, fabric, thin plastic
Power Cord Length	1.5 m
Noise Level	< 70 dB
Certification	CE, RoHS
Warranty	2 years

Frequently Asked Questions - NVR-4003 CF NEVIR

How do I replace the blade on the Nevir NVR-4003 CF?

To replace the blade, first unplug the machine. Use the included blade replacement tool to loosen the blade holder screw, carefully remove the old blade, and insert a new one. Tighten the screw and check that the blade is secure.

What materials can I cut with this machine?

The NVR-4003 CF is designed for cutting paper, cardstock, fabric, and thin plastics. Do not use it on metal, thick wood, or hard materials.

How do I clean the cutting machine?

After each use, unplug the machine and wipe the exterior with a dry cloth. Use a brush to remove debris from the blade area. For stubborn residue, slightly dampen a cloth with mild soap solution, but avoid water contact with electrical parts.

What is the maximum cutting width?

The maximum cutting width is 300 mm. For longer cuts, you may need to reposition the material.

Does the machine have a safety guard?

Yes, the NVR-4003 CF is equipped with a blade guard and a safety switch to prevent accidental operation. Always ensure the guard is in place before use.

Can I use this machine for leather?

It is not recommended for thick leather. Thin, soft leather may be cut, but check the blade condition and test on a scrap piece first.

How do I adjust the cutting speed?

The cutting speed can be adjusted using the dial or button on the side of the machine. Refer to the manual for specific speed settings depending on the material.

What should I do if the blade becomes dull?

A dull blade will cause uneven cuts. Replace it with a new blade (available as a spare part). Do not attempt to sharpen the blade.

Is the machine suitable for heavy-duty use?

The NVR-4003 CF is designed for hobby and light professional use. For heavy-duty or continuous industrial use, consider a more robust model.

Where can I find spare parts?

Spare parts such as replacement blades and blade holders can be ordered from the Nevir website or authorized dealers. Check the manual for part numbers.

USER MANUAL NVR-4003 CF NEVIR

Exterior view of a modern white digital food processor with a circular disc and control panel (no visible text or symbols)

Your food slicer is suitable for cutting bread, all kinds of ham, meat, sausage, cheese and vegetables, etc.

IMPORTANT SAFEGUARDS

When using electrical appliance, basic safety precautions should always be followed, including the following:

1. Read all instruction before using slicer.
2. Close supervision is necessary when any appliance is used near children.
3. Switch off appliance first, unplug from outlet when not used, before putting on or taking off parts, and before cleaning; Switch off appliance before approaching parts which move in use.
4. Avoid contacting moving parts. Never feed food by hand. Always use completely assembled slicer with sliding feed table and piece holder. The appliance must be used with the sliding

feed table and the piece holder in position unless this is not possible due to size or shape of the food.

1. To protect against any risk of electrical shock, do not put power unit in water or other liquid.
2. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the place of purchase for replacement or repair.
3. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
4. Do not use the appliance outdoors.
5. Do not let cord hang over edge of table or counter or touch hot surface.
6. Blade is sharp. Hold only by blade lock. Handle carefully when cleaning.
7. Do not use the appliance for other than its intended use.

PREPARING TO SLICE

1. Unwrap cord from bottom of slicer, and slide into slot. Position slicer on a clean, dry and smooth surface.
2. Move the sliding feed table back and forth a few time to make sure movement.
3. Place the piece holder on back of the sliding feed table.

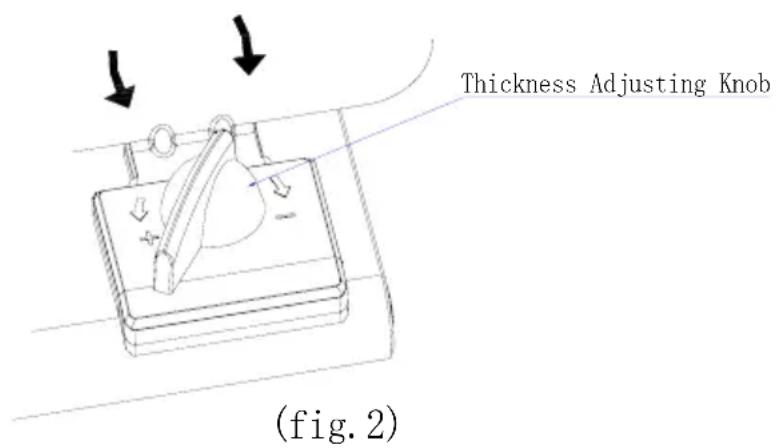

4. Select the required slice thickness by turning thickness adjusting knob, clockwise for thinner slice and counter-clockwise for thicker slice. The range of thickness adjusting is from 0 to 15mm.

OPERATION

CAUTION: ALWAYS USE FOOD PLATEAU SUPPORT AND FOOD PUSHER

1. Plug into 220-230VAC50Hz outlet.
2. Place food to be sliced on the sliding feed table and press the piece holder against thickness guide. Then pull the sliding feed table against the blade by hand.
3. The maximum size of food is: 110x110x90(mm)(length x width x thick).
4. Switch on the appliance.

5. When the blade is rotating, push the sliding feed table toward blade. Move tray back and forth steadily. Keep food gently pressed against guide for even slicer.

6. Do not operate the machine more than 5 minutes. The motor may be overheat. Turn off switch & let it rest for at least 30 minutes to cool down the motor.

7. During slicing, if the rotational speed of blade reduces, let food unfreezes for a while, then slice again.
8. When finishing slicing, unplug unit. For safety and blade protection when storing, turn thickness adjusting knob to align thickness guide with blade.

CLEANING

UNPLUG SLICER FROM OUTLET

All slicing parts remove for thorough cleaning. Wash with a soft cloth or sponge and a mild soap or a spray cleaner. Rinse and dry.

● Never use steel wool or scouring powder on any part of slicer. Do not wash any part of slicer in dishwasher.
● Motor is concealed in housing. Never submerge water.
● Motor never needs oiling.

PIECE HOLDER: Remove the piece holder from the sliding feed table.

SLIDING FEED TABLE: Clean the sliding feed table after removing the piece holder..

STAINLESS BLADE: unplug the item, loose the left-screw as the arrow direction. Then take off the blade carefully with hand glove. After cleaning, tighten the blade with the left-screw on the contrary direction.

Note: Always align thickness guide with blade for safety and blade protection during storage.

NONSLIP FEET: Clean with any grease-removing cleanser, such as alcohol or window cleaner.

STORAGE

• Align thickness guide with blade.
• Wrap cord in storage area on bottom of slicer.

USE YOUR FOOD SLICER FOR BEST RESULT

● To slice meats wafer thin, freeze thoroughly for only 2 to 4 hours before slicing.
● Meats should be boneless. Fruit should be free of seeds.
- Foods with an uneven texture-like fish and thin steaks – are often difficult to slice. Freeze for 2 to 4 hours before slicing.
- At canning time, using slicer can quickly cut cucumbers, onions or other fruit for delicious pickles...apples pies...vegetable.

HOT ROASTS: BEET, PORK, LAMB, HAM

• When slicing warm boneless roast, remove them from oven at least 15 to 20 minutes before slicing. They will return more nature juice and slice evenly without crumbing.
• Cut the roast, if necessary, to fit on food tray. If roast is tied, turn off motor and remove strings one at a time as strings near blade.

EXTRA-THIN SLICED CORNED BEEF OR FRESH BEEF BRISKET

Chill cooked brisket overnight in cooking liquid. Before slicing, drain and reserve meat drippings from brisket. Pat dry with paper towels. Remove excess fat. Slice well chilled brisket to desired thickness. To serve hot, place slices on heatproof platter and moisten with small amount of reserved meat dripping. Heat in 300^ F oven for 30 minutes.

CHEESE

Chill thoroughly before slicing. Cover with foil to keep moist. Before serving, let cheese reach the room temperature—this enhances the natural flavor.

COLD CUTS

Cold cuts keep longer and retain flavor if sliced as needed. For best results, chill first. Remove any plastic or hard casing before slicing. Use a constant, gentle pressure for uniform slices.

VEGETABLE AND FRUIT

Your slicer is “made to order” for slicing many vegetables and fruits including potatoes, tomatoes, carrots, cabbage (for slaw), eggplant, squash and zucchini. Potato may be sliced thick for casseroles or thin for chips. Fresh pineapple may be sliced neatly. Cut off top and slice to order.

BREADS, CAKES AND COOKES

Freshly baked bread should be cooled before slicing. Use day-old or slightly stale bread for extra-thin sliced for toasting. Your slicer is ideal for all types of party breads, pound cake and fruit cake. For wafer-like ice box cookies or chill dough in refrigerator, slice as desired.

REMARK:

1. When using the machine, you should provide with a base having a plain surface underneath the machine.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Exercise extreme caution when using the appliance and keep it away from children. The blade is very sharp.

This appliance conforms with the Ce directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirement. Subject to technical changes without prior notice. In case of any repairs, replacement of cord or plug, or adjustment, please consult a qualified technical or take appliance to an authorised service facility.

In order to fulfill ruling UNE EN-600335, we indicate that if the flexible wire is damaged, it can only be substituted by a technical service recognized by NEVIR, S.A., as per special tooling is required.
