USER MANUAL TVWH360DB VIKING
TVWH360, CTVWH360
TVWH480, CTVWH480
TVWH660, CTVWH660
Table of Contents
Important Information 2
Warnings 3
Dimensions & Specifications 4
Clearance Dimensions 5
Interior Ventilator Dimensions 6
Exterior Ventilator Dimensions 7
Planning Information 8
Installation 9
Duct Cover Option 10
Service & Registration 11
IMPORTANT—Please Read and Follow!
NOTE: If installing hood with warming shelf panel, install warming shelf panel first.
IMPORTANT – PLEASE READ AND FOLLOW
- Before beginning, please read these instructions completely and carefully.
- Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
- Please observe all local and national codes and ordinances. If no local codes are applicable, wire in accordance with the National Electrical Code, ANSI/NFPA 70-latest edition.
- Damp environment approved models should be installed in a covered non-enclosed area and should be protected from the elements as much as possible.
- The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.
- Check with a qualified and trained installer or local codes for makeup air requirement, if any.
This hood is for residential installation only and is not designed for installation over a commercial product. Make sure power is off at the main circuit breaker or fuse box before making connections. To avoid risk of fire, electric shock, or injury to persons, turn off the electricity to the hood from the power supply before servicing or cleaning. Our hoods are equipped with variable speed control blowers. These units will not function with a single speed ventilator. All Viking Range ventilator kits are designed specifically for use with Viking Range hoods. Use of any non-Viking Range ventilator kit will void the hood warranty.
READ AND SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
- Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
- Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flute (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting of drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Ducted fans must always be vented to the outdoors.
- WARNING!: To reduce risk of fire, use only metal ductwork
- CAUTION!: To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings, or into attics, crawl spaces, or garages.
- CAUTION!: To Reduce the Risk of Fire and Electric Shock, Install this rangehood only with remote blower models manufactured by Viking Range, model numbers – DEV900/DEV1200, VEV900/VIL1200 or integral blowers manufactured by Viking,Range model numbers – VINV300/600/1200 or DII1200. NOTE – Please refer inside for specific canopy/blower combinations.
WARNING
To reduce the risk of injury to persons in the event of a rangetop grease fire, observe the following. (Based on "Kitchen Firesafety Tips," published by NFPA.)
- SMOTHER FLAMES with a close fitted lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
- NEVER PICK UP A FLAMING PAN. You may be burned.
- DO NOT USE WATER, including wet dishcloths or towels a violent steam explosion will result.
- Use an extinguisher ONLY if
- You know it is a Class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
• The fire department is being called. - You can fight the fire with your back to an exit.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS
Rangehoods must be installed with the ventilators that are specified on their carton indicating suitability with
this model. Other ventilators cannot be substituted.
CAUTION
This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

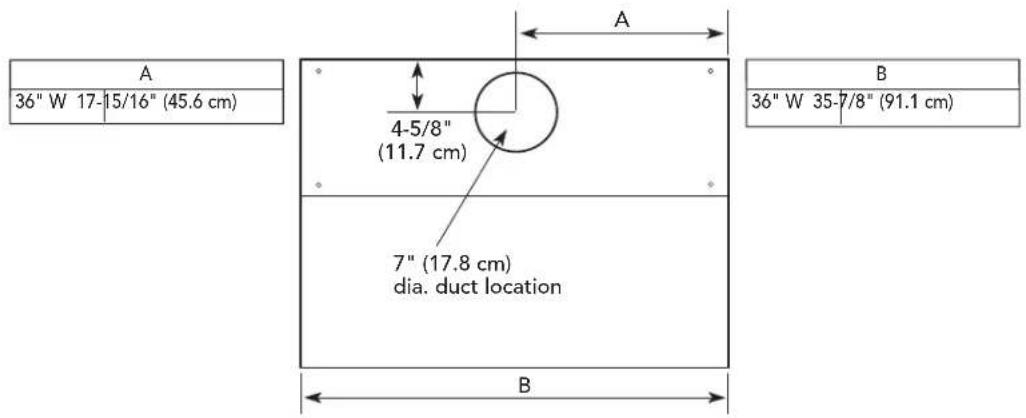

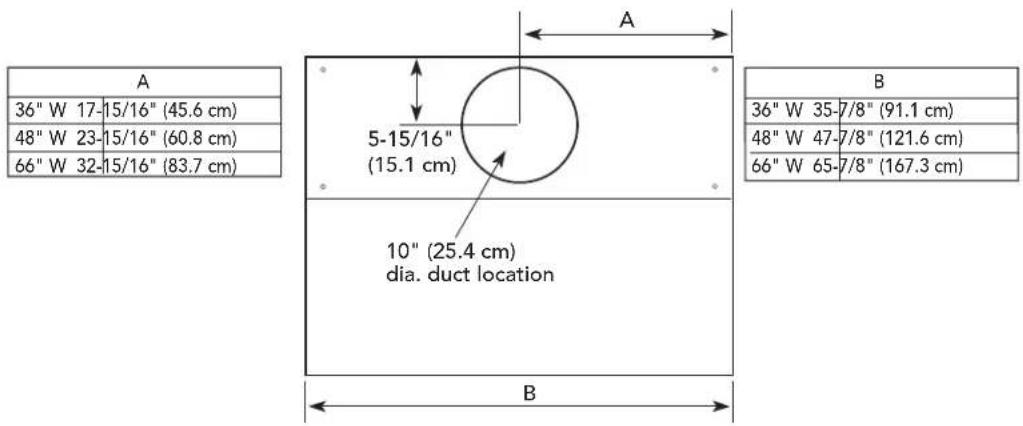

Dimensions & Specifications
| A |
| 36" W 3$-7/8" (91.1 cm) |
| 48" W 47-7/8" (121.6 cm) |
*NOTE: Optional duct cover sold separately.
| 18"H. Wall Hoods | |||
| Description 36" 48" 66" | |||

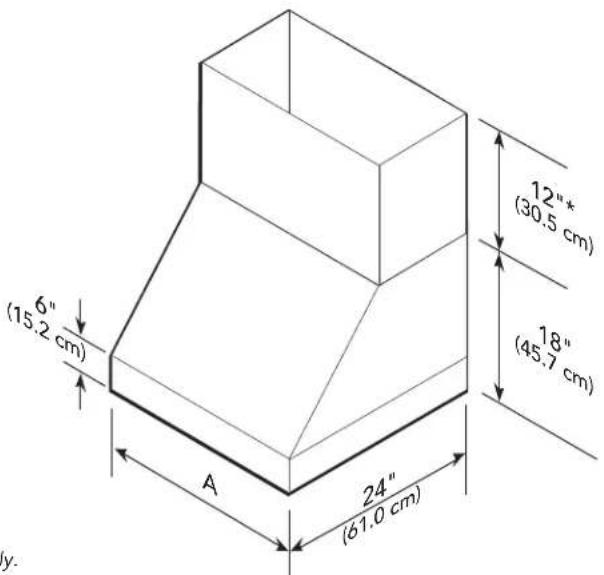

| Duct cover width | 35-7/8"(91.1 cm) | 47-7/8"(121.6 cm) | 65-7/8"(167.3 cm) |
| Duct cover depth | 12" (30.5 cm) | ||
| Duct cover height | 12" (30.5 cm) | ||
| Number of lights | 2 3 3 | ||
| Number of filters | 2 3 3 | ||
| Heat lamps | 1 2 2 | ||
| Interior ventilator kits | VINV300/600/1200 | VINV1200 VINV1200 | |
| Exterior ventilator kits | DEV900/1200* | DEV1200*/1500** | DEV1200*/1500** |
| In-line ventilator kits | DIL1200 DIL1200 | DIL1200 | |
| Interior duct size | 7"/10"(17.8/25.4 cm) | 10"(25.4 cm) | 10"(25.4 cm) |
| Exterior duct size | 10" (24.5 cm) | ||
| Interior—Maximum amps | 4.2/5.2/8.2 10.8 | 10.8 | |
| Exterior—Maximum amps | 8.0/5.3 7.8/8.5 | 7.8/8.5 | |
| In-Line—Maximum amps | 5.3/7.2 9.6 9.6 | ||
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft. NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18"H. hoods.

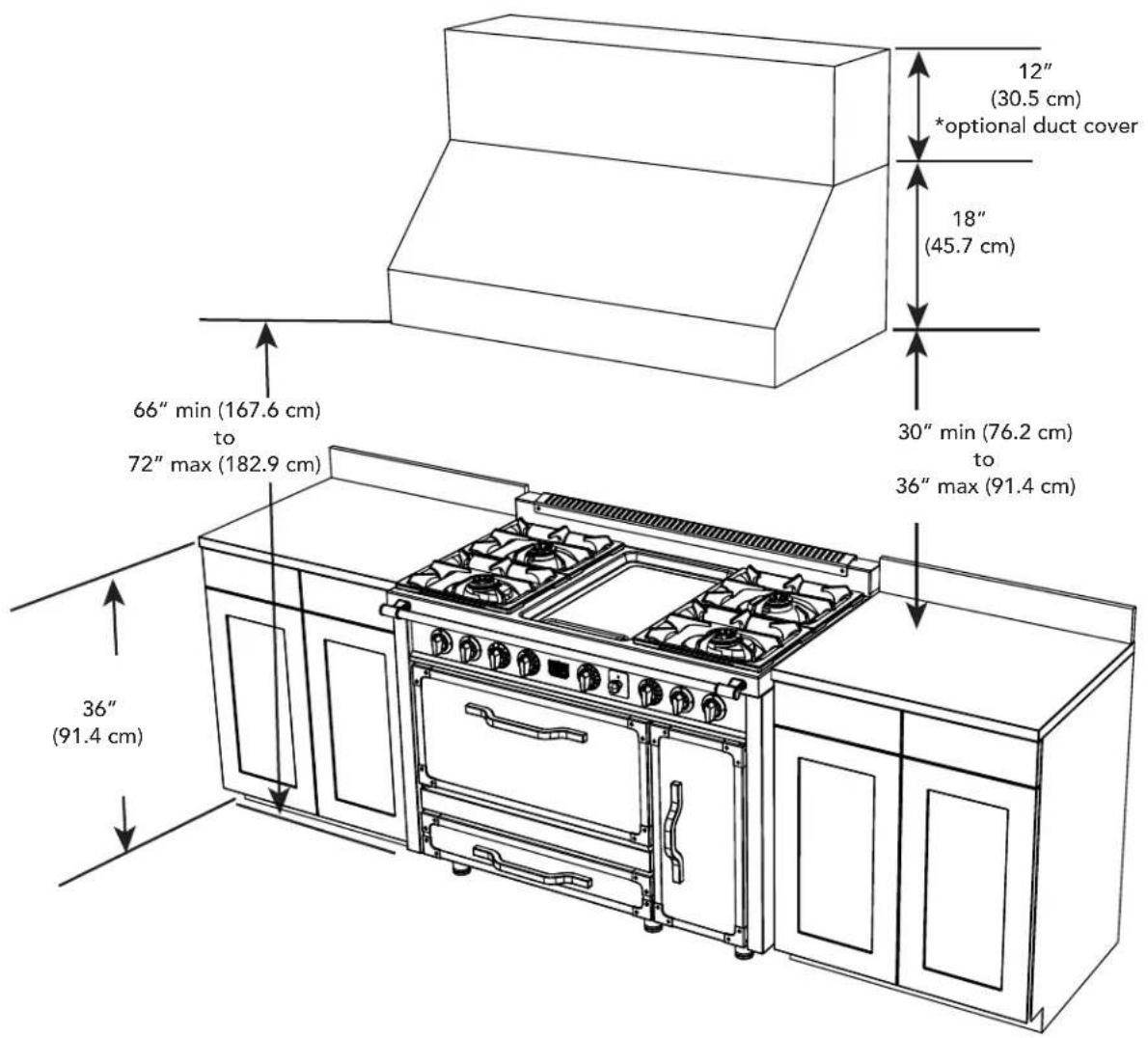

Clearance Dimensions
Interior Ventilator Dimensions

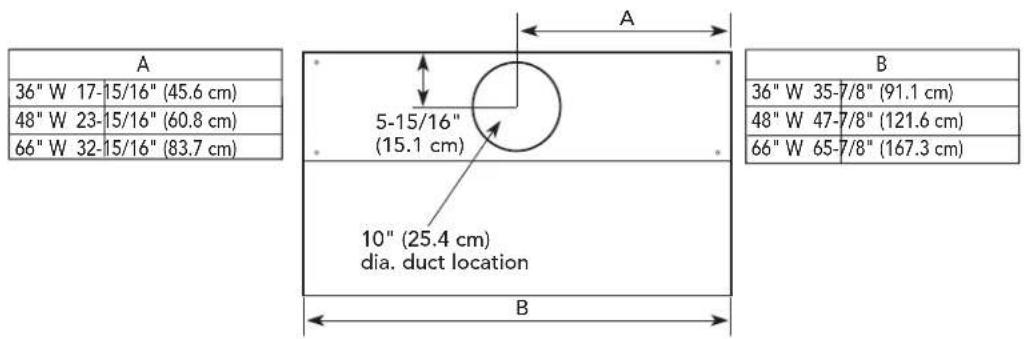

Top View
*300 or 600 CFM Interior Ventilator Installation for all Wall Hoods
Top View

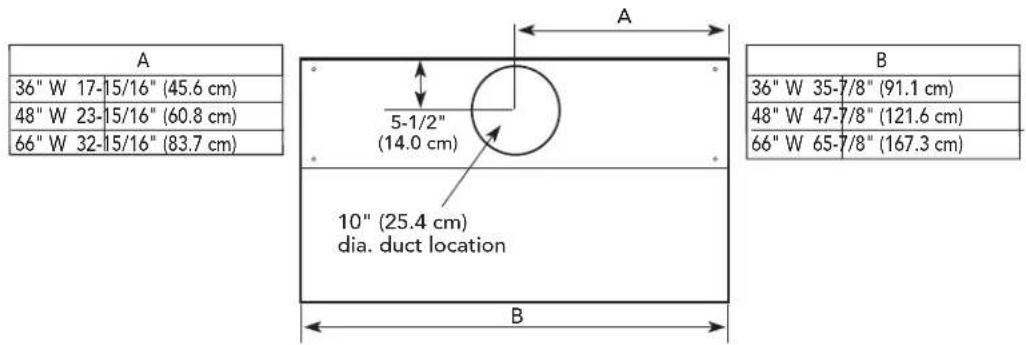

*1200 CFM Interior Ventilator Installation for all Wall Hoods
*See blower install guide for detail mounting instructions
Exterior Ventilator Dimensions
Top View
900 or 1200 CFM Exterior Ventilator Installation for all Wall Hoods
Top View
1200 or 1500 CFM Exterior or In-Line Ventilator Installation for all Wall Hoods
Planning Information
Proper installation of ducting is extremely important to ensure maximum performance from any ventilation product.
- All CFMs are based on tests at 0.1 static pressure: without applying static pressure, CFM would be greatly overstated.
- Straight runs and gradual turns are best; for example, each 90^ elbow is equivalent to 5-10 feet (1.52-3.05 cm) of straight run.
- Never use flexible duct; it creates back pressure/air turbulence and greatly reduces performance.
- Proper performance is dependent on proper ducting; make sure that a qualified and trained installer is used.
- Check with a qualified and trained installer or local codes for makeup air requirement, if any.
- Max. amp rating for hoods includes recommended ventilator kit rating; all products must be hard wired direct with 2-wire with ground.

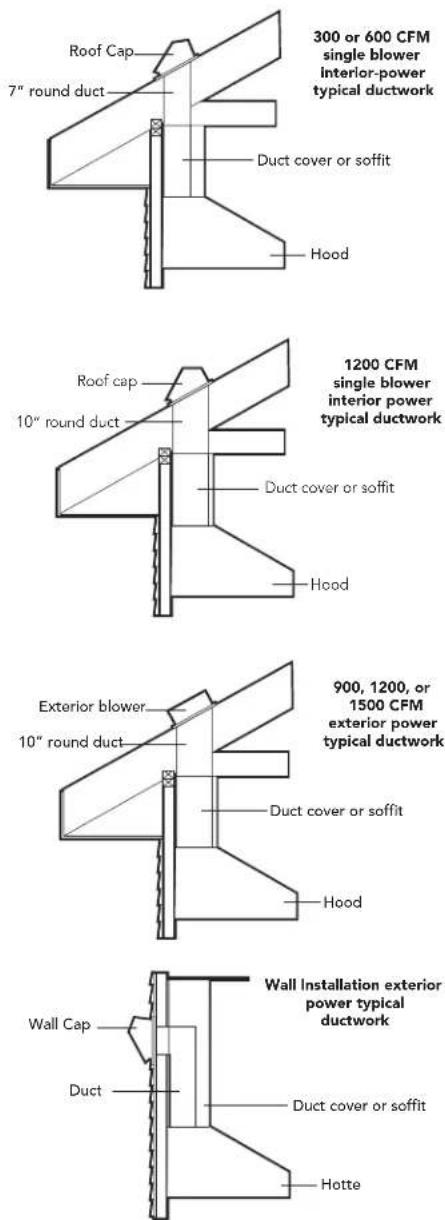

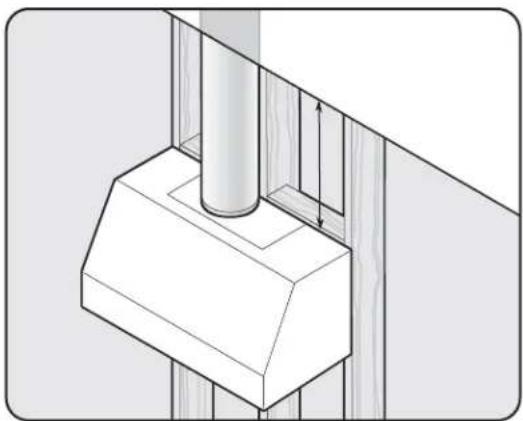

Plan where the duct work will be located. Install proper-sized duct work, and roof or wall cap for the type of blower you are using. Recommended hood locations for the most common installations are shown. Adjust your measurements for various heights of ceilings, soffits, cabinets, or ranges/rangetops.
Check Framing
NOTE: Wall exhaust must be a minimum of 24" (61.0 cm) from ground. This may vary depending on local codes and geographic location.
Installation

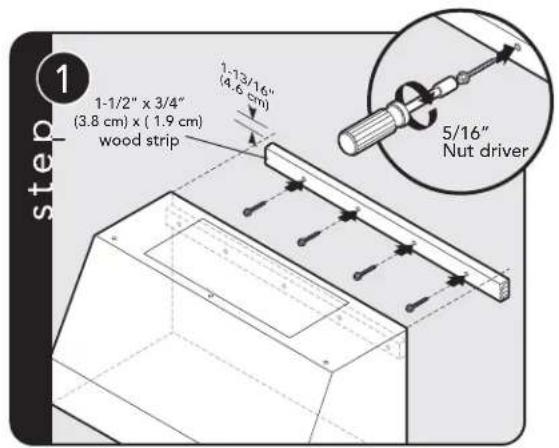

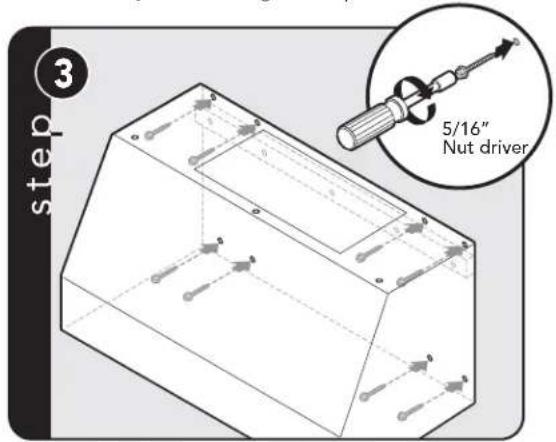

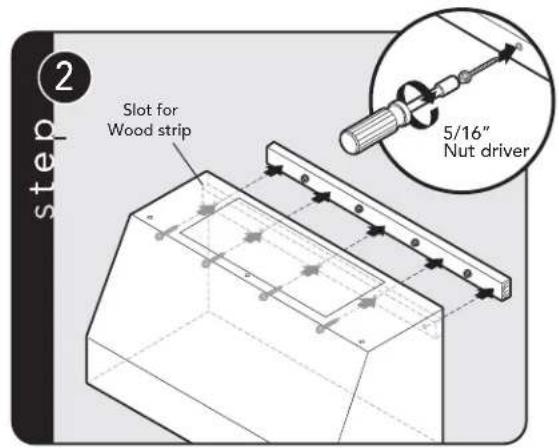

Measure down 1-13/16 (4.6 cm) from desired height of hood and secure 1-1/2" x 3/4" wood strip (provided locally) to wall using screws provided.
Use additional mounting screws to secure hood to wood strip.

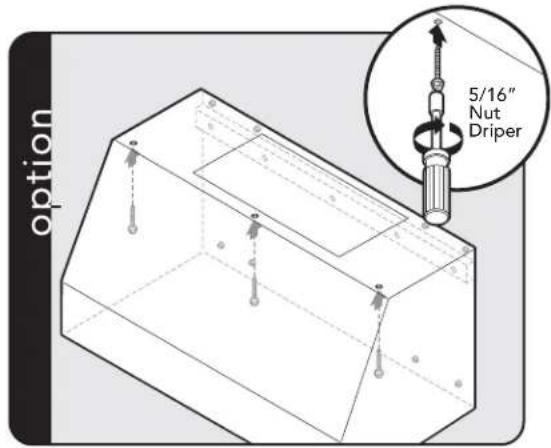

CAUTION: Secure vent hood to wall using screws provided. Use additional mounting screws and wall anchors, if necessary.
CAUTION: If not using a duct cover, using screws provided, make sure top mounting screws are secured into soffit or cabinet framing use additional mounting screws, if necessary.

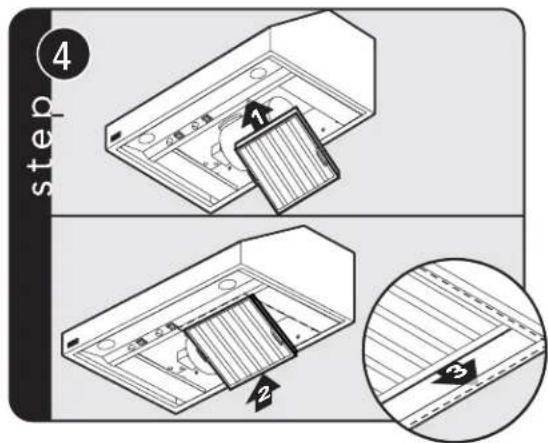

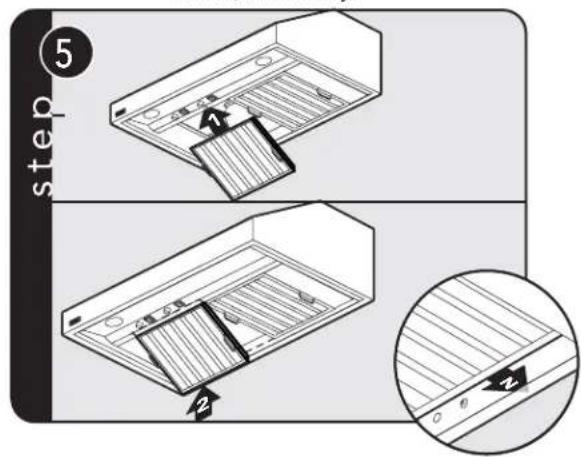

Slide filter front over front lip. Push filter rear up, then slide back over rear lip.
Slide filter front over front lip. Push filter rear up, then slide back over rear lip.
Duct Cover Option

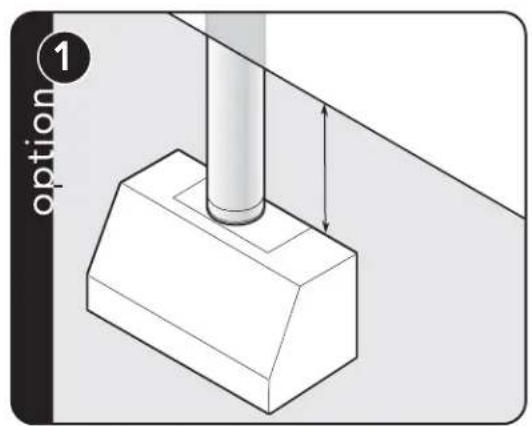

Measure distance from ceiling to canopy.

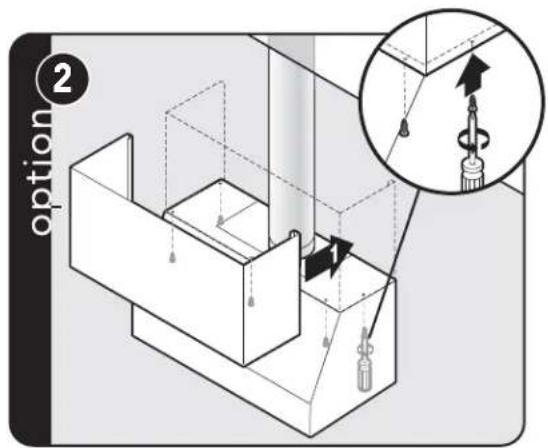

Slide the duct cover in place and fasten from inside canopy using the sheet metal screws provided.
To install ventilation kit refer to ventilation kit installation instructions.
Service & Registration
If service is required, call your authorized service agency.
Have the following information readily available.
- Model number
- Serial number
- Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-(845-4641), or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Record the information indicated below. You will need it if service is ever required. The model and serial number for your hood is located behind the baffle filter on the left side panel in the lower right corner.
Model no. ____ Serial no. ____
Date of purchase ____ Date installed ____
Dealer's name ____
Address ____
If service requires installation of parts, use only authorized parts to ensure protection under the warranty.
THIS MANUAL SHOULD REMAIN WITH THE HOOD FOR FUTURE REFERENCE.
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-(845-4641)
or visit our web site at vikingrange.com in the US or
brigade.ca in Canada
Brand : VIKING
Model : TVWH360DB
Category : Range hood
