RM/438 - Aaaa Ramtons - Free user manual and instructions

Brand	Ramtons
Model	RM/438
Product Type	Kitchen Appliance
Power Supply	220-240V, 50/60Hz
Power Consumption	700W
Dimensions (W x D x H)	25 cm x 20 cm x 30 cm
Weight	2.5 kg
Cord Length	1.2 m
Material	Stainless Steel / Plastic
Capacity	1.5 L
Functions	Blending, Grinding, Mixing
Speed Settings	2 speeds + Pulse
Dishwasher Safe Parts	Removable jar, lid
Cleaning	Wipe with damp cloth; hand wash removable parts
Safety Features	Non-slip feet, overload protection
Spare Parts Available	Blade assembly, jar, lid, seal ring
Warranty	1 year
Manual Languages	English

Frequently Asked Questions - RM/438 Ramtons

How do I clean the RM/438?

Unplug the appliance. Wash the removable jar, lid, and blade assembly in warm soapy water or the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base.

Can I blend hot liquids?

No, allow hot liquids to cool below 60°C before blending to prevent pressure build-up and damage.

What does the pulse function do?

The pulse function provides short bursts of power for chopping or controlling texture. Press and release the pulse button.

Why is the appliance not starting?

Check that the jar is properly locked onto the base. Ensure the power cord is plugged in and the outlet is working. The overload protector may have tripped; let it cool.

Is the blade removable?

Yes, the blade assembly is removable for cleaning. Turn the jar upside down and unscrew the blade unit carefully.

Can I use the RM/438 for grinding coffee beans?

Yes, it is suitable for grinding dry ingredients like coffee beans, spices, and nuts. Use the pulse setting for best results.

What is the maximum capacity?

The maximum liquid capacity is 1.5 liters. Do not overfill to avoid spillage and motor strain.

How do I replace the seal ring?

Remove the old seal ring from the lid or blade assembly. Stretch the new seal ring over the groove evenly to ensure a tight fit.

Can I use the appliance continuously?

Do not run the motor continuously for more than 1 minute. Allow it to cool for 2 minutes between cycles to prevent overheating.

Where can I get spare parts?

Spare parts are available through authorized Ramtons service centers or notice-facile.com parts store. Search for RM/438.

USER MANUAL RM/438 Ramtons

S/Steel Cordless Kettle

INSTRUCTION MANUAL

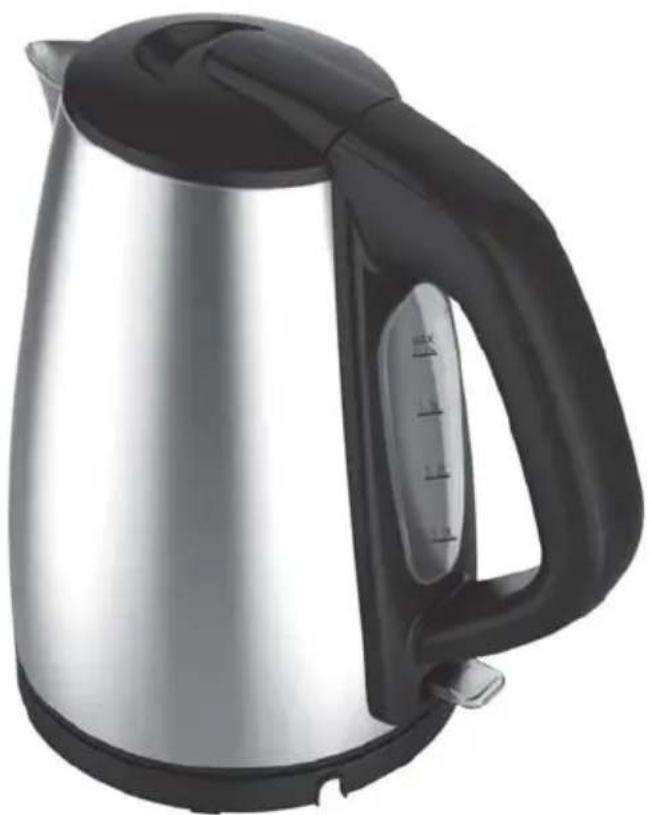

Modern stainless steel kettle with black handle and digital ruler on side (no text or symbols visible)

MODEL: RM/438

Read this manual thoroughly before using and save it for future reference

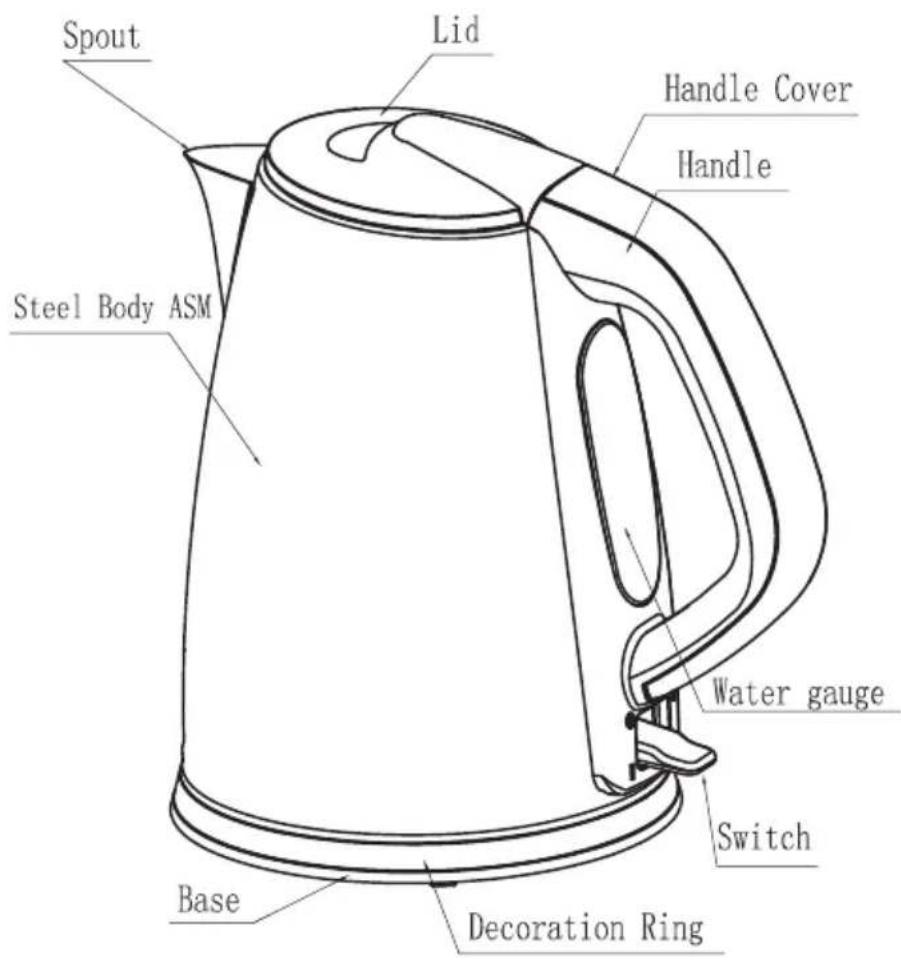

KNOWYOURWATERKETTLE

IMPORTANTSAFEGUARDS

1. Readallinstructionsbeforeusing.
2. Beforeconnectingthekettletothepowersupply, check that the voltage indicated on the appliance (undersidethekettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and stop using the kettle.
   3.Donotletthecordhangovertheedgeofatableorcounterortouchahotsurface.
3. Donotplaceonornearahotgasorelectricburnerorinaheatedoven.
4. Donotoperatetheappliancewithoutanythinginittoavoiddamagingtheheat elements.
5. Ensure that the kettle is used on a firmand flatsurface out of reach of children, this will prevent the kettle from overturning and avoid damage or injury.
6. Toprotectagainstafire, electricshockorpersonalinjury, donotimmersecond, electric plugsorkettleinwaterorotherliquids.
7. While water is boiling, or just after the water has been boiled, avoid contacting with steam from the spout.
8. Alwaystakecaretopourboilingwaterslowlyandcarefullywithouttippingthekettle toofast.
9. Becarefulofrefillingwhenthekettleishot.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been supervisory or instruction concerning use of the appliances by a person responsible for their safety.
11. Children should be supervised to ensure that they don't play with the appliance.
12. Donottouchthehotsurface. Usethehandleorthebutton.
13. The attached base cannot be used for other than intended use
14. Extremecution must be used when moving an appliance containing hot water.
15. The appliance is not at any. Donot the children play it.
16. The kettleisforhouseholduseonly.Donotuseoutdoors.
17. The use of accessories, which are not recommended by the appliance manufacturer, may result in fire, electric shock or personal injury.
18. Unplugthekettlefromtheoutletwhennotinuseandbeforecleaning. Allow the kettletocoolbeforeputtingonortakingoffparts, and beforecleaningtheappliance.

19. Todisconnect, turnanycontrol to "off," then remove plug from wall outlet.

20. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

21. Donotusetheapplianceforotherthanintendeduse.
22. The kettlecanonlyusewiththestandprovided.
23. If the kettle is overfilled, boiling water mayspillout.
24. Always ensure the lid is closed and don't lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
25. This appliance is intended to be used in household and similar applications such as:

-Staffkitchenareasinshops,officesandotherworkingenvironments;
-Farmhouses;
- By clients in hotels, motels and other residential type environments;
-Bedandbreakfasttypeenvironments.

1. Savetheseinstructions.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in asafeway and if they understand the hazards involved. Cleaning and user maintainances shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

BEFOREUSING YOUR KETTLE

If you are using the kettle for the first time, it is recommended that you should clean your kettle before use by boiling the Max capacity of water once and thend discarding the water. Wipethesurface with damp cloth.

NOTE: The max capacity of kettle is 1.7L.

USINGYOURWATERKETTLE

1. Placetheunitonthelevelsurface.

2. Tofillthekettle, removeitfromthepowerbaseandopenthelidbypassingthelid releasebutton, fillwiththedesiredamountofwater, andthenclosethelid. Alternatively, thekettlemaybefilledthroughthespout. Thewaterlevelshouldnot exceedMAXmarksitsbelowMINlevel. Toolittlewaterwillcausethekettle switchingoffbeforethewaterhasboiled.

NOTE: Do not fill the water over the maximum level, as water may sp out when boiling. Ensure that the lid is firmly in place before plugging outlet.

1. Position the kettle on the power base.

2. Connect the plug into a power outlet. Press down the On/Off switch, the indicator will lightup. Then the kettle will start to oil the water, once the water has been boiled the On/Off switch will be off automatically. You can shutoff the power by lifting the On/Off switch at an amount during boiling water. If you want to boil water again, only press down the On/Off switch directly to rest the kettle.

NOTE: Ensure that the On/Off switch is free of obstructions and the lid closed, the kettle will not turn off if the switch is constrained or if the lid is opening.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as both may result in scald, besides, don't open the lid while the water in the

1. The kettle will not re-boil until the On/Off switch is pressed down again. The kettle may bestored on the power base when not in use.

NOTE: Always disconnect the power supply when not use.

BOIL-DRYPROTECTION

Should you accidentally let the kettle operate without water, the boil-dry protection will automatically switch off the power. If this occurs, allow the kettle to cool before filling with cold watertore boil.

CLEANINGANDMAINTENANCE

Always disconnect the appliance from the power outlet and coolitdown completely before cleaning.

1. Neverimmersethekettle, powercordorpowerbaseinwater, orallowmoistureto contact with these parts.

2. Wipetheappearanceofbodywithadampclothorcleaner,neveruseapoisonous cleaner.

3. Remembertocleanthefilteratintervals. Foreasiercleaning, detachthefilterand then replaceitaftercleaning.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to cl outside of the kettle to prevent the gloss loss.

1. Whennotinuse, the power cord can be stored at the bottom of the appliance.
2. Whennotuseorstorage, the powercord may bewound under the bottom of kettle.

REMOVALOFMINERALDEPOSITS

Yourkettleshouldbeperiodicallydescaledasthemineraldepositsintapwatermayform scaleatthebottomofkettleinteriorsoastocausetheoperationlessefficiency. Youcan usethecommerciallyavailabledescalerandfollowtheinstructionsonthepackageof descaler. Alternatively, youmayfollowthebelowinstructionstousethewhitevinegar.

1. Fill the kettle with 3 cup of white vinegar, then adding water to the amount so a to cover the bottom of kettle completely. Leavethesolution in the kettle overnight.
2. Thendiscard them mixture in the kettle, then filling the kettle with clean water, boiling and thend discard the water. Repeat several times until the odor of vinegar has been flushed away. Anystains remaining inside the spout can be removed by rubbing with a damp cloth.

ENVIRONMENTFRIENDLYDISPOSAL

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Youcanhelpprotecttheenvironment!

Pleaseremembertorespectthelocalregulations: handinthenon-workingelectricalequipmentsto anappropriatewastedisposalcenter.
