SNH1300 - Smoke detector Home8 - Free user manual and instructions

USER MANUAL SNH1300 Home8

Simple line drawing of a stylized face with a central flower-like shape and two rounded rectangular elements (no text or symbols)

1x Fire + CO Alarm Sensor

2x Double-Sided Tapes

1x Battery (CR123A) Mounting Accessories

All Home8 add-on devices have to work with Home8 systems.

Get to know the device before you start

Step 1: Assemble your device and accessories

1. Unpack your device and accessories.
2. Pair the device with the Security Shuttle within 1-10 feet to make sure the connection is working well.

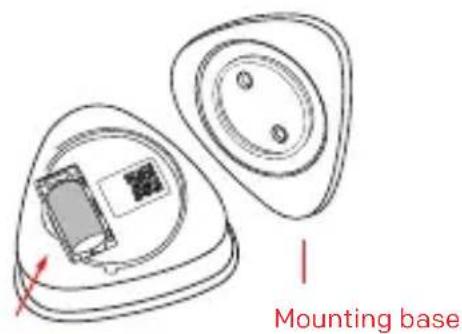

3. Unlock Fire + CO Alarm Sensor from the Mounting base by holding the base firmly and rotating the sensor counter-clockwise. Remove the battery compartment cover and insert a battery. Reattach the cover.

White wireless router with two antennas and a small white antenna device, shown with a 1-10 ft scale bar (no text or symbols on devices)

Step 2: Add a device

1. Open the Home8 app, tap on the menu button " and select " Add Device".
2. Find QR Code on the device, scan the QR Code, follow the on-screen instructions.
3. Set Location, if you multiple systems, select the Location for the device to be added.
   Note: If the scan is incomplete, you will be asked to enter the serial number (SN) of the device.

Step 3: Mount your device

Before you mount your device, see if it's within Security Shuttle's range.

1. Take your device to the room you want to use it in.
2. Test the device by pressing and holding the TEST button for 3 seconds. The LED should blink.
3. If you receive a push notification saying "sonic detected", it's within range.

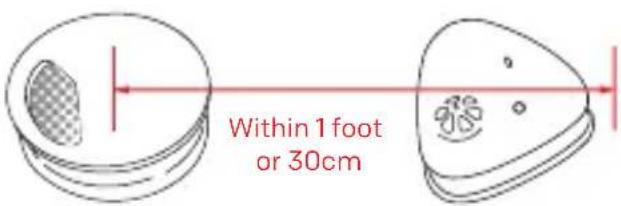

4. Mount your device within 1 foot or 30cm to your existing Smoke/CO detector.

Smoke/CO Detector (UL217 or UL2034 Compliant)

How can I backup recorded video?

You can backup your recorded video by using any of the following methods.

• By setting automatic backup to Dropbox. (Dropbox account needed)
• By sharing your recorded video from VideoGram to your appointed method.

How do I retrieve my Home8 Mobile app password?

Go to the sign-in page of your Home8 app and tap "Forgot password?". Follow the instruction on screen to enter your phone number. You will then receive an access code via SMS. After input an Access Code that app requested, you can then reset the password by yourself. You will also receive a confirmation email after successfully reset your password.

How can I be certain my personal information is secured?

Our first level of security is authentication and your password is encrypted when you sign in to your account. At the next level where all data is transmitted, including videos, images, as well account information, bank-level AES data encryption is used.

How can I be sure unauthorized people are unable to look at my videos on the cloud?

With your privacy in mind, all data is encrypted with bank-level security, and each user has his/her own account to access the video. Our system alerts you and your authorized users when it detects login attempts from unauthorized smart devices.

How many locations can I manage from my Home8 app?

Home8 app is built to support multi-location management. You can manage as many locations as you would like, and we do not place a limit on the number of Home8 Systems you can purchase.

If I lose my smart device, what should I do to protect my Home8 account?

We recommend you to change your password as soon as possible by using other smart device with Home8 App installed to sign in to your account to make the change to your password. Alternatively, you may also contact us to disable your account for you.

Is there a place I can view the user manual online?

Yes, visit www.home8alarm.com/download, and then access user manuals.

What are the requirements prior to purchasing an Home8 System?

Because Home8 System is a fully IoT interactive system, it will require the following:

• DHCP-enabled router with an available LAN port.
• Smart devices with internet connection.

- Broadband Internet connection. (dial-up connections are not supported)

What can I do if a camera is offline?

If a camera is showing as "offline", try power cycle on the camera first and wait approximately two minutes, if the offline situation persists, try moving the camera closer to the Security Shuttle and power cycle the device again. After tried the methods above, if the offline status is still not resolved, please contact our Technical Support for further troubleshooting assistance.

What can I do if my system is offline?

First, try checking your internet connection, if the connection is working properly, then unplug the network cable from your Security Shuttle for 10 seconds, and then reconnect it. If the Security Shuttle is still offline after 5 minutes, please contact our Technical Support for further troubleshooting assistance.

Troubleshooting Tips

Are your devices listed in your app?

If you're having trouble installing your devices, see if they're listed in your Home8 app:

• Navigate to ≡ > Device Management to see if all your devices are listed
• Tap Add Device from the Side Menu and follow the on-screen instructions to add any missing devices

Are your devices communicating with Security Shuttle?

• If your devices don't connect to Security Shuttle, they might be too far away. Take them to a location that's closer to Security Shuttle and try again.
• If they do connect, you'll know the range of your device and where to install a range extender.
  • Alternatively, you can move Security Shuttle closer to your device.
• If your devices still don't communicate with Security Shuttle, not listed even when they're in the same room, navigate to Add Device > + on the Home8 app to add your devices again.

Do you need to reset your sensor?

If your sensor isn't communicating with Security Shuttle, your app may ask you to reset your sensor.

• Long press the TEST button for 10 seconds then release. LED will flash once a second.
• Return to the app and follow the onscreen instructions.

Need help installing your Home8

system?Visit our FAQ page: http://

www.home8alarm.com/faq/

User Manuals: http://www.home8alarm.com/manuals/

Call us at 1-844-800-6482

Email us at [e-mail]
