Product Type	Docking Station for Getac Z710 & ZX70 Rugged Tablets
Model	DS-GTC-705-2
Dimensions (H x W x D)	8.7" x 9.2" x 2.9" (22.1 x 23.4 x 7.4 cm)
Weight	1.5 lbs (0.68 kg)
Power Input	12.0 V DC-in (direct vehicle connection with fused input power cable)
Port Replication	Power Only (Pogo connector)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Mounting	VESA 75mm hole pattern (four M4 screws included)
Security Lock	Barrel lock with two keys included
Latch Mechanism	Spring-loaded latch handle for secure docking/undocking
Alignment	Two alignment posts for proper tablet seating
Antenna RF Pass-Through	Optional for DS-GTC-705-2 (SMA connectors for WWAN/GPS)
Vehicle Power Connection	Direct connection using included fused input power cable (replacement part DS-DA-320)
Strain Relief	Anchor points on bottom and sides; zip ties included
Battery Charging	Charges tablet battery when docked (0°C to 50°C ambient)
Compliance	CE, FCC Class B, RoHS
Included Accessories	Hardware kit (screws, washers, lock washers, zip ties, keys)
Optional Accessories	Desktop stand (DS-DA-218), 55W power supply (LPS-139), replacement keys (DS-DA-503), screen blanking solution (DS-DA-801)
Maintenance	Clean with dry cloth; do not use liquids or metal objects

Frequently Asked Questions - DS-GTC-705-2 Havis

Which tablets are compatible with the DS-GTC-705-2 docking station?

The DS-GTC-705-2 is designed for Getac Z710 and ZX70 rugged tablets.

What type of port replication does the DS-GTC-705-2 provide?

This model offers Power Only port replication via a Pogo connector. It does not provide data or video ports.

Can I connect the docking station directly to vehicle power?

Yes, the DS-GTC-705-2 comes with a fused input power cable that can be connected directly to the vehicle 12V power source.

How do I mount the docking station?

Use the four M4 screws provided to attach the docking station to any device with a VESA 75mm hole pattern. Torque screws to 20 in-lbs.

How do I dock the tablet?

Ensure the latch handle is lifted. Hold the tablet in landscape orientation, align the tablet's alignment sockets with the docking station's alignment posts, then lower the tablet in. Finally, lower the latch handle to secure it.

Does the docking station charge the tablet?

Yes, when the tablet is docked and the docking station is powered, the tablet battery will charge between 0°C and 50°C (32°F to 122°F).

Is there a security lock?

Yes, the docking station includes a barrel lock and two keys to prevent theft when the tablet is docked.

What precautions should I take?

Do not dock/undock while the tablet is powered on. Avoid moisture, dust, and high temperatures above 70°C. Ensure proper vehicle power connection to prevent damage.

Can I use the docking station with a desktop stand?

Yes, Havis offers an optional desktop stand (DS-DA-218) for office or home use.

How do I obtain replacement parts or keys?

Replacement parts are available from Havis, including the fused input power cable (DS-DA-320), keys (DS-DA-503), and other accessories. Visit www.havis.com or call 1-800-524-9900.

USER MANUAL DS-GTC-705-2 Havis

Havis Docking Station

For Getac Z710 & ZX70 Rugged Tablets

Abstract geometric design with two overlapping orange and blue diagonal bars (no text or symbols)

DS-GTC-700 Series

DS-GTC-701

DS-GTC-704

DS-GTC-706

DS-GTC-701-2

DS-GTC-704-2

DS-GTC-706-2

DS-GTC-703

DS-GTC-705

DS-GTC-703-2

DS-GTC-705-2

3D CAD model of a mechanical housing component with mounting holes and a central mounting bracket (no text or symbols visible)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-700 Series Docking Station for the Getac Z710 & ZX70 Rugged Tablets.

For questions regarding the set-up of your DS-GTC-700 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-701

DS-GTC-703

DS-GTC-704

DS-GTC-705

DS-GTC-706

DS-GTC-701-2

DS-GTC-703-2

DS-GTC-704-2

DS-GTC-705-2

DS-GTC-706-2

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
• DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• A PROPER VEHICLE POWER CONNECTION IS ESSENTIAL TO PREVENT DAMAGE TO THE DOCK AND/OR TABLET. Please refer below to the proper power connection:
• DS-GTC-701, DS-GTC-701-2, DS-GTC-704, DS-GTC-704-2, DS-GTC-705, DS-GTC-705-2 – These docking stations may be connected directly to the vehicle power source using the included fused input power cable.
• DS-GTC-703, DS-GTC-703-2, DS-GTC-706, DS-GTC-706-2 – These connect directly to the tablet and require a certified, automotive grade, Getac approved 55W power source rated for a continuous, regulated 12VDC output (Havis Part Number LPS-139 or equivalent). DO NOT CONNECT VEHICLE POWER DIRECTLY TO THE TABLET. Failure to comply with these requirements will cause damage to the tablet.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-706, DS-GTC-706-2), REFER TO THE SUPPLIED GETAC POWER SUPPLY REFERENCE GUIDE.
• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0^ to 50^ (32°F to 122°F).
  PLEASE REFER TO GETAC Z710/ZX70 OWNER'S MANUAL FOR MORE INFORMATION.

Table of Contents

Specifications 3
Parts Included 4
Port Replication Capability....5
Antenna Identification 5
Installation 6
Cable Management 7
Operation - Docking 8
Operation - Undoing 10

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the tablet
• Use only the specified Power Supply (Part # LPS-139) with this Tablet
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 70^, 158^ ) for a long period of time

Specifications

Power Supply Input 12.0 V DC-in

Dimensions 8.7" (22.1 cm) H x 9.2" (23.4 cm) W x 2.9" (7.4 cm) D

Weight 1.5 lbs (0.68 kg)

Operating Environment -20°C to 50°C (-4°F to 122°F)

Storage Environment -40°C to 70°C (-40°F to 158°F)

EC DECLARATION OF CONFORMITY

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Product name: Tablet Docking Station

Model: DS-GTC-70x, where 'x' may be any alphanumeric character and which describes product options.

(Object of Declaration) May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following directives, standards, or other normative documents:

EMC Directive 2014/30/EU EN 55022::2010/AC:2011

EN 55024:2010

RoHS Directive 2011/65/EU EN 50581:2012

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the

Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Supplementary Information:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation.

Signed for and on behalf of Havis, Inc.:

Warminster, PA, USA June 10, 2014 Bruce Jonik, Director of Engineering, Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications

to the model DS-GTC-70X not expressly approved by Havis, Inc. could void

the user's authority to operate this equipment.

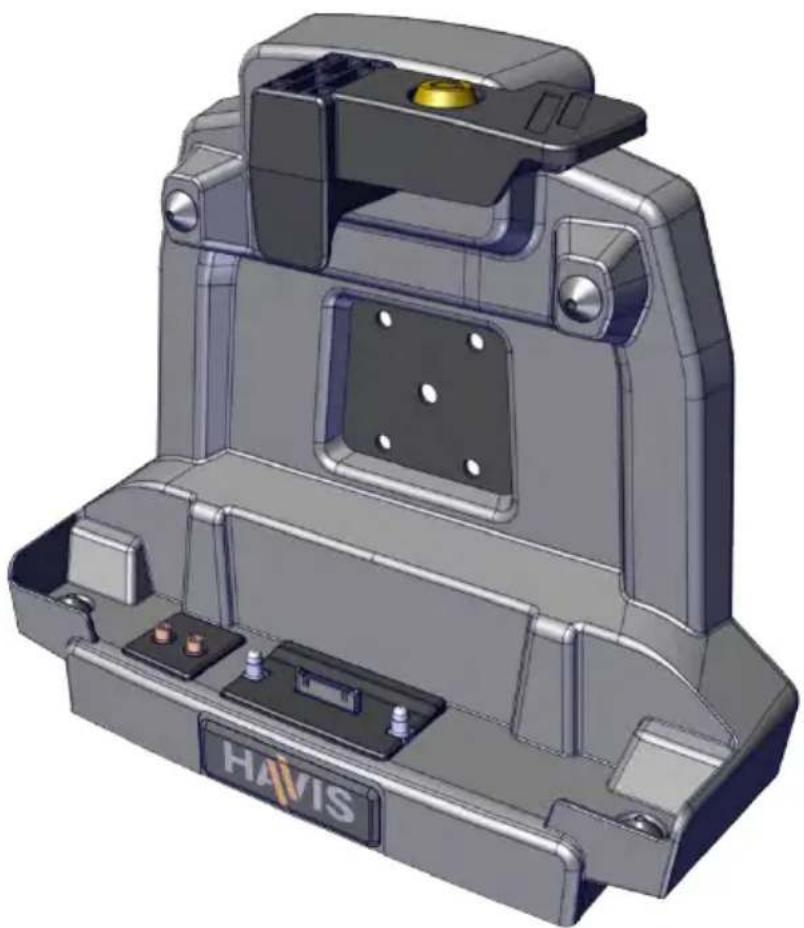

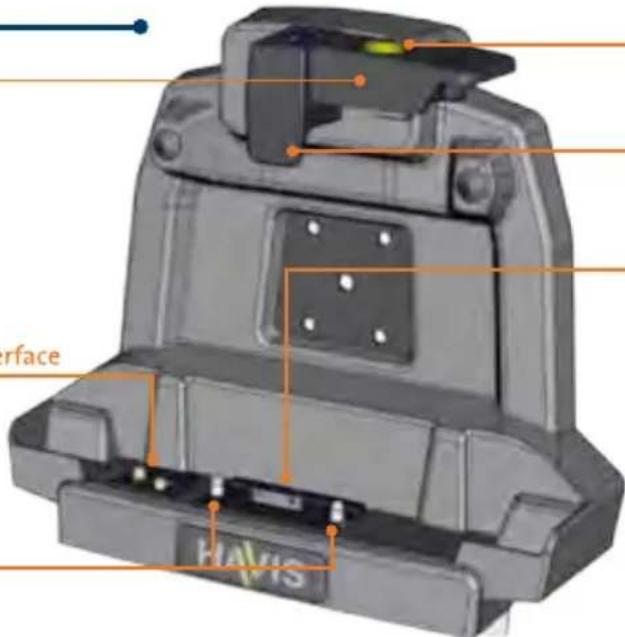

Docking Station

Latch Handle

Barrel Lock

Latch Tab

Docking Connector

RF Antenna to Tablet Interface

(Optional, Part #s

DS GTC 701-2/703-2/

704-2/705-2/706-2)

Alignment Posts

Close-up of a dark rectangular electronic component with two small light bulbs on top (no visible text or symbols)

JAE Connector (DS-GTC-701/701-2)

Close-up of a black rectangular electronic component with two small pins (no visible text or symbols)

Pogo Connector (DS-GTC-704/704-2 DS-GTC-705/705-2)

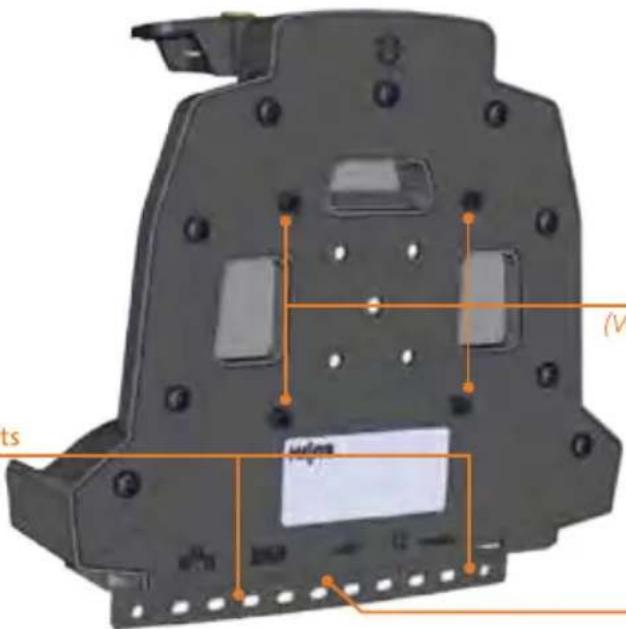

Mounting Holes (x4)

(VESA 75mm Hole Pattern)

Ports

Strain Relief Anchor Points

Fused Input Power Cable

(Replacement Part #: DS-DA-320)

Coiled black cable with a separate filament (no text or symbols visible)

Hardware Kit

This Hardware Kit includes:

1. Zip Ties (5)
2. Keys (2)
3. M4 x 0.7 x 12mm long Pan Head Screws (5)
4. Washers, M4 (5)
5. Lock Washers, M4 (5) Extra hardware provided

Six parallel black rods with a circled number 1 at the top left (no text or symbols on rods)

Tools required for installation: #2 Philips Screwdriver

(For attaching Docking Station to VESA 75mm hole pattern equipment with Pan Head M4 x 0.7 x 12mm Screws)

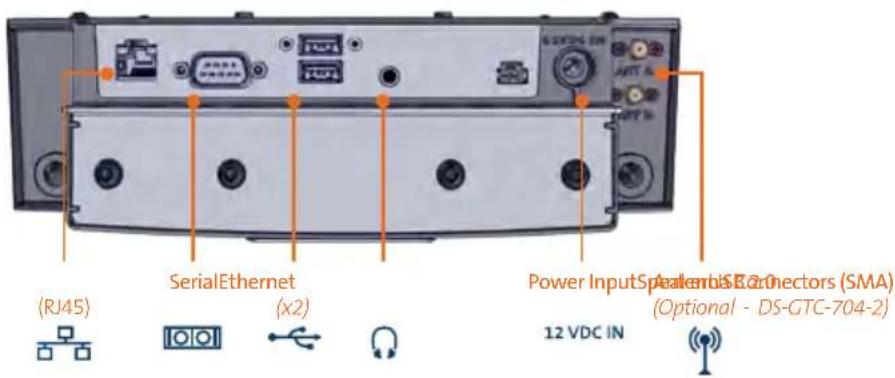

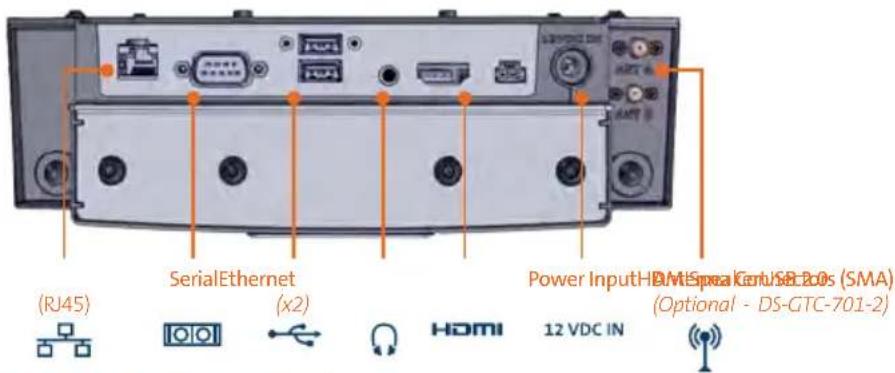

Full Port Replication (JAE Connector Only)

(DS-GTC-701, DS-GTC-701-2)

Lite Port Replication (POGO Connector Only)

(DS-GTC-704, DS-GTC-704-2)

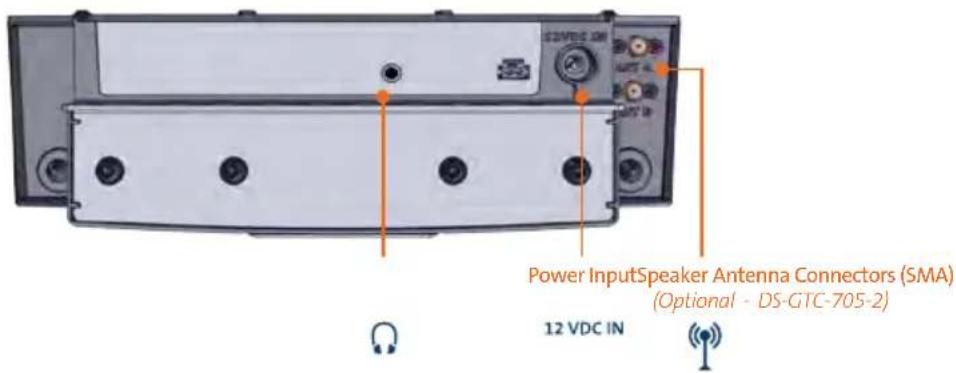

Power Only Port Replication (POGO Connector Only)

(DS-GTC-705, DS-GTC-705-2)

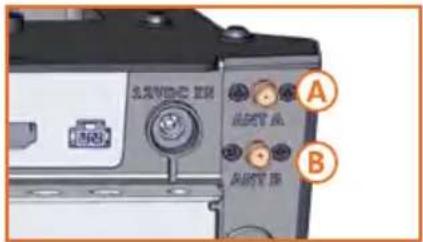

Antenna Identification (DS-GTC-701-2, DS-GTC-702-2, DS-GTC-703-2, DS-GTC-704-2, DS-GTC-705-2)

In reference to the GETAC Z710 & ZX70 Antenna connections

	ANT. A	ANT. B
Z710	WWAN	GPS
ZX70	WWAN	GPS

Antenna Connectors (SMA) Tablet Interface

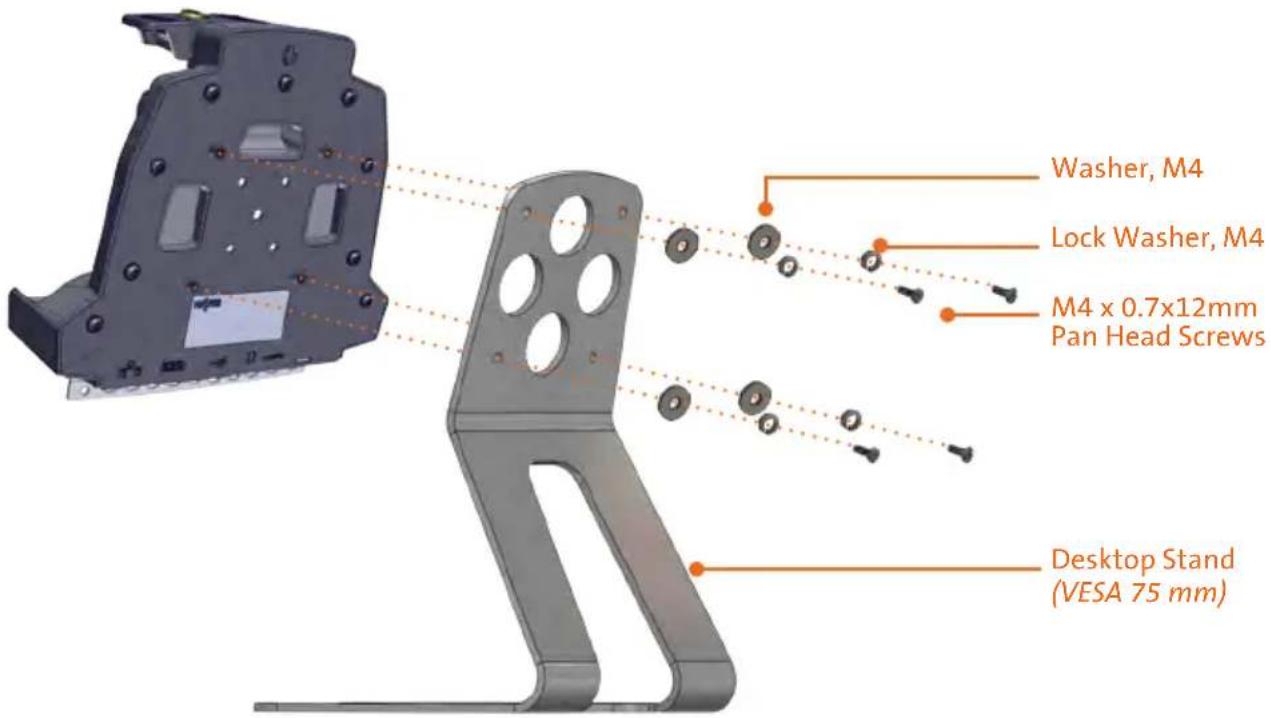

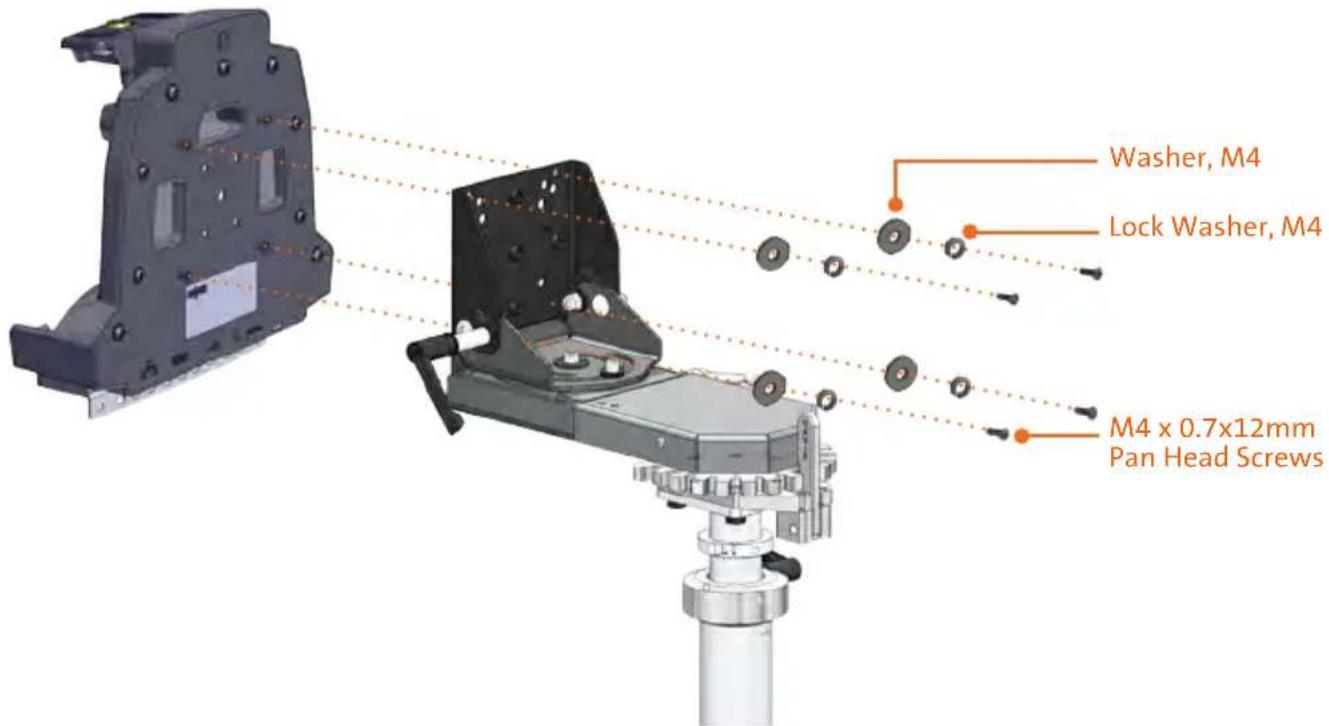

1) Align Docking Station mounting holes with the holes on VESA 75mm hole pattern device. Using the four (4) M4 x 0.7x12mm Pan Head Screws (Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%.

A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218).

B) In-Vehicle mounting system installation.

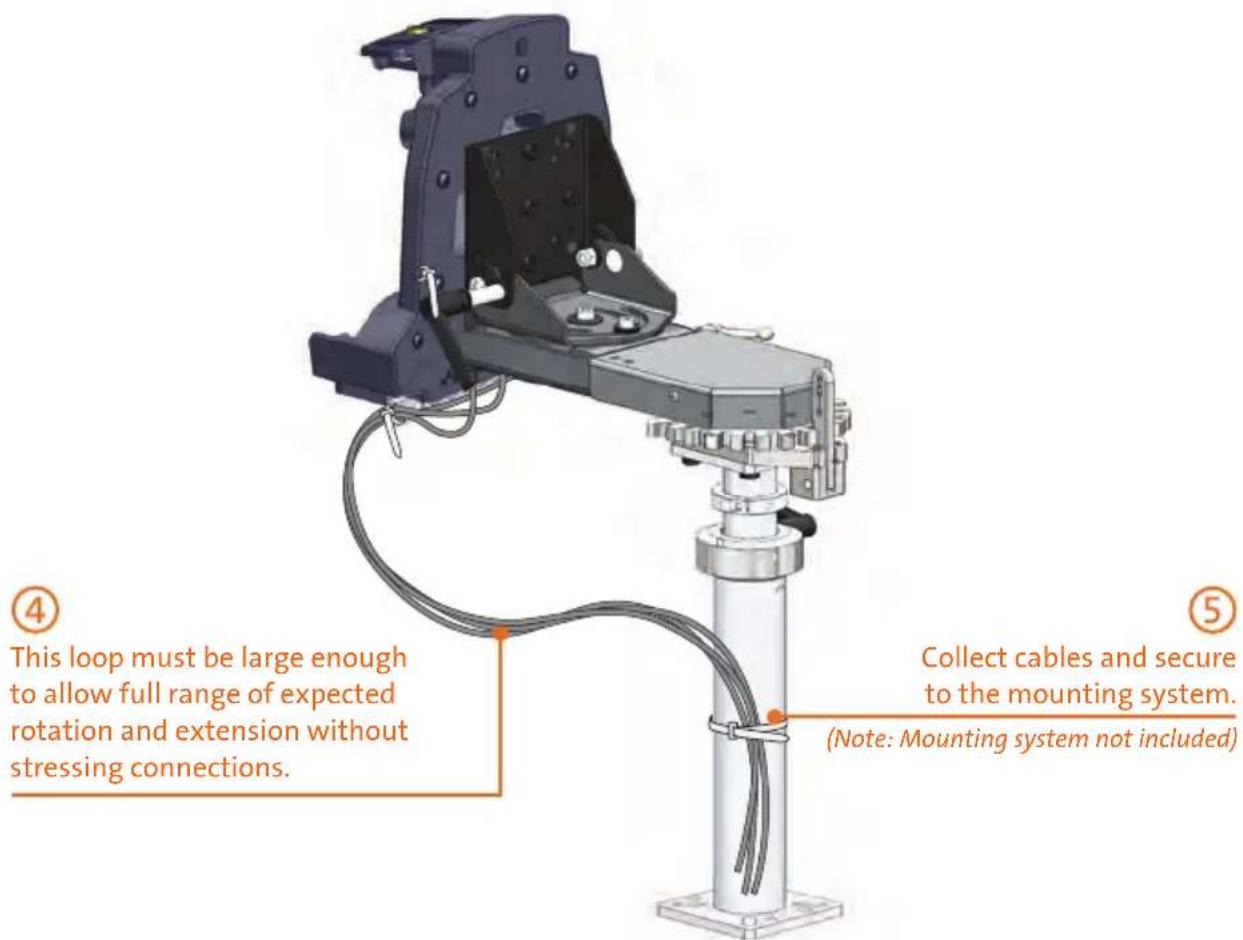

1) Tip the Docking Station to a position that is comfortable to work with.
2) Connect all cables that are necessary for computing needs.

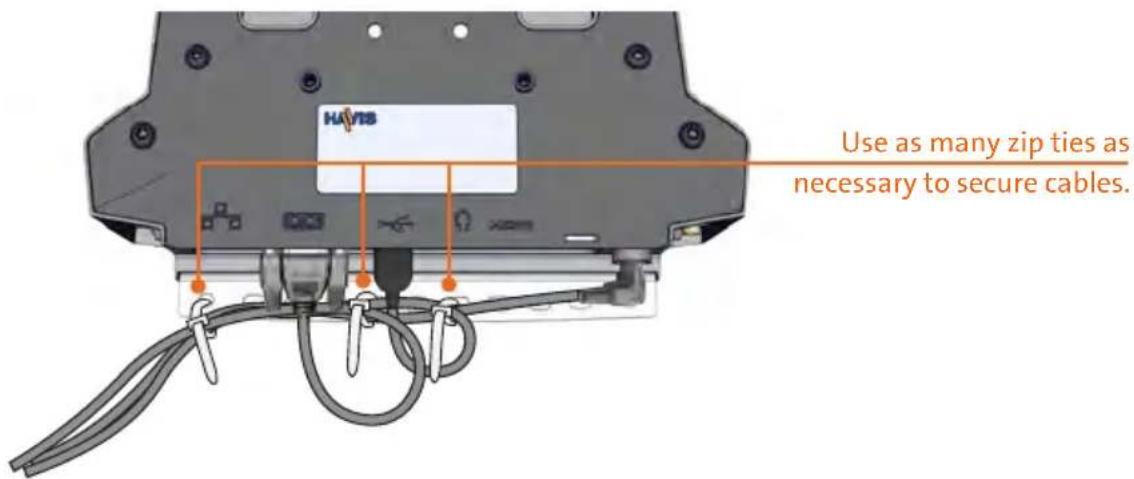

3) Use Zip Ties (Hardware Kit Item 1) to strain relieve cables. Strain Relief Points are located on the bottom and sides of Docking Station and should be used to anchor each cable.

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

3D mechanical component diagram showing a battery pack with orange circular annotation highlighting the internal structure (no text or symbols present)

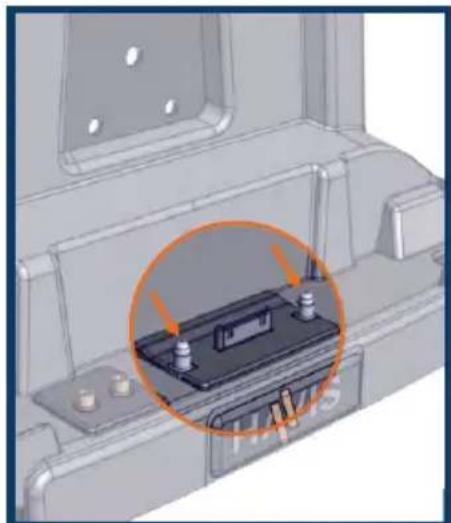

Alignment Posts DS-GTC-700 Series Docking Station

Illustration of a device with labeled components, showing top and side views (no text or symbols)

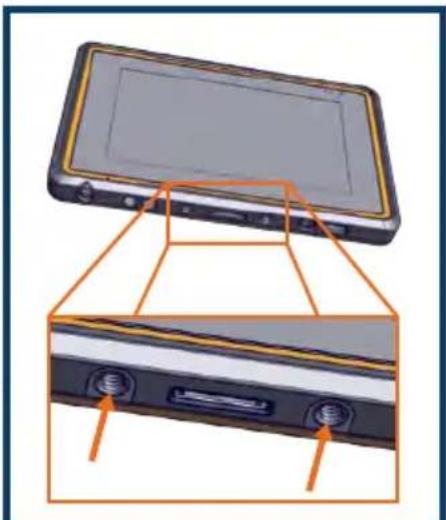

Alignment Sockets Bottom of Getac Z710 Rugged Tablet

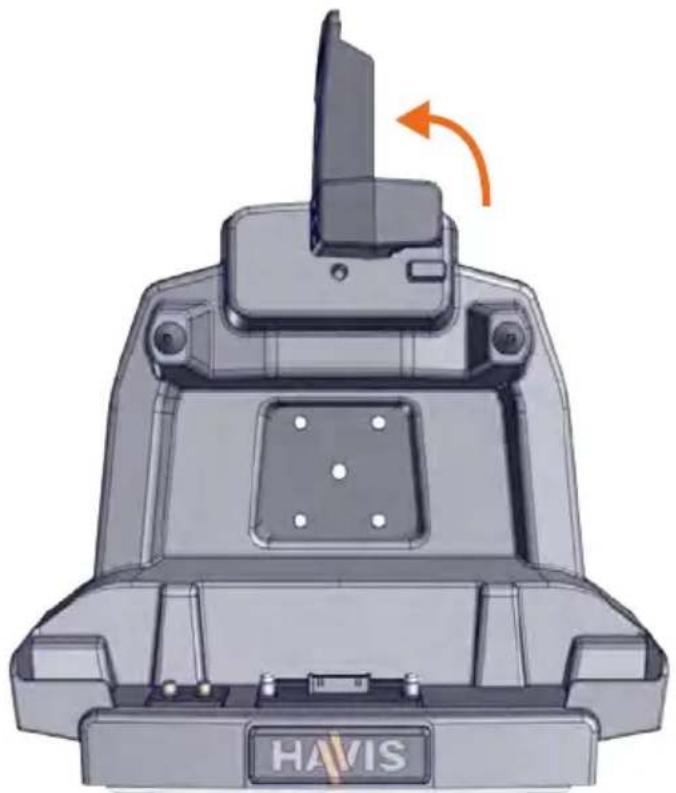

1) Ensure Docking Station is unlatched by lifting Latch Handle.

3D model of a vehicle chassis component with a highlighted top part and orange arrow indicating rotation (no text or symbols on the diagram itself)

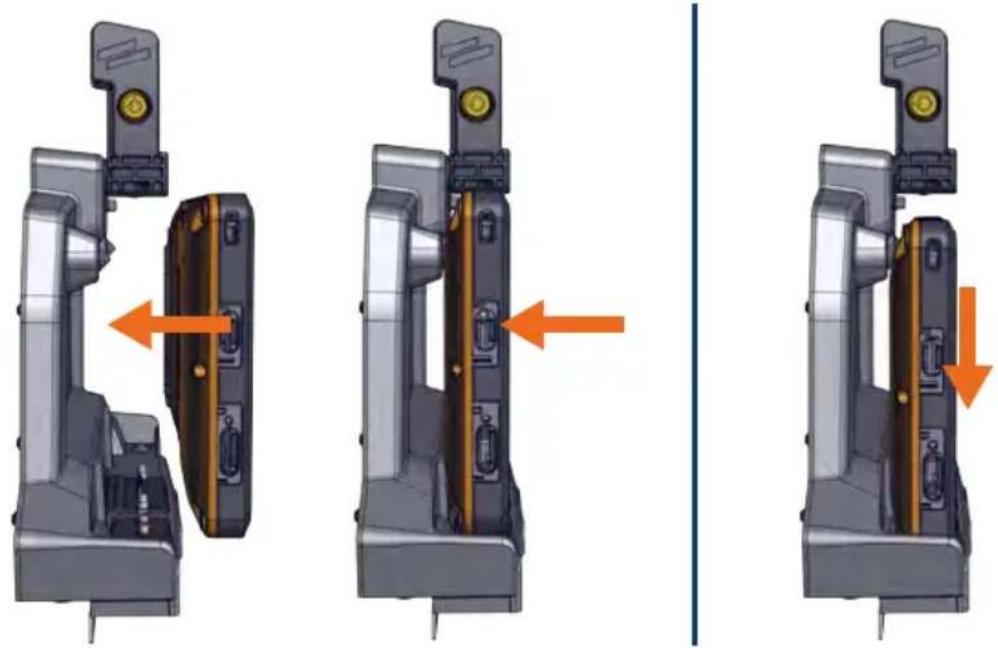

2) Hold tablet in landscape orientation, and guide into the Docking Station. Next, lower tablet into the bottom of the Docking Station, while ensuring that the alignment sockets are aligned with the Docking Station's Alignment Posts.

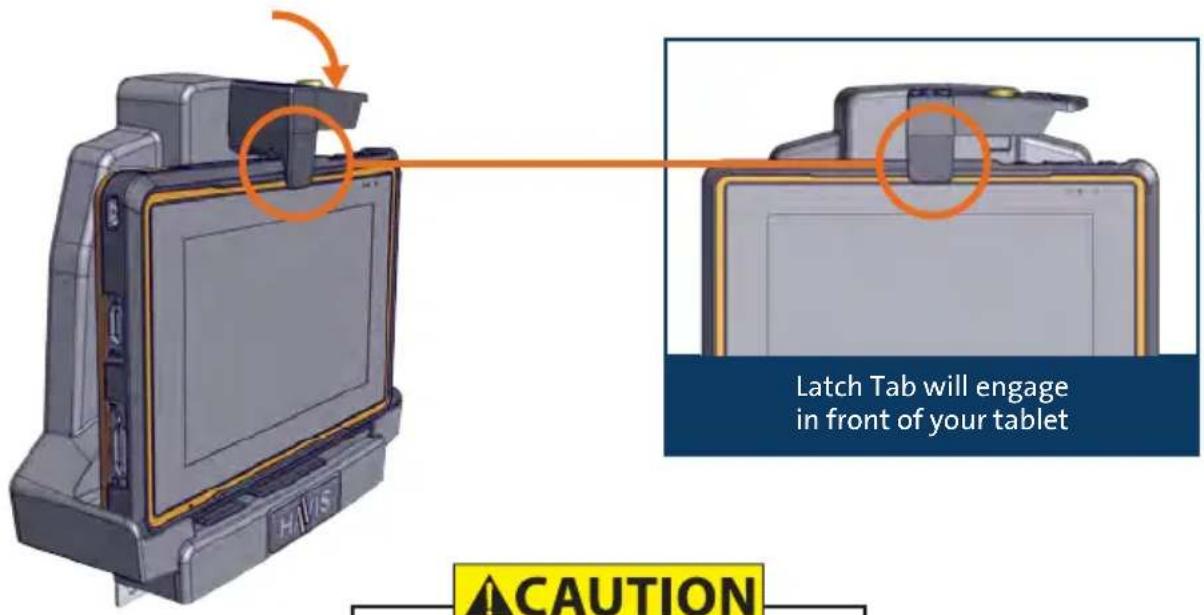

3) When tablet is properly seated in the Docking Station, lower the Latch Handle to secure tablet in place.

CAUTION

If there is excessive force while lowering the Latch Handle, check orientation and position of tablet

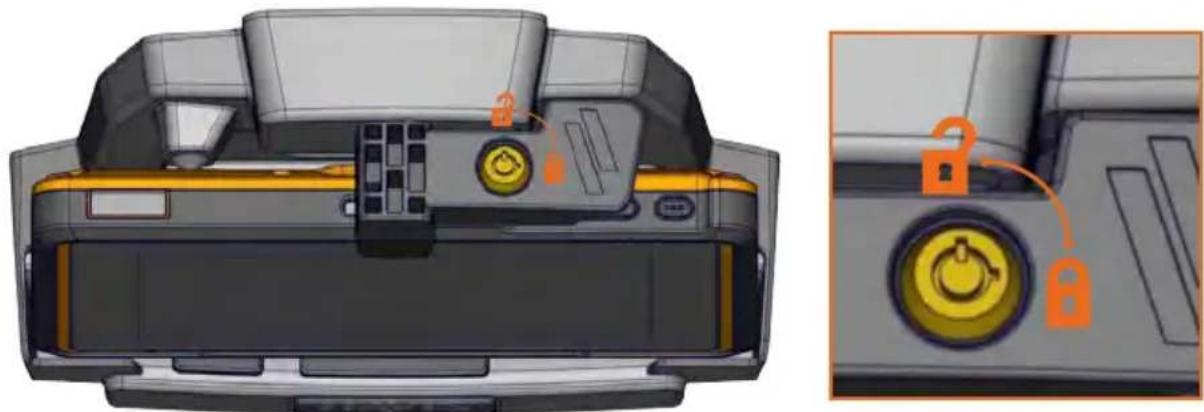

4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).

3D CAD model of a car rearview with highlighted lock mechanism (no text or symbols)

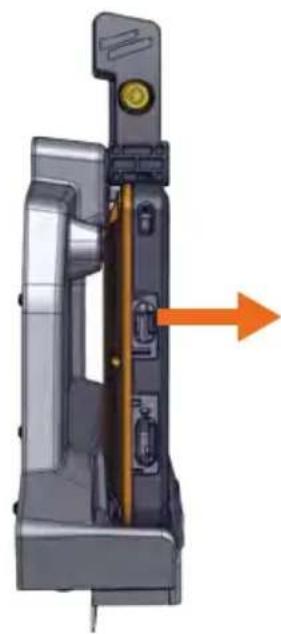

Operation - Undocking

1) If previously locked, unlock Docking Station using supplied key.

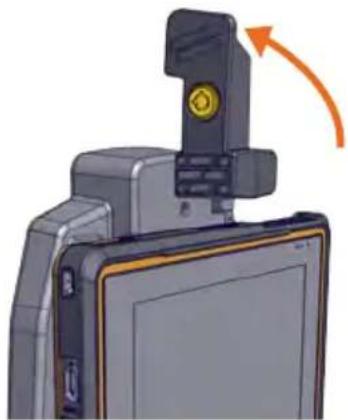

2) While holding tablet with one hand, lift the Latch Handle on the top of Docking Station.

Close-up of a device's top view showing a black mechanical component with an orange arrow indicating rotation (no text or symbols visible)

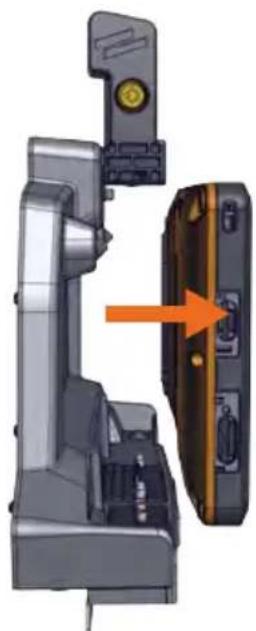

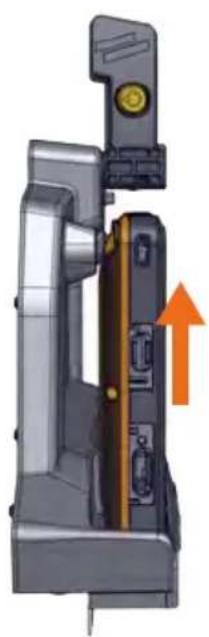

3) Once unlatched grab both sides of tablet, carefully lift tablet up and out of Docking Station.

Mechanical device interior view showing a door handle and internal components with an orange arrow indicating direction (no text or symbols)

Mechanical component diagram showing a door handle assembly with an orange arrow indicating direction (no text or symbols present)

3D mechanical assembly diagram showing a door handle and internal components with an orange arrow indicating direction (no text or symbols)

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-700 Series Docking Station. For more information or to order, please visit www.havis.com.

Black electronic device with cables and connectors (no visible text or symbols)

LPS-139

55W Power Supply

External in-vehicle power supply and cable for Getac Z710/ZX70 Rugged Tablets with cigarette lighter adaptor.

Simple illustration of a flat-screen monitor with a film reel design (no text or symbols)

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Simple black-and-white sketch of a coiled wire or rope (no text or symbols)

DS-DA-320

Replacement Fused Input Power Cable

Replacement Input power cable, 90-degree overmold with fuse for DS-GTC-700 Series Docking Stations.

Close-up of a handgun with a metallic handle and lever (no visible text or symbols)

DS-DA-503

Replacement Keys

Set of two (2) replacement keys for DS-GTC-700 Series Docking Stations.

Black USB device labeled 'blank-it' with a brown port, isolated on white background (no other text or symbols visible)

DS-DA-801

Screen Blanking Solution

Powered by Blank-it, USB dongle manages In-vehicle computer displays and prevents driver distraction.
